openharmony1.1.3 通过i2c进行温湿度采集
温湿度传感器 也是挂载这个i2c总线上
初始化？
读数据
写数据

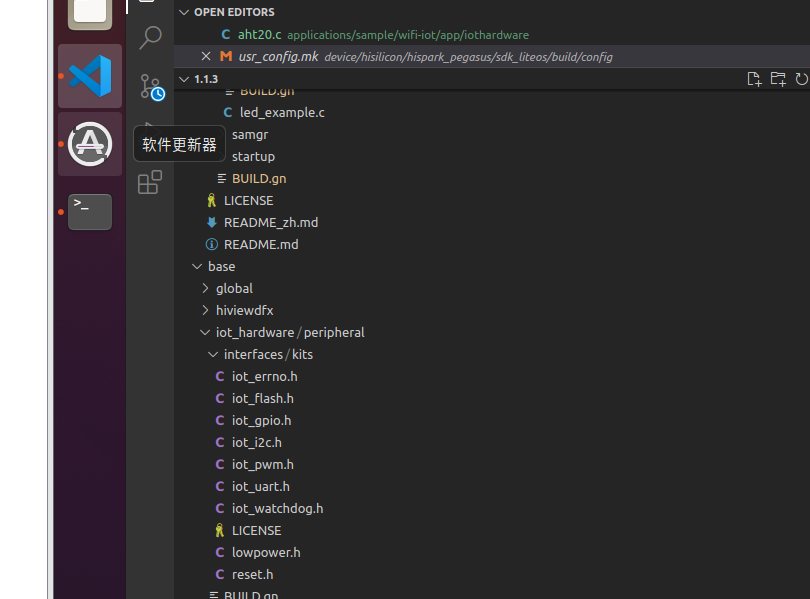

1.1.3 版本的i2c底层接口：

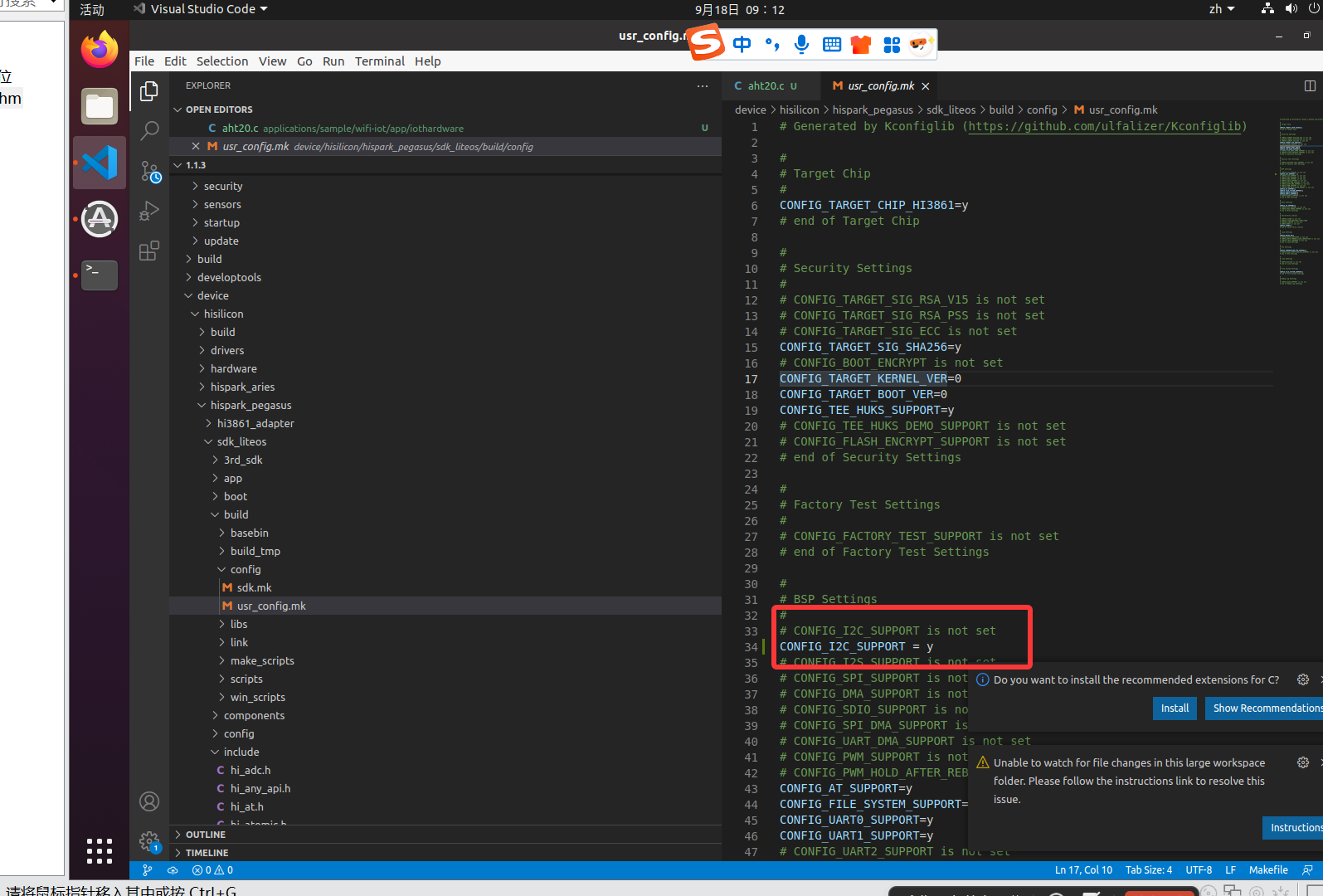

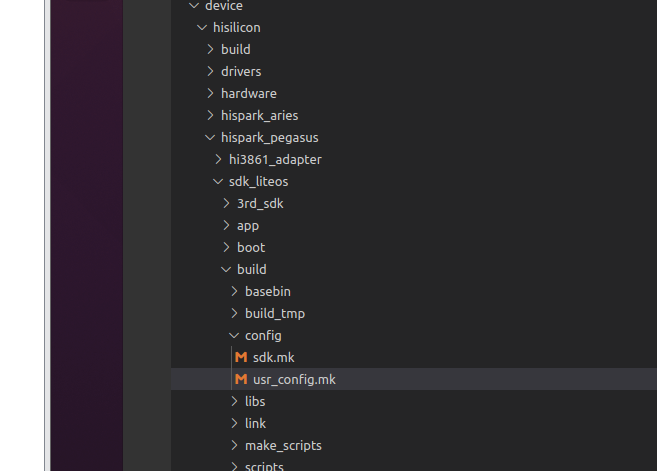

默认 系统没有开启i2c
# CONFIG_I2C_SUPPORT is not set
CONFIG_I2C_SUPPORT = y
开启i2c

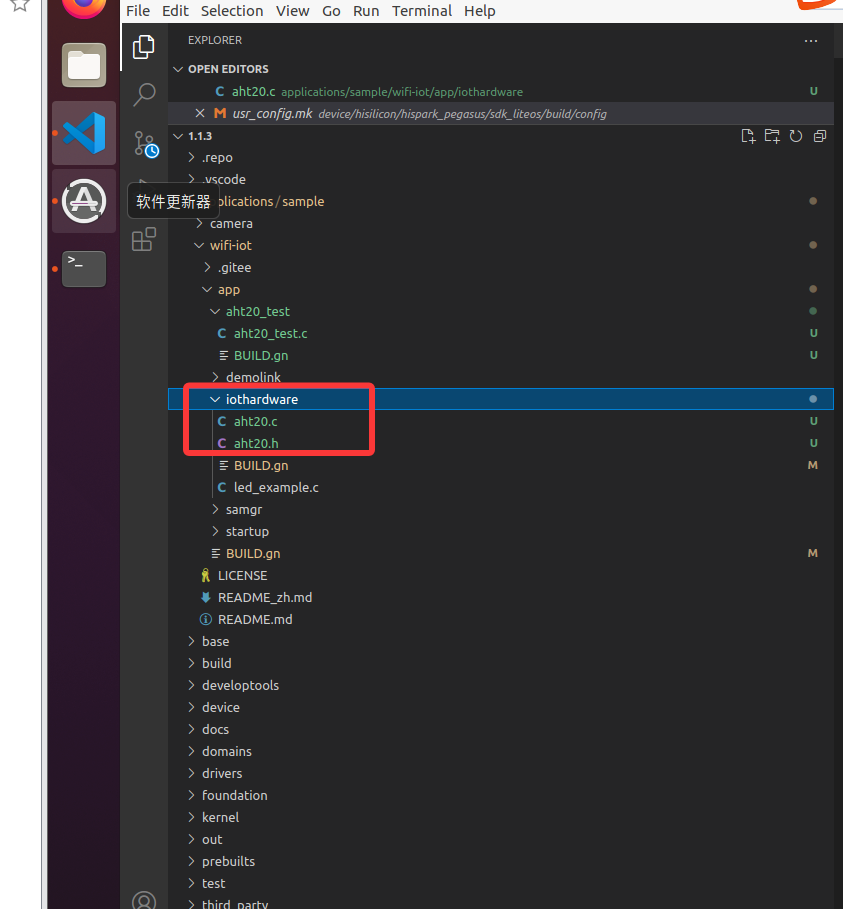

写一套通过i2c 读写温湿度的文件：
aht20.h:
#ifndef AHT20_H#define AHT20_H#include <stdbool.h> // 提供 bool 类型#include "iot_errno.h" // 提供 IOT_SUCCESS/IOT_FAILURE#include <stdint.h>unsigned int AHT20_Init(void);unsigned int AHT20_Calibrate(void);unsigned int AHT20_SoftReset(void);unsigned int AHT20_GetMeasureResult(float* temp, float* humi);#endif // AHT20_Haht20.c:
/** Copyright (C) 2021 HiHope Open Source Organization .* Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at** http://www.apache.org/licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.*/#include "aht20.h"#include <stdio.h>#include <string.h>// OpenHarmony HAL层I2C头文件（替换原海思私有头文件）#include "iot_i2c.h"// 延时函数头文件#include "hi_time.h"// 传感器硬件参数#define AHT20_I2C_IDX 0 // OpenHarmony标准I2C总线索引// 传感器命令定义#define AHT20_INIT_CMD 0xBE // 初始化命令#define AHT20_CALIBRATE_CMD 0xBA // 校准命令#define AHT20_MEASURE_CMD 0xAC // 测量命令#define AHT20_SOFT_RESET_CMD 0xBA // 软复位命令#define AHT20_STARTUP_TIME 20*1000 // 上电启动时间#define AHT20_CALIBRATION_TIME 40*1000 // 初始化（校准）时间#define AHT20_MEASURE_TIME 75*1000 // 测量时间#define AHT20_DEVICE_ADDR 0x38#define AHT20_READ_ADDR ((0x38<<1)|0x1)#define AHT20_WRITE_ADDR ((0x38<<1)|0x0)#define AHT20_CMD_CALIBRATION 0xBE // 初始化（校准）命令#define AHT20_CMD_CALIBRATION_ARG0 0x08#define AHT20_CMD_CALIBRATION_ARG1 0x00/*** 传感器在采集时需要时间,主机发出测量指令（0xAC）后，延时75毫秒以上再读取转换后的数据并判断返回的状态位是否正常。* 若状态比特位[Bit7]为0代表数据可正常读取，为1时传感器为忙状态，主机需要等待数据处理完成。**/#define AHT20_CMD_TRIGGER 0xAC // 触发测量命令#define AHT20_CMD_TRIGGER_ARG0 0x33#define AHT20_CMD_TRIGGER_ARG1 0x00// 用于在无需关闭和再次打开电源的情况下，重新启动传感器系统，软复位所需时间不超过20 毫秒#define AHT20_CMD_RESET 0xBA // 软复位命令#define AHT20_CMD_STATUS 0x71 // 获取状态命令/*** STATUS 命令回复：* 1. 初始化后触发测量之前，STATUS 只回复 1B 状态值；* 2. 触发测量之后，STATUS 回复6B： 1B 状态值 + 2B 湿度 + 4b湿度 + 4b温度 + 2B 温度* RH = Srh / 2^20 * 100%* T = St / 2^20 * 200 - 50**/#define AHT20_STATUS_BUSY_SHIFT 7 // bit[7] Busy indication#define AHT20_STATUS_BUSY_MASK (0x1<<AHT20_STATUS_BUSY_SHIFT)#define AHT20_STATUS_BUSY(status) ((status & AHT20_STATUS_BUSY_MASK) >> AHT20_STATUS_BUSY_SHIFT)#define AHT20_STATUS_MODE_SHIFT 5 // bit[6:5] Mode Status#define AHT20_STATUS_MODE_MASK (0x3<<AHT20_STATUS_MODE_SHIFT)#define AHT20_STATUS_MODE(status) ((status & AHT20_STATUS_MODE_MASK) >> AHT20_STATUS_MODE_SHIFT)// bit[4] Reserved#define AHT20_STATUS_CALI_SHIFT 3 // bit[3] CAL Enable#define AHT20_STATUS_CALI_MASK (0x1<<AHT20_STATUS_CALI_SHIFT)#define AHT20_STATUS_CALI(status) ((status & AHT20_STATUS_CALI_MASK) >> AHT20_STATUS_CALI_SHIFT)// bit[2:0] Reserved#define AHT20_STATUS_RESPONSE_MAX 6#define AHT20_RESOLUTION (1<<20) // 2^20#define AHT20_MAX_RETRY 10// 全局变量：标记传感器是否初始化完成static bool g_aht20Initialized = false;/*** @brief 内部函数：I2C读取数据（调用OpenHarmony HAL层接口）*/static unsigned int AHT20_I2C_Read(uint8_t* buffer, uint32_t buffLen) {if (buffer == NULL || buffLen == 0) {return IOT_FAILURE;}// 调用HAL层I2C读函数return IoTI2cRead(AHT20_I2C_IDX, AHT20_READ_ADDR, buffer, buffLen);}/*** @brief 内部函数：I2C写入数据（调用OpenHarmony HAL层接口）*/static unsigned int AHT20_I2C_Write(uint8_t* buffer, uint32_t buffLen) {if (buffer == NULL || buffLen == 0) {return IOT_FAILURE;}// 调用HAL层I2C写函数return IoTI2cWrite(AHT20_I2C_IDX, AHT20_WRITE_ADDR, buffer, buffLen);}/*** @brief 软件复位AHT20*/unsigned int AHT20_SoftReset(void) {uint8_t resetCmd = AHT20_SOFT_RESET_CMD;unsigned int retval = AHT20_I2C_Write(&resetCmd, 1);hi_udelay(20000); // 复位后等待20msif (retval != IOT_SUCCESS) {printf("AHT20 soft reset failed, err: %u\n", retval);return retval;}return IOT_SUCCESS;}/*** @brief 校准AHT20*/unsigned int AHT20_Calibrate(void) {uint8_t calCmd[3] = {AHT20_CALIBRATE_CMD, 0x00, 0x00};unsigned int retval = AHT20_I2C_Write(calCmd, 3);hi_udelay(30000); // 校准等待30msif (retval != IOT_SUCCESS) {printf("AHT20 calibrate failed, err: %u\n", retval);return retval;}return IOT_SUCCESS;}/*** @brief 初始化AHT20*/unsigned int AHT20_Init(void) {uint8_t initCmd[3] = {AHT20_INIT_CMD, 0x08, 0x00};unsigned int retval = 0;// 1. 软复位传感器retval = AHT20_SoftReset();if (retval != IOT_SUCCESS) {return retval;}// 2. 发送初始化命令hi_udelay(40000); // 复位后等待40msretval = AHT20_I2C_Write(initCmd, 3);if (retval != IOT_SUCCESS) {printf("AHT20 init cmd failed, err: %u\n", retval);return retval;}// 3. 标记初始化完成g_aht20Initialized = true;return IOT_SUCCESS;}/*** @brief 获取温湿度测量结果* @param temp 温度结果指针（单位：℃）* @param humi 湿度结果指针（单位：%RH）* @return 成功返回IOT_SUCCESS，失败返回对应错误码*/unsigned int AHT20_GetMeasureResult(float* temp, float* humi) {// 参数合法性检查if (temp == NULL || humi == NULL) {return IOT_FAILURE;}if (!g_aht20Initialized) {printf("AHT20 not initialized!\n");return IOT_FAILURE;}uint8_t measureCmd[3] = {AHT20_MEASURE_CMD, 0x33, 0x00};uint8_t dataBuf[6] = {0};unsigned int retval = 0;// 1. 发送测量命令retval = AHT20_I2C_Write(measureCmd, 3);if (retval != IOT_SUCCESS) {printf("AHT20 measure cmd failed, err: %u\n", retval);return retval;}// 2. 等待测量完成（最大80ms）hi_udelay(80000);// 3. 读取测量数据retval = AHT20_I2C_Read(dataBuf, 6);if (retval != IOT_SUCCESS) {printf("AHT20 read data failed, err: %u\n", retval);return retval;}// 4. 解析测量状态if ((dataBuf[0] & 0x80) != 0) {printf("AHT20 measure not ready!\n");return IOT_FAILURE;}// 5. 计算温湿度uint32_t humiRaw = ((uint32_t)dataBuf[1] << 12) | ((uint32_t)dataBuf[2] << 4) | ((dataBuf[3] & 0xF0) >> 4);*humi = (humiRaw / 1048576.0f) * 100.0f;uint32_t tempRaw = ((uint32_t)(dataBuf[3] & 0x0F) << 16) | ((uint32_t)dataBuf[4] << 8) | dataBuf[5];*temp = (tempRaw / 1048576.0f) * 200.0f - 50.0f;return IOT_SUCCESS;}#define AHT20_I2C_IDX 0 // OpenHarmony标准I2C总线索引 hi3861 就一条总线
AHT20第地址：
#define AHT20_DEVICE_ADDR 0x38
#define AHT20_READ_ADDR ((0x38<<1)|0x1)
#define AHT20_WRITE_ADDR ((0x38<<1)|0x0)
通I2C读写的方法：这个是1.1.3 当中的方法 具体看i2c头文件的描述
/**
* @brief 内部函数：I2C读取数据（调用OpenHarmony HAL层接口）
*/
static unsigned int AHT20_I2C_Read(uint8_t* buffer, uint32_t buffLen) {
if (buffer == NULL || buffLen == 0) {
return IOT_FAILURE;
}
// 调用HAL层I2C读函数
return IoTI2cRead(AHT20_I2C_IDX, AHT20_READ_ADDR, buffer, buffLen);
}
/**
* @brief 内部函数：I2C写入数据（调用OpenHarmony HAL层接口）
*/
static unsigned int AHT20_I2C_Write(uint8_t* buffer, uint32_t buffLen) {
if (buffer == NULL || buffLen == 0) {
return IOT_FAILURE;
}
// 调用HAL层I2C写函数
return IoTI2cWrite(AHT20_I2C_IDX, AHT20_WRITE_ADDR, buffer, buffLen);
}
第一个最底层BUILD.gn：
import("//build/lite/config/component/lite_component.gni")lite_component("iothardware") {features = [":aht20", #]}static_library("aht20") {sources = ["aht20.c", ]include_dirs = ["//utils/native/lite/include","//kernel/liteos_m/components/cmsis/2.0","//base/iot_hardware/interfaces/kits/wifiiot_lite","//base/iot_hardware/peripheral/interfaces/kits",]}在 ~/openharmony3/1.1.3/applications/sample/wifi-iot/app下 新建目录：aht20_test
目录下放2个文件： aht20_test.c 与BUILD.gn。 这里 aht20_test.c 就是根据厂家文档的 test 目录下的那个.c文件，进行的修改：
aht20_test.c 与BUILD.gn

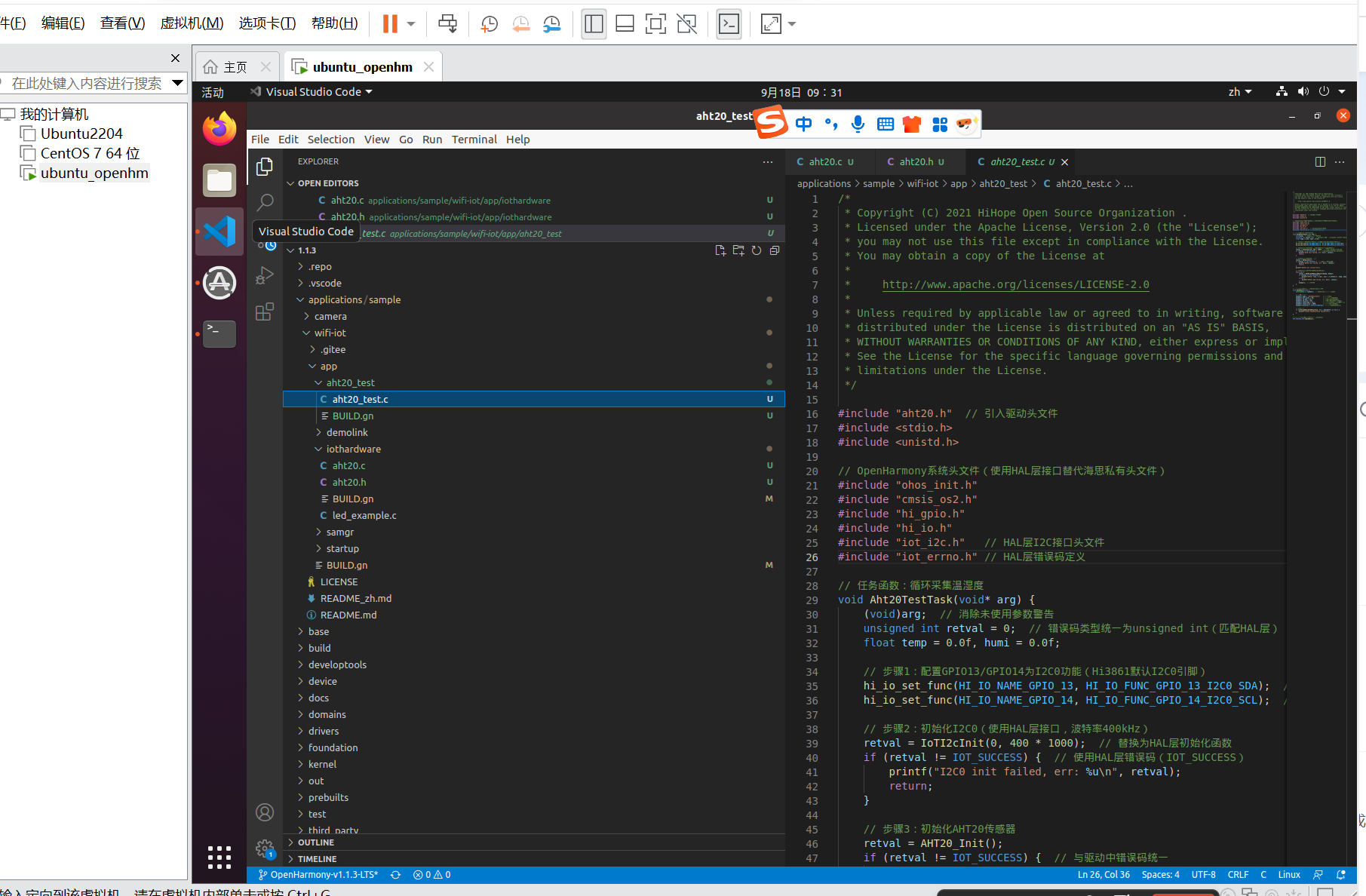

aht20_test.c
/** Copyright (C) 2021 HiHope Open Source Organization .* Licensed under the Apache License, Version 2.0 (the "License");* you may not use this file except in compliance with the License.* You may obtain a copy of the License at** http://www.apache.org/licenses/LICENSE-2.0** Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS,* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.* See the License for the specific language governing permissions and* limitations under the License.*/#include "aht20.h" // 引入驱动头文件#include <stdio.h>#include <unistd.h>// OpenHarmony系统头文件（使用HAL层接口替代海思私有头文件）#include "ohos_init.h"#include "cmsis_os2.h"#include "hi_gpio.h"#include "hi_io.h"#include "iot_i2c.h" // HAL层I2C接口头文件#include "iot_errno.h" // HAL层错误码定义// 任务函数：循环采集温湿度void Aht20TestTask(void* arg) {(void)arg; // 消除未使用参数警告unsigned int retval = 0; // 错误码类型统一为unsigned int（匹配HAL层）float temp = 0.0f, humi = 0.0f;// 步骤1：配置GPIO13/GPIO14为I2C0功能（Hi3861默认I2C0引脚）hi_io_set_func(HI_IO_NAME_GPIO_13, HI_IO_FUNC_GPIO_13_I2C0_SDA); // SDA引脚hi_io_set_func(HI_IO_NAME_GPIO_14, HI_IO_FUNC_GPIO_14_I2C0_SCL); // SCL引脚// 步骤2：初始化I2C0（使用HAL层接口，波特率400kHz）retval = IoTI2cInit(0, 400 * 1000); // 替换为HAL层初始化函数if (retval != IOT_SUCCESS) { // 使用HAL层错误码（IOT_SUCCESS）printf("I2C0 init failed, err: %u\n", retval);return;}// 步骤3：初始化AHT20传感器retval = AHT20_Init();if (retval != IOT_SUCCESS) { // 与驱动中错误码统一printf("AHT20 init failed, err: %u\n", retval);return;}printf("AHT20 init success!\n");// 步骤4：循环采集并打印数据（1秒/次）while (1) {retval = AHT20_GetMeasureResult(&temp, &humi);if (retval == IOT_SUCCESS) {printf("AHT20: Temp = %.2f℃, Humi = %.2f%%RH\n", temp, humi);} else {printf("AHT20 read failed, err: %u\n", retval);}sleep(1); // 延时1秒}}// 任务创建函数：注册为OpenHarmony启动项void Aht20Test(void) {osThreadAttr_t taskAttr; // CMSIS-OS2任务属性结构体// 配置任务属性taskAttr.name = "Aht20TestTask"; // 任务名称taskAttr.attr_bits = 0U; // 任务属性（默认0）taskAttr.cb_mem = NULL; // 回调函数内存（无）taskAttr.cb_size = 0U; // 回调函数内存大小（无）taskAttr.stack_mem = NULL; // 任务栈内存（使用系统分配）taskAttr.stack_size = 4096; // 任务栈大小（4KB）taskAttr.priority = osPriorityNormal; // 任务优先级（正常）// 创建任务if (osThreadNew(Aht20TestTask, NULL, &taskAttr) == NULL) {printf("Create Aht20TestTask failed!\n");}}// 注册任务：系统启动时自动执行Aht20TestAPP_FEATURE_INIT(Aht20Test);BUILD.gn:

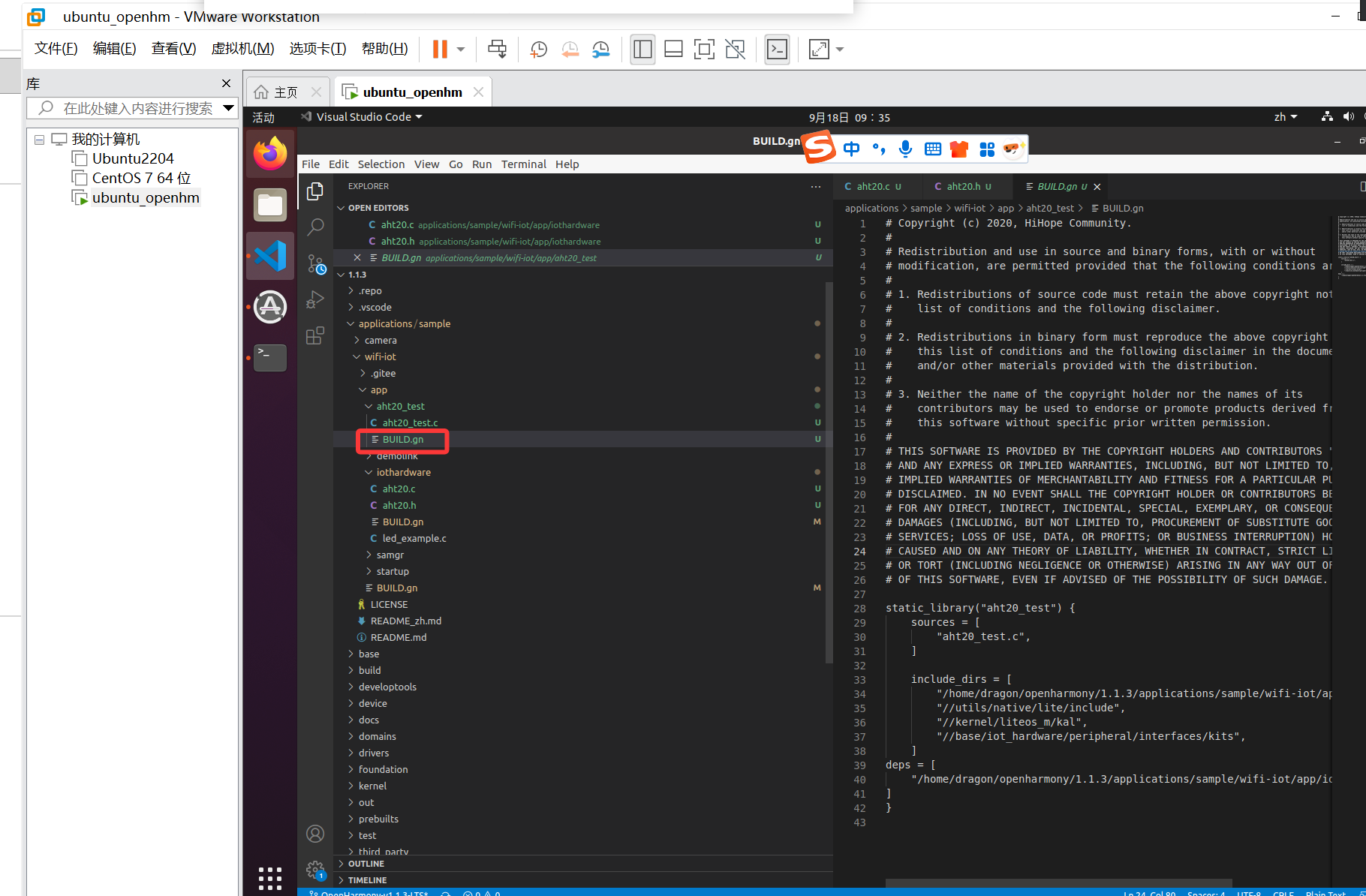

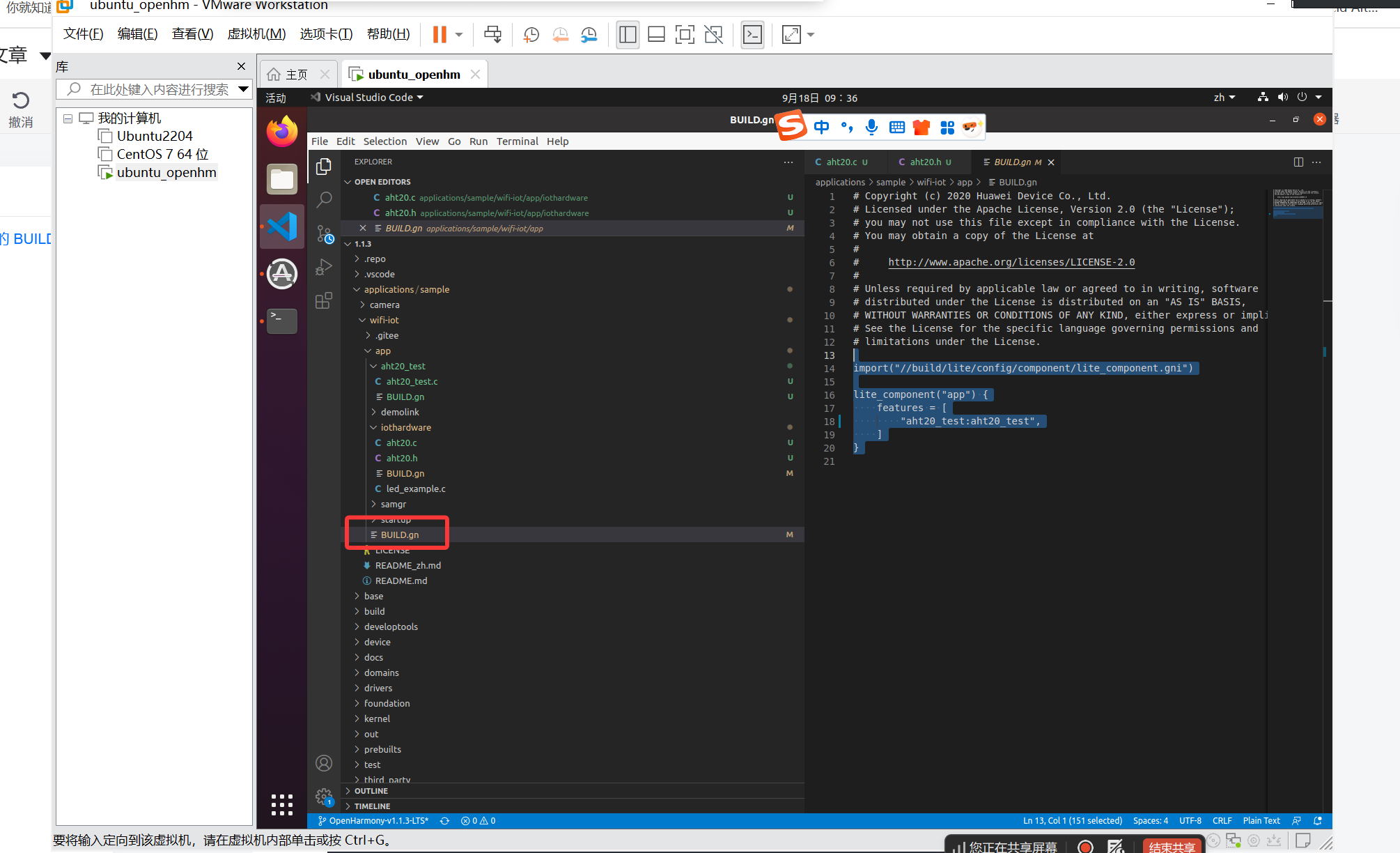

static_library("aht20_test") {sources = ["aht20_test.c",]include_dirs = ["/home/dragon/openharmony/1.1.3/applications/sample/wifi-iot/app/iothardware","//utils/native/lite/include","//kernel/liteos_m/kal","//base/iot_hardware/peripheral/interfaces/kits",]deps = ["/home/dragon/openharmony/1.1.3/applications/sample/wifi-iot/app/iothardware:aht20",]}第5步：修改app 下的 BUILD.gn
import("//build/lite/config/component/lite_component.gni")lite_component("app") {features = ["aht20_test:aht20_test",]}
