OpenAPI 规范:构建高效 RESTful API 指南
引言
在现代软件开发中,API 已经成为不同系统之间通信的核心桥梁。随着微服务架构和云原生应用的普及,如何清晰、规范地描述和定义 API 接口成为了开发团队面临的重要挑战。OpenAPI 规范(OpenAPI Specification,OAS)作为描述 RESTful API 的行业标准,为解决这一问题提供了全面而高效的解决方案。
本文将深入探讨 OpenAPI 规范的核心概念、技术细节和实践应用。通过阅读本文,您将掌握以下知识和技能:
- OpenAPI 规范的基本概念和发展历史
- 规范的核心组成元素和语法结构
- 使用 YAML 编写符合规范的 API 定义
- 利用 OpenAPI 生态工具提升开发效率
- 实际项目中的最佳实践和常见陷阱
- 从 Swagger 2.0 迁移到 OpenAPI 3.x 的完整指南
无论您是前端开发者、后端工程师还是架构师,掌握 OpenAPI 规范都将显著提升您的 API 设计和开发能力,为构建可维护、可扩展的 API 系统奠定坚实基础。
大纲
- OpenAPI 规范概述
- 什么是 OpenAPI 规范
- 历史发展与版本演进
- 核心价值与优势
- 规范核心结构与语法
- 文档基本结构
- 信息对象(Info Object)详解
- 路径对象(Paths Object)深度解析
- 组件对象(Components Object)与复用机制
- 服务器对象(Servers Object)配置
- 高级特性与功能
- 参数定义与数据类型
- 请求体和响应定义
- 安全方案定义
- 回调与 Webhooks 支持
- 使用 allOf 组合模式
- OpenAPI 工具生态系统
- 编辑与验证工具
- 文档生成工具
- 代码生成工具
- 测试与监控工具
- 实战应用与最佳实践
- 从零开始创建 OpenAPI 文档
- 前后端协作工作流
- 版本管理与迭代策略
- 常见问题与解决方案
- 迁移与升级指南
- 从 Swagger 2.0 到 OpenAPI 3.x
- 常见迁移挑战与解决
- 工具链更新与适配
- 未来发展与趋势
- OpenAPI 规范的发展方向
- 行业采纳与最佳实践
- 与其他技术的整合
1. OpenAPI 规范概述
什么是 OpenAPI 规范
OpenAPI 规范(OpenAPI Specification,OAS)是一种用于描述 RESTful API 的标准格式,它使开发人员能够以机器可读的方式定义 API 的结构、参数、响应等信息。该规范最初被称为 Swagger 规范,2015 年被捐赠给 OpenAPI Initiative 后更名为 OpenAPI,并逐渐发展成为行业广泛认可的标准。
OpenAPI 规范使用 JSON 或 YAML 格式来描述 API 的各个方面,包括端点、操作参数、请求体、响应、安全性等。这种机器可读的描述使得可以自动生成接口文档、客户端 SDK、服务器存根以及进行自动化测试。
openapi: 3.1.0
info:title: Sample APIdescription: This is a sample API for demonstration purposesversion: 1.0.0
servers:- url: https://api.example.com/v1description: Production server
paths:/users:get:summary: Get all usersresponses:'200':description: Successful responsecontent:application/json:schema:type: arrayitems:$ref: '#/components/schemas/User'

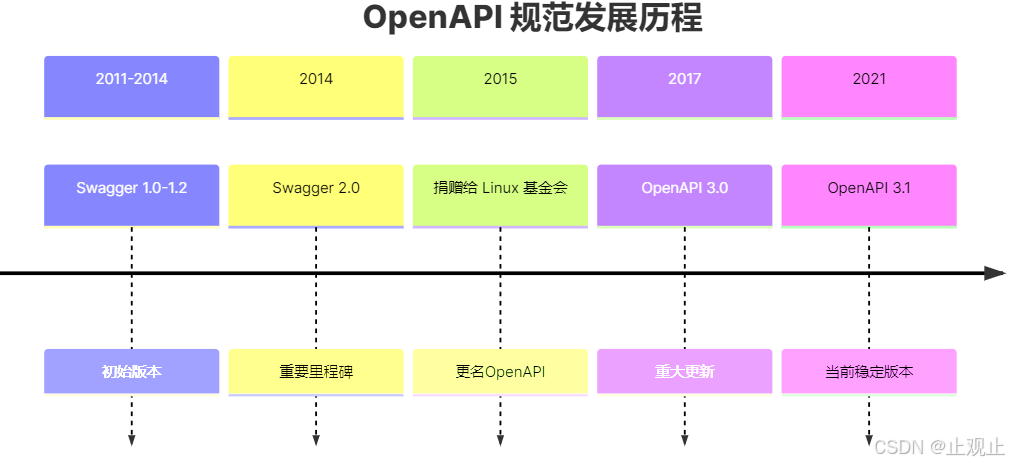

历史发展与版本演进
OpenAPI 规范起源于 Swagger 项目,由 SmartBear Software 公司开发。2015 年,Swagger 被捐赠给 Linux 基金会下的 OpenAPI Initiative(OAI),并更名为 OpenAPI 规范。
主要版本演进:
- Swagger 1.2:早期版本,提供了基本的 API 描述能力
- Swagger 2.0:成为广泛采纳的版本,奠定了规范的基础
- OpenAPI 3.0:首个更名后的版本,引入了多项重要改进
- OpenAPI 3.1:当前最新版本,完全兼容 JSON Schema 2020-12
核心价值与优势
OpenAPI 规范带来了多重价值,使其成为 API 开发领域的事实标准:
- 标准化:提供统一的标准描述格式,促进不同工具和平台之间的互操作性
- 自动化:支持自动生成文档、客户端代码、服务器存根和测试用例,大幅提升开发效率
- 协作优化:前后端团队可以基于统一的规范并行工作,减少沟通成本
- 质量保障:通过明确定义接口契约,早期发现设计问题,提高 API 质量
- 生态丰富:拥有庞大的工具生态系统,支持各种开发场景和需求
2. 规范核心结构与语法
文档基本结构
OpenAPI 文档由一系列结构化对象组成,这些对象以 JSON 或 YAML 格式组织。最基本的 OpenAPI 文档必须包含三个核心对象:OpenAPI 对象、Info 对象和 Paths 对象。
# 最小化的 OpenAPI 文档结构
openapi: 3.1.1 # 必需:规范版本
info: # 必需:API 元数据title: Sample APIversion: 1.0.0
paths: {} # 必需:API 端点定义
完整的 OpenAPI 文档包含以下主要部分:
信息对象(Info Object)详解
Info 对象提供 API 的元数据信息,包括标题、描述、版本、联系人信息等。这些信息对于 API 消费者了解 API 的基本情况和联系渠道非常重要。
info:title: Sample Pet Store APIdescription: |This is a sample server for a pet store.Learn how to use OpenAPI with our https://example.com/docs.termsOfService: https://example.com/terms/contact:name: API Supporturl: https://www.example.com/supportemail: support@example.comlicense:name: Apache 2.0url: https://www.apache.org/licenses/LICENSE-2.0.htmlversion: 1.0.0
路径对象(Paths Object)深度解析
Paths 对象是 OpenAPI 文档的核心,它定义了 API 的可用端点(URL 路径)以及每个端点支持的操作(HTTP 方法)。每个路径可以包含多个操作,如 GET、POST、PUT、DELETE 等。
paths:/pets:get:summary: List all petsdescription: Retrieve a list of all pets in the storeoperationId: listPetstags:- petsparameters:- name: limitin: querydescription: How many items to return at one time (max 100)required: falseschema:type: integerformat: int32responses:'200':description: A paged array of petscontent:application/json:schema:type: arrayitems:$ref: '#/components/schemas/Pet''500':description: Internal server errorcontent:application/json:schema:$ref: '#/components/schemas/Error'post:summary: Create a petoperationId: createPettags:- petsrequestBody:description: Pet object that needs to be added to the storerequired: truecontent:application/json:schema:$ref: '#/components/schemas/Pet'responses:'201':description: Createdcontent:application/json:schema:$ref: '#/components/schemas/Pet''400':description: Bad request
组件对象(Components Object)与复用机制
Components 对象是 OpenAPI 3.x 引入的重要特性,它允许将可重用的组件定义在统一的位置,然后通过 $ref
引用这些定义。这大大提高了文档的模块化和可维护性。
components:schemas:User:type: objectrequired:- id- name- emailproperties:id:type: integerformat: int64name:type: stringemail:type: stringformat: emailphone:type: stringError:type: objectrequired:- code- messageproperties:code:type: integerformat: int32message:type: stringparameters:LimitParam:name: limitin: querydescription: Number of items to returnrequired: falseschema:type: integerminimum: 1maximum: 100default: 10responses:NotFoundError:description: Resource not foundcontent:application/json:schema:$ref: '#/components/schemas/Error'example:code: 404message: Resource not foundsecuritySchemes:BearerAuth:type: httpscheme: bearerbearerFormat: JWT
服务器对象(Servers Object)配置
Servers 对象定义了 API 的服务器地址和基本路径,支持配置多个环境(如开发、测试、生产环境)。
servers:- url: https://development.example.com/v1description: Development server- url: https://staging.example.com/v1description: Staging server- url: https://api.example.com/v1description: Production servervariables:environment:default: apienum:- api- api.dev- api.stagingdescription: API environmentversion:default: '1'enum:- '1'- '2'description: API version
3. 高级特性与功能
参数定义与数据类型
OpenAPI 支持多种类型的参数,包括路径参数、查询参数、请求头参数和 Cookie 参数。每种参数都可以定义详细的数据类型、验证规则和描述信息。
paths:/users/{userId}:get:summary: Get user by IDparameters:- name: userIdin: pathrequired: truedescription: ID of the user to retrieveschema:type: integerformat: int64minimum: 1- name: fieldsin: queryrequired: falsedescription: Comma-separated list of fields to returnschema:type: string- name: Authorizationin: headerrequired: truedescription: Bearer token for authenticationschema:type: stringresponses:'200':description: Successful responsecontent:application/json:schema:$ref: '#/components/schemas/User'
请求体和响应定义
请求体(RequestBody)用于描述 POST、PUT、PATCH 等操作的输入数据,支持多种媒体类型和复杂数据结构。响应(Responses)对象则定义了各种可能的 HTTP 状态码对应的响应内容。
paths:/users:post:summary: Create a new userrequestBody:description: User object that needs to be createdrequired: truecontent:application/json:schema:$ref: '#/components/schemas/User'examples:example1:summary: Example of a new uservalue:name: John Doeemail: john.doe@example.comphone: "+1234567890"application/xml:schema:$ref: '#/components/schemas/User'responses:'201':description: User created successfullyheaders:Location:schema:type: stringdescription: URL of the created resourcecontent:application/json:schema:$ref: '#/components/schemas/User''400':description: Invalid inputcontent:application/json:schema:$ref: '#/components/schemas/Error''500':description: Internal server errorcontent:application/json:schema:$ref: '#/components/schemas/Error'
安全方案定义
OpenAPI 支持多种安全方案,包括 API 密钥、HTTP 认证、OAuth 2.0 和 OpenID Connect。这些安全方案可以在全局或操作级别定义。
components:securitySchemes:ApiKeyAuth:type: apiKeyin: headername: X-API-KeyBearerAuth:type: httpscheme: bearerbearerFormat: JWTOAuth2:type: oauth2flows:authorizationCode:authorizationUrl: https://example.com/oauth/authorizetokenUrl: https://example.com/oauth/tokenscopes:read: Grants read accesswrite: Grants write accessadmin: Grants admin access# 全局安全要求
security:- BearerAuth: []paths:/users:get:summary: Get all users# 覆盖全局安全要求security:- OAuth2:- read- adminresponses:'200':description: Successful response
回调与 Webhooks 支持
OpenAPI 3.x 引入了回调(Callbacks)支持,允许定义 API 作为 Webhook 提供者时的回调操作。这对于描述异步 API 和事件驱动架构非常有用。
paths:/webhooks:post:summary: Register a new webhookrequestBody:required: truecontent:application/json:schema:type: objectproperties:url:type: stringformat: uridescription: URL to send events toevents:type: arrayitems:type: stringdescription: Events to subscribe toresponses:'201':description: Webhook registered successfullycallbacks:# 回调名称是任意的,这里使用 eventCallbackeventCallback:'{$request.body#/url}':post:summary: Event notificationdescription: This endpoint receives event notificationsrequestBody:required: truecontent:application/json:schema:type: objectproperties:event:type: stringdata:type: objectresponses:'200':description: Event received successfully
使用 allOf 组合模式
allOf 关键字允许组合多个模式定义,这对于创建可复用的基础响应结构和扩展特定操作的响应非常有用。
components:schemas:BaseResponse:type: objectproperties:code:type: integerexample: 0message:type: stringexample: "success"requestId:type: stringexample: "12345"User:type: objectproperties:id:type: integername:type: stringemail:type: stringpaths:/users/{id}:get:summary: Get user by IDresponses:'200':description: Successful responsecontent:application/json:schema:allOf:- $ref: '#/components/schemas/BaseResponse'- type: objectproperties:data:$ref: '#/components/schemas/User'
示例响应:
{"code": 0,"message": "success","requestId": "12345","data": {"id": 123,"name": "John Doe","email": "john.doe@example.com"}
}
4. OpenAPI 工具生态系统
OpenAPI 拥有丰富的工具生态系统,支持从设计、开发到测试、文档的全生命周期管理。
编辑与验证工具
Swagger Editor:基于 Web 的编辑器,提供实时验证和预览功能。
VS Code 扩展:如 OpenAPI (Swagger) Editor,提供语法高亮、代码补全和验证功能。
Redocly CLI:命令行工具,用于 linting 和验证 OpenAPI 文档。
# 使用 Redocly CLI 验证 OpenAPI 文档
npx @redocly/openapi-cli lint openapi.yaml# 使用 Docker 运行 Swagger Editor
docker run -d -p 80:8080 swaggerapi/swagger-editor
文档生成工具
Swagger UI:交互式 API 文档生成器,支持在线测试 API 端点。
<!DOCTYPE html>
<html lang="en">
<head><meta charset="UTF-8"><title>API Documentation</title><link rel="stylesheet" href="https://unpkg.com/swagger-ui-dist@5.9.0/swagger-ui.css" />
</head>
<body><div id="swagger-ui"></div><script src="https://unpkg.com/swagger-ui-dist@5.9.0/swagger-ui-bundle.js"></script><script>SwaggerUIBundle({url: './openapi.yaml', // 你的 OpenAPI 文件路径dom_id: '#swagger-ui',presets: [SwaggerUIBundle.presets.apis,SwaggerUIBundle.presets.standalone]});</script>
</body>
</html>
ReDoc:另一种文档生成器,专注于美观和可读性。
Stoplight Elements:现代化的文档组件,支持多种主题和自定义选项。
代码生成工具
OpenAPI Generator:支持多种编程语言的客户端和服务端代码生成。
# 安装 OpenAPI Generator
npm install @openapitools/openapi-generator-cli -g# 生成 TypeScript 客户端代码
openapi-generator generate -i openapi.yaml -g typescript-axios -o ./client# 生成 Spring Boot 服务端代码
openapi-generator generate -i openapi.yaml -g spring -o ./server \--additional-properties=basePackage=com.example,groupId=com.example,artifactId=api-server
Swagger Codegen:原始的代码生成工具,目前已被 OpenAPI Generator 取代。
测试与监控工具
Postman:支持导入 OpenAPI 规范进行 API 测试和监控。
Apifox:集 API 设计、开发、测试于一体的协作平台。
# Postman 集合生成配置示例
info:name: My API Collectiondescription: Generated from OpenAPI specschema: https://schema.getpostman.com/json/collection/v2.1.0/collection.json
variables:- id: baseUrlvalue: https://api.example.comtype: string
auth:type: bearerbearer:- key: tokenvalue: {{bearerToken}}type: string
5. 实战应用与最佳实践
从零开始创建 OpenAPI 文档
创建一个完整的 OpenAPI 文档需要遵循一定的步骤和最佳实践。以下是一个电商 API 的完整示例:
openapi: 3.1.0
info:title: E-Commerce APIdescription: API for an e-commerce platformversion: 1.0.0contact:name: API Teamemail: api@ecommerce.comlicense:name: MITurl: https://opensource.org/licenses/MIT
servers:- url: https://api.ecommerce.com/v1description: Production server- url: https://sandbox.ecommerce.com/v1description: Sandbox servertags:- name: Productsdescription: Product management- name: Ordersdescription: Order management- name: Usersdescription: User managementpaths:/products:get:tags:- Productssummary: Get product listdescription: Retrieve a paginated list of productsparameters:- $ref: '#/components/parameters/PageParam'- $ref: '#/components/parameters/LimitParam'- name: categoryin: querydescription: Filter by categoryrequired: falseschema:type: stringresponses:'200':description: Successful responsecontent:application/json:schema:$ref: '#/components/schemas/ProductListResponse''500':$ref: '#/components/responses/InternalError'/products/{id}:get:tags:- Productssummary: Get product by IDparameters:- name: idin: pathrequired: trueschema:type: stringdescription: Product IDresponses:'200':description: Successful responsecontent:application/json:schema:$ref: '#/components/schemas/ProductDetailResponse''404':$ref: '#/components/responses/NotFoundError'components:parameters:PageParam:name: pagein: querydescription: Page numberrequired: falseschema:type: integerminimum: 1default: 1LimitParam:name: limitin: querydescription: Items per pagerequired: falseschema:type: integerminimum: 1maximum: 100default: 20schemas:Product:type: objectrequired:- id- name- priceproperties:id:type: stringname:type: stringdescription:type: stringprice:type: numberformat: floatminimum: 0category:type: stringstock:type: integerminimum: 0ProductListResponse:type: objectproperties:data:type: arrayitems:$ref: '#/components/schemas/Product'pagination:$ref: '#/components/schemas/Pagination'ProductDetailResponse:type: objectproperties:data:$ref: '#/components/schemas/Product'Pagination:type: objectproperties:page:type: integerlimit:type: integertotal:type: integerpages:type: integerresponses:NotFoundError:description: Resource not foundcontent:application/json:schema:$ref: '#/components/schemas/Error'example:code: 404message: Resource not foundInternalError:description: Internal server errorcontent:application/json:schema:$ref: '#/components/schemas/Error'example:code: 500message: Internal server errorsecuritySchemes:BearerAuth:type: httpscheme: bearerbearerFormat: JWTsecurity:- BearerAuth: []
前后端协作工作流
采用 OpenAPI 规范可以显著改善前后端协作效率。以下是推荐的工作流程:
版本管理与迭代策略
API 版本管理是长期维护的关键。以下是推荐的版本策略:
- URI 版本控制:在 URL 中包含版本号(如
/v1/users
) - 语义化版本:遵循主版本.次版本.修订号模式
- 向后兼容:尽可能保持向后兼容,避免破坏性变更
- 弃用策略:明确标记弃用的端点,提供迁移指南
# 版本管理示例
info:title: My APIversion: 2.1.0 # 语义化版本description: |## Deprecation NoticeThe following endpoints will be deprecated in v3.0:- GET /v1/old-endpoint - Use GET /v2/new-endpoint insteadservers:- url: https://api.example.com/v2description: Current version- url: https://api.example.com/v1description: Previous version (deprecated)paths:/v1/old-endpoint:get:deprecated: true # 标记为弃用summary: Old endpoint (deprecated)description: This endpoint is deprecated. Use /v2/new-endpoint instead.responses:'200':description: OK/v2/new-endpoint:get:summary: New endpointresponses:'200':description: OK
常见问题与解决方案
问题1:文档与实现不一致
解决方案:将 OpenAPI 文档作为唯一可信源,通过自动化工具确保代码与文档同步。
问题2:复杂数据模型难以描述
解决方案:充分利用 $ref
和组件复用,分解复杂模型为可重用组件。
问题3:安全性配置复杂
解决方案:使用标准安全方案,并在组件中统一定义。
# 安全配置最佳实践
components:securitySchemes:ApiKeyAuth:type: apiKeyin: headername: X-API-KeyBearerAuth:type: httpscheme: bearerbearerFormat: JWTOAuth2:type: oauth2flows:clientCredentials:tokenUrl: https://api.example.com/oauth/tokenscopes:read: Read accesswrite: Write access# 全局安全要求
security:- BearerAuth: []# 操作级别覆盖
paths:/public/data:get:security: [] # 不需要认证responses:'200':description: OK/secure/data:get:security:- OAuth2: [read] # 需要OAuth2和read权限responses:'200':description: OK
6. 迁移与升级指南
从 Swagger 2.0 到 OpenAPI 3.x
迁移到 OpenAPI 3.x 带来了许多改进,但也需要一些调整。主要变化包括:
- 结构重组:
host
、basePath
和schemes
被servers
对象替代 - 组件复用:引入
components
对象替代原有的定义位置 - 请求体增强:支持多个媒体类型和更丰富的请求体定义
- 安全性增强:更详细的安全方案定义
# Swagger 2.0
swagger: "2.0"
host: "api.example.com"
basePath: "/v1"
schemes:- "https"
paths:/users:get:parameters:- in: "body"name: "body"schema:$ref: "#/definitions/User"
definitions:User:type: "object"properties:name:type: "string"# OpenAPI 3.0等效
openapi: 3.0.0
servers:- url: https://api.example.com/v1
paths:/users:get:parameters:- in: queryname: "name"schema:type: stringrequestBody: # 请求体现在更明确content:application/json:schema:$ref: "#/components/schemas/User"
components:schemas:User:type: objectproperties:name:type: string
常见迁移挑战与解决
挑战1:工具链兼容性
解决方案:逐步迁移,先确保新版本工具支持,再逐步更新文档格式。
挑战2:复杂数据模型迁移
解决方案:使用自动化迁移工具,如 Swagger Converter,然后手动验证和调整。
挑战3:团队学习曲线
解决方案:提供培训和工作坊,创建迁移指南和最佳实践文档。
工具链更新与适配
不同工具对 OpenAPI 版本的支持情况不同:
quadrantCharttitle OpenAPI 工具支持矩阵x-axis "低兼容性" --> "高兼容性"y-axis "旧版本工具" --> "新版本工具""Swagger UI": [0.8, 0.3]"Swagger Editor": [0.7, 0.4]"OpenAPI Generator": [0.9, 0.8]"Stoplight Elements": [0.95, 0.9]"Redocly": [0.92, 0.85]"Apifox": [0.88, 0.75]
7. 未来发展与趋势
OpenAPI 规范的发展方向
OpenAPI 规范持续演进,未来的发展方向包括:
- 更强大的模式支持:完全兼容 JSON Schema 2020-12
- 异步API支持:更好地描述 Webhooks 和异步操作
- GraphQL 集成:探索与 GraphQL 的协作方式
- AI 辅助设计:利用 AI 技术辅助 API 设计和优化
行业采纳与最佳实践
OpenAPI 规范已成为 RESTful API 描述的事实标准,超过 70% 的 API 项目在使用 OpenAPI 规范。行业最佳实践包括:
- API 优先设计:先定义 API 契约,再实现代码
- 自动化流水线:将 OpenAPI 集成到 CI/CD 流水线中
- 治理与合规:基于 OpenAPI 实施 API 治理和安全合规检查
与其他技术的整合
OpenAPI 正在与更多技术栈整合:
- 云原生生态:与 Kubernetes、Istio 等云原生技术深度集成
- 低代码平台:作为低代码平台的 API 连接标准
- 数据网格:在数据网格架构中作为数据产品接口的标准描述
结论
OpenAPI 规范已经成为现代 API 开发的核心基础设施,它通过标准化、机器可读的 API 描述方式,极大地提升了 API 设计、开发、测试和维护的效率。通过本文的全面介绍,您应该已经掌握了 OpenAPI 规范的核心概念、实践技巧和最佳实践。
随着 API 经济的不断发展,OpenAPI 规范的重要性将进一步提升。作为开发者、架构师或技术决策者,深入理解和应用 OpenAPI 规范将帮助您构建更加健壮、可维护和可扩展的 API 系统。
无论您是刚刚开始接触 OpenAPI,还是已经有一定经验,持续学习和实践都将带来显著的技术和业务价值。建议从实际项目开始,逐步应用 OpenAPI 规范,体验它带来的各种好处。
参考资料
- OpenAPI 规范官方文档
- OpenAPI Initiative
- Swagger 官方文档
- OpenAPI 工具列表
- API 设计指南
注意:本文基于 OpenAPI 3.1.1 规范编写,内容更新至 2025 年 9 月。随着规范的发展,部分内容可能会有更新,建议始终参考官方文档获取最新信息。
