vue3引入海康监控视频组件并实现非分屏需求一个页面同时预览多个监控视频(2)

//海康监控视频非分屏需求，一个页面加载多个监控视频画面，
//调用后端接口实现动态多个监控画面显示并通过监听滚动事件监听来实现分页加载！;
//滚动事件: handleScroll

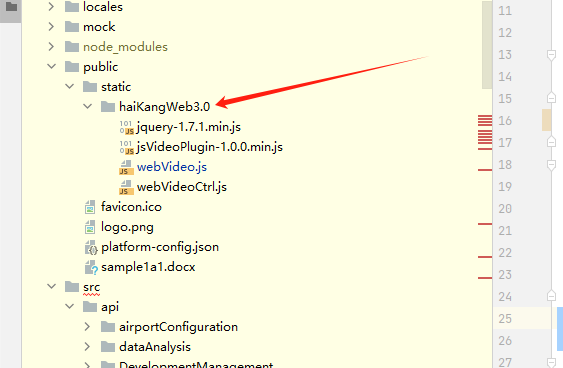

js文件位置

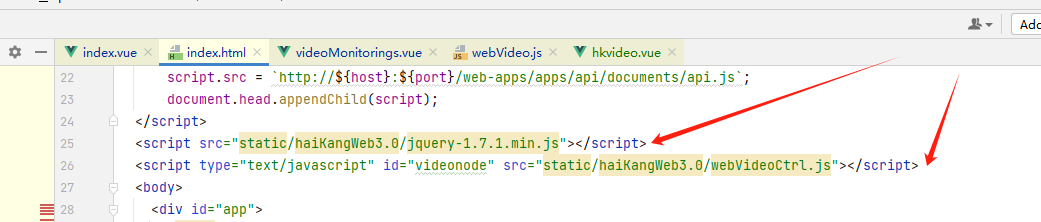

index.html 引入js文件

//根据自己路径引入哈<script src="static/haiKangWeb3.0/jquery-1.7.1.min.js"></script><script type="text/javascript" id="videonode" src="static/haiKangWeb3.0/webVideoCtrl.js"></script>

新建子组件videoMonitorings.vue–(封装视频监控组件)

<template><div class="video"><div :id="videoId" class="plugin"/></div>
</template><script>
import {WebVideo} from "../../../../public/static/haiKangWeb3.0/webVideo.js";
import {message} from "@/utils/message";
import {reactive,onMounted,onBeforeUnmount,onUnmounted,toRefs,ref,watchEffect,watch
} from "vue";export default {name: "index",props: {videoId: {type: String},hkvInfo: {type: Object || Array,require: true},},// emits:['changeFlag'],setup(props, {emit}) {const {dataList} = toRefs(props);const hkvInfo = ref({});const videoId = ref();const channels = ref([])const state = reactive({webVideo: "",web: {},});watch(props.hkvInfo, (newVal, oldvalue) => {if (newVal) {console.log('newVal', newVal)hkvInfo.value = newValvideoId.value = newVal.id;let t = newVal.loadingTime || 1000setTimeout(() => {initS();}, t)} else {initS();}}, {deep: true,immediate: true,})const initS = () => {// 初始化WebVideoCtrl.I_InitPlugin({bWndFull: true, //是否支持单窗口双击全屏，默认支持 true:支持 false:不支持iWndowType: 1,// 画面分割数 1 就是1*1   2就是2*2cbSelWnd: function (xmlDoc) {//此属性是窗口分割切换窗口时触发// clickStartRealPlay();// console.log("当前选择的窗口编号是1");},cbInitPluginComplete: function () {WebVideoCtrl.I_InsertOBJECTPlugin(videoId.value).then(() => {// 检查插件是否最新WebVideoCtrl.I_CheckPluginVersion().then((bFlag) => {if (bFlag) {let str = "检测到新的插件版本，双击开发包目录里的HCWebSDKPlugin.exe升级！"message(str, {type: "warning"});}});},() => {window.open('../../../../bin/VideoWebPlugin/HCWebSDKPlugin.exe');let str1 = "插件初始化失败，请确认是否已安装插件；如果未安装，请双击开发包目录里的HCWebSDKPlugin.exe安装！";message(str1, {type: "warning"});});},});setTimeout(() => {let cw = Math.round(document.body.clientWidth / 1920);let ch = Math.round(document.body.clientHeight / 1080);let width = parseInt((hkvInfo.value.width * cw), 10);let height = parseInt((hkvInfo.value.height * ch), 10);if (height <= 200) {height = 200;}if (height <= 200) {height = 200;}let w1 = (window.innerWidth - document.getElementById(videoId.value).offsetLeft) - 1500;let w2 = document.getElementById(videoId.value).clientHeight;console.log('00000===>', width, height);WebVideoCtrl.I_Resize(width,height);setVideoWindowResize(videoId.value, width, height);clickLogin();}, 2000);}// 根据设备宽高 和 windowchange 设置窗口大小const setVideoWindowResize = (pid, width, height) => {document.getElementById(pid).style.width = width + 'px';document.getElementById(pid).style.height = height + 'px';}// 登录const clickLogin = () => {var szIP = hkvInfo.value.ip,szPort = hkvInfo.value.port,szUsername = hkvInfo.value.username,szPassword = hkvInfo.value.password;const iRet = WebVideoCtrl.I_Login(szIP, 1, szPort, szUsername, szPassword, {timeout: 3000,success: function (xmlDoc) {setTimeout(function () {setTimeout(function () {getChannelInfo();}, 1000);getDevicePort();}, 10);},error: function (err) {console.log("登录-err===>", err);},});if (iRet === -1) {console.log(szIP +"_"+ szPort + " 已登录过！");// 登录过直接进行预览clickStartRealPlay();}}const getDevicePort = () => {var szDeviceIdentify = hkvInfo.value.ip;if (null == szDeviceIdentify) {return;}WebVideoCtrl.I_GetDevicePort(szDeviceIdentify).then((oPort) => {console.log("获取端口", oPort);});}//获取通道const getChannelInfo = () => {var szDeviceIdentify = hkvInfo.value.ip + '_' + hkvInfo.value.port;if (null == szDeviceIdentify) {return;}console.log('szDeviceIdentify==============>', szDeviceIdentify);// 模拟通道WebVideoCtrl.I_GetAnalogChannelInfo(szDeviceIdentify, {success: function (xmlDoc) {clickStartRealPlay();},error: function (oError) {console.log(szDeviceIdentify + "模拟通道", oError.errorCode, oError.errorMsg);}});// 数字通道WebVideoCtrl.I_GetDigitalChannelInfo(szDeviceIdentify, {success: function (xmlDoc) {clickStartRealPlay();},error: function (oError) {console.log(szDeviceIdentify + " 数字通道", oError.errorCode, oError.errorMsg);}});}// 开始预览const clickStartRealPlay = (iStreamType) => {var g_iWndIndex = 0;var oWndInfo = WebVideoCtrl.I_GetWindowStatus(g_iWndIndex) || null;var szDeviceIdentify = hkvInfo.value.ip + '_' + hkvInfo.value.port,iChannelID = 1,bZeroChannel = false;if ("undefined" === typeof iStreamType) {iStreamType = 1;}if (null == szDeviceIdentify) {return;}var startRealPlay = function () {WebVideoCtrl.I_StartRealPlay(szDeviceIdentify, {iStreamType: iStreamType,iChannelID: iChannelID,bZeroChannel: bZeroChannel,success: function () {WebVideoCtrl.I_Logout(szDeviceIdentify);console.log(szDeviceIdentify, "开始预览！");},error: function (oError) {console.log(szDeviceIdentify + "开始预览失败！");},});};//已经在播放了，先停止if (oWndInfo != null) {WebVideoCtrl.I_Stop({success: function () {startRealPlay();}});} else {startRealPlay();}}// 停止预览const clickStopRealPlay = () => {WebVideoCtrl.I_Stop({success: function () {console.log("停止预览成功！");},error: function (oError) {console.log("停止预览失败！");},});}//登出设备const loginOut = () => {const szDeviceIdentify = hkvInfo.value.ip + "_" + hkvInfo.value.port;WebVideoCtrl.I_Logout(szDeviceIdentify);}//停止全部播放const stopAllPlay = () => {WebVideoCtrl.I_StopAllPlay();}//销毁插件const breakDom = () => {WebVideoCtrl.I_DestroyPlugin()}const viewReload = () => {window.location.reload();}onMounted(() => {});onBeforeUnmount(() => {loginOut();stopAllPlay();window.removeEventListener(viewReload());});onUnmounted(() => {setTimeout(() => {breakDom();}, 100)})return {loginOut,stopAllPlay,breakDom,hkvInfo,initS,viewReload,channels,clickLogin,clickStopRealPlay,clickStartRealPlay,setVideoWindowResize,getChannelInfo,getDevicePort,...toRefs(state)};}
};
</script><style scoped lang="scss">
.video {width: 100%;height: 100%;.plugin{width: 100%!important;height: 100%!important;z-index: -100 !important;//overflow-y: scroll;}}</style>

父组件index.vue 引用 子组件

<template><div class="main-content" ><div class="video-content"v-loading="loading"id="style-1"element-loading-text="加载中..."element-loading-svg-view-box="-10, -10, 50, 50"element-loading-background="rgba(122, 122, 122, 0.8)"ref="scrollContainer"@wheel="handleScroll"><divv-for="(item, index) in cameraList":key="index"class="canvas-contaniner":loading="loading"><div  class="videobox"  v-if="item.status == 1"><videoMonitorings :hkvInfo="item" class="video" :videoId="item.id"   :key="index"  /></div><div v-else-if="item.status == 0" class="videobox">暂无...</div></div></div></div>
</template>
<script setup lang="ts">
import { ref, reactive, onMounted, onBeforeUnmount ,watch,computed} from "vue";
import { ElLoading } from 'element-plus'
import {listApCamera,} from "@/api/videoManage/videoConfiguration";
import { WebVideo } from "../../../../public/static/haiKangWeb3.0/webVideo.js";import videoMonitorings from "./videoMonitorings.vue";const loading = ref(false);const pageNum = ref(1) // 当前页码const pageSize = ref(4) // 每页数量const total = ref(0);//add
const scrollContainer = ref(null);/** @以上hkList配置中 注意 loadingTime 和 id；其中loadingTime 建议和上一个时间间隔4S以上，id是动态加载生成填充的DOM树结构；* 如果间隔时间不够 或DOM的ID一样 可能出现画面加载不出来、画面覆盖重叠等情况；通过配置这2个参数可以避免这样多个摄像头只需要 增加 hkList的配置项即可；* */
//最终数据格格式
const dataListRef = ref([{ip: "", //IP地址port: "", //端口号username: "", //用户名password: "", //密码loadingTime: 1000, //间隔时长status:1,width: "828",height: "385",id: "divPlugin1",},{ip: "", //IP地址port: "", //端口号username: "",password: "",loadingTime: 5000,status:1,width: "828",height: "385",id: "divPlugin2",},{ip: "", //ip地址port: "", //端口号username: "",password: "",loadingTime: 9000,status:1,width: "828",height: "385",id: "divPlugin3",},{ip: "", //IP地址port: "", //端口号username: "",password: "",loadingTime: 13000,status:1,width: "828",height: "385",id: "divPlugin4",},]);const cameraList = ref([]);//单个.
const dataList = ref({hkvInfo01: {ip: "", //IP地址port: "", //端口号rtspPort: "",username: "",password: "",deviceport: "8000",iChannelID: 1, //通道IDloadingTime: "1000", //多视频窗口睡眠加载时长。同时多个加载会卡死或不显示width: "808",height: "377",type: "camera01",id: "divPlugin1"},hkvInfo02: {ip: "", //IP地址port: "", //端口号rtspPort: "",username: "",password: "",iChannelID: 1,loadingTime: "5000",width: "808",height: "377",type: "camera02",id: "divPlugin2"}
});onMounted(async () => {onSearch();//监听滚动事件window.addEventListener('scroll', handleScroll);
});//滚动事件
function handleScroll(event) {const container = document.querySelector('.video-content');const { scrollTop, scrollHeight, clientHeight } = container;if (scrollTop + clientHeight >= scrollHeight && !loading.value){//根据屏幕高度来进行翻页，若没超过屏幕高度则不翻页) {event.preventDefault(); // 阻止默认滚动行为const deltaY = event.deltaY || event.detail || event.wheelDeltaY; // 获取垂直滚动距离console.log('deltaY',deltaY)//向上滚动if (deltaY < 0 &&!loading.value) {if(pageNum.value == 1 || pageNum.value == 0){return false;}else if(pageNum.value>2){pageNum.value = pageNum.value-1;sessionStorage.setItem('pageNumber',pageNum.value-1);onSearch()}}//向下滚动else if(deltaY >0 &&!loading.value){sessionStorage.setItem('pageNumber', pageNum.value);console.log('向下',pageNum.value)onSearch()}}
}async function onSearch() {loading.value = true;if(sessionStorage.getItem('pageNumber')){pageNum.value = sessionStorage.getItem('pageNumber')}cameraList.value = [];const { data } = await listApCamera({pageSize:pageSize.value, pageNum:pageNum.value});total.value = data.total;cameraList.value = [...data.list].map(item=>{return{ip: item.ip, //IP地址port:item.port, //端口号username:item.username,password: item.password,loadingTime: item.loadingTime,status:item.status,width: "828",height: "385",id: `divPlugin${item.id}`,}})console.log(' cameraList.value=====>>>>>>',cameraList.value);pageNum.value++setTimeout(() => {loading.value = false;}, 500);
}onBeforeUnmount(() => {sessionStorage.setItem('pageNumber',1);window.removeEventListener('scroll', handleScroll);  //移除监听滚动事件
});</script>
<style lang="scss" scoped>
.main-content {margin: 10px 10px 0 !important;overflow: auto;
}//定义滚动条轨道 内阴影+圆角*/
#style-1::-webkit-scrollbar-track {-webkit-box-shadow: inset 0 0 6px rgba(0, 0, 0, 0.3);border-radius: 10px;background-color: rgba(0, 0, 0, 0.52);}
#style-1::-webkit-scrollbar
{width: 12px;background-color: #0F65E87C
}#style-1::-webkit-scrollbar-thumb
{border-radius: 20px;-webkit-box-shadow: inset 0 0 6px rgba(0,0,0,.3);background-color: #555;
}.video-content {display: flex;justify-content: space-between;flex-wrap: wrap;position: relative;width: 100%;height: 85vh;overflow-y: scroll;  //需要添加.canvas-contaniner {width: 49.9%;height: 49.9%;//border: 1px solid red;//padding: 10px;position: relative;display: flex;justify-content: center;align-items: center;padding: 2px 1px;overflow: hidden;}.videobox {display: flex !important;justify-content: center;align-items: center !important;width: 100% !important;height: 100% !important;font-size: 30px;color: #fff;position: relative !important;background: black;overflow: hidden;.video {width: 100% !important;height: 100% !important;object-fit: fill;background-color: #000;}}.loading {display: flex;justify-content: center;align-items: center;width: 100%;height: 100%;font-size: 30px;color: #fff;position: absolute;background: black;}
}
</style>

运行效果图如下:

//经过几天的踩坑，在这里分享给大家，希望对你们有所帮助!
//代码仅供参考，按需调整
