缘起：搞不定在关机充电的时候：在uboot状态下显示电量的百分比。PM要求直接关闭LCD屏的电量显示图片。
我们有电量指示灯带的！这个功能以后再解决了！

不过现在还是有一个小瑕疵：插+12V适配器充电的时候，背光会闪一下：亮一下就关闭了！
如果要彻底彻底，还是有一点点工作量的！

在RD-RK3588-MID开发板中 充电的时候 有充电图标。没有电量 百分比？
请帮忙加一下 充电百分比 ?@权
在设置 电池  百分比显示
这个是 关机充电的时候。
现在 只有 图标。没有百分比！
关机后充电显示吗？这种加不了实时数字，只能加图片。你们可以根据自己的需求进行开发
PRO-RK3566+buildroot
我司 吊舱 和 竞品 在实现同样的功能 ，但是我司产品 在3.3V下电流高1A。功耗大很多。

该从哪里分析问题？比如 CPU/GPU/NPU占用率？

请提供查看占用率的方法？?@陈威

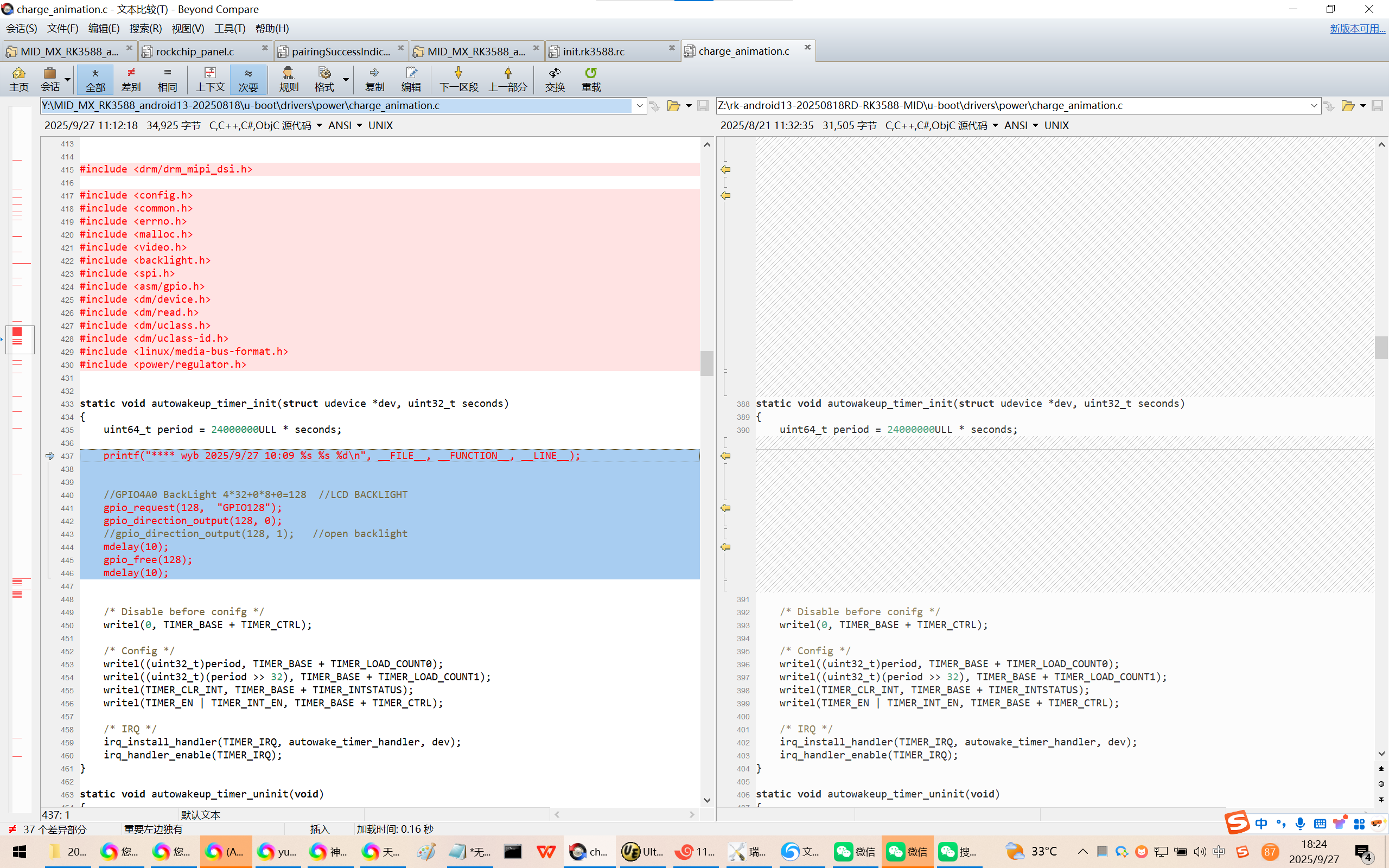

Y:\RK3588_android13-20250818\u-boot\drivers\power\charge_animation.c
Z:\rk-android13-20250818RD-RK3588-MID\u-boot\drivers\power\charge_animation.c

static void autowake_timer_handler(int irq, void *data)
{
struct udevice *dev = data;
struct charge_animation_priv *priv = dev_get_priv(dev);
static long long count;

printf("**** wyb 2025/9/27 10:09 %s %s %d\n", __FILE__, __FUNCTION__, __LINE__);

writel(TIMER_CLR_INT, TIMER_BASE + TIMER_INTSTATUS);

    priv->auto_wakeup_key_state = KEY_PRESS_DOWN;
printf("auto wakeup count: %lld\n", ++count);
}

#include <drm/drm_mipi_dsi.h>

#include <config.h>
#include <common.h>
#include <errno.h>
#include <malloc.h>
#include <video.h>
#include <backlight.h>
#include <spi.h>
#include <asm/gpio.h>
#include <dm/device.h>
#include <dm/read.h>
#include <dm/uclass.h>
#include <dm/uclass-id.h>
#include <linux/media-bus-format.h>
#include <power/regulator.h>

static void autowakeup_timer_init(struct udevice *dev, uint32_t seconds)
{
uint64_t period = 24000000ULL * seconds;

printf("**** wyb 2025/9/27 10:09 %s %s %d\n", __FILE__, __FUNCTION__, __LINE__);


    //GPIO4A0 BackLight 4*32+0*8+0=128  //LCD BACKLIGHT
gpio_request(128,  "GPIO128");
gpio_direction_output(128, 0);
//gpio_direction_output(128, 1);   //open backlight
mdelay(10);
gpio_free(128);
mdelay(10);

/* Disable before conifg */
writel(0, TIMER_BASE + TIMER_CTRL);

    /* Config */
writel((uint32_t)period, TIMER_BASE + TIMER_LOAD_COUNT0);
writel((uint32_t)(period >> 32), TIMER_BASE + TIMER_LOAD_COUNT1);
writel(TIMER_CLR_INT, TIMER_BASE + TIMER_INTSTATUS);
writel(TIMER_EN | TIMER_INT_EN, TIMER_BASE + TIMER_CTRL);

    /* IRQ */
irq_install_handler(TIMER_IRQ, autowake_timer_handler, dev);
irq_handler_enable(TIMER_IRQ);
}

static void autowakeup_timer_uninit(void)
{
printf("**** wyb 2025/9/27 10:09 %s %s %d\n", __FILE__, __FUNCTION__, __LINE__);

writel(0, TIMER_BASE + TIMER_CTRL);

    irq_handler_disable(TIMER_IRQ);
irq_free_handler(TIMER_IRQ);
}
#endif

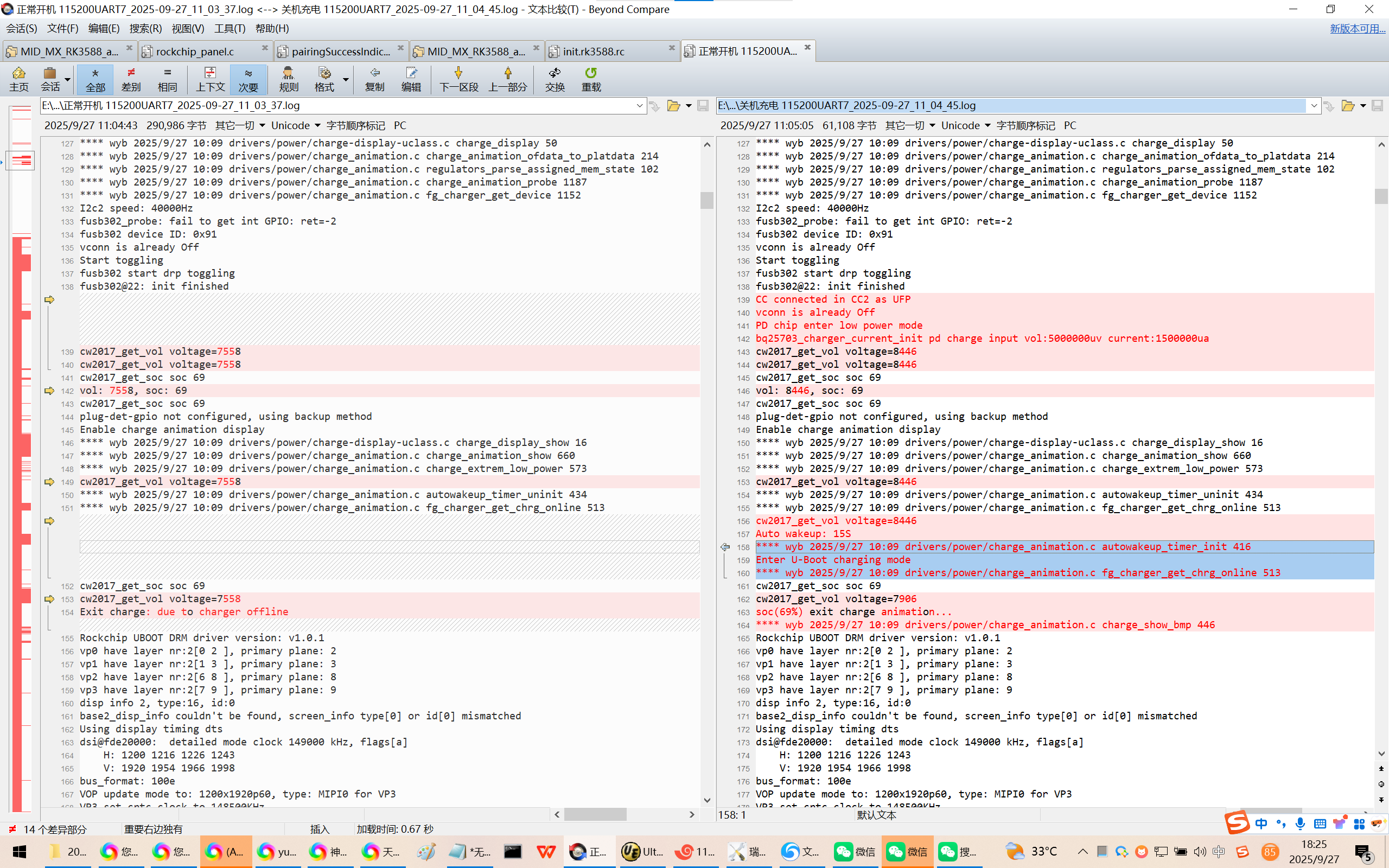

LOG记录：
vconn is already Off
Start toggling
fusb302 start drp toggling
fusb302@22: init finished
CC connected in CC2 as UFP
vconn is already Off
PD chip enter low power mode
bq25703_charger_current_init pd charge input vol:5000000uv current:1500000ua
cw2017_get_vol voltage=8446
cw2017_get_vol voltage=8446
cw2017_get_soc soc 69
vol: 8446, soc: 69
cw2017_get_soc soc 69
plug-det-gpio not configured, using backup method
Enable charge animation display
**** wyb 2025/9/27 10:09 drivers/power/charge-display-uclass.c charge_display_show 16
**** wyb 2025/9/27 10:09 drivers/power/charge_animation.c charge_animation_show 660
**** wyb 2025/9/27 10:09 drivers/power/charge_animation.c charge_extrem_low_power 573
cw2017_get_vol voltage=8446
**** wyb 2025/9/27 10:09 drivers/power/charge_animation.c autowakeup_timer_uninit 434
**** wyb 2025/9/27 10:09 drivers/power/charge_animation.c fg_charger_get_chrg_online 513
cw2017_get_vol voltage=8446
Auto wakeup: 15S
**** wyb 2025/9/27 10:09 drivers/power/charge_animation.c autowakeup_timer_init 416
Enter U-Boot charging mode
**** wyb 2025/9/27 10:09 drivers/power/charge_animation.c fg_charger_get_chrg_online 513
cw2017_get_soc soc 69
cw2017_get_vol voltage=7906
soc(69%) exit charge animation...
**** wyb 2025/9/27 10:09 drivers/power/charge_animation.c charge_show_bmp 446
Rockchip UBOOT DRM driver version: v1.0.1
vp0 have layer nr:2[0 2 ], primary plane: 2
vp1 have layer nr:2[1 3 ], primary plane: 3
vp2 have layer nr:2[6 8 ], primary plane: 8
vp3 have layer nr:2[7 9 ], primary plane: 9

【不要在这里关闭背光！这里关闭背光之后，uboot阶段就不出图了！】
Y:\RK3588_android13-20250818\u-boot\drivers\power\charge-display-uclass.c
Z:\rk-android13-20250818RD-RK3588-MID\u-boot\drivers\power\charge-display-uclass.c

/*
