Spark核心Storage详解

news 2025/9/24 7:16:19

1、Master-Slave架构

1、Master角色

1、BlockManagerMasterEndpoint

它负责跟踪所有Slave节点的Block信息，维护整个应用程序的Block元数据，包括Block所在的位置、所占用的存储空间大小（内存、磁盘或Tachyon）以及副本位置等

blockManagerInfo：保存BlockManagerId到BlockManagerInfo的映射，记录Executor节点的内存使用情况和Block状态
blockManagerIdByExecutor：保存Executor ID到BlockManagerId的映射，用于快速查找
blockLocations：BlockId到BlockManagerId集合的映射，支持数据块多副本定位

2、Slave角色

1、BlockManagerStorageEndpoint

它主要负责接收来自Master的命令，执行相应的数据清理操作，并响应Master获取Block状态的请求。Slave节点会将Block状态变化主动上报给Master，但不会主动向Master发送消息。

3、消息传递

1 、Slave到Master的消息

case RegisterBlockManager(//Executor启动时注册BlockManagerid, localDirs, maxOnHeapMemSize, maxOffHeapMemSize, endpoint, isReRegister) =>context.reply(register(id, localDirs, maxOnHeapMemSize, maxOffHeapMemSize, endpoint, isReRegister))case _updateBlockInfo @ //数据块状态变更时上报元数据UpdateBlockInfo(blockManagerId, blockId, storageLevel, deserializedSize, size) =>@inline def handleResult(success: Boolean): Unit = {// SPARK-30594: we should not post `SparkListenerBlockUpdated` when updateBlockInfo// returns false since the block info would be updated again later.if (success) {listenerBus.post(SparkListenerBlockUpdated(BlockUpdatedInfo(_updateBlockInfo)))}context.reply(success)}if (blockId.isShuffle) {updateShuffleBlockInfo(blockId, blockManagerId).foreach(handleResult)} else {handleResult(updateBlockInfo(blockManagerId, blockId, storageLevel, deserializedSize, size))}case GetLocations(blockId) =>//查询数据块位置信息context.reply(getLocations(blockId))case GetLocationsAndStatus(blockId, requesterHost) =>context.reply(getLocationsAndStatus(blockId, requesterHost))case GetLocationsMultipleBlockIds(blockIds) =>context.reply(getLocationsMultipleBlockIds(blockIds))case GetPeers(blockManagerId) =>context.reply(getPeers(blockManagerId))case GetExecutorEndpointRef(executorId) =>context.reply(getExecutorEndpointRef(executorId))case GetMemoryStatus =>context.reply(memoryStatus)case GetStorageStatus =>context.reply(storageStatus)case GetBlockStatus(blockId, askStorageEndpoints) =>context.reply(blockStatus(blockId, askStorageEndpoints))case GetShufflePushMergerLocations(numMergersNeeded, hostsToFilter) =>context.reply(getShufflePushMergerLocations(numMergersNeeded, hostsToFilter))case RemoveShufflePushMergerLocation(host) =>context.reply(removeShufflePushMergerLocation(host))case IsExecutorAlive(executorId) =>context.reply(blockManagerIdByExecutor.contains(executorId))case GetMatchingBlockIds(filter, askStorageEndpoints) =>context.reply(getMatchingBlockIds(filter, askStorageEndpoints))case RemoveRdd(rddId) =>context.reply(removeRdd(rddId))case RemoveShuffle(shuffleId) =>context.reply(removeShuffle(shuffleId))case RemoveBroadcast(broadcastId, removeFromDriver) =>context.reply(removeBroadcast(broadcastId, removeFromDriver))case RemoveBlock(blockId) =>removeBlockFromWorkers(blockId)context.reply(true)case RemoveExecutor(execId) =>removeExecutor(execId)context.reply(true)case DecommissionBlockManagers(executorIds) =>// Mark corresponding BlockManagers as being decommissioning by adding them to// decommissioningBlockManagerSet, so they won't be used to replicate or migrate blocks.// Note that BlockManagerStorageEndpoint will be notified about decommissioning when the// executor is notified(see BlockManager.decommissionSelf), so we don't need to send the// notification here.val bms = executorIds.flatMap(blockManagerIdByExecutor.get)logInfo(log"Mark BlockManagers (${MDC(BLOCK_MANAGER_IDS, bms.mkString(", "))}) as " +log"being decommissioning.")decommissioningBlockManagerSet ++= bmscontext.reply(true)case GetReplicateInfoForRDDBlocks(blockManagerId) =>context.reply(getReplicateInfoForRDDBlocks(blockManagerId))case StopBlockManagerMaster =>context.reply(true)stop()case UpdateRDDBlockTaskInfo(blockId, taskId) =>// This is to report the information that a rdd block(with `blockId`) is computed// and cached by task(with `taskId`). And this happens right after the task finished// computing/caching the block only when the block is not visible yet. And the rdd// block will be marked as visible when the corresponding task finished successfully.context.reply(updateRDDBlockTaskInfo(blockId, taskId))case GetRDDBlockVisibility(blockId) =>// Get the visibility status of a specific rdd block.context.reply(isRDDBlockVisible(blockId))case UpdateRDDBlockVisibility(taskId, visible) =>// This is to report the information that whether rdd blocks computed by task(with `taskId`)// can be turned to be visible. This is reported by DAGScheduler right after task completes.// If the task finished successfully, rdd blocks can be turned to be visible, otherwise rdd// blocks' visibility status won't change.context.reply(updateRDDBlockVisibility(taskId, visible))

2、 Master到Slave的消息

case RemoveBlock(blockId) =>//删除指定数据块doAsync[Boolean](log"removing block ${MDC(BLOCK_ID, blockId)}", context) {blockManager.removeBlock(blockId)true}case RemoveRdd(rddId) =>//删除RDD所有相关数据块doAsync[Int](log"removing RDD ${MDC(RDD_ID, rddId)}", context) {blockManager.removeRdd(rddId)}case RemoveShuffle(shuffleId) =>//删除Shuffle相关数据doAsync[Boolean](log"removing shuffle ${MDC(SHUFFLE_ID, shuffleId)}", context) {if (mapOutputTracker != null) {mapOutputTracker.unregisterShuffle(shuffleId)}val shuffleManager = SparkEnv.get.shuffleManagerif (shuffleManager != null) {shuffleManager.unregisterShuffle(shuffleId)} else {logDebug(log"Ignore remove shuffle ${MDC(SHUFFLE_ID, shuffleId)}")true}}case DecommissionBlockManager =>context.reply(blockManager.decommissionSelf())case RemoveBroadcast(broadcastId, _) =>//删除广播变量数据doAsync[Int](log"removing broadcast ${MDC(BROADCAST_ID, broadcastId)}", context) {blockManager.removeBroadcast(broadcastId, tellMaster = true)}case GetBlockStatus(blockId, _) =>context.reply(blockManager.getStatus(blockId))case GetMatchingBlockIds(filter, _) =>context.reply(blockManager.getMatchingBlockIds(filter))case TriggerThreadDump =>context.reply(Utils.getThreadDump())case TriggerHeapHistogram =>context.reply(Utils.getHeapHistogram())case ReplicateBlock(blockId, replicas, maxReplicas) =>context.reply(blockManager.replicateBlock(blockId, replicas.toSet, maxReplicas))case MarkRDDBlockAsVisible(blockId) =>// The message is sent from driver to ask the block manager to mark the rdd block with// `blockId` to be visible now. This happens in 2 scenarios:// 1. A task computing/caching the rdd block finished successfully and the rdd block can be//    turned to be visible. Driver will ask all block managers hosting the rdd block to mark//    the block as visible.// 2. Once a replica of a visible block is cached and reported, driver will also ask the//    the block manager to mark the block as visible immediately.context.reply(blockManager.blockInfoManager.tryMarkBlockAsVisible(blockId))

2、基本概念

1、BlockData

block 抽象出块的存储方式，调用方应在完成块后调用 BlockData#dispose。

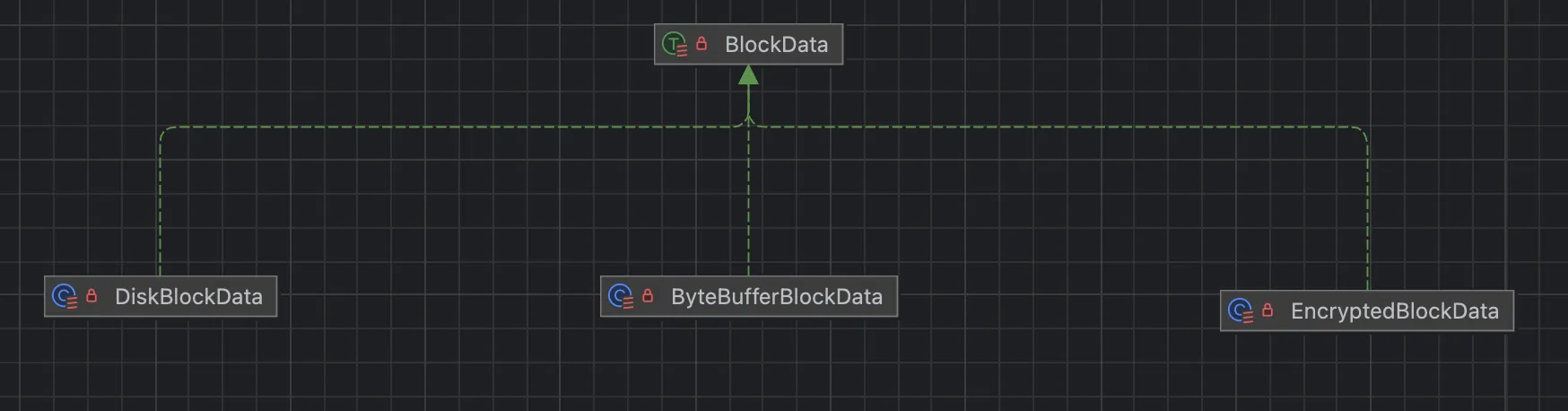

在这里插入图片描述

2、BlockId

块唯一标识

在这里插入图片描述

val RDD = "rdd_([0-9]+)_([0-9]+)".r
val SHUFFLE = "shuffle_([0-9]+)_([0-9]+)_([0-9]+)".r
val SHUFFLE_BATCH = "shuffle_([0-9]+)_([0-9]+)_([0-9]+)_([0-9]+)".r
val SHUFFLE_DATA = "shuffle_([0-9]+)_([0-9]+)_([0-9]+).data".r
val SHUFFLE_INDEX = "shuffle_([0-9]+)_([0-9]+)_([0-9]+).index".r
val SHUFFLE_PUSH = "shufflePush_([0-9]+)_([0-9]+)_([0-9]+)_([0-9]+)".r
val SHUFFLE_MERGED = "shuffleMerged_([0-9]+)_([0-9]+)_([0-9]+)".r
val SHUFFLE_MERGED_DATA = "shuffleMerged_([_A-Za-z0-9]*)_([0-9]+)_([0-9]+)_([0-9]+).data".r
val SHUFFLE_MERGED_INDEX = "shuffleMerged_([_A-Za-z0-9]*)_([0-9]+)_([0-9]+)_([0-9]+).index".r
val SHUFFLE_MERGED_META = "shuffleMerged_([_A-Za-z0-9]*)_([0-9]+)_([0-9]+)_([0-9]+).meta".r
val SHUFFLE_CHUNK = "shuffleChunk_([0-9]+)_([0-9]+)_([0-9]+)_([0-9]+)".r
val BROADCAST = "broadcast_([0-9]+)([_A-Za-z0-9]*)".r
val TASKRESULT = "taskresult_([0-9]+)".r
val STREAM = "input-([0-9]+)-([0-9]+)".r
val PYTHON_STREAM = "python-stream-([0-9]+)-([0-9]+)".r
val TEMP_LOCAL = "temp_local_([-A-Fa-f0-9]+)".r
val TEMP_SHUFFLE = "temp_shuffle_([-A-Fa-f0-9]+)".r
val TEST = "test_(.*)".r
