用 PyQt5 + FFmpeg 打造批量视频音频提取器

news 2025/10/11 6:00:35

作者：chsengni
日期：2025年10月10日
标签：Python, PyQt5, FFmpeg, 音频处理, GUI 开发

引言

在日常工作中，我们经常需要从视频中提取音频——无论是为了剪辑配音、制作播客，还是单纯想保存背景音乐。虽然命令行工具 ffmpeg 能轻松完成这项任务，但对于非技术用户来说，命令行并不友好。

于是，我决定用 Python + PyQt5 开发一个图形化工具：视频音频提取器。它支持多种音频格式（WAV、FLAC、MP3、OPUS 等），具备任务管理、批量处理、进度反馈和文件定位功能，真正做到了“一键提取，所见即所得”。

本文将带你解析这个工具的核心设计与实现细节。

技术栈概览

GUI 框架：PyQt5（跨平台、成熟稳定）
音频处理引擎：FFmpeg（通过系统调用）
并发模型：QThread + Worker 模式（避免界面卡死）
目标平台：Windows / macOS / Linux（自动适配）

💡 为什么选择 FFmpeg？
FFmpeg 是业界标准的多媒体处理框架，支持超过 1000 种格式。我们只需调用其命令行接口，即可高效完成音视频转码、提取、合并等操作。

核心功能设计

1. 多格式音频输出支持

我们预设了 6 种常用音频格式，兼顾无损与高压缩率需求：

SUPPORTED_FORMATS = {"WAV (无损)": {"ext": ".wav", "codec": "pcm_s16le", "params": ["-ar", "44100", "-ac", "2"]},"FLAC (无损)": {"ext": ".flac", "codec": "flac", "params": []},"ALAC (无损)": {"ext": ".m4a", "codec": "alac", "params": []},"AIFF (无损)": {"ext": ".aiff", "codec": "pcm_s16be", "params": ["-ar", "44100", "-ac", "2"]},"OPUS (高质量)": {"ext": ".opus", "codec": "libopus", "params": ["-b:a", "192k"]},"MP3 (通用)": {"ext": ".mp3", "codec": "libmp3lame", "params": ["-b:a", "320k"]}
}

用户可通过下拉菜单实时切换输出格式，新添加的视频会自动应用当前格式。

2. 任务队列与状态管理

每个任务包含以下状态：

等待 → 进行中 → 完成 / 失败

任务以 dict 形式存储，包含：

视频路径、输出路径
状态标签、进度条、操作按钮（执行/打开/删除）
QThread 与 Worker 实例（用于异步处理）

通过 QListWidget + 自定义 QWidget 实现任务列表的可视化，支持：

批量开始
单任务执行
实时状态更新
成功后一键打开文件位置

3. 异步处理：避免界面卡死

直接在主线程调用 subprocess.run() 会导致 GUI 冻结。为此，我们采用 QThread + Worker 模式：

class Worker(QObject):finished = pyqtSignal(bool, str)def run(self):# 调用 ffmpeg 命令result = subprocess.run(cmd, ...)self.finished.emit(result.returncode == 0, "完成" or error)

主线程启动线程后，通过信号 finished 回调更新 UI，完全解耦耗时操作与界面响应。

4. 跨平台文件定位

提取完成后，用户点击“📂 打开”按钮可直接定位到生成的音频文件：

def open_file_location(file_path):if system == "Windows":subprocess.run(['explorer', '/select,', file_path])elif system == "Darwin":subprocess.run(['open', '-R', file_path])else:subprocess.run(['xdg-open', os.path.dirname(file_path)])

自动适配 Windows / macOS / Linux 的文件管理器。

5. FFmpeg 环境检测

程序启动时自动检测 ffmpeg 是否安装：

subprocess.run(['ffmpeg', '-version'], ...)

若未找到，弹出友好提示，并附上 Windows 用户推荐安装方式：

推荐安装 Essentials Build:
https://www.gyan.dev/ffmpeg/builds/
或运行：winget install "FFmpeg (Essentials Build)"

这极大降低了用户使用门槛。

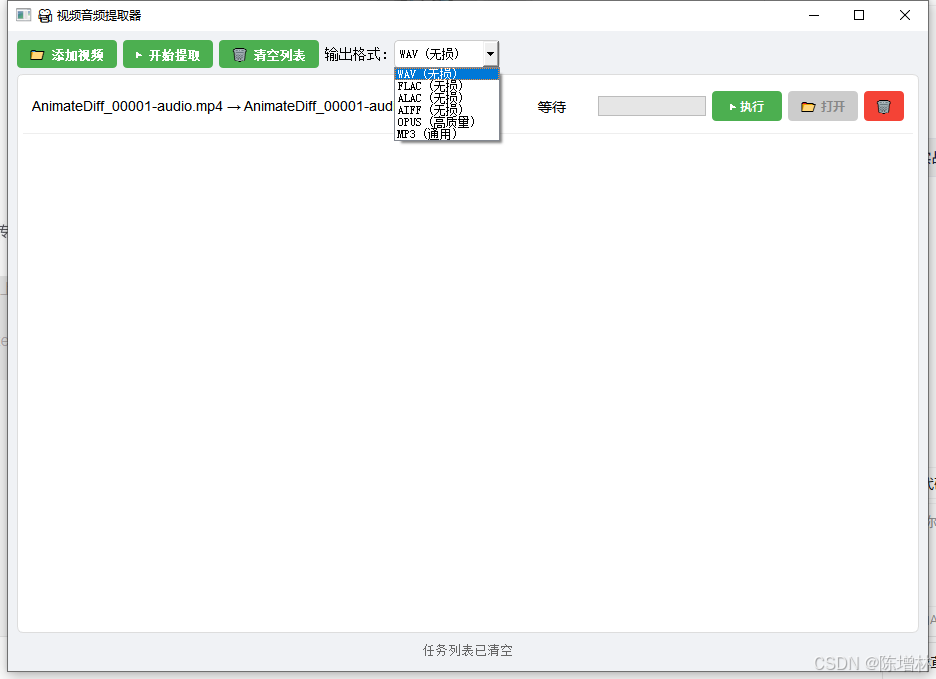

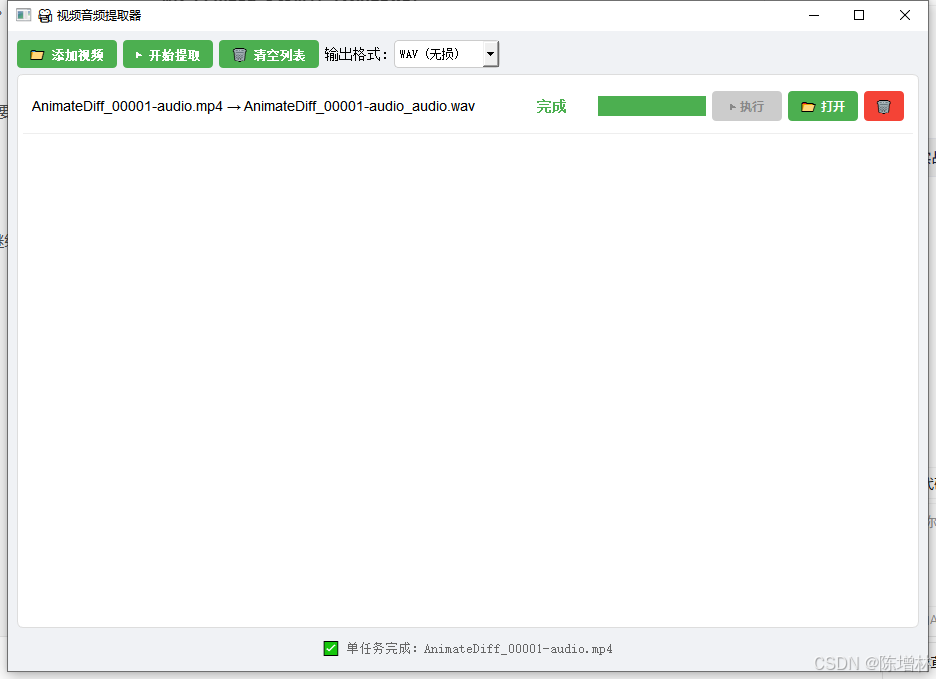

界面展示

在这里插入图片描述

（实际运行效果：简洁绿色主题，任务状态颜色区分，操作直观）

使用场景

视频博主提取背景音乐
教师从教学视频中分离语音
音频工程师批量转码素材
普通用户保存喜欢的电影配乐

源码与扩展建议

代码

import sys
import os
import subprocess
import platform
from PyQt5.QtWidgets import (QApplication, QMainWindow, QWidget, QVBoxLayout, QHBoxLayout,QPushButton, QListWidget, QListWidgetItem, QLabel, QFileDialog,QMessageBox, QProgressBar, QComboBox
)
from PyQt5.QtCore import Qt, pyqtSignal, QObject, QThread
from PyQt5.QtGui import QFont, QIcondef open_file_location(file_path):try:system = platform.system()if system == "Windows":subprocess.run(['explorer', '/select,', os.path.normpath(file_path)], shell=True)elif system == "Darwin":subprocess.run(['open', '-R', file_path])else:folder = os.path.dirname(file_path)subprocess.run(['xdg-open', folder])except Exception as e:QMessageBox.warning(None, "提示", f"无法打开文件位置：\n{str(e)}")SUPPORTED_FORMATS = {"WAV (无损)": {"ext": ".wav", "codec": "pcm_s16le", "params": ["-ar", "44100", "-ac", "2"]},"FLAC (无损)": {"ext": ".flac", "codec": "flac", "params": []},"ALAC (无损)": {"ext": ".m4a", "codec": "alac", "params": []},"AIFF (无损)": {"ext": ".aiff", "codec": "pcm_s16be", "params": ["-ar", "44100", "-ac", "2"]},"OPUS (高质量)": {"ext": ".opus", "codec": "libopus", "params": ["-b:a", "192k"]},"MP3 (通用)": {"ext": ".mp3", "codec": "libmp3lame", "params": ["-b:a", "320k"]}
}class Worker(QObject):finished = pyqtSignal(bool, str)def __init__(self, video_path, output_path, format_key):super().__init__()self.video_path = video_pathself.output_path = output_pathself.format_key = format_keydef run(self):try:fmt = SUPPORTED_FORMATS[self.format_key]cmd = ['ffmpeg', '-y', '-i', self.video_path, '-vn', '-acodec', fmt['codec']]cmd.extend(fmt['params'])cmd.append(self.output_path)result = subprocess.run(cmd, stdout=subprocess.PIPE, stderr=subprocess.PIPE, text=True)if result.returncode == 0:self.finished.emit(True, "完成")else:error_msg = result.stderr[:200] if result.stderr else "未知错误"self.finished.emit(False, f"失败: {error_msg}")except Exception as e:self.finished.emit(False, f"异常: {str(e)}")class AudioExtractor(QMainWindow):def __init__(self):super().__init__()self.setWindowTitle("🎥 视频音频提取器")self.resize(920, 640)self.setWindowIcon(QIcon.fromTheme("audio-x-generic"))self.tasks = []self.current_format_key = "WAV (无损)"self.init_ui()self.check_ffmpeg()def init_ui(self):central = QWidget()self.setCentralWidget(central)layout = QVBoxLayout(central)top_layout = QHBoxLayout()self.add_btn = QPushButton("📁 添加视频")self.add_btn.clicked.connect(self.add_videos)self.start_btn = QPushButton("▶️ 开始提取")self.start_btn.clicked.connect(self.start_extraction)self.clear_btn = QPushButton("🗑️ 清空列表")self.clear_btn.clicked.connect(self.clear_all_tasks)self.format_combo = QComboBox()self.format_combo.addItems(SUPPORTED_FORMATS.keys())self.format_combo.setCurrentText(self.current_format_key)self.format_combo.currentTextChanged.connect(self.on_format_changed)top_layout.addWidget(self.add_btn)top_layout.addWidget(self.start_btn)top_layout.addWidget(self.clear_btn)top_layout.addWidget(QLabel("输出格式:"))top_layout.addWidget(self.format_combo)top_layout.addStretch()layout.addLayout(top_layout)self.list_widget = QListWidget()layout.addWidget(self.list_widget)self.status_label = QLabel("就绪")self.status_label.setAlignment(Qt.AlignCenter)self.status_label.setStyleSheet("color: #666; padding: 5px; font-size: 13px;")layout.addWidget(self.status_label)self.apply_stylesheet()def apply_stylesheet(self):self.setStyleSheet("""QMainWindow {background-color: #f0f2f5;}QPushButton {background-color: #4CAF50;color: white;border: none;padding: 6px 12px;border-radius: 4px;font-weight: bold;}QPushButton:hover {background-color: #45a049;}QPushButton:disabled {background-color: #cccccc;color: #888;}QListWidget {background-color: white;border: 1px solid #ddd;border-radius: 6px;padding: 5px;}QListWidget::item {padding: 0px;border-bottom: 1px solid #eee;}QComboBox {padding: 5px;border: 1px solid #ccc;border-radius: 4px;}QLabel {font-size: 14px;}""")def on_format_changed(self, text):self.current_format_key = textdef add_videos(self):files, _ = QFileDialog.getOpenFileNames(self, "选择视频文件", "","视频文件 (*.mp4 *.mkv *.avi *.mov *.flv *.wmv *.webm *.m4v *.ts *.mts)")for file in files:base_name = os.path.splitext(os.path.basename(file))[0]ext = SUPPORTED_FORMATS[self.current_format_key]["ext"]output_path = os.path.join(os.path.dirname(file), f"{base_name}_audio{ext}")task = {'video': file,'output': output_path,'status': '等待','progress_bar': None,'status_label': None,'open_btn': None,'remove_btn': None,'exec_btn': None,'thread': None,'worker': None}self.tasks.append(task)self.add_task_to_list(len(self.tasks) - 1)def add_task_to_list(self, index):item = QListWidgetItem()widget = QWidget()layout = QHBoxLayout(widget)label = QLabel(f"{os.path.basename(self.tasks[index]['video'])} → {os.path.basename(self.tasks[index]['output'])}")label.setWordWrap(True)label.setFont(QFont("Arial", 10))status_label = QLabel("等待")status_label.setMinimumWidth(80)status_label.setAlignment(Qt.AlignCenter)progress_bar = QProgressBar()progress_bar.setRange(0, 100)progress_bar.setValue(0)progress_bar.setTextVisible(False)progress_bar.setFixedHeight(20)progress_bar.setStyleSheet("QProgressBar::chunk { background-color: #4CAF50; }")exec_btn = QPushButton("▶️ 执行")exec_btn.setFixedWidth(70)exec_btn.setFixedHeight(30)exec_btn.clicked.connect(lambda _, idx=index: self.execute_single_task(idx))open_btn = QPushButton("📂 打开")open_btn.setFixedWidth(70)open_btn.setFixedHeight(30)open_btn.setEnabled(False)open_btn.clicked.connect(lambda _, idx=index: self.open_output_folder(idx))remove_btn = QPushButton("🗑️")remove_btn.setFixedWidth(40)remove_btn.setFixedHeight(30)remove_btn.setStyleSheet("background-color: #f44336; color: white;")remove_btn.clicked.connect(lambda _, idx=index: self.remove_task(idx))layout.addWidget(label)layout.addWidget(status_label)layout.addWidget(progress_bar)layout.addWidget(exec_btn)layout.addWidget(open_btn)layout.addWidget(remove_btn)layout.setStretch(0, 1)layout.setAlignment(Qt.AlignVCenter)item.setSizeHint(widget.sizeHint())self.list_widget.addItem(item)self.list_widget.setItemWidget(item, widget)self.tasks[index]['widget'] = widgetself.tasks[index]['status_label'] = status_labelself.tasks[index]['progress_bar'] = progress_barself.tasks[index]['open_btn'] = open_btnself.tasks[index]['remove_btn'] = remove_btnself.tasks[index]['exec_btn'] = exec_btndef open_output_folder(self, index):output_path = self.tasks[index]['output']if os.path.exists(output_path):open_file_location(output_path)else:QMessageBox.warning(self, "文件不存在", "音频文件尚未生成或已被删除。")def remove_task(self, index):task = self.tasks[index]if task['status'] == '进行中':QMessageBox.warning(self, "无法移除", "正在处理的任务不能移除！")returnself.list_widget.takeItem(index)del self.tasks[index]self.status_label.setText("已移除一个任务")def clear_all_tasks(self):if any(t['status'] == '进行中' for t in self.tasks):QMessageBox.warning(self, "无法清空", "有任务正在运行，请等待完成后再清空！")returnreply = QMessageBox.question(self, "确认清空","确定要清空所有任务吗？",QMessageBox.Yes | QMessageBox.No,QMessageBox.No)if reply == QMessageBox.Yes:self.tasks.clear()self.list_widget.clear()self.status_label.setText("任务列表已清空")def start_extraction(self):if not self.tasks:QMessageBox.warning(self, "提示", "请先添加视频文件！")returnwaiting_tasks = [i for i, t in enumerate(self.tasks) if t['status'] == '等待']if not waiting_tasks:QMessageBox.information(self, "提示", "没有待处理的任务！")returnself.start_btn.setEnabled(False)self.add_btn.setEnabled(False)self.clear_btn.setEnabled(False)for i in waiting_tasks:self.run_task(i)def run_task(self, index):task = self.tasks[index]task['status'] = '进行中'task['status_label'].setText("进行中")task['status_label'].setStyleSheet("color: #FF9800;")task['remove_btn'].setEnabled(False)task['exec_btn'].setEnabled(False)thread = QThread()worker = Worker(task['video'], task['output'], self.current_format_key)worker.moveToThread(thread)def on_finished(success, msg):self.on_task_finished(index, success, msg)thread.quit()worker.finished.connect(on_finished)thread.started.connect(worker.run)worker.finished.connect(worker.deleteLater)thread.finished.connect(thread.deleteLater)task['thread'] = threadtask['worker'] = workerthread.start()def on_task_finished(self, index, success, message):task = self.tasks[index]task['status'] = '完成' if success else '失败'color = "#4CAF50" if success else "#F44336"task['status_label'].setText("完成" if success else "失败")task['status_label'].setStyleSheet(f"color: {color}; font-weight: bold;")task['progress_bar'].setValue(100)task['remove_btn'].setEnabled(True)if success:self.status_label.setText(f"✅ {os.path.basename(task['video'])} 提取成功！")task['open_btn'].setEnabled(True)else:self.status_label.setText(f"❌ {message}")task['open_btn'].setEnabled(False)# 检查是否所有批量任务完成if not any(t['status'] == '进行中' for t in self.tasks):self.start_btn.setEnabled(True)self.add_btn.setEnabled(True)self.clear_btn.setEnabled(True)QMessageBox.information(self, "完成", "所有批量任务处理完毕！")def execute_single_task(self, index):task = self.tasks[index]if task['status'] != '等待':QMessageBox.warning(self, "提示", "该任务已在运行、已完成或已失败，无法重复执行！")returntask['status'] = '进行中'task['status_label'].setText("进行中")task['status_label'].setStyleSheet("color: #FF9800;")task['progress_bar'].setValue(0)task['exec_btn'].setEnabled(False)task['remove_btn'].setEnabled(False)thread = QThread()worker = Worker(task['video'], task['output'], self.current_format_key)worker.moveToThread(thread)def on_finished(success, msg):self.on_single_task_finished(index, success, msg)thread.quit()worker.finished.connect(on_finished)thread.started.connect(worker.run)worker.finished.connect(worker.deleteLater)thread.finished.connect(thread.deleteLater)task['thread'] = threadtask['worker'] = workerthread.start()def on_single_task_finished(self, index, success, message):task = self.tasks[index]task['status'] = '完成' if success else '失败'color = "#4CAF50" if success else "#F44336"task['status_label'].setText("完成" if success else "失败")task['status_label'].setStyleSheet(f"color: {color}; font-weight: bold;")task['progress_bar'].setValue(100)task['remove_btn'].setEnabled(True)# 不再启用 exec_btn（防止重复执行），如需重试可改为“重试”逻辑if success:self.status_label.setText(f"✅ 单任务完成：{os.path.basename(task['video'])}")task['open_btn'].setEnabled(True)else:self.status_label.setText(f"❌ 单任务失败：{message[:50]}")task['open_btn'].setEnabled(False)def check_ffmpeg(self):try:subprocess.run(['ffmpeg', '-version'], stdout=subprocess.PIPE, stderr=subprocess.PIPE)except FileNotFoundError:msg = ("未找到 FFmpeg！\n\n""请安装 FFmpeg 并确保其在系统 PATH 中。\n\n""推荐安装方式（Windows）：\n""• 下载 Essentials Build: https://www.gyan.dev/ffmpeg/builds/    \n""• 或运行命令：winget install \"FFmpeg (Essentials Build)\"\n\n""macOS: brew install ffmpeg\n""Linux: sudo apt install ffmpeg")QMessageBox.critical(self, "错误", msg)sys.exit(1)if __name__ == "__main__":app = QApplication(sys.argv)window = AudioExtractor()window.show()sys.exit(app.exec_())
