本章节主要内容是:进程间 Windows消息队列通信，基于MSMQ 。

核心概念

1. 消息队列

   • 就像一个“邮箱”。发送方进程将消息发送到这个队列，接收方进程从同一个队列中读取消息。

   • 队列由消息队列服务器管理，消息被持久化存储（通常在磁盘上），确保了可靠性。

2. 异步通信

   • 发送方和接收方不需要同时在线。

   • 发送方发送完消息后就可以继续自己的工作，无需等待接收方立即处理。

   • 接收方可以在自己方便的时候再去队列中获取并处理消息。这实现了进程间的 “解耦”。

3. 可靠传递

   • 因为消息被存储在持久化介质中（如硬盘），即使发送后接收方程序崩溃、网络中断或计算机关机，消息也不会丢失。当接收方程序重新启动后，它仍然可以从队列中收到那条消息。

MSMQ 的工作模式

• 点对点模式：一个发送方将消息发送到一个特定的队列，一个（且只有一个）接收方从该队列中取出消息进行处理。

• 多播模式：一个发送方发送一条消息，可以被多个订阅了该消息的接收方同时接收。

主要特点和优势

• 解耦：发送和接收进程相互独立，不需要知道对方的存在、状态或位置。

• 可靠性：通过持久化保证消息不丢失。

• 异步性：提高系统的响应能力和吞吐量。

• 削峰填谷：当短时间内产生大量请求时，队列可以将其缓冲起来，让接收方按照自己的能力逐步处理，防止系统被压垮。

典型应用场景

1. 工作流处理：用户提交一个订单，系统向队列发送一条“新订单”消息。后端的库存管理、物流计算等系统可以各自从队列中获取消息并进行处理，无需用户等待所有流程完成。

2. 系统集成：连接两个不同的、不易直接通信的旧系统。系统A将数据发送到队列，系统B从队列中读取。

3. 延迟操作：例如，一个网站需要在用户注册24小时后发送一封提醒邮件。它可以将“发送邮件”消息放入队列，并设置其24小时后才可被接收。

总结

MSMQ 不是一种实时、同步的通信方式（像管道或WCF的NetTcp那样），而是一种强调可靠性、稳定性和系统解耦的异步通信机制。 它适用于那些你希望确保消息最终一定能被处理，但不要求立即得到响应的场景。

目录：

1.源码分析

2.所有源码

3.效果演示

一、源码分析

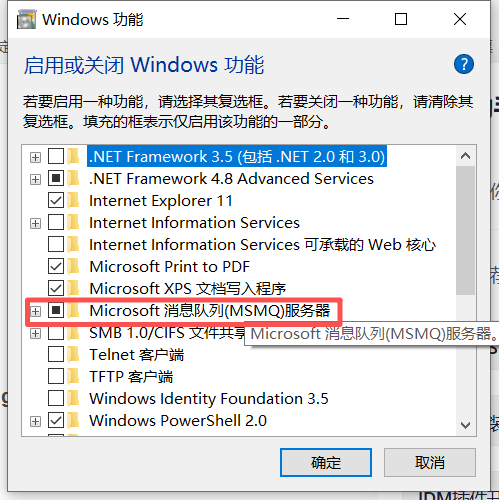

启用MSMQ Windows功能

Windows 10/11 启用步骤：

1. 按 Win + R 键，输入 optionalfeatures.exe 回车

2. 在"Windows功能"对话框中，找到 "Microsoft Message Queue (MSMQ) 服务器"

3. 展开这个选项，勾选所有子项

4. 点击"确定"，等待安装完成

5. 重启计算机

​

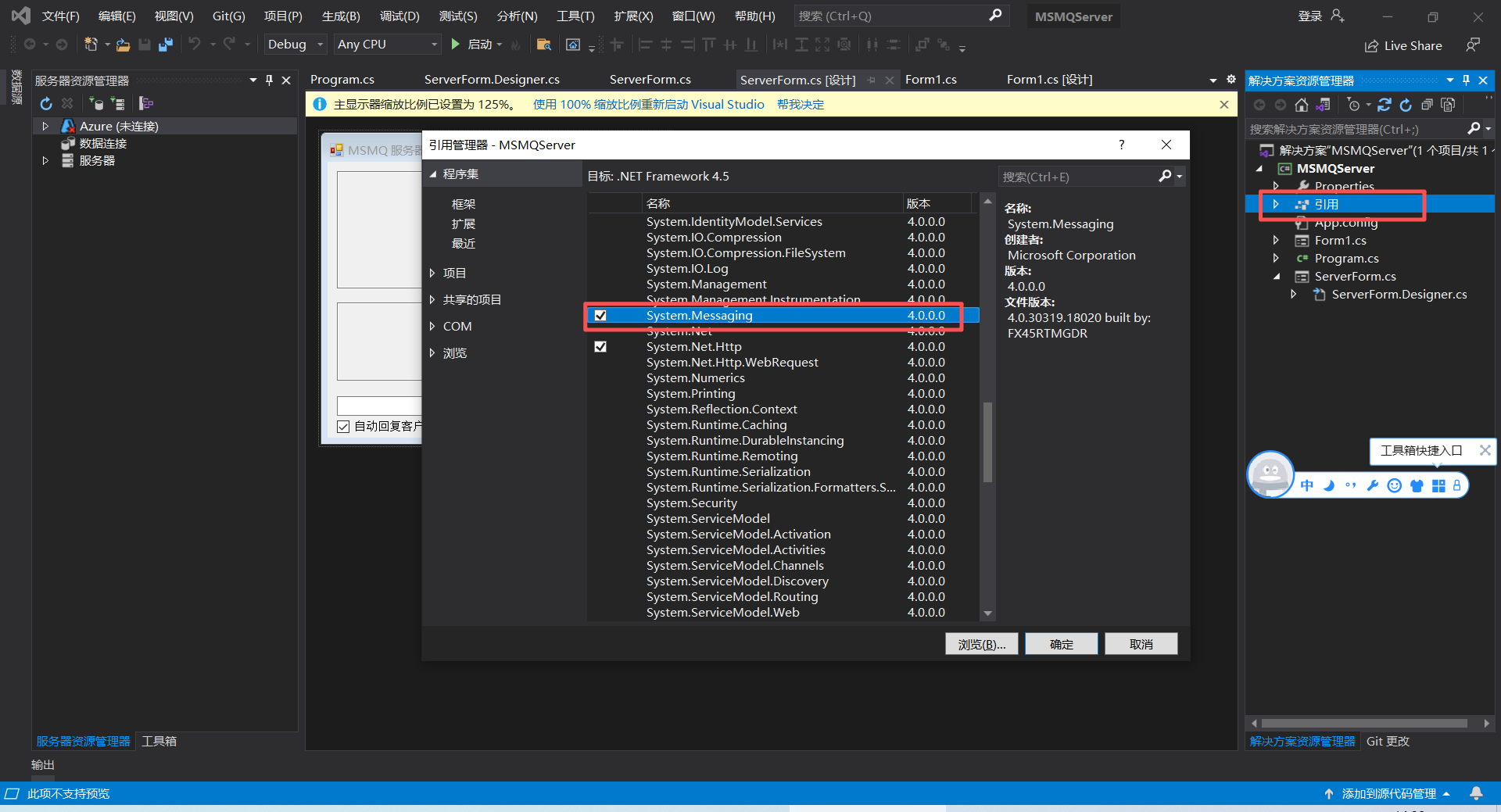

添加引用System.Messaging;

​

服务器端函数分析
1. 构造函数 ServerForm()


public ServerForm()
{InitializeComponent();InitializeMSMQ();
}

功能：窗体初始化

调用界面组件初始化

启动MSMQ初始化过程

是整个服务器应用的入口点

2. InitializeMSMQ()


private void InitializeMSMQ()
{// 创建或连接到消息队列if (!MessageQueue.Exists(QueuePath)){mq = MessageQueue.Create(QueuePath);AppendLog("创建新的消息队列: " + QueuePath);}else{mq = new MessageQueue(QueuePath);AppendLog("连接到现有消息队列: " + QueuePath);}// 设置消息格式mq.Formatter = new XmlMessageFormatter(new Type[] { typeof(string) });// 异步开始接收消息StartReceiving();
}

功能：MSMQ系统初始化

队列存在性检查：检查.\Private$\MyTestQueue是否存在

队列创建/连接：不存在则创建，存在则连接

消息格式化：设置为XML格式，只处理string类型消息

启动消息监听：开始异步接收消息

日志记录：记录初始化过程

3. StartReceiving()


private void StartReceiving()
{mq.BeginReceive(TimeSpan.FromSeconds(1), mq, OnMessageReceived);
}

功能：启动异步消息接收

异步操作：使用BeginReceive非阻塞接收

超时设置：1秒超时，避免永久阻塞

回调指定：收到消息时调用OnMessageReceived

状态对象：传递mq对象作为状态参数

4. OnMessageReceived(IAsyncResult result)


private void OnMessageReceived(IAsyncResult result)
{try{System.Messaging.Message message = mq.EndReceive(result);// 在UI线程上更新界面this.Invoke(new Action(() =>{string messageBody = message.Body.ToString();AppendLog($"收到消息: {messageBody}");txtReceivedMessages.AppendText(messageBody + Environment.NewLine);// 自动回复if (chkAutoReply.Checked){SendReply($"自动回复: 已收到你的消息 '{messageBody}'");}}));// 继续接收下一条消息StartReceiving();}catch (MessageQueueException ex){this.Invoke(new Action(() =>AppendLog($"接收消息错误: {ex.Message}")));}
}

功能：消息到达回调处理

消息提取：调用EndReceive完成异步操作，获取消息

线程安全：使用Invoke在UI线程更新界面

消息显示：在日志和接收消息框显示内容

自动回复：根据复选框状态自动回复客户端

循环接收：递归调用StartReceiving继续监听

异常处理：捕获MSMQ特定异常并记录

5. SendReply(string replyText)


private void SendReply(string replyText)
{try{using (MessageQueue replyQueue = new MessageQueue(@".\Private$\ClientQueue")){if (!MessageQueue.Exists(@".\Private$\ClientQueue")){MessageQueue.Create(@".\Private$\ClientQueue");}System.Messaging.Message replyMessage = new System.Messaging.Message(replyText);replyQueue.Send(replyMessage);AppendLog($"发送回复: {replyText}");}}catch (Exception ex){AppendLog($"发送回复失败: {ex.Message}");}
}

功能：向客户端发送回复消息

队列准备：检查并创建客户端队列（如果需要）

消息创建：创建包含回复文本的消息对象

消息发送：通过客户端队列发送消息

资源管理：使用using语句确保队列正确释放

错误处理：捕获发送过程中的异常

6. SendToClient(string message)


private void SendToClient(string message)
{try{using (MessageQueue clientQueue = new MessageQueue(@".\Private$\ClientQueue")){if (!MessageQueue.Exists(@".\Private$\ClientQueue")){MessageQueue.Create(@".\Private$\ClientQueue");}System.Messaging.Message msg = new System.Messaging.Message(message);clientQueue.Send(msg);AppendLog($"发送到客户端: {message}");}}catch (Exception ex){AppendLog($"发送到客户端失败: {ex.Message}");}
}

功能：主动向客户端发送消息

手动发送：不同于自动回复，这是服务器主动发起的通信

队列管理：同样确保客户端队列存在

消息构建发送：创建并发送消息

日志记录：记录发送操作

7. AppendLog(string log)


private void AppendLog(string log)
{string timestamp = DateTime.Now.ToString("HH:mm:ss");txtLog.AppendText($"[{timestamp}] {log}{Environment.NewLine}");
}

功能：日志记录工具函数

时间戳：为每条日志添加当前时间

格式统一：统一的日志格式 [时间] 内容

界面更新：直接追加到日志文本框

客户端函数分析
1. CheckMSMQAvailability()


private void CheckMSMQAvailability()
{try{if (!IsMSMQAvailable()){// 错误处理和用户指导AppendLog("MSMQ功能未安装！");AppendLog("请启用Windows MSMQ功能：");// ... 详细指导信息btnSendToServer.Enabled = false;btnCheckServer.Enabled = false;txtMessageToServer.Enabled = false;return;}AppendLog("MSMQ功能可用，正在初始化...");InitializeMSMQ();}catch (Exception ex){AppendLog($"检查MSMQ可用性失败: {ex.Message}");}
}

功能：MSMQ环境预检查

功能检测：调用IsMSMQAvailable()检测MSMQ是否可用

用户引导：提供详细的安装指导

界面控制：禁用相关功能按钮

错误处理：捕获检测过程中的异常

2. IsMSMQAvailable()


private bool IsMSMQAvailable()
{try{string testPath = @".\Private$\MSMQTestQueue_" + Guid.NewGuid().ToString("N");bool exists = MessageQueue.Exists(testPath);if (!exists){using (var testQueue = MessageQueue.Create(testPath, false)){// 创建成功}MessageQueue.Delete(testPath);}else{MessageQueue.Delete(testPath);}return true;}catch{return false;}
}

功能：MSMQ功能可用性测试

唯一性测试：使用GUID创建唯一测试队列名，避免冲突

完整流程测试：测试队列创建、存在性检查、删除等完整操作

异常检测：通过try-catch检测任何MSMQ相关异常

资源清理：确保测试队列被正确清理

3. CheckServerStatus()


private void CheckServerStatus()
{try{if (MessageQueue.Exists(ServerQueuePath)){AppendLog("服务器状态: ✅ 在线");btnSendToServer.Enabled = true;txtMessageToServer.Enabled = true;lblServerStatus.Text = "服务器状态: 在线";lblServerStatus.ForeColor = Color.Green;}else{AppendLog("服务器状态: ❌ 离线");btnSendToServer.Enabled = false;lblServerStatus.Text = "服务器状态: 离线";lblServerStatus.ForeColor = Color.Red;}}catch (Exception ex){AppendLog($"检查服务器状态失败: {ex.Message}");}
}

功能：服务器连接状态检查

队列存在性检查：检查服务器队列是否存在

界面状态更新：更新按钮启用状态和标签显示

视觉反馈：使用颜色区分在线/离线状态

日志记录：记录状态检查结果

4. SendToServer(string message)


private void SendToServer(string message)
{try{if (!MessageQueue.Exists(ServerQueuePath)){AppendLog("错误：服务器队列不存在，请先启动服务器");MessageBox.Show("服务器队列不存在，请先启动服务器程序", "错误",MessageBoxButtons.OK, MessageBoxIcon.Error);btnSendToServer.Enabled = false;return;}using (MessageQueue serverQueue = new MessageQueue(ServerQueuePath)){serverQueue.Formatter = new XmlMessageFormatter(new Type[] { typeof(string) });System.Messaging.Message msg = new System.Messaging.Message(message);serverQueue.Send(msg);AppendLog($"发送到服务器: {message}");// 添加到发送历史txtSentMessages.AppendText($"[{DateTime.Now:HH:mm:ss}] {message}{Environment.NewLine}");txtSentMessages.SelectionStart = txtSentMessages.Text.Length;txtSentMessages.ScrollToCaret();}}catch (MessageQueueException ex){AppendLog($"发送到服务器失败 - 队列错误: {ex.Message}");btnSendToServer.Enabled = false;}catch (Exception ex){AppendLog($"发送到服务器失败: {ex.Message}");}
}

功能：向服务器发送消息

前置检查：发送前确认服务器队列存在

格式设置：确保消息格式化器正确设置

消息发送：创建并发送消息到服务器队列

发送历史：记录到发送历史文本框

自动滚动：滚动到最新消息

错误处理：区分MSMQ异常和一般异常

5. 重试机制函数


private void StartReceiving()
{try{mq.BeginReceive(TimeSpan.FromSeconds(1), mq, OnMessageReceived);}catch (Exception ex){AppendLog($"开始接收消息失败: {ex.Message}");// 3秒后重试System.Threading.Timer timer = null;timer = new System.Threading.Timer(_ =>{StartReceiving();timer?.Dispose();}, null, 3000, System.Threading.Timeout.Infinite);}
}

功能：带重试的消息接收启动

异常恢复：接收启动失败时自动重试

延迟重试：3秒后重新尝试启动接收

资源管理：使用一次性定时器，完成后立即释放

避免循环：确保重试逻辑不会无限循环

二、所有源码

服务器端ServerForm.cs源码

using System;
using System.Messaging;
using System.Windows.Forms;
using System.Text;namespace MSMQServer
{public partial class ServerForm : Form{private MessageQueue mq;private const string QueuePath = @".\Private$\MyTestQueue";public ServerForm(){InitializeComponent();InitializeMSMQ();}private void InitializeMSMQ(){// 创建或连接到消息队列if (!MessageQueue.Exists(QueuePath)){mq = MessageQueue.Create(QueuePath);AppendLog("创建新的消息队列: " + QueuePath);}else{mq = new MessageQueue(QueuePath);AppendLog("连接到现有消息队列: " + QueuePath);}// 设置消息格式mq.Formatter = new XmlMessageFormatter(new Type[] { typeof(string) });// 异步开始接收消息StartReceiving();}private void StartReceiving(){mq.BeginReceive(TimeSpan.FromSeconds(1), mq, OnMessageReceived);}private void OnMessageReceived(IAsyncResult result){try{System.Messaging.Message message = mq.EndReceive(result);// 在UI线程上更新界面this.Invoke(new Action(() =>{string messageBody = message.Body.ToString();AppendLog($"收到消息: {messageBody}");txtReceivedMessages.AppendText(messageBody + Environment.NewLine);// 自动回复if (chkAutoReply.Checked){SendReply($"自动回复: 已收到你的消息 '{messageBody}'");}}));// 继续接收下一条消息StartReceiving();}catch (MessageQueueException ex){this.Invoke(new Action(() =>AppendLog($"接收消息错误: {ex.Message}")));}}private void SendReply(string replyText){try{using (MessageQueue replyQueue = new MessageQueue(@".\Private$\ClientQueue")){if (!MessageQueue.Exists(@".\Private$\ClientQueue")){MessageQueue.Create(@".\Private$\ClientQueue");}System.Messaging.Message replyMessage = new System.Messaging.Message(replyText);replyQueue.Send(replyMessage);AppendLog($"发送回复: {replyText}");}}catch (Exception ex){AppendLog($"发送回复失败: {ex.Message}");}}private void btnSendToClient_Click(object sender, EventArgs e){if (!string.IsNullOrEmpty(txtMessageToClient.Text)){SendToClient(txtMessageToClient.Text);txtMessageToClient.Clear();}}private void SendToClient(string message){try{using (MessageQueue clientQueue = new MessageQueue(@".\Private$\ClientQueue")){if (!MessageQueue.Exists(@".\Private$\ClientQueue")){MessageQueue.Create(@".\Private$\ClientQueue");}System.Messaging.Message msg = new System.Messaging.Message(message);clientQueue.Send(msg);AppendLog($"发送到客户端: {message}");}}catch (Exception ex){AppendLog($"发送到客户端失败: {ex.Message}");}}private void AppendLog(string log){string timestamp = DateTime.Now.ToString("HH:mm:ss");txtLog.AppendText($"[{timestamp}] {log}{Environment.NewLine}");}protected override void OnFormClosing(FormClosingEventArgs e){mq?.Close();mq?.Dispose();base.OnFormClosing(e);}}
}

服务器端ServerForm.designer.cs源码

using System;
using System.Windows.Forms;namespace MSMQServer
{partial class ServerForm{private System.ComponentModel.IContainer components = null;private TextBox txtLog;private TextBox txtReceivedMessages;private TextBox txtMessageToClient;private Button btnSendToClient;private CheckBox chkAutoReply;private void InitializeComponent(){this.txtLog = new TextBox();this.txtReceivedMessages = new TextBox();this.txtMessageToClient = new TextBox();this.btnSendToClient = new Button();this.chkAutoReply = new CheckBox();// 布局代码this.SuspendLayout();// txtLog - 显示操作日志this.txtLog.Multiline = true;this.txtLog.ScrollBars = ScrollBars.Vertical;this.txtLog.Location = new System.Drawing.Point(12, 12);this.txtLog.Size = new System.Drawing.Size(400, 150);this.txtLog.ReadOnly = true;// txtReceivedMessages - 显示接收到的消息this.txtReceivedMessages.Multiline = true;this.txtReceivedMessages.ScrollBars = ScrollBars.Vertical;this.txtReceivedMessages.Location = new System.Drawing.Point(12, 180);this.txtReceivedMessages.Size = new System.Drawing.Size(400, 100);this.txtReceivedMessages.ReadOnly = true;// 发送消息区域this.txtMessageToClient.Location = new System.Drawing.Point(12, 300);this.txtMessageToClient.Size = new System.Drawing.Size(300, 20);this.btnSendToClient.Location = new System.Drawing.Point(320, 298);this.btnSendToClient.Size = new System.Drawing.Size(75, 23);this.btnSendToClient.Text = "发送到客户端";this.btnSendToClient.Click += new EventHandler(this.btnSendToClient_Click);this.chkAutoReply.Location = new System.Drawing.Point(12, 330);this.chkAutoReply.Size = new System.Drawing.Size(150, 20);this.chkAutoReply.Text = "自动回复客户端";this.chkAutoReply.Checked = true;this.Text = "MSMQ 服务器";this.Size = new System.Drawing.Size(450, 400);this.Controls.AddRange(new Control[] {txtLog, txtReceivedMessages, txtMessageToClient,btnSendToClient, chkAutoReply});this.ResumeLayout(false);}}
}

客户端ClientForm.cs源码

using System;
using System.Messaging;
using System.Windows.Forms;
using System.Drawing;
using System.Text;namespace MSMQClient
{public partial class ClientForm : Form{private MessageQueue mq;private const string QueuePath = @".\Private$\ClientQueue";private const string ServerQueuePath = @".\Private$\MyTestQueue";public ClientForm(){InitializeComponent();CheckMSMQAvailability();}private void CheckMSMQAvailability(){try{if (!IsMSMQAvailable()){AppendLog("MSMQ功能未安装！");AppendLog("请启用Windows MSMQ功能：");AppendLog("1. 按 Win+R，输入 optionalfeatures.exe");AppendLog("2. 找到并启用 'Microsoft Message Queue (MSMQ) 服务器'");AppendLog("3. 重启计算机后重新运行程序");btnSendToServer.Enabled = false;btnCheckServer.Enabled = false;txtMessageToServer.Enabled = false;MessageBox.Show("MSMQ功能未安装！\n\n" +"请按以下步骤启用：\n" +"1. 按 Win+R，输入 optionalfeatures.exe\n" +"2. 找到并启用 'Microsoft Message Queue (MSMQ) 服务器'\n" +"3. 重启计算机后重新运行程序","MSMQ未安装",MessageBoxButtons.OK,MessageBoxIcon.Warning);return;}AppendLog("MSMQ功能可用，正在初始化...");InitializeMSMQ();}catch (Exception ex){AppendLog($"检查MSMQ可用性失败: {ex.Message}");}}private bool IsMSMQAvailable(){try{// 尝试使用MessageQueue来检测MSMQ是否可用string testPath = @".\Private$\MSMQTestQueue_" + Guid.NewGuid().ToString("N");bool exists = MessageQueue.Exists(testPath);if (!exists){// 尝试创建测试队列using (var testQueue = MessageQueue.Create(testPath, false)){// 创建成功}// 删除测试队列MessageQueue.Delete(testPath);}else{// 如果已存在，删除它MessageQueue.Delete(testPath);}return true;}catch{return false;}}private void InitializeMSMQ(){try{// 创建或连接到客户端消息队列if (!MessageQueue.Exists(QueuePath)){mq = MessageQueue.Create(QueuePath);AppendLog("创建客户端消息队列: " + QueuePath);}else{mq = new MessageQueue(QueuePath);AppendLog("连接到现有客户端消息队列: " + QueuePath);}// 设置消息格式mq.Formatter = new XmlMessageFormatter(new Type[] { typeof(string) });// 检查服务器队列是否存在CheckServerStatus();// 异步开始接收消息StartReceiving();AppendLog("客户端初始化完成，可以开始通信");}catch (Exception ex){AppendLog($"初始化MSMQ失败: {ex.Message}");}}private void StartReceiving(){try{mq.BeginReceive(TimeSpan.FromSeconds(1), mq, OnMessageReceived);}catch (Exception ex){AppendLog($"开始接收消息失败: {ex.Message}");// 3秒后重试System.Threading.Timer timer = null;timer = new System.Threading.Timer(_ =>{StartReceiving();timer?.Dispose();}, null, 3000, System.Threading.Timeout.Infinite);}}private void OnMessageReceived(IAsyncResult result){try{System.Messaging.Message message = mq.EndReceive(result);// 在UI线程上更新界面this.Invoke(new Action(() =>{string messageBody = message.Body.ToString();AppendLog($"收到服务器回复: {messageBody}");txtReceivedMessages.AppendText($"[{DateTime.Now:HH:mm:ss}] {messageBody}{Environment.NewLine}");// 滚动到最新消息txtReceivedMessages.SelectionStart = txtReceivedMessages.Text.Length;txtReceivedMessages.ScrollToCaret();}));// 继续接收下一条消息StartReceiving();}catch (MessageQueueException ex){this.Invoke(new Action(() =>AppendLog($"接收消息错误: {ex.Message}")));}catch (Exception ex){this.Invoke(new Action(() =>AppendLog($"处理消息错误: {ex.Message}")));}}private void btnSendToServer_Click(object sender, EventArgs e){if (!string.IsNullOrEmpty(txtMessageToServer.Text.Trim())){SendToServer(txtMessageToServer.Text.Trim());txtMessageToServer.Clear();txtMessageToServer.Focus();}else{MessageBox.Show("请输入要发送的消息", "提示", MessageBoxButtons.OK, MessageBoxIcon.Warning);}}private void SendToServer(string message){try{if (!MessageQueue.Exists(ServerQueuePath)){AppendLog("错误：服务器队列不存在，请先启动服务器");MessageBox.Show("服务器队列不存在，请先启动服务器程序", "错误",MessageBoxButtons.OK, MessageBoxIcon.Error);btnSendToServer.Enabled = false;return;}using (MessageQueue serverQueue = new MessageQueue(ServerQueuePath)){serverQueue.Formatter = new XmlMessageFormatter(new Type[] { typeof(string) });System.Messaging.Message msg = new System.Messaging.Message(message);serverQueue.Send(msg);AppendLog($"发送到服务器: {message}");// 添加到发送历史txtSentMessages.AppendText($"[{DateTime.Now:HH:mm:ss}] {message}{Environment.NewLine}");txtSentMessages.SelectionStart = txtSentMessages.Text.Length;txtSentMessages.ScrollToCaret();}}catch (MessageQueueException ex){AppendLog($"发送到服务器失败 - 队列错误: {ex.Message}");btnSendToServer.Enabled = false;}catch (Exception ex){AppendLog($"发送到服务器失败: {ex.Message}");}}private void txtMessageToServer_KeyPress(object sender, KeyPressEventArgs e){if (e.KeyChar == (char)Keys.Enter){btnSendToServer_Click(sender, e);e.Handled = true;}}private void btnClearLog_Click(object sender, EventArgs e){txtLog.Clear();AppendLog("日志已清空");}private void btnClearReceived_Click(object sender, EventArgs e){txtReceivedMessages.Clear();AppendLog("接收消息已清空");}private void btnClearSent_Click(object sender, EventArgs e){txtSentMessages.Clear();AppendLog("发送历史已清空");}private void btnCheckServer_Click(object sender, EventArgs e){CheckServerStatus();}private void CheckServerStatus(){try{if (MessageQueue.Exists(ServerQueuePath)){AppendLog("服务器状态: ✅ 在线");btnSendToServer.Enabled = true;txtMessageToServer.Enabled = true;lblServerStatus.Text = "服务器状态: 在线";lblServerStatus.ForeColor = Color.Green;}else{AppendLog("服务器状态: ❌ 离线");btnSendToServer.Enabled = false;lblServerStatus.Text = "服务器状态: 离线";lblServerStatus.ForeColor = Color.Red;}}catch (Exception ex){AppendLog($"检查服务器状态失败: {ex.Message}");}}private void AppendLog(string log){string timestamp = DateTime.Now.ToString("HH:mm:ss");if (txtLog.TextLength > 10000) // 防止日志过长{txtLog.Clear();}txtLog.AppendText($"[{timestamp}] {log}{Environment.NewLine}");// 自动滚动到最新日志txtLog.SelectionStart = txtLog.Text.Length;txtLog.ScrollToCaret();}private void btnReconnect_Click(object sender, EventArgs e){AppendLog("重新连接MSMQ...");CheckMSMQAvailability();}protected override void OnFormClosing(FormClosingEventArgs e){try{mq?.Close();mq?.Dispose();}catch (Exception ex){MessageBox.Show($"关闭时发生错误: {ex.Message}", "错误",MessageBoxButtons.OK, MessageBoxIcon.Error);}base.OnFormClosing(e);}}
}

客户端ClientForm.designer.cs源码

using System;
using System.Drawing;
using System.Windows.Forms;namespace MSMQClient
{partial class ClientForm{private System.ComponentModel.IContainer components = null;private TextBox txtLog;private TextBox txtReceivedMessages;private TextBox txtSentMessages;private TextBox txtMessageToServer;private Button btnSendToServer;private Button btnClearLog;private Button btnClearReceived;private Button btnClearSent;private Button btnCheckServer;private Button btnReconnect;private Label lblMessageToServer;private Label lblReceivedMessages;private Label lblSentMessages;private Label lblLog;private Label lblServerStatus;private Label lblTitle;private Panel panel1;private Panel panel2;private Panel panel3;private Panel panel4;protected override void Dispose(bool disposing){if (disposing && (components != null)){components.Dispose();}base.Dispose(disposing);}private void InitializeComponent(){this.components = new System.ComponentModel.Container();this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;this.ClientSize = new System.Drawing.Size(784, 661);this.Text = "MSMQ 客户端";this.StartPosition = FormStartPosition.CenterScreen;this.MinimumSize = new Size(800, 700);InitializeControls();SetupLayout();}private void InitializeControls(){// 标题this.lblTitle = new Label();this.lblTitle.Text = "MSMQ 客户端通信程序";this.lblTitle.Font = new Font("微软雅黑", 14F, FontStyle.Bold);this.lblTitle.ForeColor = Color.DarkBlue;this.lblTitle.TextAlign = ContentAlignment.MiddleCenter;this.lblTitle.Location = new Point(12, 10);this.lblTitle.Size = new Size(760, 30);// 服务器状态标签this.lblServerStatus = new Label();this.lblServerStatus.Text = "服务器状态: 检测中...";this.lblServerStatus.Font = new Font("微软雅黑", 10F, FontStyle.Bold);this.lblServerStatus.ForeColor = Color.Orange;this.lblServerStatus.Location = new Point(12, 45);this.lblServerStatus.Size = new Size(200, 20);// 日志文本框this.txtLog = new TextBox();this.txtLog.Multiline = true;this.txtLog.ScrollBars = ScrollBars.Vertical;this.txtLog.Location = new Point(12, 80);this.txtLog.Size = new Size(760, 120);this.txtLog.ReadOnly = true;this.txtLog.BackColor = Color.White;this.txtLog.Font = new Font("Consolas", 9F);// 接收到的消息文本框this.txtReceivedMessages = new TextBox();this.txtReceivedMessages.Multiline = true;this.txtReceivedMessages.ScrollBars = ScrollBars.Vertical;this.txtReceivedMessages.Location = new Point(12, 235);this.txtReceivedMessages.Size = new Size(760, 120);this.txtReceivedMessages.ReadOnly = true;this.txtReceivedMessages.BackColor = Color.LightYellow;this.txtReceivedMessages.Font = new Font("微软雅黑", 9F);// 已发送的消息文本框this.txtSentMessages = new TextBox();this.txtSentMessages.Multiline = true;this.txtSentMessages.ScrollBars = ScrollBars.Vertical;this.txtSentMessages.Location = new Point(12, 390);this.txtSentMessages.Size = new Size(760, 120);this.txtSentMessages.ReadOnly = true;this.txtSentMessages.BackColor = Color.LightCyan;this.txtSentMessages.Font = new Font("微软雅黑", 9F);// 消息输入框this.txtMessageToServer = new TextBox();this.txtMessageToServer.Location = new Point(12, 545);this.txtMessageToServer.Size = new Size(500, 23);this.txtMessageToServer.Font = new Font("微软雅黑", 10F);// 标签this.lblLog = new Label();this.lblLog.Text = "操作日志:";this.lblLog.Location = new Point(12, 60);this.lblLog.Size = new Size(100, 20);this.lblLog.Font = new Font("微软雅黑", 9F, FontStyle.Bold);this.lblReceivedMessages = new Label();this.lblReceivedMessages.Text = "从服务器接收的消息:";this.lblReceivedMessages.Location = new Point(12, 215);this.lblReceivedMessages.Size = new Size(200, 20);this.lblReceivedMessages.Font = new Font("微软雅黑", 9F, FontStyle.Bold);this.lblSentMessages = new Label();this.lblSentMessages.Text = "已发送到服务器的消息:";this.lblSentMessages.Location = new Point(12, 370);this.lblSentMessages.Size = new Size(200, 20);this.lblSentMessages.Font = new Font("微软雅黑", 9F, FontStyle.Bold);this.lblMessageToServer = new Label();this.lblMessageToServer.Text = "发送消息到服务器:";this.lblMessageToServer.Location = new Point(12, 525);this.lblMessageToServer.Size = new Size(150, 20);this.lblMessageToServer.Font = new Font("微软雅黑", 9F, FontStyle.Bold);// 按钮this.btnSendToServer = new Button();this.btnSendToServer.Text = "发送";this.btnSendToServer.Location = new Point(520, 543);this.btnSendToServer.Size = new Size(70, 27);this.btnSendToServer.BackColor = Color.LightBlue;this.btnSendToServer.Font = new Font("微软雅黑", 9F, FontStyle.Bold);this.btnSendToServer.UseVisualStyleBackColor = false;this.btnCheckServer = new Button();this.btnCheckServer.Text = "检查服务器";this.btnCheckServer.Location = new Point(600, 543);this.btnCheckServer.Size = new Size(80, 27);this.btnCheckServer.BackColor = Color.LightGreen;this.btnCheckServer.Font = new Font("微软雅黑", 9F);this.btnCheckServer.UseVisualStyleBackColor = false;this.btnReconnect = new Button();this.btnReconnect.Text = "重新连接";this.btnReconnect.Location = new Point(690, 543);this.btnReconnect.Size = new Size(80, 27);this.btnReconnect.BackColor = Color.LightSalmon;this.btnReconnect.Font = new Font("微软雅黑", 9F);this.btnReconnect.UseVisualStyleBackColor = false;this.btnClearLog = new Button();this.btnClearLog.Text = "清空日志";this.btnClearLog.Location = new Point(690, 200);this.btnClearLog.Size = new Size(80, 25);this.btnClearLog.Font = new Font("微软雅黑", 8F);this.btnClearLog.UseVisualStyleBackColor = true;this.btnClearReceived = new Button();this.btnClearReceived.Text = "清空接收";this.btnClearReceived.Location = new Point(690, 355);this.btnClearReceived.Size = new Size(80, 25);this.btnClearReceived.Font = new Font("微软雅黑", 8F);this.btnClearReceived.UseVisualStyleBackColor = true;this.btnClearSent = new Button();this.btnClearSent.Text = "清空发送";this.btnClearSent.Location = new Point(690, 510);this.btnClearSent.Size = new Size(80, 25);this.btnClearSent.Font = new Font("微软雅黑", 8F);this.btnClearSent.UseVisualStyleBackColor = true;}private void SetupLayout(){// 添加控件到表单this.Controls.Add(this.lblTitle);this.Controls.Add(this.lblServerStatus);this.Controls.Add(this.lblLog);this.Controls.Add(this.txtLog);this.Controls.Add(this.lblReceivedMessages);this.Controls.Add(this.txtReceivedMessages);this.Controls.Add(this.lblSentMessages);this.Controls.Add(this.txtSentMessages);this.Controls.Add(this.lblMessageToServer);this.Controls.Add(this.txtMessageToServer);this.Controls.Add(this.btnSendToServer);this.Controls.Add(this.btnCheckServer);this.Controls.Add(this.btnReconnect);this.Controls.Add(this.btnClearLog);this.Controls.Add(this.btnClearReceived);this.Controls.Add(this.btnClearSent);// 设置事件处理this.btnSendToServer.Click += new EventHandler(this.btnSendToServer_Click);this.btnCheckServer.Click += new EventHandler(this.btnCheckServer_Click);this.btnReconnect.Click += new EventHandler(this.btnReconnect_Click);this.btnClearLog.Click += new EventHandler(this.btnClearLog_Click);this.btnClearReceived.Click += new EventHandler(this.btnClearReceived_Click);this.btnClearSent.Click += new EventHandler(this.btnClearSent_Click);this.txtMessageToServer.KeyPress += new KeyPressEventHandler(this.txtMessageToServer_KeyPress);}}
}

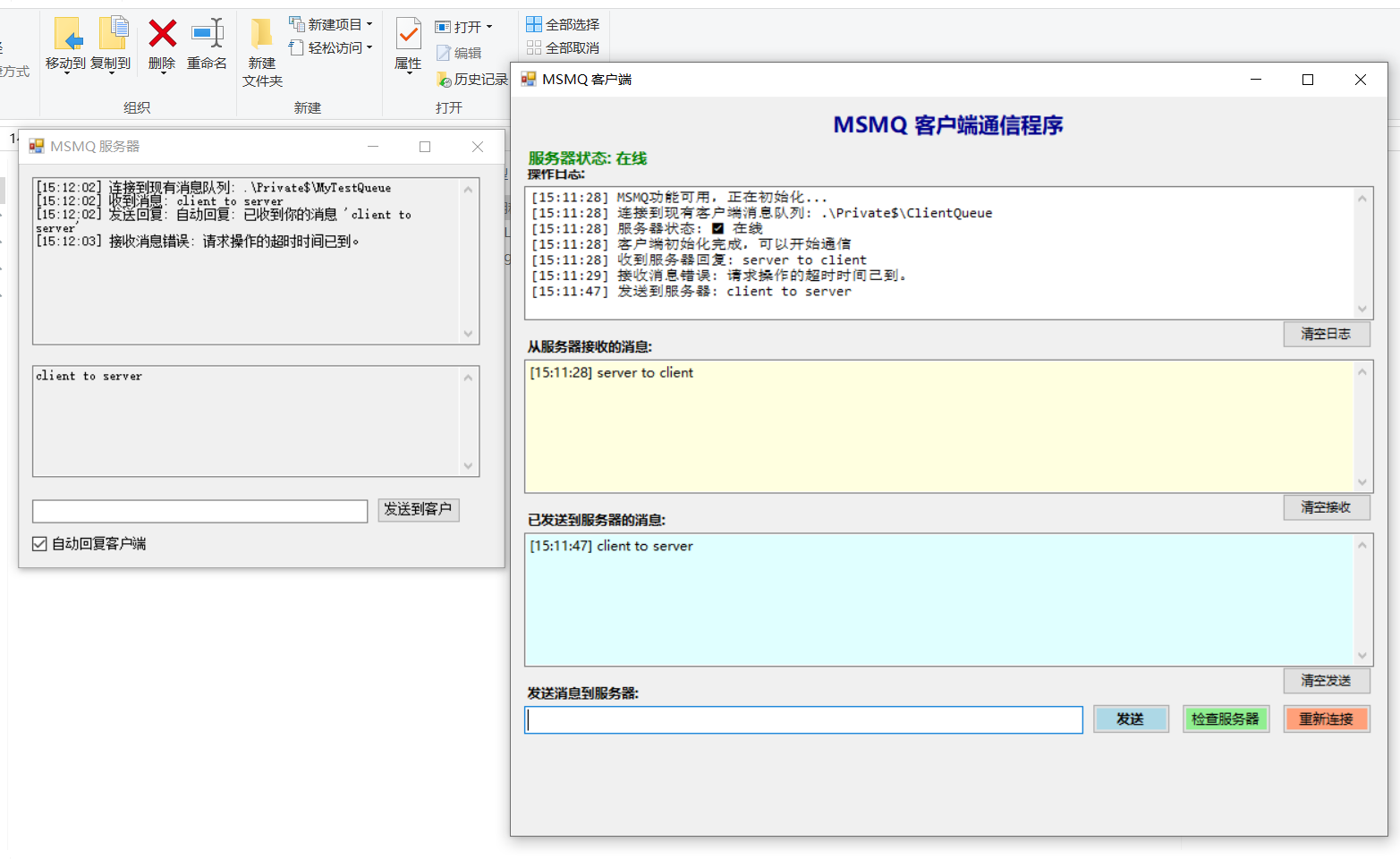

三、效果演示

先打开服务器，发送 Server to client，关闭以后打开客户端，可以看到接收到数据。

客户端发送 client to server，打开服务器，可以看到接收到数据。
