【LLIE技术专题】 SCI代码讲解

news 2025/9/27 6:40:57

本文是对SCI自校准光照学习框架的代码解读，原文解读请看SCI文章讲解。
本文的代码来源于SCI官方实现。

1、原文概要

低光图像增强旨在显化暗部信息，但其发展受限于两类方法的缺陷：

模型驱动方法：基于 Retinex 理论，依赖手工正则化（如ℓ₂范数、相对总变差），需手动调参，易出现过曝光，且真实场景适应性差。
有监督方法：依赖配对数据，模型复杂以及推理效率低；
无监督方法：虽无需配对数据，但仍存在颜色失真、细节不足，且部分模型效率仍待提升。

现有方法难以同时满足视觉质量、计算效率、复杂场景鲁棒性三大需求，因此该论文提出 SCI 框架。
SCI分为训练与推理两阶段，核心是 “训练多模块、推理单块”：

训练阶段：权重共享的级联光照学习模块 + 自校准模块，通过多阶段优化提升基础块表征能力。
推理阶段：仅使用单个光照学习基础块（3 个 3×3 卷积 + ReLU），大幅降低计算成本。

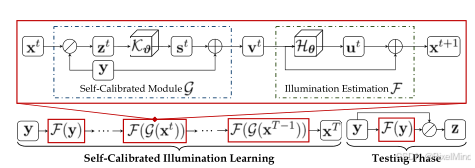

整体流程如下图所示：
在这里插入图片描述
可以看到SCI的训练阶段一直在复用两个模块，分别是Self-Calibrated Module $G\mathcal{G}$ 以及Illumination Estimation $F\mathcal{F}$ ，测试阶段只使用一次光照估计模块，再除以预测的光照即可得到增强图像。

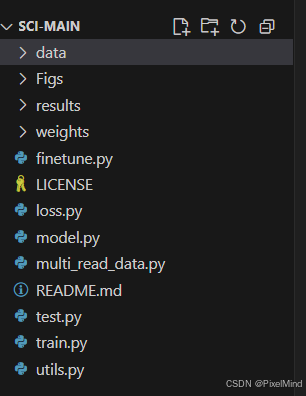

2、代码结构

如下所示：
在这里插入图片描述

data：存放着测试数据。
weights：测试权重。
finetune.py：用于额外数据微调的训练脚本（可以用于进一步提升预训练模型性能）。
loss.py：损失函数。
model.py：模型文件。
multi_read_data.py：数据加载器。
test.py：测试脚本。
train.py：训练脚本。
utils.py：一些辅助函数。

3 、核心代码模块

`multi_read_data.py`

这个文件实现了数据集的加载。

class MemoryFriendlyLoader(torch.utils.data.Dataset):def __init__(self, img_dir, task):self.low_img_dir = img_dirself.task = taskself.train_low_data_names = []for root, dirs, names in os.walk(self.low_img_dir):for name in names:self.train_low_data_names.append(os.path.join(root, name))self.train_low_data_names.sort()self.count = len(self.train_low_data_names)transform_list = []transform_list += [transforms.ToTensor()]self.transform = transforms.Compose(transform_list)def load_images_transform(self, file):im = Image.open(file).convert('RGB')img_norm = self.transform(im).numpy()img_norm = np.transpose(img_norm, (1, 2, 0))return img_normdef __getitem__(self, index):low = self.load_images_transform(self.train_low_data_names[index])h = low.shape[0]w = low.shape[1]#h_offset = random.randint(0, max(0, h - batch_h - 1))w_offset = random.randint(0, max(0, w - batch_w - 1))## if self.task != 'test':#     low = low[h_offset:h_offset + batch_h, w_offset:w_offset + batch_w]low = np.asarray(low, dtype=np.float32)low = np.transpose(low[:, :, :], (2, 0, 1))img_name = self.train_low_data_names[index].split('\\')[-1]# if self.task == 'test':#     # img_name = self.train_low_data_names[index].split('\\')[-1]#     return torch.from_numpy(low), img_namereturn torch.from_numpy(low), img_namedef __len__(self):return self.count

作者在加载数据集时使用的全尺寸的数据输入。

`loss.py`

损失函数的定义。

lass LossFunction(nn.Module):def __init__(self):super(LossFunction, self).__init__()self.l2_loss = nn.MSELoss()self.smooth_loss = SmoothLoss()def forward(self, input, illu):Fidelity_Loss = self.l2_loss(illu, input)Smooth_Loss = self.smooth_loss(input, illu)return 1.5*Fidelity_Loss + Smooth_Lossclass SmoothLoss(nn.Module):def __init__(self):super(SmoothLoss, self).__init__()self.sigma = 10def rgb2yCbCr(self, input_im):im_flat = input_im.contiguous().view(-1, 3).float()mat = torch.Tensor([[0.257, -0.148, 0.439], [0.564, -0.291, -0.368], [0.098, 0.439, -0.071]]).cuda()bias = torch.Tensor([16.0 / 255.0, 128.0 / 255.0, 128.0 / 255.0]).cuda()temp = im_flat.mm(mat) + biasout = temp.view(input_im.shape[0], 3, input_im.shape[2], input_im.shape[3])return out# output: output      input:inputdef forward(self, input, output):self.output = outputself.input = self.rgb2yCbCr(input)sigma_color = -1.0 / (2 * self.sigma * self.sigma)w1 = torch.exp(torch.sum(torch.pow(self.input[:, :, 1:, :] - self.input[:, :, :-1, :], 2), dim=1,keepdim=True) * sigma_color)w2 = torch.exp(torch.sum(torch.pow(self.input[:, :, :-1, :] - self.input[:, :, 1:, :], 2), dim=1,keepdim=True) * sigma_color)w3 = torch.exp(torch.sum(torch.pow(self.input[:, :, :, 1:] - self.input[:, :, :, :-1], 2), dim=1,keepdim=True) * sigma_color)w4 = torch.exp(torch.sum(torch.pow(self.input[:, :, :, :-1] - self.input[:, :, :, 1:], 2), dim=1,keepdim=True) * sigma_color)w5 = torch.exp(torch.sum(torch.pow(self.input[:, :, :-1, :-1] - self.input[:, :, 1:, 1:], 2), dim=1,keepdim=True) * sigma_color)w6 = torch.exp(torch.sum(torch.pow(self.input[:, :, 1:, 1:] - self.input[:, :, :-1, :-1], 2), dim=1,keepdim=True) * sigma_color)w7 = torch.exp(torch.sum(torch.pow(self.input[:, :, 1:, :-1] - self.input[:, :, :-1, 1:], 2), dim=1,keepdim=True) * sigma_color)w8 = torch.exp(torch.sum(torch.pow(self.input[:, :, :-1, 1:] - self.input[:, :, 1:, :-1], 2), dim=1,keepdim=True) * sigma_color)w9 = torch.exp(torch.sum(torch.pow(self.input[:, :, 2:, :] - self.input[:, :, :-2, :], 2), dim=1,keepdim=True) * sigma_color)w10 = torch.exp(torch.sum(torch.pow(self.input[:, :, :-2, :] - self.input[:, :, 2:, :], 2), dim=1,keepdim=True) * sigma_color)w11 = torch.exp(torch.sum(torch.pow(self.input[:, :, :, 2:] - self.input[:, :, :, :-2], 2), dim=1,keepdim=True) * sigma_color)w12 = torch.exp(torch.sum(torch.pow(self.input[:, :, :, :-2] - self.input[:, :, :, 2:], 2), dim=1,keepdim=True) * sigma_color)w13 = torch.exp(torch.sum(torch.pow(self.input[:, :, :-2, :-1] - self.input[:, :, 2:, 1:], 2), dim=1,keepdim=True) * sigma_color)w14 = torch.exp(torch.sum(torch.pow(self.input[:, :, 2:, 1:] - self.input[:, :, :-2, :-1], 2), dim=1,keepdim=True) * sigma_color)w15 = torch.exp(torch.sum(torch.pow(self.input[:, :, 2:, :-1] - self.input[:, :, :-2, 1:], 2), dim=1,keepdim=True) * sigma_color)w16 = torch.exp(torch.sum(torch.pow(self.input[:, :, :-2, 1:] - self.input[:, :, 2:, :-1], 2), dim=1,keepdim=True) * sigma_color)w17 = torch.exp(torch.sum(torch.pow(self.input[:, :, :-1, :-2] - self.input[:, :, 1:, 2:], 2), dim=1,keepdim=True) * sigma_color)w18 = torch.exp(torch.sum(torch.pow(self.input[:, :, 1:, 2:] - self.input[:, :, :-1, :-2], 2), dim=1,keepdim=True) * sigma_color)w19 = torch.exp(torch.sum(torch.pow(self.input[:, :, 1:, :-2] - self.input[:, :, :-1, 2:], 2), dim=1,keepdim=True) * sigma_color)w20 = torch.exp(torch.sum(torch.pow(self.input[:, :, :-1, 2:] - self.input[:, :, 1:, :-2], 2), dim=1,keepdim=True) * sigma_color)w21 = torch.exp(torch.sum(torch.pow(self.input[:, :, :-2, :-2] - self.input[:, :, 2:, 2:], 2), dim=1,keepdim=True) * sigma_color)w22 = torch.exp(torch.sum(torch.pow(self.input[:, :, 2:, 2:] - self.input[:, :, :-2, :-2], 2), dim=1,keepdim=True) * sigma_color)w23 = torch.exp(torch.sum(torch.pow(self.input[:, :, 2:, :-2] - self.input[:, :, :-2, 2:], 2), dim=1,keepdim=True) * sigma_color)w24 = torch.exp(torch.sum(torch.pow(self.input[:, :, :-2, 2:] - self.input[:, :, 2:, :-2], 2), dim=1,keepdim=True) * sigma_color)p = 1.0pixel_grad1 = w1 * torch.norm((self.output[:, :, 1:, :] - self.output[:, :, :-1, :]), p, dim=1, keepdim=True)pixel_grad2 = w2 * torch.norm((self.output[:, :, :-1, :] - self.output[:, :, 1:, :]), p, dim=1, keepdim=True)pixel_grad3 = w3 * torch.norm((self.output[:, :, :, 1:] - self.output[:, :, :, :-1]), p, dim=1, keepdim=True)pixel_grad4 = w4 * torch.norm((self.output[:, :, :, :-1] - self.output[:, :, :, 1:]), p, dim=1, keepdim=True)pixel_grad5 = w5 * torch.norm((self.output[:, :, :-1, :-1] - self.output[:, :, 1:, 1:]), p, dim=1, keepdim=True)pixel_grad6 = w6 * torch.norm((self.output[:, :, 1:, 1:] - self.output[:, :, :-1, :-1]), p, dim=1, keepdim=True)pixel_grad7 = w7 * torch.norm((self.output[:, :, 1:, :-1] - self.output[:, :, :-1, 1:]), p, dim=1, keepdim=True)pixel_grad8 = w8 * torch.norm((self.output[:, :, :-1, 1:] - self.output[:, :, 1:, :-1]), p, dim=1, keepdim=True)pixel_grad9 = w9 * torch.norm((self.output[:, :, 2:, :] - self.output[:, :, :-2, :]), p, dim=1, keepdim=True)pixel_grad10 = w10 * torch.norm((self.output[:, :, :-2, :] - self.output[:, :, 2:, :]), p, dim=1, keepdim=True)pixel_grad11 = w11 * torch.norm((self.output[:, :, :, 2:] - self.output[:, :, :, :-2]), p, dim=1, keepdim=True)pixel_grad12 = w12 * torch.norm((self.output[:, :, :, :-2] - self.output[:, :, :, 2:]), p, dim=1, keepdim=True)pixel_grad13 = w13 * torch.norm((self.output[:, :, :-2, :-1] - self.output[:, :, 2:, 1:]), p, dim=1, keepdim=True)pixel_grad14 = w14 * torch.norm((self.output[:, :, 2:, 1:] - self.output[:, :, :-2, :-1]), p, dim=1, keepdim=True)pixel_grad15 = w15 * torch.norm((self.output[:, :, 2:, :-1] - self.output[:, :, :-2, 1:]), p, dim=1, keepdim=True)pixel_grad16 = w16 * torch.norm((self.output[:, :, :-2, 1:] - self.output[:, :, 2:, :-1]), p, dim=1, keepdim=True)pixel_grad17 = w17 * torch.norm((self.output[:, :, :-1, :-2] - self.output[:, :, 1:, 2:]), p, dim=1, keepdim=True)pixel_grad18 = w18 * torch.norm((self.output[:, :, 1:, 2:] - self.output[:, :, :-1, :-2]), p, dim=1, keepdim=True)pixel_grad19 = w19 * torch.norm((self.output[:, :, 1:, :-2] - self.output[:, :, :-1, 2:]), p, dim=1, keepdim=True)pixel_grad20 = w20 * torch.norm((self.output[:, :, :-1, 2:] - self.output[:, :, 1:, :-2]), p, dim=1, keepdim=True)pixel_grad21 = w21 * torch.norm((self.output[:, :, :-2, :-2] - self.output[:, :, 2:, 2:]), p, dim=1, keepdim=True)pixel_grad22 = w22 * torch.norm((self.output[:, :, 2:, 2:] - self.output[:, :, :-2, :-2]), p, dim=1, keepdim=True)pixel_grad23 = w23 * torch.norm((self.output[:, :, 2:, :-2] - self.output[:, :, :-2, 2:]), p, dim=1, keepdim=True)pixel_grad24 = w24 * torch.norm((self.output[:, :, :-2, 2:] - self.output[:, :, 2:, :-2]), p, dim=1, keepdim=True)ReguTerm1 = torch.mean(pixel_grad1) \+ torch.mean(pixel_grad2) \+ torch.mean(pixel_grad3) \+ torch.mean(pixel_grad4) \+ torch.mean(pixel_grad5) \+ torch.mean(pixel_grad6) \+ torch.mean(pixel_grad7) \+ torch.mean(pixel_grad8) \+ torch.mean(pixel_grad9) \+ torch.mean(pixel_grad10) \+ torch.mean(pixel_grad11) \+ torch.mean(pixel_grad12) \+ torch.mean(pixel_grad13) \+ torch.mean(pixel_grad14) \+ torch.mean(pixel_grad15) \+ torch.mean(pixel_grad16) \+ torch.mean(pixel_grad17) \+ torch.mean(pixel_grad18) \+ torch.mean(pixel_grad19) \+ torch.mean(pixel_grad20) \+ torch.mean(pixel_grad21) \+ torch.mean(pixel_grad22) \+ torch.mean(pixel_grad23) \+ torch.mean(pixel_grad24)total_term = ReguTerm1return total_term

定义了两个损失：

L2损失。
平滑损失：通过空间自适应权重约束光照分量的空间平滑性，避免低光增强后出现纹理失真或噪声放大，同时兼容 RGB 图像输入（需先转换为 YUV 空间以贴合人眼视觉特性），总共24个相对点的梯度，分别是w1-w2代表垂直方向（上 - 下、下 - 上，步长 1）、w3-w4代表水平方向（左 - 右、右 - 左，步长 1）、w5-w8代表对角线方向（左上 - 右下、右下 - 左上、右上 - 左下、左下 - 右上，步长 1）、w9-w24代表大步长邻域（步长 2，覆盖垂直、水平、对角线）。

`model.py`

模型结构实现。

class EnhanceNetwork(nn.Module):def __init__(self, layers, channels):super(EnhanceNetwork, self).__init__()kernel_size = 3dilation = 1padding = int((kernel_size - 1) / 2) * dilationself.in_conv = nn.Sequential(nn.Conv2d(in_channels=3, out_channels=channels, kernel_size=kernel_size, stride=1, padding=padding),nn.ReLU())self.conv = nn.Sequential(nn.Conv2d(in_channels=channels, out_channels=channels, kernel_size=kernel_size, stride=1, padding=padding),nn.BatchNorm2d(channels),nn.ReLU())self.blocks = nn.ModuleList()for i in range(layers):self.blocks.append(self.conv)self.out_conv = nn.Sequential(nn.Conv2d(in_channels=channels, out_channels=3, kernel_size=3, stride=1, padding=1),nn.Sigmoid())def forward(self, input):fea = self.in_conv(input)for conv in self.blocks:fea = fea + conv(fea)fea = self.out_conv(fea)illu = fea + inputillu = torch.clamp(illu, 0.0001, 1)return illuclass CalibrateNetwork(nn.Module):def __init__(self, layers, channels):super(CalibrateNetwork, self).__init__()kernel_size = 3dilation = 1padding = int((kernel_size - 1) / 2) * dilationself.layers = layersself.in_conv = nn.Sequential(nn.Conv2d(in_channels=3, out_channels=channels, kernel_size=kernel_size, stride=1, padding=padding),nn.BatchNorm2d(channels),nn.ReLU())self.convs = nn.Sequential(nn.Conv2d(in_channels=channels, out_channels=channels, kernel_size=kernel_size, stride=1, padding=padding),nn.BatchNorm2d(channels),nn.ReLU(),nn.Conv2d(in_channels=channels, out_channels=channels, kernel_size=kernel_size, stride=1, padding=padding),nn.BatchNorm2d(channels),nn.ReLU())self.blocks = nn.ModuleList()for i in range(layers):self.blocks.append(self.convs)self.out_conv = nn.Sequential(nn.Conv2d(in_channels=channels, out_channels=3, kernel_size=3, stride=1, padding=1),nn.Sigmoid())def forward(self, input):fea = self.in_conv(input)for conv in self.blocks:fea = fea + conv(fea)fea = self.out_conv(fea)delta = input - feareturn deltaclass Network(nn.Module):def __init__(self, stage=3):super(Network, self).__init__()self.stage = stageself.enhance = EnhanceNetwork(layers=1, channels=3)self.calibrate = CalibrateNetwork(layers=3, channels=16)self._criterion = LossFunction()def weights_init(self, m):if isinstance(m, nn.Conv2d):m.weight.data.normal_(0, 0.02)m.bias.data.zero_()if isinstance(m, nn.BatchNorm2d):m.weight.data.normal_(1., 0.02)def forward(self, input):ilist, rlist, inlist, attlist = [], [], [], []input_op = inputfor i in range(self.stage):inlist.append(input_op)i = self.enhance(input_op)r = input / ir = torch.clamp(r, 0, 1)att = self.calibrate(r)input_op = input + attilist.append(i)rlist.append(r)attlist.append(torch.abs(att))return ilist, rlist, inlist, attlistdef _loss(self, input):i_list, en_list, in_list, _ = self(input)loss = 0for i in range(self.stage):loss += self._criterion(in_list[i], i_list[i])return loss

以上包含三大核心网络模块：EnhanceNetwork（光照估计网络）、CalibrateNetwork（自校准模块）、Network（级联训练框架）。

EnhanceNetwork：输入低光图像或重定义输入，输出估计的光照分量（illu），是 SCI 框架的核心推理单元（推理时仅需 1 个该模块）。实现与公式相对应，学习的光照的残差。
CalibrateNetwork：输入反射分量（r），输出自校准图（delta），用于重定义下一阶段的输入（input_op = input + att），推动多阶段结果收敛（训练时用，推理时弃用）。
delta对应公式中的自校准图，捕捉反射分量的偏差，通过input + att将下一阶段输入与原始低光图关联，迫使多阶段光照结果收敛到同一最优值。
Network：封装 SCI 的多阶段级联训练流程，整合EnhanceNetwork和CalibrateNetwork，实现 “训练时多阶段优化，推理时单阶段输出”，同时计算总损失（调用LossFunction，对应论文的无监督损失）。

`train.py`

训练脚本，常见的流程，将我们前面讲到的数据，损失和模型导入使用即可。

def main():if not torch.cuda.is_available():logging.info('no gpu device available')sys.exit(1)np.random.seed(args.seed)cudnn.benchmark = Truetorch.manual_seed(args.seed)cudnn.enabled = Truetorch.cuda.manual_seed(args.seed)logging.info('gpu device = %s' % args.gpu)logging.info("args = %s", args)model = Network(stage=args.stage)model.enhance.in_conv.apply(model.weights_init)model.enhance.conv.apply(model.weights_init)model.enhance.out_conv.apply(model.weights_init)model.calibrate.in_conv.apply(model.weights_init)model.calibrate.convs.apply(model.weights_init)model.calibrate.out_conv.apply(model.weights_init)model = model.cuda()optimizer = torch.optim.Adam(model.parameters(), lr=args.lr, betas=(0.9, 0.999), weight_decay=3e-4)MB = utils.count_parameters_in_MB(model)logging.info("model size = %f", MB)print(MB)train_low_data_names = 'Your train dataset'TrainDataset = MemoryFriendlyLoader(img_dir=train_low_data_names, task='train')test_low_data_names = './data/medium'TestDataset = MemoryFriendlyLoader(img_dir=test_low_data_names, task='test')train_queue = torch.utils.data.DataLoader(TrainDataset, batch_size=args.batch_size,pin_memory=True, num_workers=0, shuffle=True)test_queue = torch.utils.data.DataLoader(TestDataset, batch_size=1,pin_memory=True, num_workers=0, shuffle=True)total_step = 0for epoch in range(args.epochs):model.train()losses = []for batch_idx, (input, _) in enumerate(train_queue):total_step += 1input = Variable(input, requires_grad=False).cuda()optimizer.zero_grad()loss = model._loss(input)loss.backward()nn.utils.clip_grad_norm_(model.parameters(), 5)optimizer.step()losses.append(loss.item())logging.info('train-epoch %03d %03d %f', epoch, batch_idx, loss)logging.info('train-epoch %03d %f', epoch, np.average(losses))utils.save(model, os.path.join(model_path, 'weights_%d.pt' % epoch))if epoch % 1 == 0 and total_step != 0:logging.info('train %03d %f', epoch, loss)model.eval()with torch.no_grad():for _, (input, image_name) in enumerate(test_queue):input = Variable(input, volatile=True).cuda()image_name = image_name[0].split('\\')[-1].split('.')[0]illu_list, ref_list, input_list, atten= model(input)u_name = '%s.png' % (image_name + '_' + str(epoch))u_path = image_path + '/' + u_namesave_images(ref_list[0], u_path)

3、总结

SCI首次通过 “权重共享 + 自校准模块” 实现多阶段结果收敛，训练用多模块，推理仅用单块（3 个 3×3 卷积），大幅提升效率。利用定义的无监督损失（保真损失 + 平滑损失），无需配对数据或主观评分，提升复杂场景适应性。在下游任务（低光人脸检测、夜间语义分割）中表现优异，验证了其在安防监控、自动驾驶等实际场景的应用潜力。但也有其局限性，例如偏色。

感谢阅读，欢迎留言或私信，一起探讨和交流。
如果对你有帮助的话，也希望可以给博主点一个关注，感谢。
