docker安装canal-server(v.1.1.8)【mysql-＞rabbitMQ】

news 2025/9/24 7:05:13

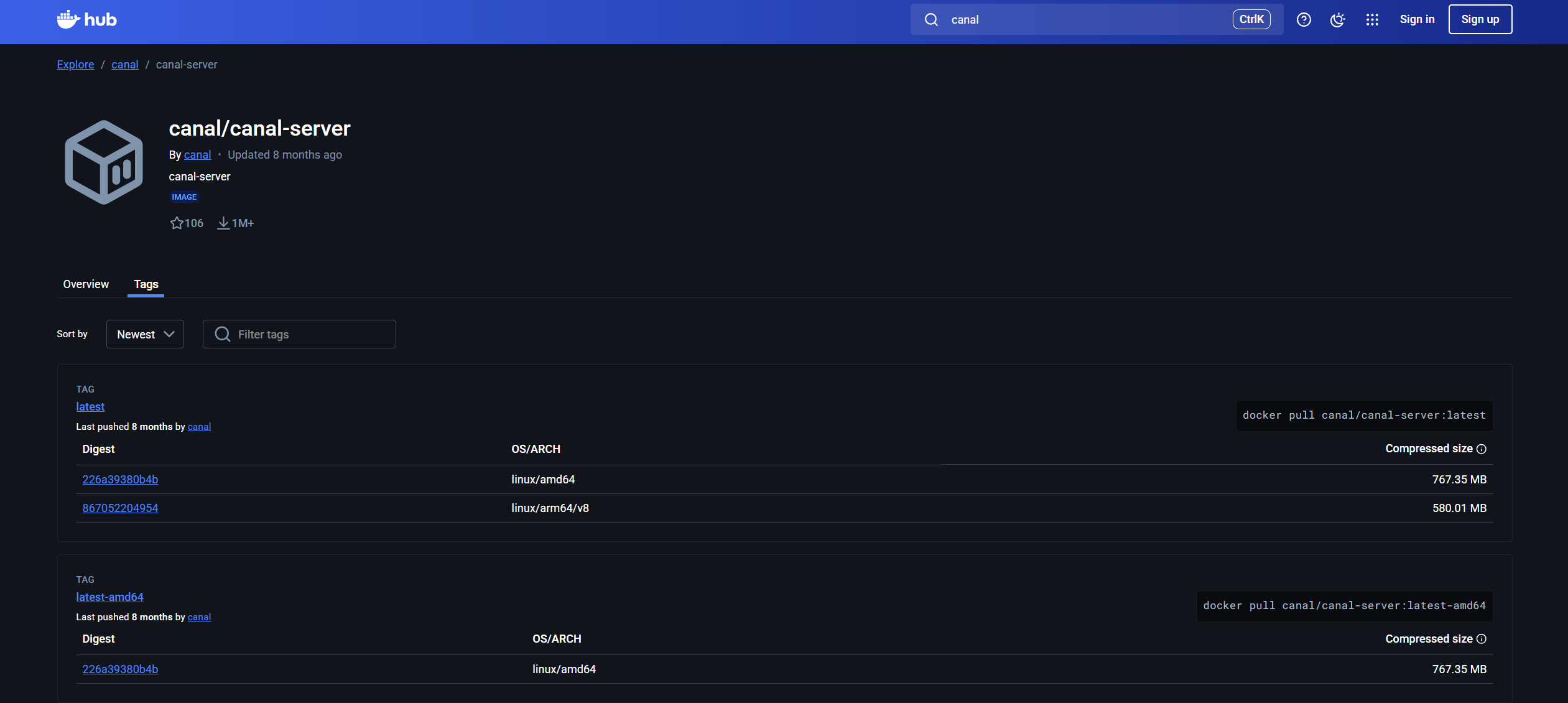

查看版本

https://hub.docker.com/r/canal/canal-server/tags

拉取镜像

docker pull canal/canal-server:v1.1.8

准备 MySql

准备mysql的同步账号（canal/Canal@123）

-- 创建账号（用户名：canal，密码：Canal@123456，根据实际修改）
CREATE USER 'canal'@'%' IDENTIFIED BY 'Canal@123';
-- 授权（允许读取所有库的 binlog）
GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'canal'@'%';
-- 刷新权限
FLUSH PRIVILEGES;

查看mysql是否开启binlog

show variables like 'log_bin'; -- 结果为 ON 表示开启
show variables like 'binlog_format'; -- 结果为 ROW 表示正确
show master status; -- 查看当前 binlog 位点（后续 Canal 配置可能用到）

准备 RabbitMQ

地址 rabbitmq.4.1.4:5672 （注：docker网络下直接用容器名称代替ip,端口为宿主机内的端口）

账号/密码 admin/Admin@123

直连交换机 to.canal.exchange

docker-compose

启动容器生成配置文件
docker run -p 11111:11111 --name canal-server.1.1.8 -d canal/canal-server:v1.1.8
复制宿主机文件
docker cp canal:/home/admin/canal-server/conf ./

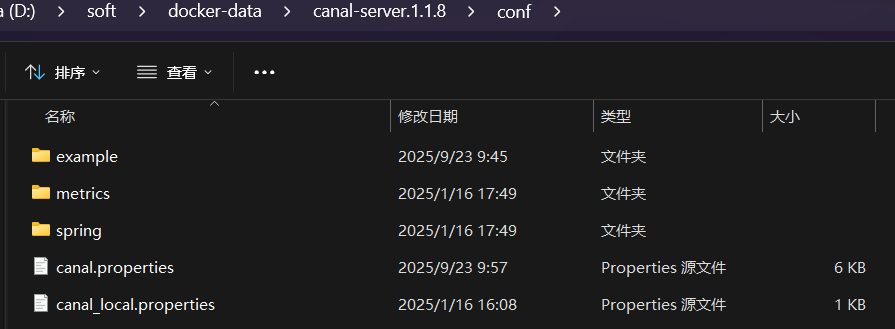

结果如下

停止并删除容器（目的以docker-compose 启动）
docker stop canal-server.1.1.8
docker rm canal-server.1.1.8

创建docker-compose.yml文件

docker-compose.yml

内容

services:canal-server:image: canal/canal-server:v1.1.8container_name: canal-server.1.1.8restart: unless-stoppedports:- "11111:11111"    # Canal服务端口- "11112:11112"    # 监控指标端口volumes:- ./logs/:/home/admin/canal-server/logs #日志信息- ./conf/:/home/admin/canal-server/conf #配置文件networks:- universal-networknetworks:universal-network:external: truename: universal-network

结果如下

在canal 配置mysql，并将数据输出到rabbmq中（注意：已经提前在docker 同网络(universal-network)下安装了mysql与rabbitmq）

修改conf 下的canal.properties 文件内容如下
#################################################
######### 		common argument		#############
#################################################
# tcp bind ip
canal.ip =
# register ip to zookeeper
canal.register.ip =
canal.port = 11111
canal.metrics.pull.port = 11112
# canal instance user/passwd
# canal.user = canal
# canal.passwd =# canal admin config
#canal.admin.manager = 127.0.0.1:8089
canal.admin.port = 11110
canal.admin.user = admin
canal.admin.passwd =
# admin auto register
#canal.admin.register.auto = true
#canal.admin.register.cluster =
#canal.admin.register.name =canal.zkServers =
# flush data to zk
canal.zookeeper.flush.period = 1000
canal.withoutNetty = false
# tcp, kafka, rocketMQ, rabbitMQ, pulsarMQ
canal.serverMode = rabbitMQ
# flush meta cursor/parse position to file
canal.file.data.dir = ${canal.conf.dir}
canal.file.flush.period = 1000
## memory store RingBuffer size, should be Math.pow(2,n)
canal.instance.memory.buffer.size = 16384
## memory store RingBuffer used memory unit size , default 1kb
canal.instance.memory.buffer.memunit = 1024
## meory store gets mode used MEMSIZE or ITEMSIZE
canal.instance.memory.batch.mode = MEMSIZE
canal.instance.memory.rawEntry = true## detecing config
canal.instance.detecting.enable = false
#canal.instance.detecting.sql = insert into retl.xdual values(1,now()) on duplicate key update x=now()
canal.instance.detecting.sql = select 1
canal.instance.detecting.interval.time = 3
canal.instance.detecting.retry.threshold = 3
canal.instance.detecting.heartbeatHaEnable = false# support maximum transaction size, more than the size of the transaction will be cut into multiple transactions delivery
canal.instance.transaction.size =  1024
# mysql fallback connected to new master should fallback times
canal.instance.fallbackIntervalInSeconds = 60# network config
canal.instance.network.receiveBufferSize = 16384
canal.instance.network.sendBufferSize = 16384
canal.instance.network.soTimeout = 30# binlog filter config
canal.instance.filter.druid.ddl = true
canal.instance.filter.query.dcl = false
canal.instance.filter.query.dml = false
canal.instance.filter.query.ddl = false
canal.instance.filter.table.error = false
canal.instance.filter.rows = false
canal.instance.filter.transaction.entry = false
canal.instance.filter.dml.insert = false
canal.instance.filter.dml.update = false
canal.instance.filter.dml.delete = false# binlog format/image check
canal.instance.binlog.format = ROW,STATEMENT,MIXED
canal.instance.binlog.image = FULL,MINIMAL,NOBLOB# binlog ddl isolation
canal.instance.get.ddl.isolation = false# parallel parser config
canal.instance.parser.parallel = true
## concurrent thread number, default 60% available processors, suggest not to exceed Runtime.getRuntime().availableProcessors()
#canal.instance.parser.parallelThreadSize = 16
## disruptor ringbuffer size, must be power of 2
canal.instance.parser.parallelBufferSize = 256# table meta tsdb info
canal.instance.tsdb.enable = true
canal.instance.tsdb.dir = ${canal.file.data.dir:../conf}/${canal.instance.destination:}
canal.instance.tsdb.url = jdbc:h2:${canal.instance.tsdb.dir}/h2;CACHE_SIZE=1000;MODE=MYSQL;
canal.instance.tsdb.dbUsername = canal
canal.instance.tsdb.dbPassword = canal
# dump snapshot interval, default 24 hour
canal.instance.tsdb.snapshot.interval = 24
# purge snapshot expire , default 360 hour(15 days)
canal.instance.tsdb.snapshot.expire = 360#################################################
######### 		destinations		#############
#################################################
canal.destinations = example
# conf root dir
canal.conf.dir = ../conf
# auto scan instance dir add/remove and start/stop instance
canal.auto.scan = true
canal.auto.scan.interval = 5
# set this value to 'true' means that when binlog pos not found, skip to latest.
# WARN: pls keep 'false' in production env, or if you know what you want.
canal.auto.reset.latest.pos.mode = falsecanal.instance.tsdb.spring.xml = classpath:spring/tsdb/h2-tsdb.xml
#canal.instance.tsdb.spring.xml = classpath:spring/tsdb/mysql-tsdb.xmlcanal.instance.global.mode = spring
canal.instance.global.lazy = false
canal.instance.global.manager.address = ${canal.admin.manager}
#canal.instance.global.spring.xml = classpath:spring/memory-instance.xml
canal.instance.global.spring.xml = classpath:spring/file-instance.xml
#canal.instance.global.spring.xml = classpath:spring/default-instance.xml##################################################
######### 	      MQ Properties      #############
##################################################
# aliyun ak/sk , support rds/mq
canal.aliyun.accessKey =
canal.aliyun.secretKey =
canal.aliyun.uid=canal.mq.flatMessage = true
canal.mq.canalBatchSize = 50
canal.mq.canalGetTimeout = 100
# Set this value to "cloud", if you want open message trace feature in aliyun.
canal.mq.accessChannel = localcanal.mq.database.hash = true
canal.mq.send.thread.size = 30
canal.mq.build.thread.size = 8##################################################
######### 		    RabbitMQ	     #############
##################################################
rabbitmq.host = rabbitmq.4.1.4:5672
rabbitmq.virtual.host = /
rabbitmq.exchange = to.canal.exchange
rabbitmq.username = admin
rabbitmq.password = Admin@123
#消息持久化 1 非持久 2 持久
rabbitmq.deliveryMode = 2
rabbitmq.exchange.type =topic

修改 conf/example/instance.properties 文件内容

#################################################
## mysql serverId , v1.0.26+ will autoGen
# canal.instance.mysql.slaveId=0# enable gtid use true/false
canal.instance.gtidon=false# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=# position info
canal.instance.master.address=mysql8.0.43:3306
canal.instance.master.journal.name=
canal.instance.master.position=
canal.instance.master.timestamp=
canal.instance.master.gtid=# multi stream for polardbx
canal.instance.multi.stream.on=false# ssl
#canal.instance.master.sslMode=DISABLED
#canal.instance.master.tlsVersions=
#canal.instance.master.trustCertificateKeyStoreType=
#canal.instance.master.trustCertificateKeyStoreUrl=
#canal.instance.master.trustCertificateKeyStorePassword=
#canal.instance.master.clientCertificateKeyStoreType=
#canal.instance.master.clientCertificateKeyStoreUrl=
#canal.instance.master.clientCertificateKeyStorePassword=# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=canal#canal.instance.standby.address =
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=# username/password
canal.instance.dbUsername=canal
canal.instance.dbPassword=Canal@123
canal.instance.connectionCharset = UTF-8
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==# table regex
canal.instance.filter.regex=pwxt_nw\\..*
# table black regex
canal.instance.filter.black.regex=mysql\\.slave_.*
# table field filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch# mq config
canal.mq.topic=to.canal.key
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,topic2:mytest2\\..*,.*\\..*
canal.mq.partition=0
# hash partition config
#canal.mq.enableDynamicQueuePartition=false
#canal.mq.partitionsNum=3
#canal.mq.dynamicTopicPartitionNum=test.*:4,mycanal:6
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#################################################

启动

docker-compose up -d

关闭 (删除容器)

docker-compose down
