ArcGIS 点聚合功能实现

一、教程概述

本教程基于 ArcGIS API for JavaScript 4.33 版本，详细讲解如何实现地图点聚合功能。通过随机生成 5000 个地理点数据，结合天地图底图，实现点数据的自动聚合展示、聚合标签、弹窗及图例等核心功能，适用于大数据量地理点的可视化场景。

文章目录

ArcGIS 点聚合功能实现
- 一、教程概述
- 效果图
- 二、实现的核心功能
- - （二）基础页面结构
- 三、核心功能分步实现
- - （一）模块导入与初始化
  - （二）生成随机点数据
  - （三）创建要素图层
  - （四）初始化地图与视图
  - （五）配置点聚合功能
  - （六）添加控件与交互优化
- 四、全部代码
- - index.html
  - tiandituLoader.js

工具 /插件/系统名	版本	说明
ArcGIS for JavaScript	4.33	适用4.28 - 4.33版本

效果图

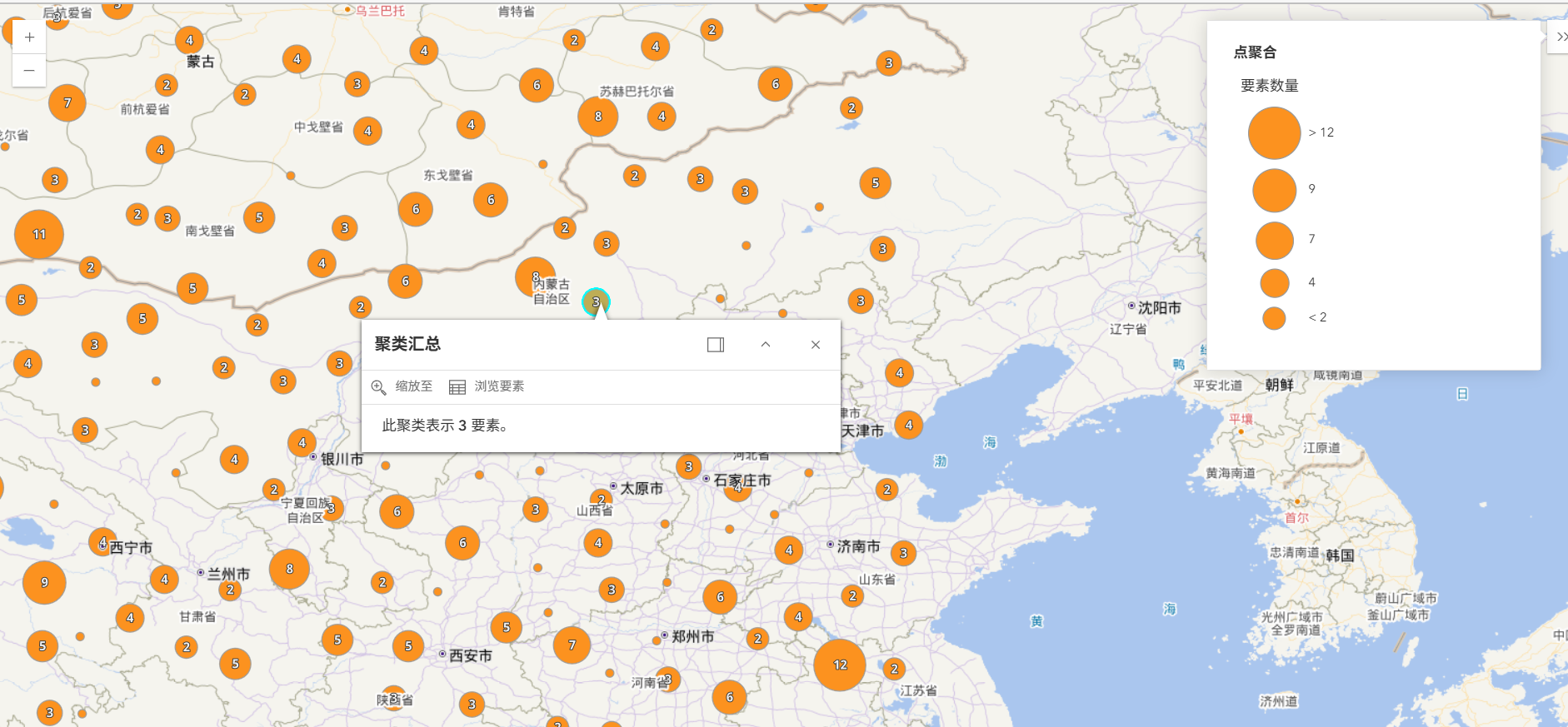

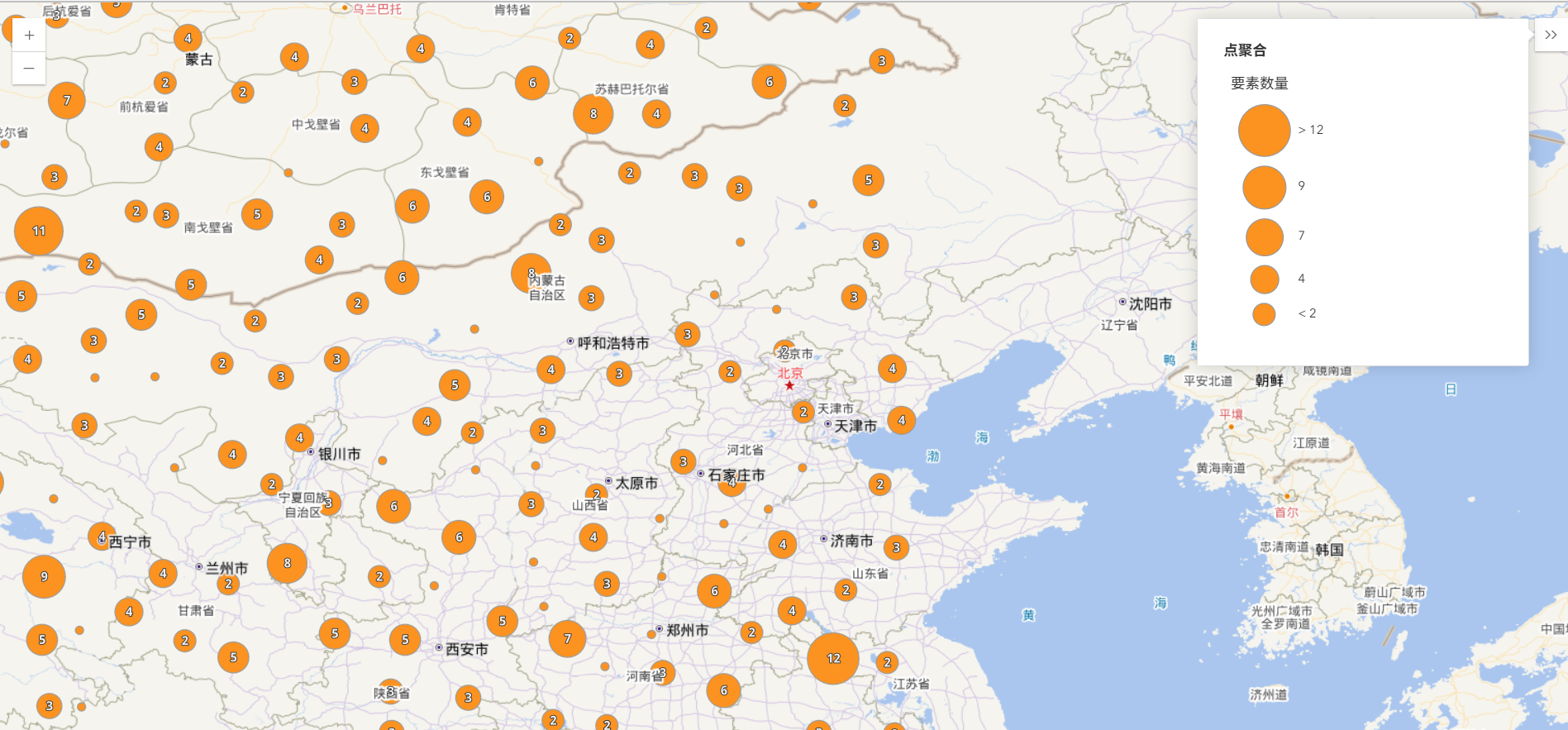

效果图 1	效果图 2	效果图 3

二、实现的核心功能

点聚合功能：实现点数据的自动聚合与分散，依据比例尺动态调整（超过 50000 比例尺不聚合）；配置聚合点的专属弹窗，展示统计信息；生成聚合标签，直观呈现聚合数量。
详情弹框：支持点击聚合点查看详情，实现聚合区域的清晰标识。
添加图例控件展示图层信息。
加载天地图作为底图案例中已经将渲染天地图(点击直达)文章中的内容额外封装成为loadTiandituBasemap方法,文章内提供了文中所需的封装代码，有其他需要的可自行封装,这里不多赘述。

（二）基础页面结构

创建包含地图容器和信息面板的 HTML 结构，设置全屏样式确保地图占满可视区域：

<div id="viewDiv"></div><div id="infoDiv" class="esri-widget"><div id="legendDiv"></div></div><style>html, body, #viewDiv {height: 100%;width: 100%;margin: 0;padding: 0;}#infoDiv {background: white;padding: 10px;}</style>

三、核心功能分步实现

（一）模块导入与初始化

采用 ES 模块方式导入所需 ArcGIS 核心模块，确保按需加载关键组件：

// 导入天地图加载工具import { loadTiandituBasemap } from './js/tiandituLoader.js';// 导入 ArcGIS 核心模块const [Map, MapView, FeatureLayer, Legend, Expand, clusterLabelCreator, clusterPopupCreator, reactiveUtils] = await \$arcgis.import(["@arcgis/core/WebMap.js","@arcgis/core/views/MapView.js","@arcgis/core/layers/FeatureLayer.js","@arcgis/core/widgets/Legend.js","@arcgis/core/widgets/Expand.js","@arcgis/core/smartMapping/labels/clusters.js","@arcgis/core/smartMapping/popup/clusters.js","@arcgis/core/core/reactiveUtils.js",]);// 加载天地图底图配置const { tiandituBasemap } = await loadTiandituBasemap();

（二）生成随机点数据

创建 generateRandomPoints 函数，生成指定数量的地理点数据，包含随机经纬度、类别及数值属性：

function generateRandomPoints(count) {const points = [];for (let i = 0; i < count; i++) {// 经度范围：0-119°E，纬度范围：30-60°Nconst lon = Math.random() * 119;const lat = Math.random() * 30 + 30;// 随机分配 0-2 三类数据const category = Math.floor(Math.random() * 3);points.push({geometry: { type: "point", longitude: lon, latitude: lat },attributes: {ObjectID: i,category: category,value: Math.floor(Math.random() * 100)}});}return points;}

（三）创建要素图层

定义包含点数据的要素图层，配置字段结构、输出字段及基础弹窗模板：

const layer = new FeatureLayer({source: generateRandomPoints(5000), // 加载5000个随机点title: "点聚合",fields: [{ name: "ObjectID", alias: "ObjectID", type: "oid" },{ name: "category", alias: "类别", type: "integer" },{ name: "value", alias: "值", type: "integer" }],outFields: ["*"], // 输出所有字段popupTemplate: { title: "{name}", content: [] }});

（四）初始化地图与视图

创建地图实例并绑定天地图底图，配置地图视图的容器、中心点及初始缩放级别：

// 初始化地图const map = new Map({basemap: tiandituBasemap, // 绑定天地图底图layers: [layer] // 添加要素图层});// 初始化地图视图const view = new MapView({container: "viewDiv", // 绑定地图容器map,center: [116.39, 39.9], // 中心点：北京坐标zoom: 4 // 初始缩放级别});

（五）配置点聚合功能

通过 generateClusterConfig 函数配置聚合参数，包含弹窗模板、标签样式及聚合触发条件：

async function generateClusterConfig(layer) {// 生成聚合弹窗模板const popupTemplate = await clusterPopupCreator.getTemplates({ layer }).then(res => res.primaryTemplate.value);// 生成聚合标签样式const { labelingInfo, clusterMinSize } = await clusterLabelCreator.getLabelSchemes({ layer, view }).then(schemes => schemes.primaryScheme);// 返回聚合配置return {type: "cluster",popupTemplate, // 聚合弹窗labelingInfo, // 聚合标签clusterMinSize, // 最小聚合尺寸maxScale: 50000 // 最大聚合比例尺（超过此值不聚合）};}// 图层加载完成后启用聚合layer.when().then(generateClusterConfig).then(featureReduction => {layer.featureReduction = featureReduction;}).catch(error => console.error(error));

（六）添加控件与交互优化

聚合弹窗样式优化：修改聚合区域的边界样式，提升视觉效果

reactiveUtils.whenOnce(() => view.popup.viewModel).then(() => {view.popup.viewModel.selectedClusterBoundaryFeature.symbol = {type: "simple-fill",style: "solid",color: "rgba(50,50,50,0.15)",outline: { width: 0.5, color: "rgba(50,50,50,0.25)" }};});

添加图例控件：创建图例并通过折叠面板添加到地图右上角

// 创建图例const legend = new Legend({ view, container: "legendDiv" });// 创建折叠面板const infoExpand = new Expand({view,content: document.getElementById("infoDiv"),expandIcon: "list-bullet",expanded: true // 默认展开});// 添加到地图UIview.ui.add(infoExpand, "top-right");
