大数据毕业设计选题推荐-基于大数据的帕金森病数据可视化分析系统-Spark-Hadoop-Bigdata

news 2025/9/21 7:13:09

✨作者主页：IT研究室✨
个人简介：曾从事计算机专业培训教学，擅长Java、Python、微信小程序、Golang、安卓Android等项目实战。接项目定制开发、代码讲解、答辩教学、文档编写、降重等。
☑文末获取源码☑
精彩专栏推荐⬇⬇⬇
Java项目
Python项目
安卓项目
微信小程序项目

文章目录

一、前言
二、开发环境
三、系统界面展示
四、代码参考
五、系统视频
结语

一、前言

系统介绍
本系统是一套基于大数据技术的帕金森病语音特征可视化分析平台，采用Hadoop+Spark分布式计算框架处理帕金森病患者语音数据，通过Python/Java语言支持实现数据分析算法。系统后端采用Django/Spring Boot架构，前端使用Vue+ElementUI+Echarts技术栈构建交互界面。系统核心功能包括四个维度的深度分析：总体分析维度实现患者与健康人群样本均衡性分析和关键语音指标描述性统计；语音声学特征分析维度深入探索音高特征、Jitter频率微扰、Shimmer振幅微扰以及噪音谐波比等核心语音学指标的差异性对比；多维特征关联分析维度通过相关性计算和机器学习算法识别与帕金森病关联度最高的特征组合；非线性动力学分析维度运用RPDE、DFA、D2、PPE等前沿指标从信号复杂度和混沌理论角度提供诊断见解。系统通过Spark SQL进行大规模数据处理，结合Pandas和NumPy进行统计计算，最终通过可视化大屏展示分析结果，为医疗研究人员提供直观的数据洞察支持。

选题背景
帕金森病作为常见的神经退行性疾病，其早期诊断一直是医学领域的重要挑战。传统的帕金森病诊断主要依赖临床观察和运动症状评估，但这种方法往往在疾病中晚期才能做出准确判断，错过了最佳治疗时机。近年来，语音分析技术在神经疾病诊断中展现出巨大潜力，因为帕金森病会影响患者的发声器官协调性，导致语音特征发生微妙变化。这些变化包括音高不稳定、声音颤抖、发声延迟等，通过数字信号处理技术可以被精确捕捉和量化。随着大数据技术的成熟，处理大规模语音数据并从中提取有价值的特征模式成为可能，为帕金森病的辅助诊断提供了新的技术路径。当前医疗数据呈指数级增长，传统的数据处理方法已无法满足复杂分析需求，迫切需要运用现代大数据技术构建智能化的疾病分析系统。

选题意义
本课题的研究意义体现在多个层面的实际应用价值。从医疗诊断角度来看，系统能够通过量化分析语音特征为医生提供客观的参考依据，辅助提高帕金森病早期诊断的准确性和效率，虽然无法完全替代专业医学诊断，但可以作为有效的筛查工具降低漏诊风险。从技术创新角度来说，项目将传统的医疗数据分析与现代大数据技术相结合，探索了Spark分布式计算在医疗领域的应用场景，为类似的医疗大数据项目提供了技术参考。从患者角度而言，系统有望实现更便捷的健康监测方式，患者可以通过简单的语音录制获得初步的健康状态评估，减少不必要的医院往返。从数据科学角度来讲，项目深入挖掘了语音信号中的非线性动力学特征，丰富了生物医学信号处理的技术手段。从社会价值角度来看，随着人口老龄化趋势加剧，帕金森病患病率逐年上升，本系统的应用有助于缓解医疗资源紧张问题，提升整体医疗服务效率，为构建智慧医疗体系贡献技术力量。

二、开发环境

大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
开发语言：Python+Java（两个版本都支持）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持）
前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery
详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy
数据库：MySQL

三、系统界面展示

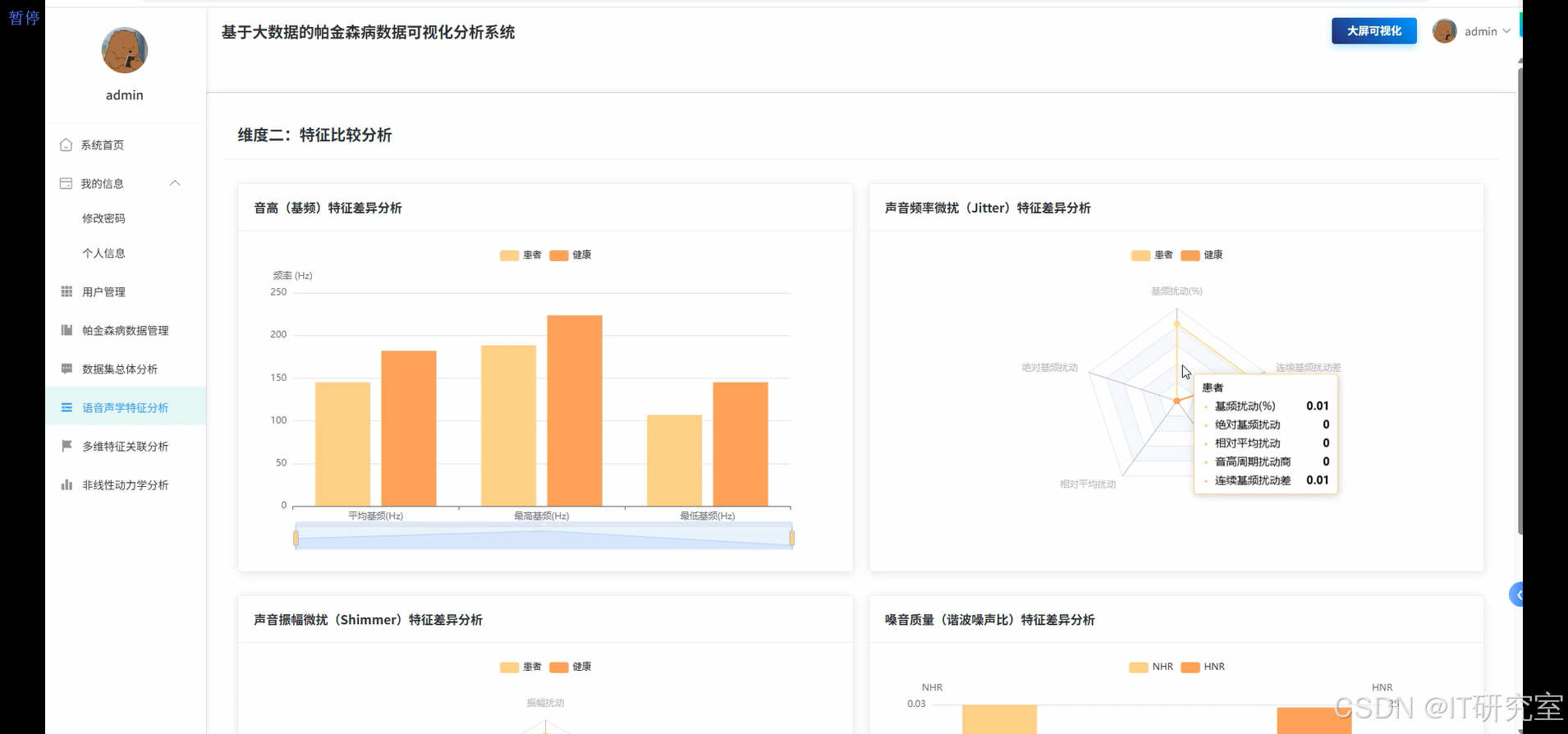

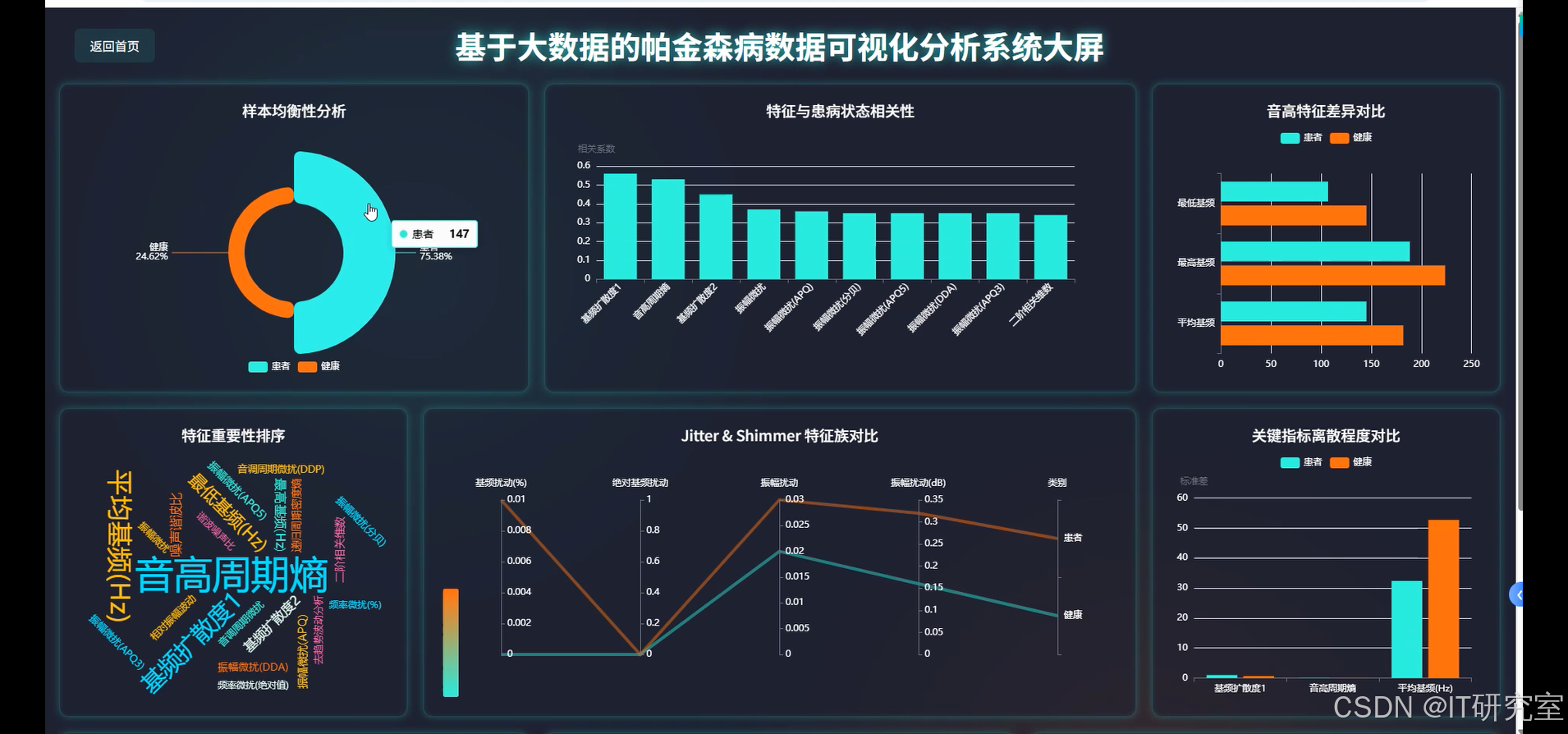

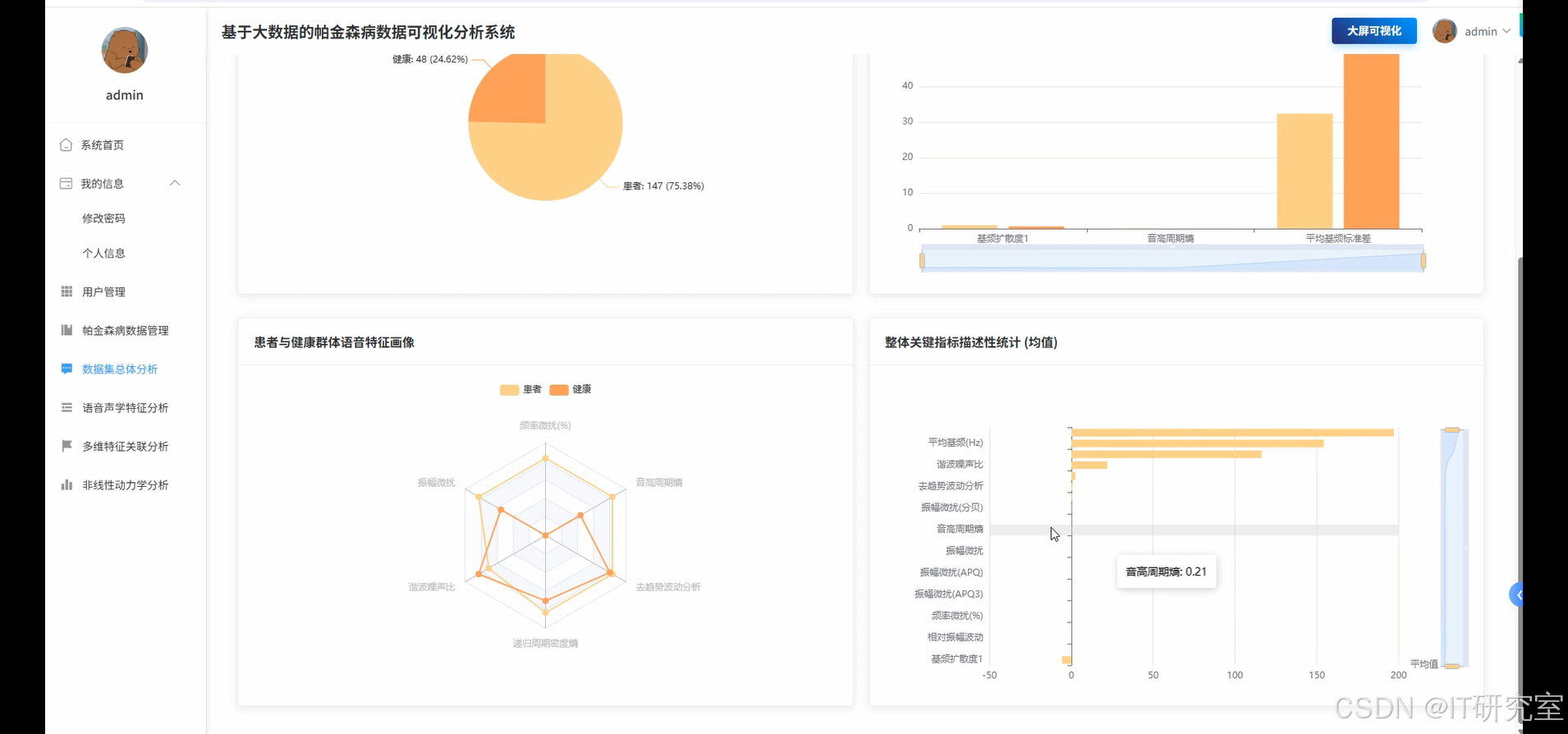

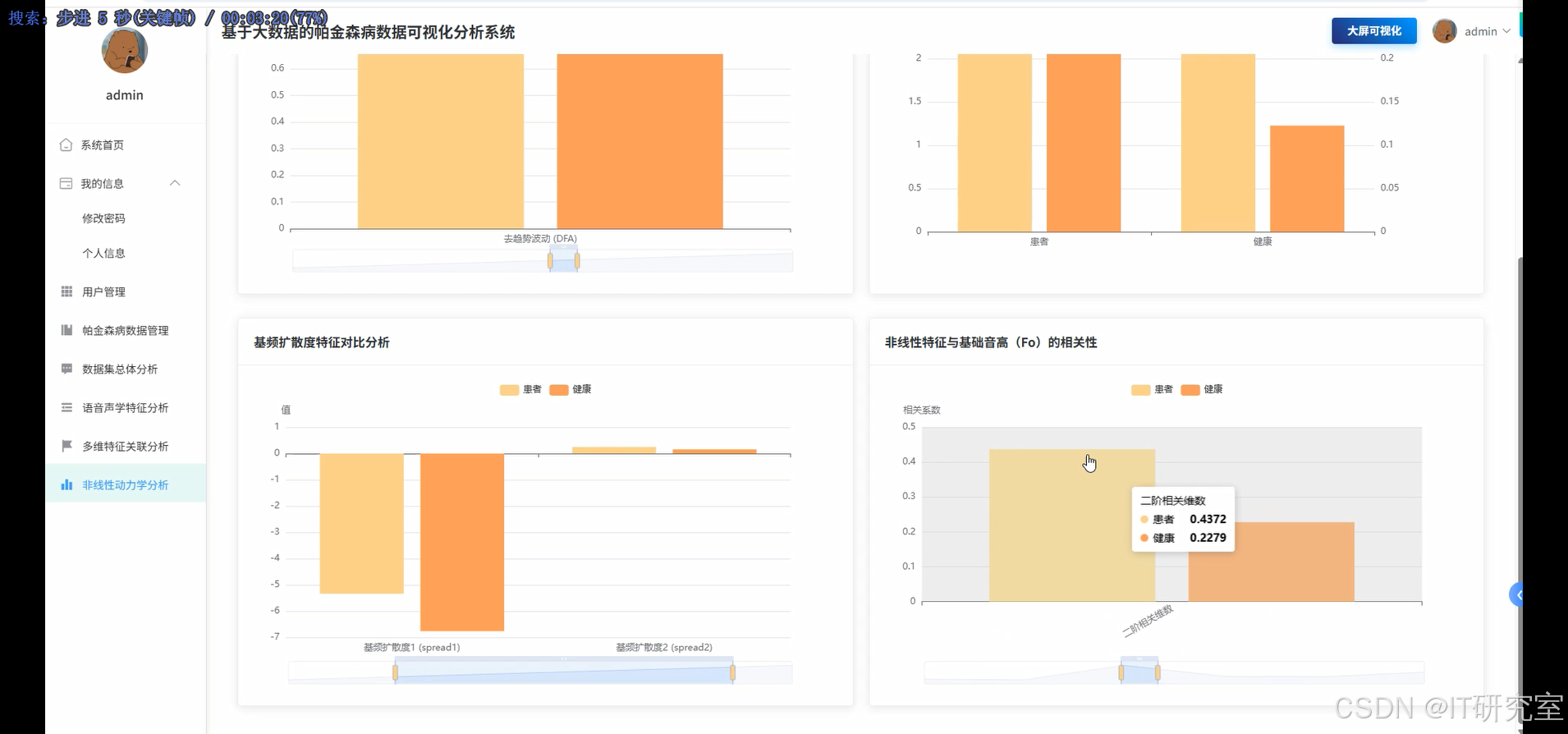

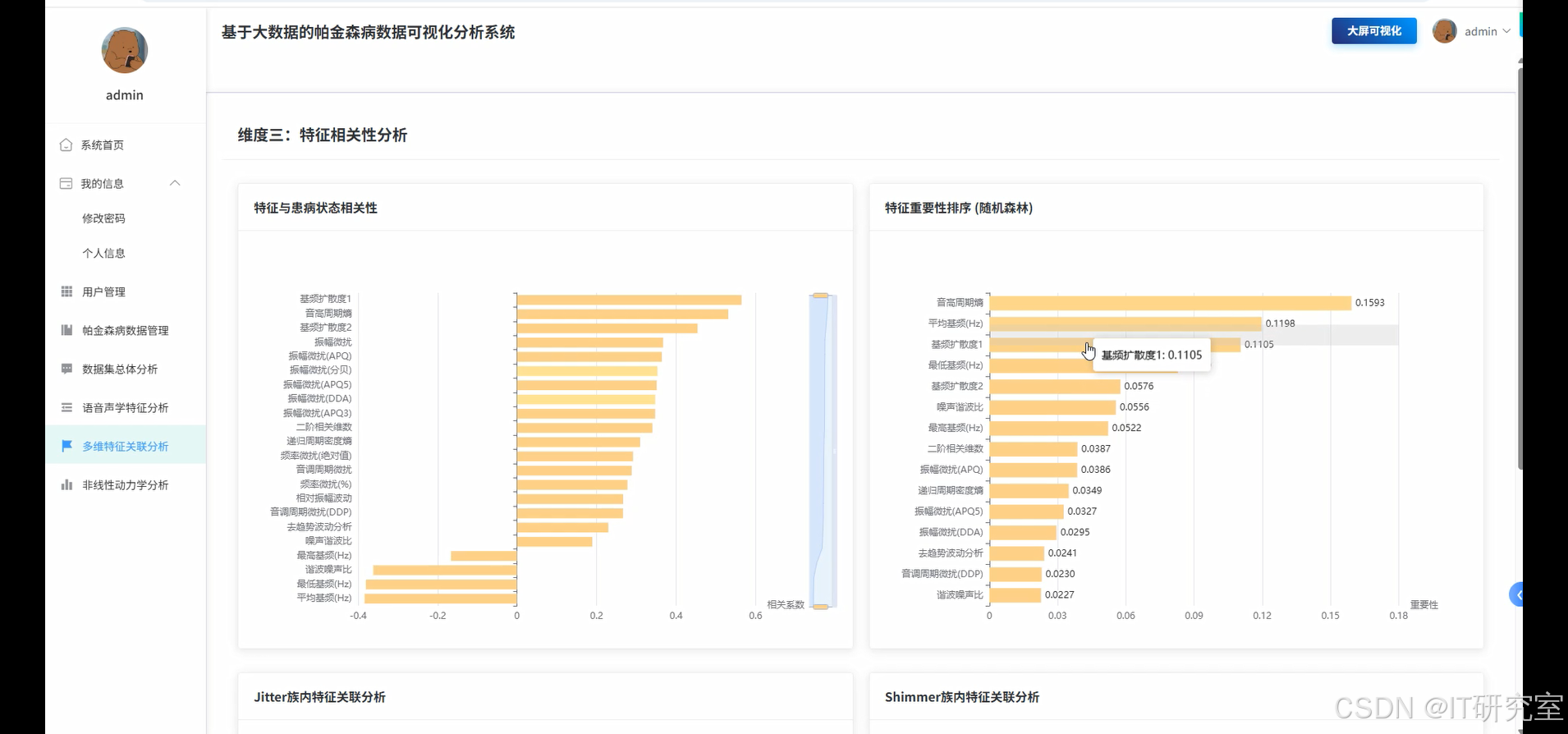

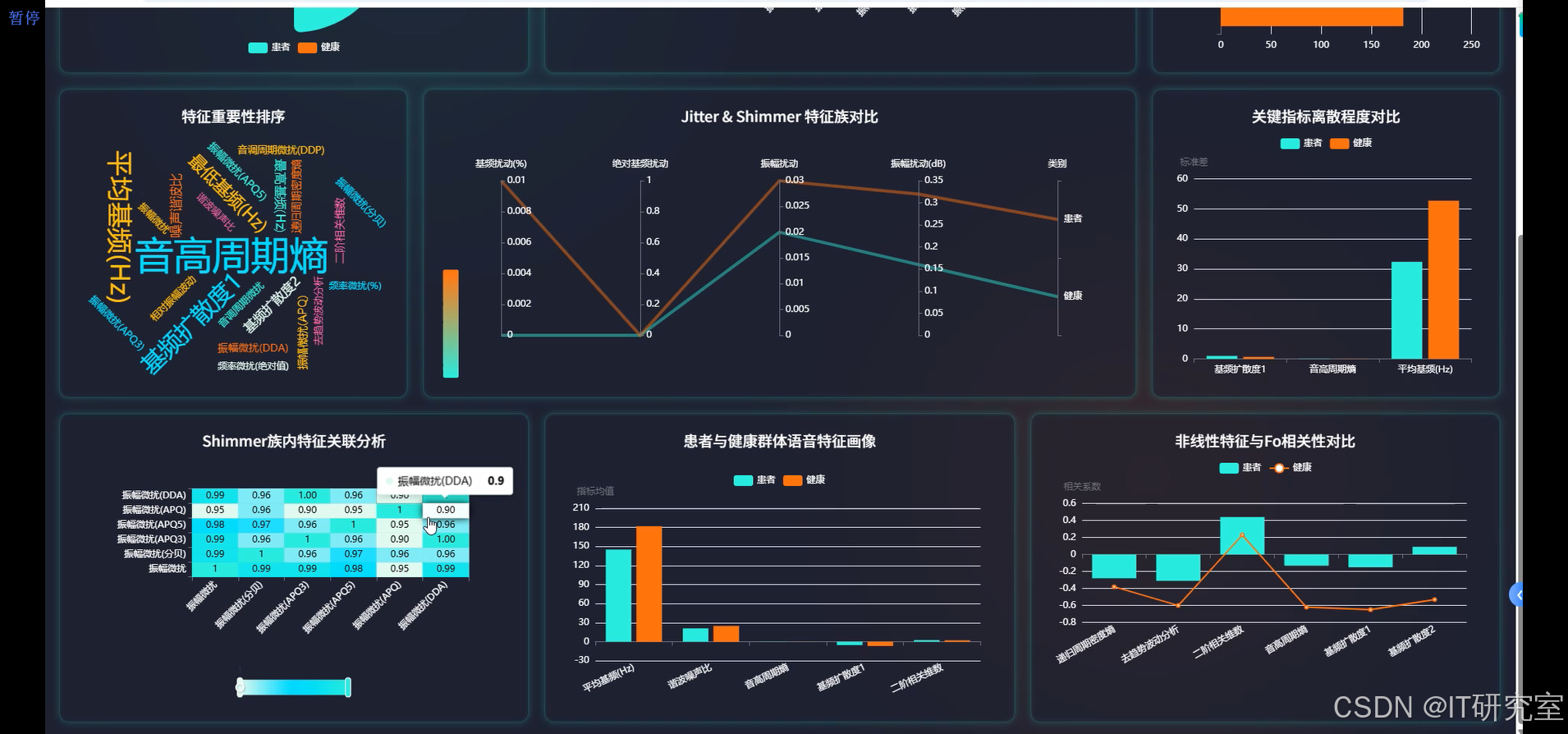

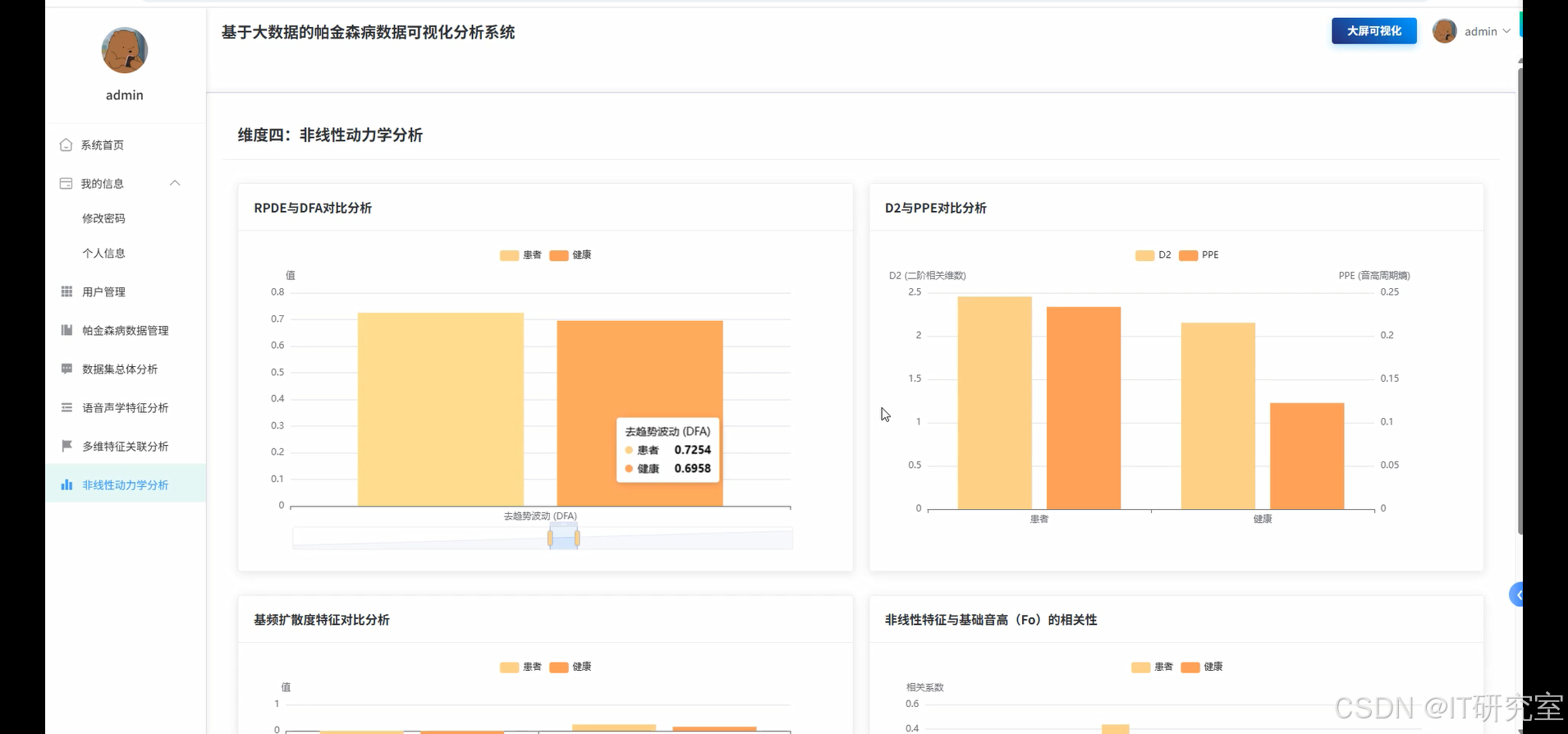

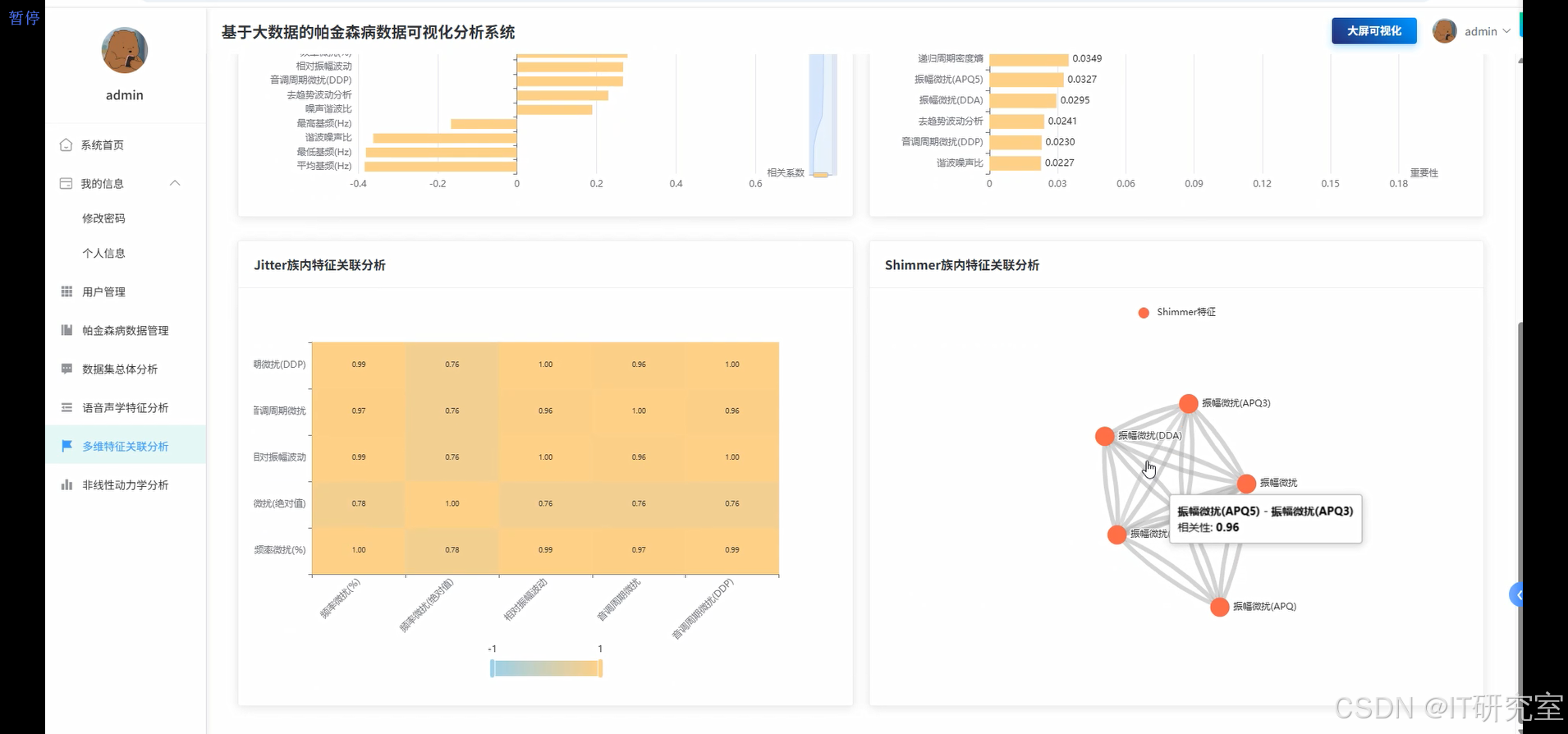

基于大数据的帕金森病数据可视化分析系统界面展示：

四、代码参考

项目实战代码参考：

from pyspark.sql import SparkSession
from pyspark.sql.functions import *
from pyspark.ml.feature import VectorAssembler
from pyspark.ml.classification import RandomForestClassifier
from pyspark.ml.evaluation import BinaryClassificationEvaluator
import pandas as pd
import numpy as np
from scipy.stats import pearsonr
from sklearn.ensemble import RandomForestRegressorspark = SparkSession.builder.appName("ParkinsonAnalysis").config("spark.sql.adaptive.enabled", "true").getOrCreate()def comprehensive_data_analysis(dataset_path):df = spark.read.csv(dataset_path, header=True, inferSchema=True)total_count = df.count()patient_count = df.filter(col("status") == 1).count()healthy_count = df.filter(col("status") == 0).count()balance_ratio = min(patient_count, healthy_count) / max(patient_count, healthy_count)feature_columns = [col_name for col_name in df.columns if col_name != "status" and col_name != "name"]overall_stats = df.select([mean(col(c)).alias(f"{c}_mean") for c in feature_columns] + [stddev(col(c)).alias(f"{c}_std") for c in feature_columns]).collect()[0]patient_stats = df.filter(col("status") == 1).select([mean(col(c)).alias(f"{c}_patient_mean") for c in feature_columns] + [stddev(col(c)).alias(f"{c}_patient_std") for c in feature_columns]).collect()[0]healthy_stats = df.filter(col("status") == 0).select([mean(col(c)).alias(f"{c}_healthy_mean") for c in feature_columns] + [stddev(col(c)).alias(f"{c}_healthy_std") for c in feature_columns]).collect()[0]key_features = ["MDVP:Fo(Hz)", "spread1", "PPE"]variance_comparison = {}for feature in key_features:patient_var = df.filter(col("status") == 1).select(variance(col(feature))).collect()[0][0]healthy_var = df.filter(col("status") == 0).select(variance(col(feature))).collect()[0][0]variance_comparison[feature] = {"patient_variance": patient_var, "healthy_variance": healthy_var, "ratio": patient_var / healthy_var if healthy_var > 0 else 0}analysis_results = {"total_samples": total_count, "patient_samples": patient_count, "healthy_samples": healthy_count, "balance_ratio": balance_ratio, "overall_statistics": dict(overall_stats.asDict()), "patient_statistics": dict(patient_stats.asDict()), "healthy_statistics": dict(healthy_stats.asDict()), "variance_analysis": variance_comparison}return analysis_resultsdef voice_acoustic_feature_analysis(dataset_path):df = spark.read.csv(dataset_path, header=True, inferSchema=True)pitch_features = ["MDVP:Fo(Hz)", "MDVP:Fhi(Hz)", "MDVP:Flo(Hz)"]jitter_features = ["MDVP:Jitter(%)", "MDVP:Jitter(Abs)", "MDVP:RAP", "MDVP:PPQ", "Jitter:DDP"]shimmer_features = ["MDVP:Shimmer", "MDVP:Shimmer(dB)", "Shimmer:APQ3", "Shimmer:APQ5", "MDVP:APQ"]noise_features = ["NHR", "HNR"]pitch_analysis = {}for feature in pitch_features:patient_mean = df.filter(col("status") == 1).select(mean(col(feature))).collect()[0][0]healthy_mean = df.filter(col("status") == 0).select(mean(col(feature))).collect()[0][0]difference_ratio = abs(patient_mean - healthy_mean) / healthy_mean if healthy_mean > 0 else 0patient_std = df.filter(col("status") == 1).select(stddev(col(feature))).collect()[0][0]healthy_std = df.filter(col("status") == 0).select(stddev(col(feature))).collect()[0][0]pitch_analysis[feature] = {"patient_mean": patient_mean, "healthy_mean": healthy_mean, "difference_ratio": difference_ratio, "patient_std": patient_std, "healthy_std": healthy_std}jitter_analysis = {}for feature in jitter_features:patient_vals = df.filter(col("status") == 1).select(col(feature)).rdd.map(lambda x: x[0]).collect()healthy_vals = df.filter(col("status") == 0).select(col(feature)).rdd.map(lambda x: x[0]).collect()patient_cv = np.std(patient_vals) / np.mean(patient_vals) if np.mean(patient_vals) > 0 else 0healthy_cv = np.std(healthy_vals) / np.mean(healthy_vals) if np.mean(healthy_vals) > 0 else 0instability_ratio = patient_cv / healthy_cv if healthy_cv > 0 else 0jitter_analysis[feature] = {"patient_cv": patient_cv, "healthy_cv": healthy_cv, "instability_ratio": instability_ratio, "patient_mean": np.mean(patient_vals), "healthy_mean": np.mean(healthy_vals)}shimmer_analysis = {}for feature in shimmer_features:patient_amplitude_var = df.filter(col("status") == 1).select(variance(col(feature))).collect()[0][0]healthy_amplitude_var = df.filter(col("status") == 0).select(variance(col(feature))).collect()[0][0]amplitude_control_ratio = patient_amplitude_var / healthy_amplitude_var if healthy_amplitude_var > 0 else 0shimmer_analysis[feature] = {"patient_variance": patient_amplitude_var, "healthy_variance": healthy_amplitude_var, "control_degradation": amplitude_control_ratio}noise_analysis = {}for feature in noise_features:patient_noise = df.filter(col("status") == 1).select(mean(col(feature))).collect()[0][0]healthy_noise = df.filter(col("status") == 0).select(mean(col(feature))).collect()[0][0]noise_increase_ratio = patient_noise / healthy_noise if healthy_noise > 0 else 0voice_quality_degradation = (noise_increase_ratio - 1) * 100 if noise_increase_ratio > 1 else 0noise_analysis[feature] = {"patient_level": patient_noise, "healthy_level": healthy_noise, "increase_ratio": noise_increase_ratio, "quality_degradation_percent": voice_quality_degradation}return {"pitch_analysis": pitch_analysis, "jitter_analysis": jitter_analysis, "shimmer_analysis": shimmer_analysis, "noise_analysis": noise_analysis}def multidimensional_feature_correlation_analysis(dataset_path):df = spark.read.csv(dataset_path, header=True, inferSchema=True)feature_columns = [col_name for col_name in df.columns if col_name not in ["status", "name"]]pandas_df = df.toPandas()status_correlations = {}for feature in feature_columns:corr_coef, p_value = pearsonr(pandas_df["status"], pandas_df[feature])correlation_strength = "强相关" if abs(corr_coef) > 0.7 else "中等相关" if abs(corr_coef) > 0.4 else "弱相关"status_correlations[feature] = {"correlation": corr_coef, "p_value": p_value, "strength": correlation_strength, "absolute_correlation": abs(corr_coef)}sorted_correlations = dict(sorted(status_correlations.items(), key=lambda x: x[1]["absolute_correlation"], reverse=True))feature_matrix = pandas_df[feature_columns].valuestarget_vector = pandas_df["status"].valuesrf_model = RandomForestRegressor(n_estimators=100, random_state=42)rf_model.fit(feature_matrix, target_vector)feature_importance = {}for i, feature in enumerate(feature_columns):importance_score = rf_model.feature_importances_[i]ranking_position = sorted(range(len(rf_model.feature_importances_)), key=lambda k: rf_model.feature_importances_[k], reverse=True).index(i) + 1feature_importance[feature] = {"importance_score": importance_score, "ranking": ranking_position, "contribution_percent": importance_score * 100}jitter_features = ["MDVP:Jitter(%)", "MDVP:Jitter(Abs)", "MDVP:RAP", "MDVP:PPQ", "Jitter:DDP"]jitter_correlation_matrix = pandas_df[jitter_features].corr()jitter_relationships = {}for i in range(len(jitter_features)):for j in range(i+1, len(jitter_features)):feat1, feat2 = jitter_features[i], jitter_features[j]correlation = jitter_correlation_matrix.loc[feat1, feat2]redundancy_level = "高冗余" if correlation > 0.8 else "中等冗余" if correlation > 0.6 else "低冗余"jitter_relationships[f"{feat1}_vs_{feat2}"] = {"correlation": correlation, "redundancy": redundancy_level}shimmer_features = ["MDVP:Shimmer", "MDVP:Shimmer(dB)", "Shimmer:APQ3", "Shimmer:APQ5", "MDVP:APQ"]shimmer_correlation_matrix = pandas_df[shimmer_features].corr()shimmer_relationships = {}for i in range(len(shimmer_features)):for j in range(i+1, len(shimmer_features)):feat1, feat2 = shimmer_features[i], shimmer_features[j]correlation = shimmer_correlation_matrix.loc[feat1, feat2]measurement_similarity = "高度相似" if correlation > 0.9 else "部分相似" if correlation > 0.7 else "不同侧面"shimmer_relationships[f"{feat1}_vs_{feat2}"] = {"correlation": correlation, "similarity": measurement_similarity}top_features = list(sorted_correlations.keys())[:10]key_feature_interactions = {}for i in range(min(5, len(top_features))):for j in range(i+1, min(5, len(top_features))):feat1, feat2 = top_features[i], top_features[j]interaction_corr = pandas_df[feat1].corr(pandas_df[feat2])combined_predictive_power = (status_correlations[feat1]["absolute_correlation"] + status_correlations[feat2]["absolute_correlation"]) * (1 - abs(interaction_corr))key_feature_interactions[f"{feat1}_with_{feat2}"] = {"interaction_correlation": interaction_corr, "combined_power": combined_predictive_power, "synergy_score": combined_predictive_power / 2}return {"status_correlations": sorted_correlations, "feature_importance_ranking": dict(sorted(feature_importance.items(), key=lambda x: x[1]["ranking"])), "jitter_internal_relationships": jitter_relationships, "shimmer_internal_relationships": shimmer_relationships, "key_feature_interactions": key_feature_interactions}
