吴恩达机器学习笔记week1-2（线性回归模型及Sklearn的使用）
目录
成本函数以及目标预测函数
梯度下降函数
线性回归的梯度下降
特征缩放
均值归一化
Z分数归一化
多特征线性回归
预测函数
成本函数
梯度下降函数
公式实现
代码实现

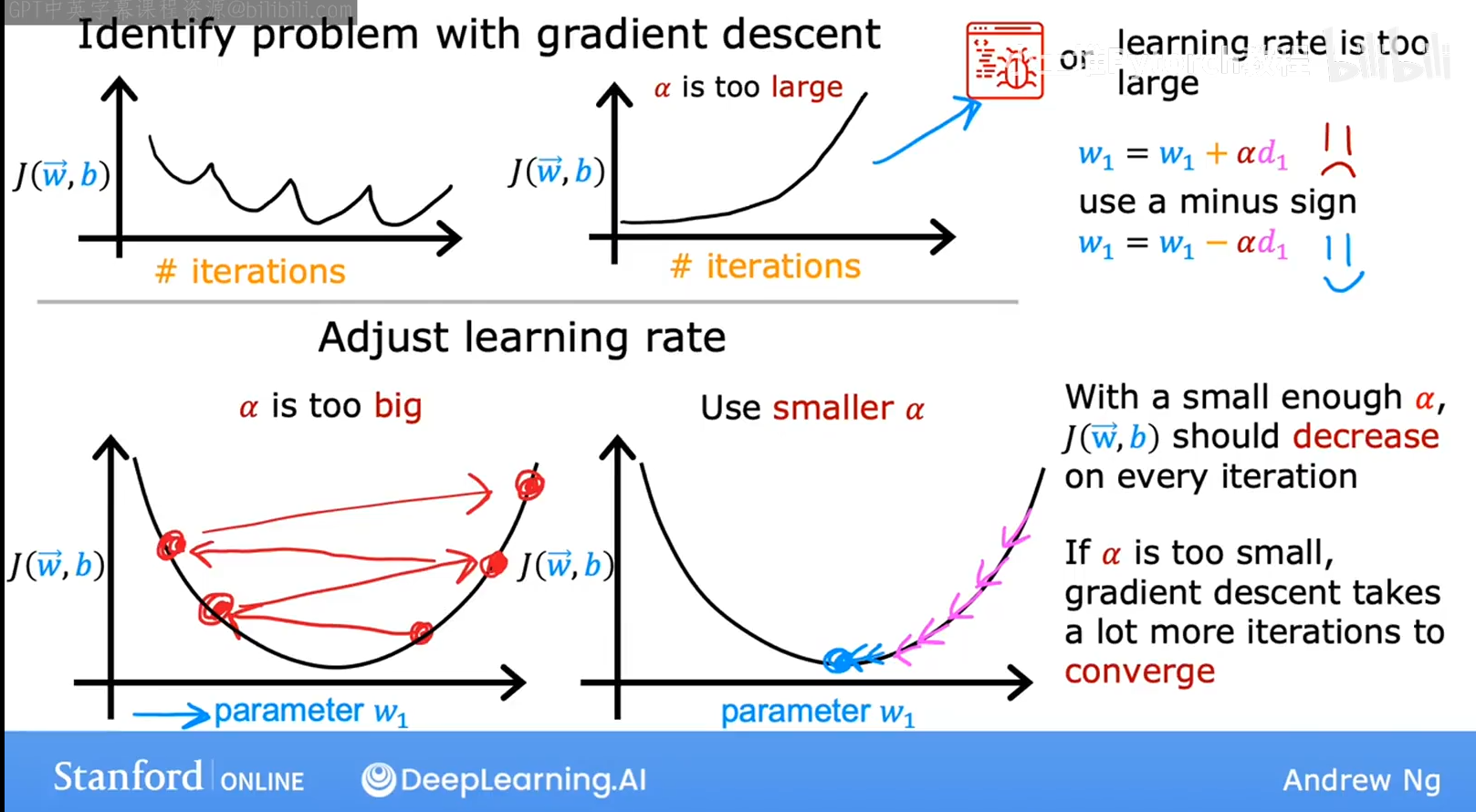

如何选择合适学习率
特征工程
多项式回归
SKlearn的使用
基本使用代码
关键函数

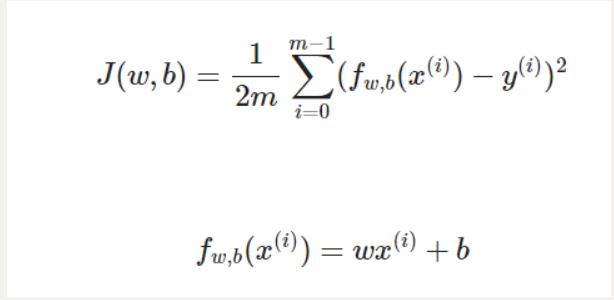

成本函数以及目标预测函数
# y-hat 目标值预测函数
def compute_model_output(x, w, b):"""Computes the prediction of a linear modelArgs:x (ndarray (m,)): Data, m examples w,b (scalar) : model parameters Returnsy (ndarray (m,)): target values"""m = x.shape[0]# m=len(x)f_wb = np.zeros(m)for i in range(m):f_wb[i] = w * x[i] + breturn f_wb# 成本函数计算
def compute_cost(x, y, w, b): """Computes the cost function for linear regression.Args:x (ndarray (m,)): Data, m examples y (ndarray (m,)): target valuesw,b (scalar) : model parameters Returnstotal_cost (float): The cost of using w,b as the parameters for linear regressionto fit the data points in x and y"""# number of training examplesm = x.shape[0] cost_sum = 0 for i in range(m): f_wb = w * x[i] + b cost = (f_wb - y[i]) ** 2 cost_sum = cost_sum + cost total_cost = (1 / (2 * m)) * cost_sum return total_costJ(w,b)是成本函数，f(w,b)是预测函数

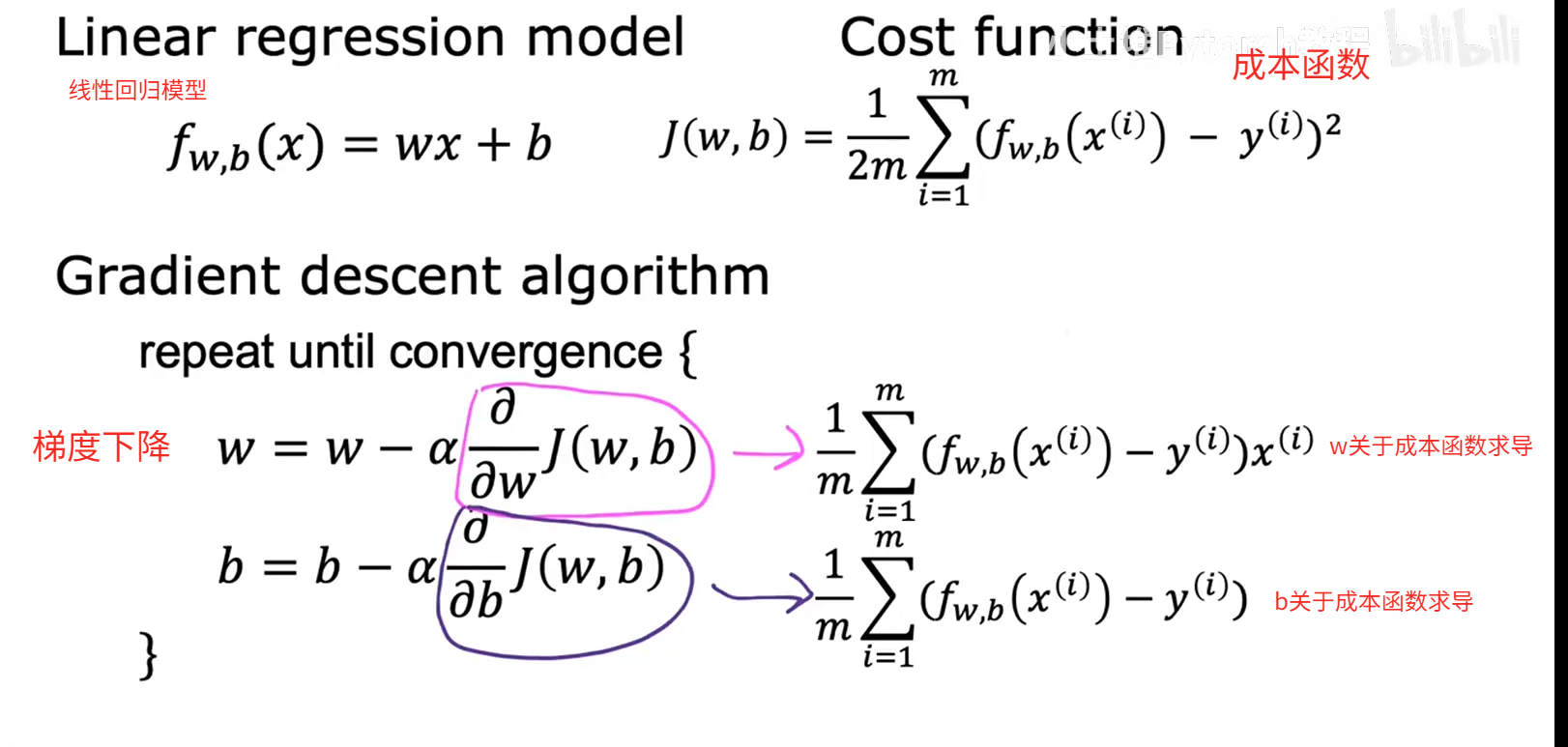

梯度下降函数
def compute_gradient(x, y, w, b): """Computes the gradient for linear regression Args:x (ndarray (m,)): Data, m examples y (ndarray (m,)): target valuesw,b (scalar) : model parameters Returnsdj_dw (scalar): The gradient of the cost w.r.t. the parameters wdj_db (scalar): The gradient of the cost w.r.t. the parameter b """# Number of training examplesm = x.shape[0] dj_dw = 0dj_db = 0for i in range(m): f_wb = w * x[i] + b dj_dw_i = (f_wb - y[i]) * x[i] dj_db_i = f_wb - y[i] dj_db += dj_db_idj_dw += dj_dw_i dj_dw = dj_dw / m dj_db = dj_db / m return dj_dw, dj_db线性回归的梯度下降

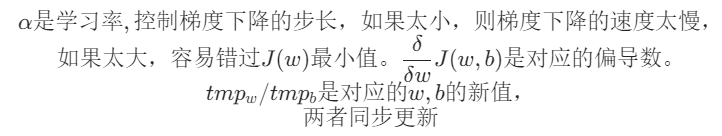

注意：当成本函数是一个凸函数（碗）时，使用梯度下降模型可以找到成本函数最小值，但是如果不是一个凸函数，从某一个初始值出发，只能找到成本函数局部最小值
特征缩放

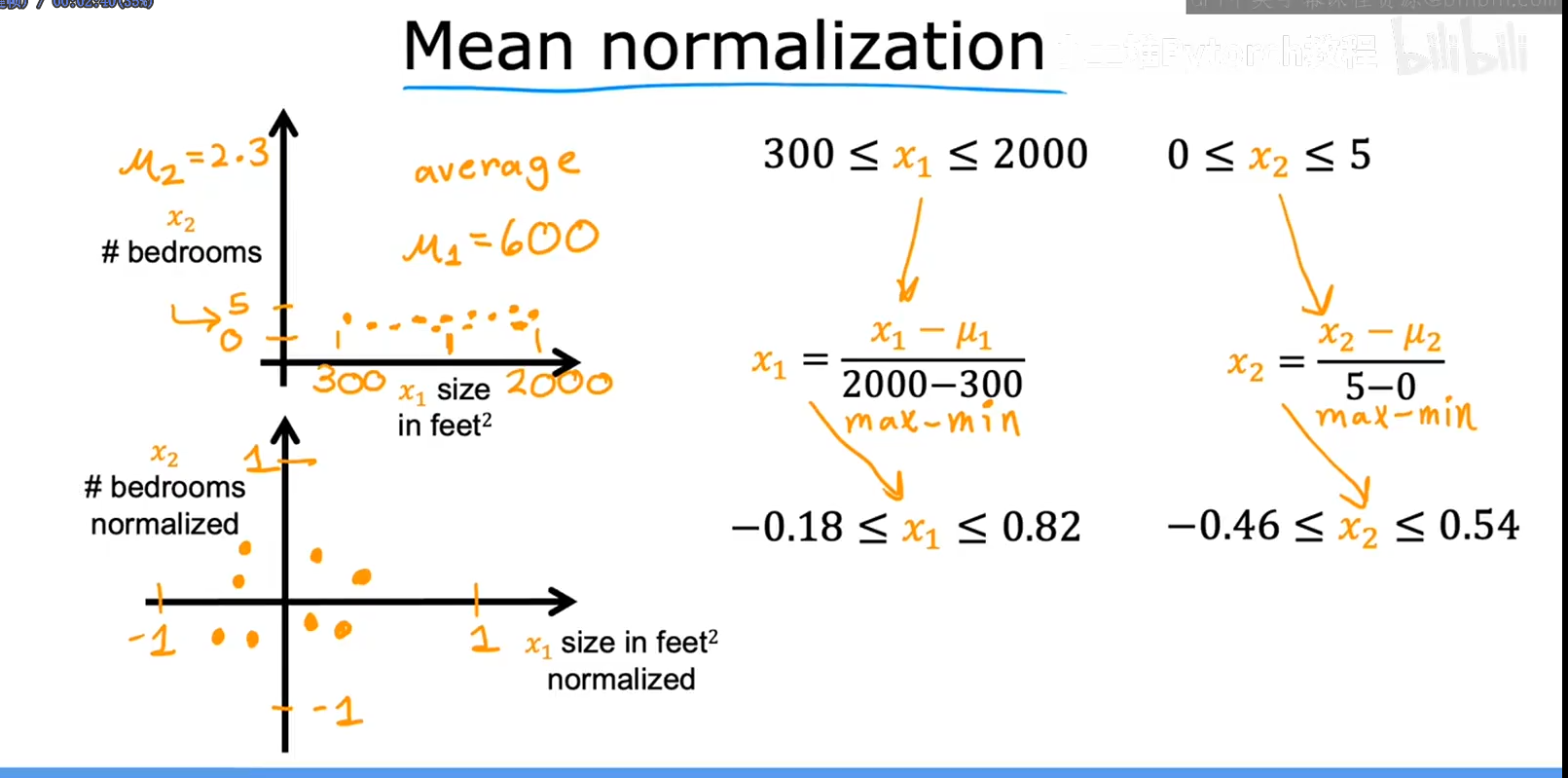

均值归一化
- 找到训练集上的均值
- 按照以下公式进行计算

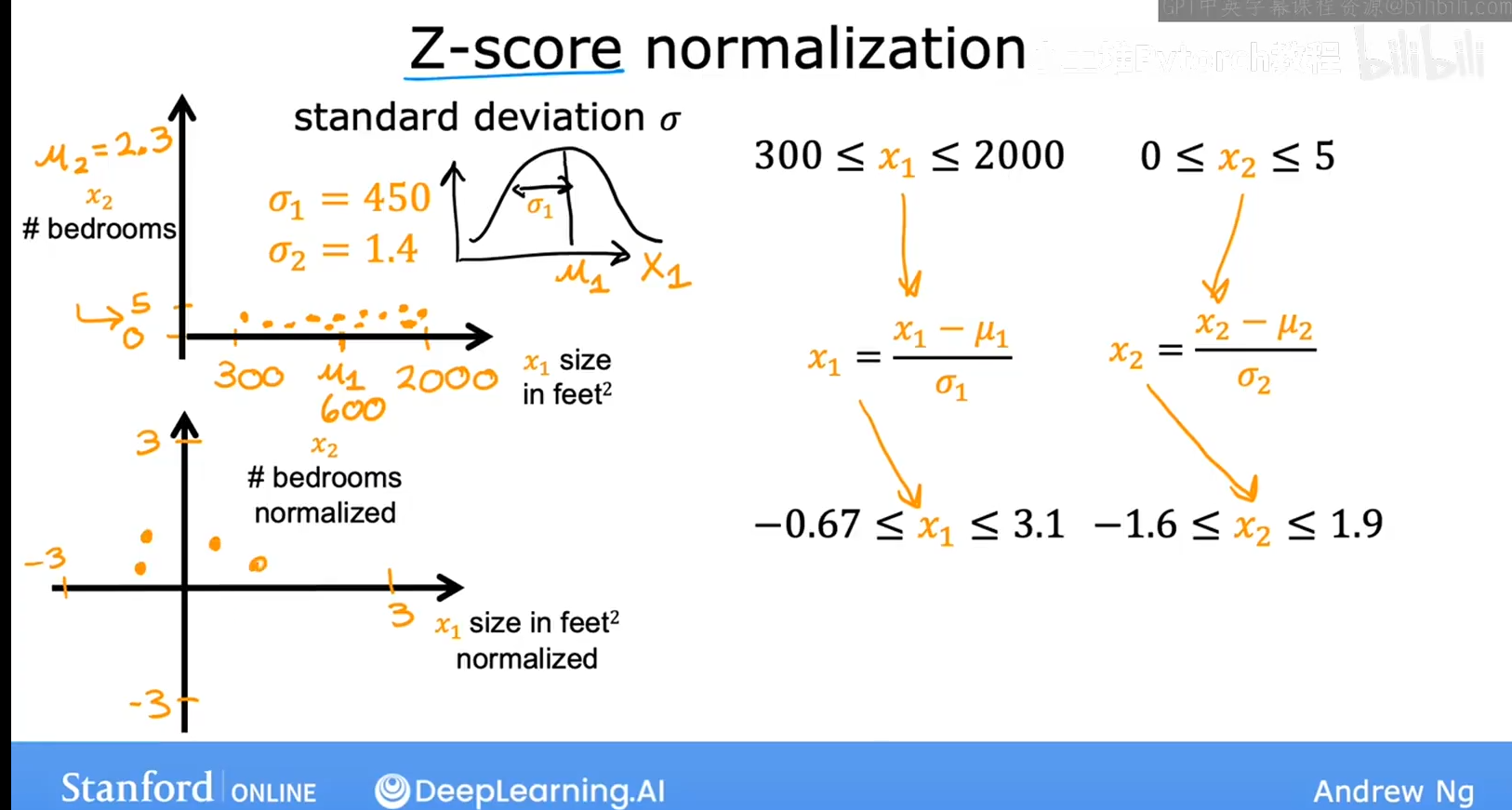

Z分数归一化
- 找到训练集上的均值
，计算得到每个特征值的标准差
- 按照以下公式进行计算
def zscore_normalize_features(X):mu = np.mean(X, axis=0) # 求均值sigma = np.std(X, axis=0)# 求标准差X_norm = (X - mu) / sigmareturn X_norm

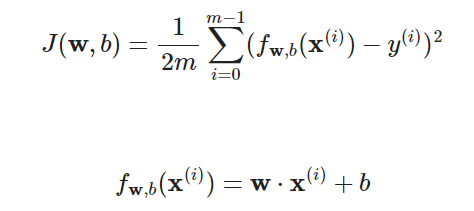

多特征线性回归
预测函数
成本函数
梯度下降函数
公式实现
代码实现
import copy, math
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('./deeplearning.mplstyle')
np.set_printoptions(precision=2) # reduced display precision on numpy arraysX_train = np.array([[2104,5,1,45],[1416,3,2,40],[852,2,1,35]])
y_train = np.array([460,232,178])b_init = 785.1811367994083
w_init = np.array([ 0.39133535, 18.75376741, -53.36032453, -26.42131618])# 接下来实现成本函数J(w,b)
def computer_cost(x,y,w,b):m = x.shape[0]cost = 0.0for i in range(m):f_wb_i = np.dot(x[i],w)+bcost = cost + (f_wb_i-y[i])**2cost = cost/(2*m)return cost# 接下来实现求偏导函数
def computer_gradient(x,y,w,b):m,n = x.shapedj_dw = np.zeros((n,))dj_db = 0.for i in range(m):err = (np.dot(x[i], w) + b) - y[i]for j in range(n):dj_dw[j] = dj_dw[j] + err * x[i, j]dj_db = dj_db + errdj_dw = dj_dw / mdj_db = dj_db / mreturn dj_dw, dj_db# 接下来实现梯度下降函数
def gradient_descent(x, y, w_in, b_in, cost_function, gradient_function, alpha, num_iters):J_history = []w = copy.deepcopy(w_in) # avoid modifying global w within functionb = b_infor i in range(num_iters):dj_dw,dj_db= gradient_function(x, y, w, b) # 计算偏导w = w - alpha * dj_dwb = b - alpha * dj_db# 保存每个成本函数值，用于观测成本函数的下降if i < 100000: # prevent resource exhaustionJ_history.append(cost_function(x, y, w, b))# Print cost every at intervals 10 times or as many iterations if < 10if i % math.ceil(num_iters / 10) == 0:print(f"Iteration {i:4d}: Cost {J_history[-1]:8.2f} ")return w, b, J_history # return final w,b and J history for graphinginit_w = np.zeros_like(w_init)
init_b = 0
num_iters = 10000
alpha = 5.0e-7
w_final,b_final,J_hist = gradient_descent(X_train,y_train,init_w,init_b,computer_cost,computer_gradient,alpha,num_iters)
print(f"b,w found by gradient descent: {b_final:0.2f},{w_final} ")
m,_ = X_train.shape
for i in range(m):print(f"prediction: {np.dot(X_train[i], w_final) + b_final:0.2f}, target value: {y_train[i]}")# plot cost versus iteration
fig, (ax1, ax2) = plt.subplots(1, 2, constrained_layout=True, figsize=(12, 4))
ax1.plot(J_hist)
ax2.plot(100 + np.arange(len(J_hist[100:])), J_hist[100:])
ax1.set_title("Cost vs. iteration"); ax2.set_title("Cost vs. iteration (tail)")
ax1.set_ylabel('Cost') ; ax2.set_ylabel('Cost')
ax1.set_xlabel('iteration step') ; ax2.set_xlabel('iteration step')
plt.show()如何选择合适学习率

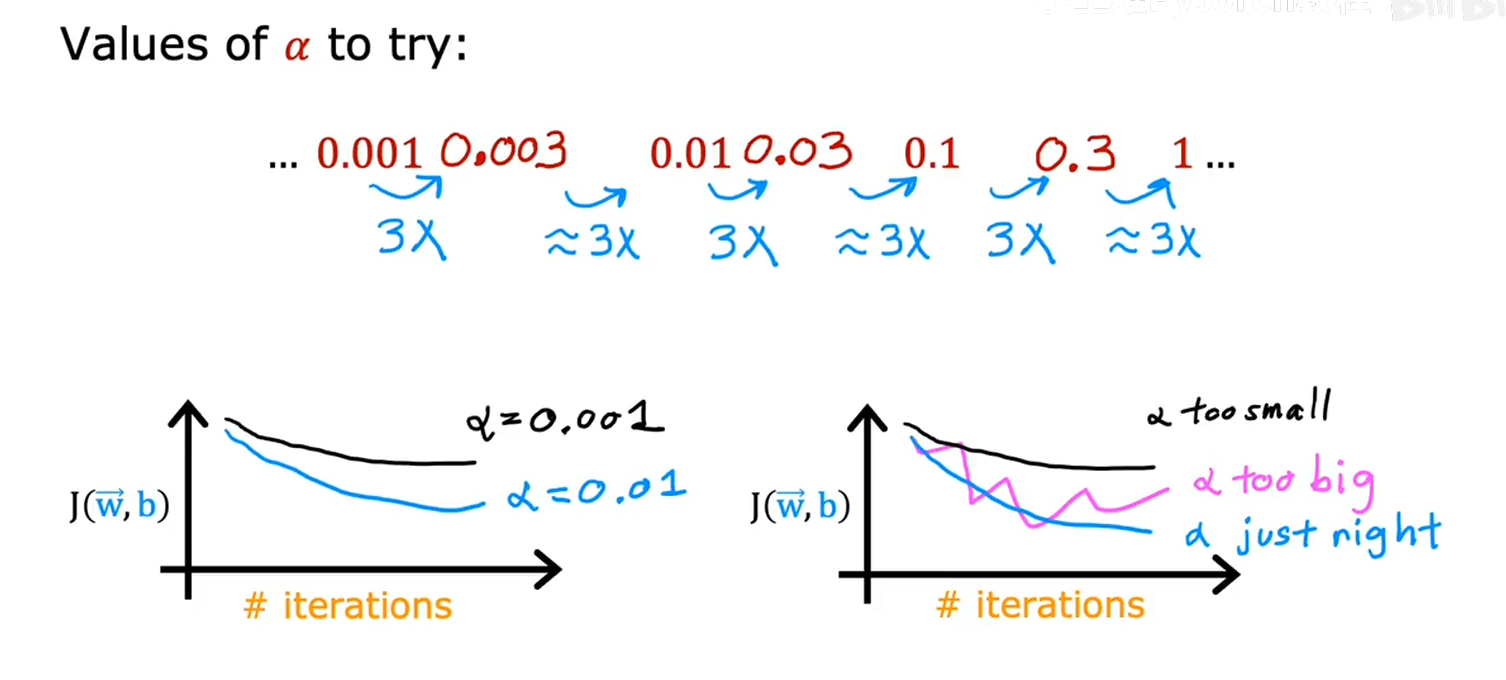

学习曲线可能出现以下的几种情况
进行学习率选择时候，可以先设置一个很小的学习率，使得成本函数下降很慢，或者选择一个很大的学习率，使得成本函数下降不规矩，最后找到一个合适的学习率
特征工程
根据问题的实际情况，进行新特征的设计，就是特征工程，利用对问题的理解或者直觉来设计新特征，通常是通过改造或组合问题的原有特征，以便让更容易的让学习算法做出准确的预测。
多项式回归
相比较于单项式回归，多项式回归将可选特性提升到了二次方、三次方或者更高，与此同时，特征缩放就变得更加重要
SKlearn的使用
基本使用代码
import numpy as np
np.set_printoptions(precision=2)
from sklearn.linear_model import LinearRegression, SGDRegressor
from sklearn.preprocessing import StandardScaler
from lab_utils_multi import load_house_data
import matplotlib.pyplot as plt
dlblue = '#0096ff'; dlorange = '#FF9300'; dldarkred='#C00000'; dlmagenta='#FF40FF'; dlpurple='#7030A0';
plt.style.use('./deeplearning.mplstyle')# 加载数据进行特征缩放
X_train, y_train = load_house_data()
X_features = ['size(sqft)','bedrooms','floors','age']scaler = StandardScaler()
X_norm = scaler.fit_transform(X_train)
print(f"Peak to Peak range by column in Raw X:{np.ptp(X_train,axis=0)}")
print(f"Peak to Peak range by column in Normalized X:{np.ptp(X_norm,axis=0)}")# 创建并拟合回归模型
sgdr = SGDRegressor(max_iter=1000)
sgdr.fit(X_norm, y_train) # 进行了拟合print(sgdr)
print(f"number of iterations completed: {sgdr.n_iter_}, number of weight updates: {sgdr.t_}")b_norm = sgdr.intercept_
w_norm = sgdr.coef_
print(f"model parameters:w: {w_norm}, b:{b_norm}")# 进行预测
# make a prediction using sgdr.predict()
y_pred_sgd = sgdr.predict(X_norm)
# make a prediction using w,b.
y_pred = np.dot(X_norm, w_norm) + b_norm
# 两种方式的到的预测值相同
print(f"Prediction on training set:\n{y_pred[:4]}" )
print(f"Target values \n{y_train[:4]}")# 通过图像绘制，比较目标值和预测值
fig,ax=plt.subplots(1,4,figsize=(12,3),sharey=True)
for i in range(len(ax)):ax[i].scatter(X_train[:,i],y_train, label = 'target')ax[i].set_xlabel(X_features[i])ax[i].scatter(X_train[:,i],y_pred,color=dlorange, label = 'predict')
ax[0].set_ylabel("Price"); ax[0].legend();
fig.suptitle("target versus prediction using z-score normalized model")
plt.show()Scikit-learn 框架中有一个梯度下降回归模型，名为 sklearn.linear_model.SGDRegressor.
sklearn.preprocessing.StandardScaler 将按照之前实验中的方式执行 z 分数标准化操作。在这里，它被称为“standard score”。
关键函数
- Z-分数归一化函数
scaler = StandardScaler()
X_norm = scaler.fit_transform(X_train)- 梯度下降函数
sgdr = SGDRegressor(max_iter=1000) # 梯度下降函数
sgdr.fit(X_norm, y_train) # 拟合函数- 预测函数
y_pred_sgd = sgdr.predict(X_norm)- 成本函数:成本函数的计算包含在了SGDRegressor中，不需要再额外计算
