一、时钟基本概念

PLL：phase locked loop 倍频

Prescaler：预分频器

PFD：相位分数分频器（可升可降）

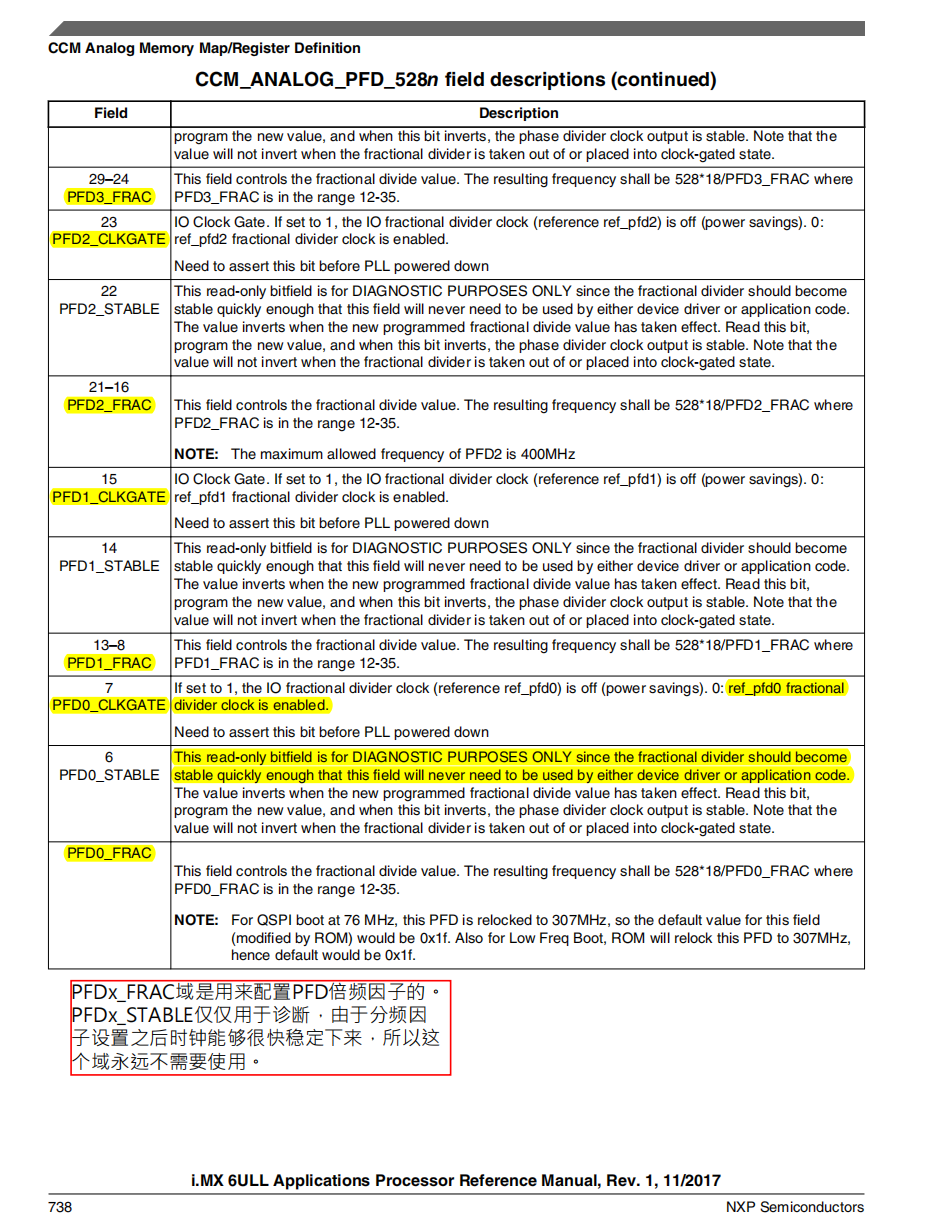

7个pll,pll2、pll3一共有8个pfd

二、时钟原理

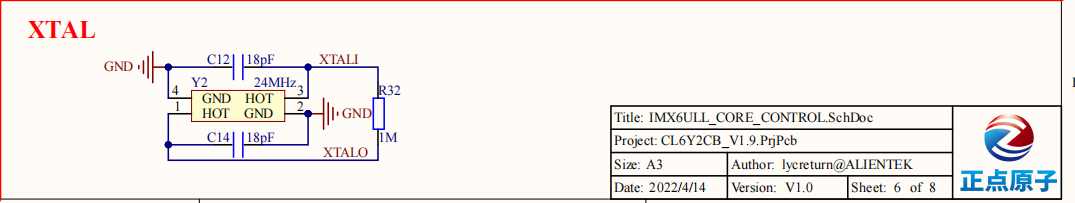

1.核心版原理图

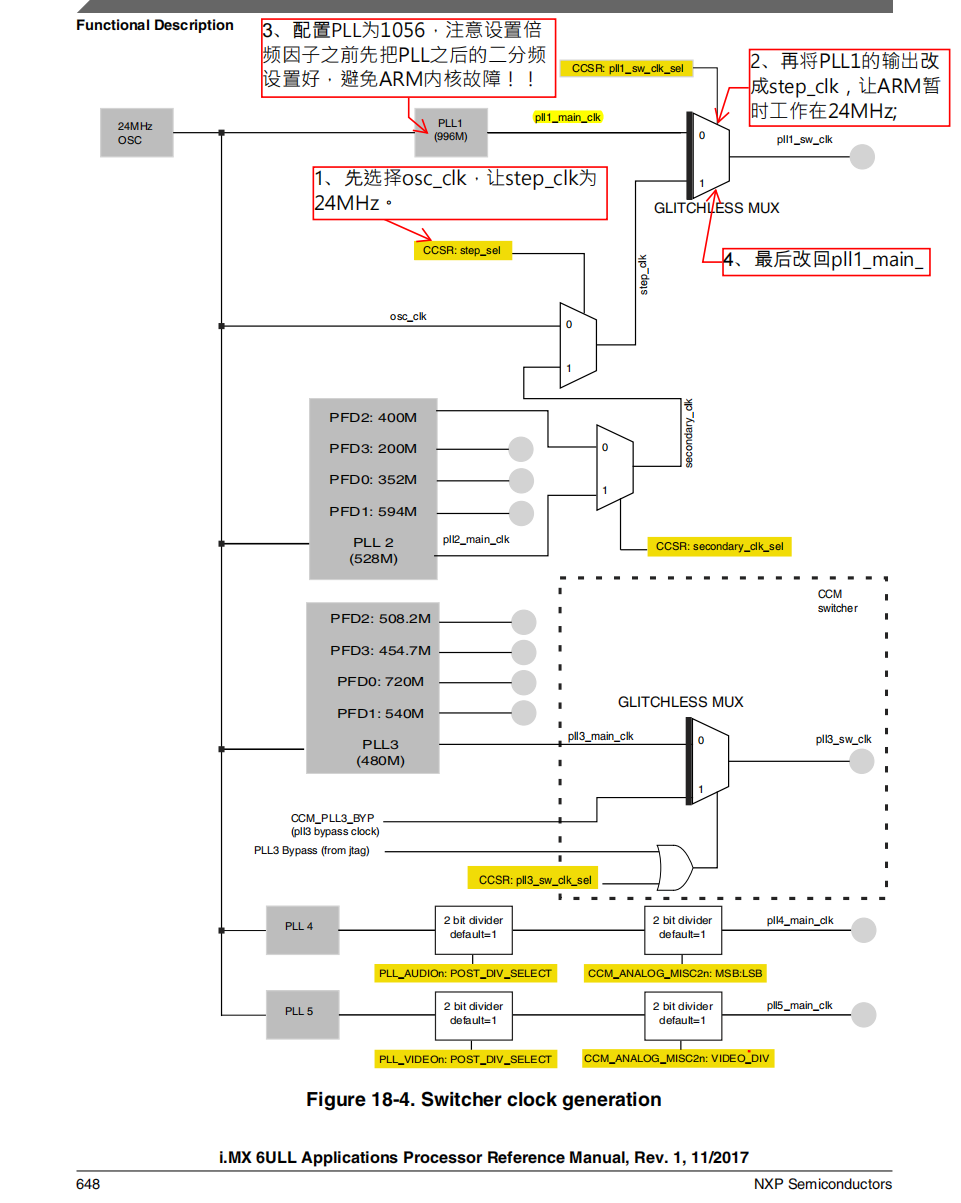

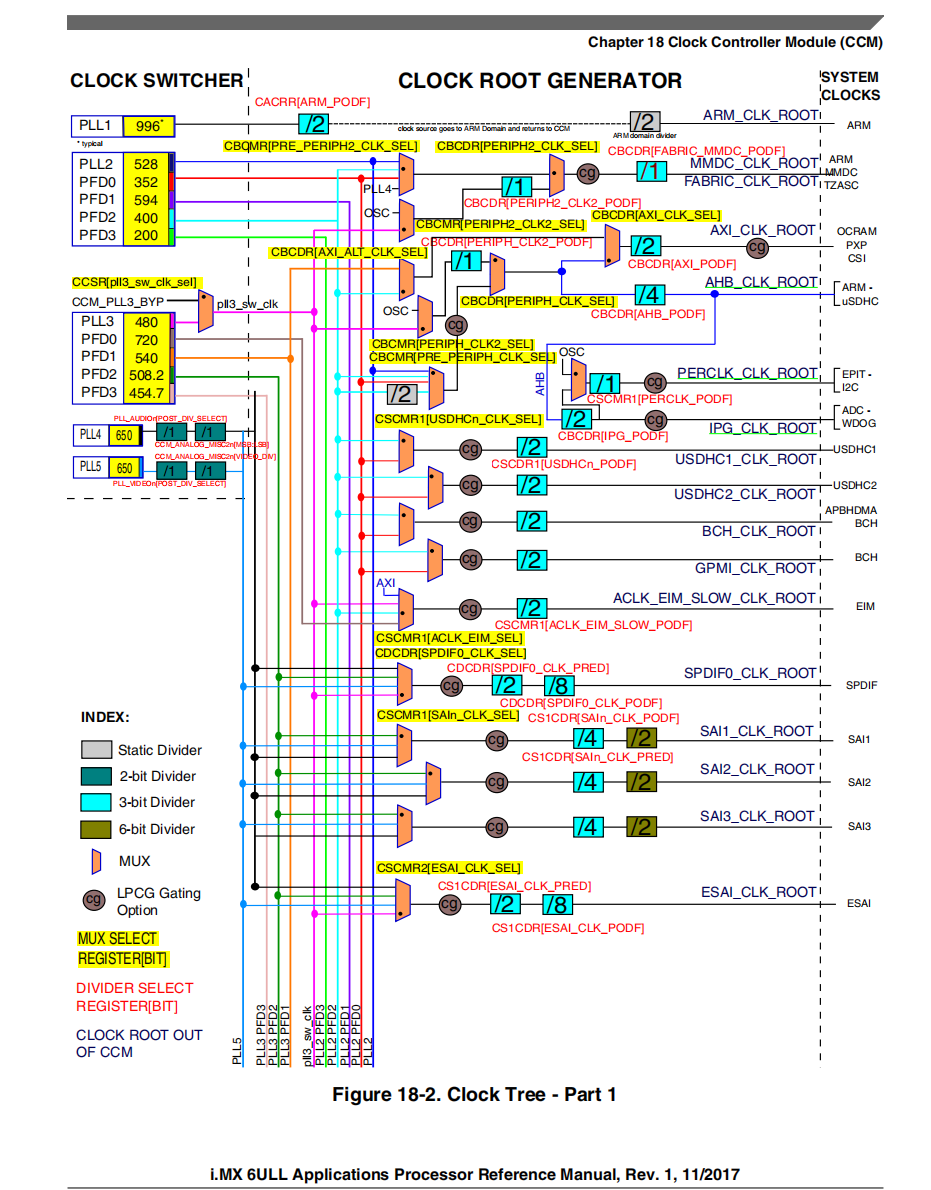

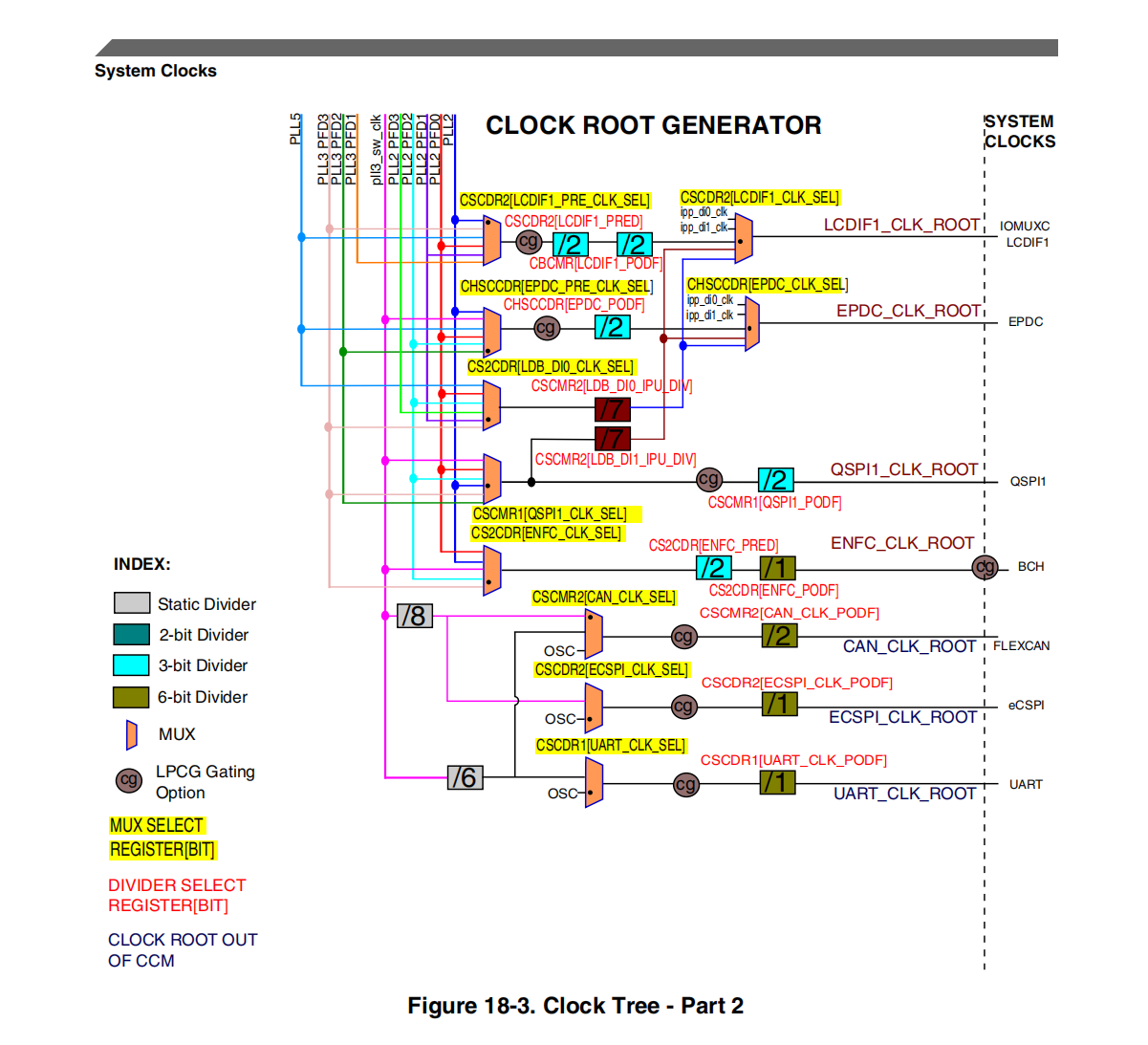

2.时钟树

2，3，4，为分频因子展开所占二进制位数，值要加一，因为要作为分母使用

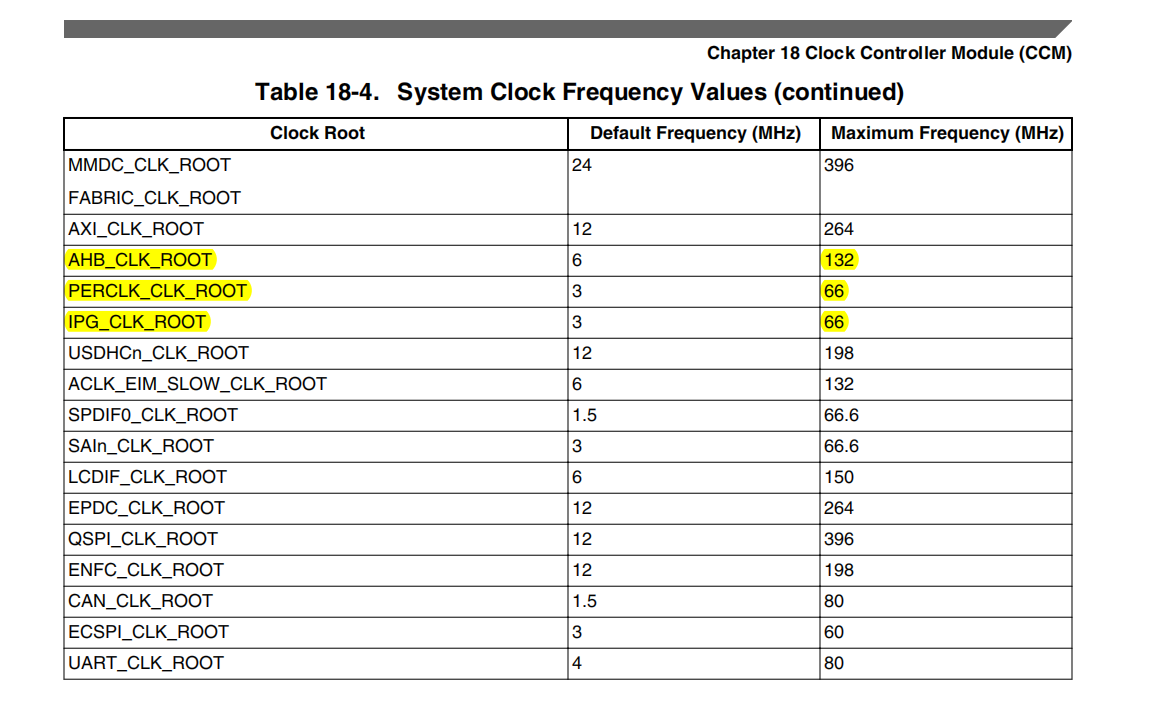

参数配置如下

3.ARM PLL配置方法

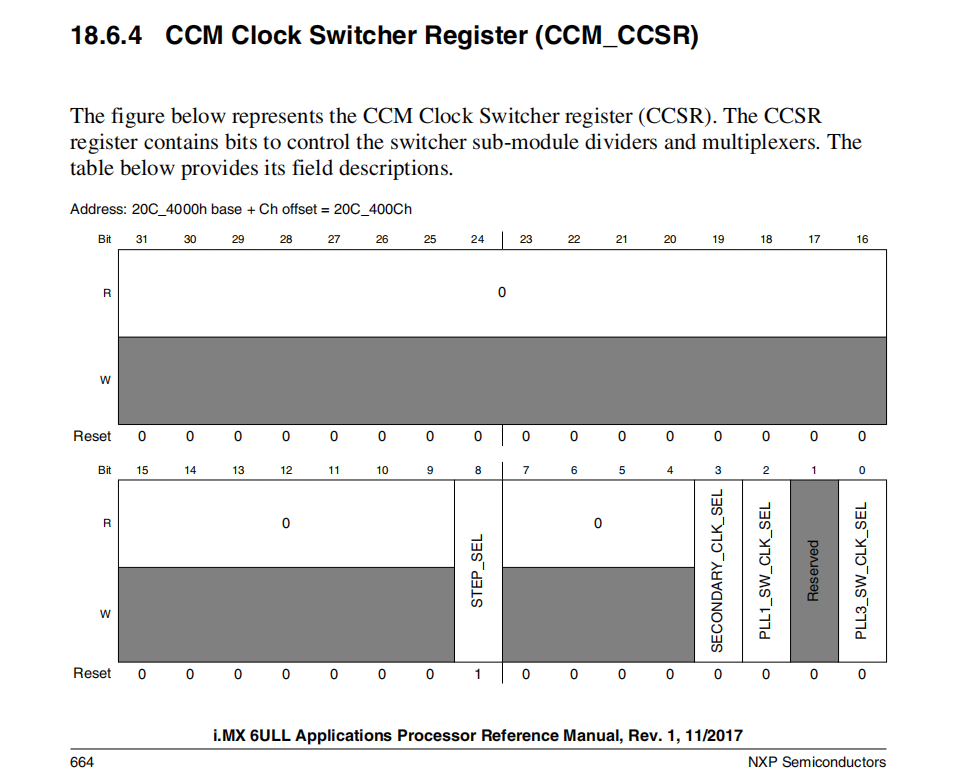

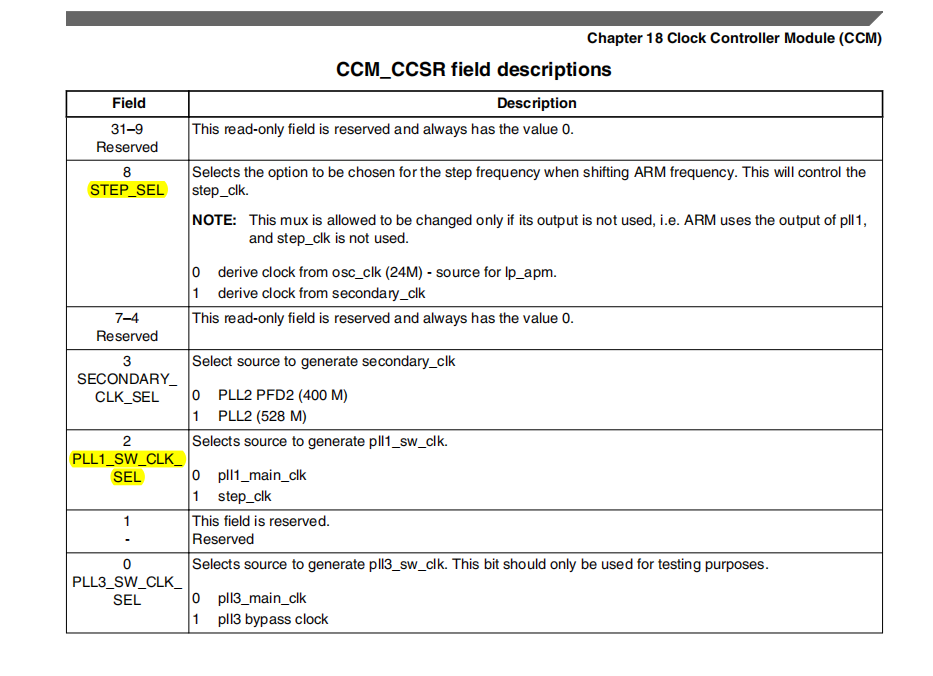

1）CCSR寄存器

第一二四步

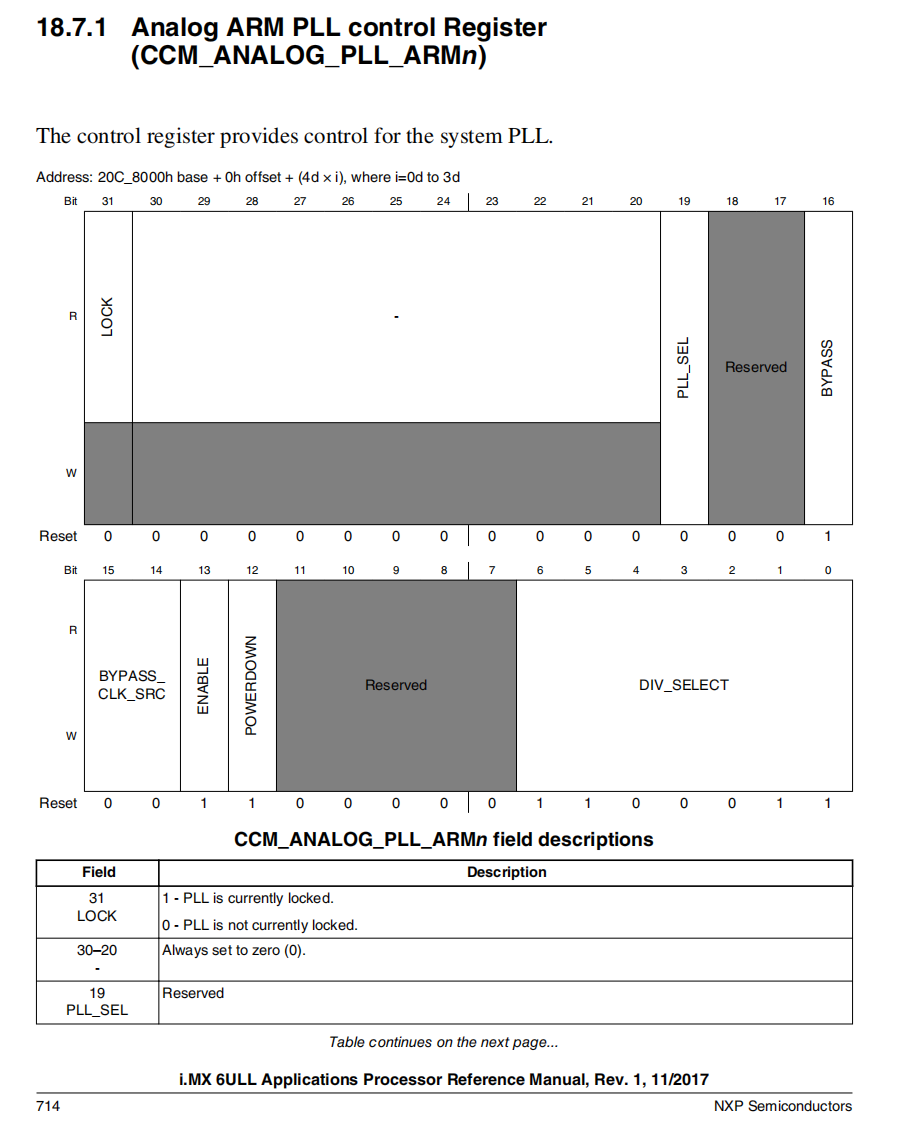

2）ARM_PLL寄存器

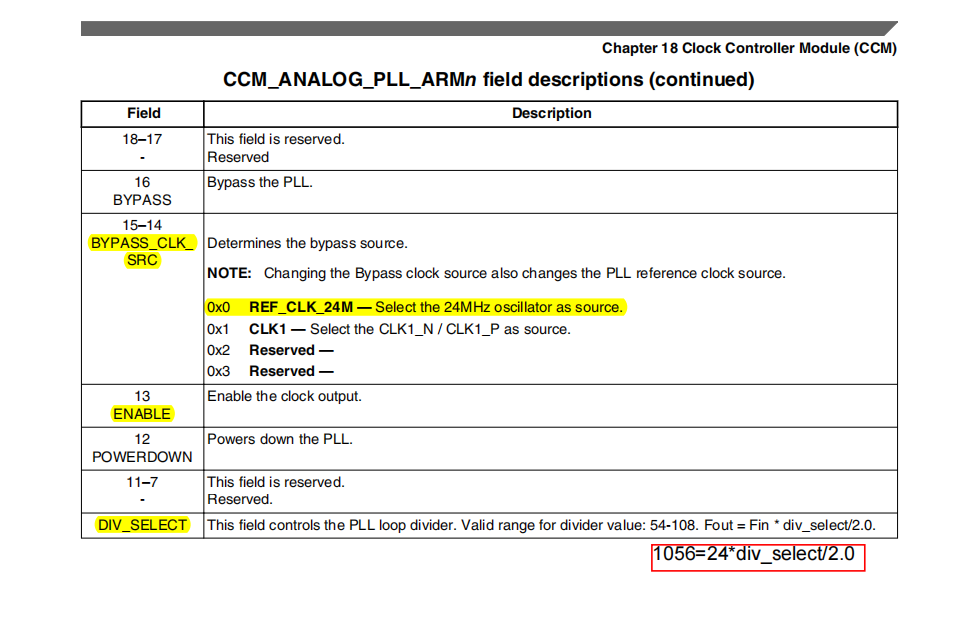

第三步

配置pll

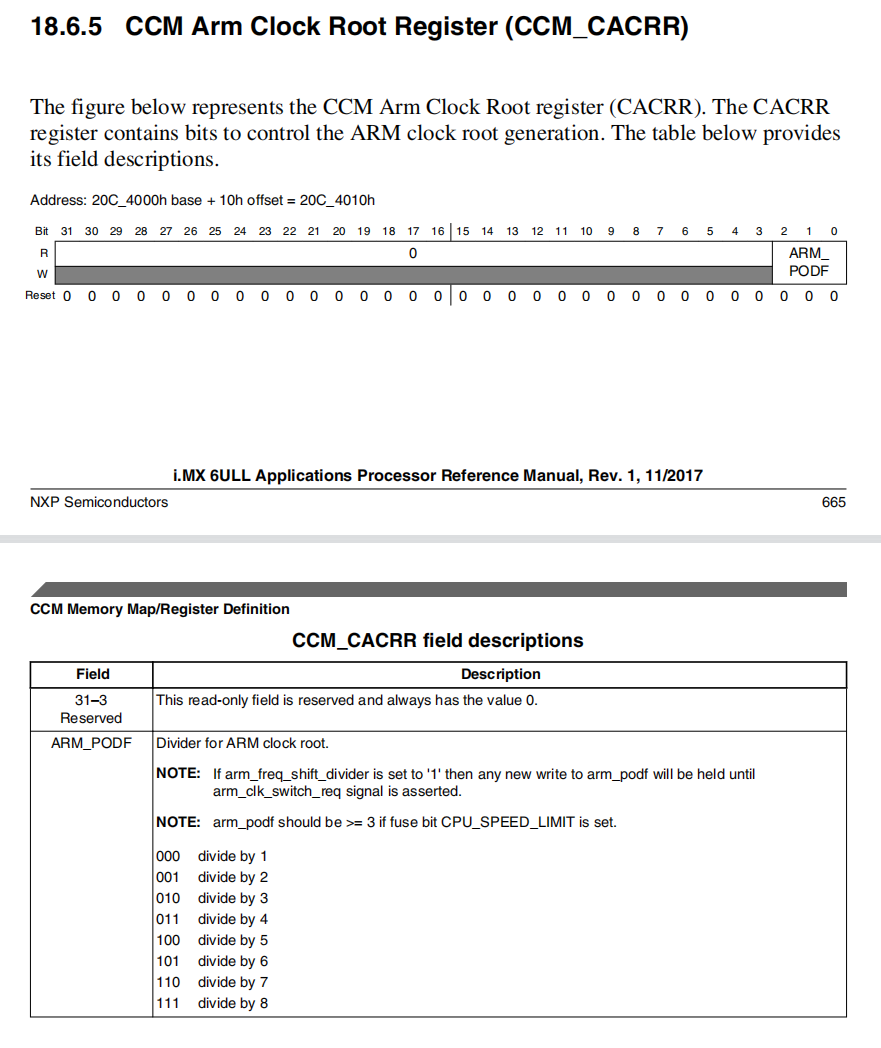

3）CCM_CACRR寄存器

第三步

设置分频因子

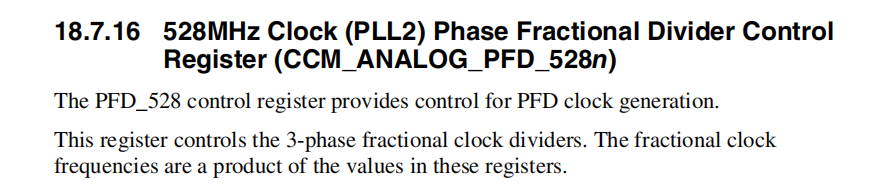

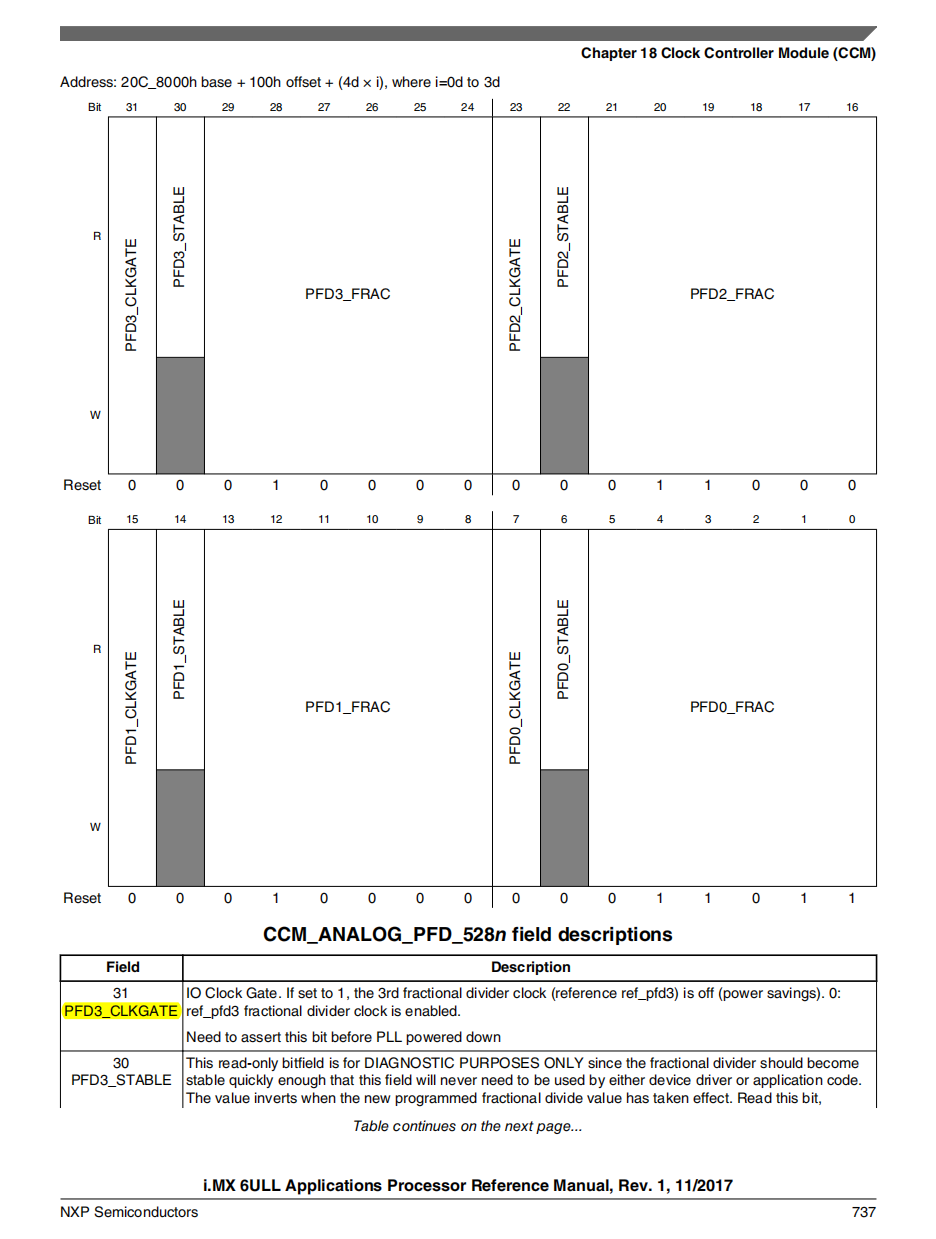

4.PLL2 配置（528）

5.AHB_CLK_ROOT（绿色的线）

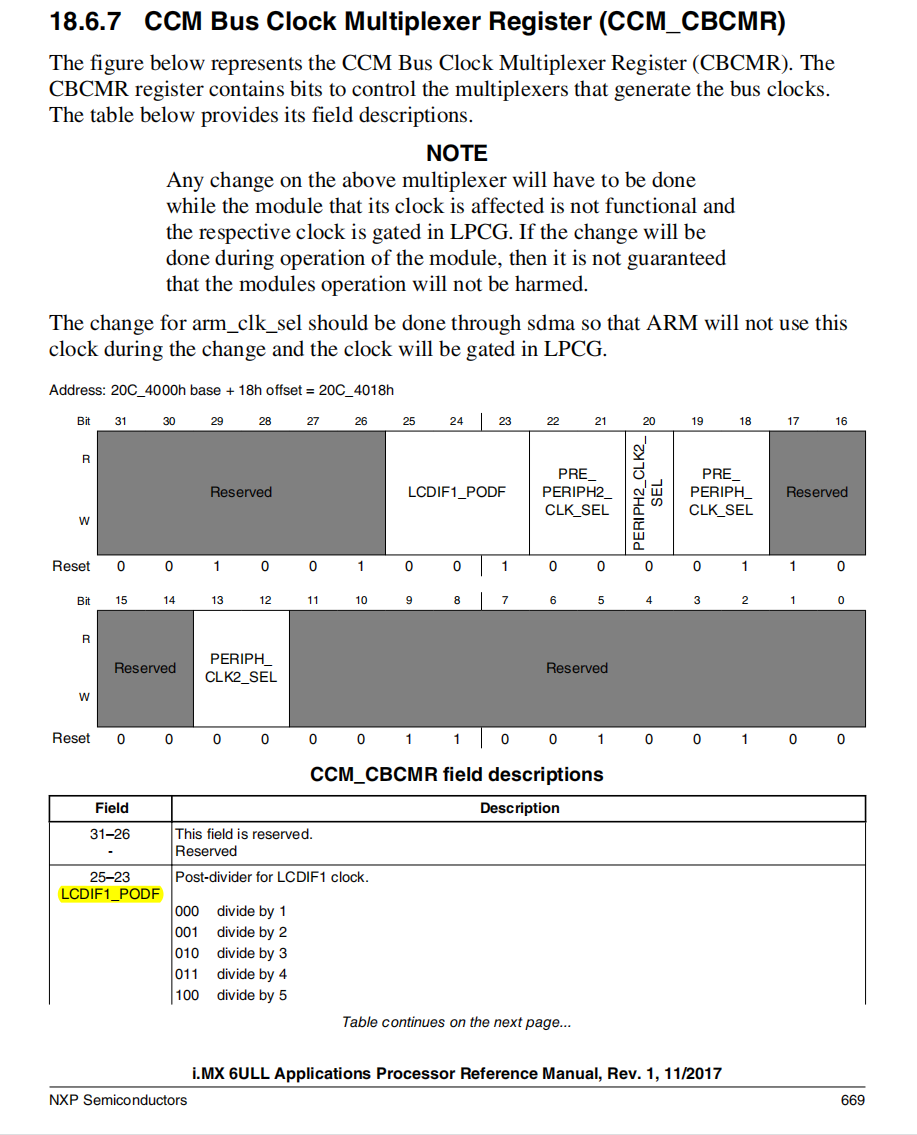

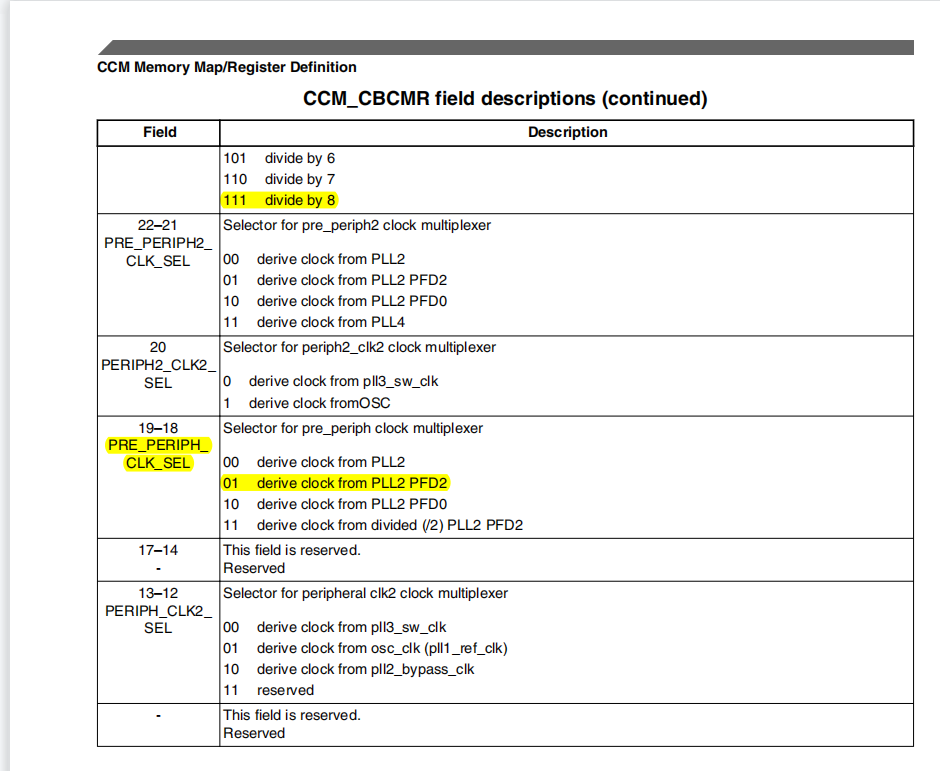

1）CBCMR

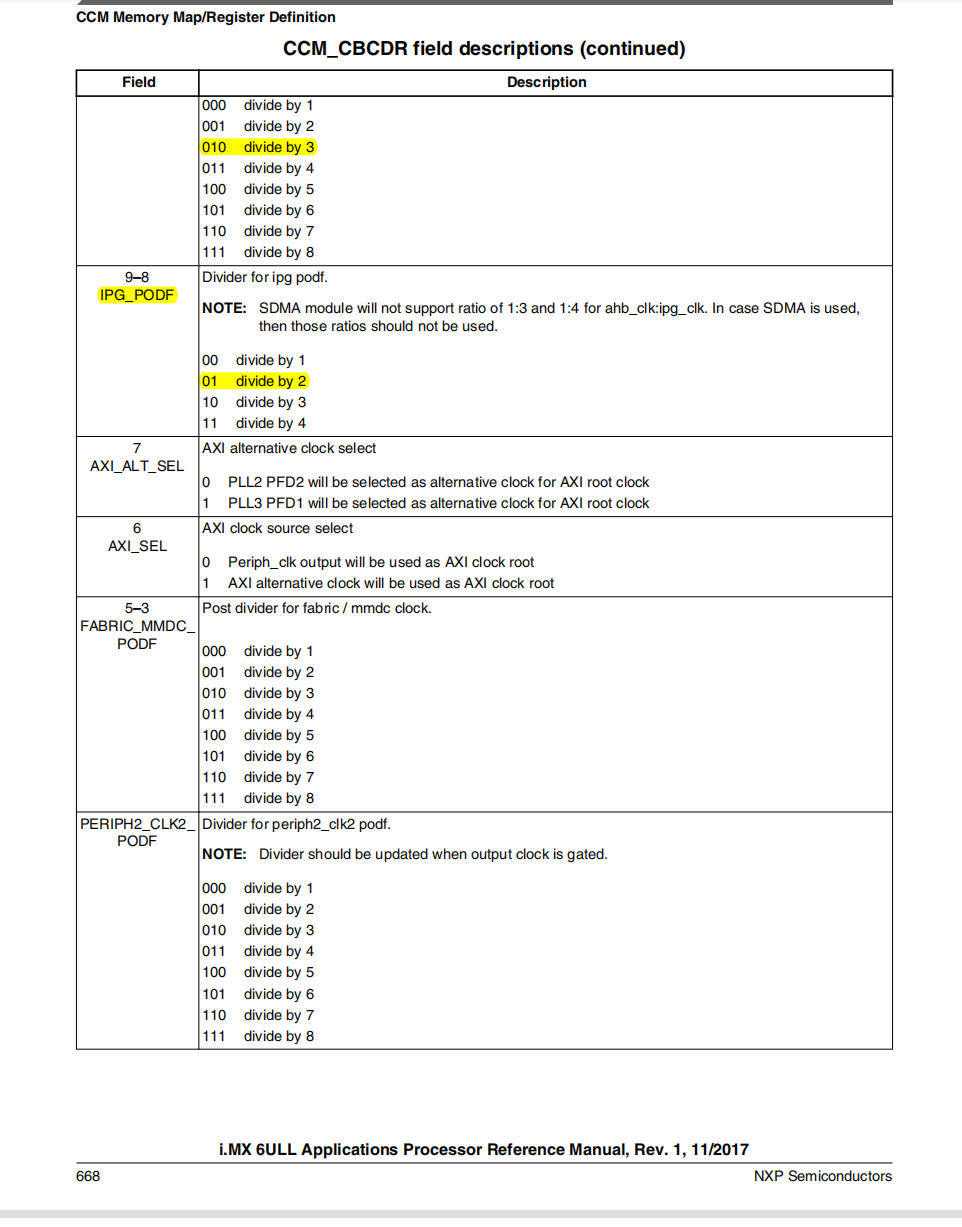

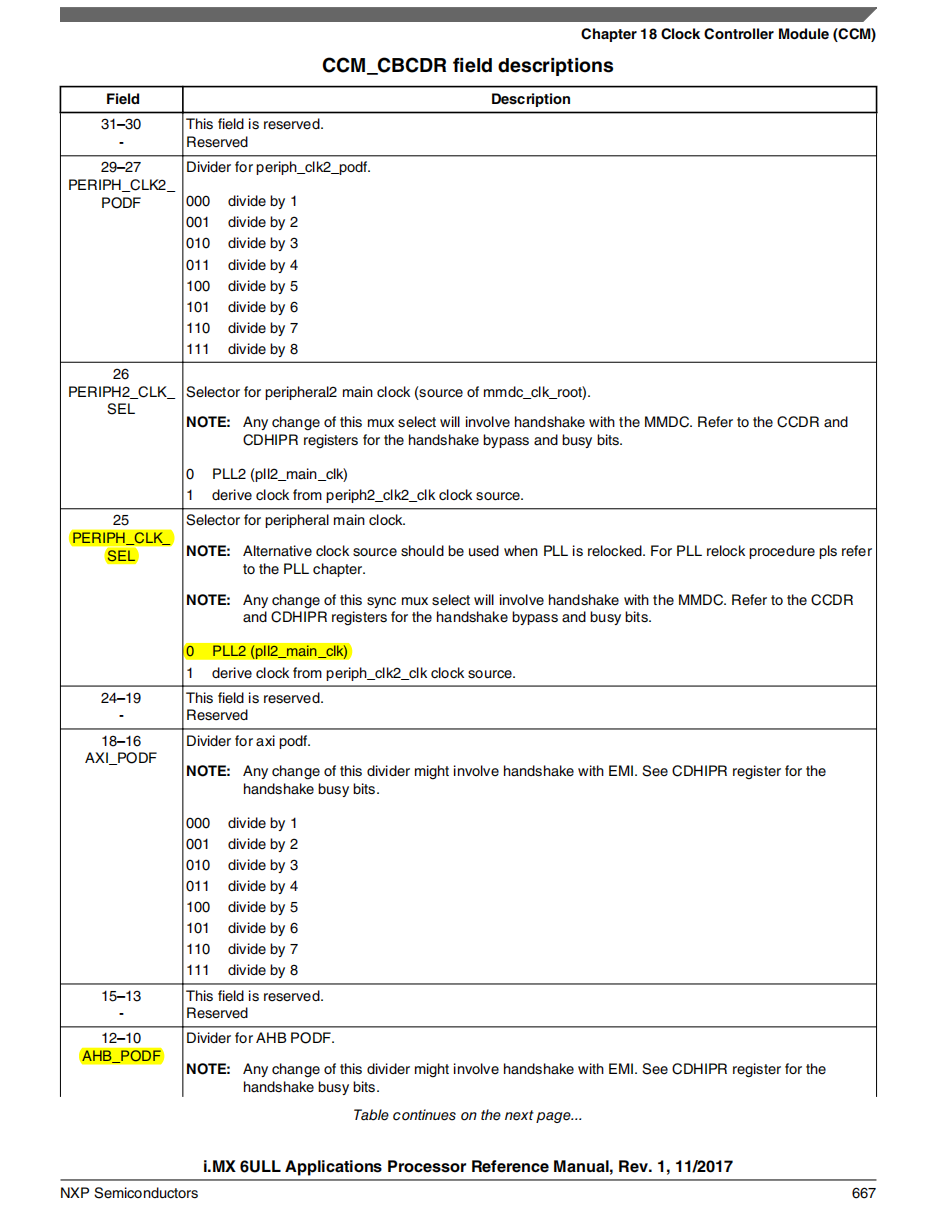

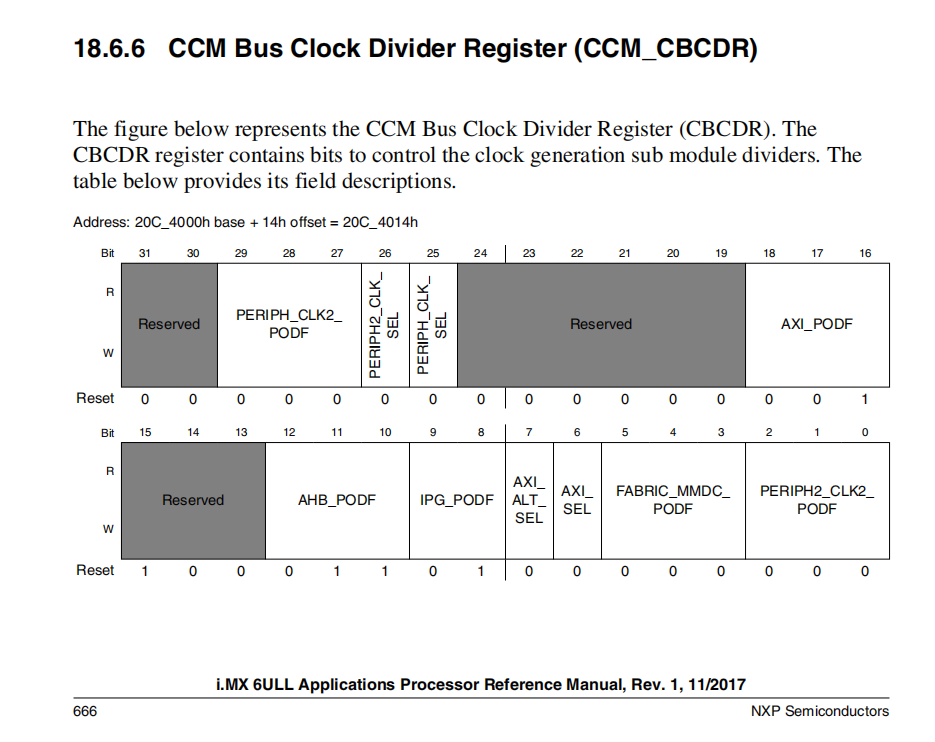

2)CBCDR

6.PERCLK_CLK_ROOT

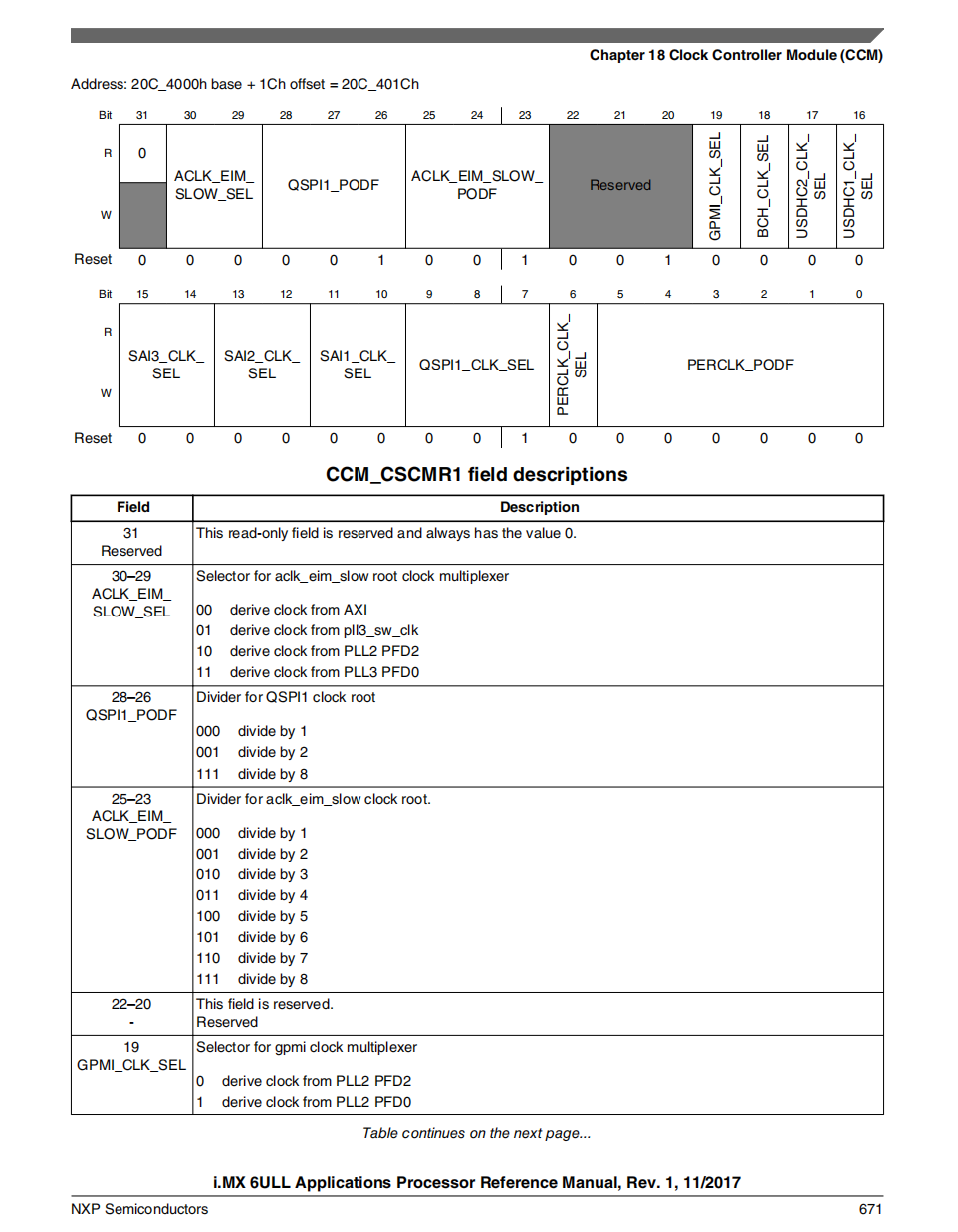

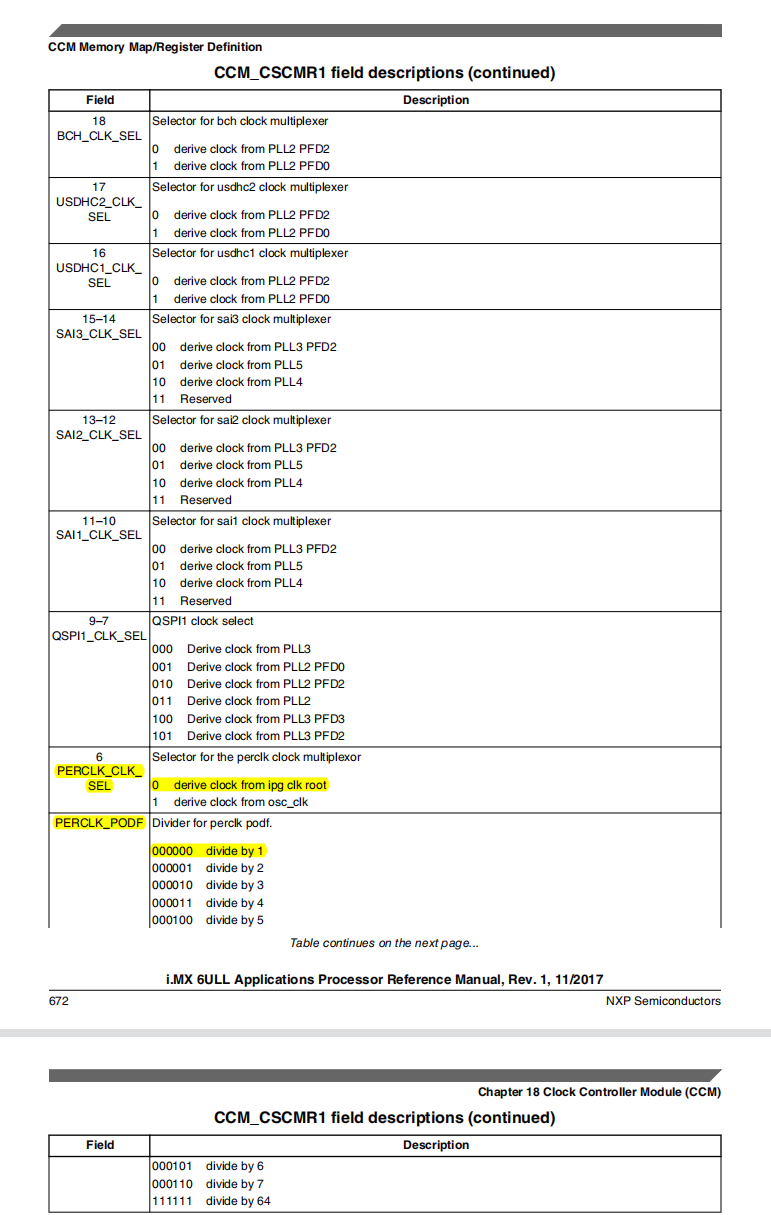

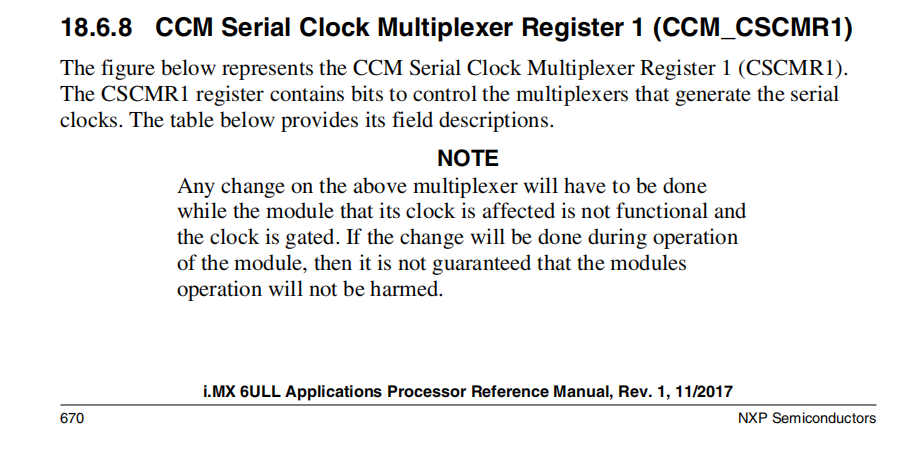

1） CSCMR1（修改一分频）

7.IPG_CLK_ROOT

AHB_CLK_ROOT（绿色的线）设置好后，通过CBCDR进行二分频

三、代码

结构不变

1.bsp

1)clock.c

#include "clock.h"
#include "led.h"
#include "MCIMX6Y2.h"
#include "core_ca7.h"void init_clock(void)
{unsigned int t;CCM->CCSR &= ~(1 << 8);CCM->CCSR |= (1 << 2);t = CCM_ANALOG->PLL_ARM;t &= (~(3 << 14));t |= ((1 << 13));t &= (~(0x7f << 0));t |= (88 <<0);CCM_ANALOG->PLL_ARM = t;CCM->CACRR |= (1 << 0);CCM->CCSR &= (~(1 << 2));t = CCM_ANALOG->PFD_528;t &= (~(0x3f << 0) | (0x3f << 8) | (0x3f << 16) | (0x3f << 24));t &= (~((1 << 7) | (1 << 15) | (1 << 23) | (1 <<31)));t |= ((27 < 0) | (16 << 8) | (24 << 16) | (32 << 24));CCM_ANALOG->PFD_528 = t;t = CCM_ANALOG->PFD_480;t &= (~(0x3f << 0) | (0x3f << 8) | (0x3f << 16) | (0x3f << 24));t &= (~((1 << 7) | (1 << 15) | (1 << 23) | (1 <<31)));t |= ((12 < 0) | (16 << 8) | (17 << 16) | (19 << 24));CCM_ANALOG->PFD_480 = t;t = CCM->CBCMR;t &= ~(3 << 18);t |= (1 << 18);CCM->CBCMR = t;CCM->CBCDR &= ~(1 << 25);t = CCM->CBCDR;t &= ~((7 << 10) | 3 << 8);t |= ((2 << 10) | (1 << 8)); CCM->CBCDR = t;CCM->CSCMR1 &= ~(1 << 6);CCM->CSCMR1 &= ~(0x3f << 0);enable_clocks();
}

2)clock.h

#ifndef _CLOCK_H_
#define _CLOCK_H_extern void init_clock(void);#endif

2.project

1)main.c

#include "beep.h"
#include "led.h"
#include "key.h"
#include "MCIMX6Y2.h"
#include "core_ca7.h"
#include "gpio.h"
#include "interrupt.h"
#include "clock.h"int main(void)
{init_clock();system_interrupt_init();init_led();init_beep();//init_key();   while(1){led_nor();delay(0x0FFFFF);}return 0;
}

2)start.S

.global _start_start:ldr pc, =_reset_handlerldr pc, =_undefine_handlerldr pc, =_svc_handlerldr pc, =_prefetch_abort_handlerldr pc, =_data_abort_handlerldr pc, =_reserved_handlerldr pc, =_irq_handlerldr pc, =_fiq_handler_undefine_handler:ldr pc, =_undefine_handler_svc_handler:ldr pc, =_svc_handler_prefetch_abort_handler:ldr pc, =_prefetch_abort_handler_data_abort_handler:ldr pc, =_data_abort_handler_reserved_handler:ldr pc, =_reserved_handler_irq_handler:subs lr, lr, #4mrc p15, 4, r1, c15, c0, 0add r1, r1, #0x2000ldr r0, [r1, #0x0C]stmfd sp!, {r0-r12, lr}stmfd sp!, {r0, r1}cps #0x1fstmfd sp!, {lr}bl system_interrupt_handlerldmfd sp!, {lr}ldmfd sp!, {r0, r1}str r0, [r1, #0x10]ldmfd sp!, {r0-r12, pc}^_fiq_handler:ldr pc, =_fiq_handler_reset_handler://mrs r0, cpsr//bic r0, r0, #0x1F//orr r0, r0, #0x12   //irq//bic r0, r0, #(1 << 7)//msr cpsr, r0cps #0x12ldr sp, =0x86000000	//起始地址80000000，ram大小为512mb（20000000）	80000000~A0000000-1//mrs r0, cpsr//bic r0, r0, #0x1F//orr r0, r0, #0x1F   //system//msr cpsr, r0   cps #0x1fcpsie ildr sp, =0x84000000	//给irq分配的栈指针空间bl _enable_icahcebl _set_vbarbl _bss_clearb main_enable_icahce:mrc p15, 0, r0, c1, c0, 0bic r0, r0, #(1 << 13)orr r0, r0, #(1 << 12)mcr p15, 0, r0, c1, c0, 0bx lr_set_vbar:ldr r0, =0x87800000mcr p15, 0, r0, c12, c0, 0bx lr_bss_clear:ldr r0, =__bss_startldr r2, =__bss_end
loop:	mov r1, #0str r1, [r0]add r0, r0, #4cmp r0, r2blt loopbx lrfinished:b finished
