RocketMQ详解，消息队列实战

本文详细介绍了RocketMQ的核心概念、工作原理、安装部署以及特性。

1. 为什么需要消息队列？

典型场景：双十一秒杀

想象一下双十一零点，海量用户瞬间涌入淘宝下单的场景：

• 没有使用MQ的问题（同步调用）
  用户下单后，订单系统必须同步等待库存系统扣减库存、支付系统生成支付单、物流系统创建物流单等一系列操作全部完成后，才能给用户返回"下单成功"。
  这就好比一家奶茶店只有一个点单员和一个制作员。点单员收完钱，必须等着制作员一杯杯做完，才能服务下一个客户，效率极低，队伍排成长龙。

• 引入MQ的解决方案（异步解耦）
  订单系统（生产者）在接单后，只需要将订单信息（消息）快速写入一个"中间站"（消息队列），就可以立即返回结果给用户，无需等待后续处理。
  库存、支付、物流等系统（消费者）根据自己的处理能力，从"中间站"里拉取订单消息，慢慢进行后续处理。

MQ的三大核心价值

• 异步：用户无需漫长等待，下单响应极快。
• 削峰填谷：海量下单请求先积压在消息队列中，后端系统按照自身能力处理，防止系统被瞬时流量冲垮。
• 解耦：订单系统不需要知道也不依赖库存、支付等系统。即使物流系统暂时宕机了，也不会影响用户下单，只需恢复后继续处理积压的订单消息即可。

2. RocketMQ介绍：阿里巴巴的超级快递系统

RocketMQ是阿里巴巴开源的一款分布式消息中间件，后来捐赠给Apache基金会，成为顶级项目。它是为电商巨量订单场景量身定做的、高度可靠且高效的"订单调度中心"。

核心特点

• 高吞吐量：单机可达10万级QPS，满足电商等大数据场景。
• 高可用：支持多主多从的集群部署，任何一台机器宕机都不影响服务。
• 消息可靠：提供强大的消息持久化机制，保证消息不丢失。
• 功能丰富：支持顺序消息、事务消息、延迟消息等复杂业务场景。

3. 基本概念解析

概念	说明	类比
消息	要传递的数据	订单数据：{“orderId”: 10001, “userId”: 123, “status”: “created”}
主题	消息的分类	订单消息发往Order_Topic，物流消息发往Logistics_Topic
队列	Topic下的子分区	订单主题下的多条传送带，实现并行处理
Message ID	系统生成的唯一ID	消息的唯一标识
Key	业务标识	订单ID(10001)，用于查询消息处理轨迹

4. RocketMQ工作流程："订单调度中心"如何运作

启动流程

1. NameServer启动：服务发现中心先启动，记录所有"快递网点"地址。
2. Broker注册：存储节点启动后，向所有NameServer注册自己的地址和服务。

消息发送流程

1. 查询路由：Producer向NameServer查询：“哪个Broker可以接收Order_Topic的订单？”
2. 返回地址：NameServer返回Broker地址。
3. 发送消息：Producer将消息发送给对应Broker，Broker将其存入指定Topic的队列中。

消息消费流程

1. 查询路由：Consumer向NameServer查询：“哪个Broker有Order_Topic的订单？”
2. 返回地址：NameServer返回Broker地址。
3. 拉取消费：Consumer从Broker的队列中拉取消息进行消费，例如扣减库存。

5. Topic的创建模式

自动创建（开发用）

当Producer第一次向不存在的Topic发送消息时，RocketMQ会自动创建它。

手动创建（生产环境）

通过控制台预先创建Topic，指定队列数量，进行更好的资源规划和权限控制。

6. 快速搭建RocketMQ服务

方式一：CentOS7安装

1. 下载：https://rocketmq.apache.org/zh/download/
2. 安装JDK
3. 上传zip包到服务器并解压：unzip rocketmq-all-5.3.2-bin-release.zip
4. 修改启动的JVM内存大小，配置文件在bin目录下

vi runbroker.sh
vi runserver.sh# 参考设置
JAVA_OPT="${JAVA_OPT} -server -Xms256m -Xmx256m 0XX:MetaspaceSize=128m -Xx:mMaxMetaspaceSize=320m"

5. 启动NameServer

# 启动NameServer
nohup sh mqnamesrv &
# 查看启动日志
tail -f ~/logs/rocketmqlogs/namesrv.log

6. 启动Broker

# 启动Broker
nohup sh mqbroker -n 127.0.0.1:9876 -c /opt/rocketmq/rocketmq-all-5.3.2-bin-release/conf/broker.conf &
# 查看启动日志
tail -f ~/logs/rocketmqlogs/broker.log

7. 关闭RocketMQ

# 关闭NameServer
sh mqshutdown namesrv
# 关闭Broker
sh mqshutdown broker

方式二：Windows本地安装

确保已经安装了JDK

1. 下载地址：https://rocketmq.apache.org/zh/download/
2. 选择Binary下载二进制ZIP包，下载完之后进行解压
3. 新建环境变量
   变量名：ROCKETMQ_HOME
   变量值：安装目录，例如：D:\Java\rocketmq-all-5.3.2-bin-release\rocketmq-all-5.3.2-bin-release
4. PATH环境变量新增：%ROKCETMQ_HOME%/bin
5. 修改启动参数，默认参数比较大

 bin/runserve.cmdbin/runborker.cmdbin/tools.sh

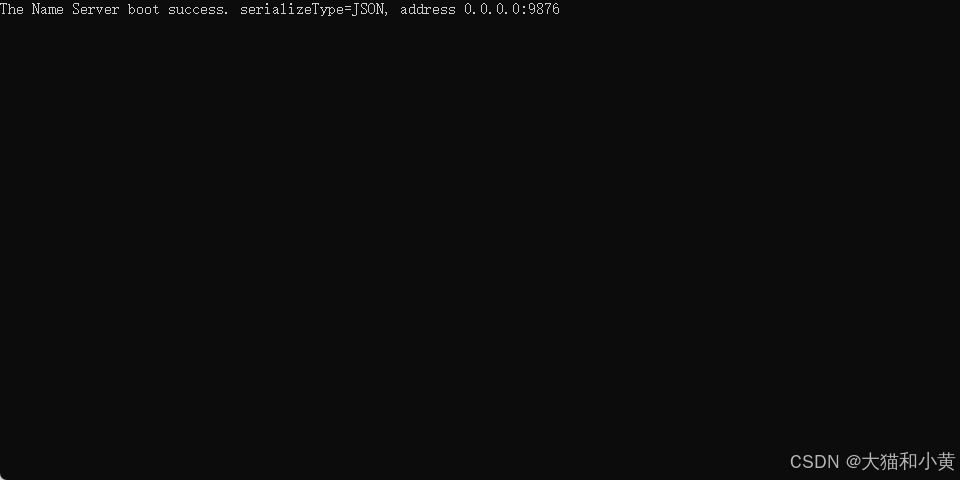

7. 启动NameServer，启动后不要关闭cmd窗口

# cd到解压后的安装目录的bin文件夹
cd D:\rocketmq-all-5.3.3-bin-release\bin# 启动NameServer
mqnamesrv.cmd# 成功提示
The Name Server boot success. serializeType=JSON, address 0.0.0.0:9876

7. 配置broker的conf文件

brokerClusterName=DefaultCluster
brokerName=broker-a
brokerId=0
deleteWhen=04
fileReservedTime=48
brokerRole=ASYNC_MASTER
flushDiskType=ASYNC_FLUSH
namesrvAddr=172.16.60.204:9876# 存储路径配置，根据自己实际路径进行修改
storePathRootDir=D:/JMY/rocketmq-all-5.3.2-bin-release/mqstore
storePathCommitLog=D:/JMY/rocketmq-all-5.3.2-bin-release/mqstore/commitlog
storePathConsumeQueue=D:/JMY/rocketmq-all-5.3.2-bin-release/mqstore/consumequeue
storePathIndex=D:/JMY/rocketmq-all-5.3.2-bin-release/mqstore/index
storePathCheckpoint=D:/JMY/rocketmq-all-5.3.2-bin-release/mqstore/checkpoint
storePathScheduleMessage=D:/JMY/rocketmq-all-5.3.2-bin-release/mqstore/schedule# 自动创建主题
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true

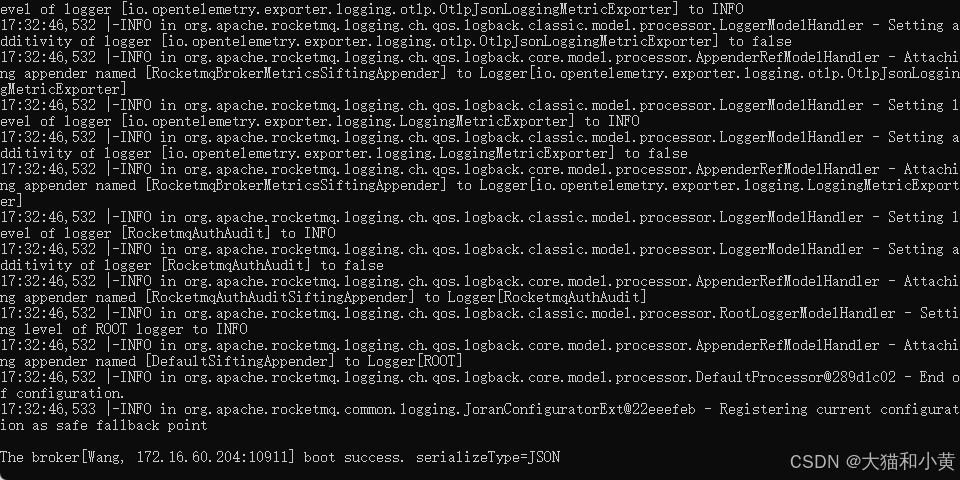

8. 启动Broker，启动后不要关闭cmd窗口

# 启动Broker
mqbroker.cmd -n 127.0.0.1:9876 -c ../conf/broker.conf# 成功提示
The broker[broker-a, 172.16.60.33:10911] boot success. serializeType=JSON and name server is 127.0.0.1:9876

9. 停止服务，直接关闭或者使用命令

mqshutdown.cmd broker
mqshutdown.cmd namesrv

10. autoCreateTopicEnable=true

• autoCreateTopicEnable：控制当 Producer 发送消息到不存在的 Topic 时，是否自动创建该 Topic

7. Java客户端集成

1. 添加Maven依赖

<dependency><groupId>org.apache.rocketmq</groupId><artifactId>rocketmq-spring-boot-starter</artifactId><version>2.3.1</version>
</dependency>

2. 配置application.yml

rocketmq:name-server: 127.0.0.1:9876producer:group: platform-base-producer-groupsend-message-timeout: 3000retry-times-when-send-failed: 2

3. 消息发送示例

@RestController
@RequestMapping("/mq")
public class SendController {@Resourceprivate RocketMQTemplate rocketMQTemplate;@GetMapping("/sendMessage")public CommonResult sendMessage() {try {rocketMQTemplate.syncSend("test-topic", "Hello, World!", 3000);return new CommonResult(CommonResultEmnu.OK);} catch (Exception e) {return new CommonResult(CommonResultEmnu.ERROR, "消息发送失败: " + e.getMessage());}}
}

4. 消息消费示例

@Service
@RocketMQMessageListener(topic = "test-topic", consumerGroup = "demo-consumer-group")
public class ConsumeService implements RocketMQListener<String> {@Overridepublic void onMessage(String message) {System.out.println("收到消息: " + message);// 业务处理逻辑}
}

8. Dashboard可视化管理平台

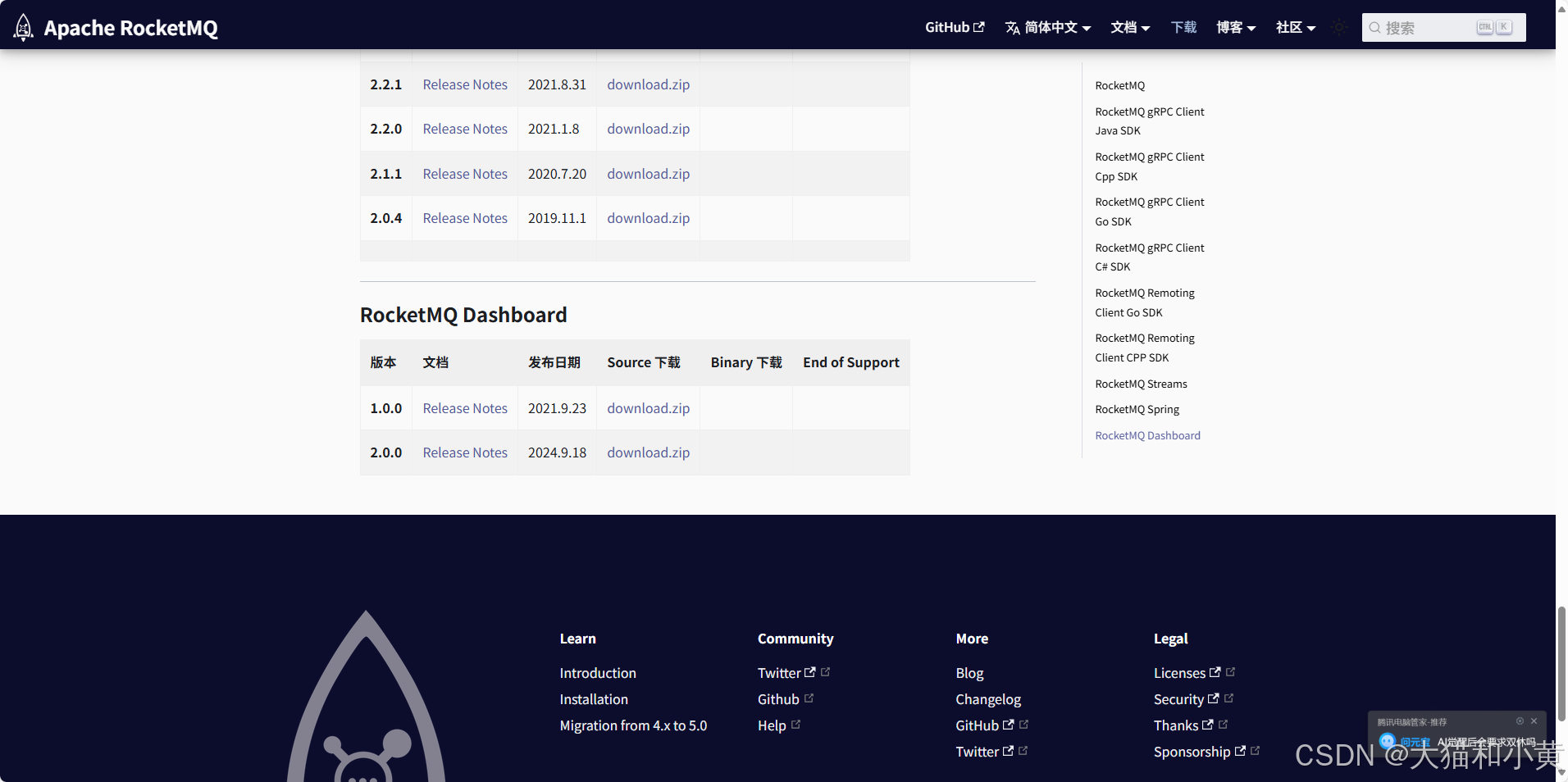

1. 下载地址：https://rocketmq.apache.org/zh/download#rocketmq-dashboard


2. 使用IDEA启动项目，注意JDK版本要使用1.8

3. 如果连接提示：org.apache.rocketmq.remoting.exception.RemotingConnectException: connect to <172.16.60.33:10909> failed

• 解决：修改RocketMQ安装目录下conf文件夹下的broker.conf文件，添加borkerIP1=本机IP

brokerClusterName = DefaultCluster
brokerName = broker-a
brokerId = 0
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH
namesrvAddr=127.0.0.1:9876
borkerIP1=192.168.226.188

4. 重启时候，先启动namesrv，再启动消息服务器broker

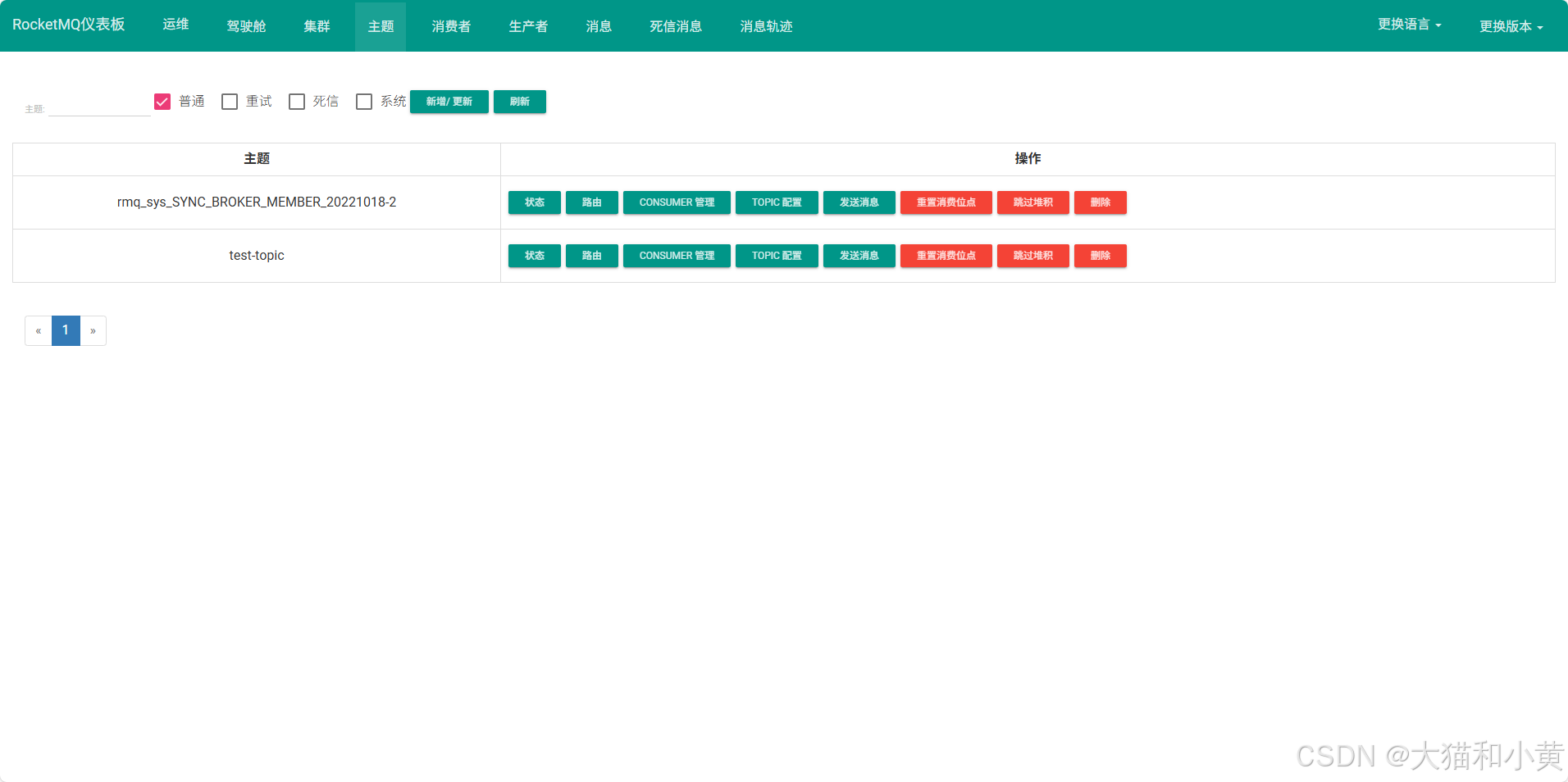

5. 直接访问，默认端口为8080


9. 可视化管理平台各个参数介绍

• Cluster：查看Broker集群状态
• Topic：管理主题，监控消息堆积量
• Consumer：查看消费组进度和延迟情况
• Message：按ID或Key查询消息
• Connection：查看客户端连接信息

10. 客户端消息确认机制

RocketMQ通过双重确认保证消息可靠性：

• Broker → Producer：发送后返回SendResult告知发送状态

• Consumer → Broker：消费成功后返回CONSUME_SUCCESS，失败返回RECONSUME_LATER

• 消息最多重试16次，仍失败则进入死信队列，需要人工干预。

11. 广播模式 vs 集群模式

默认是集群模式：同一个消费者组内，一条消息只能被一个消费者实例消费。
广播模式：同一个消费者组内，一条消息会被组内每一个消费者实例消费一次。

广播设置方式：messageModel = MessageModel.BROADCASTING

应用场景：比如有一个“配置更新”的消息，需要通知到所有服务实例，让每个实例都刷新自己的本地缓存。

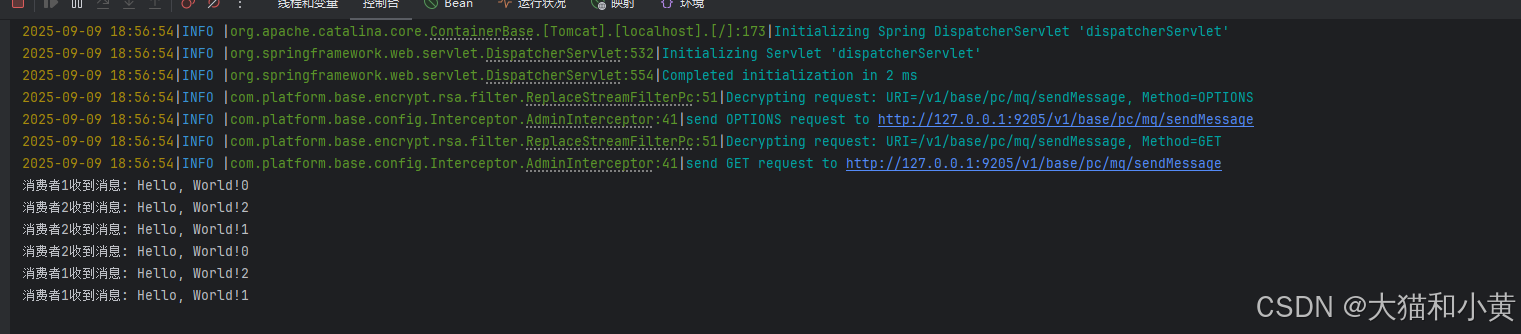

集群模式设置

@Service
@RocketMQMessageListener(topic = "test-topic",consumerGroup = "demo-consumer-group2",messageModel = MessageModel.BROADCASTING)
class ConsumeService2 implements RocketMQListener<String> {@Overridepublic void onMessage(String message) {System.out.println("消费者2收到消息: " + message);}
}

广播模式设置

@Service
@RocketMQMessageListener(topic = "test-topic",consumerGroup = "demo-consumer-group",messageModel = MessageModel.CLUSTERING)
class ConsumeService implements RocketMQListener<String> {@Overridepublic void onMessage(String message) {System.out.println("消费者1收到消息: " + message);}
}

注意：一条消息只会被投递给同一个消费者组内的一个消费者，但会被投递给每一个订阅了该Topic的消费者组。

12. 消息过滤机制

消费者可以只订阅Topic下的符合特定条件的消息。
TAG过滤：为消息打上Tag标签，消费者可以按Tag订阅。

// 生产者发送时设置Tag
Message msg = new Message("Order_Topic", "Paid", "订单001已支付".getBytes());// 消费者按Tag订阅
consumer.subscribe("Order_Topic", "Paid || Created");

• SQL表达式过滤
  更复杂的过滤方式，根据消息属性进行过滤（需Broker开启功能）

13. 顺序消息机制

保证关键消息顺序处理，如订单的创建 → 付款 → 发货

实现原理

• 生产者：通过MessageQueueSelector将同一批消息发送到同一Queue
• 消费者：以拉取锁方式消费Queue，保证单线程顺序处理

发送示例

package com.platform.base.demo.mq;import com.alibaba.fastjson.JSON;
import com.platform.common.domain.emnu.CommonResultEmnu;
import com.platform.common.domain.result.CommonResult;
import com.platform.common.util.CommonUtil;
import jakarta.annotation.Resource;
import org.apache.rocketmq.spring.core.RocketMQTemplate;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import java.util.HashMap;
import java.util.Optional;@RestController
@RequestMapping("/v1/base/pc/mq")
public class SendController {@Resourceprivate RocketMQTemplate rocketMQTemplate;@GetMapping("/sendMessage")public CommonResult sendMessage(){String param = CommonUtil.getObjFromReq(String.class);HashMap<String, Object> parse = JSON.parseObject(param, HashMap.class);// 获取消息数量Integer num = Optional.ofNullable(parse.get("mqNum")).map(Object::toString).map(Integer::valueOf).orElse(1);// 获取用于分区的key（顺序消息的关键）String shardingKey = Optional.ofNullable(parse.get("shardingKey")).map(Object::toString).orElse("defaultKey");try {for (int i = 0; i < num; i++) {// 使用syncSendOrderly发送顺序消息rocketMQTemplate.syncSendOrderly("test-topic", "Hello, World! " + i, shardingKey, 3000);}return new CommonResult(CommonResultEmnu.OK);} catch (Exception e) {return new CommonResult(CommonResultEmnu.ERROR, "顺序消息发送失败: " + e.getMessage());}}}

消费示例

package com.platform.base.demo.mq;import org.apache.rocketmq.spring.annotation.ConsumeMode;
import org.apache.rocketmq.spring.annotation.RocketMQMessageListener;
import org.apache.rocketmq.spring.core.RocketMQListener;
import org.springframework.stereotype.Service;/*** @Author WangHan* @Date 2025/7/24* @Description 消费者*/
@Service
@RocketMQMessageListener(topic = "test-topic",consumerGroup = "demo-consumer-group",consumeMode = ConsumeMode.ORDERLY)
class ConsumeService implements RocketMQListener<String> {@Overridepublic void onMessage(String message) {// 处理顺序消息System.out.println("Received orderly message: " + message);}
}

结果

Received orderly message: Hello, World! 0
Received orderly message: Hello, World! 1
Received orderly message: Hello, World! 2
Received orderly message: Hello, World! 3
Received orderly message: Hello, World! 4

14. 延迟消息

消息发送后，不会立刻被消费，而是在指定的延迟时间后才能被消费者拉到。
应用场景：订单超时未支付自动取消、定时提醒等。

支持延迟级别

1s 5s 10s 30s 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 20m 30m 1h 2h
对应级别为1-18

发送示例

package com.platform.base.demo.mq;import com.alibaba.fastjson.JSON;
import com.platform.common.domain.emnu.CommonResultEmnu;
import com.platform.common.domain.result.CommonResult;
import com.platform.common.util.CommonUtil;
import jakarta.annotation.Resource;
import lombok.Data;
import org.apache.rocketmq.spring.core.RocketMQTemplate;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import java.util.Date;
import java.util.HashMap;
import java.util.Optional;@RestController
@RequestMapping("/v1/base/pc/mq")
public class SendController {/*RocketMQ支持以下延迟级别：1s 5s 10s 30s 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 20m 30m 1h 2h对应级别为1-18*/@Resourceprivate RocketMQTemplate rocketMQTemplate;@GetMapping("/sendMessage")public CommonResult sendMessage(){String param = CommonUtil.getObjFromReq(String.class);HashMap<String, Object> parse = JSON.parseObject(param, HashMap.class);// 获取消息内容String messageContent = Optional.ofNullable(parse.get("message")).map(Object::toString).orElse("Default delay message");// 获取延迟级别Integer delayLevel = Optional.ofNullable(parse.get("delayLevel")).map(Object::toString).map(Integer::valueOf).orElse(3); // 默认延迟级别3（大约10秒）try {// 构造Message对象org.springframework.messaging.Message<String> message = org.springframework.messaging.support.MessageBuilder.withPayload(messageContent).build();// 发送延迟消息System.out.println("发送延迟消息开始" + new Date());rocketMQTemplate.syncSend("test-topic", message, 3000, delayLevel);return new CommonResult(CommonResultEmnu.OK, "延迟消息发送成功，延迟级别: " + delayLevel);} catch (Exception e) {return new CommonResult(CommonResultEmnu.ERROR, "延迟消息发送失败: " + e.getMessage());}}}

接收示例

package com.platform.base.demo.mq;import org.apache.rocketmq.spring.annotation.ConsumeMode;
import org.apache.rocketmq.spring.annotation.RocketMQMessageListener;
import org.apache.rocketmq.spring.core.RocketMQListener;
import org.springframework.stereotype.Service;import java.util.Date;/*** @Author WangHan* @Date 2025/7/24* @Description 消费者*/
@Service
@RocketMQMessageListener(topic = "test-topic",consumerGroup = "demo-consumer-group",consumeMode = ConsumeMode.ORDERLY)
class ConsumeService implements RocketMQListener<String> {@Overridepublic void onMessage(String message) {// 处理顺序消息System.out.println("接收到消息: " + message + "，处理完成" + new Date());}
}

结果

2025-09-09 19:17:03|INFO |com.platform.base.config.Interceptor.AdminInterceptor:41|send GET request to http://127.0.0.1:9205/v1/base/pc/mq/sendMessage
发送延迟消息开始Tue Sep 09 19:17:03 GMT+08:00 2025
接收到消息: Default delay message，处理完成Tue Sep 09 19:17:13 GMT+08:00 2025

15. 批量消息

将多条消息打包一次性发送，减少网络IO，提高性能
注意：单次批量消息总大小不能超过4MB

发送示例

package com.platform.base.demo.mq;import com.alibaba.fastjson.JSON;
import com.platform.common.domain.emnu.CommonResultEmnu;
import com.platform.common.domain.result.CommonResult;
import com.platform.common.util.CommonUtil;
import jakarta.annotation.Resource;
import org.apache.rocketmq.client.producer.SendResult;
import org.apache.rocketmq.spring.core.RocketMQTemplate;
import org.springframework.messaging.Message;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import java.util.*;@RestController
@RequestMapping("/v1/base/pc/mq")
public class SendController {@Resourceprivate RocketMQTemplate rocketMQTemplate;@GetMapping("/sendMessage")public CommonResult sendMessage(){String param = CommonUtil.getObjFromReq(String.class);HashMap<String, Object> parse = JSON.parseObject(param, HashMap.class);String messageContent = Optional.ofNullable(parse.get("message")).map(Object::toString).orElse("Default batch delay message");Integer batchCount = Optional.ofNullable(parse.get("batchCount")).map(Object::toString).map(Integer::valueOf).orElse(5);Integer delayLevel = Optional.ofNullable(parse.get("delayLevel")).map(Object::toString).map(Integer::valueOf).orElse(3);try {List<SendResult> results = new ArrayList<>();for (int i = 0; i < batchCount; i++) {Message<String> message = MessageBuilder.withPayload(messageContent + " - " + i).build();SendResult result = rocketMQTemplate.syncSend("test-topic", message, 3000, delayLevel);results.add(result);}return new CommonResult(CommonResultEmnu.OK, "批量延迟消息发送成功，共发送: " + results.size() + " 条消息");} catch (Exception e) {return new CommonResult(CommonResultEmnu.ERROR, "批量延迟消息发送失败: " + e.getMessage());}}}

接收示例

package com.platform.base.demo.mq;import org.apache.rocketmq.spring.annotation.ConsumeMode;
import org.apache.rocketmq.spring.annotation.RocketMQMessageListener;
import org.apache.rocketmq.spring.core.RocketMQListener;
import org.springframework.stereotype.Service;import java.util.Date;/*** @Author WangHan* @Date 2025/7/24* @Description 消费者*/
@Service
@RocketMQMessageListener(topic = "test-topic",consumerGroup = "demo-consumer-group",consumeMode = ConsumeMode.ORDERLY)
class ConsumeService implements RocketMQListener<String> {@Overridepublic void onMessage(String message) {// 处理顺序消息System.out.println("接收到消息: " + message + "，处理完成" + new Date());}
}

结果

接收到消息: Default batch delay message - 0，处理完成Tue Sep 09 19:22:09 GMT+08:00 2025
接收到消息: Default batch delay message - 3，处理完成Tue Sep 09 19:22:09 GMT+08:00 2025
接收到消息: Default batch delay message - 1，处理完成Tue Sep 09 19:22:09 GMT+08:00 2025
接收到消息: Default batch delay message - 2，处理完成Tue Sep 09 19:22:09 GMT+08:00 2025
接收到消息: Default batch delay message - 4，处理完成Tue Sep 09 19:22:09 GMT+08:00 2025

16. 事务消息

分布式事务的经典解决方案，用于保证本地事务和消息发送的最终一致性。

流程（半消息）：
1. 生产者先向Broker发送一条半消息，此时消费者不可见。
2. 生产者执行本地事务（如扣减库存）。
3. 根据本地事务执行结果，生产者向Broker提交确认或回滚。
4. Broker如果收到确认，则将半消息变为正式消息，可供消费；如果收到回滚，则删除半消息。

RocketMQ提供了事务回查机制：如果生产者执行完本地事务后宕机，没有提交确认/回滚，Broker会定时回查生产者，询问该消息的最终状态。

事务消息在以下情况下会存在于MQ中：

• Half消息阶段：消息已发送到MQ但消费者不可见

• UNKNOWN状态：事务状态未确定，等待回查

• 回查期间：Broker正在等待应用返回最终状态

• COMMIT状态：消息对消费者可见，直到被成功消费

事务消息不会存在于MQ中的情况：

• ROLLBACK状态：消息会被立即删除
• 消费成功：消息被消费者确认后删除
• 达到最大回查次数仍未确定：根据配置可能被删除

因此，如果事务消息没有成功处理（即没有返回COMMIT状态），消息会一直存在于MQ中直到得到最终状态或达到最大回查次数。

场景：
发送支付请求，接收到回调时直接支付成功，同时发送一条事务消息到mq中，mq消费时执行扣减库存的动作和增加销量的动作

发送示例

package com.platform.base.demo.mq;import com.alibaba.fastjson.JSON;
import com.platform.common.domain.emnu.CommonResultEmnu;
import com.platform.common.domain.result.CommonResult;
import com.platform.common.util.CommonUtil;
import org.apache.rocketmq.client.producer.SendResult;
import org.apache.rocketmq.spring.core.RocketMQTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.messaging.Message;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import jakarta.annotation.Resource;
import java.util.HashMap;
import java.util.Optional;@RestController
@RequestMapping("/v1/base/pc/payment")
public class PaymentCallbackController {@Resourceprivate RocketMQTemplate rocketMQTemplate;/*** 支付回调接口* 接收到支付成功回调后，发送事务消息处理库存扣减和销量增加*/@GetMapping("/callback")public CommonResult paymentCallback() {try {// 获取支付回调参数String param = CommonUtil.getObjFromReq(String.class);HashMap<String, Object> parse = JSON.parseObject(param, HashMap.class);// 解析支付信息String orderId = Optional.ofNullable(parse.get("orderId")).map(Object::toString).orElse("ORDER_" + System.currentTimeMillis());String productId = Optional.ofNullable(parse.get("productId")).map(Object::toString).orElse("PRODUCT_001");Integer quantity = Optional.ofNullable(parse.get("quantity")).map(Object::toString).map(Integer::valueOf).orElse(1);Double amount = Optional.ofNullable(parse.get("amount")).map(Object::toString).map(Double::valueOf).orElse(0.0);System.out.println("接收到支付成功回调，订单ID: " + orderId + ", 商品ID: " + productId + ", 数量: " + quantity + ", 金额: " + amount);// 构造事务消息内容：商品ID:数量String transactionPayload = productId + ":" + quantity;// 构造事务消息，确保使用字符串作为payloadMessage<String> message = MessageBuilder.withPayload(transactionPayload) // 确保是String类型.setHeader("orderId", orderId).setHeader("productId", productId).setHeader("quantity", quantity).build();// 发送事务消息，处理库存扣减和销量增加System.out.println("发送事务消息处理库存和销量，订单ID: " + orderId);SendResult sendResult = rocketMQTemplate.sendMessageInTransaction("inventory-topic", message, orderId);return new CommonResult(CommonResultEmnu.OK, "支付处理成功，事务消息已发送: " + sendResult.getMsgId());} catch (Exception e) {System.err.println("支付回调处理失败: " + e.getMessage());e.printStackTrace();return new CommonResult(CommonResultEmnu.ERROR, "支付回调处理失败: " + e.getMessage());}}
}

事务监听器

// TransactionListenerImpl.java
package com.platform.base.demo.mq;import org.apache.rocketmq.spring.annotation.RocketMQTransactionListener;
import org.apache.rocketmq.spring.core.RocketMQLocalTransactionListener;
import org.apache.rocketmq.spring.core.RocketMQLocalTransactionState;
import org.apache.rocketmq.spring.support.RocketMQHeaders;
import org.springframework.messaging.Message;
import org.springframework.stereotype.Component;import java.nio.charset.StandardCharsets;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;@Component
@RocketMQTransactionListener
public class TransactionListenerImpl implements RocketMQLocalTransactionListener {// 模拟数据库表private static final Map<String, String> ORDER_STATUS = new ConcurrentHashMap<>();      // 订单状态private static final Map<String, Integer> PRODUCT_INVENTORY = new ConcurrentHashMap<>(); // 商品库存private static final Map<String, Integer> PRODUCT_SALES = new ConcurrentHashMap<>();      // 商品销量// 事务状态存储private final Map<String, RocketMQLocalTransactionState> transactionStateMap = new ConcurrentHashMap<>();// 失败事务记录（用于补偿）private final Map<String, FailedTransactionInfo> failedTransactions = new ConcurrentHashMap<>();/*** 执行本地事务 - 扣减库存和增加销量*/@Overridepublic RocketMQLocalTransactionState executeLocalTransaction(Message msg, Object arg) {String transactionId = (String) msg.getHeaders().get(RocketMQHeaders.TRANSACTION_ID);String orderId = (String) msg.getHeaders().get("orderId");String productId = (String) msg.getHeaders().get("productId");Integer quantity = 0;System.out.println("=== 事务执行开始 ===");System.out.println("事务ID: " + transactionId);System.out.println("订单ID: " + orderId);System.out.println("消息状态: Half消息已发送到MQ，消费者不可见");try {// 正确处理消息体，支持字节数组和字符串String payload;Object payloadObj = msg.getPayload();if (payloadObj instanceof byte[]) {payload = new String((byte[]) payloadObj, StandardCharsets.UTF_8);} else {payload = payloadObj.toString();}// 解析消息内容String[] parts = payload.split(":");String productIdFromPayload = parts[0];quantity = Integer.valueOf(parts[1]);// 模拟数据库初始化数据PRODUCT_INVENTORY.putIfAbsent(productIdFromPayload, 100);PRODUCT_SALES.putIfAbsent(productIdFromPayload, 0);System.out.println("开始执行库存扣减和销量增加，商品ID: " + productIdFromPayload + ", 数量: " + quantity);// 执行库存扣减Integer currentInventory = PRODUCT_INVENTORY.get(productIdFromPayload);if (currentInventory < quantity) {System.out.println("库存不足，回滚事务。当前库存: " + currentInventory + ", 需要: " + quantity);recordFailedTransaction(transactionId, orderId, productIdFromPayload, quantity, "库存不足");if (transactionId != null) {transactionStateMap.put(transactionId, RocketMQLocalTransactionState.ROLLBACK);}return RocketMQLocalTransactionState.ROLLBACK;}// 模拟可能的业务异常if (shouldSimulateBusinessException()) {throw new RuntimeException("模拟业务处理异常");}// 扣减库存PRODUCT_INVENTORY.put(productIdFromPayload, currentInventory - quantity);System.out.println("库存扣减成功，剩余库存: " + PRODUCT_INVENTORY.get(productIdFromPayload));// 增加销量Integer currentSales = PRODUCT_SALES.get(productIdFromPayload);PRODUCT_SALES.put(productIdFromPayload, currentSales + quantity);System.out.println("销量增加成功，当前销量: " + PRODUCT_SALES.get(productIdFromPayload));// 更新订单状态ORDER_STATUS.put(orderId, "PROCESSED");System.out.println("订单处理完成，订单ID: " + orderId);// 事务执行成功if (transactionId != null) {transactionStateMap.put(transactionId, RocketMQLocalTransactionState.COMMIT);}return RocketMQLocalTransactionState.COMMIT;} catch (Exception e) {System.err.println("执行本地事务异常: " + e.getMessage());e.printStackTrace();// 记录失败的事务信息recordFailedTransaction(transactionId, orderId, productId, quantity, e.getMessage());if (transactionId != null) {transactionStateMap.put(transactionId, RocketMQLocalTransactionState.ROLLBACK);}return RocketMQLocalTransactionState.ROLLBACK;}}/*** 检查本地事务状态*/@Overridepublic RocketMQLocalTransactionState checkLocalTransaction(Message msg) {String transactionId = (String) msg.getHeaders().get(RocketMQHeaders.TRANSACTION_ID);System.out.println("检查本地事务状态，事务ID: " + transactionId);if (transactionId != null) {RocketMQLocalTransactionState state = transactionStateMap.get(transactionId);if (state != null) {System.out.println("事务状态检查结果: " + state);return state;}}System.out.println("未找到事务状态，返回未知状态");return RocketMQLocalTransactionState.UNKNOWN;}/*** 记录失败的事务信息*/private void recordFailedTransaction(String transactionId, String orderId, String productId,Integer quantity, String errorMessage) {FailedTransactionInfo failedInfo = new FailedTransactionInfo();failedInfo.setTransactionId(transactionId);failedInfo.setOrderId(orderId);failedInfo.setProductId(productId);failedInfo.setQuantity(quantity);failedInfo.setErrorMessage(errorMessage);failedInfo.setFailTime(System.currentTimeMillis());failedTransactions.put(orderId, failedInfo);System.err.println("记录失败事务: " + failedInfo);}/*** 模拟业务异常（用于测试）*/private boolean shouldSimulateBusinessException() {// 5%概率模拟异常return Math.random() < 0.05;}/*** 失败事务信息类*/public static class FailedTransactionInfo {private String transactionId;private String orderId;private String productId;private Integer quantity;private String errorMessage;private Long failTime;// getters and setterspublic String getTransactionId() { return transactionId; }public void setTransactionId(String transactionId) { this.transactionId = transactionId; }public String getOrderId() { return orderId; }public void setOrderId(String orderId) { this.orderId = orderId; }public String getProductId() { return productId; }public void setProductId(String productId) { this.productId = productId; }public Integer getQuantity() { return quantity; }public void setQuantity(Integer quantity) { this.quantity = quantity; }public String getErrorMessage() { return errorMessage; }public void setErrorMessage(String errorMessage) { this.errorMessage = errorMessage; }public Long getFailTime() { return failTime; }public void setFailTime(Long failTime) { this.failTime = failTime; }@Overridepublic String toString() {return "FailedTransactionInfo{" +"transactionId='" + transactionId + '\'' +", orderId='" + orderId + '\'' +", productId='" + productId + '\'' +", quantity=" + quantity +", errorMessage='" + errorMessage + '\'' +", failTime=" + failTime +'}';}}
}

结果

2025-09-10 11:00:06|INFO |com.platform.base.config.Interceptor.AdminInterceptor:41|send GET request to http://127.0.0.1:9205/v1/base/pc/payment/callback
接收到支付成功回调，订单ID: ORDER_20250724001, 商品ID: PRODUCT_001, 数量: 2, 金额: 199.99
发送事务消息处理库存和销量，订单ID: ORDER_20250724001
=== 事务执行开始 ===
事务ID: null
订单ID: ORDER_20250724001
消息状态: Half消息已发送到MQ，消费者不可见
开始执行库存扣减和销量增加，商品ID: PRODUCT_001, 数量: 2
库存扣减成功，剩余库存: 98
销量增加成功，当前销量: 2
订单处理完成，订单ID: ORDER_20250724001
接收到库存处理消息: PRODUCT_001:2，处理时间: Wed Sep 10 11:00:06 GMT+08:00 2025
执行库存扣减，商品ID: PRODUCT_001, 数量: 2
执行销量增加，商品ID: PRODUCT_001, 数量: 2
库存处理完成，商品ID: PRODUCT_001

17. SpringBoot整合RocketMQ

使用rocketmq-spring-boot-starter可以无缝集成。

配置简化yaml

# application.yml
rocketmq:name-server: localhost:9876producer:group: my-springboot-producer-group

简洁的发送接收

@RestController
public class OrderController {@Resourceprivate RocketMQTemplate rocketMQTemplate;@GetMapping("/order")public String createOrder() {rocketMQTemplate.convertAndSend("Order_Topic", "订单消息");return "success";}
}@Service
@RocketMQMessageListener(topic = "Order_Topic", consumerGroup = "my-springboot-consumer-group")
public class OrderConsumer implements RocketMQListener<String> {@Overridepublic void onMessage(String message) {System.out.println("收到消息: " + message);}
}

18. 客户端注意事项

• 生产者/消费者组名：在集群内必须唯一

• 消费者线程数：默认20个，根据配置和业务耗时调整

• 消息大小：单条消息建议不超过4MB

• 资源释放：应用退出时调用shutdown()方法

19. 消息可靠性保障

从三个层面保证消息不丢失：

• 生产阶段：同步发送 + 失败重试

• 存储阶段：同步刷盘 + 主从同步

• 消费阶段：消费成功后才手动ACK确认

20. 消息幂等性处理

RocketMQ不直接提供幂等性，需要业务方自行实现：

• 方案一：数据库唯一键

// 利用订单ID唯一性保证幂等
INSERT INTO orders (order_id, ...) VALUES (10001, ...);

• 方案二：Redis原子操作

// 使用setnx操作
Boolean result = redisTemplate.opsForValue().setIfAbsent("order:10001", "1");
if (Boolean.TRUE.equals(result)) {// 第一次处理
} else {// 已处理过，直接返回
}

21. 消息积压处理

当Topic中堆积大量消息时，应急方案：

• 紧急扩容：增加Consumer实例数量（需有足够Queue）

• 提高消费能力：优化业务逻辑，减少单消息处理耗时

• 跳过非重要消息：临时程序消费并丢弃积压消息

22. 死信队列处理

RocketMQ 的死信队列（Dead-Letter Queue, DLQ）用于存放经过最大重试次数（默认16次）后仍然消费失败的消息。

死信队列命名规则

• 死信Topic：%DLQ% + 消费者组名
• 例如：%DLQ%inventory-consumer-group

查看死信消息

• 通过 RocketMQ Dashboard

  1. 打开 Dashboard（通常是 http://localhost:8080）
  2. 在 Topic 页面，你会看到所有以 %DLQ% 开头的死信Topic
  3. 点击进入具体的死信Topic，可以查看：
     1. 消息堆积数量
     2. 具体的消息内容
     3. 消息的原始Topic和Tag

• 通过命令行查看

# 查看死信Topic列表
./mqadmin topicList -n localhost:9876 | grep "%DLQ%"# 查询死信队列中的消息
./mqadmin queryMsgByKey -n localhost:9876 -t %DLQ%inventory-consumer-group -k "你的消息Key"

死信监控服务

1. 创建死信队列监控服务


   // DeadLetterQueueMonitorService.java
   package com.platform.base.demo.mq;import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
   import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyContext;
   import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
   import org.apache.rocketmq.client.consumer.listener.MessageListenerConcurrently;
   import org.apache.rocketmq.client.exception.MQClientException;
   import org.apache.rocketmq.common.message.MessageExt;
   import org.springframework.beans.factory.annotation.Value;
   import org.springframework.stereotype.Service;import jakarta.annotation.PostConstruct;
   import jakarta.annotation.PreDestroy;
   import java.util.List;
   import java.util.concurrent.atomic.AtomicLong;@Service
   public class DeadLetterQueueMonitorService {@Value("${rocketmq.name-server:127.0.0.1:9876}")private String nameServer;@Value("${rocketmq.producer.group:payment-producer-group}")private String producerGroup;private DefaultMQPushConsumer dlqConsumer;private AtomicLong dlqMessageCount = new AtomicLong(0);@PostConstructpublic void init() {try {// 初始化死信队列消费者initDeadLetterQueueConsumer();} catch (Exception e) {System.err.println("初始化死信队列监控失败: " + e.getMessage());}}/*** 初始化死信队列消费者*/private void initDeadLetterQueueConsumer() throws MQClientException {// 死信队列的Topic命名规则: %DLQ% + consumerGroupString dlqTopic = "%DLQ%" + "inventory-consumer-group"; // 根据您的消费者组名调整dlqConsumer = new DefaultMQPushConsumer("dlq-monitor-consumer");dlqConsumer.setNamesrvAddr(nameServer);// 订阅死信队列dlqConsumer.subscribe(dlqTopic, "*");// 设置监听器dlqConsumer.registerMessageListener(new MessageListenerConcurrently() {@Overridepublic ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {return handleDeadLetterMessages(msgs, context);}});dlqConsumer.start();System.out.println("死信队列监控已启动，监听Topic: " + dlqTopic);}/*** 处理死信消息*/private ConsumeConcurrentlyStatus handleDeadLetterMessages(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {for (MessageExt msg : msgs) {dlqMessageCount.incrementAndGet();System.out.println("=== 检测到死信消息 ===");System.out.println("消息ID: " + msg.getMsgId());System.out.println("Topic: " + msg.getTopic());System.out.println("Tag: " + msg.getTags());System.out.println("Keys: " + msg.getKeys());System.out.println("延迟时间: " + (System.currentTimeMillis() - msg.getBornTimestamp()) + "ms");System.out.println("重试次数: " + msg.getReconsumeTimes());System.out.println("消息体: " + new String(msg.getBody()));// 记录死信消息信息recordDeadLetterMessage(msg);// 根据业务需求决定处理方式processDeadLetterMessage(msg);}// 返回成功，避免死信消息继续堆积return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;}/*** 记录死信消息信息*/private void recordDeadLetterMessage(MessageExt msg) {DeadLetterMessageInfo dlqInfo = new DeadLetterMessageInfo();dlqInfo.setMsgId(msg.getMsgId());dlqInfo.setTopic(msg.getTopic());dlqInfo.setTags(msg.getTags());dlqInfo.setKeys(msg.getKeys());dlqInfo.setBody(new String(msg.getBody()));dlqInfo.setBornTimestamp(msg.getBornTimestamp());dlqInfo.setStoreTimestamp(msg.getStoreTimestamp());dlqInfo.setReconsumeTimes(msg.getReconsumeTimes());dlqInfo.setProcessTime(System.currentTimeMillis());// 实际项目中应该保存到数据库或日志系统System.out.println("记录死信消息: " + dlqInfo);}/*** 处理死信消息*/private void processDeadLetterMessage(MessageExt msg) {try {// 根据业务需求处理死信消息// 1. 人工审核// 2. 自动重试特定类型的消息// 3. 发送告警通知// 4. 记录到特殊处理队列String orderId = msg.getProperty("orderId");if (orderId != null) {System.out.println("死信消息关联订单: " + orderId);// 可以触发人工处理流程或发送告警sendAlertForDeadLetter(msg, orderId);}} catch (Exception e) {System.err.println("处理死信消息异常: " + e.getMessage());}}/*** 发送死信告警*/private void sendAlertForDeadLetter(MessageExt msg, String orderId) {System.err.println("发送死信告警 - 订单: " + orderId + ", 消息ID: " + msg.getMsgId());// 实际项目中可以发送邮件、短信或调用监控系统API}/*** 获取死信消息统计*/public long getDeadLetterMessageCount() {return dlqMessageCount.get();}/*** 清理死信消息（根据条件）*/public int cleanDeadLetterMessages(String condition) {System.out.println("清理死信消息，条件: " + condition);// 实际的清理逻辑需要根据具体需求实现// 这里只是示例，实际可能需要操作RocketMQ的管理接口return 0;}@PreDestroypublic void destroy() {if (dlqConsumer != null) {dlqConsumer.shutdown();System.out.println("死信队列监控已关闭");}}
   }


2. 死信消息信息类


   // DeadLetterMessageInfo.java
   package com.platform.base.demo.mq;public class DeadLetterMessageInfo {private String msgId;private String topic;private String tags;private String keys;private String body;private Long bornTimestamp;private Long storeTimestamp;private Integer reconsumeTimes;private Long processTime;// getters and setterspublic String getMsgId() { return msgId; }public void setMsgId(String msgId) { this.msgId = msgId; }public String getTopic() { return topic; }public void setTopic(String topic) { this.topic = topic; }public String getTags() { return tags; }public void setTags(String tags) { this.tags = tags; }public String getKeys() { return keys; }public void setKeys(String keys) { this.keys = keys; }public String getBody() { return body; }public void setBody(String body) { this.body = body; }public Long getBornTimestamp() { return bornTimestamp; }public void setBornTimestamp(Long bornTimestamp) { this.bornTimestamp = bornTimestamp; }public Long getStoreTimestamp() { return storeTimestamp; }public void setStoreTimestamp(Long storeTimestamp) { this.storeTimestamp = storeTimestamp; }public Integer getReconsumeTimes() { return reconsumeTimes; }public void setReconsumeTimes(Integer reconsumeTimes) { this.reconsumeTimes = reconsumeTimes; }public Long getProcessTime() { return processTime; }public void setProcessTime(Long processTime) { this.processTime = processTime; }@Overridepublic String toString() {return "DeadLetterMessageInfo{" +"msgId='" + msgId + '\'' +", topic='" + topic + '\'' +", tags='" + tags + '\'' +", keys='" + keys + '\'' +", body='" + body + '\'' +", bornTimestamp=" + bornTimestamp +", storeTimestamp=" + storeTimestamp +", reconsumeTimes=" + reconsumeTimes +", processTime=" + processTime +'}';}
   }


3. 添加监控接口


   @Autowired
   private DeadLetterQueueMonitorService dlqMonitorService;/*** 查询死信队列统计信息*/
   @GetMapping("/dlqStats")
   public CommonResult getDeadLetterQueueStats() {try {long count = dlqMonitorService.getDeadLetterMessageCount();HashMap<String, Object> result = new HashMap<>();result.put("deadLetterMessageCount", count);result.put("monitorStatus", "RUNNING");return new CommonResult(CommonResultEmnu.OK, result);} catch (Exception e) {return new CommonResult(CommonResultEmnu.ERROR, "查询失败: " + e.getMessage());}
   }/*** 清理死信队列消息*/
   @GetMapping("/cleanDlq")
   public CommonResult cleanDeadLetterQueue() {try {String param = CommonUtil.getObjFromReq(String.class);HashMap<String, Object> parse = JSON.parseObject(param, HashMap.class);String condition = Optional.ofNullable(parse.get("condition")).map(Object::toString).orElse("all");int cleanedCount = dlqMonitorService.cleanDeadLetterMessages(condition);HashMap<String, Object> result = new HashMap<>();result.put("cleanedCount", cleanedCount);result.put("condition", condition);return new CommonResult(CommonResultEmnu.OK, result);} catch (Exception e) {return new CommonResult(CommonResultEmnu.ERROR, "清理失败: " + e.getMessage());}
   }


4. 配置私信队列参数


   rocketmq:name-server: 127.0.0.1:9876producer:group: payment-producer-group# 死信队列相关配置dead-letter-policy:max-redelivery-times: 16  # 最大重试次数dlq-topic: "%DLQ%inventory-consumer-group"  # 死信队列Topic


5. 完善消费者配置以支持死信队列


   // 确保您的消费者配置了适当的重试策略
   @RocketMQMessageListener(topic = "inventory-topic",consumerGroup = "inventory-consumer-group",consumeThreadMax = 10,consumeThreadMin = 5,maxReconsumeTimes = 16  // 设置最大重试次数
   )
   @Service
   public class InventoryConsumeService implements RocketMQListener<String> {@Overridepublic void onMessage(String message) {try {System.out.println("处理库存消息: " + message);// 模拟处理逻辑processInventoryMessage(message);} catch (Exception e) {System.err.println("库存消息处理失败: " + e.getMessage());// 抛出异常触发重试机制throw new RuntimeException("处理失败", e);}}private void processInventoryMessage(String message) {// 实际的业务处理逻辑// 如果处理失败会自动重试，超过重试次数后进入死信队列}
   }


6. 定时监控任务


   // DeadLetterQueueScheduledTask.java
   package com.platform.base.demo.mq;import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.scheduling.annotation.Scheduled;
   import org.springframework.stereotype.Component;@Component
   public class DeadLetterQueueScheduledTask {@Autowiredprivate DeadLetterQueueMonitorService dlqMonitorService;/*** 定时检查死信队列状态（每小时执行一次）*/@Scheduled(fixedDelay = 3600000)public void checkDeadLetterQueueStatus() {try {long count = dlqMonitorService.getDeadLetterMessageCount();if (count > 0) {System.out.println("死信队列监控报告 - 当前死信消息数量: " + count);// 可以根据数量发送不同级别的告警if (count > 100) {sendHighPriorityAlert(count);}}} catch (Exception e) {System.err.println("检查死信队列状态异常: " + e.getMessage());}}private void sendHighPriorityAlert(long count) {System.err.println("高优先级告警 - 死信消息数量过多: " + count);// 实际项目中发送告警通知}
   }


7. 在主应用类上添加：@EnableScheduling

死信消息处理策略

1. 人工审核干预
2. 自动重试特定类型消息
3. 发送告警通知
4. 记录到特殊处理队列

总结

RocketMQ作为阿里巴巴开源的分布式消息中间件，以其高吞吐、高可用、高可靠的特性，成为企业级应用的首选消息队列解决方案。

在实际项目中，建议根据业务场景选择合适的消息模式，合理配置监控和告警机制，确保消息系统的稳定可靠运行。
