MATLAB | 这是屎吗？抱歉打错了，这是什么？

news 2025/9/13 7:22:41

哈哈哈哈哈哈笑了半天才舍得发出来，本来还想着愚人节再发的，但实在憋不住了。。。

这是屎吗？抱歉打错了，这是什么？
这才是真正的屎山代码！！
MATLAB | 如何绘制巧克力冰激凌

首先，这段巧克力冰激凌雏形是我用 AI 生成的，但是也改了不少地方，这段代码需要单独保存个 m 文件：

function [X, Y, Z] = shitshape()
% 路径采样点数
points = 400;
% 控制收缩曲线（后期快速变细）
z = linspace(0, 1, points);
z(1:50) = z(1:50) + z(50).*linspace(1, 0, 50);
z(201:400) = z(201:400) - .12.*linspace(0, 1, 200);
s = linspace(0, 1, points);
% 螺旋路径的半径变化（路径本身）
path_radius = linspace(.7, 0.02, points).*(cos(linspace(0, pi/2, points))+1.5)/3.5;
% 桶体粗细也收缩（同步缩小）
tube_radius = 0.18 * (1 - s.^2.5)+.001;
tube_radius(1:50) = sin(linspace(0, pi/2, 50)).*tube_radius(50);
% 螺旋角度
theta = linspace(0, 2*pi*4, points);
% 横截面圆点
circle_pts = 40;
circle_theta = linspace(0, 2*pi, circle_pts);
% 初始化
X = zeros(circle_pts, points);
Y = zeros(circle_pts, points);
Z = zeros(circle_pts, points);
for i = 1:(points - 1)% 当前螺旋中心位置（路径本身在缩小）R = path_radius(i);center_x = R * cos(theta(i));center_y = R * sin(theta(i));center_z = z(i);% 切向量（方向）dx = path_radius(i+1)*cos(theta(i+1)) - center_x;dy = path_radius(i+1)*sin(theta(i+1)) - center_y;dz = z(i+1) - center_z;tangent = [dx; dy; dz]; tangent = tangent / norm(tangent);% 横截面正交平面ref = [0; 0; 1];if abs(dot(ref, tangent)) > 0.99ref = [1; 0; 0];endnormal1 = cross(tangent, ref); normal1 = normal1 / norm(normal1);normal2 = cross(tangent, normal1);% 横截面圆柱壳r_tube = tube_radius(i);for j = 1:circle_ptsoffset = r_tube * (cos(circle_theta(j)) * normal1 + sin(circle_theta(j)) * normal2);X(j,i) = center_x + offset(1);Y(j,i) = center_y + offset(2);Z(j,i) = center_z + offset(3);end
end
Z(:, end) = Z(:, end - 1);
end

icecream 1

那段代码怎么用呢：非常简单，只需要在命令行或者新建个 m 文件运行如下代码：

[X, Y, Z] = shitshape();
surf(X, Y, Z, 'FaceColor', [0.4 0.2 0], 'EdgeColor', 'none');
axis equal off; camlight headlight; lighting gouraud;
view(-60, 10);

icecream 2

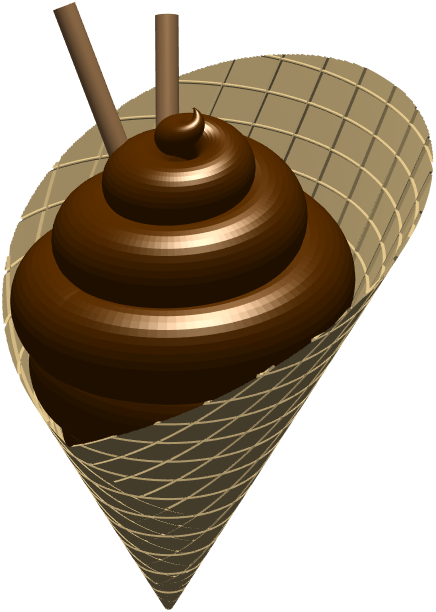

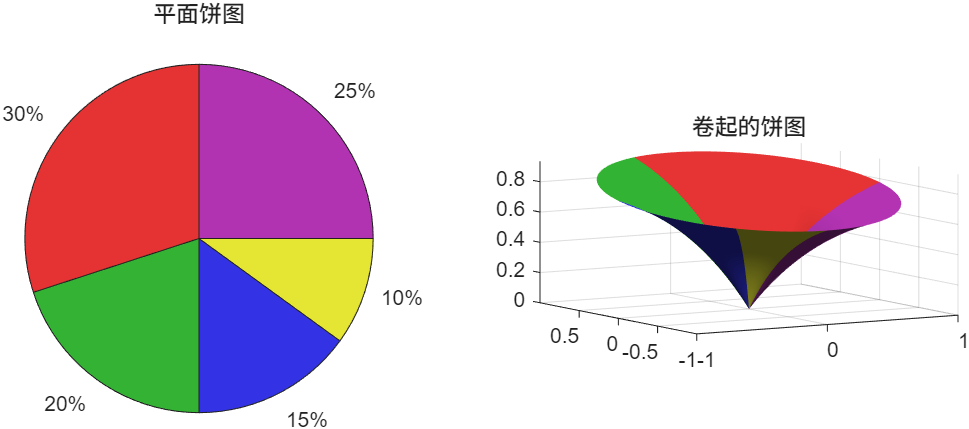

简单加一个甜筒和饼干：本来想着也用 AI 生成一下，让他画个圆形类似饼的东西，然后卷起来形成类似甜筒的东西，结果 chatGPT 和 deepseek 给了我下面这个离谱的东西。。。

嗯？？？？啊哈哈哈仿佛有点呆傻，我还是自己写吧。。

 % 绘制shit
axis equal equal off; hold on; camlight headlight; lighting gouraud; view(3)
[X, Y, Z] = shitshape();
surf(X + .1, Y, Z + 1.06, 'FaceColor', [0.4 0.2 0], 'EdgeColor', 'none');
surf(X./1.3, Y./1.3, - Z + 1.1, 'FaceColor', [0.4 0.2 0], 'EdgeColor', 'none');% 甜筒数据构造
N = 500; n = 30;
[X, Y] = meshgrid(linspace(-1, 1, N));
Z = X.*0;
Z(1:n:N, :) = .01; Z(:, 1:n:N) = .01;
Z(2:n:N, :) = .01; Z(:, 2:n:N) = .01;
Z(X.^2 + Y.^2 > 1) = nan;
R_x = @(theta)[1, 0, 0; 0, cos(theta), -sin(theta);0, sin(theta),  cos(theta)];
R_y = @(theta)[ cos(theta), 0, -sin(theta);0, 1, 0;sin(theta), 0,  cos(theta)];
nXYZ = [X(:), Y(:), Z(:)]*R_x(-pi/2.9);
nX = nXYZ(:,1); nY = nXYZ(:,2); nZ = nXYZ(:,3);
nZ = nZ - min(nZ); nY = nY - min(nY);
nT = nX ./(nZ/2.5); nR = nY;
nX = cos(nT).*nR; nY = sin(nT).*nR;
SHdl = surf(reshape(nX, N, []), reshape(nY, N, []), reshape(nZ, N, []), ...'EdgeColor','none', 'FaceColor',[228,200,142]./255);
material(SHdl, 'dull')% 绘制饼干
[X, Y, Z] = cylinder(0.04, 100); N = size(X, 1);
nXYZ = [X(:), Y(:), Z(:)]*R_x(pi/5);
nX = nXYZ(:,1); nY = nXYZ(:,2); nZ = nXYZ(:,3);
surf(reshape(nX, N, []), reshape(nY, N, []), reshape(nZ, N, []) + 1.3,...'FaceColor', [0.8 0.6 0.4], 'EdgeColor', 'none');
nXYZ = [X(:), Y(:), Z(:)]*R_x(pi/6);
nX = nXYZ(:,1); nY = nXYZ(:,2); nZ = nXYZ(:,3);
nXYZ = [nX(:), nY(:), nZ(:)]*R_y(pi/7);
nX = nXYZ(:,1); nY = nXYZ(:,2); nZ = nXYZ(:,3);
surf(reshape(nX, N, []), reshape(nY, N, []), reshape(nZ, N, []) + 1.2,...'FaceColor', [0.8 0.6 0.4], 'EdgeColor', 'none');

icecream 3

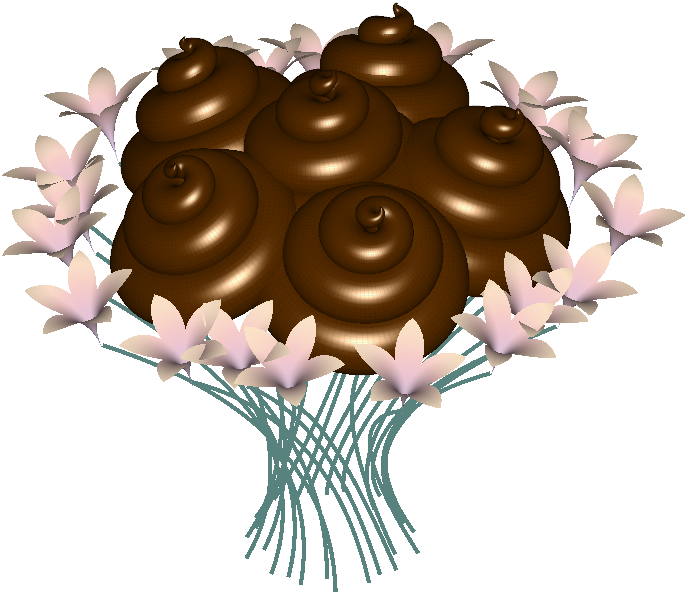

甜甜蜜蜜的冰激凌花束：

function shit3
figure('Units','normalized','Position',[.2,.1,.6,.7])
%曲面数据计算 ==============================================================
[Xa, Ya, Za] = shitshape();
% 百合花部分 ---------------------------------------------------------------
rb=0:.01:1;
tb=linspace(0,2,151);
wb=rb'*((abs((1-mod(tb*5,2))))/2+.3);
xb=wb.*cospi(tb);
yb=wb.*sinpi(tb);
zb=@(a)(-cospi(wb*a)+1).^.2;
Zb=zb(1.2);
%颜色映射表 ================================================================
colorList=[0.3300    0.3300    0.69000.5300    0.4000    0.68000.6800    0.4200    0.63000.7800    0.4200    0.57000.9100    0.4900    0.47000.9600    0.7300    0.4400];
colorMapb=setColorByH(Zb,colorList.*.4+.6);function cMap=setColorByH(H,cList)X=(H-min(min(H)))./(max(max(H))-min(min(H)));xx=(0:size(cList,1)-1)./(size(cList,1)-1);y1=cList(:,1);y2=cList(:,2);y3=cList(:,3);cMap(:,:,1)=interp1(xx,y1,X,'linear');cMap(:,:,2)=interp1(xx,y2,X,'linear');cMap(:,:,3)=interp1(xx,y3,X,'linear');end
% 旋转函数预定义 ===========================================================
yaw_z=72*pi/180;
roll_x_1=pi/8;
roll_x_2=pi/9;
R_z_2=[cos(yaw_z)  , -sin(yaw_z)  , 0; sin(yaw_z)  , cos(yaw_z)  , 0; 0, 0, 1];
R_z_1=[cos(yaw_z/2), -sin(yaw_z/2), 0; sin(yaw_z/2), cos(yaw_z/2), 0; 0, 0, 1];
R_z_3=[cos(yaw_z/3), -sin(yaw_z/3), 0; sin(yaw_z/3), cos(yaw_z/3), 0; 0, 0, 1];
R_x_1=[1, 0, 0; 0, cos(roll_x_1), -sin(roll_x_1); 0, sin(roll_x_1), cos(roll_x_1)];
R_x_2=[1, 0, 0; 0, cos(roll_x_2), -sin(roll_x_2); 0, sin(roll_x_2), cos(roll_x_2)];function [nX,nY,nZ]=rotateXYZ(X,Y,Z,R)nX=zeros(size(X)); nY=zeros(size(Y)); nZ=zeros(size(Z));for i=1:size(X,1)for j=1:size(X,2)v=[X(i,j);Y(i,j);Z(i,j)];nv=R*v; nX(i,j)=nv(1); nY(i,j)=nv(2); nZ(i,j)=nv(3);endendend
% 绘制花杆函数预定义 ========================================================function drawStraw(X,Y,Z)[m,n]=find(Z==min(min(Z)));m=m(1);n=n(1);x1=X(m,n);y1=Y(m,n);z1=Z(m,n)+.03;xx=[x1,0,(x1.*cos(pi/3)-y1.*sin(pi/3))./3].';yy=[y1,0,(y1.*cos(pi/3)+x1.*sin(pi/3))./3].';zz=[z1,-.7,-1.5].';strawPnts=bezierCurve([xx,yy,zz],50);plot3(strawPnts(:,1),strawPnts(:,2),strawPnts(:,3),'Color',[88,130,126]./255,'LineWidth',2)end
% 贝塞尔函数 ---------------------------------------------------------------function pnts=bezierCurve(pnts,N)t=linspace(0,1,N);p=size(pnts,1)-1;coe1=factorial(p)./factorial(0:p)./factorial(p:-1:0);coe2=((t).^((0:p)')).*((1-t).^((p:-1:0)'));pnts=(pnts'*(coe1'.*coe2))';end
%曲面旋转及绘制 ============================================================
hold on
surface(Xa, Ya, Za + .7,'EdgeAlpha',0.05,...'EdgeColor',[0 0 0],'FaceColor',[0.4 0.2 0],'Tag','slandarer')
[nXr,nYr,nZr]=rotateXYZ(Xa, Ya, Za + .7,R_x_1);
nYr=nYr-.4;
surface(nXr,nYr,nZr-.1,'EdgeAlpha',0.05,...
'EdgeColor',[0 0 0],'FaceColor',[0.4 0.2 0])
drawStraw(nXr,nYr,nZr-.1)
for k=1:4[nXr,nYr,nZr]=rotateXYZ(nXr,nYr,nZr,R_z_2);surface(nXr,nYr,nZr-.1,'EdgeAlpha',0.05,...'EdgeColor',[0 0 0],'FaceColor',[0.4 0.2 0])drawStraw(nXr,nYr,nZr-.1)
end
% -------------------------------------------------------------------------
[nXb,nYb,nZb]=rotateXYZ(xb./2.5,yb./2.5,Zb./2.5+.32,R_x_2);
nYb=nYb-1.35;
for k=1:5[nXb,nYb,nZb]=rotateXYZ(nXb,nYb,nZb,R_z_2);SHdl = surface(nXb,nYb,nZb,'EdgeColor','none','FaceColor','interp','CData',colorMapb);material(SHdl, 'dull')drawStraw(nXb,nYb,nZb)
end
[nXb,nYb,nZb]=rotateXYZ(xb./2.5,yb./2.5,Zb./2.5+.32,R_x_2);
nYb=nYb-1.15;
[nXb,nYb,nZb]=rotateXYZ(nXb,nYb,nZb,R_z_1);
for k=1:5[nXb,nYb,nZb]=rotateXYZ(nXb,nYb,nZb,R_z_2);SHdl = surface(nXb,nYb,nZb,'EdgeColor','none','FaceColor','interp','CData',colorMapb);material(SHdl, 'dull')drawStraw(nXb,nYb,nZb)
end
[nXb,nYb,nZb]=rotateXYZ(xb./2.5,yb./2.5,Zb./2.5+.32,R_x_2);
nYb=nYb-1.25;
[nXb,nYb,nZb]=rotateXYZ(nXb,nYb,nZb,R_z_3);
for k=1:5[nXb,nYb,nZb]=rotateXYZ(nXb,nYb,nZb,R_z_2);SHdl = surface(nXb,nYb,nZb,'EdgeColor','none','FaceColor','interp','CData',colorMapb);material(SHdl, 'dull')drawStraw(nXb,nYb,nZb)
end
[nXb,nYb,nZb]=rotateXYZ(xb./2.5,yb./2.5,Zb./2.5+.32,R_x_2);
nYb=nYb-1.25;
[nXb,nYb,nZb]=rotateXYZ(nXb,nYb,nZb,R_z_3);
[nXb,nYb,nZb]=rotateXYZ(nXb,nYb,nZb,R_z_3);
for k=1:5[nXb,nYb,nZb]=rotateXYZ(nXb,nYb,nZb,R_z_2);SHdl = surface(nXb,nYb,nZb,'EdgeColor','none','FaceColor','interp','CData',colorMapb);material(SHdl, 'dull')drawStraw(nXb,nYb,nZb)
end
%axes属性调整 ==============================================================
view(-15,35); axis equal off
camlight headlight; lighting gouraud;
end
