【代码讲解】北通手柄遥控 + Mujoco 仿真 SO-ARM100 机械臂末端位姿

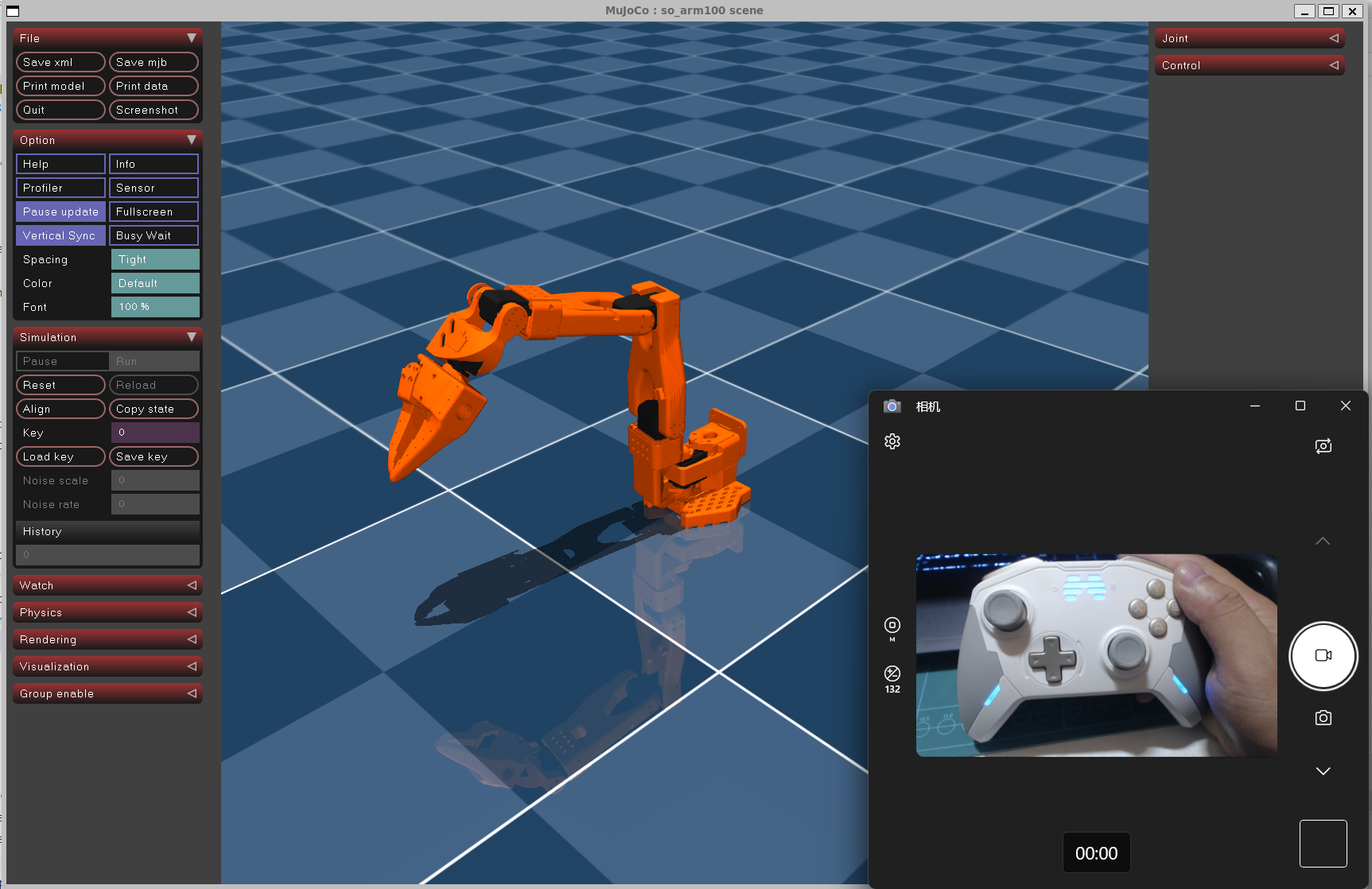

上期视频展示了使用北通手柄（型号：宙斯精英版T6），获取摇杆以及按键的信息，手柄输出末端控制量x,y,z，夹爪开合控制量，结合早期视频《Pinocchio 结合 CasADi 进行 IK 逆运动学及 Mujoco 仿真》中的IK得到关节控制量，在仿真中可以很流畅的控制SO-ARM100机械的末端运动。

本期中会涉及如下点，需要注意：

1. 在WSL2中手柄需要编译内核增加JOYSTICK选项

2. 北通手柄需要进入XBOX模式，北通模式在WSL2下需要额外增加驱动而且需要插线

3. 增加环境变量显式指定js0设备

【代码讲解】北通手柄遥控 + Mujoco 仿真 SO-ARM100 机械臂末端位姿

视频讲解链接：【代码讲解】北通手柄遥控 + Mujoco 仿真 SO-ARM100 机械臂末端位姿_哔哩哔哩_bilibili

完整代码仓库：https://github.com/LitchiCheng/mujoco-learning

xbox控制类

class XboxController:"""Xbox手柄控制器类，负责处理所有手柄输入"""def __init__(self):# 初始化位置参数self.x = 0.0self.y = -0.3self.z = 0.15# 位置限制self.x_min, self.x_max = -0.3, 0.3self.y_min, self.y_max = -0.4, 0.0self.z_min, self.z_max = 0.05, 0.3# 控制灵敏度self.sensitivity = 0.005# 死区阈值（过滤摇杆中心微小漂移）self.deadzone = 0.1# 存储dof[5]的目标值self.dof5_target = None# 跟踪按钮状态，避免重复触发self.button1_pressed = Falseself.button2_pressed = False# 初始化手柄self.controller = self.init_controller()def init_controller(self):"""初始化Xbox手柄（通过pygame访问js设备）"""# 初始化pygame和游戏杆模块pygame.init()pygame.joystick.init()if pygame.joystick.get_count() == 0:print("未检测到任何游戏杆设备")return None# 对应/dev/input/js0joystick = pygame.joystick.Joystick(0)joystick.init()print(f"检测到手柄: {joystick.get_name()}")print(f"按钮数量: {joystick.get_numbuttons()}")return joystickdef is_connected(self):"""检查手柄是否连接"""return self.controller is not Nonedef handle_input(self, arm):"""处理手柄输入并更新控制参数"""if not self.is_connected():return# 处理pygame事件（必须调用，否则无法更新轴值和按钮状态）pygame.event.pump()# 读取左摇杆X轴（0号轴）x_axis = self.controller.get_axis(1)# 应用死区过滤if abs(x_axis) < self.deadzone:x_axis = 0.0# 读取左摇杆Y轴（1号轴）y_axis = self.controller.get_axis(0)if abs(y_axis) < self.deadzone:y_axis = 0.0# 读取右摇杆Y轴（4号轴）z_axis = -self.controller.get_axis(4)if abs(z_axis) < self.deadzone:z_axis = 0.0# 根据轴值更新位置self.x = np.clip(self.x + x_axis * self.sensitivity, self.x_min, self.x_max)self.y = np.clip(self.y + y_axis * self.sensitivity, self.y_min, self.y_max)self.z = np.clip(self.z + z_axis * self.sensitivity, self.z_min, self.z_max)# 检测按钮1（假设是0号按钮，通常是A键）button1 = self.controller.get_button(0)if button1 and not self.button1_pressed:print("Button1 pressed - 设置dof[5]为满量程")# 设置dof[5]为满量程值self.dof5_target = arm.model.upperPositionLimit[5]self.button1_pressed = Trueelif not button1:self.button1_pressed = False# 检测按钮2（假设是1号按钮，通常是B键）button2 = self.controller.get_button(1)if button2 and not self.button2_pressed:print("Button2 pressed - 设置dof[5]为最小值")# 设置dof[5]为最小值self.dof5_target = arm.model.lowerPositionLimit[5]self.button2_pressed = Trueelif not button2:self.button2_pressed = Falsedef get_position_target(self):return self.x, self.y, self.zdef get_dof5_target(self):return self.dof5_targetdef cleanup(self):pygame.quit()

SO-ARM100 控制类

class RobotController(mujoco_viewer.CustomViewer):    def __init__(self, scene_path, arm_path, controller):super().__init__(scene_path, distance=1.5, azimuth=135, elevation=-30)self.scene_path = scene_pathself.arm_path = arm_pathself.controller = controller# 初始化逆运动学self.arm = casadi_ik.Kinematics("Wrist_Roll")self.arm.buildFromMJCF(arm_path)self.last_dof = Nonedef runBefore(self):passdef runFunc(self):"""主循环中执行的函数"""# 处理控制器输入self.controller.handle_input(self.arm)# 获取目标位置x, y, z = self.controller.get_position_target()print(f"当前位置: x={x:.3f}, y={y:.3f}, z={z:.3f}")# 构建变换矩阵（保持末端执行器姿态不变）tf = self.build_transform_simple(x, y, z, np.pi / 4, 0, 0)# 求解逆运动学self.dof, info = self.arm.ik(tf, current_arm_motor_q=self.last_dof)self.last_dof = self.dofdof5_target = self.controller.get_dof5_target()if dof5_target is not None:self.dof[5] = dof5_targetself.data.qpos[:6] = self.dof[:6]mujoco.mj_step(self.model, self.data)time.sleep(0.01)def build_transform_simple(self, x, y, z, roll, pitch, yaw):cr, sr = np.cos(roll), np.sin(roll)cp, sp = np.cos(pitch), np.sin(pitch)cy, sy = np.cos(yaw), np.sin(yaw)return np.array([[cy*cp, cy*sp*sr - sy*cr, cy*sp*cr + sy*sr, x],[sy*cp, sy*sp*sr + cy*cr, sy*sp*cr - cy*sr, y],[-sp,   cp*sr,            cp*cr,            z],[0,     0,                0,                1]])
