死锁深度解析：原理、检测与解决之道

news 2025/8/4 16:43:45

引言：并发编程的隐形杀手

在并发系统中，死锁（Deadlock） 如同隐形杀手，悄无声息地使整个系统陷入瘫痪。这种状态发生在多个进程（或线程）相互等待对方释放资源，导致所有进程都无法继续执行。1971年，计算机科学家E.G. Coffman首次系统化定义了死锁问题，至今它仍是并发编程中最棘手的挑战之一。

本文将深入探讨死锁的内在原理，结合实际案例和Python代码，系统介绍死锁的检测、预防和解决策略。通过6000+字的深度解析，帮助您构建健壮的并发系统。

一、死锁核心原理剖析

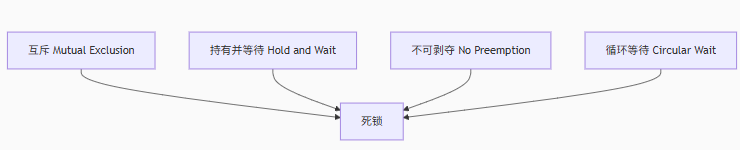

1.1 死锁的四个必要条件

死锁的发生必须同时满足以下四个条件，缺一不可：

1.1.1 互斥（Mutual Exclusion）

资源不能被共享，一次只能被一个进程使用。如打印机、数据库连接等。

1.1.2 持有并等待（Hold and Wait）

进程在持有资源的同时，请求新的资源。

1.1.3 不可剥夺（No Preemption）

资源只能由持有它的进程主动释放，不能被强制剥夺。

1.1.4 循环等待（Circular Wait）

存在一组进程{P1, P2, ..., Pn}，P1等待P2占用的资源，P2等待P3占用的资源，...，Pn等待P1占用的资源。

1.2 死锁的数学模型

使用资源分配图（Resource Allocation Graph）建模死锁：

进程 --请求--> 资源类型
进程 --持有--> 资源实例

当图中存在循环时，系统可能处于死锁状态。例如：

P1 → R1 → P2 → R2 → P1 (循环)

1.3 Python死锁实例演示

import threading
import time# 创建两个锁
lock_a = threading.Lock()
lock_b = threading.Lock()def thread_1():print("线程1: 尝试获取锁A")lock_a.acquire()print("线程1: 已获取锁A")time.sleep(0.5)  # 模拟处理延迟print("线程1: 尝试获取锁B")lock_b.acquire()  # 将在此处死锁print("线程1: 已获取锁B")# 临界区操作lock_b.release()lock_a.release()def thread_2():print("线程2: 尝试获取锁B")lock_b.acquire()print("线程2: 已获取锁B")time.sleep(0.5)  # 模拟处理延迟print("线程2: 尝试获取锁A")lock_a.acquire()  # 将在此处死锁print("线程2: 已获取锁A")# 临界区操作lock_a.release()lock_b.release()# 启动线程
t1 = threading.Thread(target=thread_1)
t2 = threading.Thread(target=thread_2)
t1.start()
t2.start()
t1.join()
t2.join()

运行此代码，您将看到输出停滞在：

线程1: 尝试获取锁A
线程1: 已获取锁A
线程2: 尝试获取锁B
线程2: 已获取锁B
线程1: 尝试获取锁B
线程2: 尝试获取锁A

二、死锁预防策略

通过破坏死锁的四个必要条件之一，可有效预防死锁：

2.1 破坏互斥条件

将独占资源改造为可共享资源：

# 使用只读共享资源替代独占资源
import multiprocessingshared_data = multiprocessing.Array('i', [0] * 10)  # 共享内存def safe_reader(index):return shared_data[index]  # 无需加锁的读取# 但写入仍需同步机制

2.2 破坏持有并等待条件

要求进程一次性申请所有所需资源：

class ResourceAllocator:def __init__(self, resources):self.lock = threading.Lock()self.resources = resourcesself.allocated = {}def request_all(self, thread_id, *required):"""一次性申请所有资源"""with self.lock:# 检查所有资源是否可用if all(res not in self.allocated for res in required):for res in required:self.allocated[res] = thread_idreturn Truereturn Falsedef release_all(self, thread_id):with self.lock:# 释放线程持有的所有资源to_release = [res for res, tid in self.allocated.items() if tid == thread_id]for res in to_release:del self.allocated[res]

2.3 破坏不可剥夺条件

允许系统强制回收资源：

class PreemptiveLock:"""支持资源剥夺的锁"""def __init__(self):self.lock = threading.Lock()self.owner = Noneself.preempted = Falseself.cond = threading.Condition(self.lock)def acquire(self, thread_id, timeout=None):with self.lock:if self.owner is None:self.owner = thread_idreturn Trueif self.owner != thread_id and self.preempted:# 强制剥夺资源print(f"强制剥夺 {self.owner} 的资源")self.preempted = Trueself.owner = thread_idreturn Truereturn Falsedef release(self, thread_id):with self.lock:if self.owner == thread_id:self.owner = Noneself.preempted = Falseself.cond.notify_all()

2.4 破坏循环等待条件

策略1：资源有序分配法

为所有资源类型定义全局顺序：

# 定义资源全局顺序
RESOURCE_ORDER = {'disk': 1,'printer': 2,'scanner': 3,'database': 4
}def ordered_acquire(thread_id, *resources):# 按全局顺序排序资源ordered_res = sorted(resources, key=lambda r: RESOURCE_ORDER[r])# 按顺序获取资源for res in ordered_res:if not res.lock.acquire():# 获取失败则释放所有已获得资源for acquired in ordered_res[:ordered_res.index(res)]:acquired.lock.release()return Falsereturn True

策略2：层次分配法

class HierarchicalAllocator:def __init__(self, levels):self.levels = levels  # 资源层级数self.current_level = 0self.locks = [threading.Lock() for _ in range(levels)]def acquire(self, level):if level < self.current_level:raise RuntimeError("违反层次分配规则")self.locks[level].acquire()self.current_level = leveldef release(self, level):self.locks[level].release()if level == self.current_level:self.current_level = max(0, level - 1)

三、死锁避免技术

3.1 银行家算法（Banker's Algorithm）

Dijkstra提出的经典死锁避免算法：

class BankerAlgorithm:"""银行家算法实现"""def __init__(self, total_resources):self.total = total_resources  # 系统资源总量self.available = list(total_resources)  # 可用资源# 进程管理self.processes = {}def add_process(self, pid, max_claim):"""添加进程及其最大资源需求"""self.processes[pid] = {'max': max_claim,'allocated': [0] * len(self.total),'need': list(max_claim)}def request_resources(self, pid, request):"""处理资源请求"""p = self.processes[pid]# 步骤1：检查请求是否超过需求if any(req > need for req, need in zip(request, p['need'])):return False, "超过最大需求"# 步骤2：检查请求是否超过可用资源if any(req > avail for req, avail in zip(request, self.available)):return False, "资源不足"# 步骤3：尝试分配temp_available = [a - r for a, r in zip(self.available, request)]temp_allocated = [a + r for a, r in zip(p['allocated'], request)]temp_need = [n - r for n, r in zip(p['need'], request)]# 步骤4：检查安全性if not self.is_safe_state(temp_available, temp_allocated, temp_need, pid):return False, "将导致不安全状态"# 步骤5：正式分配self.available = temp_availablep['allocated'] = temp_allocatedp['need'] = temp_needreturn True, "分配成功"def is_safe_state(self, available, allocated, need, requesting_pid):"""检查系统是否处于安全状态"""work = list(available)finish = {pid: False for pid in self.processes}# 复制进程状态processes = {}for pid, data in self.processes.items():processes[pid] = {'allocated': allocated if pid == requesting_pid else data['allocated'],'need': need if pid == requesting_pid else data['need']}# 寻找可满足的进程while True:found = Falsefor pid, pdata in processes.items():if not finish[pid] and all(n <= w for n, w in zip(pdata['need'], work)):# 模拟执行完成work = [w + a for w, a in zip(work, pdata['allocated'])]finish[pid] = Truefound = Truebreakif not found:break# 检查所有进程是否都能完成return all(finish.values())

3.2 资源分配图算法

class ResourceAllocationGraph:"""资源分配图检测算法"""def __init__(self):self.processes = set()self.resources = {}# 边: (from, to, type)# type: 0=分配边(资源->进程), 1=请求边(进程->资源)self.edges = []def add_process(self, pid):self.processes.add(pid)def add_resource(self, rid, instances):self.resources[rid] = instancesdef assign(self, pid, rid):"""添加分配边(资源分配给进程)"""if rid not in self.resources:raise ValueError(f"资源 {rid} 不存在")self.edges.append((rid, pid, 0))def request(self, pid, rid):"""添加请求边(进程请求资源)"""if rid not in self.resources:raise ValueError(f"资源 {rid} 不存在")self.edges.append((pid, rid, 1))def has_cycle(self):"""检测图中是否存在循环"""# 构建邻接表graph = {}for edge in self.edges:if edge[2] == 0:  # 分配边: 资源->进程graph.setdefault(edge[0], []).append(edge[1])else:  # 请求边: 进程->资源graph.setdefault(edge[0], []).append(edge[1])# 深度优先搜索检测循环visited = set()rec_stack = set()def dfs(node):if node in rec_stack:return Trueif node in visited:return Falsevisited.add(node)rec_stack.add(node)for neighbor in graph.get(node, []):if dfs(neighbor):return Truerec_stack.remove(node)return Falsefor node in list(graph.keys()):if node not in visited:if dfs(node):return Truereturn False

四、死锁检测与恢复

4.1 死锁检测算法实现

class DeadlockDetector:"""定期死锁检测器"""def __init__(self, interval=5):self.interval = interval  # 检测间隔(秒)self.lock_graph = {}self.detection_lock = threading.Lock()self.running = Trueself.detector_thread = threading.Thread(target=self.run_detector, daemon=True)self.detector_thread.start()def register_acquire(self, thread, lock):"""注册锁获取事件"""with self.detection_lock:self.lock_graph.setdefault(thread, set()).add(lock)def register_release(self, thread, lock):"""注册锁释放事件"""with self.detection_lock:if thread in self.lock_graph and lock in self.lock_graph[thread]:self.lock_graph[thread].remove(lock)if not self.lock_graph[thread]:del self.lock_graph[thread]def has_deadlock(self):"""检测当前是否存在死锁"""with self.detection_lock:# 构建等待图wait_graph = {}# 第一步：收集所有线程和它们持有的锁holders = {}for thread, locks in self.lock_graph.items():for lock in locks:holders[lock] = thread# 第二步：构建等待关系for thread, locks in self.lock_graph.items():wait_for = set()for lock in locks:if lock in holders and holders[lock] != thread:wait_for.add(holders[lock])if wait_for:wait_graph[thread] = wait_for# 第三步：检测循环等待return self._has_cycle(wait_graph)def _has_cycle(self, graph):"""检测图中是否存在循环"""visited = set()rec_stack = set()def dfs(node):if node in rec_stack:return Trueif node in visited:return Falsevisited.add(node)rec_stack.add(node)for neighbor in graph.get(node, set()):if dfs(neighbor):return Truerec_stack.remove(node)return Falsefor node in graph:if node not in visited:if dfs(node):return Truereturn Falsedef run_detector(self):"""定期运行死锁检测"""while self.running:time.sleep(self.interval)if self.has_deadlock():print(f"[DeadlockDetector] 检测到死锁! 当前锁图: {self.lock_graph}")# 实际应用中应触发恢复机制# self.recover_from_deadlock()def stop(self):self.running = Falseself.detector_thread.join()

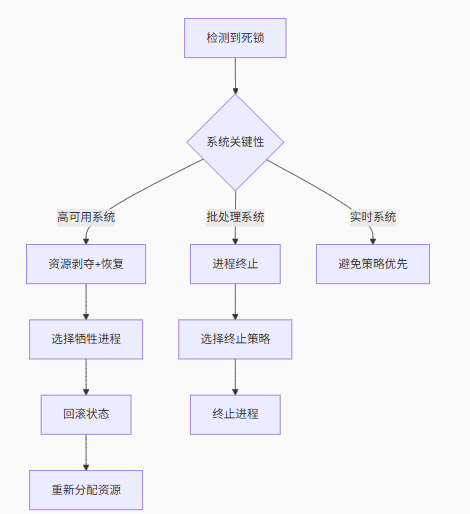

4.2 死锁恢复策略

4.2.1 进程终止策略

def recover_by_termination(deadlock_graph):"""通过终止进程恢复死锁"""# 策略1：终止所有死锁进程（最简单粗暴）# for process in deadlock_graph:#    process.terminate()# 策略2：按优先级终止processes = sorted(deadlock_graph.keys(), key=lambda p: p.priority)for process in processes:if deadlock_cycle_exists_after_termination(deadlock_graph, process):process.terminate()return process# 策略3：最小代价终止processes = sorted(deadlock_graph.keys(), key=lambda p: p.computation_cost)return processes[0].terminate()

4.2.2 资源剥夺策略

def recover_by_preemption(deadlock_graph):"""通过资源剥夺恢复死锁"""# 1. 选择牺牲进程victim = select_victim(deadlock_graph)# 2. 回滚进程状态victim.rollback_state()# 3. 剥夺资源for resource in victim.holding_resources:resource.preempt_from(victim)# 4. 将资源分配给等待进程for resource in victim.holding_resources:waiting_process = find_waiting_process(resource)if waiting_process:resource.assign_to(waiting_process)# 5. 重启牺牲进程victim.restart()

五、Python死锁防御实践

5.1 上下文管理器安全封装

class OrderedLock:"""支持有序获取的锁管理器"""def __init__(self, *locks):self.locks = locksself.acquired = []def __enter__(self):# 按锁的ID排序确保全局顺序ordered = sorted(self.locks, key=id)try:for lock in ordered:lock.acquire()self.acquired.append(lock)return selfexcept:# 获取失败时释放所有已获取的锁self.__exit__(None, None, None)raisedef __exit__(self, exc_type, exc_val, exc_tb):# 按获取的逆序释放锁for lock in reversed(self.acquired):lock.release()self.acquired = []# 使用示例
lock_x = threading.Lock()
lock_y = threading.Lock()def safe_operation():with OrderedLock(lock_x, lock_y):# 临界区操作print("安全执行操作")

5.2 带超时的锁获取

def acquire_with_timeout(lock, timeout=5, raise_on_timeout=True):"""带超时的锁获取"""start = time.time()while True:if lock.acquire(blocking=False):return Trueif time.time() - start > timeout:if raise_on_timeout:raise TimeoutError(f"获取锁超时")return Falsetime.sleep(0.1)  # 避免忙等待# 使用示例
lock = threading.Lock()def safe_thread():try:if acquire_with_timeout(lock, timeout=3):try:# 临界区操作print("操作执行中")time.sleep(5)finally:lock.release()except TimeoutError:print("获取锁超时，执行替代操作")

5.3 死锁防御框架

class DeadlockProtectedSystem:"""集成死锁防御的系统框架"""def __init__(self):self.locks = {}  # 资源锁注册表self.allocations = {}  # 资源分配状态self.detector = DeadlockDetector()self.lock_order = {}  # 资源顺序配置def register_resource(self, res_id, lock_instance, order):"""注册资源及其全局顺序"""self.locks[res_id] = lock_instanceself.lock_order[res_id] = orderdef acquire_resources(self, thread_id, *resources):"""按全局顺序获取资源"""# 1. 按全局顺序排序资源ordered = sorted(resources, key=lambda r: self.lock_order[r])acquired = []try:# 2. 按顺序获取资源for res in ordered:lock = self.locks[res]self.detector.register_acquire(thread_id, res)if not acquire_with_timeout(lock, timeout=5, raise_on_timeout=False):# 获取失败，回滚self._release_acquired(thread_id, acquired)return Falseacquired.append(res)self.allocations[res] = thread_idreturn Trueexcept Exception:self._release_acquired(thread_id, acquired)raisedef _release_acquired(self, thread_id, resources):"""释放已获取的资源"""for res in resources:lock = self.locks[res]lock.release()self.detector.register_release(thread_id, res)del self.allocations[res]def release_resources(self, thread_id, *resources):"""释放资源"""# 按任意顺序释放（释放不需要顺序）for res in resources:if res in self.allocations and self.allocations[res] == thread_id:lock = self.locks[res]lock.release()self.detector.register_release(thread_id, res)del self.allocations[res]

六、行业最佳实践

6.1 死锁防御编码规范

锁排序原则：始终按固定顺序获取锁
超时机制：所有锁操作设置合理超时
作用域最小化：锁的持有时间应尽可能短
避免嵌套锁：尽量减少锁的嵌套层级
资源分层：使用资源层次结构管理获取顺序

6.2 死锁分析工具链

工具类型	Python工具	功能
静态分析	Bandit, Pylint	检测潜在死锁模式
动态检测	DeadlockDetector	运行时死锁检测
可视化	Graphviz	生成资源分配图
压力测试	Locust, pytest	高并发场景测试
