docker compose搭建elk 8.6.2

news 来源：原创 2025/6/13 9:32:37

环境搭建

选用版本是比较新的版本 (ELK) 8.6.2 docker镜像为官方提供的

前置条件

安装好docker和 docker compose

1. compose环境文件夹

mkdir elk && cd elk

2. 创建compose文件

vim docker-compose.yaml

内容如下


version: '3.7'
services:elasticsearch:image: docker.elastic.co/elasticsearch/elasticsearch:8.6.2  # 官方镜像 container_name: elasticsearchenvironment:- discovery.type=single-node  # 单节点模式 - xpack.security.enabled=false  # 禁用安全认证（测试用）- bootstrap.memory_lock=true- ES_JAVA_OPTS=-Xms1g -Xmx1g  # JVM 内存分配volumes:- es_data:/usr/share/elasticsearch/data  # 数据持久化 ports:- "9200:9200"networks:- elkkibana:image: docker.elastic.co/kibana/kibana:8.6.2  # 版本需与 ES 一致 container_name: kibanaenvironment:- ELASTICSEARCH_HOSTS=http://elasticsearch:9200ports:- "5601:5601"networks:- elkdepends_on:- elasticsearchlogstash:image: docker.elastic.co/logstash/logstash:8.6.2container_name: logstashvolumes:- ./logstash/config/logstash.conf:/usr/share/logstash/pipeline/logstash.conf  # 挂载配置文件 environment:- LS_JAVA_OPTS=-Xms512m -Xmx512mports:7157- "5044:5044"  # Filebeat 输入端口networks:- elkdepends_on:- elasticsearchvolumes:es_data:  # Elasticsearch 数据卷driver: localnetworks:elk:  # 自定义网络确保服务互通driver: bridge

3. 创建logstash文件夹及配置

mkdir -p logstash/configecho 'input { beats { port => 5044 } } output { elasticsearch { hosts => ["http://elasticsearch:9200"] } }' > logstash/config/logstash.conf

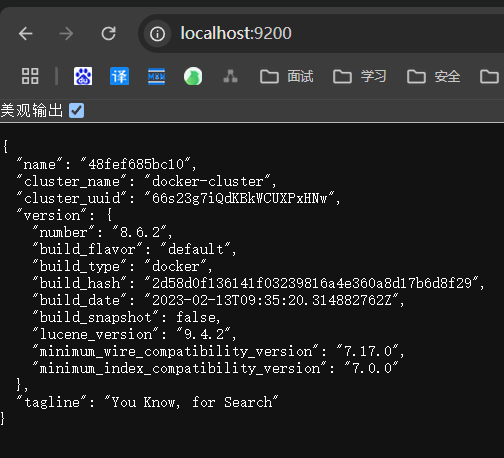

4. 启动

docker compose up -d

前置条件

安装好docker和 docker compose

1. compose环境文件夹

mkdir elk && cd elk

2. 创建compose文件

vim docker-compose.yaml

内容如下


version: '3.7'
services:elasticsearch:image: docker.elastic.co/elasticsearch/elasticsearch:8.6.2  # 官方镜像 container_name: elasticsearchenvironment:- discovery.type=single-node  # 单节点模式 - xpack.security.enabled=false  # 禁用安全认证（测试用）- bootstrap.memory_lock=true- ES_JAVA_OPTS=-Xms1g -Xmx1g  # JVM 内存分配volumes:- es_data:/usr/share/elasticsearch/data  # 数据持久化 ports:- "9200:9200"networks:- elkkibana:image: docker.elastic.co/kibana/kibana:8.6.2  # 版本需与 ES 一致 container_name: kibanaenvironment:- ELASTICSEARCH_HOSTS=http://elasticsearch:9200ports:- "5601:5601"networks:- elkdepends_on:- elasticsearchlogstash:image: docker.elastic.co/logstash/logstash:8.6.2container_name: logstashvolumes:- ./logstash/config/logstash.conf:/usr/share/logstash/pipeline/logstash.conf  # 挂载配置文件 environment:- LS_JAVA_OPTS=-Xms512m -Xmx512mports:7157- "5044:5044"  # Filebeat 输入端口networks:- elkdepends_on:- elasticsearchvolumes:es_data:  # Elasticsearch 数据卷driver: localnetworks:elk:  # 自定义网络确保服务互通driver: bridge

3. 创建logstash文件夹及配置

mkdir -p logstash/configecho 'input { beats { port => 5044 } } output { elasticsearch { hosts => ["http://elasticsearch:9200"] } }' > logstash/config/logstash.conf
