时序数据库系列（七）：性能监控实战指标收集

news 2025/11/11 7:17:47

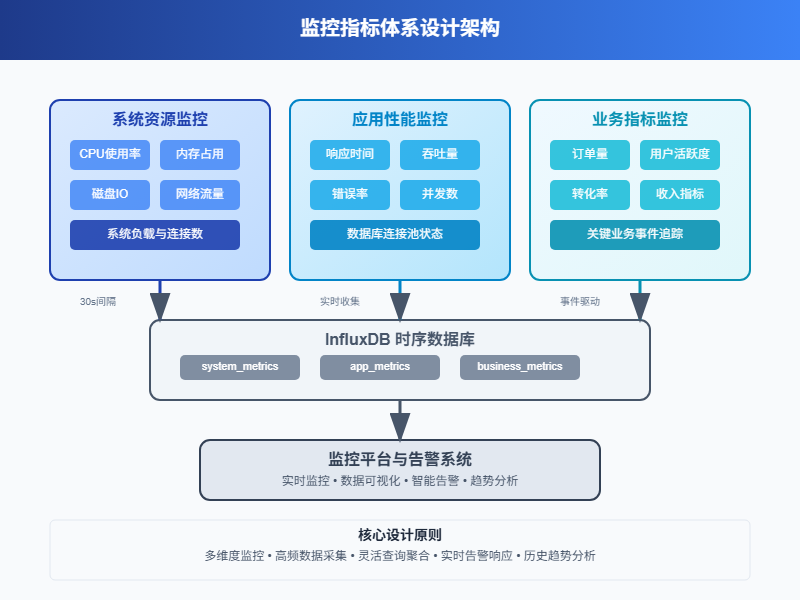

1 监控指标体系设计

在这里插入图片描述

性能监控说白了就是盯着系统的各种数据，看看哪里出问题了。就像医生给病人量体温、测血压一样，我们需要收集服务器的"生命体征"。

现代应用系统复杂得很，从硬件到软件，从网络到数据库，每个环节都可能出状况。建立完整的监控体系，就是要让这些潜在问题无处遁形。

1.1 核心监控维度

系统资源监控
CPU使用率、内存占用、磁盘IO、网络流量这些基础指标必须要有。这就像人的基本生命体征，出问题了第一时间就能发现。

应用性能监控
响应时间、吞吐量、错误率、并发数等。这些指标直接反映用户体验，比如接口响应慢了，用户就会抱怨。

业务指标监控
订单量、用户活跃度、转化率等业务相关的数据。技术指标正常不代表业务就没问题，有时候需要从业务角度看问题。

1.2 数据模型设计

在这里插入图片描述

在InfluxDB中，我们按照不同的监控对象来设计measurement：

# 系统资源
system_metrics,host=server01,metric_type=cpu value=85.2 1640995200000000000
system_metrics,host=server01,metric_type=memory value=4096 1640995200000000000# 应用性能
app_metrics,service=user-service,endpoint=/api/users response_time=120,error_count=0 1640995200000000000# 业务指标
business_metrics,product=mobile_app,region=beijing order_count=1250,revenue=89500 1640995200000000000

这样设计的好处是查询时可以灵活组合条件，比如查看某台服务器的所有指标，或者查看某个服务的性能趋势。

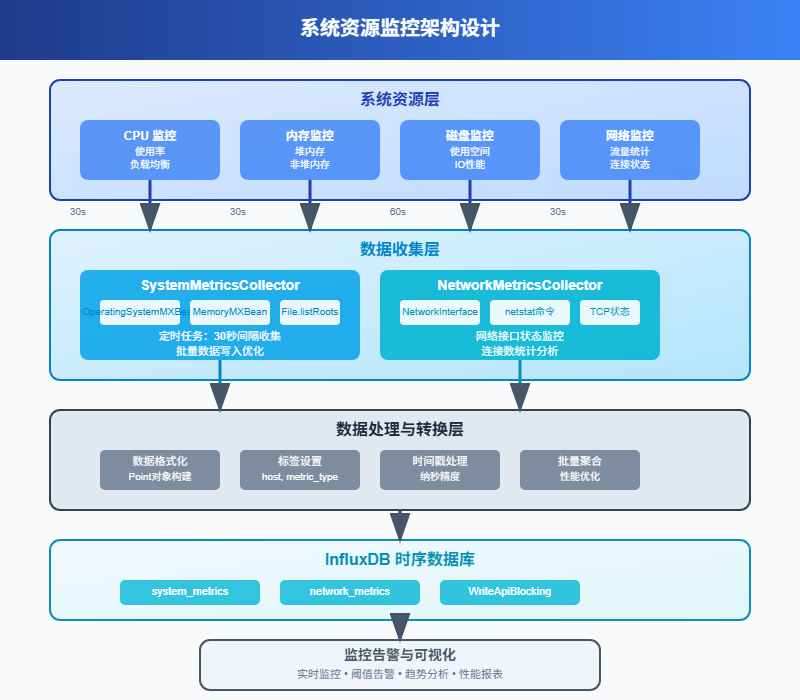

2 系统资源监控实现

在这里插入图片描述

2.1 服务器基础指标收集

系统监控最基础的就是CPU、内存、磁盘、网络这四大件。我们用Java来实现一个完整的监控数据收集器。

import com.influxdb.client.InfluxDBClient;
import com.influxdb.client.InfluxDBClientFactory;
import com.influxdb.client.WriteApiBlocking;
import com.influxdb.client.domain.WritePrecision;
import com.influxdb.client.write.Point;
import com.sun.management.OperatingSystemMXBean;import java.lang.management.ManagementFactory;
import java.lang.management.MemoryMXBean;
import java.lang.management.MemoryUsage;
import java.time.Instant;
import java.util.concurrent.Executors;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.TimeUnit;@Component
public class SystemMetricsCollector {private final InfluxDBClient influxDBClient;private final WriteApiBlocking writeApi;private final ScheduledExecutorService scheduler;private final String hostname;public SystemMetricsCollector() {this.influxDBClient = InfluxDBClientFactory.create("http://localhost:8086", "your-token".toCharArray(), "your-org", "monitoring");this.writeApi = influxDBClient.getWriteApiBlocking();this.scheduler = Executors.newScheduledThreadPool(2);this.hostname = getHostname();}public void startCollection() {// 每30秒收集一次系统指标scheduler.scheduleAtFixedRate(this::collectSystemMetrics, 0, 30, TimeUnit.SECONDS);// 每60秒收集一次磁盘指标scheduler.scheduleAtFixedRate(this::collectDiskMetrics, 0, 60, TimeUnit.SECONDS);}private void collectSystemMetrics() {try {OperatingSystemMXBean osBean = (OperatingSystemMXBean) ManagementFactory.getOperatingSystemMXBean();MemoryMXBean memoryBean = ManagementFactory.getMemoryMXBean();Instant timestamp = Instant.now();// CPU使用率double cpuUsage = osBean.getProcessCpuLoad() * 100;Point cpuPoint = Point.measurement("system_metrics").addTag("host", hostname).addTag("metric_type", "cpu").addField("usage_percent", cpuUsage).time(timestamp, WritePrecision.NS);// 内存使用情况MemoryUsage heapMemory = memoryBean.getHeapMemoryUsage();long usedMemory = heapMemory.getUsed();long maxMemory = heapMemory.getMax();double memoryUsage = (double) usedMemory / maxMemory * 100;Point memoryPoint = Point.measurement("system_metrics").addTag("host", hostname).addTag("metric_type", "memory").addField("used_bytes", usedMemory).addField("max_bytes", maxMemory).addField("usage_percent", memoryUsage).time(timestamp, WritePrecision.NS);// 系统负载double systemLoad = osBean.getSystemLoadAverage();Point loadPoint = Point.measurement("system_metrics").addTag("host", hostname).addTag("metric_type", "load").addField("load_average", systemLoad).time(timestamp, WritePrecision.NS);// 批量写入writeApi.writePoints(Arrays.asList(cpuPoint, memoryPoint, loadPoint));} catch (Exception e) {logger.error("收集系统指标失败", e);}}private void collectDiskMetrics() {try {File[] roots = File.listRoots();Instant timestamp = Instant.now();List<Point> diskPoints = new ArrayList<>();for (File root : roots) {long totalSpace = root.getTotalSpace();long freeSpace = root.getFreeSpace();long usedSpace = totalSpace - freeSpace;double usagePercent = (double) usedSpace / totalSpace * 100;Point diskPoint = Point.measurement("system_metrics").addTag("host", hostname).addTag("metric_type", "disk").addTag("mount_point", root.getAbsolutePath()).addField("total_bytes", totalSpace).addField("used_bytes", usedSpace).addField("free_bytes", freeSpace).addField("usage_percent", usagePercent).time(timestamp, WritePrecision.NS);diskPoints.add(diskPoint);}writeApi.writePoints(diskPoints);} catch (Exception e) {logger.error("收集磁盘指标失败", e);}}private String getHostname() {try {return InetAddress.getLocalHost().getHostName();} catch (Exception e) {return "unknown";}}
}

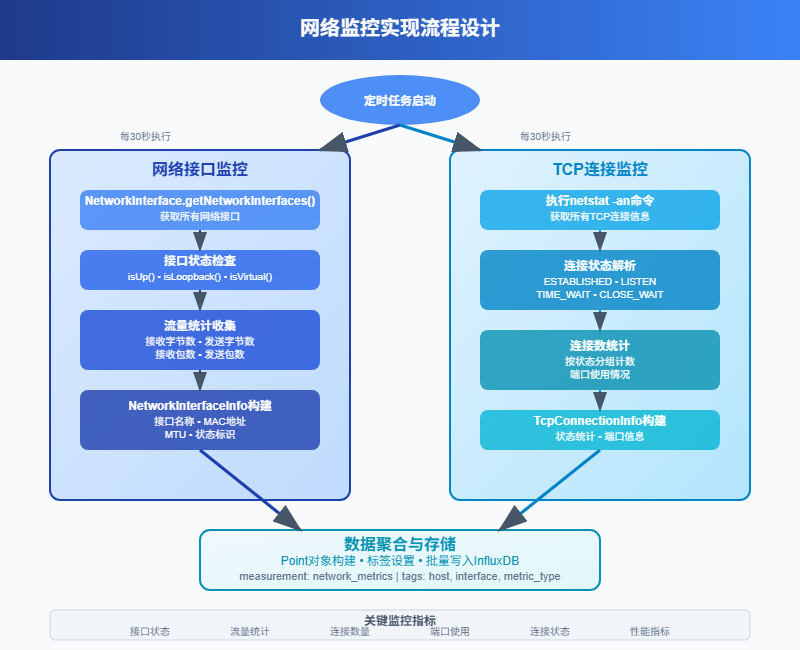

2.2 网络监控实现

在这里插入图片描述

网络监控比较复杂，需要监控网络接口的流量、连接数、错误包等指标。

@Component
public class NetworkMetricsCollector {private final InfluxDBClient influxDBClient;private final WriteApiBlocking writeApi;private final String hostname;public NetworkMetricsCollector(InfluxDBClient influxDBClient) {this.influxDBClient = influxDBClient;this.writeApi = influxDBClient.getWriteApiBlocking();this.hostname = getHostname();}@Scheduled(fixedRate = 30000) // 每30秒执行一次public void collectNetworkMetrics() {try {// 获取网络接口信息Enumeration<NetworkInterface> interfaces = NetworkInterface.getNetworkInterfaces();Instant timestamp = Instant.now();List<Point> networkPoints = new ArrayList<>();while (interfaces.hasMoreElements()) {NetworkInterface networkInterface = interfaces.nextElement();if (networkInterface.isLoopback() || !networkInterface.isUp()) {continue;}String interfaceName = networkInterface.getName();// 这里简化处理，实际项目中可能需要读取/proc/net/dev文件// 或者使用SNMP等方式获取更详细的网络统计信息Point networkPoint = Point.measurement("network_metrics").addTag("host", hostname).addTag("interface", interfaceName).addField("status", networkInterface.isUp() ? 1 : 0).addField("mtu", networkInterface.getMTU()).time(timestamp, WritePrecision.NS);networkPoints.add(networkPoint);}// 收集TCP连接数collectTcpConnections(timestamp, networkPoints);writeApi.writePoints(networkPoints);} catch (Exception e) {logger.error("收集网络指标失败", e);}}private void collectTcpConnections(Instant timestamp, List<Point> points) {try {// 在Linux系统中可以读取/proc/net/tcp文件// 这里提供一个简化的实现思路ProcessBuilder pb = new ProcessBuilder("netstat", "-an");Process process = pb.start();try (BufferedReader reader = new BufferedReader(new InputStreamReader(process.getInputStream()))) {Map<String, Integer> connectionStates = new HashMap<>();String line;while ((line = reader.readLine()) != null) {if (line.contains("tcp")) {String[] parts = line.trim().split("\\s+");if (parts.length >= 6) {String state = parts[5];connectionStates.merge(state, 1, Integer::sum);}}}// 写入连接状态统计for (Map.Entry<String, Integer> entry : connectionStates.entrySet()) {Point tcpPoint = Point.measurement("network_metrics").addTag("host", hostname).addTag("metric_type", "tcp_connections").addTag("state", entry.getKey()).addField("count", entry.getValue()).time(timestamp, WritePrecision.NS);points.add(tcpPoint);}}} catch (Exception e) {logger.warn("收集TCP连接信息失败", e);}}
}

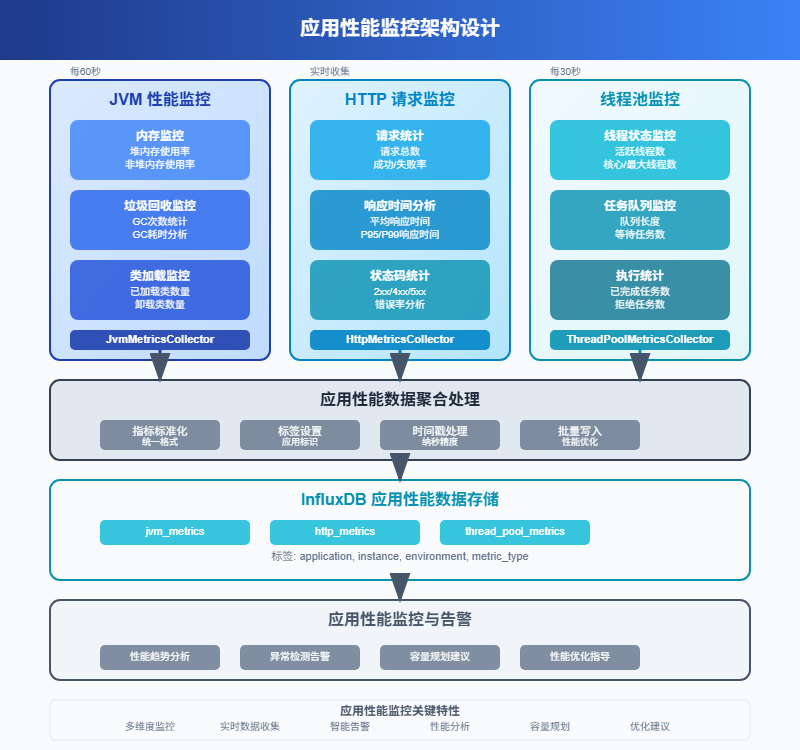

3 应用性能监控

在这里插入图片描述

3.1 HTTP接口性能监控

对于Web应用，接口的响应时间和错误率是最重要的指标。我们可以通过拦截器来实现自动化的性能数据收集。

@Component
public class PerformanceInterceptor implements HandlerInterceptor {private final InfluxDBClient influxDBClient;private final WriteApiBlocking writeApi;private final ThreadLocal<Long> startTimeHolder = new ThreadLocal<>();public PerformanceInterceptor(InfluxDBClient influxDBClient) {this.influxDBClient = influxDBClient;this.writeApi = influxDBClient.getWriteApiBlocking();}@Overridepublic boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {startTimeHolder.set(System.currentTimeMillis());return true;}@Overridepublic void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {try {Long startTime = startTimeHolder.get();if (startTime != null) {long responseTime = System.currentTimeMillis() - startTime;String method = request.getMethod();String uri = request.getRequestURI();int statusCode = response.getStatus();String userAgent = request.getHeader("User-Agent");String clientIp = getClientIp(request);Point performancePoint = Point.measurement("api_metrics").addTag("method", method).addTag("endpoint", uri).addTag("status_code", String.valueOf(statusCode)).addTag("client_ip", clientIp).addField("response_time_ms", responseTime).addField("success", statusCode < 400 ? 1 : 0).addField("error", statusCode >= 400 ? 1 : 0).time(Instant.now(), WritePrecision.NS);writeApi.writePoint(performancePoint);// 如果响应时间超过阈值，记录慢查询if (responseTime > 1000) {recordSlowRequest(method, uri, responseTime, statusCode);}}} catch (Exception e) {logger.error("记录性能指标失败", e);} finally {startTimeHolder.remove();}}private void recordSlowRequest(String method, String uri, long responseTime, int statusCode) {Point slowRequestPoint = Point.measurement("slow_requests").addTag("method", method).addTag("endpoint", uri).addTag("status_code", String.valueOf(statusCode)).addField("response_time_ms", responseTime).time(Instant.now(), WritePrecision.NS);writeApi.writePoint(slowRequestPoint);}private String getClientIp(HttpServletRequest request) {String xForwardedFor = request.getHeader("X-Forwarded-For");if (xForwardedFor != null && !xForwardedFor.isEmpty()) {return xForwardedFor.split(",")[0].trim();}String xRealIp = request.getHeader("X-Real-IP");if (xRealIp != null && !xRealIp.isEmpty()) {return xRealIp;}return request.getRemoteAddr();}
}

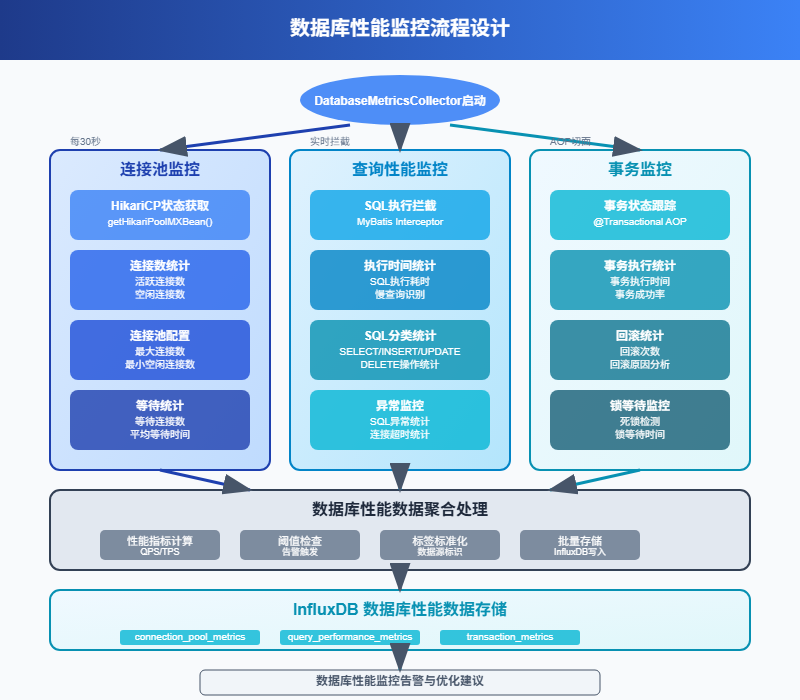

3.2 数据库性能监控

在这里插入图片描述

数据库是应用的核心，SQL执行时间、连接池状态、慢查询等都需要重点关注。

@Component
public class DatabaseMetricsCollector {private final InfluxDBClient influxDBClient;private final WriteApiBlocking writeApi;private final DataSource dataSource;public DatabaseMetricsCollector(InfluxDBClient influxDBClient, DataSource dataSource) {this.influxDBClient = influxDBClient;this.writeApi = influxDBClient.getWriteApiBlocking();this.dataSource = dataSource;}@Scheduled(fixedRate = 60000) // 每分钟收集一次public void collectDatabaseMetrics() {try {Instant timestamp = Instant.now();List<Point> dbPoints = new ArrayList<>();// 收集连接池信息if (dataSource instanceof HikariDataSource) {HikariDataSource hikariDS = (HikariDataSource) dataSource;HikariPoolMXBean poolBean = hikariDS.getHikariPoolMXBean();Point poolPoint = Point.measurement("database_metrics").addTag("metric_type", "connection_pool").addTag("pool_name", hikariDS.getPoolName()).addField("active_connections", poolBean.getActiveConnections()).addField("idle_connections", poolBean.getIdleConnections()).addField("total_connections", poolBean.getTotalConnections()).addField("threads_awaiting_connection", poolBean.getThreadsAwaitingConnection()).time(timestamp, WritePrecision.NS);dbPoints.add(poolPoint);}// 收集数据库状态信息collectDatabaseStatus(timestamp, dbPoints);writeApi.writePoints(dbPoints);} catch (Exception e) {logger.error("收集数据库指标失败", e);}}private void collectDatabaseStatus(Instant timestamp, List<Point> points) {try (Connection connection = dataSource.getConnection()) {// 查询数据库连接数String connectionCountSql = "SHOW STATUS LIKE 'Threads_connected'";try (PreparedStatement stmt = connection.prepareStatement(connectionCountSql);ResultSet rs = stmt.executeQuery()) {if (rs.next()) {int connectionCount = rs.getInt("Value");Point connectionPoint = Point.measurement("database_metrics").addTag("metric_type", "connections").addField("current_connections", connectionCount).time(timestamp, WritePrecision.NS);points.add(connectionPoint);}}// 查询慢查询数量String slowQuerySql = "SHOW STATUS LIKE 'Slow_queries'";try (PreparedStatement stmt = connection.prepareStatement(slowQuerySql);ResultSet rs = stmt.executeQuery()) {if (rs.next()) {int slowQueries = rs.getInt("Value");Point slowQueryPoint = Point.measurement("database_metrics").addTag("metric_type", "slow_queries").addField("slow_query_count", slowQueries).time(timestamp, WritePrecision.NS);points.add(slowQueryPoint);}}// 查询查询缓存命中率collectQueryCacheMetrics(connection, timestamp, points);} catch (Exception e) {logger.error("收集数据库状态失败", e);}}private void collectQueryCacheMetrics(Connection connection, Instant timestamp, List<Point> points) {try {String cacheSql = "SHOW STATUS WHERE Variable_name IN ('Qcache_hits', 'Qcache_inserts', 'Qcache_not_cached')";try (PreparedStatement stmt = connection.prepareStatement(cacheSql);ResultSet rs = stmt.executeQuery()) {Map<String, Long> cacheStats = new HashMap<>();while (rs.next()) {cacheStats.put(rs.getString("Variable_name"), rs.getLong("Value"));}long hits = cacheStats.getOrDefault("Qcache_hits", 0L);long inserts = cacheStats.getOrDefault("Qcache_inserts", 0L);long notCached = cacheStats.getOrDefault("Qcache_not_cached", 0L);long totalQueries = hits + inserts + notCached;double hitRate = totalQueries > 0 ? (double) hits / totalQueries * 100 : 0;Point cachePoint = Point.measurement("database_metrics").addTag("metric_type", "query_cache").addField("cache_hits", hits).addField("cache_inserts", inserts).addField("cache_not_cached", notCached).addField("hit_rate_percent", hitRate).time(timestamp, WritePrecision.NS);points.add(cachePoint);}} catch (Exception e) {logger.warn("收集查询缓存指标失败", e);}}
}

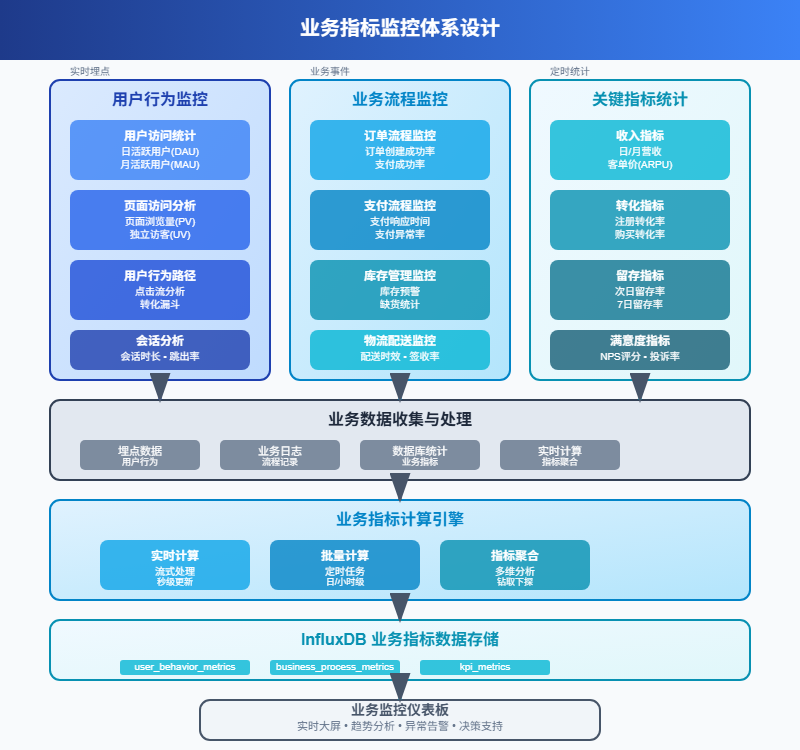

4 业务指标监控

在这里插入图片描述

4.1 业务事件追踪

除了技术指标，业务指标同样重要。用户注册、订单创建、支付成功等关键业务事件都需要监控。

@Service
public class BusinessMetricsService {private final InfluxDBClient influxDBClient;private final WriteApiBlocking writeApi;public BusinessMetricsService(InfluxDBClient influxDBClient) {this.influxDBClient = influxDBClient;this.writeApi = influxDBClient.getWriteApiBlocking();}public void recordUserRegistration(String userId, String source, String region) {Point registrationPoint = Point.measurement("business_events").addTag("event_type", "user_registration").addTag("source", source).addTag("region", region).addField("user_id", userId).addField("count", 1).time(Instant.now(), WritePrecision.NS);writeApi.writePoint(registrationPoint);}public void recordOrderCreated(String orderId, String userId, double amount, String productCategory) {Point orderPoint = Point.measurement("business_events").addTag("event_type", "order_created").addTag("product_category", productCategory).addField("order_id", orderId).addField("user_id", userId).addField("amount", amount).addField("count", 1).time(Instant.now(), WritePrecision.NS);writeApi.writePoint(orderPoint);}public void recordPaymentResult(String orderId, String paymentMethod, boolean success, double amount) {Point paymentPoint = Point.measurement("business_events").addTag("event_type", "payment").addTag("payment_method", paymentMethod).addTag("status", success ? "success" : "failed").addField("order_id", orderId).addField("amount", amount).addField("success", success ? 1 : 0).addField("count", 1).time(Instant.now(), WritePrecision.NS);writeApi.writePoint(paymentPoint);}@Scheduled(fixedRate = 300000) // 每5分钟统计一次public void calculateBusinessMetrics() {try {Instant now = Instant.now();Instant fiveMinutesAgo = now.minus(5, ChronoUnit.MINUTES);// 计算最近5分钟的业务指标calculateRecentMetrics(fiveMinutesAgo, now);} catch (Exception e) {logger.error("计算业务指标失败", e);}}private void calculateRecentMetrics(Instant start, Instant end) {try {QueryApi queryApi = influxDBClient.getQueryApi();// 查询最近5分钟的注册数String registrationQuery = String.format("from(bucket: \"monitoring\") " +"|> range(start: %s, stop: %s) " +"|> filter(fn: (r) => r._measurement == \"business_events\" and r.event_type == \"user_registration\") " +"|> count()",start.toString(), end.toString());List<FluxTable> registrationTables = queryApi.query(registrationQuery);int registrationCount = extractCountFromQuery(registrationTables);// 查询最近5分钟的订单金额String orderAmountQuery = String.format("from(bucket: \"monitoring\") " +"|> range(start: %s, stop: %s) " +"|> filter(fn: (r) => r._measurement == \"business_events\" and r.event_type == \"order_created\") " +"|> sum(column: \"amount\")",start.toString(), end.toString());List<FluxTable> orderTables = queryApi.query(orderAmountQuery);double totalOrderAmount = extractSumFromQuery(orderTables);// 记录汇总指标Point summaryPoint = Point.measurement("business_summary").addTag("time_window", "5min").addField("registration_count", registrationCount).addField("total_order_amount", totalOrderAmount).time(end, WritePrecision.NS);writeApi.writePoint(summaryPoint);} catch (Exception e) {logger.error("计算业务汇总指标失败", e);}}private int extractCountFromQuery(List<FluxTable> tables) {return tables.stream().flatMap(table -> table.getRecords().stream()).mapToInt(record -> ((Number) record.getValue()).intValue()).sum();}private double extractSumFromQuery(List<FluxTable> tables) {return tables.stream().flatMap(table -> table.getRecords().stream()).mapToDouble(record -> ((Number) record.getValue()).doubleValue()).sum();}
}

4.2 实时告警机制

监控数据收集了，还需要及时发现异常。我们可以实现一个简单的告警系统。

@Service
public class AlertService {private final InfluxDBClient influxDBClient;private final NotificationService notificationService;public AlertService(InfluxDBClient influxDBClient, NotificationService notificationService) {this.influxDBClient = influxDBClient;this.notificationService = notificationService;}@Scheduled(fixedRate = 60000) // 每分钟检查一次public void checkAlerts() {try {checkCpuUsage();checkMemoryUsage();checkResponseTime();checkErrorRate();} catch (Exception e) {logger.error("检查告警失败", e);}}private void checkCpuUsage() {try {QueryApi queryApi = influxDBClient.getQueryApi();String query = "from(bucket: \"monitoring\") " +"|> range(start: -5m) " +"|> filter(fn: (r) => r._measurement == \"system_metrics\" and r.metric_type == \"cpu\") " +"|> mean()";List<FluxTable> tables = queryApi.query(query);for (FluxTable table : tables) {for (FluxRecord record : table.getRecords()) {double cpuUsage = ((Number) record.getValue()).doubleValue();String host = (String) record.getValueByKey("host");if (cpuUsage > 80) {String message = String.format("服务器 %s CPU使用率过高: %.2f%%", host, cpuUsage);notificationService.sendAlert("CPU_HIGH", message, AlertLevel.WARNING);}if (cpuUsage > 95) {String message = String.format("服务器 %s CPU使用率严重过高: %.2f%%", host, cpuUsage);notificationService.sendAlert("CPU_CRITICAL", message, AlertLevel.CRITICAL);}}}} catch (Exception e) {logger.error("检查CPU使用率告警失败", e);}}private void checkResponseTime() {try {QueryApi queryApi = influxDBClient.getQueryApi();String query = "from(bucket: \"monitoring\") " +"|> range(start: -10m) " +"|> filter(fn: (r) => r._measurement == \"api_metrics\") " +"|> group(columns: [\"endpoint\"]) " +"|> mean(column: \"response_time_ms\")";List<FluxTable> tables = queryApi.query(query);for (FluxTable table : tables) {for (FluxRecord record : table.getRecords()) {double avgResponseTime = ((Number) record.getValue()).doubleValue();String endpoint = (String) record.getValueByKey("endpoint");if (avgResponseTime > 2000) {String message = String.format("接口 %s 平均响应时间过长: %.0fms", endpoint, avgResponseTime);notificationService.sendAlert("RESPONSE_TIME_HIGH", message, AlertLevel.WARNING);}}}} catch (Exception e) {logger.error("检查响应时间告警失败", e);}}private void checkErrorRate() {try {QueryApi queryApi = influxDBClient.getQueryApi();String query = "from(bucket: \"monitoring\") " +"|> range(start: -10m) " +"|> filter(fn: (r) => r._measurement == \"api_metrics\") " +"|> group(columns: [\"endpoint\"]) " +"|> aggregateWindow(every: 10m, fn: sum) " +"|> pivot(rowKey:[\"_time\"], columnKey: [\"_field\"], valueColumn: \"_value\") " +"|> map(fn: (r) => ({ r with error_rate: float(v: r.error) / float(v: r.success + r.error) * 100.0 }))";List<FluxTable> tables = queryApi.query(query);for (FluxTable table : tables) {for (FluxRecord record : table.getRecords()) {Object errorRateObj = record.getValueByKey("error_rate");if (errorRateObj != null) {double errorRate = ((Number) errorRateObj).doubleValue();String endpoint = (String) record.getValueByKey("endpoint");if (errorRate > 5) {String message = String.format("接口 %s 错误率过高: %.2f%%", endpoint, errorRate);notificationService.sendAlert("ERROR_RATE_HIGH", message, AlertLevel.WARNING);}}}}} catch (Exception e) {logger.error("检查错误率告警失败", e);}}
}enum AlertLevel {INFO, WARNING, CRITICAL
}@Service
public class NotificationService {public void sendAlert(String alertType, String message, AlertLevel level) {// 这里可以集成邮件、短信、钉钉、企业微信等通知方式logger.warn("告警通知 [{}] {}: {}", level, alertType, message);// 发送邮件通知sendEmailAlert(alertType, message, level);// 发送钉钉通知sendDingTalkAlert(alertType, message, level);}private void sendEmailAlert(String alertType, String message, AlertLevel level) {// 邮件发送逻辑}private void sendDingTalkAlert(String alertType, String message, AlertLevel level) {// 钉钉机器人通知逻辑}
}

5 性能优化与最佳实践

5.1 数据写入优化

监控数据量通常很大，写入性能很关键。批量写入、异步处理、数据压缩都是常用的优化手段。

@Configuration
public class InfluxDBOptimizedConfig {@Beanpublic InfluxDBClient influxDBClient() {return InfluxDBClientFactory.create("http://localhost:8086","your-token".toCharArray(),"your-org","monitoring");}@Beanpublic WriteApi writeApi(InfluxDBClient client) {WriteOptions options = WriteOptions.builder().batchSize(1000)  // 批量大小.flushInterval(5000)  // 刷新间隔5秒.bufferLimit(10000)  // 缓冲区大小.retryInterval(1000)  // 重试间隔.maxRetries(3)  // 最大重试次数.build();return client.makeWriteApi(options);}
}@Service
public class OptimizedMetricsCollector {private final WriteApi writeApi;private final BlockingQueue<Point> metricsQueue;private final ScheduledExecutorService scheduler;public OptimizedMetricsCollector(WriteApi writeApi) {this.writeApi = writeApi;this.metricsQueue = new LinkedBlockingQueue<>(50000);this.scheduler = Executors.newScheduledThreadPool(2);// 启动批量写入任务startBatchWriter();}public void recordMetric(Point point) {try {if (!metricsQueue.offer(point)) {logger.warn("指标队列已满，丢弃数据点");}} catch (Exception e) {logger.error("记录指标失败", e);}}private void startBatchWriter() {scheduler.scheduleAtFixedRate(() -> {try {List<Point> batch = new ArrayList<>();metricsQueue.drainTo(batch, 1000);if (!batch.isEmpty()) {writeApi.writePoints(batch);logger.debug("批量写入 {} 个数据点", batch.size());}} catch (Exception e) {logger.error("批量写入失败", e);}}, 0, 5, TimeUnit.SECONDS);}@PreDestroypublic void shutdown() {try {scheduler.shutdown();if (!scheduler.awaitTermination(10, TimeUnit.SECONDS)) {scheduler.shutdownNow();}// 写入剩余数据List<Point> remaining = new ArrayList<>();metricsQueue.drainTo(remaining);if (!remaining.isEmpty()) {writeApi.writePoints(remaining);}} catch (Exception e) {logger.error("关闭指标收集器失败", e);}}
}

5.2 查询性能优化

监控查询通常涉及大量数据，合理的索引设计和查询优化很重要。

@Service
public class OptimizedQueryService {private final InfluxDBClient influxDBClient;private final QueryApi queryApi;public OptimizedQueryService(InfluxDBClient influxDBClient) {this.influxDBClient = influxDBClient;this.queryApi = influxDBClient.getQueryApi();}// 优化的时间范围查询public List<MetricData> getMetricsInTimeRange(String measurement, String host, Instant start, Instant end) {// 使用参数化查询，避免字符串拼接String query = "from(bucket: \"monitoring\") " +"|> range(start: " + start + ", stop: " + end + ") " +"|> filter(fn: (r) => r._measurement == \"" + measurement + "\") " +"|> filter(fn: (r) => r.host == \"" + host + "\") " +"|> aggregateWindow(every: 1m, fn: mean, createEmpty: false)";List<FluxTable> tables = queryApi.query(query);return convertToMetricData(tables);}// 聚合查询优化public Map<String, Double> getAggregatedMetrics(String measurement, Duration timeWindow) {Instant end = Instant.now();Instant start = end.minus(timeWindow);String query = "from(bucket: \"monitoring\") " +"|> range(start: " + start + ", stop: " + end + ") " +"|> filter(fn: (r) => r._measurement == \"" + measurement + "\") " +"|> group(columns: [\"host\"]) " +"|> mean()";List<FluxTable> tables = queryApi.query(query);Map<String, Double> result = new HashMap<>();for (FluxTable table : tables) {for (FluxRecord record : table.getRecords()) {String host = (String) record.getValueByKey("host");Double value = ((Number) record.getValue()).doubleValue();result.put(host, value);}}return result;}// 分页查询大量数据public PagedResult<MetricData> getMetricsPaged(String measurement, int page, int size, Instant start, Instant end) {int offset = page * size;String query = "from(bucket: \"monitoring\") " +"|> range(start: " + start + ", stop: " + end + ") " +"|> filter(fn: (r) => r._measurement == \"" + measurement + "\") " +"|> sort(columns: [\"_time\"], desc: true) " +"|> limit(n: " + size + ", offset: " + offset + ")";List<FluxTable> tables = queryApi.query(query);List<MetricData> data = convertToMetricData(tables);// 获取总数（简化实现）long total = getTotalCount(measurement, start, end);return new PagedResult<>(data, page, size, total);}private List<MetricData> convertToMetricData(List<FluxTable> tables) {List<MetricData> result = new ArrayList<>();for (FluxTable table : tables) {for (FluxRecord record : table.getRecords()) {MetricData data = new MetricData();data.setTime(record.getTime());data.setMeasurement(record.getMeasurement());data.setValue(((Number) record.getValue()).doubleValue());data.setHost((String) record.getValueByKey("host"));result.add(data);}}return result;}private long getTotalCount(String measurement, Instant start, Instant end) {String countQuery = "from(bucket: \"monitoring\") " +"|> range(start: " + start + ", stop: " + end + ") " +"|> filter(fn: (r) => r._measurement == \"" + measurement + "\") " +"|> count()";List<FluxTable> tables = queryApi.query(countQuery);return tables.stream().flatMap(table -> table.getRecords().stream()).mapToLong(record -> ((Number) record.getValue()).longValue()).sum();}
}class MetricData {private Instant time;private String measurement;private Double value;private String host;// getters and setters
}class PagedResult<T> {private List<T> data;private int page;private int size;private long total;private int totalPages;public PagedResult(List<T> data, int page, int size, long total) {this.data = data;this.page = page;this.size = size;this.total = total;this.totalPages = (int) Math.ceil((double) total / size);}// getters and setters
}
