时序数据库系列（八）：InfluxDB配合Grafana可视化

InfluxDB配合Grafana：打造专业监控可视化平台

1 可视化监控的重要性

数据收集了一大堆，如果不能直观地展示出来，那就像有了金矿却不知道怎么挖。Grafana就是那把挖金子的铲子，能把InfluxDB里的时序数据变成漂亮的图表和仪表盘。

监控数据可视化不只是为了好看，更重要的是能让我们快速发现问题、分析趋势、做出决策。一张图胜过千行日志，这话一点不假。

1.1 Grafana的核心优势

丰富的图表类型
从简单的折线图到复杂的热力图，Grafana支持几十种可视化方式。不管是展示CPU使用率的时间趋势，还是显示服务器状态的仪表盘，都能找到合适的图表类型。

强大的查询编辑器
Grafana内置了InfluxQL和Flux查询编辑器，支持语法高亮、自动补全、查询历史等功能。即使不熟悉查询语言，也能通过可视化界面构建复杂查询。

灵活的告警机制
可以基于查询结果设置告警规则，支持邮件、钉钉、Slack等多种通知方式。当CPU使用率超过阈值时，立即发送告警通知。

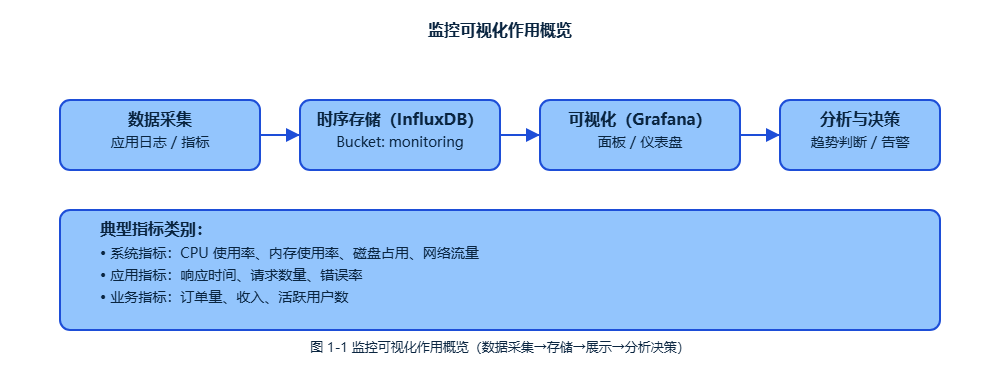

1.2 架构设计思路

我们的监控可视化架构包含三个核心组件：

应用程序 → InfluxDB → Grafana → 用户界面↓         ↓         ↓数据采集   数据存储   数据展示

这种架构的好处是职责分离，每个组件专注做好自己的事情。应用程序负责收集指标，InfluxDB负责高效存储，Grafana负责美观展示。

2 环境搭建与配置

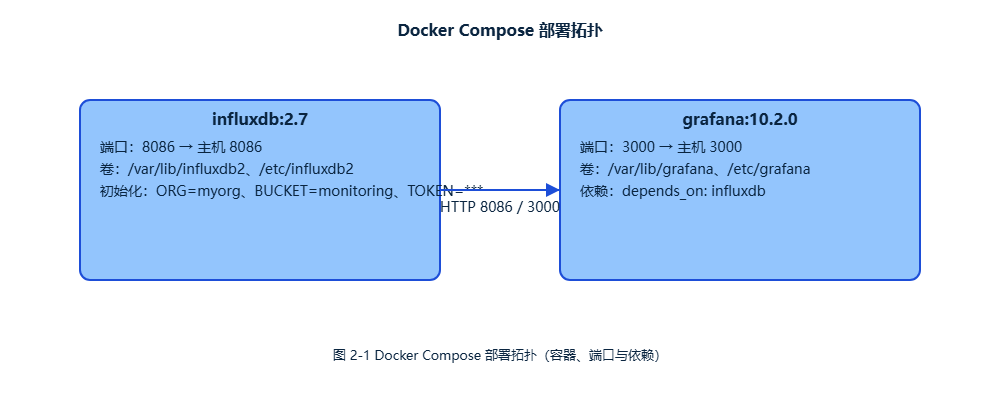

图 2-1 Docker Compose 部署拓扑（容器、端口与依赖关系）

2.1 Docker快速部署

最简单的方式是用Docker Compose一键部署整套环境。

version: '3.8'services:influxdb:image: influxdb:2.7container_name: influxdbports:- "8086:8086"environment:- DOCKER_INFLUXDB_INIT_MODE=setup- DOCKER_INFLUXDB_INIT_USERNAME=admin- DOCKER_INFLUXDB_INIT_PASSWORD=password123- DOCKER_INFLUXDB_INIT_ORG=myorg- DOCKER_INFLUXDB_INIT_BUCKET=monitoring- DOCKER_INFLUXDB_INIT_ADMIN_TOKEN=my-super-secret-auth-tokenvolumes:- influxdb-data:/var/lib/influxdb2- influxdb-config:/etc/influxdb2grafana:image: grafana/grafana:10.2.0container_name: grafanaports:- "3000:3000"environment:- GF_SECURITY_ADMIN_PASSWORD=admin123- GF_INSTALL_PLUGINS=grafana-clock-panel,grafana-simple-json-datasourcevolumes:- grafana-data:/var/lib/grafana- grafana-config:/etc/grafanadepends_on:- influxdbvolumes:influxdb-data:influxdb-config:grafana-data:grafana-config:

启动命令很简单：

docker-compose up -d

等容器启动完成后，访问 http://localhost:3000 就能看到Grafana登录界面，用户名admin，密码admin123。

2.2 数据源配置

在Grafana中添加InfluxDB数据源是第一步。进入Configuration → Data Sources → Add data source，选择InfluxDB。

InfluxDB 2.x配置参数：

• URL: http://influxdb:8086
• Organization: myorg
• Token: my-super-secret-auth-token
• Default Bucket: monitoring

配置完成后点击"Save & Test"，看到绿色的"Data source is working"就说明连接成功了。

3 Java应用集成Grafana

3.1 监控数据生产者

首先我们需要一个Java应用来产生监控数据。这里创建一个完整的监控数据生产者。

import com.influxdb.client.InfluxDBClient;
import com.influxdb.client.InfluxDBClientFactory;
import com.influxdb.client.WriteApiBlocking;
import com.influxdb.client.domain.WritePrecision;
import com.influxdb.client.write.Point;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;import javax.annotation.PostConstruct;
import javax.annotation.PreDestroy;
import java.lang.management.ManagementFactory;
import java.lang.management.MemoryMXBean;
import java.lang.management.OperatingSystemMXBean;
import java.time.Instant;
import java.util.Random;
import java.util.concurrent.ThreadLocalRandom;@SpringBootApplication
@EnableScheduling
public class MonitoringApplication {public static void main(String[] args) {SpringApplication.run(MonitoringApplication.class, args);}
}@Component
public class MetricsProducer {private InfluxDBClient influxDBClient;private WriteApiBlocking writeApi;private final Random random = new Random();private final String hostname = "demo-server";@PostConstructpublic void init() {this.influxDBClient = InfluxDBClientFactory.create("http://localhost:8086","my-super-secret-auth-token".toCharArray(),"myorg","monitoring");this.writeApi = influxDBClient.getWriteApiBlocking();}@Scheduled(fixedRate = 5000) // 每5秒执行一次public void collectSystemMetrics() {try {Instant timestamp = Instant.now();// 收集真实的系统指标OperatingSystemMXBean osBean = ManagementFactory.getOperatingSystemMXBean();MemoryMXBean memoryBean = ManagementFactory.getMemoryMXBean();// CPU使用率（模拟数据，因为Java获取CPU使用率比较复杂）double cpuUsage = 20 + random.nextGaussian() * 10;cpuUsage = Math.max(0, Math.min(100, cpuUsage));Point cpuPoint = Point.measurement("system_metrics").addTag("host", hostname).addTag("metric_type", "cpu").addField("usage_percent", cpuUsage).time(timestamp, WritePrecision.NS);// 内存使用率long usedMemory = memoryBean.getHeapMemoryUsage().getUsed();long maxMemory = memoryBean.getHeapMemoryUsage().getMax();double memoryUsage = (double) usedMemory / maxMemory * 100;Point memoryPoint = Point.measurement("system_metrics").addTag("host", hostname).addTag("metric_type", "memory").addField("used_bytes", usedMemory).addField("max_bytes", maxMemory).addField("usage_percent", memoryUsage).time(timestamp, WritePrecision.NS);// 磁盘使用率（模拟数据）double diskUsage = 45 + random.nextGaussian() * 5;diskUsage = Math.max(0, Math.min(100, diskUsage));Point diskPoint = Point.measurement("system_metrics").addTag("host", hostname).addTag("metric_type", "disk").addTag("mount_point", "/").addField("usage_percent", diskUsage).time(timestamp, WritePrecision.NS);// 网络流量（模拟数据）long networkIn = ThreadLocalRandom.current().nextLong(1000000, 10000000);long networkOut = ThreadLocalRandom.current().nextLong(500000, 5000000);Point networkPoint = Point.measurement("network_metrics").addTag("host", hostname).addTag("interface", "eth0").addField("bytes_in", networkIn).addField("bytes_out", networkOut).time(timestamp, WritePrecision.NS);// 批量写入writeApi.writePoints(Arrays.asList(cpuPoint, memoryPoint, diskPoint, networkPoint));} catch (Exception e) {System.err.println("收集系统指标失败: " + e.getMessage());}}@Scheduled(fixedRate = 10000) // 每10秒执行一次public void collectApplicationMetrics() {try {Instant timestamp = Instant.now();// 模拟应用性能指标double responseTime = 100 + random.nextGaussian() * 50;responseTime = Math.max(10, responseTime);int requestCount = ThreadLocalRandom.current().nextInt(50, 200);int errorCount = ThreadLocalRandom.current().nextInt(0, 5);double errorRate = (double) errorCount / requestCount * 100;Point appPoint = Point.measurement("application_metrics").addTag("service", "user-service").addTag("endpoint", "/api/users").addField("response_time_ms", responseTime).addField("request_count", requestCount).addField("error_count", errorCount).addField("error_rate_percent", errorRate).time(timestamp, WritePrecision.NS);// 数据库连接池指标int activeConnections = ThreadLocalRandom.current().nextInt(5, 20);int idleConnections = ThreadLocalRandom.current().nextInt(10, 30);int totalConnections = activeConnections + idleConnections;Point dbPoint = Point.measurement("database_metrics").addTag("pool_name", "hikari-pool").addField("active_connections", activeConnections).addField("idle_connections", idleConnections).addField("total_connections", totalConnections).time(timestamp, WritePrecision.NS);writeApi.writePoints(Arrays.asList(appPoint, dbPoint));} catch (Exception e) {System.err.println("收集应用指标失败: " + e.getMessage());}}@Scheduled(fixedRate = 30000) // 每30秒执行一次public void collectBusinessMetrics() {try {Instant timestamp = Instant.now();// 模拟业务指标int userRegistrations = ThreadLocalRandom.current().nextInt(0, 10);int orderCount = ThreadLocalRandom.current().nextInt(20, 100);double revenue = ThreadLocalRandom.current().nextDouble(1000, 5000);int activeUsers = ThreadLocalRandom.current().nextInt(500, 2000);Point businessPoint = Point.measurement("business_metrics").addTag("region", "beijing").addTag("product", "mobile_app").addField("user_registrations", userRegistrations).addField("order_count", orderCount).addField("revenue", revenue).addField("active_users", activeUsers).time(timestamp, WritePrecision.NS);writeApi.writePoint(businessPoint);} catch (Exception e) {System.err.println("收集业务指标失败: " + e.getMessage());}}@PreDestroypublic void cleanup() {if (influxDBClient != null) {influxDBClient.close();}}
}

3.2 Grafana API集成

有时候我们需要通过程序来管理Grafana的仪表盘、数据源等。Grafana提供了完整的REST API。

import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.http.*;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestTemplate;import java.util.HashMap;
import java.util.Map;@Service
public class GrafanaApiService {private final RestTemplate restTemplate;private final ObjectMapper objectMapper;private final String grafanaUrl = "http://localhost:3000";private final String apiKey = "your-grafana-api-key"; // 需要在Grafana中生成public GrafanaApiService() {this.restTemplate = new RestTemplate();this.objectMapper = new ObjectMapper();}private HttpHeaders createHeaders() {HttpHeaders headers = new HttpHeaders();headers.setContentType(MediaType.APPLICATION_JSON);headers.setBearerAuth(apiKey);return headers;}// 创建数据源public String createDataSource(String name, String url, String token, String org, String bucket) {try {Map<String, Object> dataSource = new HashMap<>();dataSource.put("name", name);dataSource.put("type", "influxdb");dataSource.put("url", url);dataSource.put("access", "proxy");dataSource.put("isDefault", false);Map<String, Object> jsonData = new HashMap<>();jsonData.put("version", "Flux");jsonData.put("organization", org);jsonData.put("defaultBucket", bucket);jsonData.put("httpMode", "POST");dataSource.put("jsonData", jsonData);Map<String, Object> secureJsonData = new HashMap<>();secureJsonData.put("token", token);dataSource.put("secureJsonData", secureJsonData);HttpEntity<Map<String, Object>> request = new HttpEntity<>(dataSource, createHeaders());ResponseEntity<String> response = restTemplate.postForEntity(grafanaUrl + "/api/datasources", request, String.class);return response.getBody();} catch (Exception e) {throw new RuntimeException("创建数据源失败", e);}}// 创建仪表盘public String createDashboard(String title, String description) {try {Map<String, Object> dashboard = createSystemMonitoringDashboard(title, description);Map<String, Object> request = new HashMap<>();request.put("dashboard", dashboard);request.put("overwrite", true);request.put("message", "Created by Java API");HttpEntity<Map<String, Object>> httpRequest = new HttpEntity<>(request, createHeaders());ResponseEntity<String> response = restTemplate.postForEntity(grafanaUrl + "/api/dashboards/db", httpRequest, String.class);return response.getBody();} catch (Exception e) {throw new RuntimeException("创建仪表盘失败", e);}}private Map<String, Object> createSystemMonitoringDashboard(String title, String description) {Map<String, Object> dashboard = new HashMap<>();dashboard.put("title", title);dashboard.put("description", description);dashboard.put("tags", new String[]{"monitoring", "system"});dashboard.put("timezone", "browser");dashboard.put("refresh", "30s");// 时间范围设置Map<String, Object> time = new HashMap<>();time.put("from", "now-1h");time.put("to", "now");dashboard.put("time", time);// 创建面板dashboard.put("panels", createPanels());return dashboard;}private Object[] createPanels() {return new Object[] {createCpuPanel(),createMemoryPanel(),createDiskPanel(),createNetworkPanel(),createApplicationPanel()};}private Map<String, Object> createCpuPanel() {Map<String, Object> panel = new HashMap<>();panel.put("id", 1);panel.put("title", "CPU使用率");panel.put("type", "timeseries");panel.put("gridPos", Map.of("h", 8, "w", 12, "x", 0, "y", 0));// 查询配置Map<String, Object> target = new HashMap<>();target.put("query", "from(bucket: \"monitoring\") " +"|> range(start: v.timeRangeStart, stop: v.timeRangeStop) " +"|> filter(fn: (r) => r._measurement == \"system_metrics\") " +"|> filter(fn: (r) => r.metric_type == \"cpu\") " +"|> filter(fn: (r) => r._field == \"usage_percent\")");target.put("refId", "A");panel.put("targets", new Object[]{target});// 图表选项Map<String, Object> fieldConfig = new HashMap<>();Map<String, Object> defaults = new HashMap<>();defaults.put("unit", "percent");defaults.put("min", 0);defaults.put("max", 100);fieldConfig.put("defaults", defaults);panel.put("fieldConfig", fieldConfig);return panel;}private Map<String, Object> createMemoryPanel() {Map<String, Object> panel = new HashMap<>();panel.put("id", 2);panel.put("title", "内存使用率");panel.put("type", "timeseries");panel.put("gridPos", Map.of("h", 8, "w", 12, "x", 12, "y", 0));Map<String, Object> target = new HashMap<>();target.put("query", "from(bucket: \"monitoring\") " +"|> range(start: v.timeRangeStart, stop: v.timeRangeStop) " +"|> filter(fn: (r) => r._measurement == \"system_metrics\") " +"|> filter(fn: (r) => r.metric_type == \"memory\") " +"|> filter(fn: (r) => r._field == \"usage_percent\")");target.put("refId", "A");panel.put("targets", new Object[]{target});Map<String, Object> fieldConfig = new HashMap<>();Map<String, Object> defaults = new HashMap<>();defaults.put("unit", "percent");defaults.put("min", 0);defaults.put("max", 100);fieldConfig.put("defaults", defaults);panel.put("fieldConfig", fieldConfig);return panel;}private Map<String, Object> createDiskPanel() {Map<String, Object> panel = new HashMap<>();panel.put("id", 3);panel.put("title", "磁盘使用率");panel.put("type", "gauge");panel.put("gridPos", Map.of("h", 8, "w", 8, "x", 0, "y", 8));Map<String, Object> target = new HashMap<>();target.put("query", "from(bucket: \"monitoring\") " +"|> range(start: v.timeRangeStart, stop: v.timeRangeStop) " +"|> filter(fn: (r) => r._measurement == \"system_metrics\") " +"|> filter(fn: (r) => r.metric_type == \"disk\") " +"|> filter(fn: (r) => r._field == \"usage_percent\") " +"|> last()");target.put("refId", "A");panel.put("targets", new Object[]{target});Map<String, Object> fieldConfig = new HashMap<>();Map<String, Object> defaults = new HashMap<>();defaults.put("unit", "percent");defaults.put("min", 0);defaults.put("max", 100);// 阈值设置Map<String, Object> thresholds = new HashMap<>();thresholds.put("mode", "absolute");thresholds.put("steps", new Object[]{Map.of("color", "green", "value", 0),Map.of("color", "yellow", "value", 70),Map.of("color", "red", "value", 90)});defaults.put("thresholds", thresholds);fieldConfig.put("defaults", defaults);panel.put("fieldConfig", fieldConfig);return panel;}private Map<String, Object> createNetworkPanel() {Map<String, Object> panel = new HashMap<>();panel.put("id", 4);panel.put("title", "网络流量");panel.put("type", "timeseries");panel.put("gridPos", Map.of("h", 8, "w", 8, "x", 8, "y", 8));// 入站流量查询Map<String, Object> targetIn = new HashMap<>();targetIn.put("query", "from(bucket: \"monitoring\") " +"|> range(start: v.timeRangeStart, stop: v.timeRangeStop) " +"|> filter(fn: (r) => r._measurement == \"network_metrics\") " +"|> filter(fn: (r) => r._field == \"bytes_in\") " +"|> derivative(unit: 1s, nonNegative: true)");targetIn.put("refId", "A");targetIn.put("alias", "入站流量");// 出站流量查询Map<String, Object> targetOut = new HashMap<>();targetOut.put("query", "from(bucket: \"monitoring\") " +"|> range(start: v.timeRangeStart, stop: v.timeRangeStop) " +"|> filter(fn: (r) => r._measurement == \"network_metrics\") " +"|> filter(fn: (r) => r._field == \"bytes_out\") " +"|> derivative(unit: 1s, nonNegative: true)");targetOut.put("refId", "B");targetOut.put("alias", "出站流量");panel.put("targets", new Object[]{targetIn, targetOut});Map<String, Object> fieldConfig = new HashMap<>();Map<String, Object> defaults = new HashMap<>();defaults.put("unit", "Bps");fieldConfig.put("defaults", defaults);panel.put("fieldConfig", fieldConfig);return panel;}private Map<String, Object> createApplicationPanel() {Map<String, Object> panel = new HashMap<>();panel.put("id", 5);panel.put("title", "应用响应时间");panel.put("type", "stat");panel.put("gridPos", Map.of("h", 8, "w", 8, "x", 16, "y", 8));Map<String, Object> target = new HashMap<>();target.put("query", "from(bucket: \"monitoring\") " +"|> range(start: v.timeRangeStart, stop: v.timeRangeStop) " +"|> filter(fn: (r) => r._measurement == \"application_metrics\") " +"|> filter(fn: (r) => r._field == \"response_time_ms\") " +"|> mean()");target.put("refId", "A");panel.put("targets", new Object[]{target});Map<String, Object> fieldConfig = new HashMap<>();Map<String, Object> defaults = new HashMap<>();defaults.put("unit", "ms");defaults.put("displayName", "平均响应时间");fieldConfig.put("defaults", defaults);panel.put("fieldConfig", fieldConfig);return panel;}// 获取仪表盘列表public String getDashboards() {try {HttpEntity<String> request = new HttpEntity<>(createHeaders());ResponseEntity<String> response = restTemplate.exchange(grafanaUrl + "/api/search?type=dash-db", HttpMethod.GET, request, String.class);return response.getBody();} catch (Exception e) {throw new RuntimeException("获取仪表盘列表失败", e);}}// 删除仪表盘public String deleteDashboard(String uid) {try {HttpEntity<String> request = new HttpEntity<>(createHeaders());ResponseEntity<String> response = restTemplate.exchange(grafanaUrl + "/api/dashboards/uid/" + uid, HttpMethod.DELETE, request, String.class);return response.getBody();} catch (Exception e) {throw new RuntimeException("删除仪表盘失败", e);}}
}

3.3 自动化仪表盘管理

我们可以创建一个管理服务，自动化地创建和更新Grafana仪表盘。

@Service
public class DashboardManagementService {private final GrafanaApiService grafanaApiService;private final ObjectMapper objectMapper;public DashboardManagementService(GrafanaApiService grafanaApiService) {this.grafanaApiService = grafanaApiService;this.objectMapper = new ObjectMapper();}@PostConstructpublic void initializeDashboards() {try {// 创建系统监控仪表盘createSystemMonitoringDashboard();// 创建应用性能仪表盘createApplicationPerformanceDashboard();// 创建业务指标仪表盘createBusinessMetricsDashboard();} catch (Exception e) {System.err.println("初始化仪表盘失败: " + e.getMessage());}}private void createSystemMonitoringDashboard() {try {String result = grafanaApiService.createDashboard("系统监控总览", "服务器系统资源监控，包括CPU、内存、磁盘、网络等指标");JsonNode response = objectMapper.readTree(result);if (response.has("uid")) {System.out.println("系统监控仪表盘创建成功，UID: " + response.get("uid").asText());}} catch (Exception e) {System.err.println("创建系统监控仪表盘失败: " + e.getMessage());}}private void createApplicationPerformanceDashboard() {// 这里可以创建专门的应用性能监控仪表盘// 包含响应时间、吞吐量、错误率等指标}private void createBusinessMetricsDashboard() {// 这里可以创建业务指标监控仪表盘// 包含用户注册、订单量、收入等业务相关指标}// 定期更新仪表盘配置@Scheduled(cron = "0 0 2 * * ?") // 每天凌晨2点执行public void updateDashboards() {try {// 获取现有仪表盘列表String dashboardsJson = grafanaApiService.getDashboards();JsonNode dashboards = objectMapper.readTree(dashboardsJson);for (JsonNode dashboard : dashboards) {String title = dashboard.get("title").asText();String uid = dashboard.get("uid").asText();// 根据标题判断是否需要更新if (title.contains("系统监控")) {updateSystemMonitoringDashboard(uid);}}} catch (Exception e) {System.err.println("更新仪表盘失败: " + e.getMessage());}}private void updateSystemMonitoringDashboard(String uid) {// 这里可以实现仪表盘的更新逻辑// 比如添加新的面板、修改查询语句等}
}

4 高级可视化技巧

4.1 动态仪表盘变量

Grafana支持变量功能，可以让用户动态选择要查看的服务器、时间范围等。这样一个仪表盘就能适应不同的查看需求。

@Service
public class DynamicDashboardService {public Map<String, Object> createDashboardWithVariables() {Map<String, Object> dashboard = new HashMap<>();dashboard.put("title", "动态系统监控");// 创建变量Object[] templating = createTemplatingVariables();dashboard.put("templating", Map.of("list", templating));// 创建使用变量的面板dashboard.put("panels", createDynamicPanels());return dashboard;}private Object[] createTemplatingVariables() {return new Object[] {createHostVariable(),createMetricTypeVariable(),createTimeRangeVariable()};}private Map<String, Object> createHostVariable() {Map<String, Object> variable = new HashMap<>();variable.put("name", "host");variable.put("type", "query");variable.put("label", "服务器");variable.put("multi", true);variable.put("includeAll", true);// 查询所有主机名Map<String, Object> query = new HashMap<>();query.put("query", "from(bucket: \"monitoring\") " +"|> range(start: -24h) " +"|> filter(fn: (r) => r._measurement == \"system_metrics\") " +"|> keep(columns: [\"host\"]) " +"|> distinct(column: \"host\")");query.put("refId", "hosts");variable.put("query", query);variable.put("refresh", 1); // 每次打开仪表盘时刷新return variable;}private Map<String, Object> createMetricTypeVariable() {Map<String, Object> variable = new HashMap<>();variable.put("name", "metric_type");variable.put("type", "custom");variable.put("label", "指标类型");variable.put("multi", false);// 自定义选项variable.put("options", new Object[] {Map.of("text", "CPU", "value", "cpu"),Map.of("text", "内存", "value", "memory"),Map.of("text", "磁盘", "value", "disk")});variable.put("current", Map.of("text", "CPU", "value", "cpu"));return variable;}private Map<String, Object> createTimeRangeVariable() {Map<String, Object> variable = new HashMap<>();variable.put("name", "time_range");variable.put("type", "interval");variable.put("label", "时间间隔");variable.put("options", new Object[] {Map.of("text", "1分钟", "value", "1m"),Map.of("text", "5分钟", "value", "5m"),Map.of("text", "15分钟", "value", "15m"),Map.of("text", "1小时", "value", "1h")});variable.put("current", Map.of("text", "5分钟", "value", "5m"));return variable;}private Object[] createDynamicPanels() {return new Object[] {createDynamicMetricPanel()};}private Map<String, Object> createDynamicMetricPanel() {Map<String, Object> panel = new HashMap<>();panel.put("id", 1);panel.put("title", "动态指标监控 - $metric_type");panel.put("type", "timeseries");panel.put("gridPos", Map.of("h", 8, "w", 24, "x", 0, "y", 0));// 使用变量的查询Map<String, Object> target = new HashMap<>();target.put("query", "from(bucket: \"monitoring\") " +"|> range(start: v.timeRangeStart, stop: v.timeRangeStop) " +"|> filter(fn: (r) => r._measurement == \"system_metrics\") " +"|> filter(fn: (r) => r.metric_type == \"$metric_type\") " +"|> filter(fn: (r) => r.host =~ /^$host$/) " +"|> filter(fn: (r) => r._field == \"usage_percent\") " +"|> aggregateWindow(every: $time_range, fn: mean, createEmpty: false)");target.put("refId", "A");panel.put("targets", new Object[]{target});return panel;}
}

4.2 告警规则配置

Grafana的告警功能可以基于查询结果触发通知。我们可以通过API来配置告警规则。

@Service
public class AlertRuleService {private final GrafanaApiService grafanaApiService;public AlertRuleService(GrafanaApiService grafanaApiService) {this.grafanaApiService = grafanaApiService;}public void createCpuAlertRule() {Map<String, Object> alertRule = new HashMap<>();alertRule.put("uid", "cpu-high-alert");alertRule.put("title", "CPU使用率过高告警");alertRule.put("condition", "A");alertRule.put("data", createCpuAlertData());alertRule.put("noDataState", "NoData");alertRule.put("execErrState", "Alerting");alertRule.put("for", "5m"); // 持续5分钟才触发告警// 告警注解Map<String, String> annotations = new HashMap<>();annotations.put("summary", "服务器CPU使用率超过阈值");annotations.put("description", "服务器 {{ $labels.host }} CPU使用率为 {{ $value }}%，超过80%阈值");alertRule.put("annotations", annotations);// 告警标签Map<String, String> labels = new HashMap<>();labels.put("severity", "warning");labels.put("team", "infrastructure");alertRule.put("labels", labels);// 这里需要调用Grafana的告警API// 实际实现需要根据Grafana版本调整}private Object[] createCpuAlertData() {Map<String, Object> query = new HashMap<>();query.put("refId", "A");query.put("queryType", "");query.put("model", Map.of("query", "from(bucket: \"monitoring\") " +"|> range(start: -5m) " +"|> filter(fn: (r) => r._measurement == \"system_metrics\") " +"|> filter(fn: (r) => r.metric_type == \"cpu\") " +"|> filter(fn: (r) => r._field == \"usage_percent\") " +"|> mean()","refId", "A"));Map<String, Object> condition = new HashMap<>();condition.put("refId", "B");condition.put("queryType", "");condition.put("model", Map.of("conditions", new Object[] {Map.of("evaluator", Map.of("params", new double[]{80}, "type", "gt"),"operator", Map.of("type", "and"),"query", Map.of("params", new String[]{"A"}),"reducer", Map.of("params", new Object[]{}, "type", "last"),"type", "query")},"refId", "B"));return new Object[]{query, condition};}public void createMemoryAlertRule() {// 类似CPU告警的内存告警规则}public void createResponseTimeAlertRule() {// 应用响应时间告警规则}
}

5 性能优化与最佳实践

5.1 查询优化

Grafana的性能很大程度上取决于底层查询的效率。优化查询是提升仪表盘性能的关键。

@Service
public class QueryOptimizationService {// 使用聚合窗口减少数据点public String createOptimizedTimeSeriesQuery(String measurement, String field, String timeRange) {return String.format("from(bucket: \"monitoring\") " +"|> range(start: %s) " +"|> filter(fn: (r) => r._measurement == \"%s\") " +"|> filter(fn: (r) => r._field == \"%s\") " +"|> aggregateWindow(every: %s, fn: mean, createEmpty: false)",timeRange, measurement, field, calculateAggregationInterval(timeRange));}private String calculateAggregationInterval(String timeRange) {// 根据时间范围自动计算合适的聚合间隔if (timeRange.contains("1h")) return "30s";if (timeRange.contains("6h")) return "2m";if (timeRange.contains("24h")) return "5m";if (timeRange.contains("7d")) return "30m";return "1m";}// 使用下采样减少数据传输public String createDownsampledQuery(String measurement, String field, String timeRange) {return String.format("from(bucket: \"monitoring\") " +"|> range(start: %s) " +"|> filter(fn: (r) => r._measurement == \"%s\") " +"|> filter(fn: (r) => r._field == \"%s\") " +"|> aggregateWindow(every: 1m, fn: mean) " +"|> limit(n: 1000)", // 限制返回的数据点数量timeRange, measurement, field);}// 并行查询多个指标public Map<String, String> createParallelQueries(String[] metrics, String timeRange) {Map<String, String> queries = new HashMap<>();for (int i = 0; i < metrics.length; i++) {String refId = String.valueOf((char)('A' + i));queries.put(refId, createOptimizedTimeSeriesQuery("system_metrics", metrics[i], timeRange));}return queries;}
}

5.2 缓存策略

对于更新频率不高的数据，可以使用缓存来提升查询性能。

@Service
public class DashboardCacheService {private final RedisTemplate<String, String> redisTemplate;private final InfluxDBClient influxDBClient;public DashboardCacheService(RedisTemplate<String, String> redisTemplate, InfluxDBClient influxDBClient) {this.redisTemplate = redisTemplate;this.influxDBClient = influxDBClient;}@Cacheable(value = "dashboard-data", key = "#query + '-' + #timeRange")public String getCachedQueryResult(String query, String timeRange) {try {QueryApi queryApi = influxDBClient.getQueryApi();List<FluxTable> tables = queryApi.query(query);// 将查询结果转换为JSON格式return convertTablesToJson(tables);} catch (Exception e) {throw new RuntimeException("查询失败", e);}}private String convertTablesToJson(List<FluxTable> tables) {// 实现FluxTable到JSON的转换ObjectMapper mapper = new ObjectMapper();List<Map<String, Object>> result = new ArrayList<>();for (FluxTable table : tables) {for (FluxRecord record : table.getRecords()) {Map<String, Object> point = new HashMap<>();point.put("time", record.getTime());point.put("value", record.getValue());point.put("measurement", record.getMeasurement());point.put("field", record.getField());// 添加所有标签record.getValues().forEach((key, value) -> {if (key.startsWith("_") || key.equals("result") || key.equals("table")) {return;}point.put(key, value);});result.add(point);}}try {return mapper.writeValueAsString(result);} catch (Exception e) {throw new RuntimeException("JSON转换失败", e);}}// 预热缓存@Scheduled(fixedRate = 300000) // 每5分钟执行一次public void warmupCache() {String[] commonQueries = {"from(bucket: \"monitoring\") |> range(start: -1h) |> filter(fn: (r) => r._measurement == \"system_metrics\")","from(bucket: \"monitoring\") |> range(start: -24h) |> filter(fn: (r) => r._measurement == \"application_metrics\")"};for (String query : commonQueries) {try {getCachedQueryResult(query, "-1h");} catch (Exception e) {System.err.println("预热缓存失败: " + e.getMessage());}}}// 清理过期缓存@CacheEvict(value = "dashboard-data", allEntries = true)@Scheduled(cron = "0 0 */6 * * ?") // 每6小时清理一次public void clearExpiredCache() {System.out.println("清理仪表盘缓存");}
}

这套InfluxDB配合Grafana的可视化方案提供了完整的监控数据展示能力。从数据收集到可视化展示，再到告警通知，形成了一个闭环的监控体系。

关键是要根据实际业务需求来设计仪表盘，不要为了炫酷而炫酷。好的监控仪表盘应该能让人一眼就看出系统的健康状况，快速定位问题所在。记住，简洁明了比花里胡哨更重要。
