SAP 模具生产订单创建接口分享

news 2025/11/9 10:11:38

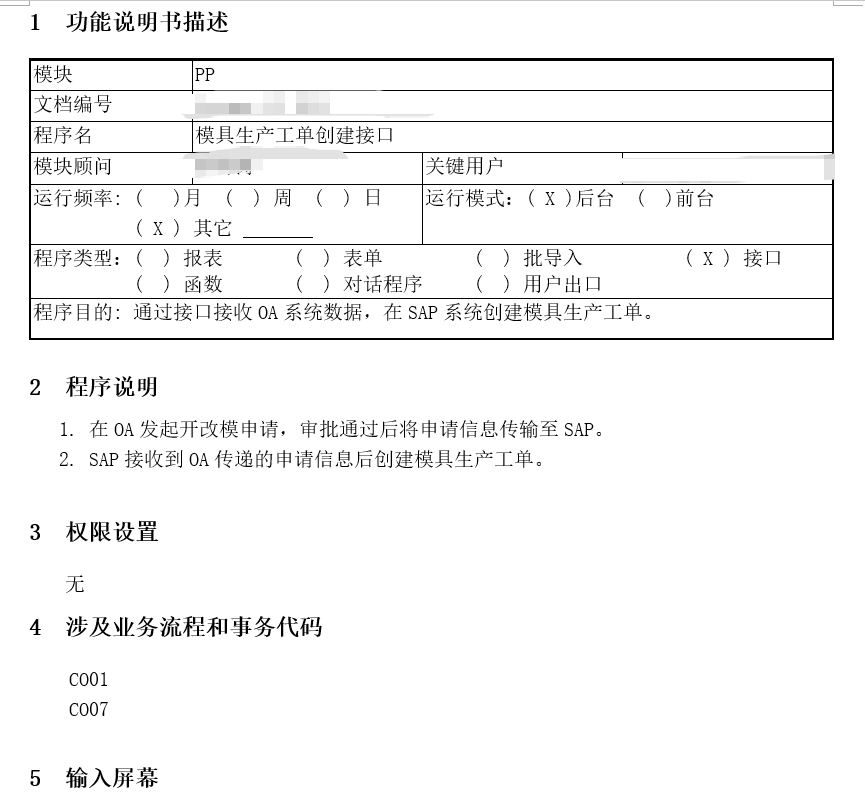

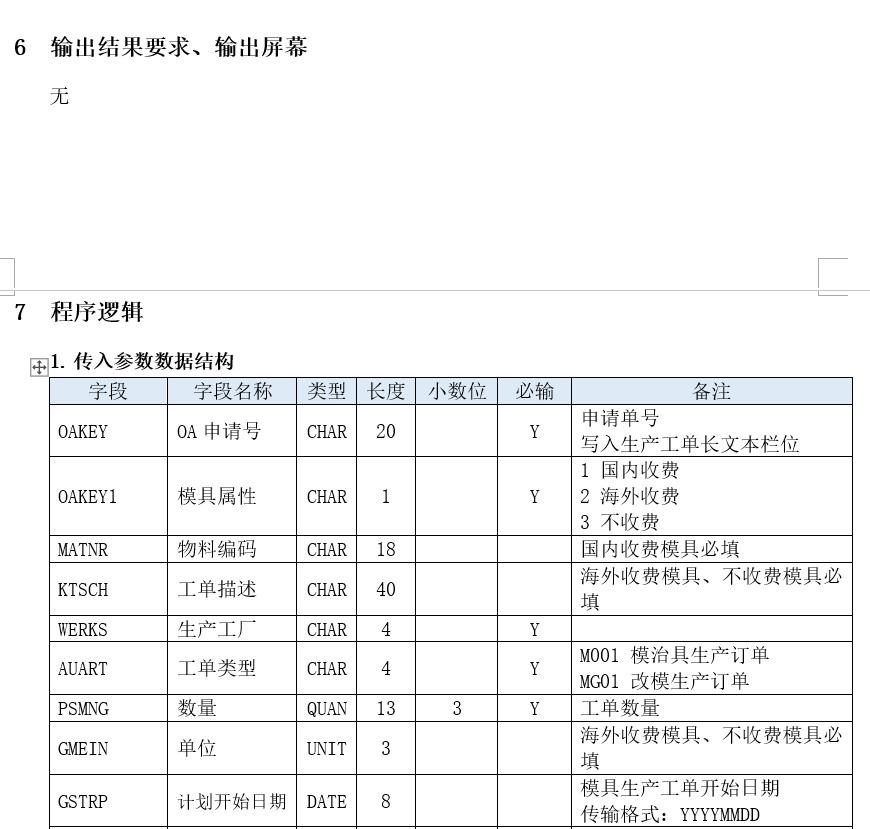

一、接口逻辑

二、接口代码

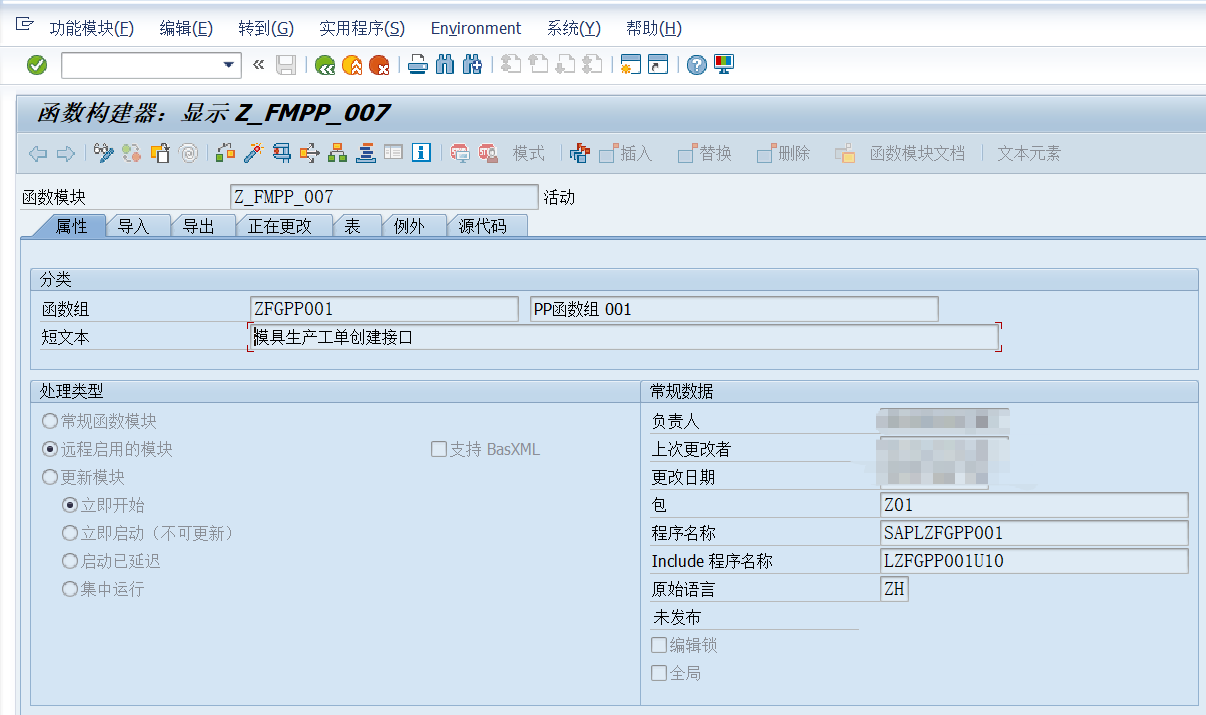

FUNCTION z_fmpp_007.
*"----------------------------------------------------------------------
*"*"本地接口：
*"  IMPORTING

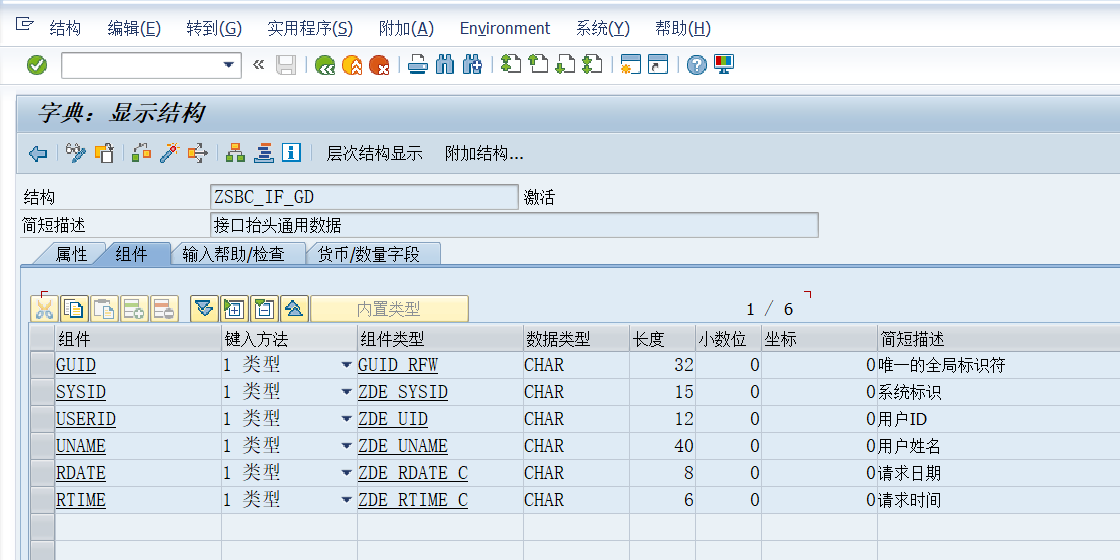

*"     VALUE(I_DATA_GD) TYPE  ZSBC_IF_GD
*"     VALUE(I_INPUT) TYPE  STRING
*"  EXPORTING
*"     VALUE(E_OUTPUT) TYPE  STRING
*"----------------------------------------------------------------------
  "----------------------------------------------------------------------
  "*"本地接口：
  "  IMPORTING
  "     REFERENCE(I_DATA_GD) TYPE  ZSBC_IF_GD
  "     REFERENCE(I_INPUT) TYPE  STRING
  "  EXPORTING
  "     REFERENCE(E_OUTPUT) TYPE  STRING
  "----------------------------------------------------------------------

  DATA:
    lw_input  TYPE zspp_007_in,

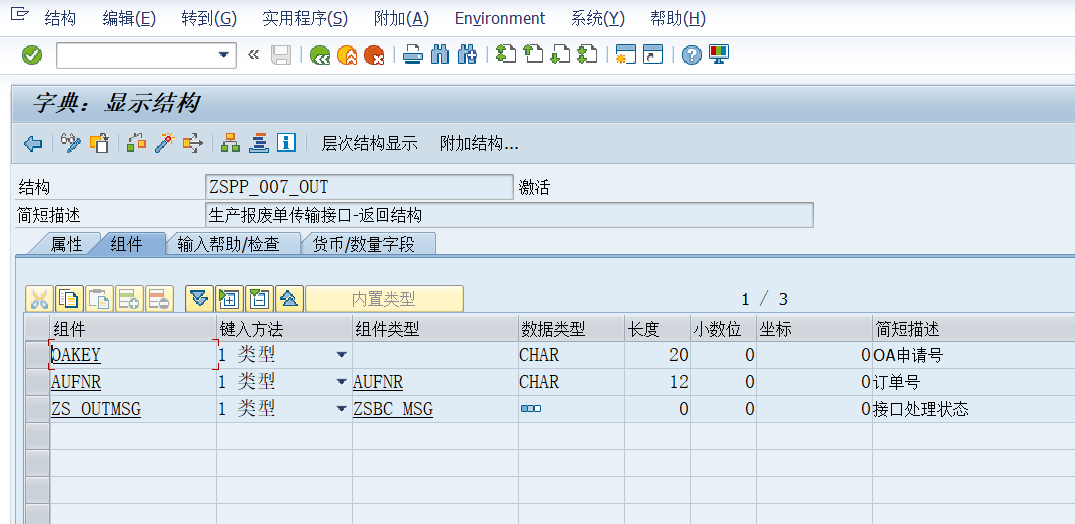

    lw_output TYPE zspp_007_out,
    lw_msg    TYPE zsbc_msg.

  DATA: ls_log TYPE ztbc_log_table.
  DATA: flg_err    TYPE c,
        return_msg TYPE bapi_msg.

  DATA:BEGIN OF lt_msg OCCURS 0 .
  DATA: message TYPE char50,
        END OF lt_msg .

  CALL FUNCTION 'ZFM_BREAK_POINT'  .

  MOVE-CORRESPONDING i_data_gd TO ls_log.
  ls_log-btype     = 'PP0006'.
  flg_err = 'S' .

  lw_msg-id = '00' .
  lw_msg-number = '001' .
  BREAK guoxiongjie .

  CALL FUNCTION 'Z_FMBC_JSONTOABAP'
    EXPORTING
      i_json = i_input
    IMPORTING
      e_data = lw_input.

  CLEAR flg_err.
  DEFINE marco_check_null.
    IF lw_input-&1 IS INITIAL.
      INSERT VALUE #( message = &2 && '为空；' ) INTO TABLE lt_msg.
    ENDIF.
  END-OF-DEFINITION.
  "**********************************************************************
  "OAKEY1: 1-国内收费；2-海外收费；3-不收费
  "OAKEY2: 1-自动化设备单；2-治具；3-量产模具；4-样品模具

*  OAKEY2 OAKEY1  料号  资产
*    1    1,2     √      -
*    1    3       -      √
*    2    1,2,3   √      -
*    3    1        √       -
*    3    2,3     -      √
*    4    1,2,3   √      -

  "判断输入
  marco_check_null:  oakey   'OA申请号',
  oakey1  '模具属性',
  oakey2  '需求类型',
  werks  '生产工厂',
  auart  '工单类型',
  psmng  '数量'.

  DATA:lv_matnr TYPE matnr .
  DATA:lv_anln1 TYPE anln1 .
  DATA:lv_prctr TYPE prctr .
  DEFINE marco_check_mat.
    marco_check_null:  matnr   '物料编码'.
    lw_input-matnr = |{ lw_input-matnr ALPHA = IN }|.
    SELECT SINGLE matnr INTO @lv_matnr FROM mara WHERE matnr = @lw_input-matnr .
    IF sy-subrc NE 0.
      INSERT VALUE #( message = '物料编码输入错误；' ) INTO TABLE lt_msg.
    ENDIF.
  END-OF-DEFINITION.
  DEFINE marco_check_anln1.
    marco_check_null:  ktsch   '工单描述',
    gmein   '单位'.
    marco_check_null:  ztxt    '资产编号'.
    lw_input-ztxt = |{ lw_input-ztxt ALPHA = IN WIDTH = 12 }|.
    SELECT SINGLE anln1 INTO @lv_an
