Spring 6.x HTTP interface 使用说明

https://docs.spring.io/spring-framework/reference/6.1/integration/rest-clients.html
http-service-client-enhancements)

简介

Spring Framework 6 引入了通过 Java 接口定义 HTTP 服务的能力，该接口的方法使用 @HttpExchange 注解标记。

它的用法看起来特别像Spring Cloud OpenFeign.

下面可以通过访问API: https://api.github.com/repos/spring-projects/spring-framework/milestones ，来展示HTTP interface 的使用方法。

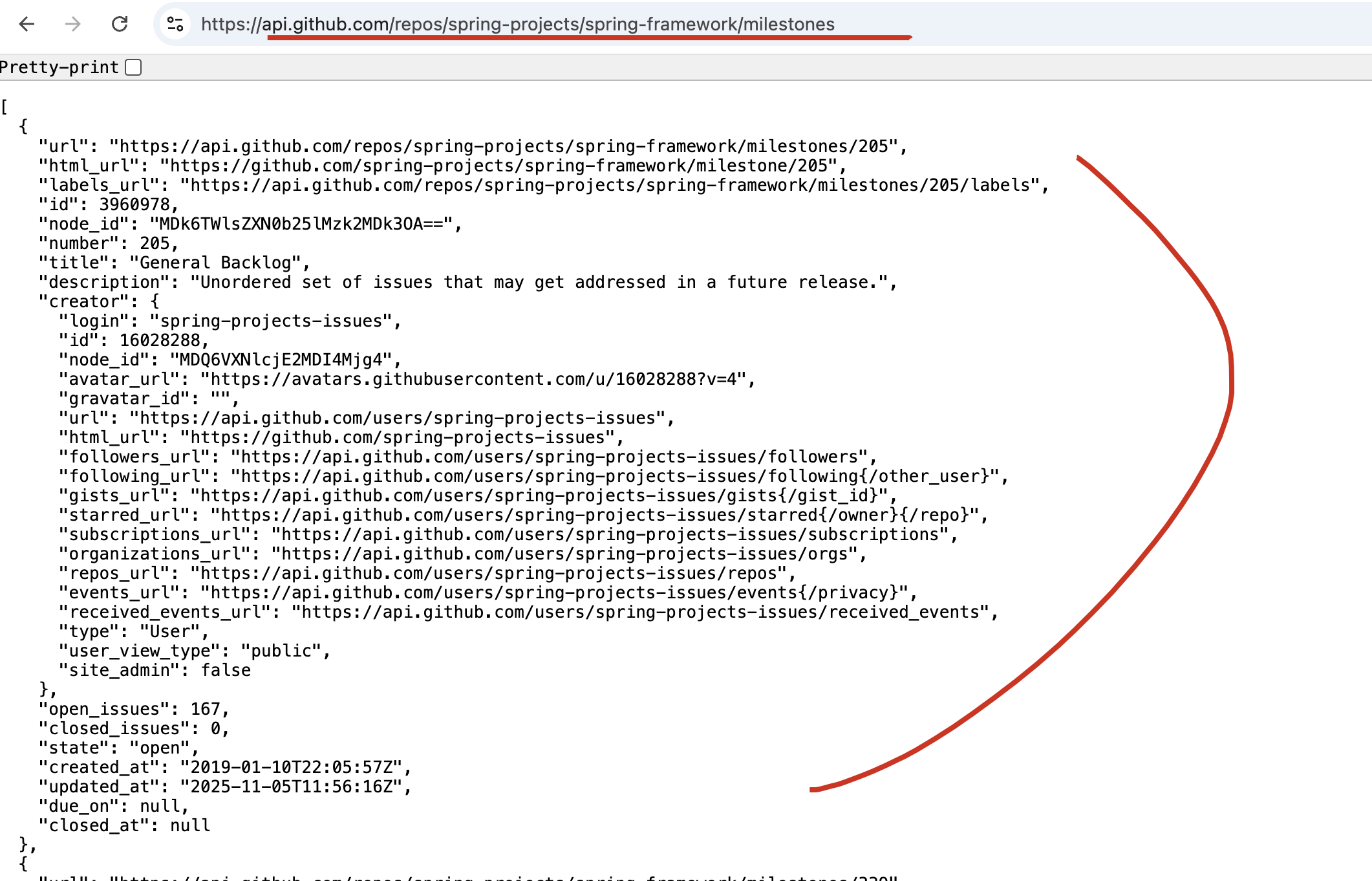

API response :

定义HTTP interface接口

在接口的方法上带上:@GetExchange 接口即可

// @HttpExchange  (optional)
public interface MilestoneService {@GetExchange("/repos/{org}/{repo}/milestones")List<Milestone> getMilestones(@PathVariable String org, @PathVariable String repo);
}

使用RestClient

// Initialize HTTP client
RestClient restClient = RestClient.create("https://api.github.com");// Create factory for client proxies
HttpServiceProxyFactory proxyFactory = HttpServiceProxyFactory.builder().exchangeAdapter(RestClientAdapter.create(restClient)).build();// Create client proxy -- 创建MilestoneService
MilestoneService client = proxyFactory.createClient(MilestoneService.class);// Use proxy for HTTP requests
List<Milestone> milestones = client.getMilestones(“spring-projects”, “spring-framework”);
System.out.println("Found "+milestones.size()+" milestones, [0]:"+ milestones.get(0));

执行结果

Found 7 milestones, [0]:Milestone[url=https://api.github.com/repos/spring-projects/spring-framework/milestones/205, htmlUrl=null, labelsUrl=null, id=3960978, nodeId=null, number=205, title=General Backlog, description=Unordered set of issues that may get addressed in a future release., creator=Creator[login=spring-projects-issues, id=16028288, nodeId=null, avatarUrl=null, gravatarId=null, url=https://api.github.com/users/spring-projects-issues, htmlUrl=null, followersUrl=null, followingUrl=null, gistsUrl=null, starredUrl=null, subscriptionsUrl=null, organizationsUrl=null, reposUrl=null, eventsUrl=null, receivedEventsUrl=null, type=User, userViewType=null, siteAdmin=false], openIssues=0, closedIssues=0, state=open, createdAt=null, updatedAt=null, dueOn=null, closedAt=null]

配置

创建一个HttpServiceProxyFactory并使用它来创建一个或两个或三个客户端代理是很简单的，但是随着数量的增长，这变得重复和繁琐，特别是因为客户端代理通常被声明为Spring bean。
例

@Bean
MilestoneService milestoneService(HttpServiceProxyFactory factory) {return factory.createClient(MilestoneService.class);
}@Bean
ReleaseService releaseService(HttpServiceProxyFactory factory) {return factory.createClient(ReleaseService.class);
}// More client beans@Bean
HttpServiceProxyFactory proxyFactory(RestClient.Builder clientBuilder) {RestClient client = clientBuilder.baseUrl("https://api.github.com").build();return HttpServiceProxyFactory.builderFor(RestClientAdapter.create(client)).build();
}

HTTP Service Registry(Spring Framework 7)

为了解决 Spring 框架中手动注册客户端代理的挑战，Spring Framework 7 引入了一个额外的注册层，该注册层位于 HttpServiceProxyFactory 之上，提供以下功能：

• 配置模型： 用于注册 HTTP 接口并初始化 HTTP 客户端基础设施。
• 透明创建和注册： 自动将客户端代理创建并注册为 Spring Bean。
• 统一访问： 通过 HttpServiceProxyRegistry 统一访问所有客户端代理。

这意味着，开发者现在可以通过配置或自动扫描的方式来声明 HTTP 服务，而无需手动编写工厂方法。
在配置模型中，HTTP服务是按group组织的，其中同一group共享相同HTTP客户端配置的HTTP服务，以及由此产生的客户端实例。

声明式-通过@ ImportHttpServices

//指定classes
@ImportHttpServices(group = "github", types = {MilestoneService.class, … })
@ImportHttpServices(group = "stackoverflow", types = {QuestionService.class, … })
@Configuration
public class DemoConfig {
}//或者指定package
@ImportHttpServices(group = "github", basePackages = “"client.github")
@ImportHttpServices(group = "stackoverflow", basePackages = “client.stackoverflow”)
@Configuration
public class DemoConfig {
}

HTTPgroup默认配置RestClient，可通过注释的clientType属性切换为WebClient。

编程式注册 - AbstractHttpServiceRegistrar

public class CustomHttpServiceRegistrar extends AbstractHttpServiceRegistrar { @Overrideprotected void registerHttpServices(GroupRegistry registry, AnnotationMetadata metadata) {registry.forGroup("github").detectInBasePackages(“client.github);// more registrations…}
}@Configuration
@Import(CustomHttpServiceRegistrar.class)
public class ClientConfig {
}

HTTP Client Initialization(Spring Framework 7 & spring-boot4)

一旦HTTP服务组被声明，剩下的就是为每个组配置HTTP客户端。您可以为此使用HttpServiceGroupConfigurer bean方法。例如:

@Bean
RestClientHttpServiceGroupConfigurer groupConfigurer() {return groups -> {groups.filterByName("github").forEachClient((_, builder) ->builder.baseUrl("https://api.github.com"));groups.filterByName("stackoverflow").forEachClient((_, builder) ->builder.baseUrl("https://api.stackexchange.com?site=stackoverflow"));};
}

spring-boot4可以通过配置自动的为webclient,restclient进行配置

# Global, applies to all groups
spring.http.client.service.read-timeout=2s# GitHub group
spring.http.client.service.group.github.base-url=https://api.github.com# Stackoverflow group
spring.http.client.service.group.stackoverflow.base-url=https://api.stackexchange.com

RestClient 详细用法

参数与注解

mport org.springframework.web.service.annotation.*;@HttpExchange(url = "https://api.example.com")
public interface UserService {@GetExchange("/users/{id}")User getUser(@PathVariable("id") Long id);@PostExchange("/users")User createUser(@RequestBody User user);@PutExchange("/users/{id}")void updateUser(@PathVariable("id") Long id, @RequestBody User user);@DeleteExchange("/users/{id}")void deleteUser(@PathVariable("id") Long id);
}

这就像声明一个 REST API 客户端。Spring 会根据接口定义自动生成代理实现。

认证与授权（Auth）

手动申明Token

RestClient restClient = RestClient.builder().baseUrl("https://api.example.com").defaultHeaders(headers -> headers.setBasicAuth("user", "password")).build();

拦截器（Interceptor） 自动注入 Token

RestClient restClient = RestClient.builder().requestInterceptor((req, body, exec) -> {req.getHeaders().setBearerAuth(getJwtToken());return exec.execute(req, body);}).build();

异常处理机制

异常类型

Spring 6 的 RestClient 在执行 HTTP 调用时，如果遇到错误（如 4xx、5xx、网络异常等），
会抛出一系列基于 RestClientException 的异常类型。

RestClientException (基础异常)
├── HttpStatusCodeException
│     ├── HttpClientErrorException (4xx 客户端错误)
│     └── HttpServerErrorException (5xx 服务端错误)
└── ResourceAccessException (网络或连接错误)

常见使用示例

try {User user = restClient.get().uri("/users/{id}", 1001).retrieve().body(User.class);
} catch (HttpClientErrorException.NotFound ex) {log.warn("用户未找到: {}", ex.getMessage());
} catch (HttpServerErrorException ex) {log.error("服务器内部错误: {}", ex.getMessage());
} catch (ResourceAccessException ex) {log.error("网络异常，请检查连接: {}", ex.getMessage());
} catch (RestClientException ex) {log.error("其他 RestClient 异常: {}", ex.getMessage());
}

自定义异常处理

你可以自定义一个 RestClient.ResponseErrorHandler：

RestClient restClient = RestClient.builder().baseUrl("https://api.example.com").defaultStatusHandler(HttpStatusCode::isError, (req, res) -> {String body = res.getBody().readAllBytes().toString();throw new CustomApiException("API Error: " + body);}).build();

RestTemplate vs RestClient vs WebClient

阶段	客户端	特点
Spring 3.x	RestTemplate	简单易用，但同步阻塞、API 设计陈旧
Spring 5.x	WebClient	基于 Reactor 的响应式客户端，异步非阻塞
Spring 6.x	RestClient	同步客户端，现代化 API，线程安全，可测试性强
