1.引言

项目源码、取模软件在以下地址：

https://gitee.com/hee-hee-not-bald/stm32_learning.git

硬件介绍

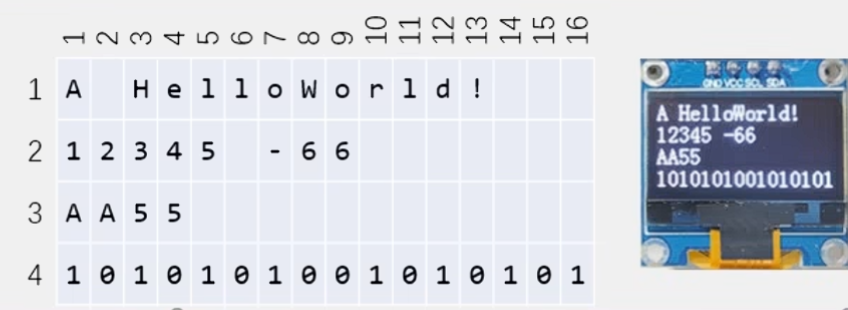

4针口的OLED

取模软件

下面这个.exe

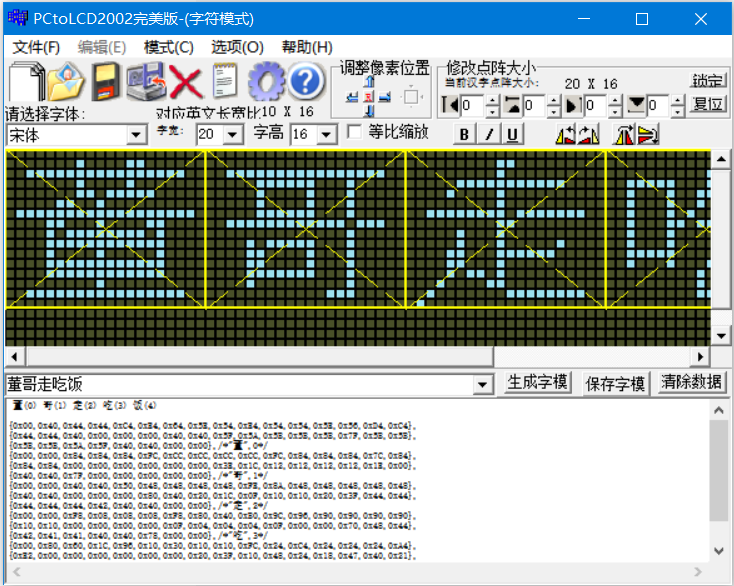

打开后

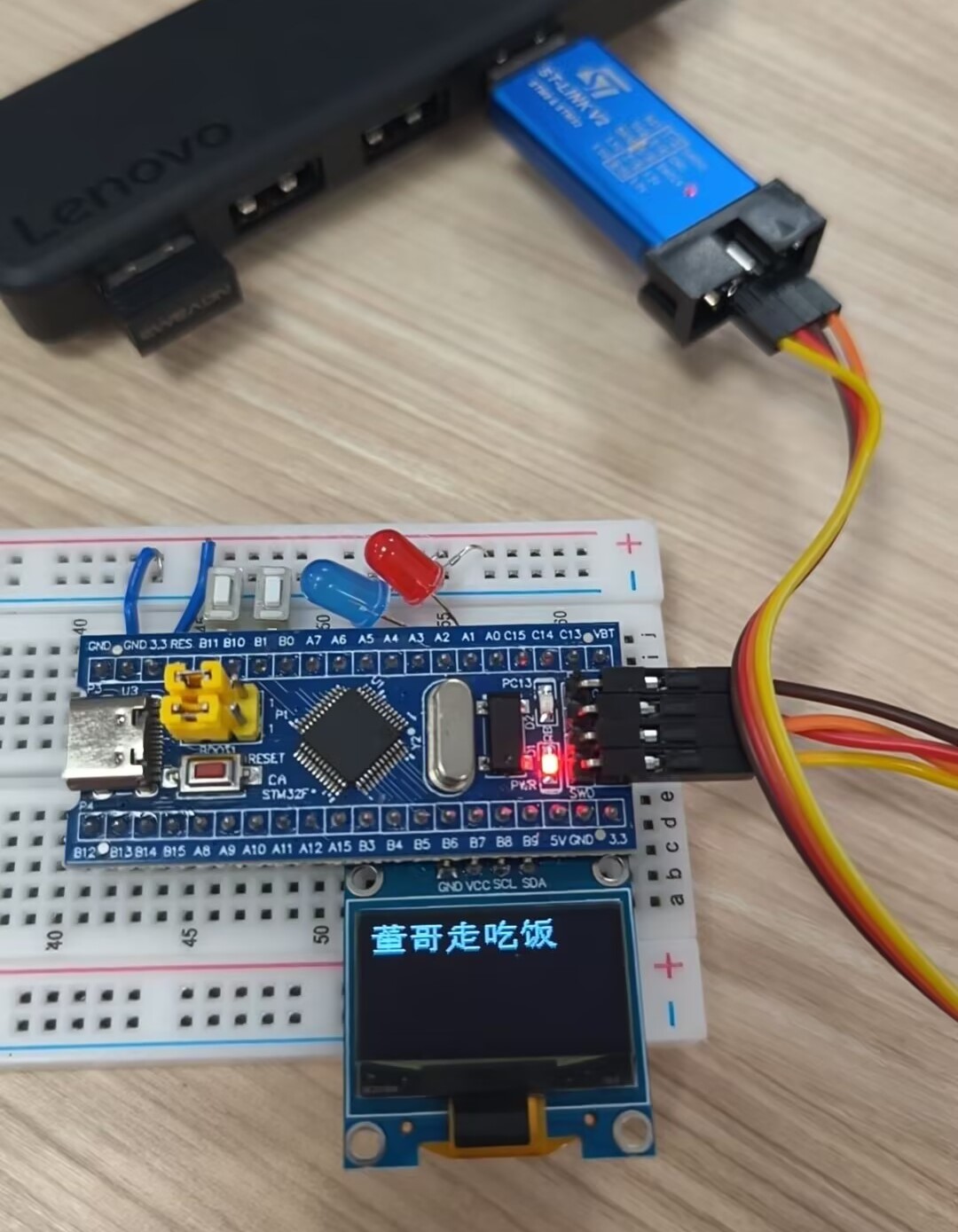

显示效果

2.取模软件使用

设置

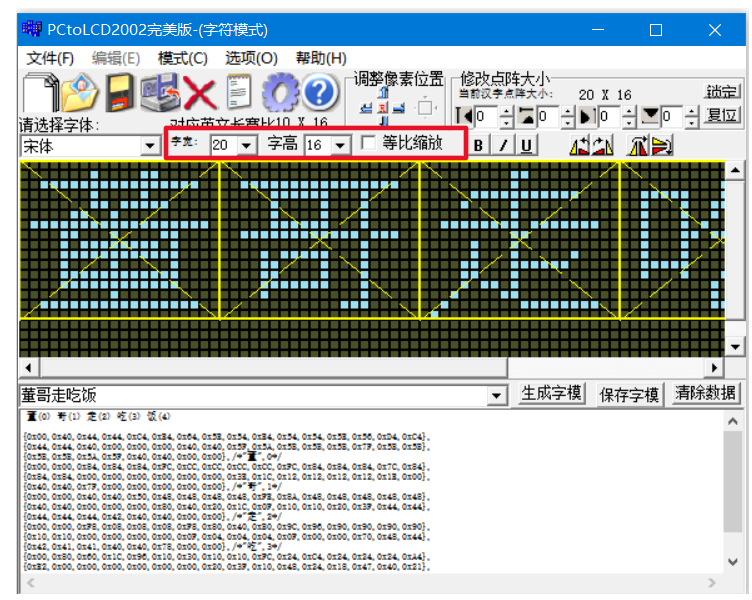

（1）字宽 20 ；字高 16；取消勾选“等比缩放”

（2）内部设置

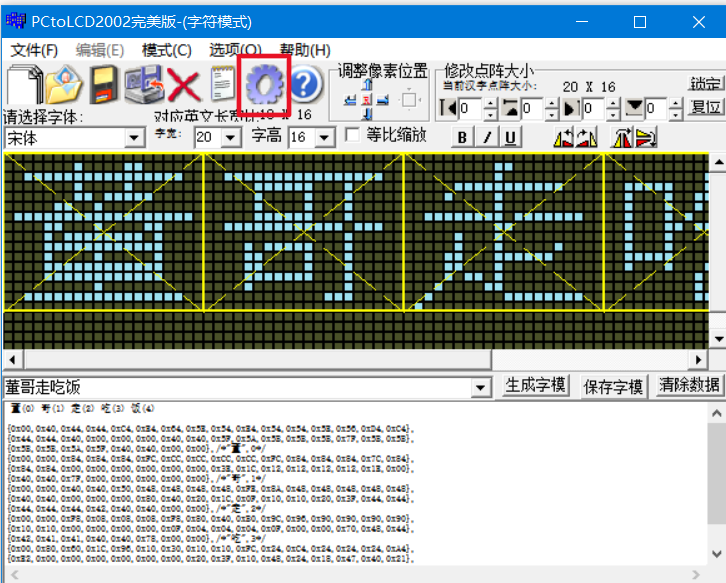

点击这个齿轮

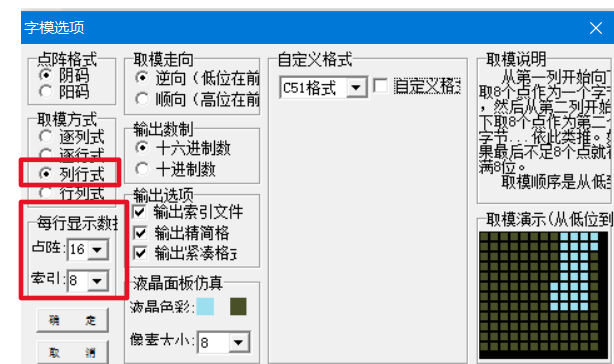

配置以下

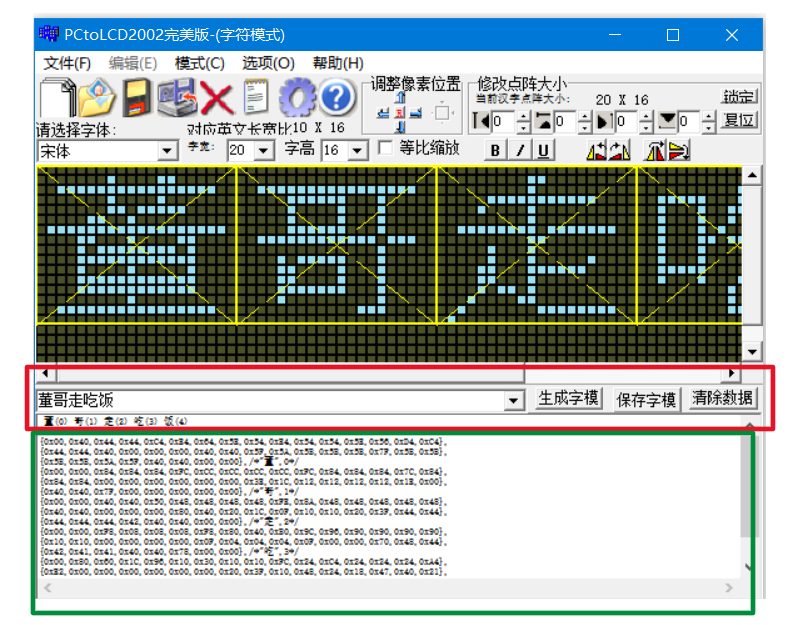

生成字模

（1）在红色框中输入想要显示的中文，点击“生成字模”

（2）复制绿色框中显示对应中文的数组

具体为以下：

【这是多行多组的写法，此写法keil运行会乱码】

{0x00,0x40,0x44,0x44,0xC4,0xE4,0x64,0x5E,0x54,0xE4,0x54,0x54,0x5E,0x56,0xD4,0xC4},
{0x44,0x44,0x40,0x00,0x00,0x00,0x40,0x40,0x5F,0x5A,0x5B,0x5B,0x5B,0x7F,0x5B,0x5B},
{0x5B,0x5B,0x5A,0x5F,0x40,0x40,0x00,0x00},/*"董",0*/
{0x00,0x00,0x84,0x84,0x84,0xFC,0xCC,0xCC,0xCC,0xCC,0xFC,0x84,0x84,0x84,0x7C,0x84},
{0x84,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x3E,0x1C,0x12,0x12,0x12,0x12,0x1E,0x00},
{0x40,0x40,0x7F,0x00,0x00,0x00,0x00,0x00},/*"哥",1*/
{0x00,0x00,0x40,0x40,0x50,0x48,0x48,0x48,0x48,0xFE,0x8A,0x48,0x48,0x48,0x48,0x48},
{0x40,0x40,0x00,0x00,0x00,0x80,0x40,0x20,0x1C,0x0F,0x10,0x10,0x20,0x3F,0x44,0x44},
{0x44,0x44,0x44,0x42,0x40,0x40,0x00,0x00},/*"走",2*/
{0x00,0x00,0xF8,0x08,0x08,0x08,0xF8,0x80,0x40,0xB0,0x9C,0x96,0x90,0x90,0x90,0x90},
{0x10,0x10,0x00,0x00,0x00,0x00,0x0F,0x04,0x04,0x04,0x0F,0x00,0x00,0x70,0x48,0x44},
{0x42,0x41,0x41,0x40,0x40,0x78,0x00,0x00},/*"吃",3*/
{0x00,0x80,0x60,0x1C,0x96,0x10,0x30,0x10,0x10,0xFC,0x24,0xC4,0x24,0x24,0x24,0xA4},
{0xE2,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x10,0x48,0x24,0x18,0x47,0x40,0x21},
{0x16,0x08,0x14,0x23,0x60,0x40,0x40,0x00},/*"饭",4*/

（3）易错：将刚刚复制 多行多组的数组 传给ai，帮我们转成 单行连续

    /* "董",0 */{0x00,0x40,0x44,0x44,0xC4,0xE4,0x64,0x5E,0x54,0xE4,0x54,0x54,0x5E,0x56,0xD4,0xC4,0x44,0x44,0x40,0x00,0x00,0x00,0x40,0x40,0x5F,0x5A,0x5B,0x5B,0x5B,0x7F,0x5B,0x5B,0x5B,0x5B,0x5A,0x5F,0x40,0x40,0x00,0x00},/* "哥",1 */{0x00,0x00,0x84,0x84,0x84,0xFC,0xCC,0xCC,0xCC,0xCC,0xFC,0x84,0x84,0x84,0x7C,0x84,0x84,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x3E,0x1C,0x12,0x12,0x12,0x12,0x1E,0x00,0x40,0x40,0x7F,0x00,0x00,0x00,0x00,0x00},/* "走",2 */{0x00,0x00,0x40,0x40,0x50,0x48,0x48,0x48,0x48,0xFE,0x8A,0x48,0x48,0x48,0x48,0x48,0x40,0x40,0x00,0x00,0x00,0x80,0x40,0x20,0x1C,0x0F,0x10,0x10,0x20,0x3F,0x44,0x44,0x44,0x44,0x44,0x42,0x40,0x40,0x00,0x00},/* "吃",3 */{0x00,0x00,0xF8,0x08,0x08,0x08,0xF8,0x80,0x40,0xB0,0x9C,0x96,0x90,0x90,0x90,0x90,0x10,0x10,0x00,0x00,0x00,0x00,0x0F,0x04,0x04,0x04,0x0F,0x00,0x00,0x70,0x48,0x44,0x42,0x41,0x41,0x40,0x40,0x78,0x00,0x00},/* "饭",4 */{0x00,0x80,0x60,0x1C,0x96,0x10,0x30,0x10,0x10,0xFC,0x24,0xC4,0x24,0x24,0x24,0xA4,0xE2,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x10,0x48,0x24,0x18,0x47,0x40,0x21,0x16,0x08,0x14,0x23,0x60,0x40,0x40,0x00},

3.代码

在 OLED.c 文件中添加显示中文函数 OLED_ShowCN

（注意：此时的字宽是20）

//显示中文
void OLED_ShowCN(uint8_t Line, uint8_t Column, uint8_t Num)
{      	uint8_t i;uint8_t wide=20;//字宽OLED_SetCursor((Line-1)*2, (Column-1)*wide);		//参数1:把光标设置在第几页. 参数2:把光标设置在第几列for (i = 0; i < wide; i++){OLED_WriteData(OLED_F10x16[Num][i]);			//显示上半部分内容}OLED_SetCursor((Line-1)*2+1,(Column-1)*wide);		for (i = 0; i < wide; i++){OLED_WriteData(OLED_F10x16[Num][i+wide]);		//显示下半部分内容}}

在 OLED_Font.h 文件中添加显示对应中文的字模数组

注意[40]

这里我的设置是字宽 20 ；字高 16，所以是40

若字宽 16 ；字高 16，应对应是32

//对应中文的数组
const uint8_t OLED_F10x16[][40]=
{ /* "董",0 */{0x00,0x40,0x44,0x44,0xC4,0xE4,0x64,0x5E,0x54,0xE4,0x54,0x54,0x5E,0x56,0xD4,0xC4,0x44,0x44,0x40,0x00,0x00,0x00,0x40,0x40,0x5F,0x5A,0x5B,0x5B,0x5B,0x7F,0x5B,0x5B,0x5B,0x5B,0x5A,0x5F,0x40,0x40,0x00,0x00},/* "哥",1 */{0x00,0x00,0x84,0x84,0x84,0xFC,0xCC,0xCC,0xCC,0xCC,0xFC,0x84,0x84,0x84,0x7C,0x84,0x84,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x3E,0x1C,0x12,0x12,0x12,0x12,0x1E,0x00,0x40,0x40,0x7F,0x00,0x00,0x00,0x00,0x00},/* "走",2 */{0x00,0x00,0x40,0x40,0x50,0x48,0x48,0x48,0x48,0xFE,0x8A,0x48,0x48,0x48,0x48,0x48,0x40,0x40,0x00,0x00,0x00,0x80,0x40,0x20,0x1C,0x0F,0x10,0x10,0x20,0x3F,0x44,0x44,0x44,0x44,0x44,0x42,0x40,0x40,0x00,0x00},/* "吃",3 */{0x00,0x00,0xF8,0x08,0x08,0x08,0xF8,0x80,0x40,0xB0,0x9C,0x96,0x90,0x90,0x90,0x90,0x10,0x10,0x00,0x00,0x00,0x00,0x0F,0x04,0x04,0x04,0x0F,0x00,0x00,0x70,0x48,0x44,0x42,0x41,0x41,0x40,0x40,0x78,0x00,0x00},/* "饭",4 */{0x00,0x80,0x60,0x1C,0x96,0x10,0x30,0x10,0x10,0xFC,0x24,0xC4,0x24,0x24,0x24,0xA4,0xE2,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x10,0x48,0x24,0x18,0x47,0x40,0x21,0x16,0x08,0x14,0x23,0x60,0x40,0x40,0x00},};
