FastDFS 可观测性最佳实践
FastDFS 介绍
FastDFS（Fast Distributed File System）是一种开源的分布式文件系统，具有高可靠性、高可扩展性、高性能等特点，被广泛应用于互联网领域的大规模文件存储和共享中。
作为一个分布式文件系统，其运行状态（如存储节点、Tracker 节点的健康状况、文件上传下载性能、存储容量变化等）对于业务稳定性至关重要。观测云作为一个统一的监控平台，可以帮你：
- 集中收集和可视化展示 FastDFS 的各类指标（Metrics）、日志（Logs）等信息。
- 提供开箱即用的仪表盘或支持自定义仪表盘，让你能直观地查看 FastDFS 集群的整体健康状况、性能趋势和存储使用情况，无需在多个系统间切换。
- 通过配置告警规则，在 FastDFS 出现异常时及时通知你，以便快速响应。
观测云
观测云是一款专为 IT 工程师打造的全链路可观测产品，它集成了基础设施监控、应用程序性能监控和日志管理，为整个技术栈提供实时可观察性。这款产品能够帮助工程师全面了解端到端的用户体验追踪，了解应用内函数的每一次调用，以及全面监控云时代的基础设施。此外，观测云还具备快速发现系统安全风险的能力，为数字化时代提供安全保障。
部署 DataKit
DataKit 是一个开源的、跨平台的数据收集和监控工具，由观测云开发并维护。它旨在帮助用户收集、处理和分析各种数据源，如日志、指标和事件，以便进行有效的监控和故障排查。Datakit 支持多种数据输入和输出格式，可以轻松集成到现有的监控系统中。

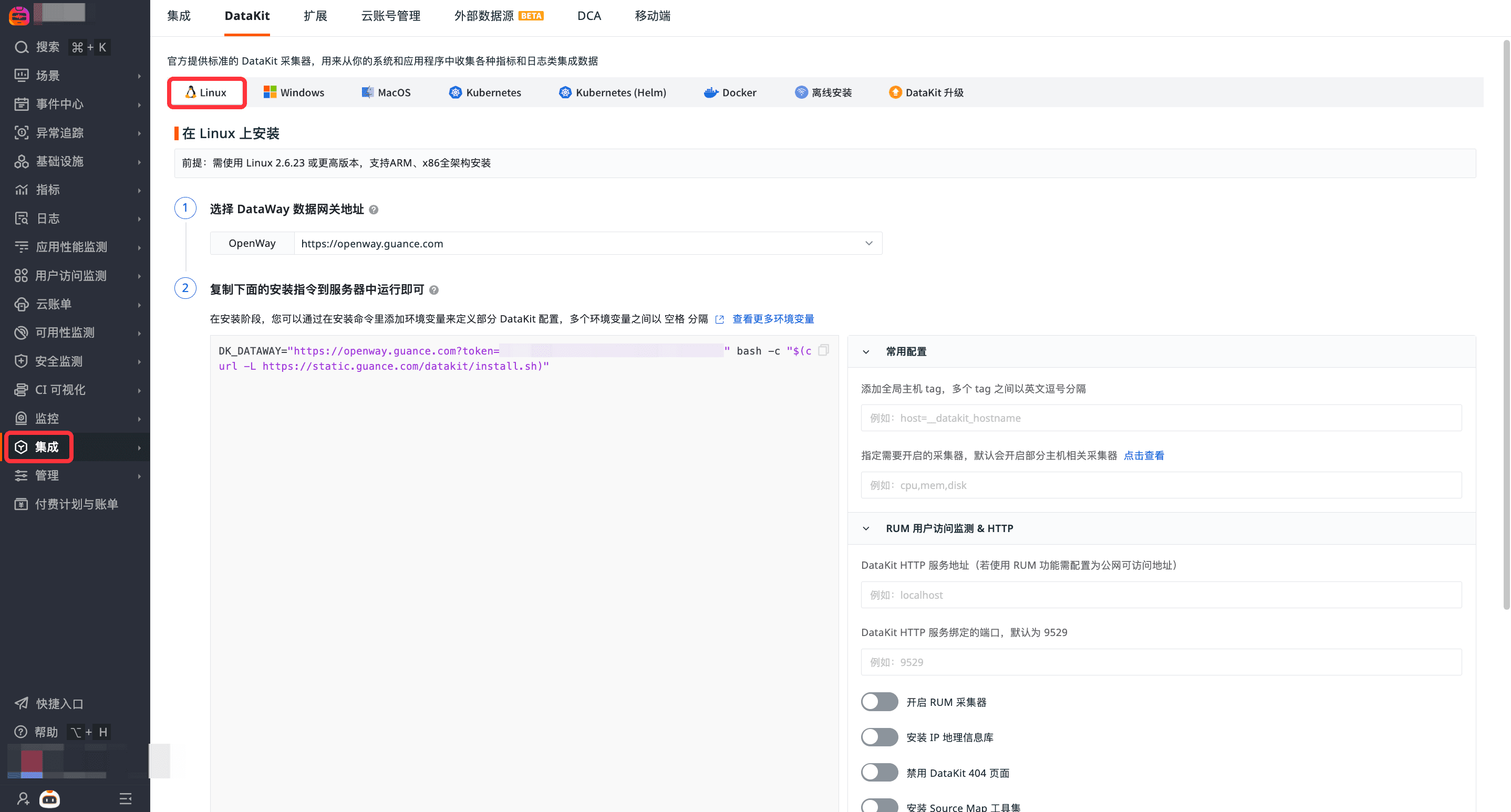

登录观测云控制台，在「集成」 - 「DataKit」选择对应安装方式，当前采用 Linux 主机部署 DataKit。
安装配置
前置条件
- Python >= 3.10
- Gunicorn = 23.0.0
- Flask = 3.1.0
- Prometheus_client = 0.21.1
Exporter 原理
该库为FastDFS相关操作提供了Prometheus指标收集的指标是基于FastDFS内置的`fdfs_monitor`命令
下载安装包
fastdfs-exporter 为官方研发的专用 Exporter，将 FastDFS 状态转换为 Prometheus 指标格式。
下载安装 Exporter：
wget https://github.com/maxpasserby/fastdfs-exporter/archive/refs/tags/0.1.1.tar.gz
将 Exporter 目录移动到 /etc 目录下：
执行以下命令 运行exporter.mainpython3 -u -m exporter.main结果展示可以看到http://172.16.0.150:9036/ 为 prom指标：
Warning: The environment variable [TRACKER_SERVER] is empty, [TRACKER_SERVER] will be set to the default value of [127.0.0.1:22122]* Serving Flask app 'main' (lazy loading)* Environment: productionWARNING: This is a development server. Do not use it in a production deployment.Use a production WSGI server instead.* Debug mode: off* Running on all addresses.WARNING: This is a development server. Do not use it in a production deployment.* Running on http://172.16.0.150:9036/ (Press CTRL+C to quit)
配置 Exporter 为后端运行：
nohup /usr/bin/python3.6 -u -m exporter.main &
访问指标
通过 curl 127.0.0.1:9036/metrics 访问指标。
[root@FHJ-TEST-TEMP ~]# curl 127.0.0.1:9036/metrics
# HELP fastdfs_group_count The total number of storage groups in FastDFS
# TYPE fastdfs_group_count gauge
fastdfs_group_count 1.0
# HELP fastdfs_group_storage_server_count The number of active storage servers in a FastDFS storage group
# TYPE fastdfs_group_storage_server_count gauge
fastdfs_group_storage_server_count{group="group1"} 1.0
# HELP fastdfs_group_active_storage_server_count The number of storage servers in a FastDFS storage group
# TYPE fastdfs_group_active_storage_server_count gauge
fastdfs_group_active_storage_server_count{group="group1"} 1.0
# HELP fastdfs_group_disk_total_space_bytes The total disk space of a FastDFS storage group in bytes
# TYPE fastdfs_group_disk_total_space_bytes gauge
fastdfs_group_disk_total_space_bytes{group="group1"} 2.0797456384e+010
# HELP fastdfs_group_disk_free_space_bytes The free disk space of a FastDFS storage group in bytes
# TYPE fastdfs_group_disk_free_space_bytes gauge
fastdfs_group_disk_free_space_bytes{group="group1"} 1.4593032192e+010
# HELP fastdfs_storage_server_info information about a fastdfs storage server(0:OFFLINE 1:ACTIVE 2:INIT 3:DELETED 4:WAIT_SYNC 5:SYNCING 6:ONLINE)
# TYPE fastdfs_storage_server_info gauge
fastdfs_storage_server_info{group="group1",ip="14.103.17.230",storage="storage1",version="6.07"} 1.0
# HELP fastdfs_storage_join_time_seconds the time when a storage server joined the fastdfs cluster in seconds since the epoch
# TYPE fastdfs_storage_join_time_seconds gauge
fastdfs_storage_join_time_seconds{group="group1",ip="14.103.17.230",storage="storage1"} 1.753076473e+09
# HELP fastdfs_storage_up_time_seconds the time when a storage server was last started (or restarted) in seconds since the epoch
# TYPE fastdfs_storage_up_time_seconds gauge
fastdfs_storage_up_time_seconds{group="group1",ip="14.103.17.230",storage="storage1"} 1.753076473e+09
# HELP fastdfs_storage_total_space_bytes the total disk space of a fastdfs storage server in bytes
# TYPE fastdfs_storage_total_space_bytes gauge
fastdfs_storage_total_space_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 2.0797456384e+010
# HELP fastdfs_storage_free_space_bytes the free disk space of a fastdfs storage server in bytes
# TYPE fastdfs_storage_free_space_bytes gauge
fastdfs_storage_free_space_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 1.4593032192e+010
# HELP fastdfs_storage_connection_alloc_count the total number of connections allocated from the pool (since server startup) of a fastdfs storage server
# TYPE fastdfs_storage_connection_alloc_count gauge
fastdfs_storage_connection_alloc_count{group="group1",ip="14.103.17.230",storage="storage1"} 256.0
# HELP fastdfs_storage_connection_current_count the number of currently used connections of a fastdfs storage server
# TYPE fastdfs_storage_connection_current_count gauge
fastdfs_storage_connection_current_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_connection_max_count the maximum number of allowed connections of a fastdfs storage server
# TYPE fastdfs_storage_connection_max_count gauge
fastdfs_storage_connection_max_count{group="group1",ip="14.103.17.230",storage="storage1"} 1.0
# HELP fastdfs_storage_total_upload_count the total number of file upload operations on a fastdfs storage server
# TYPE fastdfs_storage_total_upload_count gauge
fastdfs_storage_total_upload_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_success_upload_count the number of successful file upload operations on a fastdfs storage server
# TYPE fastdfs_storage_success_upload_count gauge
fastdfs_storage_success_upload_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_total_delete_count the total number of file deletion operations on a fastdfs storage server
# TYPE fastdfs_storage_total_delete_count gauge
fastdfs_storage_total_delete_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_delete_count the number of successful file deletion operations on a fastdfs storage server
# TYPE fastdfs_storage_success_delete_count gauge
fastdfs_storage_success_delete_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_download_count the total number of file download operations on a fastdfs storage server
# TYPE fastdfs_storage_total_download_count gauge
fastdfs_storage_total_download_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_download_count the number of successful file download operations on a fastdfs storage server
# TYPE fastdfs_storage_success_download_count gauge
fastdfs_storage_success_download_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_modify_count the total number of file modification operations on a fastdfs storage server
# TYPE fastdfs_storage_total_modify_count gauge
fastdfs_storage_total_modify_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_modify_count the number of successful file modification operations on a fastdfs storage server
# TYPE fastdfs_storage_success_modify_count gauge
fastdfs_storage_success_modify_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_append_count the total number of file append operations on a fastdfs storage server
# TYPE fastdfs_storage_total_append_count gauge
fastdfs_storage_total_append_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_append_count the number of successful file append operations on a fastdfs storage server
# TYPE fastdfs_storage_success_append_count gauge
fastdfs_storage_success_append_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_upload_bytes the total size of files uploaded to a fastdfs storage server in bytes
# TYPE fastdfs_storage_total_upload_bytes gauge
fastdfs_storage_total_upload_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 154.0
# HELP fastdfs_storage_success_upload_bytes the size of successfully uploaded files to a fastdfs storage server in bytes
# TYPE fastdfs_storage_success_upload_bytes gauge
fastdfs_storage_success_upload_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 154.0
# HELP fastdfs_storage_total_download_bytes the total size of files downloaded from a fastdfs storage server in bytes
# TYPE fastdfs_storage_total_download_bytes gauge
fastdfs_storage_total_download_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_download_bytes the size of successfully downloaded files from a fastdfs storage server in bytes
# TYPE fastdfs_storage_success_download_bytes gauge
fastdfs_storage_success_download_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_append_bytes the total size of files appended to a fastdfs storage server in bytes
# TYPE fastdfs_storage_total_append_bytes gauge
fastdfs_storage_total_append_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_append_bytes the size of successfully appended files to a fastdfs storage server in bytes
# TYPE fastdfs_storage_success_append_bytes gauge
fastdfs_storage_success_append_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_modify_bytes the total size of files modified on a fastdfs storage server in bytes
# TYPE fastdfs_storage_total_modify_bytes gauge
fastdfs_storage_total_modify_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_modify_bytes the size of successfully modified files on a fastdfs storage server
# TYPE fastdfs_storage_success_modify_bytes gauge
fastdfs_storage_success_modify_bytes{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_file_open_count the total number of file open operations on a fastdfs storage
# TYPE fastdfs_storage_total_file_open_count gauge
fastdfs_storage_total_file_open_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_success_file_open_count the number of successful file open operations on a fastdfs storage server
# TYPE fastdfs_storage_success_file_open_count gauge
fastdfs_storage_success_file_open_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_total_file_read_count the total number of file read operations on a fastdfs storage server
# TYPE fastdfs_storage_total_file_read_count gauge
fastdfs_storage_total_file_read_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_success_file_read_count the number of successful file read operations on a fastdfs storage server
# TYPE fastdfs_storage_success_file_read_count gauge
fastdfs_storage_success_file_read_count{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_total_file_write_count the total number of file write operations on a fastdfs storage server
# TYPE fastdfs_storage_total_file_write_count gauge
fastdfs_storage_total_file_write_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_success_file_write_count the number of successful file write operations on a fastdfs storage server
# TYPE fastdfs_storage_success_file_write_count gauge
fastdfs_storage_success_file_write_count{group="group1",ip="14.103.17.230",storage="storage1"} 11.0
# HELP fastdfs_storage_last_heart_beat_time the time of the last heartbeat of a fastdfs storage server
# TYPE fastdfs_storage_last_heart_beat_time gauge
fastdfs_storage_last_heart_beat_time{group="group1",ip="14.103.17.230",storage="storage1"} 1.753084637e+09
# HELP fastdfs_storage_last_source_update the time of the last source file update on a fastdfs storage server
# TYPE fastdfs_storage_last_source_update gauge
fastdfs_storage_last_source_update{group="group1",ip="14.103.17.230",storage="storage1"} 1.753077421e+09
# HELP fastdfs_storage_last_sync_update the time of the last synchronization update on a fastdfs storage server
# TYPE fastdfs_storage_last_sync_update gauge
fastdfs_storage_last_sync_update{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
# HELP fastdfs_storage_last_synced_timestamp the timestamp of the last synchronization on a fastdfs storage server
# TYPE fastdfs_storage_last_synced_timestamp gauge
fastdfs_storage_last_synced_timestamp{group="group1",ip="14.103.17.230",storage="storage1"} 0.0
采集器配置
新增 prom-fastdfs.conf 配置文件
在 /usr/local/datakit/conf.d/samples 目录下，复制 prom.conf.sample 为 prom-fastdfs.conf 。
cp prom.conf.sample prom-fastdfs.conf
主要参数说明：
- url：fastdfs-exporter 指标地址
- interval：采集频率
- source：采集器别名
[[inputs.prom]]## Exporter URLs.urls = ["http://127.0.0.1:9036/metrics"]## Stream Size. ## The source stream segmentation size, (defaults to 1).## 0 source stream undivided. # stream_size = 1## Unix Domain Socket URL. Using socket to request data when not empty.uds_path = ""## Ignore URL request errors.ignore_req_err = false## Collector alias.source = "fastdfs"
重启 DataKit
systemctl restart Datakit
关键指标
| 序号 | 指标名称 | 描述 | 单位 |
|---|---|---|---|
| 1 | storage_join_time_seconds | 存储服务器加入集群的时间当此值为 true 时，命名空间将停止接受客户端写入 | Int |
| 2 | storage_up_time_seconds | 存储服务器上次启动时间（或最近一次重启时间） | Int |
| 3 | storage_total_space_bytes | 存储服务器总磁盘空间 | Int |
| 4 | free_space_bytes | 存储服务器可用磁盘空间 | Int |
| 5 | storage_connection_alloc_count | 累积已分配的连接数（自启动以来） | Int |
| 6 | storage_connection_current_count | 当前使用的连接数 | Int |
| 7 | storage_connection_max_count | 最大允许连接数 | Int |
| 8 | storage_total_delete_count | 总删除文件次数 | Int |
| 9 | storage_success_download_count | 成功下载文件次数 | Int |
| 10 | storage_total_modify_count | 总修改文件次数 | Int |
| 11 | group_storage_server_count | storage group 存储服务器数量 | Int |
| 12 | group_active_storage_server_count | storage group 运行的存储服务器数量 | Int |
| 13 | group_disk_total_space_bytes | storage group 总磁盘 | Int |
| 14 | group_disk_free_space_bytes | storage group 剩余磁盘 | Int |

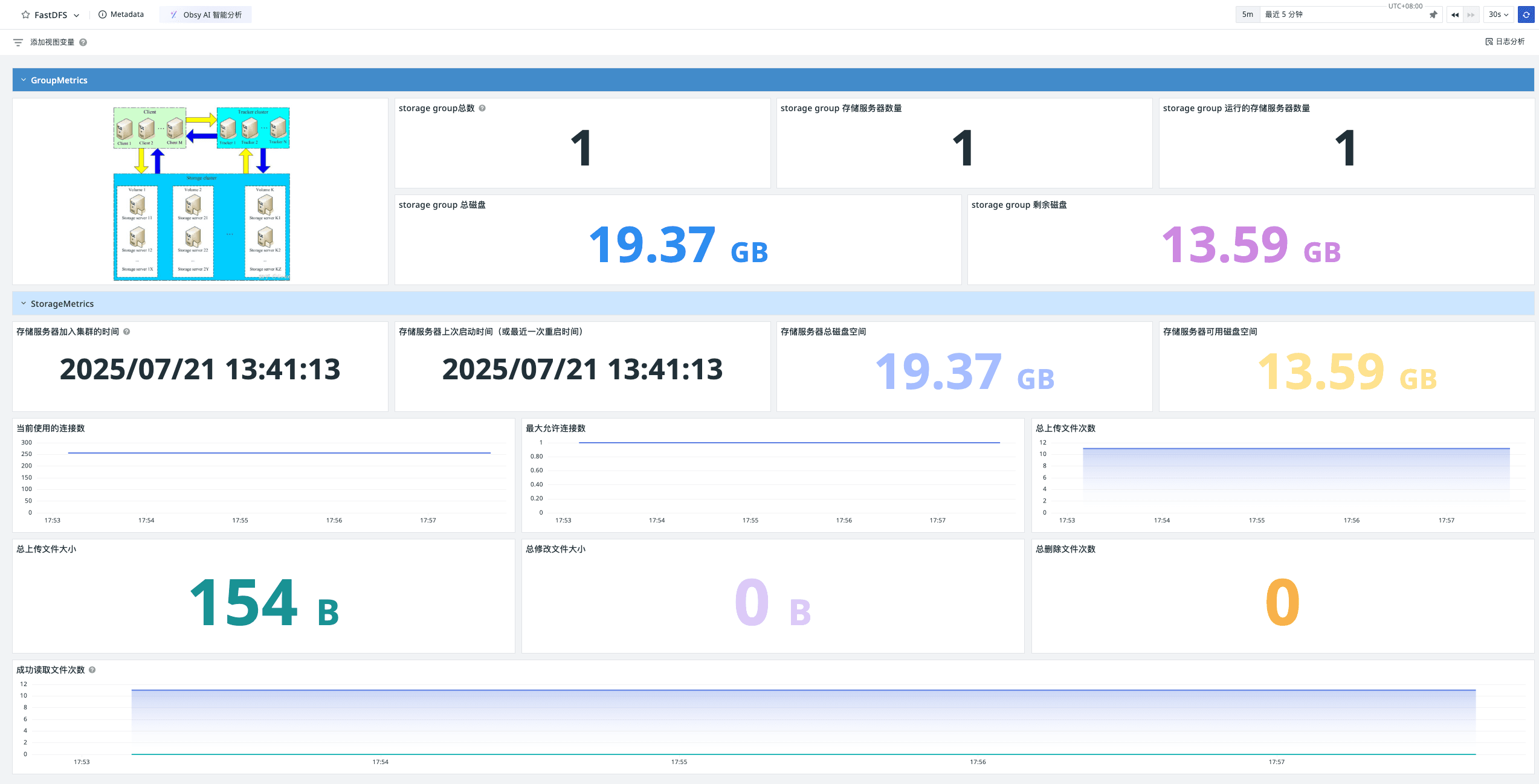

场景视图
登录观测云控制台，点击「场景」 -「新建仪表板」，输入 “FastDFS”， 选择 “FastDFS”，点击 “确定” 即可添加视图。
监控器（告警）

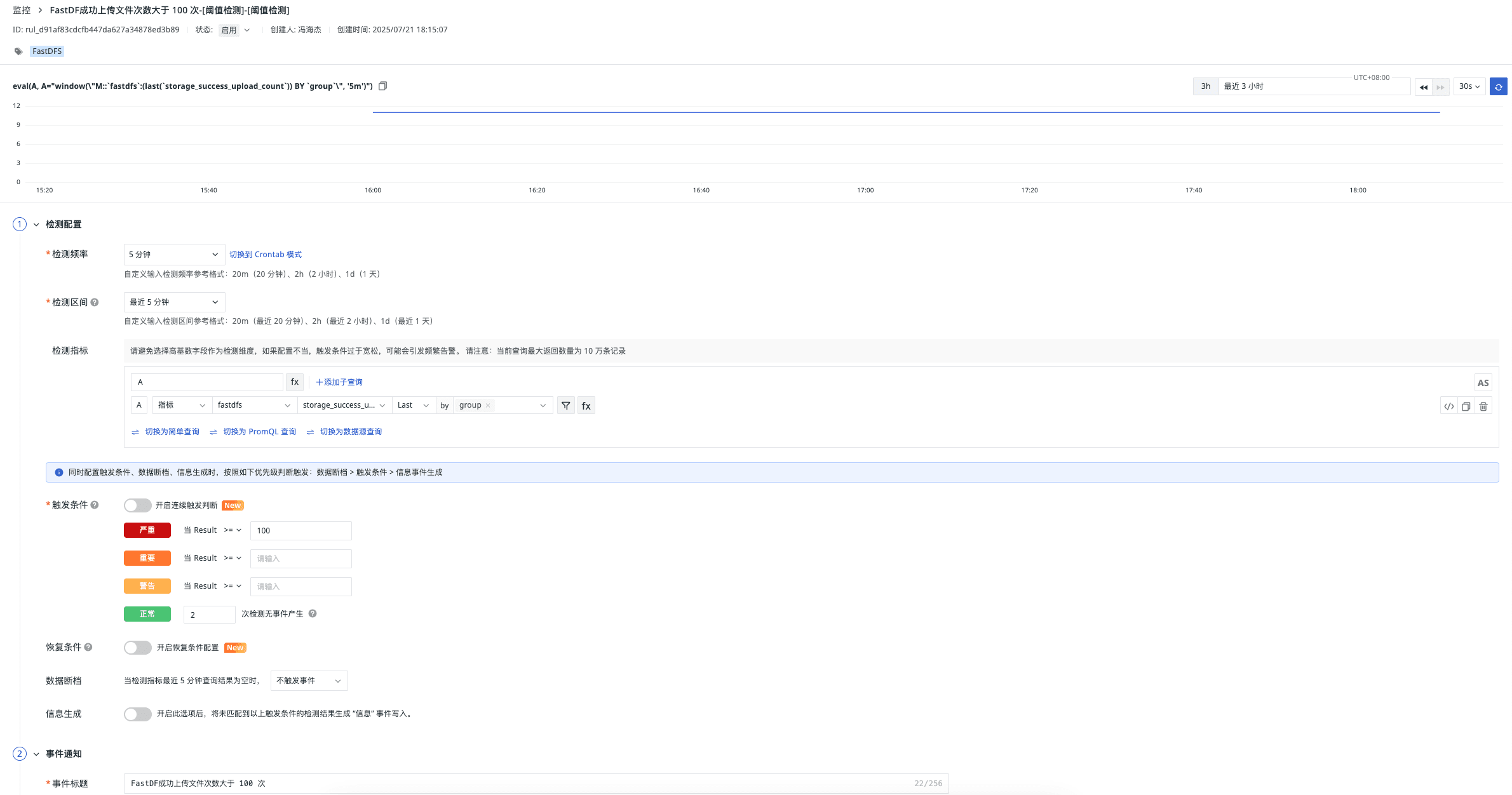

FastDF 成功上传文件次数大于 100 次

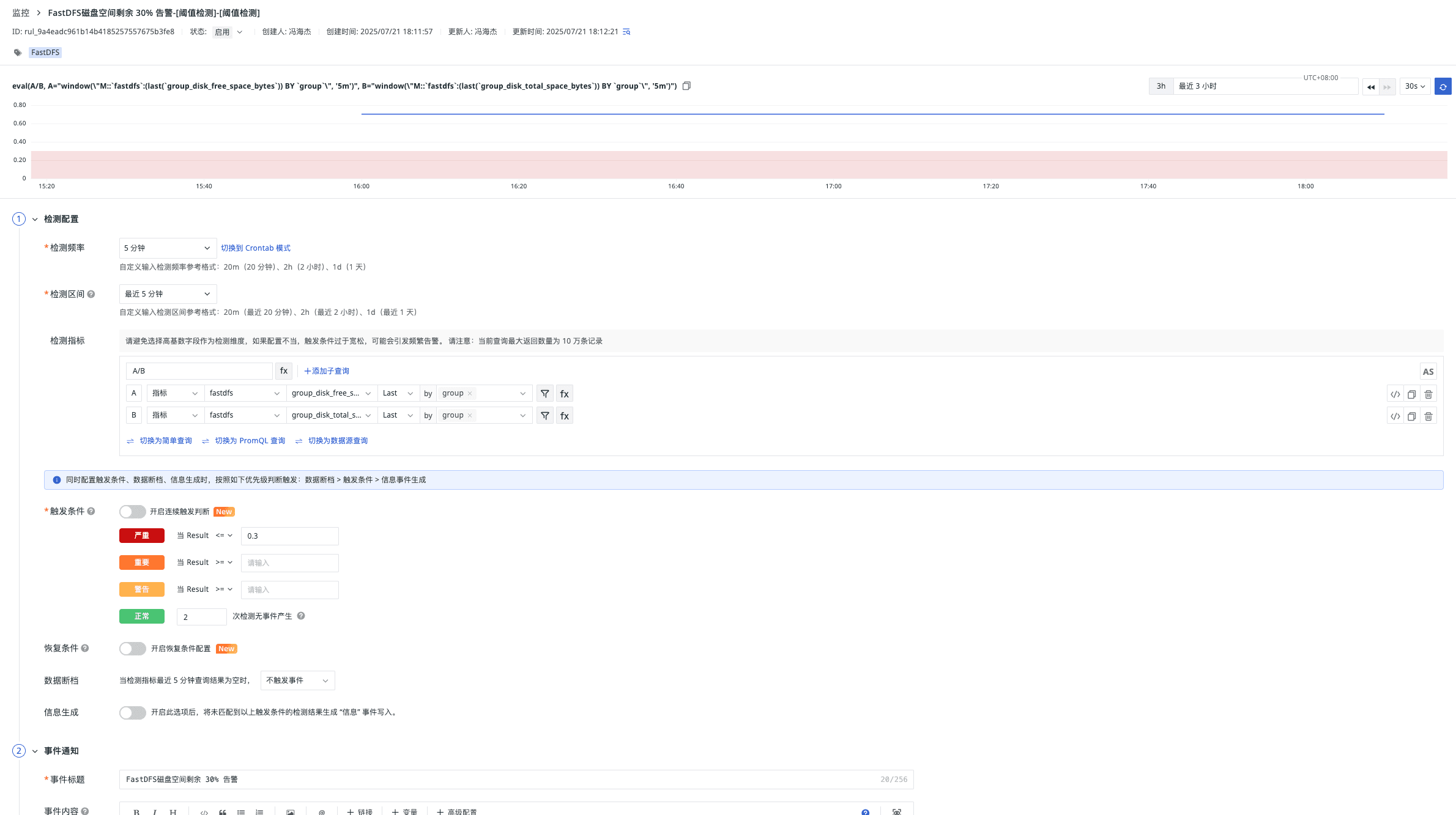

FastDFS 磁盘空间剩余 30% 告警
总结
FastDFS 监控系统通过实时状态感知、智能告警与数据可视化，将故障响应从小时级压缩至分钟级，接入观测云后监控后，运维效率提升 50% 以上，故障响应从小时级降至分钟级，资源利用率提升 30%，业务中断风险降低 90%。对于高并发文件服务（如电商图片、视频平台），让监控不仅是“保险绳”，更是性能优化和成本控制的决策引擎 。
