K8s-kubeadmin 1.28安装
K8s集群部署环境准备
环境搭建
关闭防火墙和增强功能
[root@localhost ~]# systemctl stop firewalld
[root@master ~]# systemctl disable firewalld.service[root@localhost ~]# setenforce 0
[root@master ~]# sed -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config编辑主机映射
# 配置主机映射
cat >>/etc/hosts <<EOF
192.168.10.100 master
192.168.10.150 node1
192.168.10.160 node2
EOF关闭swap分区
[root@master ~]# swapoff -a
[root@master ~]# sed -i '/swap/s/^/#/g' /etc/fstab
配置内核参数
cat >/etc/sysctl.d/k8s.conf <<EOF
net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOFsysctl --system安装ipset、 ipvsadm
yum -y install conntrack ipvsadm ipset jq iptables curl sysstat libseccomp wget vim net-tools git# 配置文件
cat >/etc/modules-load.d/ipvs.conf <<EOF # Load IPVS at boot
ip_vs
ip_vs_rr
ip_vs_wrr
ip_vs_sh
nf_conntrack
nf_conntrack_ipv4

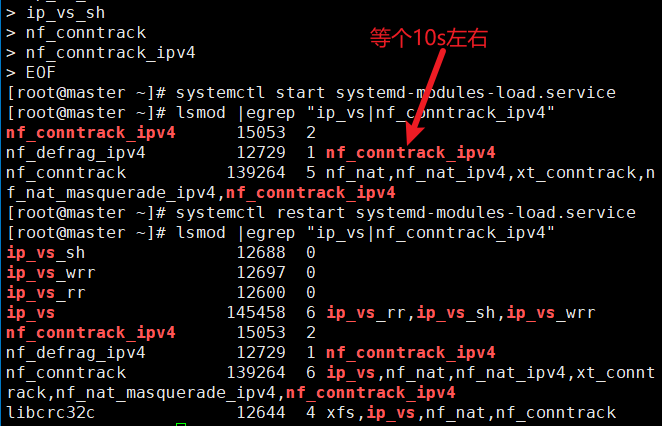

EOF# 注意，这里需要等一会，让它启动好了，再进行下一步
[root@master ~]# systemctl start systemd-modules-load.service
[root@master ~]# lsmod |egrep "ip_vs|nf_conntrack_ipv4"
安装container
安装依赖包
yum -y install yum-utils device-mapper-persistent-data lvm2添加阿里云docker
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo添加overlay和netfilter模块
cat >>/etc/modules-load.d/containerd.conf <<EOF
overlay
br_netfilter
EOF[root@master ~]# modprobe overlay
[root@master ~]# modprobe br_netfilte安装Containerd ，这里安装最新版本
yum -y install containerd.io创建container的配置文件
mkdir -p /etc/containerd
containerd config default > /etc/containerd/config.toml
sed -i '/SystemdCgroup/s/false/true/g' /etc/containerd/config.toml
sed -i '/sandbox_image/s/registry.k8s.io/registry.aliyuncs.com\/google_containers/g' /etc/containerd/config.toml启动container
systemctl enable containerd
systemctl start containerd安装kubectl、 kubelet、kubeadm
添加阿里云kubernets
cat >/etc/yum.repos.d/kubernetes.repo <<EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF捕获
[root@master ~]# yum --showduplicates list kubelet | grep 1.28
安装最新的版本
yum -y install kubectl-1.28.2 kubelet-1.28.2 kubeadm-1.28.2初始化集群k8s（在master节点做）
建立初始化集群
# 查看镜像
kubeadm config images list --kubernetes-version=v1.28.2# 配置文件
cat > /tmp/kubeadm-init.yaml <<EOF
apiVersion: kubeadm.k8s.io/v1beta3
kind: ClusterConfiguration
kubernetesVersion: v1.28.2
controlPlaneEndpoint: 192.168.10.100:6443
imageRepository: registry.aliyuncs.com/google_containers
networking:podSubnet: 10.244.0.0/16serviceSubnet: 10.96.0.0/16
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs
EOF# 再次执行kubeadm init
kubeadm init --config=/tmp/kubeadm-init.yaml --ignore-preflight-errors=all创建kubectl
mkdir -p $HOME/.kubesudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/configsudo chown $(id -u):$(id -g) $HOME/.kube/config
复权node节点（仅这个在node节点里面做）
kubeadm join 192.168.10.100:6443 --token ljv1f1.112ruydrqc76uu7o \--discovery-token-ca-cert-hash sha256:f2134ee4b3e1cbdec49bd9089bc32833a801a21f7dd4545edf2d375ed967a46e
启动kublet（3个节点）
# 启动
systemctl enable kubelet
systemctl start kubelet检查node节点
kubectl get node
kubectl get pod -A
导入相关的文件
准备文件
calico-cni-v3.24.5.tar
calico-controllers-v3.24.5.tar
calico-node-v3.24.5.tar
calico.yaml
nerdctl-1.7.0-linux-amd64.tar.gz
将nerdctl-1.7.0-linux-amd64.tar.gz解压到/usr/local/bin下面
tar -C /usr/local/bin -xzf nerdctl-1.7.0-linux-amd64.tar.gz
下载完之后使用nerdctl导入calico镜像
calico只需要master节点就可以，如果在node节点配置也没啥影响
[root@master opt]# nerdctl -n k8s.io load -i calico-cni-v3.24.5.tar
[root@master opt]# nerdctl -n k8s.io load -i calico-node-v3.24.5.tar启动ymal文件
[root@master opt]# kubectl apply -f calico.yaml
获取节点
[root@master opt]# kubectl get nodes
[root@master opt]# kubectl get pod -A
遇到这种情况，检查一下错误的namespace
[root@master opt]# kubectl get pod -n kube-system calico-kube-controllers-7d8788dbf-qcdcp -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
calico-kube-controllers-7d8788dbf-qcdcp 0/1 ImagePullBackOff 0 2m47s 10.244.104.2 node2 <none> <none>
在node2节点安装镜像
[root@node2 opt]# nerdctl -n k8s.io load -i calico-controllers-v3.24.5.tar
unpacking docker.io/calico/kube-controllers:v3.24.5 (sha256:2b6acd7f677f76ffe12ecf3ea7df92eb9b1bdb07336d1ac2a54c7631fb753f7e)...
Loaded image: calico/kube-controllers:v3.24.5
再次查看pod -A 节点
[root@master opt]# kubectl get pod -A
安装kubernetes-dashboard
这里可以3个一起安装，减少报错的机会
dashboard-v2.7.0.tar
metrics-scraper-v1.0.8.tar
[root@master opt]# kubectl get pod,svc -n kubernetes-dashboardrecommended.yaml
[root@master opt]# nerdctl -n k8s.io load -i dashboard-v2.7.0.tar
[root@master opt]# nerdctl -n k8s.io load -i metrics-scraper-v1.0.8.tar 仅仅在master里面启动ymal文件
[root@master opt]# kubectl apply -f recommended.yaml报错的解决办法
这四个dashboard没起来
[root@master opt]# kubectl get pod -n kube-system calico-kube-controllers-7d8788dbf-qcdcp -o wide
这里是指node2里面运行，但是node1里面没有运行
ctr -n k8s.io images list | grep dashboard
捕获dashboard
[root@node1 opt]# ctr -n k8s.io images rm docker.io/kubernetesui/dashboard:v2.7.0
docker.io/kubernetesui/dashboard:v2.7.0
删除某一个镜像
kubectl rollout restart deployment kubernetes-dashboard -n kubernetes-dashboard重新加载
[root@master opt]# kubectl get deployment kubernetes-dashboard -n kubernetes-dashboard -o yaml | grep -A 6 "image: kubernetesui/dashboard:v2.7.0"
