OpenShift Virtualization - 为使用 ovn-k8s-cni-overlay 类型网络的 VM 分配 IP 地址

《OpenShift / RHEL / DevSecOps 汇总目录》
说明：本文已经在支持 OpenShift Local 4.19 的环境中验证

OVN Kubernetes L2 overlay network 是 OpenShift 中使用 OVN-Kubernetes CNI 插件实现的一种基于覆盖网络（Overlay Network）的二层（L2）虚拟网络模型，可用于为 Pod 提供跨节点的、隔离的、高性能的网络通信能力。

使用 DHCP 分配地址

创建 ovn-k8s-cni-overlay 类型的 NetworkAttachmentDefinition

1. 创建一个 ovn-k8s-cni-overlay 类型的 NetworkAttachmentDefinition。

$ cat <<EOF | oc apply -f -
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:name: flatl2namespace: my-vm
spec:config: |{"cniVersion": "0.3.1","name": "flat12","netAttachDefName": "my-vm/flatl2","topology": "layer2","type": "ovn-k8s-cni-overlay"}
EOF

部署 DHCP 服务

1. 为命名空间中的名为 default 的 ServiceAccount 提权。

$ oc adm policy add-scc-to-user anyuid -z default -n my-vm

2. 部署提供 DHCP 功能的容器镜像。DHCP 服务运行的 Pod 占用 192.168.123.1/24 地址，DHCP 服务提供 192.168.123.2 - 192.168.123.254 范围的地址。

$ cat <<EOF | oc apply -f -
kind: ConfigMap
apiVersion: v1
metadata:name: dhcp-server-conf
data:dhcpd.conf: |authoritative;default-lease-time 86400;max-lease-time 86400;subnet 192.168.123.0 netmask 255.255.255.0 {range 192.168.123.2 192.168.123.254;option broadcast-address 192.168.123.255;}
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:name: dhcp-db
spec:accessModes:- ReadWriteOnceresources:requests:storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:name: dhcp-serverlabels:app: dhcp
spec:replicas: 1selector:matchLabels:app: dhcptemplate:metadata:labels:app: dhcpannotations:k8s.v1.cni.cncf.io/networks: '[{"name": "flatl2","ips": ["192.168.123.1/24"]}]'spec:containers:- name: serverimage: ghcr.io/maiqueb/ovn-k-secondary-net-dhcp:mainargs: ["-4", "-f", "-d", "--no-pid", "-cf", "/etc/dhcp/dhcpd.conf"]securityContext:runAsUser: 1000privileged: truevolumeMounts:- name: multus-daemon-configmountPath: /etc/dhcpreadOnly: true- name: dhcpdbmountPath: "/var/lib/dhcp"volumes:- name: multus-daemon-configconfigMap:name: dhcp-server-confitems:- key: dhcpd.confpath: dhcpd.conf- name: dhcpdbpersistentVolumeClaim:claimName: dhcp-db
EOF

3. 确认运行 DHCP 的 Pod 使用了 192.168.123.1/24 地址。

$ $ oc exec deploy/dhcp-server -- ip a show net1
3: net1@if921: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1400 qdisc noqueue state UP link/ether 0a:58:c0:a8:7b:01 brd ff:ff:ff:ff:ff:ffinet 192.168.123.1/24 brd 192.168.123.255 scope global net1valid_lft forever preferred_lft foreverinet6 fe80::858:c0ff:fea8:7b01/64 scope link valid_lft forever preferred_lft forever

创建测试 VM

1. 基于 Fedora 模板创建 2 个虚机，vm-server 和 vm-client，登录用户/密码都是：fedora/fedora。

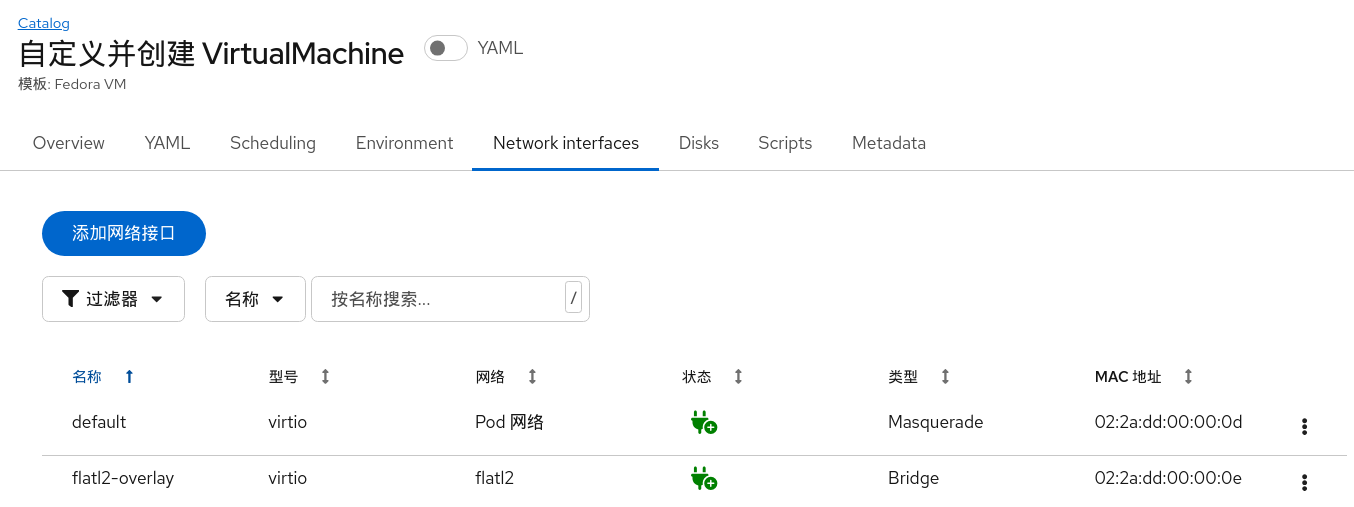

   注意：在创建虚机的时候都要添加第二个网络接口，该网络接口使用前面创建的名为 flatl2 的 ovn-k8s-cni-overlay 类型网络平面。

2. 使用以下两段 YAML 分别为 vm-server 和 vm-client 虚机设置 Cloud-init 初始化脚本，脚本指定使用 dhcp 为 eth1 网络设备分配地址。
   vm-server 的 Cloud-init 初始化脚本：

networkData: |version: 2ethernets:eth1:dhcp4: true
userData: |-	#cloud-configuser: fedorapassword: fedorachpasswd: { expire: False }ssh_pwauth: truepackages:- nginxruncmd:- [ "systemctl", "enable", "--now", "nginx" ]

vm-client 的 Cloud-init 初始化脚本：

networkData: |version: 2ethernets:eth1:dhcp4: true
userData: |-#cloud-configuser: fedorapassword: fedorachpasswd: { expire: False }ssh_pwauth: true

3. 在 2 个虚机运行后查看第二个网络接口分配的地址，确认都是 192.168.123 网段。

$ oc get vmi vm-server -ojsonpath="{@.status.interfaces[1]}" | jq
{"infoSource": "domain, guest-agent, multus-status","interfaceName": "eth1","ipAddress": "192.168.123.2","ipAddresses": ["192.168.123.2","fe80::1823:865c:93cd:6798"],"linkState": "up","mac": "02:2a:dd:00:00:05","name": "flatl2-overlay","podInterfaceName": "podb5ec4ca89f1","queueCount": 1
}$ oc get vmi vm-client -ojsonpath="{@.status.interfaces[1]}" | jq
{"infoSource": "domain, guest-agent, multus-status","interfaceName": "eth1","ipAddress": "192.168.123.3","ipAddresses": ["192.168.123.3","fe80::71c7:9a88:8243:9eb9"],"linkState": "up","mac": "02:2a:dd:00:00:08","name": "flatl2-overlay","podInterfaceName": "podb5ec4ca89f1","queueCount": 1
}

4. 确认在 vm-client 虚机中可以通过 192.168.123 网段地址访问到 vm-server 虚机中的 nginx 服务。

$ virtctl console vm-client
[fedora@vm-client ~]$ curl -k 192.168.123.2

使用 Subnet 分配地址

创建 ovn-k8s-cni-overlay 类型的 NetworkAttachmentDefinition

1. 创建一个 ovn-k8s-cni-overlay 类型的 NetworkAttachmentDefinition，其中用 subnets 指定可用的 IP 网段。

apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:name: flatl2-subnetnamespace: my-vm
spec:config: |{"cniVersion": "0.3.1","name": "flat12-subnet","netAttachDefName": "my-vm/flatl2-subnet","topology": "layer2","type": "ovn-k8s-cni-overlay","subnets": "192.168.124.0/24"}

创建测试 VM

1. 基于 Fedora 模板创建 2 个虚机，fedora-vm1 和 fedora-vm2，登录用户/密码都是：fedora/fedora。
   注意：在创建虚机的时候都要添加第二个网络接口，该网络接口使用前面创建的名为 flatl2-subnet 的 ovn-k8s-cni-overlay 类型网络平面。

2. 启动 2 个虚机，然后查看每个虚机第二个网络接口分配的 IP 地址。

$ oc get vmi fedora-vm1 -ojsonpath="{@.status.interfaces[1]}" | jq
{"infoSource": "domain, guest-agent, multus-status","interfaceName": "enp2s0","ipAddress": "192.168.123.6","ipAddresses": ["192.168.123.6"],"mac": "02:5c:0a:00:00:10","name": "nic-flatl2","queueCount": 1
}$ oc get vmi fedora-vm2 -ojsonpath="{@.status.interfaces[1]}" | jq
{"infoSource": "domain, guest-agent, multus-status","interfaceName": "enp2s0","ipAddress": "192.168.123.11","ipAddresses": ["192.168.123.11"],"mac": "02:5c:0a:00:00:11","name": "nic-flatl2","queueCount": 1
}

3. 进入 fedora-vm1，确认可以 ping 通 fedora-vm2 的 IP 地址。

$ virtctl console  fedora-vm1
[fedora@fedora-vm1 ~]$ ping 192.168.123.11

参考

https://www.redhat.com/en/blog/secondary-network-overlays-virtualization-workloads
https://github.com/maiqueb/ovn-k-secondary-net-dhcp/blob/main/README.md
https://ovn-kubernetes.io/features/multiple-networks/multi-homing/#ipv4-and-ipv6-dynamic-configuration-for-virtualization-workloads-on-l2-primary-udn
