本章节主要内容是:TCP客户端调试代码，ip和port可设置，数据发送和接收。

1.代码分析

2.所有源码

3.效果演示

一、代码分析

一、头文件分析 (TcpClient.h)
1.1 类声明和属性系统


class TcpClient : public QObject
{Q_OBJECTQ_PROPERTY(bool isConnected READ isConnected NOTIFY connectionChanged)Q_PROPERTY(QString statusMessage READ statusMessage NOTIFY statusChanged)Q_PROPERTY(QString receivedData READ receivedData NOTIFY dataReceived)

详细分析：

Q_OBJECT：启用Qt的元对象系统，支持信号槽机制

Q_PROPERTY：将C++成员暴露给QML，实现数据绑定

isConnected：只读布尔属性，反映连接状态

statusMessage：只读字符串属性，显示状态信息

receivedData：只读字符串属性，存储接收到的数据

1.2 公共接口函数


public:explicit TcpClient(QObject *parent = nullptr);Q_INVOKABLE void connectToServer(const QString &ip, int port);Q_INVOKABLE void disconnectFromHost();Q_INVOKABLE void sendMessage(const QString &message);bool isConnected() const { return m_connected; }QString statusMessage() const { return m_statusMessage; }QString receivedData() const { return m_receivedData; }

函数作用：

Q_INVOKABLE：使C++函数可在QML中调用

构造函数：初始化父对象和成员变量

connectToServer：连接到指定IP和端口的服务器

disconnectFromHost：主动断开连接

sendMessage：向服务器发送消息

三个getter函数：返回对应属性的值

1.3 信号声明


signals:void connectionChanged();void statusChanged();void dataReceived();

信号作用：

connectionChanged：连接状态改变时发射

statusChanged：状态消息更新时发射

dataReceived：收到新数据时发射

1.4 私有槽函数


private slots:void onConnected();void onDisconnected();void onReadyRead();void onErrorOccurred(QAbstractSocket::SocketError error);

槽函数功能：

onConnected：处理连接成功事件

onDisconnected：处理连接断开事件

onReadyRead：处理数据可读事件

onErrorOccurred：处理错误事件

二、源文件分析 (TcpClient.cpp)
2.1 构造函数


TcpClient::TcpClient(QObject *parent): QObject(parent), m_connected(false)
{m_socket = new QTcpSocket(this);// 连接信号槽 - 使用Qt5.12兼容的方式connect(m_socket, &QTcpSocket::connected, this, &TcpClient::onConnected);connect(m_socket, &QTcpSocket::disconnected, this, &TcpClient::onDisconnected);connect(m_socket, &QTcpSocket::readyRead, this, &TcpClient::onReadyRead);// Qt5.12兼容的错误处理方式
#if (QT_VERSION >= QT_VERSION_CHECK(5, 15, 0))connect(m_socket, QOverload<QAbstractSocket::SocketError>::of(&QTcpSocket::errorOccurred),this, &TcpClient::onErrorOccurred);
#elseconnect(m_socket, QOverload<QAbstractSocket::SocketError>::of(&QTcpSocket::error),this, &TcpClient::onErrorOccurred);
#endifm_statusMessage = "未连接";
}

详细分析：

成员初始化：m_connected初始化为false，m_statusMessage设为"未连接"

Socket创建：new QTcpSocket(this)，指定父对象实现自动内存管理

信号槽连接：

connected → onConnected：连接建立

disconnected → onDisconnected：连接断开

readyRead → onReadyRead：数据可读

版本兼容处理：针对Qt 5.15前后版本不同的错误信号名称

2.2 connectToServer 函数


void TcpClient::connectToServer(const QString &ip, int port)
{if (m_connected) {m_statusMessage = "已连接，请先断开当前连接";emit statusChanged();return;}m_statusMessage = QString("正在连接 %1:%2...").arg(ip).arg(port);emit statusChanged();m_socket->connectToHost(ip, port);
}

执行流程：

状态检查：如果已连接，设置错误状态并返回

更新状态：显示正在连接的信息

触发状态变更：发射statusChanged信号更新UI

发起连接：调用QTcpSocket::connectToHost异步连接

2.3 disconnectFromHost 函数


void TcpClient::disconnectFromHost()
{if (m_socket && m_connected) {m_socket->disconnectFromHost();}
}

特点：

安全性检查：确保socket存在且处于连接状态

优雅断开：disconnectFromHost()会等待数据发送完成

2.4 sendMessage 函数


void TcpClient::sendMessage(const QString &message)
{if (!m_connected || !m_socket) {m_statusMessage = "未连接，无法发送消息";emit statusChanged();return;}QByteArray data = message.toUtf8();qint64 bytesWritten = m_socket->write(data);if (bytesWritten == -1) {m_statusMessage = "发送失败: " + m_socket->errorString();emit statusChanged();} else {// 在接收数据显示区域也显示发送的消息QString timestamp = QDateTime::currentDateTime().toString("hh:mm:ss");QString sendInfo = QString("[%1] 发送: %2").arg(timestamp).arg(message);appendToReceivedData(sendInfo);m_statusMessage = "消息发送成功";emit statusChanged();}
}

详细流程：

连接验证：检查socket和连接状态

编码转换：将QString转换为UTF-8字节数组

数据发送：调用write()方法发送数据

结果处理：

失败：记录错误信息

成功：添加时间戳并显示在接收区，更新状态

2.5 onConnected 槽函数


void TcpClient::onConnected()
{m_connected = true;m_statusMessage = "连接服务器成功";QString timestamp = QDateTime::currentDateTime().toString("hh:mm:ss");QString connectInfo = QString("[%1] 已连接到服务器").arg(timestamp);appendToReceivedData(connectInfo);emit connectionChanged();emit statusChanged();
}

处理逻辑：

更新连接状态：m_connected = true

设置成功状态消息

记录连接时间戳到接收数据区

发射状态变更信号更新UI

2.6 onDisconnected 槽函数


void TcpClient::onDisconnected()
{m_connected = false;m_statusMessage = "已断开连接";QString timestamp = QDateTime::currentDateTime().toString("hh:mm:ss");QString disconnectInfo = QString("[%1] 与服务器断开连接").arg(timestamp);appendToReceivedData(disconnectInfo);emit connectionChanged();emit statusChanged();
}

对称处理：与onConnected类似，但处理断开连接的情况

2.7 onReadyRead 槽函数


void TcpClient::onReadyRead()
{if (!m_socket) return;QByteArray data = m_socket->readAll();QString message = QString::fromUtf8(data);QString timestamp = QDateTime::currentDateTime().toString("hh:mm:ss");QString receivedInfo = QString("[%1] 接收: %2").arg(timestamp).arg(message);appendToReceivedData(receivedInfo);m_statusMessage = "收到新消息";emit statusChanged();emit dataReceived();
}

数据接收流程：

安全性检查：确保socket有效

读取数据：readAll()读取所有可用数据

编码转换：UTF-8字节数组转QString

格式化显示：添加时间戳前缀

更新状态：显示收到新消息，发射数据接收信号

2.8 onErrorOccurred 槽函数


void TcpClient::onErrorOccurred(QAbstractSocket::SocketError error)
{Q_UNUSED(error)m_connected = false;m_statusMessage = "连接错误: " + m_socket->errorString();QString timestamp = QDateTime::currentDateTime().toString("hh:mm:ss");QString errorInfo = QString("[%1] 错误: %2").arg(timestamp).arg(m_socket->errorString());appendToReceivedData(errorInfo);emit connectionChanged();emit statusChanged();
}

错误处理：

Q_UNUSED(error)：避免未使用参数警告

重置连接状态

获取详细的错误描述信息

记录错误日志到接收区

通知UI更新状态

2.9 appendToReceivedData 辅助函数


void TcpClient::appendToReceivedData(const QString &message)
{m_receivedData.prepend(message + "\n");// 限制显示的行数，避免内存占用过大QStringList lines = m_receivedData.split('\n');if (lines.size() > 1000) { // 最多保留1000行lines = lines.mid(0, 1000);m_receivedData = lines.join('\n');}emit dataReceived();
}

内存管理策略：

前置添加：prepend()使最新消息显示在最前面

行数限制：最多保留1000行数据

内存优化：防止长时间运行导致内存无限增长

信号通知：发射dataReceived更新UI显示

三、QML界面分析
3.1 主窗口结构


ApplicationWindow {id: windowwidth: 800height: 600title: "TCP客户端"visible: trueTcpClient {id: client}

注册C++类型到QML，创建client实例

3.2 控制面板布局
连接控制部分：

TextField {id: serverIPFieldtext: "127.0.0.1"  // 默认本地回环地址
}
TextField {id: portField  text: "8080"      // 默认端口validator: IntValidator { bottom: 1; top: 65535 }  // 输入验证
}

动态按钮：

Button {id: connectButtontext: client.isConnected ? "断开连接" : "连接服务器"  // 状态相关文本onClicked: {if (client.isConnected) {client.disconnectFromHost()} else {var port = parseInt(portField.text)if (port > 0 && port <= 65535) {client.connectToServer(serverIPField.text, port)}}}
}

3.3 消息显示区域


ScrollView {TextArea {id: receivedTextAreatext: client.receivedData  // 绑定到C++属性readOnly: truewrapMode: TextArea.WrapselectByMouse: truefont.family: "Courier New"  // 等宽字体，便于对齐}
}

四、程序入口分析
4.1 main函数


int main(int argc, char *argv[])
{QCoreApplication::setAttribute(Qt::AA_EnableHighDpiScaling);QGuiApplication app(argc, argv);// 注册TCP客户端类型到QMLqmlRegisterType<TcpClient>("TcpClient", 1, 0, "TcpClient");QQmlApplicationEngine engine;engine.load(url);return app.exec();
}

二、所有源码

.pro文件源码

QT += quick quickcontrols2 networkCONFIG += c++11# The following define makes your compiler emit warnings if you use
# any Qt feature that has been marked deprecated (the exact warnings
# depend on your compiler). Refer to the documentation for the
# deprecated API to know how to port your code away from it.
DEFINES += QT_DEPRECATED_WARNINGS# You can also make your code fail to compile if it uses deprecated APIs.
# In order to do so, uncomment the following line.
# You can also select to disable deprecated APIs only up to a certain version of Qt.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000    # disables all the APIs deprecated before Qt 6.0.0SOURCES += \TcpClient.cpp \main.cppRESOURCES += qml.qrc# Additional import path used to resolve QML modules in Qt Creator's code model
QML_IMPORT_PATH =# Additional import path used to resolve QML modules just for Qt Quick Designer
QML_DESIGNER_IMPORT_PATH =# Default rules for deployment.
qnx: target.path = /tmp/$${TARGET}/bin
else: unix:!android: target.path = /opt/$${TARGET}/bin
!isEmpty(target.path): INSTALLS += targetHEADERS += \TcpClient.h

TcpClient.h文件源码

#ifndef TCPCLIENT_H
#define TCPCLIENT_H#include <QObject>
#include <QTcpSocket>
#include <QTimer>
#include <QDateTime>class TcpClient : public QObject
{Q_OBJECTQ_PROPERTY(bool isConnected READ isConnected NOTIFY connectionChanged)Q_PROPERTY(QString statusMessage READ statusMessage NOTIFY statusChanged)Q_PROPERTY(QString receivedData READ receivedData NOTIFY dataReceived)public:explicit TcpClient(QObject *parent = nullptr);Q_INVOKABLE void connectToServer(const QString &ip, int port);Q_INVOKABLE void disconnectFromHost();Q_INVOKABLE void sendMessage(const QString &message);bool isConnected() const { return m_connected; }QString statusMessage() const { return m_statusMessage; }QString receivedData() const { return m_receivedData; }signals:void connectionChanged();void statusChanged();void dataReceived();private slots:void onConnected();void onDisconnected();void onReadyRead();void onErrorOccurred(QAbstractSocket::SocketError error);private:void appendToReceivedData(const QString &message);QTcpSocket *m_socket;QString m_statusMessage;QString m_receivedData;bool m_connected;
};#endif // TCPCLIENT_H

TcpClient.cpp文件源码

#include "TcpClient.h"
#include <QHostAddress>TcpClient::TcpClient(QObject *parent): QObject(parent), m_connected(false)
{m_socket = new QTcpSocket(this);// 连接信号槽 - 使用Qt5.12兼容的方式connect(m_socket, &QTcpSocket::connected, this, &TcpClient::onConnected);connect(m_socket, &QTcpSocket::disconnected, this, &TcpClient::onDisconnected);connect(m_socket, &QTcpSocket::readyRead, this, &TcpClient::onReadyRead);// Qt5.12兼容的错误处理方式
#if (QT_VERSION >= QT_VERSION_CHECK(5, 15, 0))connect(m_socket, QOverload<QAbstractSocket::SocketError>::of(&QTcpSocket::errorOccurred),this, &TcpClient::onErrorOccurred);
#elseconnect(m_socket, QOverload<QAbstractSocket::SocketError>::of(&QTcpSocket::error),this, &TcpClient::onErrorOccurred);
#endifm_statusMessage = "未连接";
}void TcpClient::connectToServer(const QString &ip, int port)
{if (m_connected) {m_statusMessage = "已连接，请先断开当前连接";emit statusChanged();return;}m_statusMessage = QString("正在连接 %1:%2...").arg(ip).arg(port);emit statusChanged();m_socket->connectToHost(ip, port);
}void TcpClient::disconnectFromHost()
{if (m_socket && m_connected) {m_socket->disconnectFromHost();}
}void TcpClient::sendMessage(const QString &message)
{if (!m_connected || !m_socket) {m_statusMessage = "未连接，无法发送消息";emit statusChanged();return;}QByteArray data = message.toUtf8();qint64 bytesWritten = m_socket->write(data);if (bytesWritten == -1) {m_statusMessage = "发送失败: " + m_socket->errorString();emit statusChanged();} else {// 在接收数据显示区域也显示发送的消息QString timestamp = QDateTime::currentDateTime().toString("hh:mm:ss");QString sendInfo = QString("[%1] 发送: %2").arg(timestamp).arg(message);appendToReceivedData(sendInfo);m_statusMessage = "消息发送成功";emit statusChanged();}
}void TcpClient::onConnected()
{m_connected = true;m_statusMessage = "连接服务器成功";QString timestamp = QDateTime::currentDateTime().toString("hh:mm:ss");QString connectInfo = QString("[%1] 已连接到服务器").arg(timestamp);appendToReceivedData(connectInfo);emit connectionChanged();emit statusChanged();
}void TcpClient::onDisconnected()
{m_connected = false;m_statusMessage = "已断开连接";QString timestamp = QDateTime::currentDateTime().toString("hh:mm:ss");QString disconnectInfo = QString("[%1] 与服务器断开连接").arg(timestamp);appendToReceivedData(disconnectInfo);emit connectionChanged();emit statusChanged();
}void TcpClient::onReadyRead()
{if (!m_socket) return;QByteArray data = m_socket->readAll();QString message = QString::fromUtf8(data);QString timestamp = QDateTime::currentDateTime().toString("hh:mm:ss");QString receivedInfo = QString("[%1] 接收: %2").arg(timestamp).arg(message);appendToReceivedData(receivedInfo);m_statusMessage = "收到新消息";emit statusChanged();emit dataReceived();
}void TcpClient::onErrorOccurred(QAbstractSocket::SocketError error)
{Q_UNUSED(error)m_connected = false;m_statusMessage = "连接错误: " + m_socket->errorString();QString timestamp = QDateTime::currentDateTime().toString("hh:mm:ss");QString errorInfo = QString("[%1] 错误: %2").arg(timestamp).arg(m_socket->errorString());appendToReceivedData(errorInfo);emit connectionChanged();emit statusChanged();
}void TcpClient::appendToReceivedData(const QString &message)
{m_receivedData.prepend(message + "\n");// 限制显示的行数，避免内存占用过大QStringList lines = m_receivedData.split('\n');if (lines.size() > 1000) { // 最多保留1000行lines = lines.mid(0, 1000);m_receivedData = lines.join('\n');}emit dataReceived();
}

main.qml文件源码

import QtQuick 2.12
import QtQuick.Controls 2.12
import QtQuick.Layouts 1.12
import TcpClient 1.0ApplicationWindow {id: windowwidth: 800height: 600title: "TCP客户端"visible: trueTcpClient {id: client}// TCP客户端控制区域Rectangle {id: controlPanelwidth: parent.widthheight: 180color: "#f0f0f0"border.color: "#cccccc"ColumnLayout {anchors.fill: parentanchors.margins: 10// 连接设置行RowLayout {Layout.fillWidth: trueLabel {text: "服务器IP:"}TextField {id: serverIPFieldLayout.preferredWidth: 200text: "127.0.0.1"placeholderText: "输入服务器IP地址"}Label {text: "端口号:"}TextField {id: portFieldLayout.preferredWidth: 100text: "8080"validator: IntValidator { bottom: 1; top: 65535 }placeholderText: "输入端口号"}Button {id: connectButtontext: client.isConnected ? "断开连接" : "连接服务器"onClicked: {if (client.isConnected) {client.disconnectFromHost()} else {var port = parseInt(portField.text)if (port > 0 && port <= 65535) {client.connectToServer(serverIPField.text, port)} else {statusLabel.text = "端口号无效"}}}background: Rectangle {color: client.isConnected ? "#e74c3c" : "#2ecc71"radius: 4}contentItem: Text {text: connectButton.textcolor: "white"horizontalAlignment: Text.AlignHCenterverticalAlignment: Text.AlignVCenterfont.bold: true}}}// 状态显示行RowLayout {Layout.fillWidth: trueLabel {id: statusLabeltext: client.statusMessageLayout.fillWidth: truecolor: client.isConnected ? "#27ae60" : "#e74c3c"font.bold: truewrapMode: Text.Wrap}Label {text: "连接状态: " + (client.isConnected ? "已连接" : "未连接")color: client.isConnected ? "#2980b9" : "#95a5a6"font.bold: true}}// 消息发送行RowLayout {Layout.fillWidth: trueTextField {id: messageFieldLayout.fillWidth: trueplaceholderText: "输入要发送的消息..."enabled: client.isConnectedonAccepted: sendButton.clicked()}Button {id: sendButtontext: "发送消息"enabled: client.isConnected && messageField.text.trim() !== ""onClicked: {if (messageField.text.trim() !== "") {client.sendMessage(messageField.text)messageField.clear()}}background: Rectangle {color: sendButton.enabled ? "#9b59b6" : "#bdc3c7"radius: 4}contentItem: Text {text: sendButton.textcolor: "white"horizontalAlignment: Text.AlignHCenterverticalAlignment: Text.AlignVCenter}}}// 控制按钮行RowLayout {Layout.fillWidth: trueButton {text: "清空日志"onClicked: {// 由于receivedData是只读的，需要在C++端添加清空方法// 这里暂时通过重新创建对象来清空client.sendMessage("") // 触发更新}background: Rectangle {color: "#f39c12"radius: 4}contentItem: Text {text: "清空日志"color: "white"horizontalAlignment: Text.AlignHCenterverticalAlignment: Text.AlignVCenter}}Button {text: "测试消息"enabled: client.isConnectedonClicked: {client.sendMessage("Hello from TCP Client!")}background: Rectangle {color: "#3498db"radius: 4}contentItem: Text {text: "测试消息"color: "white"horizontalAlignment: Text.AlignHCenterverticalAlignment: Text.AlignVCenter}}Item {Layout.fillWidth: true}Label {text: "服务器: " + (client.isConnected ?serverIPField.text + ":" + portField.text : "未连接")color: "#8e44ad"font.bold: true}}}}// 消息显示区域Rectangle {anchors {top: controlPanel.bottombottom: parent.bottomleft: parent.leftright: parent.right}color: "white"border.color: "#dee2e6"ScrollView {anchors.fill: parentanchors.margins: 5TextArea {id: receivedTextAreatext: client.receivedDatareadOnly: truewrapMode: TextArea.WrapselectByMouse: truefont.family: "Courier New"font.pixelSize: 12background: null}}}
}

main.cpp文件源码

#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include <QQmlContext>
#include "TcpClient.h"int main(int argc, char *argv[])
{QCoreApplication::setAttribute(Qt::AA_EnableHighDpiScaling);QGuiApplication app(argc, argv);// 注册TCP客户端qmlRegisterType<TcpClient>("TcpClient", 1, 0, "TcpClient");QQmlApplicationEngine engine;// 设置应用程序信息app.setApplicationName("TCP客户端");app.setApplicationVersion("1.0");const QUrl url(QStringLiteral("qrc:/main.qml"));QObject::connect(&engine, &QQmlApplicationEngine::objectCreated,&app, [url](QObject *obj, const QUrl &objUrl) {if (!obj && url == objUrl)QCoreApplication::exit(-1);}, Qt::QueuedConnection);engine.load(url);return app.exec();
}

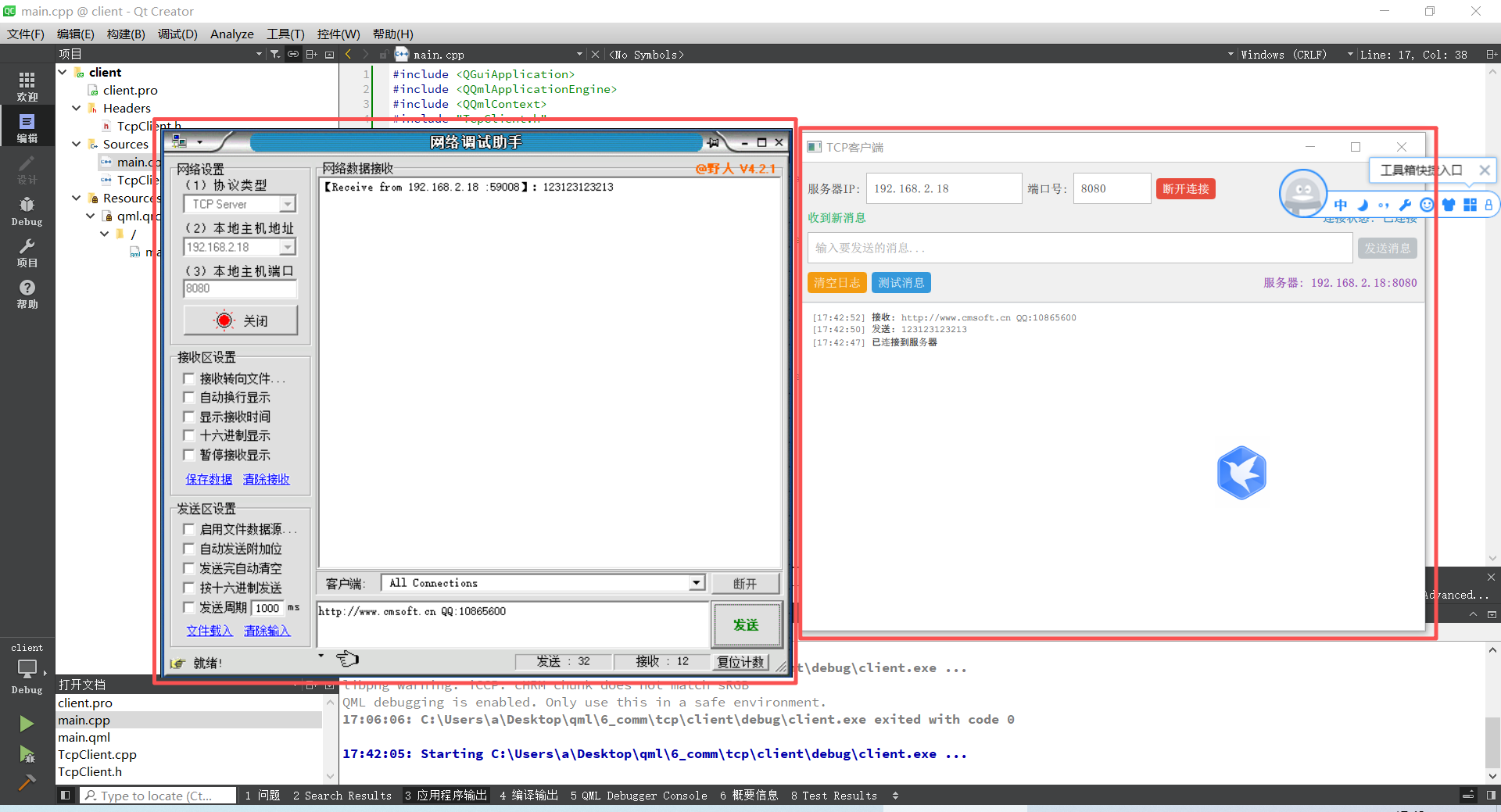

三、效果演示

打开网络调试助手进行测试，设置ip和port，测试发送和接收。
