k8s kubelet 10250监控端口访问配置

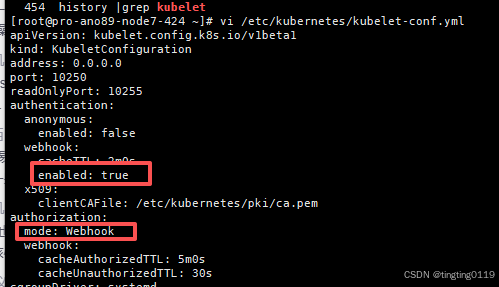

一、修改kubelet的config.yaml文件

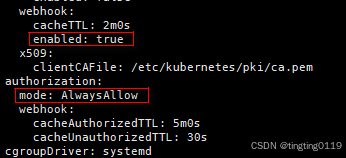

修改成：

二、找到证书<本文使用的pem证书>

三、测试

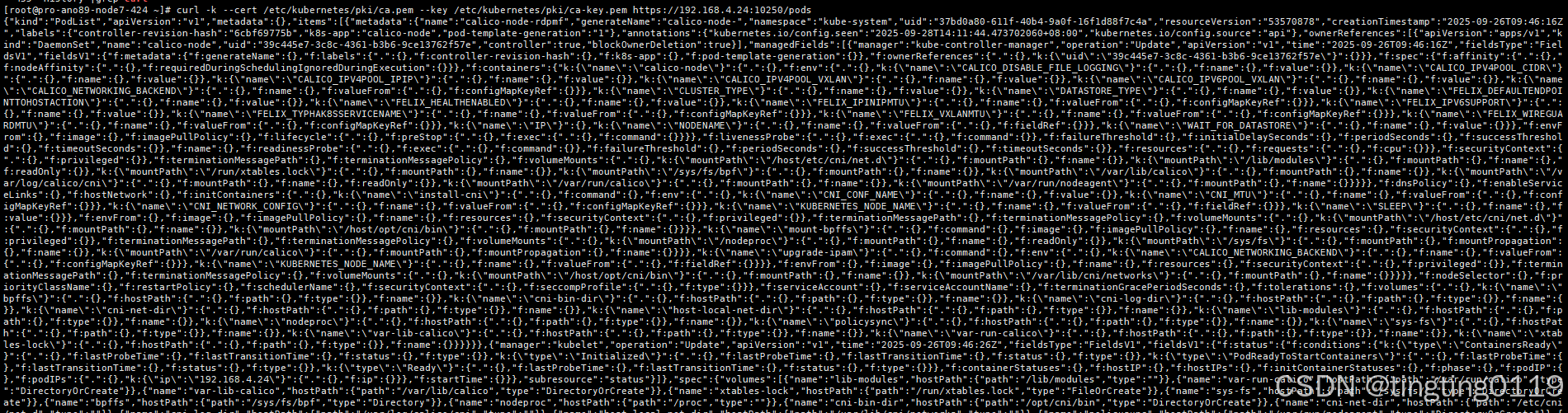

# curl -k --cert /etc/kubernetes/pki/ca.pem --key /etc/kubernetes/pki/ca-key.pem https://192.168.4.24:10250/pods

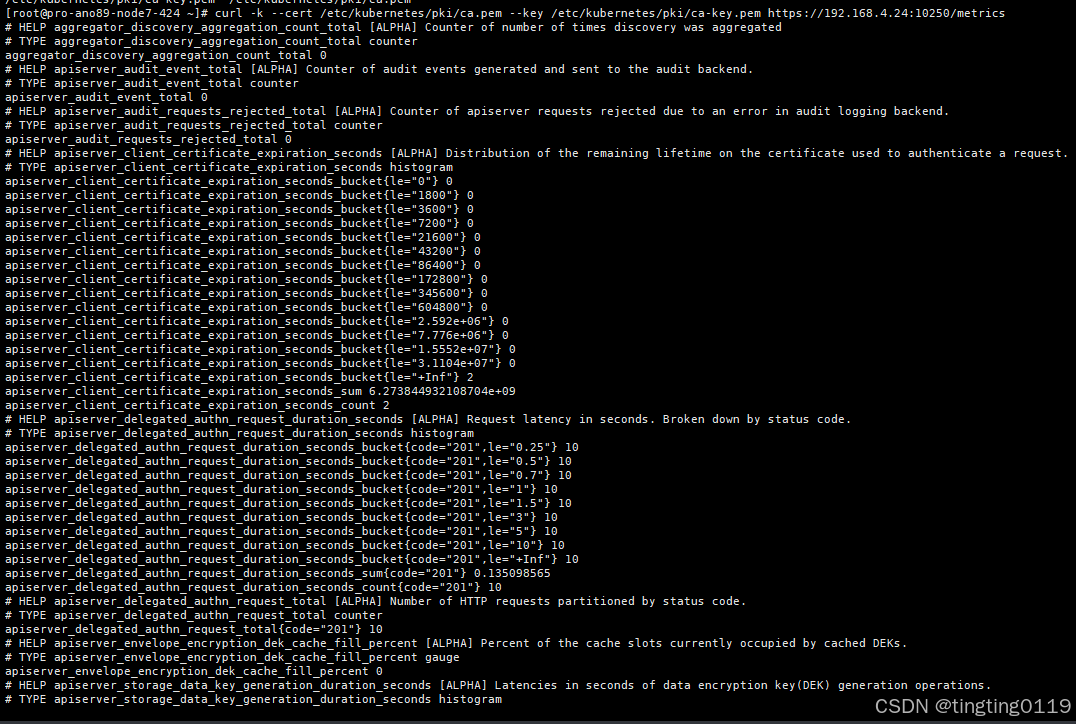

# curl -k --cert /etc/kubernetes/pki/ca.pem --key /etc/kubernetes/pki/ca-key.pem https://192.168.4.24:10250/metrics

五、prometheus配置

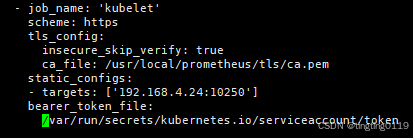

5.1 metrics配置

5.2 pem文件转crt

pem转pem编码CRT，保留abse64格式

# openssl x509 -in ca.pem -out ca.crt

pem转DER编码CRT（二进制格式），若目标系统要求crt文件为二进制DER格式：

# openssl x509 -outform der -in ca.pem -out ca.crt

5.3 token生成

创建ServiceAccount和RABC# prometheus-rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:name: prometheusnamespace: monitoring
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:name: prometheus
rules:
- apiGroups: [""]resources:- nodes- nodes/proxy- services- endpoints- podsverbs: ["get", "list", "watch"]
- apiGroups:- extensionsresources:- ingressesverbs: ["get", "list", "watch"]
- nonResourceURLs: ["/metrics"]verbs: ["get"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:name: prometheus
roleRef:apiGroup: rbac.authorization.k8s.iokind: ClusterRolename: prometheus
subjects:
- kind: ServiceAccountname: prometheusnamespace: monitoring为prometheus创建专用的kubelet访问token：
# prometheus-kubelet-token.yaml
apiVersion: v1
kind: Secret
metadata:name: prometheus-kubelet-tokennamespace: monitoringannotations:kubernetes.io/service-account.name: prometheus
type: kubernetes.io/service-account-token
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:name: prometheus-kubelet-access
rules:
- apiGroups: [""]resources: ["nodes", "nodes/proxy", "nodes/metrics"]verbs: ["get", "list", "watch"]
- nonResourceURLs: ["/metrics", "/metrics/cadvisor", "/metrics/probes"]verbs: ["get"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:name: prometheus-kubelet-access
roleRef:apiGroup: rbac.authorization.k8s.iokind: ClusterRolename: prometheus-kubelet-access
subjects:
- kind: ServiceAccountname: prometheusnamespace: monitoring检查kuelet服务状态;
# systemctl status kubelet检查防火墙规则：
# iptables -L |grep 10250    #iptables关闭则忽略验证：
#  kubectl describe secrets -n monitoring prometheus-kubelet-token检查RABC权限;
# kubectl auth can-i get nodes --as=system:serviceaccount:monitoring:prometheus查看证书有效期：
openssl x509 -in /etc/kubernetes/pki/ca.crt -noout -datestoken转base64：
# kubectl get secret -n monitoring prometheus-kubelet-token -o jsonpath='{.data.token}' | base64 --decode
