PyTorch nn.Linear 终极详解：从零理解线性层的一切（含可视化+完整代码）

🚀 PyTorch nn.Linear 终极详解：从零理解线性层的一切（含可视化+完整代码）

📚 阅读时长：约60分钟
🎯 难度等级：零基础到进阶
💡 前置知识：Python基础（不需要线性代数基础，我会讲解）
🔥 核心收获：彻底理解Linear层的本质、掌握各种使用场景、理解深度学习的基础 🎨 特色内容：包含完整PlantUML可视化

🎯 前言：为什么Linear如此重要？ {#前言}

大家好！今天我们要深入探讨深度学习中最基础、最重要的组件——线性层（Linear Layer） ！🎉

你可能会想：“Linear层不就是个矩阵乘法吗，有什么好讲的？”

大错特错！ Linear层是：

• 🧱 深度学习的基石：几乎所有神经网络都包含Linear层
• 🔄 维度变换的魔法师：灵活改变数据的维度和表示
• 🎯 特征提取的核心：学习数据中的线性关系
• 💪 组合的力量：多个Linear层+激活函数=任意函数逼近器

如果你是小白，别担心！我会从最基础的概念讲起，保证你能理解每一个细节！😊

---

🧠 从生物神经元到人工神经元 {#生物神经元}

1. 生物神经元的启发

我们的大脑由约860亿个神经元组成。每个神经元的工作原理很简单：

1. 接收信号：从其他神经元接收电信号
2. 加权求和：不同输入有不同的重要性（权重）
3. 激活输出：超过阈值就发送信号给下一个神经元

2. 人工神经元模型

# 一个简单的神经元示例
import numpy as npclass SimpleNeuron:"""一个最简单的人工神经元"""def __init__(self, n_inputs):# 每个输入都有一个权重self.weights = np.random.randn(n_inputs)  # w1, w2, ..., wn# 一个偏置项（阈值）self.bias = np.random.randn()  # bdef forward(self, inputs):"""计算过程：output = w1*x1 + w2*x2 + ... + wn*xn + b"""weighted_sum = np.dot(inputs, self.weights) + self.biasreturn weighted_sum# 测试单个神经元
neuron = SimpleNeuron(3)  # 3个输入
x = np.array([1.0, 2.0, 3.0])  # 输入信号
output = neuron.forward(x)
print(f"输入: {x}")
print(f"权重: {neuron.weights}")
print(f"偏置: {neuron.bias}")
print(f"输出: {output}")

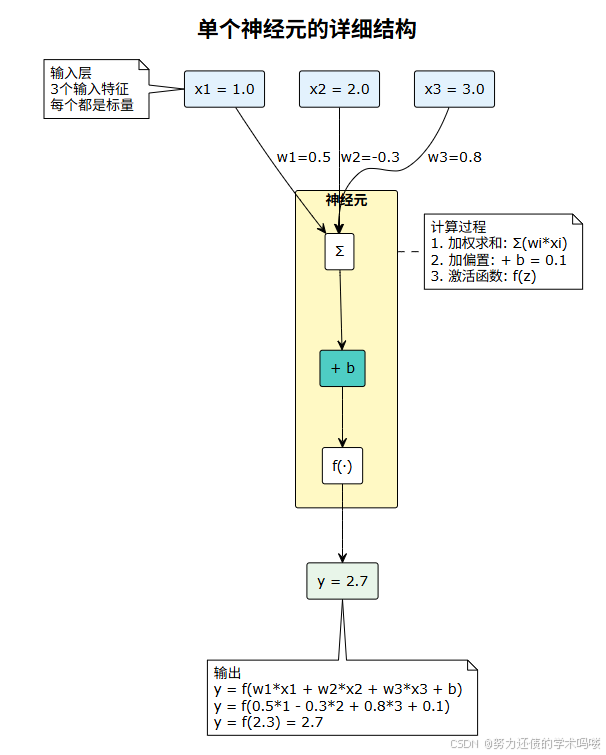

3. 可视化单个神经元（完整PlantUML代码）

这是单个神经元的详细结构图

📐 Linear层的数学本质 {#数学本质}

1. 单个样本的计算

当我们有一个样本时，Linear层做的就是：

$$\mathbf{y}=\mathbf{x}\cdot {\mathbf{W}}^T+\mathbf{b}$$

其中：

• $\mathbf{x}$: 输入向量，形状 [in_features]
• $\mathbf{W}$: 权重矩阵，形状 [out_features, in_features]
• $\mathbf{b}$: 偏置向量，形状 [out_features]
• $\mathbf{y}$: 输出向量，形状 [out_features]

🎯 具体例子：

import torch
import torch.nn as nn# 创建一个Linear层：3个输入，2个输出
linear = nn.Linear(in_features=3, out_features=2)# 单个样本输入
x = torch.tensor([1.0, 2.0, 3.0])  # shape: [3]# 查看权重和偏置
print("权重矩阵 W:")
print(linear.weight)  # shape: [2, 3]
print("\n偏置向量 b:")
print(linear.bias)    # shape: [2]# 前向传播
y = linear(x)  # shape: [2]
print(f"\n输入 x: {x}")
print(f"输出 y: {y}")# 手动计算验证
y_manual = torch.matmul(x, linear.weight.T) + linear.bias
print(f"手动计算: {y_manual}")
print(f"结果一致: {torch.allclose(y, y_manual)}")

📊 分解计算过程：

# 让我们详细分解计算过程
def detailed_linear_computation(x, W, b):"""详细展示Linear层的计算过程输入:x: [3] - 输入向量W: [2, 3] - 权重矩阵b: [2] - 偏置向量输出:y: [2] - 输出向量"""print("="*50)print("🔍 Linear层计算详解")print("="*50)# 输入print(f"\n输入 x = {x.numpy()}")# 权重矩阵print(f"\n权重矩阵 W = ")print(W.numpy())# 偏置print(f"\n偏置 b = {b.numpy()}")# 计算第一个输出神经元y1 = W[0, 0] * x[0] + W[0, 1] * x[1] + W[0, 2] * x[2] + b[0]print(f"\ny[0] = W[0,0]*x[0] + W[0,1]*x[1] + W[0,2]*x[2] + b[0]")print(f"     = {W[0,0]:.2f}*{x[0]:.2f} + {W[0,1]:.2f}*{x[1]:.2f} + {W[0,2]:.2f}*{x[2]:.2f} + {b[0]:.2f}")print(f"     = {y1:.2f}")# 计算第二个输出神经元y2 = W[1, 0] * x[0] + W[1, 1] * x[1] + W[1, 2] * x[2] + b[1]print(f"\ny[1] = W[1,0]*x[0] + W[1,1]*x[1] + W[1,2]*x[2] + b[1]")print(f"     = {W[1,0]:.2f}*{x[0]:.2f} + {W[1,1]:.2f}*{x[1]:.2f} + {W[1,2]:.2f}*{x[2]:.2f} + {b[1]:.2f}")print(f"     = {y2:.2f}")# 最终输出y = torch.tensor([y1, y2])print(f"\n最终输出 y = {y.numpy()}")return y# 测试
x = torch.tensor([1.0, 2.0, 3.0])
W = torch.tensor([[0.5, -0.3, 0.2],   # 第一个输出神经元的权重[0.1, 0.4, -0.2]])   # 第二个输出神经元的权重
b = torch.tensor([0.1, -0.5])y = detailed_linear_computation(x, W, b)

2. 批量样本的计算

当我们有多个样本（一个batch）时：

$$\mathbf{Y}=\mathbf{X}\cdot {\mathbf{W}}^T+\mathbf{b}$$

其中：

• $\mathbf{X}$: 输入矩阵，形状 [batch_size, in_features]
• $\mathbf{W}$: 权重矩阵，形状 [out_features, in_features]
• $\mathbf{b}$: 偏置向量，形状 [out_features]（广播到每个样本）
• $\mathbf{Y}$: 输出矩阵，形状 [batch_size, out_features]

# 批量样本示例
batch_size = 4
in_features = 3
out_features = 2# 创建Linear层
linear = nn.Linear(in_features, out_features)# 批量输入
X = torch.randn(batch_size, in_features)  # shape: [4, 3]
print(f"输入 X shape: {X.shape}")
print(f"输入 X:\n{X}")# 前向传播
Y = linear(X)  # shape: [4, 2]
print(f"\n输出 Y shape: {Y.shape}")
print(f"输出 Y:\n{Y}")# 验证每个样本的计算
print("\n逐样本验证:")
for i in range(batch_size):y_i = linear(X[i])print(f"样本{i}: 输入{X[i].shape} -> 输出{y_i.shape}")print(f"  与批量计算结果一致: {torch.allclose(Y[i], y_i)}")

3. 多维张量的处理

Linear层可以处理任意维度的输入，只要最后一维匹配即可：

def test_multidimensional_linear():"""测试Linear层处理多维输入"""linear = nn.Linear(10, 5)# 2D输入：[batch_size, in_features]x_2d = torch.randn(32, 10)y_2d = linear(x_2d)print(f"2D: {x_2d.shape} -> {y_2d.shape}")# 3D输入：[batch_size, seq_len, in_features]x_3d = torch.randn(32, 100, 10)y_3d = linear(x_3d)print(f"3D: {x_3d.shape} -> {y_3d.shape}")# 4D输入：[batch_size, height, width, in_features]x_4d = torch.randn(32, 28, 28, 10)y_4d = linear(x_4d)print(f"4D: {x_4d.shape} -> {y_4d.shape}")# 5D输入：[batch_size, time, height, width, in_features]x_5d = torch.randn(32, 10, 28, 28, 10)y_5d = linear(x_5d)print(f"5D: {x_5d.shape} -> {y_5d.shape}")return y_2d, y_3d, y_4d, y_5d# 运行测试
print("🔬 测试多维输入:")
test_multidimensional_linear()

---

🎨 图解神经元连接 {#图解神经元}

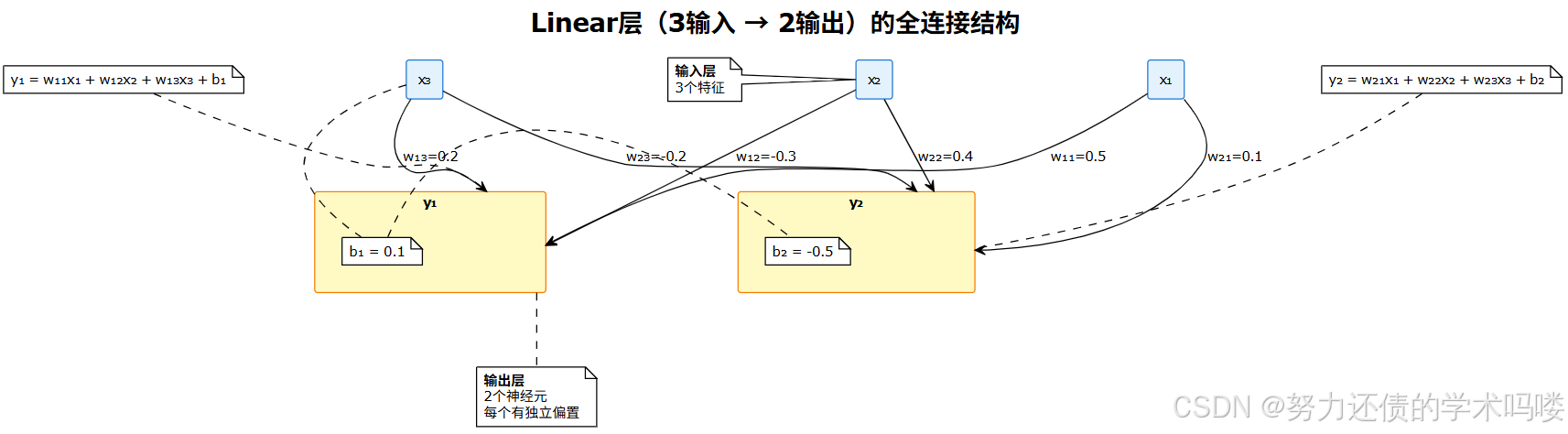

1. Linear层全连接结构（3→2）

以下是一个3输入2输出的Linear层完整连接结构

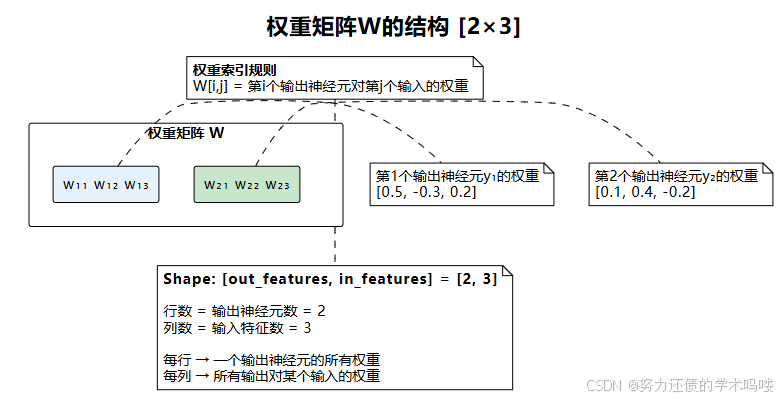

2. 权重矩阵W的结构

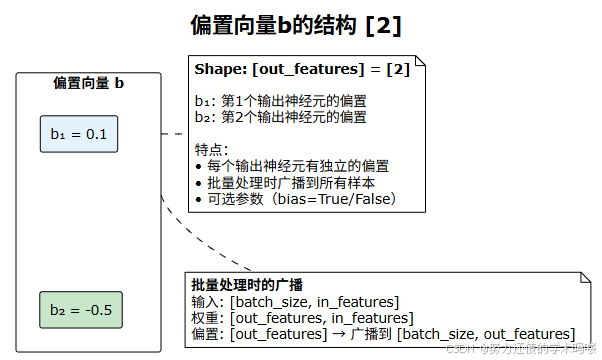

3. 偏置向量b的结构

4. Linear层前向传播数据流

5. 完整的数据流可视化代码

def visualize_data_flow():"""可视化Linear层的完整数据流"""print("="*60)print("📊 Linear层数据流可视化")print("="*60)# 设置参数batch_size = 2in_features = 3out_features = 2# 创建示例数据X = torch.tensor([[1.0, 2.0, 3.0],  # 样本1[4.0, 5.0, 6.0]   # 样本2])W = torch.tensor([[0.1, 0.2, 0.3],  # y1的权重[0.4, 0.5, 0.6]   # y2的权重])b = torch.tensor([0.1, -0.1])  # 偏置print(f"\n输入 X: shape={X.shape}")print(X)print(f"\n权重 W: shape={W.shape}")print(W)print(f"\n偏置 b: shape={b.shape}")print(b)# 详细计算过程print("\n" + "="*40)print("计算过程:")print("="*40)# 矩阵乘法print("\n1️⃣ 矩阵乘法 X @ W.T:")XW = torch.matmul(X, W.T)print(f"   shape: {X.shape} @ {W.T.shape} = {XW.shape}")print(f"   结果:\n{XW}")# 加偏置print("\n2️⃣ 加偏置 (XW + b):")Y = XW + bprint(f"   偏置广播: {b.shape} -> {XW.shape}")print(f"   结果:\n{Y}")# 逐元素验证print("\n" + "="*40)print("逐元素验证:")print("="*40)for i in range(batch_size):for j in range(out_features):# 计算 Y[i,j]value = 0calc_str = f"Y[{i},{j}] = "for k in range(in_features):value += X[i,k] * W[j,k]calc_str += f"{X[i,k]:.1f}*{W[j,k]:.1f}"if k < in_features - 1:calc_str += " + "value += b[j]calc_str += f" + {b[j]:.1f} = {value:.1f}"print(calc_str)# 验证assert abs(Y[i,j] - value) < 1e-6, "计算错误!"print("\n✅ 所有计算验证通过!")return Y# 运行可视化
result = visualize_data_flow()

---

💻 手搓Linear层 {#手搓实现}

让我们从零开始实现一个Linear层，完全理解其内部机制！

1. 基础版本

class MyLinear(nn.Module):"""手搓实现Linear层 - 基础版本功能等价于 nn.Linear"""def __init__(self, in_features: int, out_features: int, bias: bool = True):"""参数:in_features: 输入特征数out_features: 输出特征数bias: 是否使用偏置"""super(MyLinear, self).__init__()self.in_features = in_featuresself.out_features = out_featuresself.use_bias = bias# 创建权重参数 [out_features, in_features]self.weight = nn.Parameter(torch.empty(out_features, in_features))# 创建偏置参数 [out_features]if bias:self.bias = nn.Parameter(torch.empty(out_features))else:self.register_parameter('bias', None)# 初始化参数self.reset_parameters()print(f"✅ MyLinear初始化: {in_features} -> {out_features}")print(f"   权重shape: {self.weight.shape}")if self.use_bias:print(f"   偏置shape: {self.bias.shape}")def reset_parameters(self):"""参数初始化（使用Xavier初始化）"""# Xavier均匀分布初始化nn.init.xavier_uniform_(self.weight)if self.use_bias:# 偏置初始化为0nn.init.zeros_(self.bias)def forward(self, x: torch.Tensor) -> torch.Tensor:"""前向传播输入:x: [..., in_features] - 任意维度，最后一维必须是in_features输出:[..., out_features] - 保持输入的维度结构，最后一维变为out_features"""# 线性变换: y = xW^T + boutput = torch.matmul(x, self.weight.t())if self.use_bias:output = output + self.biasreturn outputdef extra_repr(self) -> str:"""用于print时显示层信息"""return f'in_features={self.in_features}, out_features={self.out_features}, bias={self.use_bias}'# 测试手搓的Linear层
def test_my_linear():"""测试手搓的Linear层"""print("\n" + "="*50)print("🧪 测试手搓Linear层")print("="*50)# 创建两个层：PyTorch的和我们的in_features = 5out_features = 3torch_linear = nn.Linear(in_features, out_features)my_linear = MyLinear(in_features, out_features)# 复制权重，确保参数相同my_linear.weight.data = torch_linear.weight.data.clone()my_linear.bias.data = torch_linear.bias.data.clone()# 测试不同维度的输入test_inputs = [torch.randn(10, in_features),           # 2Dtorch.randn(4, 8, in_features),         # 3Dtorch.randn(2, 4, 8, in_features),      # 4D]print("\n测试结果:")for i, x in enumerate(test_inputs):y_torch = torch_linear(x)y_mine = my_linear(x)print(f"\n输入{i+1} shape: {x.shape}")print(f"  PyTorch输出: {y_torch.shape}")print(f"  MyLinear输出: {y_mine.shape}")print(f"  结果一致: {torch.allclose(y_torch, y_mine, atol=1e-6)}")print("\n✅ 手搓Linear层测试通过!")# 运行测试
test_my_linear()

2. 高级版本（支持更多功能）

class AdvancedLinear(nn.Module):"""手搓实现Linear层 - 高级版本额外功能:- 支持多种初始化方式- 支持权重约束- 支持梯度裁剪- 统计功能"""def __init__(self,in_features: int,out_features: int,bias: bool = True,init_method: str = 'xavier',weight_constraint: float = None,track_stats: bool = False):super(AdvancedLinear, self).__init__()self.in_features = in_featuresself.out_features = out_featuresself.use_bias = biasself.init_method = init_methodself.weight_constraint = weight_constraintself.track_stats = track_stats# 创建参数self.weight = nn.Parameter(torch.empty(out_features, in_features))if bias:self.bias = nn.Parameter(torch.empty(out_features))else:self.register_parameter('bias', None)# 统计信息if track_stats:self.register_buffer('num_batches', torch.tensor(0))self.register_buffer('running_mean', torch.zeros(out_features))self.register_buffer('running_var', torch.ones(out_features))# 初始化self.reset_parameters()def reset_parameters(self):"""根据指定方法初始化参数"""if self.init_method == 'xavier':nn.init.xavier_uniform_(self.weight)elif self.init_method == 'kaiming':nn.init.kaiming_uniform_(self.weight, nonlinearity='relu')elif self.init_method == 'normal':nn.init.normal_(self.weight, mean=0, std=0.01)else:raise ValueError(f"Unknown init method: {self.init_method}")if self.use_bias:nn.init.zeros_(self.bias)def forward(self, x: torch.Tensor) -> torch.Tensor:"""前向传播"""# 权重约束if self.weight_constraint is not None:with torch.no_grad():norm = self.weight.norm(2, dim=1, keepdim=True)desired = torch.clamp(norm, max=self.weight_constraint)self.weight.mul_(desired / (norm + 1e-7))# 线性变换output = F.linear(x, self.weight, self.bias)# 更新统计信息if self.track_stats and self.training:with torch.no_grad():# 计算批次统计batch_mean = output.mean(dim=0)batch_var = output.var(dim=0)# 更新running统计momentum = 0.1self.running_mean.mul_(1 - momentum).add_(batch_mean * momentum)self.running_var.mul_(1 - momentum).add_(batch_var * momentum)self.num_batches += 1return outputdef get_stats(self):"""获取统计信息"""if not self.track_stats:return Nonereturn {'num_batches': self.num_batches.item(),'running_mean': self.running_mean,'running_var': self.running_var,'weight_mean': self.weight.mean().item(),'weight_std': self.weight.std().item(),}# 测试高级Linear层
def test_advanced_linear():"""测试高级Linear层的功能"""print("\n" + "="*50)print("🚀 测试高级Linear层")print("="*50)# 创建层layer = AdvancedLinear(in_features=10,out_features=5,init_method='kaiming',weight_constraint=2.0,track_stats=True)# 训练模式layer.train()# 多个批次的前向传播for i in range(3):x = torch.randn(32, 10)y = layer(x)print(f"\n批次 {i+1}:")print(f"  输入: {x.shape}")print(f"  输出: {y.shape}")print(f"  输出均值: {y.mean():.4f}")print(f"  输出标准差: {y.std():.4f}")# 查看统计信息stats = layer.get_stats()print("\n📊 统计信息:")print(f"  处理批次数: {stats['num_batches']}")print(f"  Running均值: {stats['running_mean']}")print(f"  Running方差: {stats['running_var']}")print(f"  权重均值: {stats['weight_mean']:.4f}")print(f"  权重标准差: {stats['weight_std']:.4f}")# 验证权重约束weight_norms = layer.weight.norm(2, dim=1)print(f"\n权重范数: {weight_norms}")print(f"最大范数: {weight_norms.max():.4f}")print(f"权重约束生效: {weight_norms.max() <= layer.weight_constraint + 1e-6}")# 运行测试
test_advanced_linear()

---

🎯 PyTorch nn.Linear完全指南 {#pytorch实现}

1. 基础用法

import torch
import torch.nn as nndef basic_linear_usage():"""nn.Linear的基础用法"""print("="*50)print("📚 nn.Linear基础用法")print("="*50)# 1. 创建Linear层linear = nn.Linear(in_features=784,   # 输入特征数（例如：28x28的图像展平）out_features=10,   # 输出特征数（例如：10个分类）bias=True          # 是否使用偏置（默认True）)print(f"\n1️⃣ Linear层信息:")print(f"   {linear}")print(f"   权重shape: {linear.weight.shape}")print(f"   偏置shape: {linear.bias.shape}")print(f"   参数总数: {sum(p.numel() for p in linear.parameters())}")# 2. 不同维度的输入print("\n2️⃣ 处理不同维度输入:")# 2D输入（最常见）x_2d = torch.randn(32, 784)  # [batch_size, features]y_2d = linear(x_2d)print(f"   2D: {x_2d.shape} -> {y_2d.shape}")# 3D输入（序列数据）x_3d = torch.randn(16, 50, 784)  # [batch, seq_len, features]y_3d = linear(x_3d)print(f"   3D: {x_3d.shape} -> {y_3d.shape}")# 4D输入（图像特征图）x_4d = torch.randn(8, 4, 4, 784)  # [batch, h, w, features]y_4d = linear(x_4d)print(f"   4D: {x_4d.shape} -> {y_4d.shape}")# 3. 访问和修改参数print("\n3️⃣ 参数操作:")print(f"   权重均值: {linear.weight.mean():.4f}")print(f"   权重标准差: {linear.weight.std():.4f}")print(f"   偏置均值: {linear.bias.mean():.4f}")# 修改参数with torch.no_grad():linear.weight.fill_(0.01)  # 将权重设为0.01linear.bias.zero_()         # 将偏置设为0print(f"   修改后权重均值: {linear.weight.mean():.4f}")print(f"   修改后偏置均值: {linear.bias.mean():.4f}")# 4. 不带偏置的Linear层print("\n4️⃣ 不带偏置的Linear层:")linear_no_bias = nn.Linear(100, 50, bias=False)print(f"   {linear_no_bias}")print(f"   有偏置? {linear_no_bias.bias is not None}")return linear# 运行基础示例
basic_linear_usage()

2. 初始化策略

def initialization_strategies():"""不同的权重初始化策略"""print("\n" + "="*50)print("⚡ 权重初始化策略")print("="*50)def analyze_init(linear, name):"""分析初始化后的权重分布"""w_mean = linear.weight.mean().item()w_std = linear.weight.std().item()w_min = linear.weight.min().item()w_max = linear.weight.max().item()print(f"\n{name}:")print(f"  均值: {w_mean:.4f}")print(f"  标准差: {w_std:.4f}")print(f"  最小值: {w_min:.4f}")print(f"  最大值: {w_max:.4f}")return w_mean, w_stdin_features = 256out_features = 128# 1. 默认初始化（Xavier/Glorot均匀分布）linear1 = nn.Linear(in_features, out_features)analyze_init(linear1, "1️⃣ 默认初始化（Xavier均匀）")# 2. Xavier正态分布linear2 = nn.Linear(in_features, out_features)nn.init.xavier_normal_(linear2.weight)analyze_init(linear2, "2️⃣ Xavier正态分布")# 3. Kaiming初始化（He初始化，适合ReLU）linear3 = nn.Linear(in_features, out_features)nn.init.kaiming_normal_(linear3.weight, nonlinearity='relu')analyze_init(linear3, "3️⃣ Kaiming初始化（ReLU）")# 4. 正态分布初始化linear4 = nn.Linear(in_features, out_features)nn.init.normal_(linear4.weight, mean=0, std=0.02)analyze_init(linear4, "4️⃣ 正态分布（std=0.02）")# 5. 均匀分布初始化linear5 = nn.Linear(in_features, out_features)nn.init.uniform_(linear5.weight, a=-0.1, b=0.1)analyze_init(linear5, "5️⃣ 均匀分布（-0.1, 0.1）")# 6. 常数初始化linear6 = nn.Linear(in_features, out_features)nn.init.constant_(linear6.weight, 0.01)analyze_init(linear6, "6️⃣ 常数初始化（0.01）")# 7. 正交初始化（保持梯度范数）linear7 = nn.Linear(in_features, out_features)nn.init.orthogonal_(linear7.weight)analyze_init(linear7, "7️⃣ 正交初始化")# 8. 稀疏初始化linear8 = nn.Linear(in_features, out_features)nn.init.sparse_(linear8.weight, sparsity=0.9)sparsity = (linear8.weight == 0).float().mean()print(f"\n8️⃣ 稀疏初始化:")print(f"  稀疏度: {sparsity:.2%}")# 初始化建议print("\n" + "="*40)print("💡 初始化建议:")print("="*40)print("• ReLU激活: 使用Kaiming初始化")print("• Tanh/Sigmoid激活: 使用Xavier初始化")print("• 深层网络: 考虑正交初始化")print("• 特殊需求: 自定义初始化")# 运行初始化示例
initialization_strategies()

3. 组合使用示例

class LinearNetwork(nn.Module):"""使用多个Linear层构建网络展示不同的组合方式"""def __init__(self, input_dim, hidden_dims, output_dim):super(LinearNetwork, self).__init__()# 构建层列表layers = []prev_dim = input_dim# 隐藏层for i, hidden_dim in enumerate(hidden_dims):layers.append(nn.Linear(prev_dim, hidden_dim))layers.append(nn.ReLU())layers.append(nn.Dropout(0.2))prev_dim = hidden_dim# 输出层layers.append(nn.Linear(prev_dim, output_dim))# 组合成Sequentialself.network = nn.Sequential(*layers)# 打印网络结构print(f"✅ 创建网络: {input_dim} -> {hidden_dims} -> {output_dim}")print(f"网络结构:\n{self.network}")def forward(self, x):return self.network(x)def count_parameters(self):"""统计参数数量"""total = sum(p.numel() for p in self.parameters())trainable = sum(p.numel() for p in self.parameters() if p.requires_grad)print(f"\n📊 参数统计:")print(f"  总参数: {total:,}")print(f"  可训练参数: {trainable:,}")# 逐层统计print("\n逐层参数:")for i, module in enumerate(self.network):if isinstance(module, nn.Linear):params = sum(p.numel() for p in module.parameters())print(f"  Layer {i}: {params:,} 参数")return total# 测试组合网络
def test_linear_network():"""测试Linear层组合网络"""print("\n" + "="*50)print("🏗️ Linear层组合网络")print("="*50)# 创建网络net = LinearNetwork(input_dim=784,hidden_dims=[256, 128, 64],output_dim=10)# 统计参数net.count_parameters()# 测试前向传播x = torch.randn(32, 784)y = net(x)print(f"\n前向传播:")print(f"  输入: {x.shape}")print(f"  输出: {y.shape}")# 查看中间层输出print("\n中间层输出shape:")with torch.no_grad():intermediate = xfor i, layer in enumerate(net.network):intermediate = layer(intermediate)if isinstance(layer, nn.Linear):print(f"  After layer {i}: {intermediate.shape}")return net# 运行测试
network = test_linear_network()

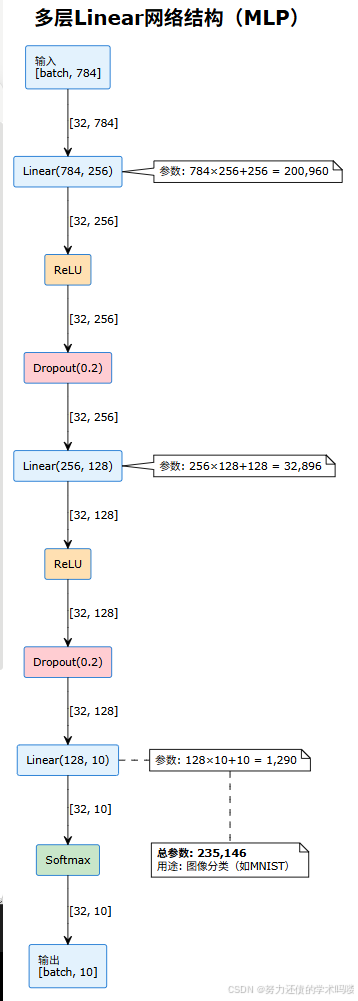

4. 多层Linear网络结构可视化

---

🚀 实战应用案例 {#实战应用}

📊 应用1：维度变换和投影

class DimensionTransformation:"""使用Linear层进行维度变换和投影常见场景:- 特征降维（PCA的线性版本）- 特征升维（增加表达能力）- 投影到不同空间"""def __init__(self):print("="*50)print("📊 维度变换和投影示例")print("="*50)def feature_reduction(self):"""特征降维示例"""print("\n1️⃣ 特征降维（1024 -> 128）:")# 高维特征 -> 低维表示reducer = nn.Linear(1024, 128)# 输入：高维特征（比如图像特征）high_dim_features = torch.randn(32, 1024)# 降维low_dim_features = reducer(high_dim_features)print(f"  输入维度: {high_dim_features.shape}")print(f"  输出维度: {low_dim_features.shape}")print(f"  压缩率: {128/1024:.1%}")print(f"  参数量: {reducer.weight.numel() + reducer.bias.numel():,}")return low_dim_featuresdef feature_expansion(self):"""特征升维示例"""print("\n2️⃣ 特征升维（64 -> 512）:")# 低维特征 -> 高维表示expander = nn.Linear(64, 512)# 输入：低维特征low_dim_features = torch.randn(32, 64)# 升维high_dim_features = expander(low_dim_features)print(f"  输入维度: {low_dim_features.shape}")print(f"  输出维度: {high_dim_features.shape}")print(f"  扩展倍数: {512/64:.0f}x")return high_dim_featuresdef multi_head_projection(self):"""多头投影（类似多头注意力的投影）"""print("\n3️⃣ 多头投影（Transformer风格）:")d_model = 512n_heads = 8d_k = d_model // n_heads  # 64# Q, K, V投影q_proj = nn.Linear(d_model, d_model)k_proj = nn.Linear(d_model, d_model)v_proj = nn.Linear(d_model, d_model)# 输入特征x = torch.randn(32, 100, d_model)  # [batch, seq_len, d_model]# 投影Q = q_proj(x)  # [32, 100, 512]K = k_proj(x)  # [32, 100, 512]V = v_proj(x)  # [32, 100, 512]# 重塑为多头batch_size, seq_len = x.shape[:2]Q = Q.view(batch_size, seq_len, n_heads, d_k).transpose(1, 2)K = K.view(batch_size, seq_len, n_heads, d_k).transpose(1, 2)V = V.view(batch_size, seq_len, n_heads, d_k).transpose(1, 2)print(f"  输入: {x.shape}")print(f"  投影后: Q/K/V = {Q.shape}")print(f"  每个头的维度: {d_k}")return Q, K, Vdef cross_modal_projection(self):"""跨模态投影（图像-文本）"""print("\n4️⃣ 跨模态投影（图像->文本空间）:")img_dim = 2048  # ResNet特征维度text_dim = 768  # BERT特征维度shared_dim = 512  # 共享空间维度# 图像投影器img_projector = nn.Linear(img_dim, shared_dim)# 文本投影器text_projector = nn.Linear(text_dim, shared_dim)# 模拟输入img_features = torch.randn(32, img_dim)text_features = torch.randn(32, text_dim)# 投影到共享空间img_shared = img_projector(img_features)text_shared = text_projector(text_features)# 计算相似度similarity = F.cosine_similarity(img_shared, text_shared)print(f"  图像特征: {img_features.shape} -> {img_shared.shape}")print(f"  文本特征: {text_features.shape} -> {text_shared.shape}")print(f"  相似度: {similarity.mean():.4f} ± {similarity.std():.4f}")return img_shared, text_shareddef demo(self):"""运行所有示例"""self.feature_reduction()self.feature_expansion()self.multi_head_projection()self.cross_modal_projection()# 运行维度变换示例
dim_demo = DimensionTransformation()
dim_demo.demo()

🎨 应用2：分类任务

class ClassificationExample:"""使用Linear层进行分类任务包括:- 二分类- 多分类- 多标签分类"""def __init__(self):print("\n" + "="*50)print("🎯 分类任务示例")print("="*50)def binary_classification(self):"""二分类示例"""print("\n1️⃣ 二分类（垃圾邮件检测）:")class BinaryClassifier(nn.Module):def __init__(self, input_dim):super().__init__()self.fc1 = nn.Linear(input_dim, 128)self.fc2 = nn.Linear(128, 64)self.fc3 = nn.Linear(64, 1)  # 输出1个值self.dropout = nn.Dropout(0.2)def forward(self, x):x = F.relu(self.fc1(x))x = self.dropout(x)x = F.relu(self.fc2(x))x = self.dropout(x)x = self.fc3(x)return torch.sigmoid(x)  # Sigmoid激活# 创建模型model = BinaryClassifier(input_dim=100)# 模拟输入（词向量特征）x = torch.randn(32, 100)# 预测predictions = model(x)print(f"  输入: {x.shape}")print(f"  输出: {predictions.shape}")print(f"  预测概率范围: [{predictions.min():.3f}, {predictions.max():.3f}]")# 转换为类别classes = (predictions > 0.5).float()print(f"  正样本比例: {classes.mean():.2%}")return modeldef multiclass_classification(self):"""多分类示例"""print("\n2️⃣ 多分类（MNIST数字识别）:")class MultiClassifier(nn.Module):def __init__(self, input_dim, num_classes):super().__init__()self.fc1 = nn.Linear(input_dim, 256)self.fc2 = nn.Linear(256, 128)self.fc3 = nn.Linear(128, num_classes)self.dropout = nn.Dropout(0.2)def forward(self, x):x = F.relu(self.fc1(x))x = self.dropout(x)x = F.relu(self.fc2(x))x = self.dropout(x)x = self.fc3(x)return F.log_softmax(x, dim=1)  # LogSoftmax# 创建模型model = MultiClassifier(input_dim=784, num_classes=10)# 模拟输入（28x28图像展平）x = torch.randn(32, 784)# 预测log_probs = model(x)probs = torch.exp(log_probs)print(f"  输入: {x.shape}")print(f"  输出: {log_probs.shape}")print(f"  概率和: {probs.sum(dim=1).mean():.4f}")  # 应该接近1# 获取预测类别predictions = torch.argmax(log_probs, dim=1)print(f"  预测类别: {predictions[:10].tolist()}")return modeldef multilabel_classification(self):"""多标签分类示例"""print("\n3️⃣ 多标签分类（图像标签）:")class MultiLabelClassifier(nn.Module):def __init__(self, input_dim, num_labels):super().__init__()self.fc1 = nn.Linear(input_dim, 512)self.fc2 = nn.Linear(512, 256)self.fc3 = nn.Linear(256, num_labels)self.dropout = nn.Dropout(0.3)def forward(self, x):x = F.relu(self.fc1(x))x = self.dropout(x)x = F.relu(self.fc2(x))x = self.dropout(x)x = self.fc3(x)return torch.sigmoid(x)  # 每个标签独立的Sigmoid# 创建模型（20个可能的标签）model = MultiLabelClassifier(input_dim=2048, num_labels=20)# 模拟输入（图像特征）x = torch.randn(32, 2048)# 预测predictions = model(x)print(f"  输入: {x.shape}")print(f"  输出: {predictions.shape}")# 设置阈值获取标签threshold = 0.5labels = (predictions > threshold).float()avg_labels = labels.sum(dim=1).mean()print(f"  平均每个样本的标签数: {avg_labels:.2f}")# 显示一个样本的预测sample_pred = predictions[0]top_5_scores, top_5_indices = torch.topk(sample_pred, 5)print(f"  样本1的Top-5标签: {top_5_indices.tolist()}")print(f"  对应分数: {top_5_scores.tolist()}")return modeldef demo(self):"""运行所有分类示例"""self.binary_classification()self.multiclass_classification()self.multilabel_classification()# 运行分类示例
clf_demo = ClassificationExample()
clf_demo.demo()

🔮 应用3：自编码器和生成模型

class AutoencoderExample:"""使用Linear层构建自编码器应用:- 数据压缩- 去噪- 特征学习"""def __init__(self):print("\n" + "="*50)print("🔮 自编码器示例")print("="*50)def build_autoencoder(self):"""构建基础自编码器"""class Autoencoder(nn.Module):def __init__(self, input_dim, encoding_dim):super().__init__()# 编码器self.encoder = nn.Sequential(nn.Linear(input_dim, 256),nn.ReLU(),nn.Linear(256, 128),nn.ReLU(),nn.Linear(128, encoding_dim)  # 瓶颈层)# 解码器self.decoder = nn.Sequential(nn.Linear(encoding_dim, 128),nn.ReLU(),nn.Linear(128, 256),nn.ReLU(),nn.Linear(256, input_dim),nn.Sigmoid()  # 输出范围[0, 1])def forward(self, x):encoded = self.encoder(x)decoded = self.decoder(encoded)return decoded, encodeddef encode(self, x):return self.encoder(x)def decode(self, z):return self.decoder(z)print("\n1️⃣ 基础自编码器:")# 创建模型input_dim = 784  # 28x28图像encoding_dim = 32  # 压缩到32维model = Autoencoder(input_dim, encoding_dim)# 测试x = torch.randn(16, input_dim)reconstructed, encoded = model(x)print(f"  输入维度: {x.shape}")print(f"  编码维度: {encoded.shape}")print(f"  重构维度: {reconstructed.shape}")print(f"  压缩率: {encoding_dim/input_dim:.1%}")# 计算重构误差mse = F.mse_loss(reconstructed, x)print(f"  重构误差(MSE): {mse:.4f}")return modeldef build_vae(self):"""构建变分自编码器（VAE）"""class VAE(nn.Module):def __init__(self, input_dim, latent_dim):super().__init__()# 编码器self.fc1 = nn.Linear(input_dim, 256)self.fc2 = nn.Linear(256, 128)self.fc_mu = nn.Linear(128, latent_dim)  # 均值self.fc_logvar = nn.Linear(128, latent_dim)  # 对数方差# 解码器self.fc3 = nn.Linear(latent_dim, 128)self.fc4 = nn.Linear(128, 256)self.fc5 = nn.Linear(256, input_dim)def encode(self, x):h = F.relu(self.fc1(x))h = F.relu(self.fc2(h))mu = self.fc_mu(h)logvar = self.fc_logvar(h)return mu, logvardef reparameterize(self, mu, logvar):"""重参数化技巧"""std = torch.exp(0.5 * logvar)eps = torch.randn_like(std)return mu + eps * stddef decode(self, z):h = F.relu(self.fc3(z))h = F.relu(self.fc4(h))return torch.sigmoid(self.fc5(h))def forward(self, x):mu, logvar = self.encode(x)z = self.reparameterize(mu, logvar)reconstructed = self.decode(z)return reconstructed, mu, logvarprint("\n2️⃣ 变分自编码器（VAE）:")# 创建模型input_dim = 784latent_dim = 20model = VAE(input_dim, latent_dim)# 测试x = torch.randn(16, input_dim)reconstructed, mu, logvar = model(x)print(f"  输入维度: {x.shape}")print(f"  潜在空间维度: {latent_dim}")print(f"  均值shape: {mu.shape}")print(f"  对数方差shape: {logvar.shape}")# 生成新样本with torch.no_grad():z = torch.randn(5, latent_dim)generated = model.decode(z)print(f"\n  生成样本shape: {generated.shape}")return modeldef build_gan_discriminator(self):"""构建GAN判别器"""class Discriminator(nn.Module):def __init__(self, input_dim):super().__init__()self.model = nn.Sequential(nn.Linear(input_dim, 512),nn.LeakyReLU(0.2),nn.Dropout(0.3),nn.Linear(512, 256),nn.LeakyReLU(0.2),nn.Dropout(0.3),nn.Linear(256, 128),nn.LeakyReLU(0.2),nn.Dropout(0.3),nn.Linear(128, 1),nn.Sigmoid())def forward(self, x):return self.model(x)print("\n3️⃣ GAN判别器:")# 创建模型model = Discriminator(input_dim=784)# 测试real_data = torch.randn(16, 784)fake_data = torch.randn(16, 784)real_scores = model(real_data)fake_scores = model(fake_data)print(f"  输入维度: {real_data.shape}")print(f"  输出维度: {real_scores.shape}")print(f"  真实数据平均分数: {real_scores.mean():.4f}")print(f"  生成数据平均分数: {fake_scores.mean():.4f}")return modeldef demo(self):"""运行所有自编码器示例"""self.build_autoencoder()self.build_vae()self.build_gan_discriminator()# 运行自编码器示例
ae_demo = AutoencoderExample()
ae_demo.demo()

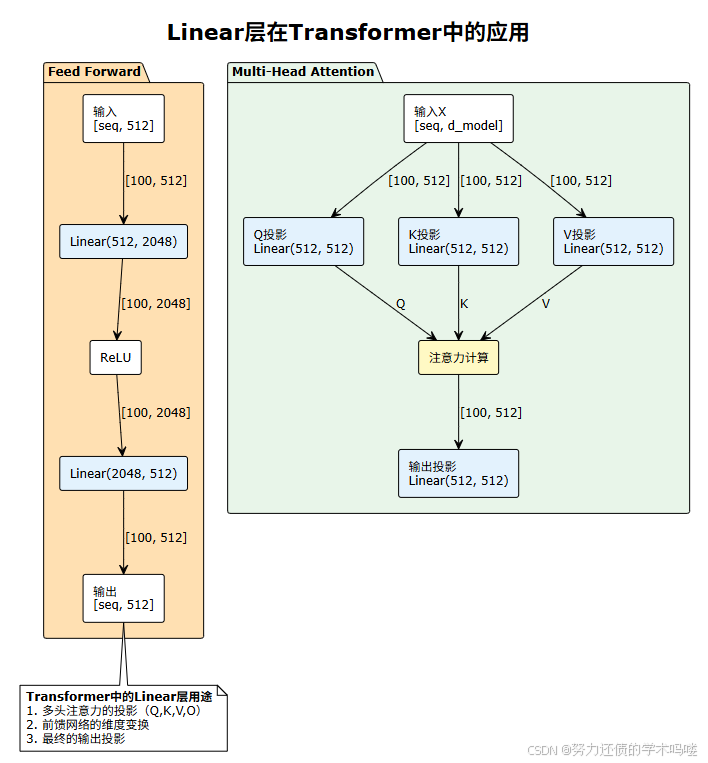

🌟 应用4：Linear层在Transformer中的应用

---

🛠️ 常见问题与技巧 {#常见问题}

1. 性能优化

def performance_optimization():"""Linear层的性能优化技巧"""print("="*50)print("⚡ 性能优化技巧")print("="*50)# 1. 使用合适的数据类型print("\n1️⃣ 数据类型优化:")# Float32 vs Float16linear_fp32 = nn.Linear(1000, 1000)linear_fp16 = nn.Linear(1000, 1000).half()x = torch.randn(32, 1000)# 内存占用fp32_memory = linear_fp32.weight.element_size() * linear_fp32.weight.numel()fp16_memory = linear_fp16.weight.element_size() * linear_fp16.weight.numel()print(f"  FP32内存: {fp32_memory / 1024 / 1024:.2f} MB")print(f"  FP16内存: {fp16_memory / 1024 / 1024:.2f} MB")print(f"  节省: {(1 - fp16_memory/fp32_memory):.1%}")# 2. 批量处理print("\n2️⃣ 批量处理优化:")linear = nn.Linear(512, 256)# 单样本处理 vs 批量处理import time# 单样本single_samples = [torch.randn(512) for _ in range(100)]start = time.time()for sample in single_samples:_ = linear(sample)single_time = time.time() - start# 批量batch = torch.stack(single_samples)start = time.time()_ = linear(batch)batch_time = time.time() - startprint(f"  单样本处理: {single_time*1000:.2f} ms")print(f"  批量处理: {batch_time*1000:.2f} ms")print(f"  加速: {single_time/batch_time:.1f}x")# 3. 权重共享print("\n3️⃣ 权重共享:")# 创建共享权重的层shared_linear = nn.Linear(100, 50)class SharedWeightNetwork(nn.Module):def __init__(self, shared_layer):super().__init__()self.shared = shared_layerself.fc1 = nn.Linear(200, 100)self.fc2 = nn.Linear(50, 10)def forward(self, x1, x2):# 两个分支共享同一个Linear层h1 = self.shared(self.fc1(x1))h2 = self.shared(self.fc1(x2))return self.fc2(h1), self.fc2(h2)model = SharedWeightNetwork(shared_linear)print(f"  共享层参数: {shared_linear.weight.shape}")print(f"  参数地址: {id(shared_linear.weight)}")# 运行优化示例
performance_optimization()

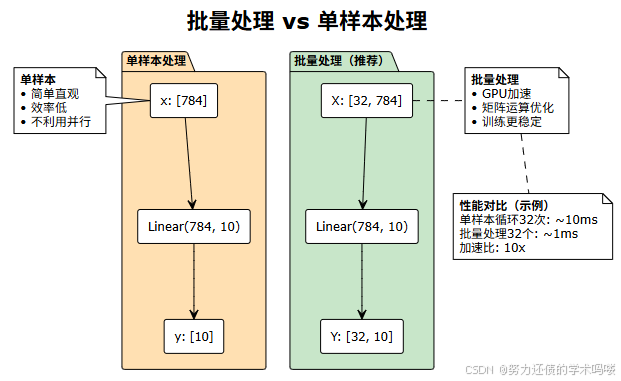

2. 批量处理 vs 单样本处理

3. 梯度问题处理

def gradient_issues():"""处理梯度相关问题"""print("\n" + "="*50)print("🔧 梯度问题处理")print("="*50)# 1. 梯度消失问题print("\n1️⃣ 梯度消失检测:")class DeepNetwork(nn.Module):def __init__(self, depth=10):super().__init__()layers = []for i in range(depth):layers.append(nn.Linear(100, 100))layers.append(nn.Sigmoid())  # Sigmoid容易导致梯度消失self.network = nn.Sequential(*layers)def forward(self, x):return self.network(x)# 创建深层网络model = DeepNetwork(depth=10)x = torch.randn(32, 100, requires_grad=True)y = model(x)loss = y.mean()loss.backward()# 检查梯度gradients = []for name, param in model.named_parameters():if param.grad is not None:gradients.append(param.grad.abs().mean().item())print(f"  第1层梯度: {gradients[0]:.6f}")print(f"  第5层梯度: {gradients[8]:.6f}")print(f"  第10层梯度: {gradients[18]:.6f}")# 2. 梯度爆炸问题print("\n2️⃣ 梯度裁剪:")class UnstableNetwork(nn.Module):def __init__(self):super().__init__()self.fc1 = nn.Linear(100, 100)self.fc2 = nn.Linear(100, 100)# 故意初始化大权重with torch.no_grad():self.fc1.weight.fill_(10)self.fc2.weight.fill_(10)def forward(self, x):x = self.fc1(x)x = self.fc2(x)return xmodel = UnstableNetwork()optimizer = torch.optim.SGD(model.parameters(), lr=0.01)x = torch.randn(32, 100)y = model(x)loss = y.mean()# 计算梯度loss.backward()# 裁剪前的梯度范数total_norm_before = 0for p in model.parameters():if p.grad is not None:total_norm_before += p.grad.norm(2).item() ** 2total_norm_before = total_norm_before ** 0.5print(f"  裁剪前梯度范数: {total_norm_before:.2f}")# 梯度裁剪torch.nn.utils.clip_grad_norm_(model.parameters(), max_norm=1.0)# 裁剪后的梯度范数total_norm_after = 0for p in model.parameters():if p.grad is not None:total_norm_after += p.grad.norm(2).item() ** 2total_norm_after = total_norm_after ** 0.5print(f"  裁剪后梯度范数: {total_norm_after:.2f}")# 3. 梯度检查print("\n3️⃣ 梯度检查（调试用）:")def check_gradients(model):"""检查模型的梯度健康度"""grad_stats = {}for name, param in model.named_parameters():if param.grad is not None:grad = param.gradgrad_stats[name] = {'mean': grad.mean().item(),'std': grad.std().item(),'min': grad.min().item(),'max': grad.max().item(),'has_nan': torch.isnan(grad).any().item(),'has_inf': torch.isinf(grad).any().item()}return grad_stats# 创建简单模型simple_model = nn.Linear(10, 5)x = torch.randn(4, 10)y = simple_model(x)loss = y.sum()loss.backward()stats = check_gradients(simple_model)for name, stat in stats.items():print(f"\n  {name}:")print(f"    均值: {stat['mean']:.6f}")print(f"    标准差: {stat['std']:.6f}")print(f"    范围: [{stat['min']:.6f}, {stat['max']:.6f}]")print(f"    有NaN: {stat['has_nan']}")print(f"    有Inf: {stat['has_inf']}")# 运行梯度问题示例
gradient_issues()

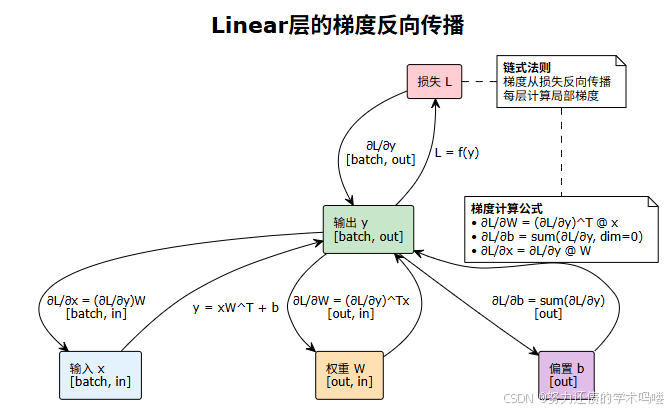

4. 梯度流动示意图

5. 调试技巧

def debugging_tips():"""Linear层调试技巧"""print("\n" + "="*50)print("🐛 调试技巧")print("="*50)# 1. 打印中间输出print("\n1️⃣ Hook函数监控:")class DebugNetwork(nn.Module):def __init__(self):super().__init__()self.fc1 = nn.Linear(10, 20)self.fc2 = nn.Linear(20, 30)self.fc3 = nn.Linear(30, 5)# 注册hookself.fc1.register_forward_hook(self.print_hook('fc1'))self.fc2.register_forward_hook(self.print_hook('fc2'))self.fc3.register_forward_hook(self.print_hook('fc3'))def print_hook(self, layer_name):def hook(module, input, output):print(f"  {layer_name}:")print(f"    输入shape: {input[0].shape}")print(f"    输出shape: {output.shape}")print(f"    输出范围: [{output.min():.3f}, {output.max():.3f}]")return hookdef forward(self, x):x = F.relu(self.fc1(x))x = F.relu(self.fc2(x))x = self.fc3(x)return xmodel = DebugNetwork()x = torch.randn(4, 10)print("前向传播过程:")y = model(x)# 2. 权重和梯度统计print("\n2️⃣ 权重和梯度统计:")def print_layer_stats(model):"""打印每层的统计信息"""for name, module in model.named_modules():if isinstance(module, nn.Linear):print(f"\n  {name}:")print(f"    权重均值: {module.weight.mean():.4f}")print(f"    权重标准差: {module.weight.std():.4f}")if module.weight.grad is not None:print(f"    梯度均值: {module.weight.grad.mean():.4f}")print(f"    梯度标准差: {module.weight.grad.std():.4f}")# 执行前向和反向传播y = model(x)loss = y.mean()loss.backward()print_layer_stats(model)# 3. 检查数值稳定性print("\n3️⃣ 数值稳定性检查:")def check_numerical_stability(tensor, name="tensor"):"""检查张量的数值稳定性"""has_nan = torch.isnan(tensor).any().item()has_inf = torch.isinf(tensor).any().item()if has_nan or has_inf:print(f"  ⚠️ {name} 有数值问题!")print(f"    NaN数量: {torch.isnan(tensor).sum().item()}")print(f"    Inf数量: {torch.isinf(tensor).sum().item()}")else:print(f"  ✅ {name} 数值稳定")print(f"    范围: [{tensor.min():.4f}, {tensor.max():.4f}]")print(f"    均值: {tensor.mean():.4f}")print(f"    标准差: {tensor.std():.4f}")# 测试极端输入extreme_input = torch.randn(4, 10) * 1000extreme_output = model(extreme_input)check_numerical_stability(extreme_input, "极端输入")check_numerical_stability(extreme_output, "极端输出")# 运行调试示例
debugging_tips()

---

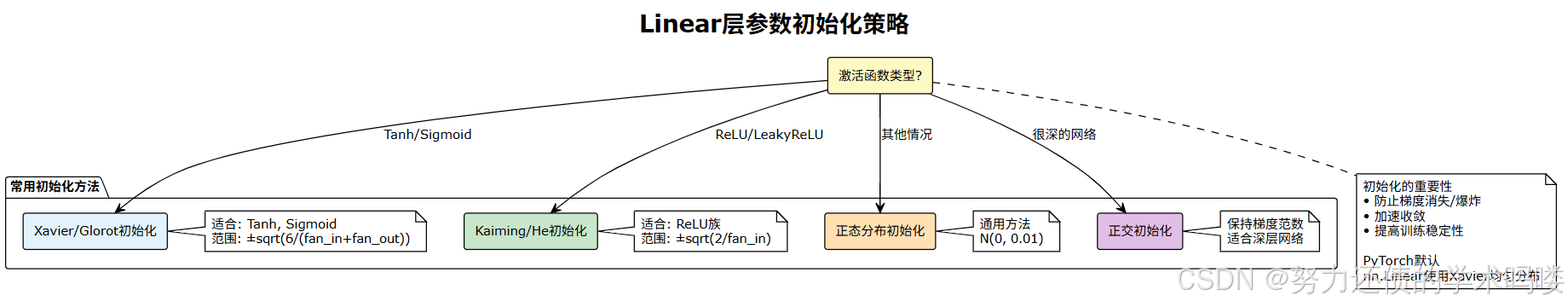

🎨 Linear层参数初始化策略

📚 总结与资源 {#总结}

✨ 核心要点回顾

恭喜你完成了这篇超详细的Linear层教程！让我们回顾一下你学到了什么：

1. 理论基础 ✅

• 理解了从生物神经元到人工神经元的映射
• 掌握了Linear层的数学本质：$y=x{W}^T+b$
• 理解了权重矩阵和偏置的作用

2. 实现细节 ✅

• 手搓实现了Linear层
• 理解了前向传播和反向传播
• 掌握了参数初始化策略

3. 实战应用 ✅

• 维度变换和投影
• 分类任务（二分类、多分类、多标签）
• 自编码器和生成模型
• Transformer中的应用

4. 优化技巧 ✅

• 性能优化（数据类型、批处理）
• 梯度问题处理（消失、爆炸、裁剪）
• 调试技巧（Hook、统计、稳定性检查）

🎯 关键公式速查

公式	说明	Shape
$y=Wx+b$	基本线性变换	$[m]=[m,n]\cdot [n]+[m]$
$Y=X{W}^T+b$	批量计算	$[B,m]=[B,n]\cdot [n,m{]}^T+[m]$
$\sigma (Wx+b)$	带激活函数	保持输出shape
$W\sim \mathcal{U}(-\sqrt{k},\sqrt{k})$	Xavier初始化	$k=1/n_{in}$

💡 最佳实践建议

1. 初始化选择

   • ReLU激活 → Kaiming初始化
   • Tanh/Sigmoid → Xavier初始化
   • 深层网络 → 考虑正交初始化

2. 维度设计

   • 逐层递减用于特征提取
   • 瓶颈结构用于压缩
   • 跳跃连接缓解梯度问题

3. 训练技巧

   • 使用BatchNorm稳定训练
   • 适当的Dropout防止过拟合
   • 梯度裁剪处理梯度爆炸

📖 推荐学习资源

📚 深入学习

• Deep Learning Book - Ian Goodfellow
• PyTorch官方教程
• Understanding Deep Learning - Simon Prince

🎥 视频课程

• Stanford CS231n - 卷积神经网络
• MIT 6.S191 - 深度学习导论
• Fast.ai - 实用深度学习

💻 实践项目

1. 入门项目：MNIST手写数字识别
2. 进阶项目：构建自己的神经网络框架
3. 研究项目：实现最新的网络架构

🔬 扩展阅读

如果你想更深入地了解Linear层和神经网络：

1. 理论深入

   • 矩阵微积分和反向传播推导
   • 优化理论（SGD、Adam等）
   • 泛化理论和正则化

2. 高级话题

   • 稀疏Linear层
   • 量化和剪枝
   • 神经架构搜索（NAS）

3. 前沿研究

   • Transformer中的Linear层
   • 图神经网络的消息传递
   • 神经常微分方程（Neural ODE）

---

🙏 结语

Linear层看似简单，实则蕴含深刻的数学原理和工程智慧。它是深度学习的基石，理解它就理解了神经网络的核心。

通过这篇教程，你不仅学会了Linear层的使用，更重要的是理解了它的本质。记住：

“简单的组件，通过巧妙的组合，可以构建出强大的智能系统。”

希望这篇教程对你有所帮助！如果你有任何问题，欢迎在评论区讨论。

Keep Learning, Keep Building! 🚀

---
