TDEngine-OSS-3.3.7.5开源版搭建手册（包含单节点与三副本高可用方案搭建）
包含单节点与三副本方案
单节点请看第1章节即可，三副本方案请看全部
针对高可用方案：开源版本仅支持三副本方案，各种高可用方案对比如下
| # | 三副本 | 双副本（企业版） | 双活（企业版） |
|---|---|---|---|
| 集群数目 | 部署一个集群 | 部署一个集群 | 部署两个不同集群 |
| 最小节点数 | 三个数据节点 | 两个数据节点，一个仲裁节点 | 两个数据节点 |
| 选主原理 | Raft 协议 | 管理节点中仲裁选主 | 无需选主 |
| 同步原理 | Raft 协议 | Raft 协议 | 通过 taosX 进行数据同步 |
| 同步延迟 | 无延迟 | 无延迟 | 依赖于 taosX 的同步速度，秒级延迟 |
| 数据安全性 | 无数据丢失 | 无数据丢失 | 依赖于 WAL 的保存时长 |
| 数据一致性 | RAFT 一致性 | RAFT 一致性 | 最终一致性 |
| 高可用性 | 任一节点宕机不影响服务 | 任一节点宕机不影响服务，但不能处理连续宕机场景 | 一个实例存活即可提供服务 |

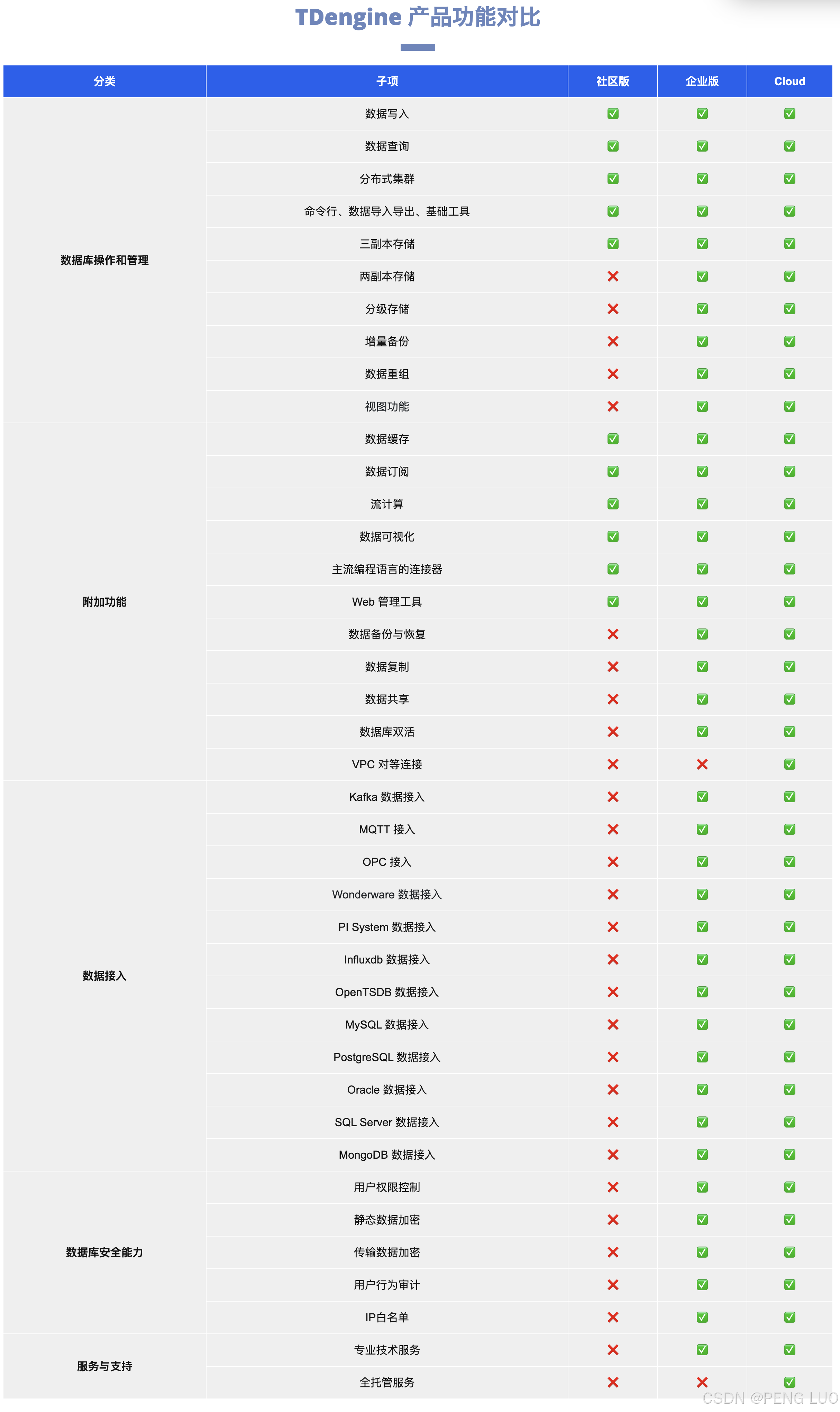

企业版区别如下，可酌情选择是否购买
网络端口开放情况和服务器所需资源要求请见官网
1 单节点搭建（也是三副本方案主节点搭建方案）
1-1 下载安装包
# 创建文件夹并下载涛思压缩包、解压
mkdir /root/TDinstall-v3.3.7.5 && cd /root/TDinstall-v3.3.7.5 && wget https://downloads.taosdata.com/tdengine-tsdb-oss/3.3.7.5/tdengine-tsdb-oss-3.3.7.5-linux-x64.tar.gz && tar -zxvf tdengine-tsdb-oss-3.3.7.5-linux-x64.tar.gz
1-2 安装涛思基本环境
执行后无特殊配置，一直enter即可
/root/TDinstall-v3.3.7.5/tdengine-tsdb-oss-3.3.7.5/install.sh
1-3 执行脚本配置基础信息，路径可自行更改
cd /etc/taos
# 日志保存路径、保留时长
sed -i 's/# path = "\/var\/log\/taos"/path = "\/data\/taos\/log"/g' taosadapter.toml
sed -i 's/keepDays = 30/keepDays = 10/g' taosadapter.toml
sed -i 's/# path = "\/var\/log\/taos"/path = "\/data\/taos\/log"/g' taoskeeper.toml
sed -i 's/# path = "\/var\/log\/taos"/path = "\/data\/taos\/log"/g' explorer.toml
sed -i 's/# keepDays = 30/keepDays = 10/g' explorer.toml
# 用户名、密码更改-自行判断是否需要更改
#sed -i 's/username = "root"/username = "admin"/g' taoskeeper.toml
#sed -i 's/password = "taosdata"/password = "hello_world"/g' taoskeeper.toml
sed -i 's/keepDays = 30/keepDays = 10/g' taoskeeper.toml
# 实例id更改，三副本方案必须更改
sed -i 's/# instanceId = 1/instanceId = 2/g' explorer.toml
sed -i 's/instanceId = 32/instanceId = 102/g' taosadapter.toml
sed -i 's/instanceId = 64/instanceId = 152/g' taoskeeper.toml
grep '^instanceId' *
1-4 涛思配置文件更改
日志和数据目录自行配置，fqdn为当前主机的hostname，hostname不可为localhost，如果为localhost需要先配置为node1（自定义，与下面fqdn相同）命令：hostname set-hostname node1
备份配置文件并将下面的配置放入配置中：mv /etc/taos/taos.cfg /etc/taos/taos.cfg.bak && vim /etc/taos/taos.cfg
#firstEp node1:6030
#secondEp node2:6030
fqdn node1
#supportVnodes 96
logDir /data/taos/log
dataDir /data/taos/data
tempDir /data/taos/tmp
keepColumnName 1
maxNumOfDistinctRes 10000000
timezone UTC-8
locale en_US.UTF-8
charset UTF-8
maxShellConns 100000
maxConnections 100000
audit 0
auditFqdn localhost
monitor 1
monitorFqdn localhost
logKeepDays 10
debugflag 131
shellActivityTimer 120
numOfRpcSessions 30000
numOfCommitThreads 16
#numOfVnodeQueryThreads 80
queryUseMemoryPool 0
forceReadConfig 1
1-5 创建涛思相关目录并配置相关参数
将下面脚本保存为文件并执行
#!/bin/bash
# 创建目录
mkdir -p /data/taos/{data,log,core,tmp,soft,dump}
chmod 777 /data/taos/log
chmod 777 /data/taos/tmp# 资源限制
echo "fs.nr_open = 2147483584" >>/etc/sysctl.conf
echo "fs.file-max = 2147483584" >>/etc/sysctl.conf
echo "net.ipv4.ip_local_port_range = 10000 65534" >>/etc/sysctl.confecho "* soft nproc 65536" >>/etc/security/limits.conf
echo "* soft nofile 1048576" >>/etc/security/limits.conf
echo "* soft stack 65536" >>/etc/security/limits.conf
echo "* hard nproc 65536" >>/etc/security/limits.conf
echo "* hard nofile 1048576" >>/etc/security/limits.conf
echo "* hard stack 65536" >>/etc/security/limits.confecho "root soft nproc 65536" >>/etc/security/limits.conf
echo "root soft nofile 1048576" >>/etc/security/limits.conf
echo "root soft stack 65536" >>/etc/security/limits.conf
echo "root hard nproc 65536" >>/etc/security/limits.conf
echo "root hard nofile 1048576" >>/etc/security/limits.conf
echo "root hard stack 65536" >>/etc/security/limits.conf
# 设置core目录
echo "ulimit -c unlimited" >>/etc/profile
echo "kernel.core_pattern=/data/taos/core/core-%e-%p" >>/etc/sysctl.conf# 关闭SELinux
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config# 关闭防火墙（云服务器请至少开放6060、6030、6041端口）
systemctl stop firewalld
systemctl disable firewalld
1-6 启动涛思程序
执行命令/root/TDinstall-v3.3.7.5/tdengine-tsdb-oss-3.3.7.5/start-all.sh
2 节点2搭建（三副本方案，单节点执行以上操作即可）
2-1 下载安装包
# 创建文件夹并下载涛思压缩包、解压
mkdir /root/TDinstall-v3.3.7.5 && cd /root/TDinstall-v3.3.7.5 && wget https://downloads.taosdata.com/tdengine-tsdb-oss/3.3.7.5/tdengine-tsdb-oss-3.3.7.5-linux-x64.tar.gz && tar -zxvf tdengine-tsdb-oss-3.3.7.5-linux-x64.tar.gz
2-2 安装涛思基本环境（与单节点不同）
执行后无特殊配置，弹框配置fqdn要求时，输入node1:6030（主节点的hostname加6030端口）
/root/TDinstall-v3.3.7.5/tdengine-tsdb-oss-3.3.7.5/install.sh
2-3 执行脚本配置基础信息，路径可自行更改（注意实例id不能与其他实例相同）
cd /etc/taos
# 日志保存路径、保留时长
sed -i 's/# path = "\/var\/log\/taos"/path = "\/data\/taos\/log"/g' taosadapter.toml
sed -i 's/keepDays = 30/keepDays = 10/g' taosadapter.toml
sed -i 's/# path = "\/var\/log\/taos"/path = "\/data\/taos\/log"/g' taoskeeper.toml
sed -i 's/# path = "\/var\/log\/taos"/path = "\/data\/taos\/log"/g' explorer.toml
sed -i 's/# keepDays = 30/keepDays = 10/g' explorer.toml
# 用户名、密码更改-自行判断是否需要更改
#sed -i 's/username = "root"/username = "admin"/g' taoskeeper.toml
#sed -i 's/password = "taosdata"/password = "hello_world"/g' taoskeeper.toml
sed -i 's/keepDays = 30/keepDays = 10/g' taoskeeper.toml
# 实例id更改，与节点一搭建的实例id不能相同
sed -i 's/# instanceId = 1/instanceId = 3/g' explorer.toml
sed -i 's/instanceId = 32/instanceId = 103/g' taosadapter.toml
sed -i 's/instanceId = 64/instanceId = 153/g' taoskeeper.toml
grep '^instanceId' *
2-4 涛思配置文件更改
日志和数据目录自行配置，fqdn为当前主机的hostname，hostname不可为localhost，如果为localhost需要先配置为node2（自定义，与下面fqdn相同）命令：hostname set-hostname node2
备份配置文件并将下面的配置放入配置中：mv /etc/taos/taos.cfg /etc/taos/taos.cfg.bak && vim /etc/taos/taos.cfg
firstEp node1:6030
secondEp node2:6030
fqdn node2
#supportVnodes 96
logDir /data/taos/log
dataDir /data/taos/data
tempDir /data/taos/tmp
keepColumnName 1
maxNumOfDistinctRes 10000000
timezone UTC-8
locale en_US.UTF-8
charset UTF-8
maxShellConns 100000
maxConnections 100000
audit 0
auditFqdn localhost
monitor 1
monitorFqdn localhost
logKeepDays 10
debugflag 131
shellActivityTimer 120
numOfRpcSessions 30000
numOfCommitThreads 16
#numOfVnodeQueryThreads 80
queryUseMemoryPool 0
forceReadConfig 1
2-5 创建涛思相关目录并配置相关参数
将下面脚本保存为文件并执行
#!/bin/bash
# 创建目录
mkdir -p /data/taos/{data,log,core,tmp,soft,dump}
chmod 777 /data/taos/log
chmod 777 /data/taos/tmp# 资源限制
echo "fs.nr_open = 2147483584" >>/etc/sysctl.conf
echo "fs.file-max = 2147483584" >>/etc/sysctl.conf
echo "net.ipv4.ip_local_port_range = 10000 65534" >>/etc/sysctl.confecho "* soft nproc 65536" >>/etc/security/limits.conf
echo "* soft nofile 1048576" >>/etc/security/limits.conf
echo "* soft stack 65536" >>/etc/security/limits.conf
echo "* hard nproc 65536" >>/etc/security/limits.conf
echo "* hard nofile 1048576" >>/etc/security/limits.conf
echo "* hard stack 65536" >>/etc/security/limits.confecho "root soft nproc 65536" >>/etc/security/limits.conf
echo "root soft nofile 1048576" >>/etc/security/limits.conf
echo "root soft stack 65536" >>/etc/security/limits.conf
echo "root hard nproc 65536" >>/etc/security/limits.conf
echo "root hard nofile 1048576" >>/etc/security/limits.conf
echo "root hard stack 65536" >>/etc/security/limits.conf
# 设置core目录
echo "ulimit -c unlimited" >>/etc/profile
echo "kernel.core_pattern=/data/taos/core/core-%e-%p" >>/etc/sysctl.conf# 关闭SELinux
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config# 关闭防火墙（云服务器请至少开放6060、6030、6041端口）
systemctl stop firewalld
systemctl disable firewalld
2-6 启动涛思程序
执行命令/root/TDinstall-v3.3.7.5/tdengine-tsdb-oss-3.3.7.5/start-all.sh
3 节点3搭建（三副本方案，单节点执行以上操作即可）
3-1 下载安装包
# 创建文件夹并下载涛思压缩包、解压
mkdir /root/TDinstall-v3.3.7.5 && cd /root/TDinstall-v3.3.7.5 && wget https://downloads.taosdata.com/tdengine-tsdb-oss/3.3.7.5/tdengine-tsdb-oss-3.3.7.5-linux-x64.tar.gz && tar -zxvf tdengine-tsdb-oss-3.3.7.5-linux-x64.tar.gz
3-2 安装涛思基本环境（与单节点不同）
执行后无特殊配置，弹框配置fqdn要求时，输入node1:6030（主节点的hostname加6030端口）
/root/TDinstall-v3.3.7.5/tdengine-tsdb-oss-3.3.7.5/install.sh
3-3 执行脚本配置基础信息，路径可自行更改（注意实例id不能与其他实例相同）
cd /etc/taos
# 日志保存路径、保留时长
sed -i 's/# path = "\/var\/log\/taos"/path = "\/data\/taos\/log"/g' taosadapter.toml
sed -i 's/keepDays = 30/keepDays = 10/g' taosadapter.toml
sed -i 's/# path = "\/var\/log\/taos"/path = "\/data\/taos\/log"/g' taoskeeper.toml
sed -i 's/# path = "\/var\/log\/taos"/path = "\/data\/taos\/log"/g' explorer.toml
sed -i 's/# keepDays = 30/keepDays = 10/g' explorer.toml
# 用户名、密码更改-自行判断是否需要更改
#sed -i 's/username = "root"/username = "admin"/g' taoskeeper.toml
#sed -i 's/password = "taosdata"/password = "hello_world"/g' taoskeeper.toml
sed -i 's/keepDays = 30/keepDays = 10/g' taoskeeper.toml
# 实例id更改，与其他搭建的实例id不能相同
sed -i 's/# instanceId = 1/instanceId = 4/g' explorer.toml
sed -i 's/instanceId = 32/instanceId = 104/g' taosadapter.toml
sed -i 's/instanceId = 64/instanceId = 154/g' taoskeeper.toml
grep '^instanceId' *
3-4 涛思配置文件更改
日志和数据目录自行配置，fqdn为当前主机的hostname，hostname不可为localhost，如果为localhost需要先配置为node3（自定义，与下面fqdn相同）命令：hostname set-hostname node3
备份配置文件并将下面的配置放入配置中：mv /etc/taos/taos.cfg /etc/taos/taos.cfg.bak && vim /etc/taos/taos.cfg
firstEp node1:6030
# 配置备用节点的endpoint
secondEp node2:6030
fqdn node3
#supportVnodes 96
logDir /data/taos/log
dataDir /data/taos/data
tempDir /data/taos/tmp
keepColumnName 1
maxNumOfDistinctRes 10000000
timezone UTC-8
locale en_US.UTF-8
charset UTF-8
maxShellConns 100000
maxConnections 100000
audit 0
auditFqdn localhost
monitor 1
monitorFqdn localhost
logKeepDays 10
debugflag 131
shellActivityTimer 120
numOfRpcSessions 30000
numOfCommitThreads 16
#numOfVnodeQueryThreads 80
queryUseMemoryPool 0
forceReadConfig 1
3-5 创建涛思相关目录并配置相关参数
将下面脚本保存为文件并执行
#!/bin/bash
# 创建目录
mkdir -p /data/taos/{data,log,core,tmp,soft,dump}
chmod 777 /data/taos/log
chmod 777 /data/taos/tmp# 资源限制
echo "fs.nr_open = 2147483584" >>/etc/sysctl.conf
echo "fs.file-max = 2147483584" >>/etc/sysctl.conf
echo "net.ipv4.ip_local_port_range = 10000 65534" >>/etc/sysctl.confecho "* soft nproc 65536" >>/etc/security/limits.conf
echo "* soft nofile 1048576" >>/etc/security/limits.conf
echo "* soft stack 65536" >>/etc/security/limits.conf
echo "* hard nproc 65536" >>/etc/security/limits.conf
echo "* hard nofile 1048576" >>/etc/security/limits.conf
echo "* hard stack 65536" >>/etc/security/limits.confecho "root soft nproc 65536" >>/etc/security/limits.conf
echo "root soft nofile 1048576" >>/etc/security/limits.conf
echo "root soft stack 65536" >>/etc/security/limits.conf
echo "root hard nproc 65536" >>/etc/security/limits.conf
echo "root hard nofile 1048576" >>/etc/security/limits.conf
echo "root hard stack 65536" >>/etc/security/limits.conf
# 设置core目录
echo "ulimit -c unlimited" >>/etc/profile
echo "kernel.core_pattern=/data/taos/core/core-%e-%p" >>/etc/sysctl.conf# 关闭SELinux
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config# 关闭防火墙（云服务器请至少开放6060、6030、6041端口）
systemctl stop firewalld
systemctl disable firewalld
3-6 启动涛思程序
执行命令/root/TDinstall-v3.3.7.5/tdengine-tsdb-oss-3.3.7.5/start-all.sh
三副本数据节点和主从节点配置
图一
图二
taos
create dnode "node2:6030";
create dnode "node3:6030";
show dnodes;
# 下面的2和3分别对应 show dnodes; 查询出来的node2和node3对应的id，如上图一所示
create mnode on dnode 2;
create mnode on dnode 3;

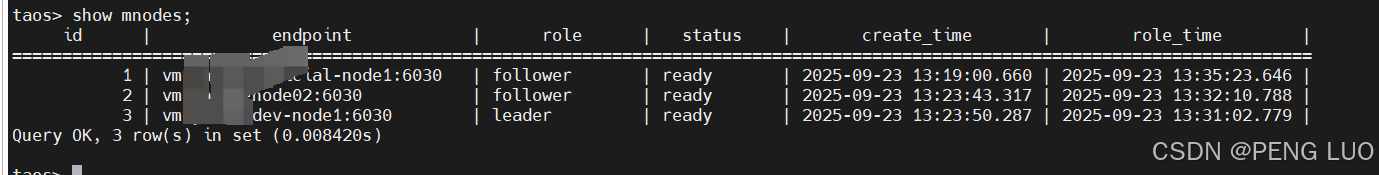

# 执行下面命令查看割接点主从状态，如图二
show mnodes;
create database test_3_replica replica 3 vgroups 1 buffer 1024;

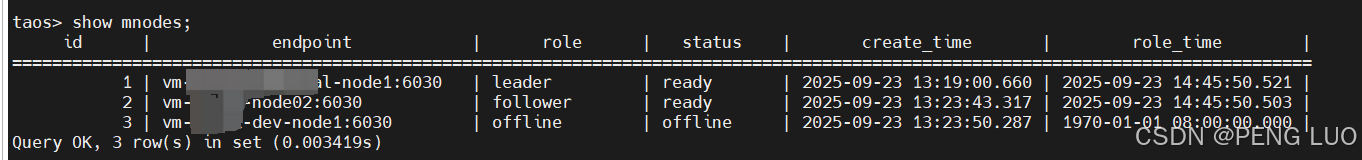

如果执行完成后各数据节点为ready状态，停掉主节点等待一会儿重新执行show mnodes;如下图所示，自动推举其他节点为主节点则说明三副本方案搭建成功
