valkey9.0之HFE
一、HFE是什么
HFE(Hash Field Expire) 是valkey9.0最新引入的一个新特性，支持hash类型的字段设置过期时间。
在valkey的设计中，过期时间都是针对key的，为了兼容以及性能等诸多因素，引入了很多新的数据结构以及新的命令。
二、老版本hash类型的expire逻辑
以HSET和EXPIRE为例子
HSET key field value [ field value ... ]EXPIRE key seconds [ NX | XX | GT | LT ]
2.1 valkey8.0的expire逻辑
hset
$ ./valkey-cli
127.0.0.1:6379> HSET htest name zhangsan age 18
调用栈
main|-> aeMain|-> aeProcessEvents|-> connSocketEventHandler|-> callHandler|-> readQueryFromClient|-> processInputBuffer|-> processCommandAndRestClient|-> processCommand|-> call|-> hsetCommand
void hsetCommand(client *c) {...robj *o;// 检查key是否存在，不存在则创建if ((o = hashTypeLookupWriteOrCreate(c, c->argv[1])) == NULL) return;// 判断是否需要object从listpack转换成hashtable，满足条件则转换hashTypeTryConversion(o, c->argv, 2, c->argc - 1);// 添加field/valuefor (i = 2; i < c->argc; i += 2) created += !hashTypeSet(o, c->argv[i]->ptr, c->argv[i + 1]->ptr, HASH_SET_COPY);...
}
检查key是否存在，不存在则创建并插入hashtable
robj *hashTypeLookupWriteOrCreate(client *c, robj *key) {robj *o = lookupKeyWrite(c->db, key);if (checkType(c, o, OBJ_HASH)) return NULL;if (o == NULL) {o = createHashObject();dbAdd(c->db, key, o);}return o;
}

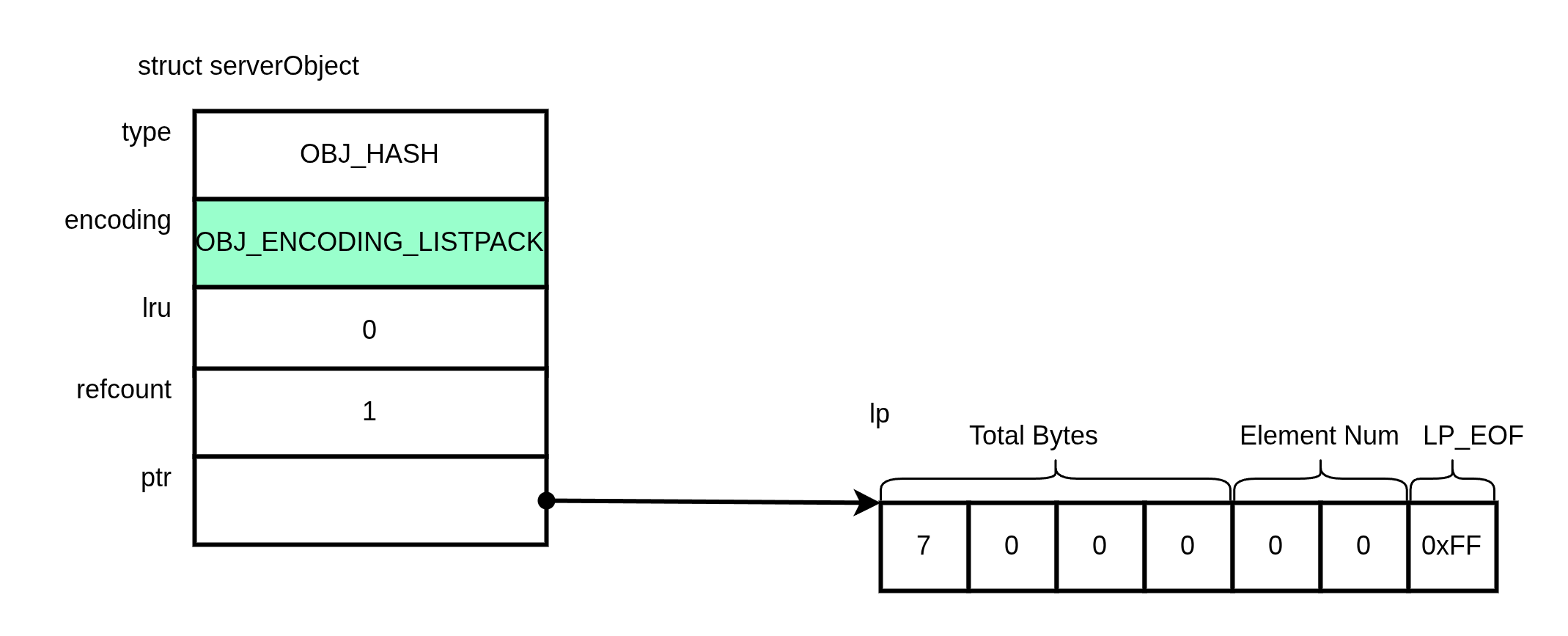

当前key并不存在，因此调用createHashObject创建robj, 默认创建的robj是listpack结构。
然后调用dbAdd将此robj插入到hashtable中。
hsetCommand|-> hashTypeLookupWriteOrCreate| |-> dbAdd| |-> dbAddInternal| |-> kvstoreDictAddRaw| |-> dictAddRaw|-> int hashTypeSet(robj *o, sds field, sds value, int flags)

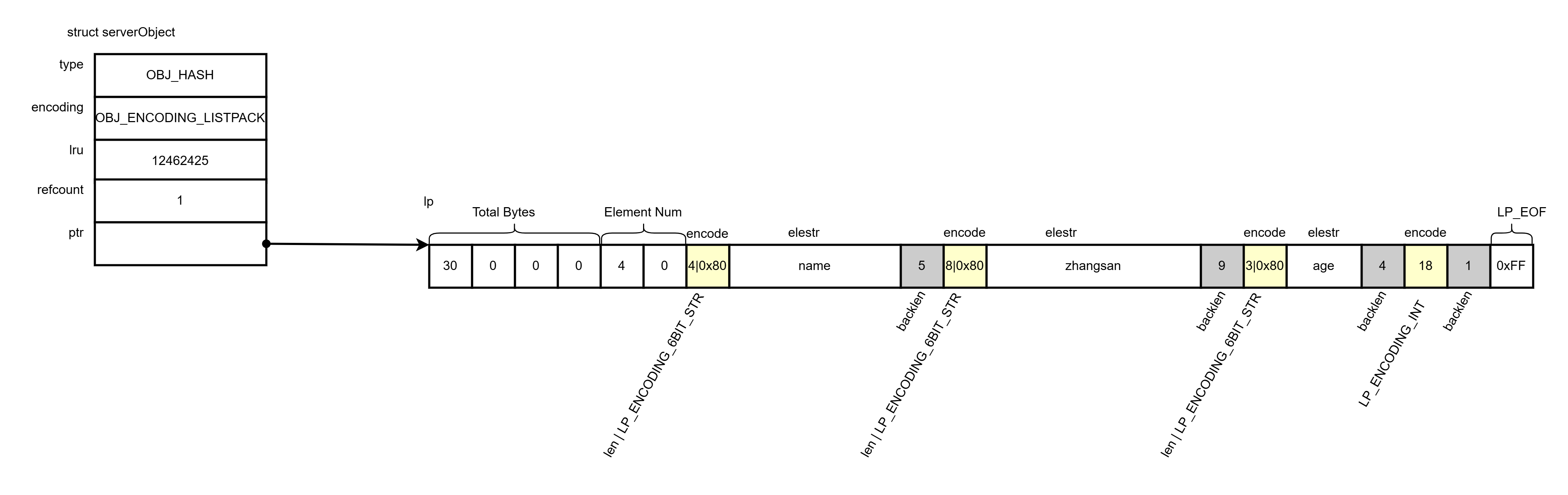

最后调用hashTypeSet将field/value插入到robj中，此处插入listpack结构中。

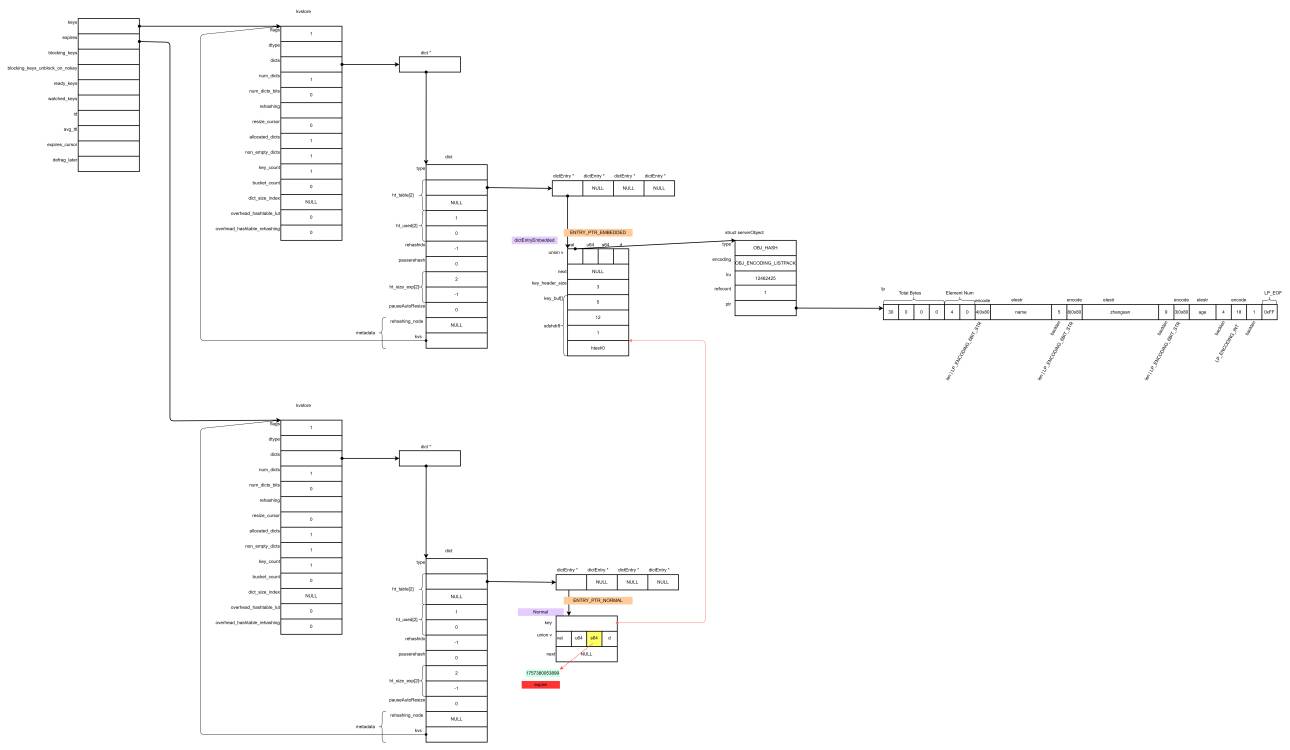

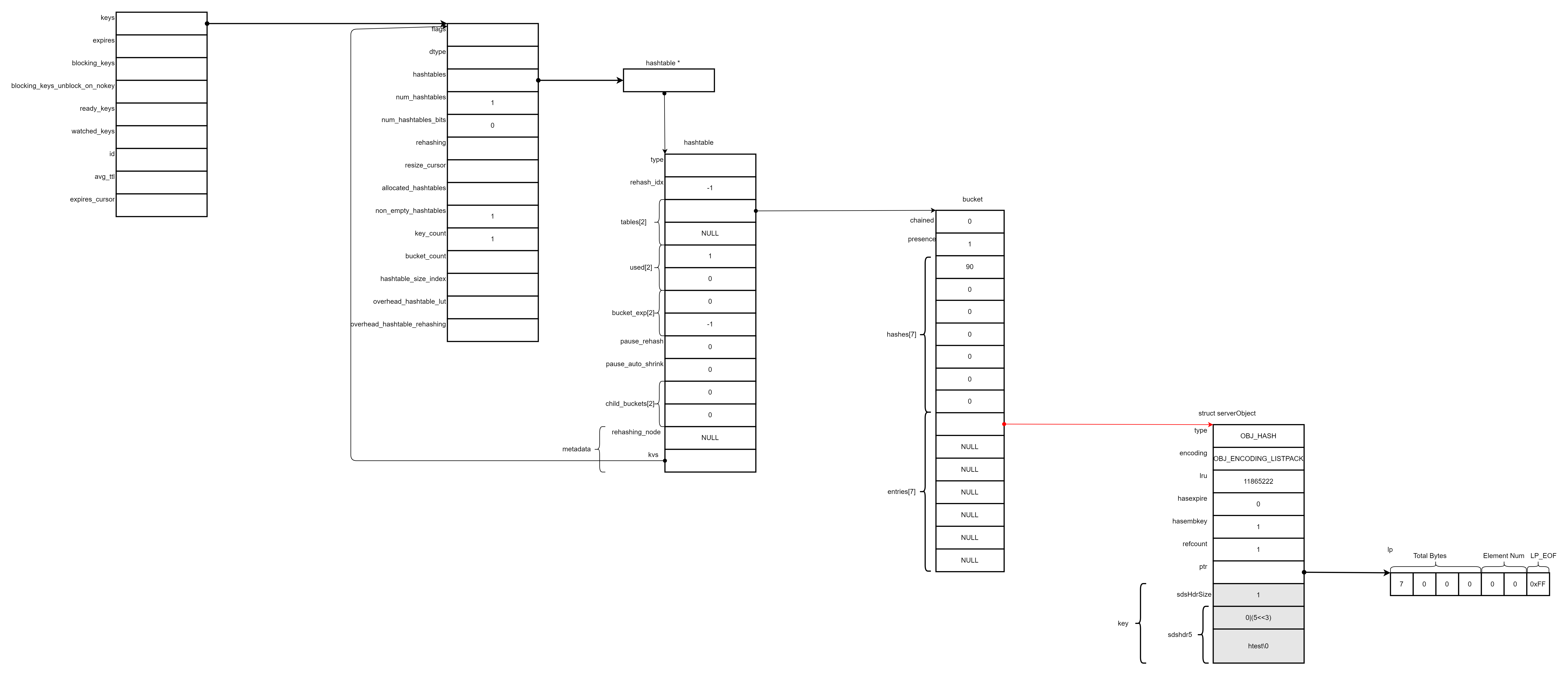

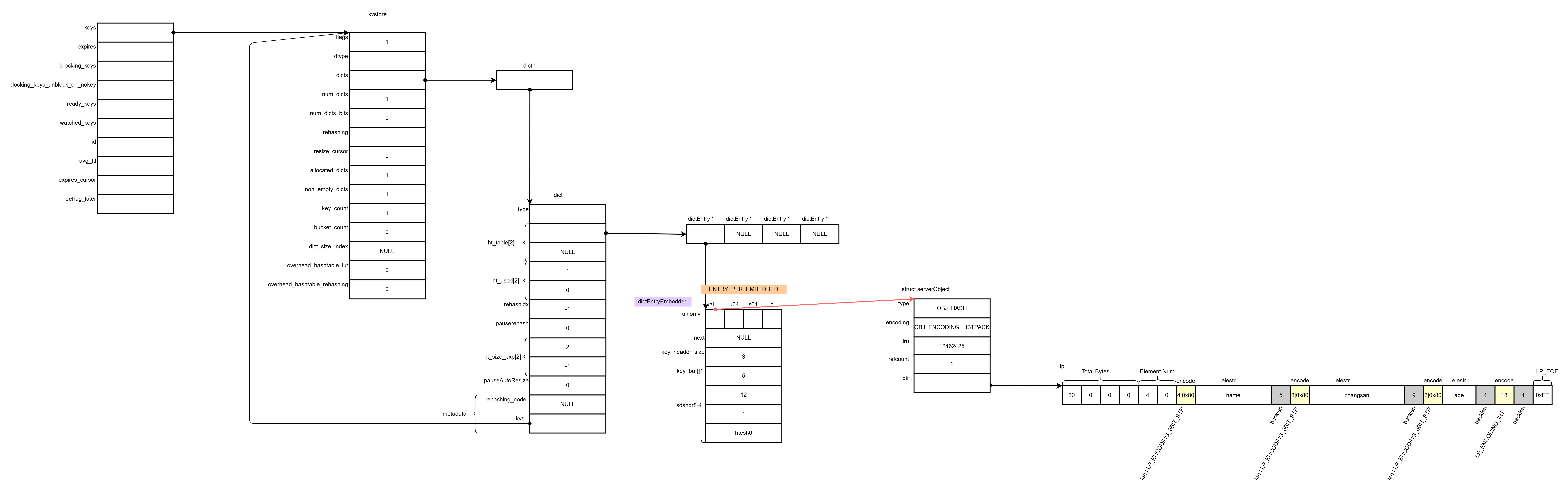

hset命令执行完后，整个内存结构如下：
expire
127.0.0.1:6379> EXPIRE htest 3
调用栈
expireCommand|-> expireGenericCommand|-> lookupKeyWrite|-> setExpire|-> kvstoreDictFind|-> kvstoreDictAddRaw
检查key是否存在
首先调用lookupKeyWrite判断key是否存在，不存在则设置结束，函数返回。否则调用setExpire进行过期时间的设置。
/* No key, return zero. */if (lookupKeyWrite(c->db, key) == NULL) {addReply(c, shared.czero);return;}
将key插入expires字典中
setExpire函数第一步调用kvstoreDictFind根据key查找到对应的dictEntry, 然后使用dictEntry中的key对象调用kvstoreDictAddRaw插入到db->expires。
过期检查逻辑
hget 查询时检查
127.0.0.1:6379> hget htest name
调用栈
hgetCommand|-> lookupKeyReadOrReply| |-> lookupKeyRead| |-> lookupKeyReadWithFlags| |-> lookupKey| |-> dictEntry *de = dbFind(db, key->ptr);| |-> val = dictGetVal(de);| |-> expireIfNeeded| |-> expireIfNeededWithDictIndex| |-> keyIsExpiredWithDictIndex| | |-> getExpireWithDictIndex| | |-> de = dbFindExpiresWithDictIndex| | |-> dictGetSignedIntegerVal(de)| |-> deleteExpiredKeyAndPropagateWithDictIndex| |-> dbGenericDeleteWithDictIndex| |-> kvstoreDictTwoPhaseUnlinkFind| |-> kvstoreDictDelete(db->expires, dict_index, key->ptr);| |-> kvstoreDictTwoPhaseUnlinkFree(db->keys, dict_index, de, plink, table);|-> addHashFieldToReply|-> hashTypeGetValue
- 首先通过key查找对应的dictEntry, 找到后将调用
expireIfNeeded进行过期检查。 - 如果未配置lazy_expire_disabled， 则调用
keyIsExpiredWithDictIndex判断是否过期 - 如果过期，则调用
deleteExpiredKeyAndPropagateWithDictIndex进行删除,从db->expires和db->keys中都删除 - 如果没有过期，则调用
addhashFieldToReply获取field值，然后响应
后台任务检查
调用栈
main|-> aeMain|-> aeProcessEvents|-> processTimeEvents|-> serverCron|-> databasesCron|-> activeExpireCycle|-> kvstoreScan(db->expires, ...)|-> dictScan|-> dictScanDefrag|-> expireScanCallback|-> activeExpireCycleTryExpire|-> dictGetSignedIntegerVal|-> deleteExpiredKeyAndPropagate|-> deleteExpiredKeyAndPropagateWithDictIndex调用kvstoreScan扫描db->expires,最终依然会调用deleteExpiredKeyAndPropagateWithDictIndex进行过期key的删除。
2.2 valkey8.1的expire逻辑
以HSET和EXPIRE为例子
HSET key field value [ field value ... ]EXPIRE key seconds [ NX | XX | GT | LT ]
hset
$ ./valkey-cli
127.0.0.1:6379> hset htest name zhangsan age 18
调用栈
readQueryFromClient|-> processCommandAndResetClient|-> processCommand|-> call|-> hsetCommand|-> hashTypeLookupWriteOrCreate
robj *hashTypeLookupWriteOrCreate(client *c, robj *key) {robj *o = lookupKeyWrite(c->db, key);if (checkType(c, o, OBJ_HASH)) return NULL;if (o == NULL) {o = createHashObject();dbAdd(c->db, key, &o);}return o;
}
检查key是否存在，不存在则创建

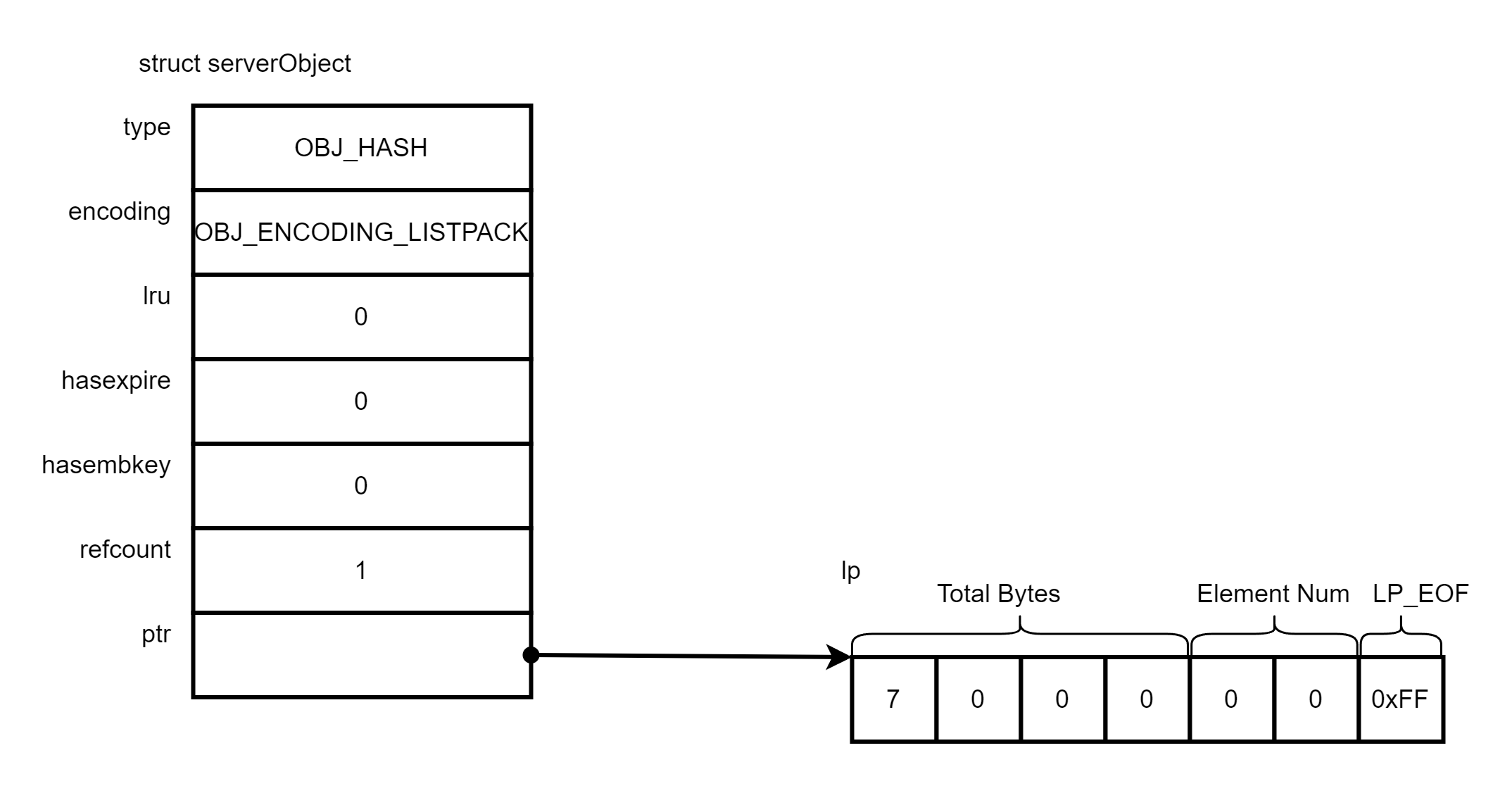

当前key不存在，因此会调用createHashObject创建obj
将新key插入到hashtable
然后调用dbAdd将key和obj插入到hash表中
dbAdd|-> dbAddInternal|-> objectSetKeyAndExpire|-> kvstoreHashtableAdd|-> hashtableAdd|-> hashtableAddOrFind|-> insert

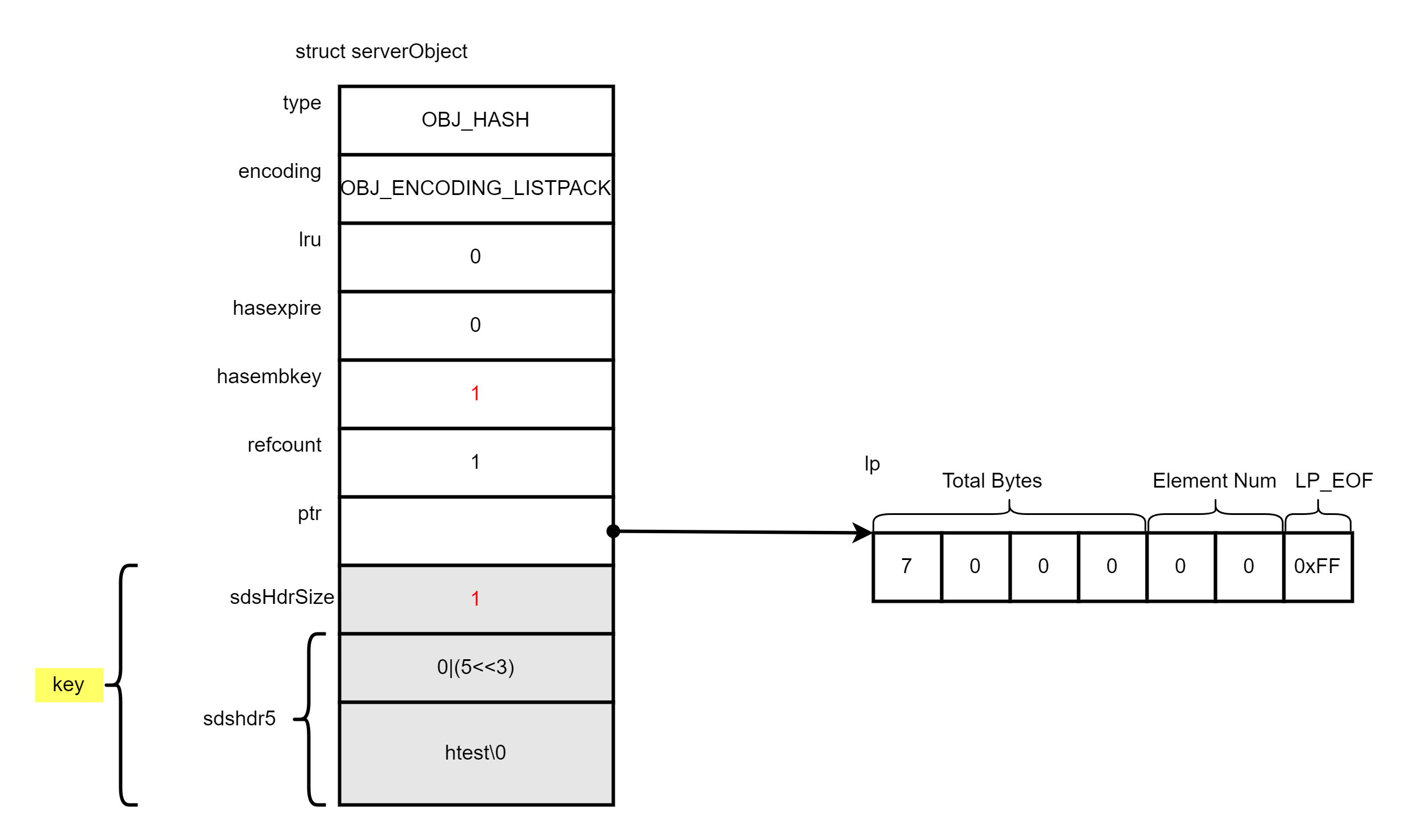

将key内嵌到object中
函数objectSetKeyAndExpire将重新创建object，将key和object进行内嵌，同时释放原先的object。

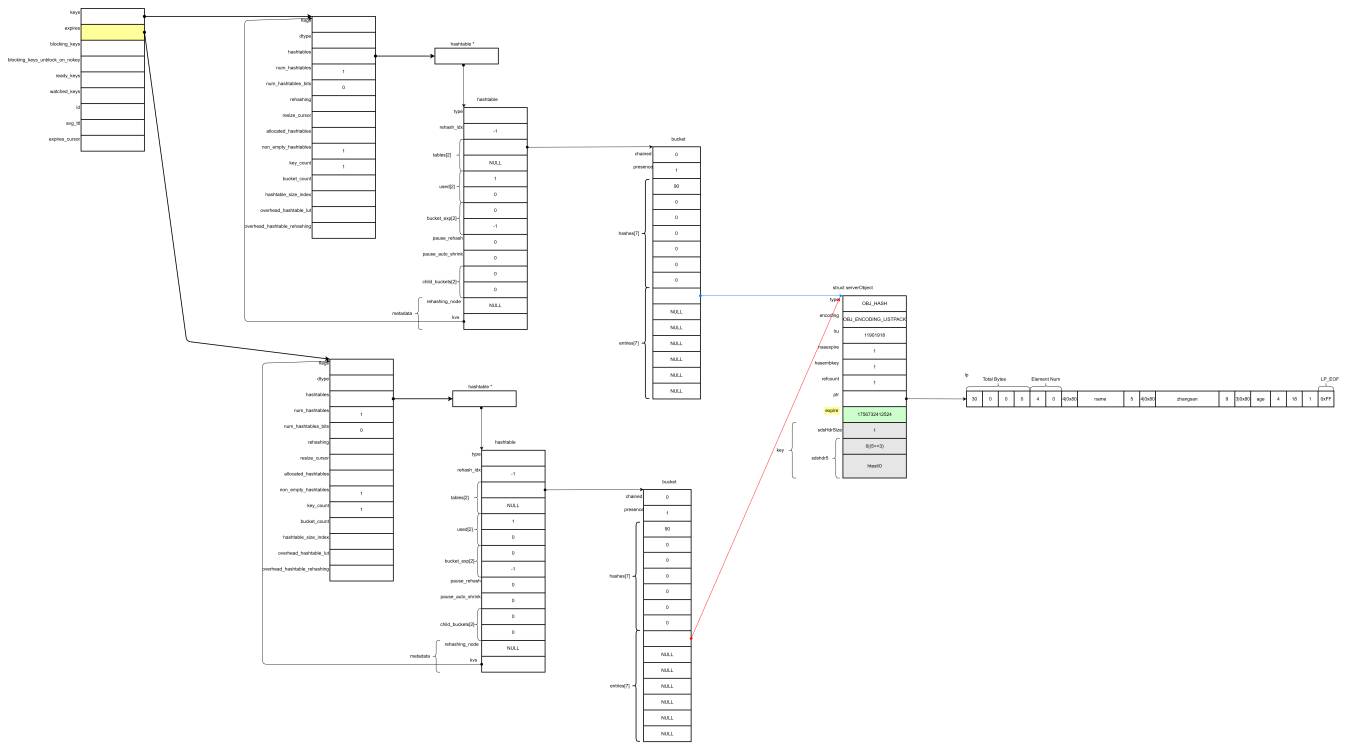

object插入hashtable
通过kvstoreHashtableAdd将object插入到hashtable中
将field/value插入object中
最后调用hashTypeSet将field/value插入到object中，当前object的value类型为ListPack。
expire
127.0.0.1:6379> EXPIRE htest 30
调用栈
expireCommand|-> expireGenericCommand|-> lookupKeyWrite|-> setExpire|-> objectSetExpire| |-> objectSetKeyAndExpire| |-> createObjectWithKeyAndExpire|-> kvstoreHashtableAdd
- 调用
lookupKeyWrite函数，以确定key是否存在, 不存在则返回 - 存在则调用

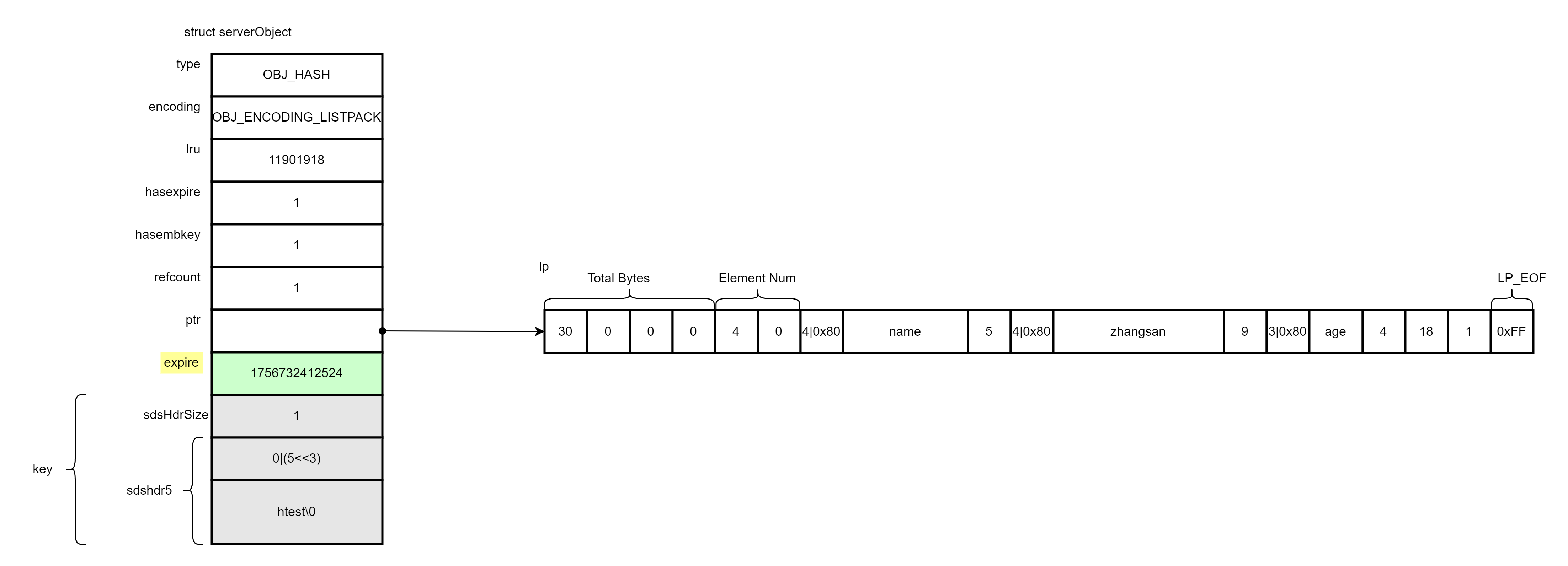

setExpire将key添加到expire字典中, setExpire首先调用objectSetExpire将expire内嵌到object中，将新的object插入到expire hashtable中
最后将新的object插入到expires字典中。
过期检查逻辑
hget 查询时检查
127.0.0.1:6379> hget htest name
调用栈
hgetCommand|-> lookupKeyReadOrReply| |-> lookupKeyRead| |-> lookupKeyReadWithFlags| |-> lookupKey| |-> val = dbFindWithDictIndex(db, key->ptr, dict_index)| |-> expireIfNeededWithDictIndex| |-> objectIsExpired(val)| | |-> timestampIsExpired(objectGetExpire(val))| |-> keyIsExpiredWithDictIndexImpl| | |-> getExpireWithDictIndex| | |-> when = getExpireWithDictIndex(db, key, dict_index)| | | |-> val = dbFindExpiresWithDictIndex(db, key->ptr, dict_index)| | | | |-> kvstoreHastableFind(db->expires, dict_index, key, &existing)| | | |-> objectGetExpire(val)| | |-> timestampIsExpired(when)| |-> deleteExpiredKeyAndPropagateWithDictIndex| |-> dbGenericDeleteWithDictIndex| |-> kvstoreHashtableTwoPhasePopFindRef(db->keys, dict_index, key->ptr, &pos)| |-> kvstoreHashtableTwoPhasePopDelete(db->keys, dict_index, &pos);| |-> kvstoreHashtableDelete(db->expires, dict_index, key->ptr);|-> addHashFieldToReply|-> hashTypeGetValue
当val存在时，直接调用objectIsExpired以判断是否过期，否则调用keyIsExpiredWithDictIndexImpl判断key是否过期，实际上两个分支最终都调用objectGetExpire获取过期时间，以判断是否过期。
long long objectGetExpire(const robj *val) {if (val->hasexpire) {unsigned char *data = (void *)(val + 1);return *(long long *)data;} else {return -1;}
}
后台任务检查
调用栈
main|-> aeMain|-> aeProcessEvents|-> processTimeEvents|-> serverCron|-> databasesCron|-> activeExpireCycle|-> kvstoreScan(db->expires, ...)|-> hastableScan|-> hashtableScanDefrag|-> expireScanCallback|-> activeExpireCycleTryExpire|-> t = objectGetExpire(val)|-> deleteExpiredKeyAndPropagate|-> deleteExpiredKeyAndPropagateWithDictIndex整个流程和valkey8.0一致，稍微不同的是获取获取时间的方式不同，因为存储方式的改变。
三、新版HFE
为了兼容老版本，因此新增了一套相关的命令，hsetex,hgetex,hexpire,hexpireat,hpexpire,hpexpireat,hpersist,httl,hpttl,hexpiretime,hpexpiretime
以及相应的数据结构。
hsetex
HSETEX key [NX] seconds field value [field value ...]
和hset命令相似，只是多了seconds作为field的过期时间，看起来就像hset和expire命令的结合体。
$ ./valkey-cli
127.0.0.1:6379> hsetex htest fnx ex 3 fields 2 name zhangsan age 18
提取命令参数，并进行语法校验
void hsetexCommand(client *c) {robj *o;...for (; fields_index < c->argc - 1; fields_index++) {if (!strcasecmp(c->argv[fields_index]->ptr, "fields")) {/* checking optional flags */if (parseExtendedCommandArgumentsOrReply(c, &flags, &unit, &expire, &comparison, COMMAND_HSET, fields_index++) != C_OK) return;if (getLongLongFromObjectOrReply(c, c->argv[fields_index++], &num_fields, NULL) != C_OK) return;break;}}/* Check that the parsed fields number matches the real provided number of fields */if (!num_fields || num_fields != (c->argc - fields_index) / 2) {addReplyError(c, "numfields should be greater than 0 and match the provided number of fields");return;}...
查询key, 并作校验
o = lookupKeyWrite(c->db, c->argv[1]);if (checkType(c, o, OBJ_HASH))return;如果不存在，则创建，并将key插入
if (o == NULL) {o = createHashObject();dbAdd(c->db, c->argv[1], &o);}
和valkey8.1一样，可以看出valkey8.1就在为HFE特性做准备。
接下来将进行field/value的插入，此处将出现不同之处。
int hashTypeSet(robj *o, sds field, sds value, long long expiry, int flags);
设置field/value的接口改变，增加了long long expire参数
if (o->encoding == OBJ_ENCODING_LISTPACK) {if (expiry > 0 || sdslen(field) > server.hash_max_listpack_value || sdslen(value) > serve r.hash_max_listpack_value)hashTypeConvert(o, OBJ_ENCODING_HASHTABLE);}
可以看到，当expire大于0时，将编码从LISTPACK转换成HASTABLE。
因此这里一开始就从LISTPACK转换成HASTABLE。

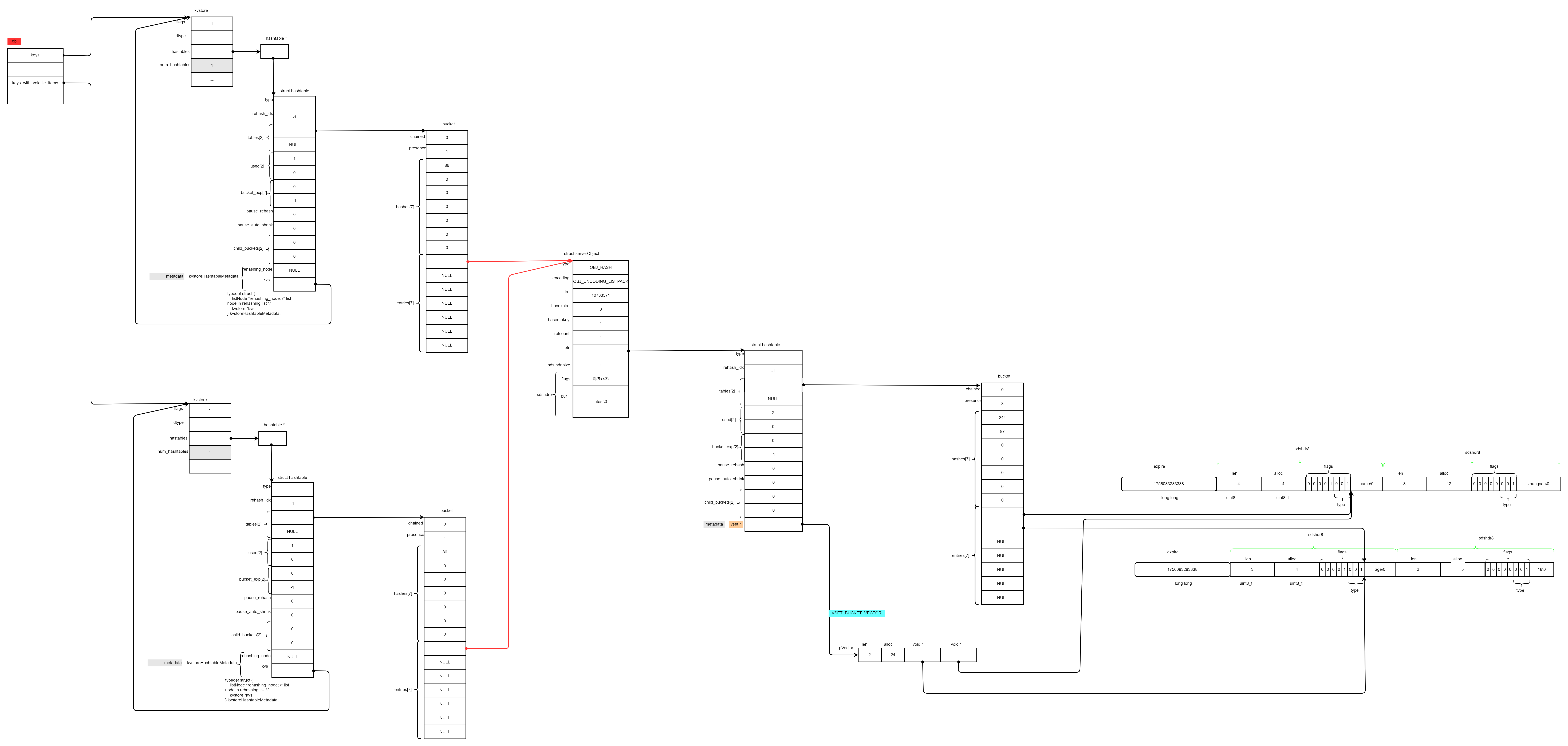

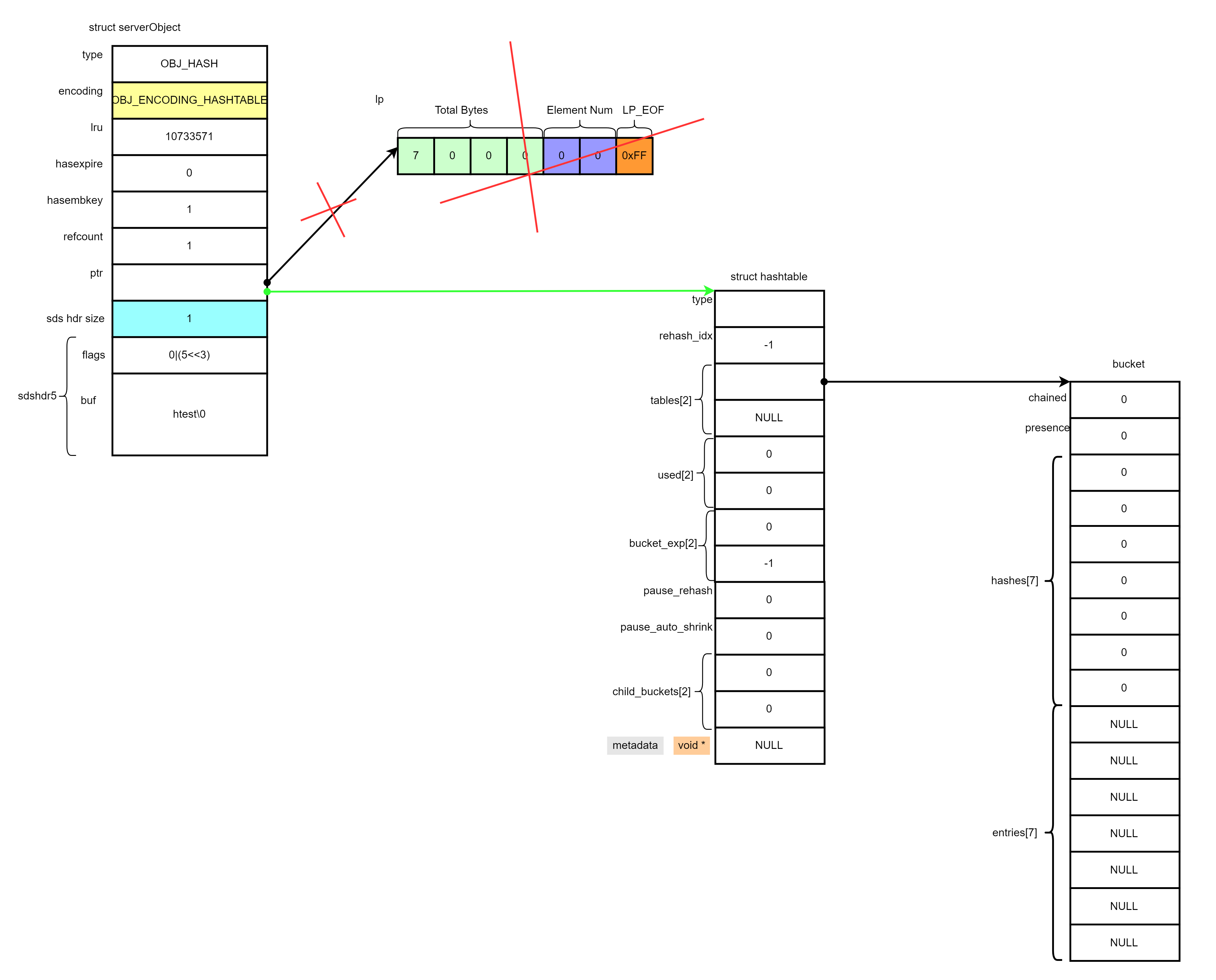

hashTypeConvert函数执行完后，o的内存结构如下图：
然后调用hashtableInsertAtPosition 将field/value插入hashtable中

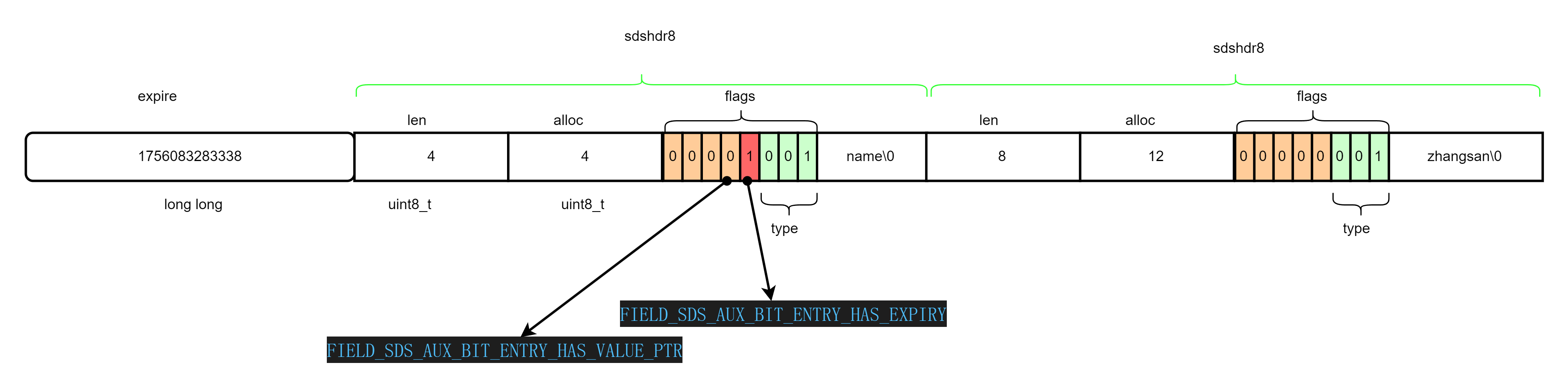

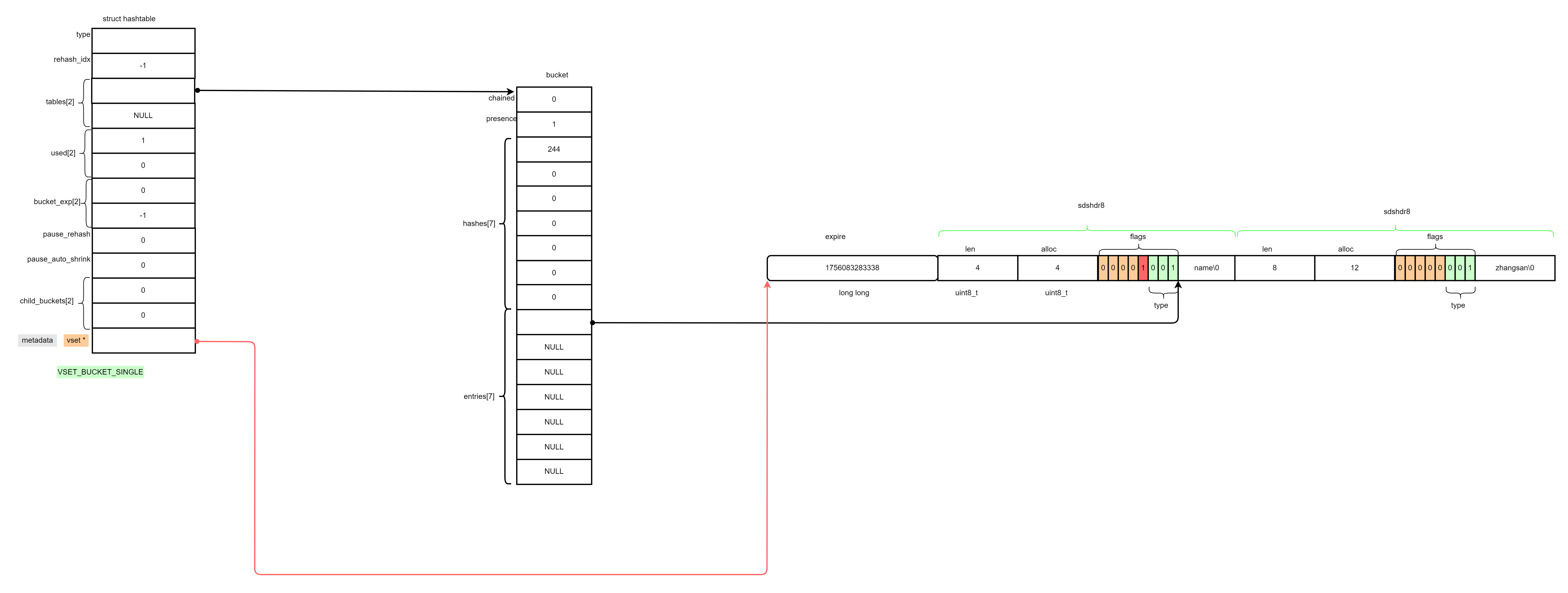

将field/value创建成entry
将entry插入hashtable中
追踪此field
hashTypeTrackEntry
void hashTypeTrackEntry(robj *o, void *entry) {vset *set;// 1. 首先判断是否已经存在vsetif (hashTypeHasVolatileFields(o)) {// 1.1 存在则直接获取set = hashTypeGetVolatileSet(o);} else {// 1.2 不存在，则创建set = hashTypeGetOrcreateVolatileSet(o);} // 2. 将entry插入vset中bool added = vsetAddEntry(set, entryGetExpiry, entry);serverAssert(added);
}

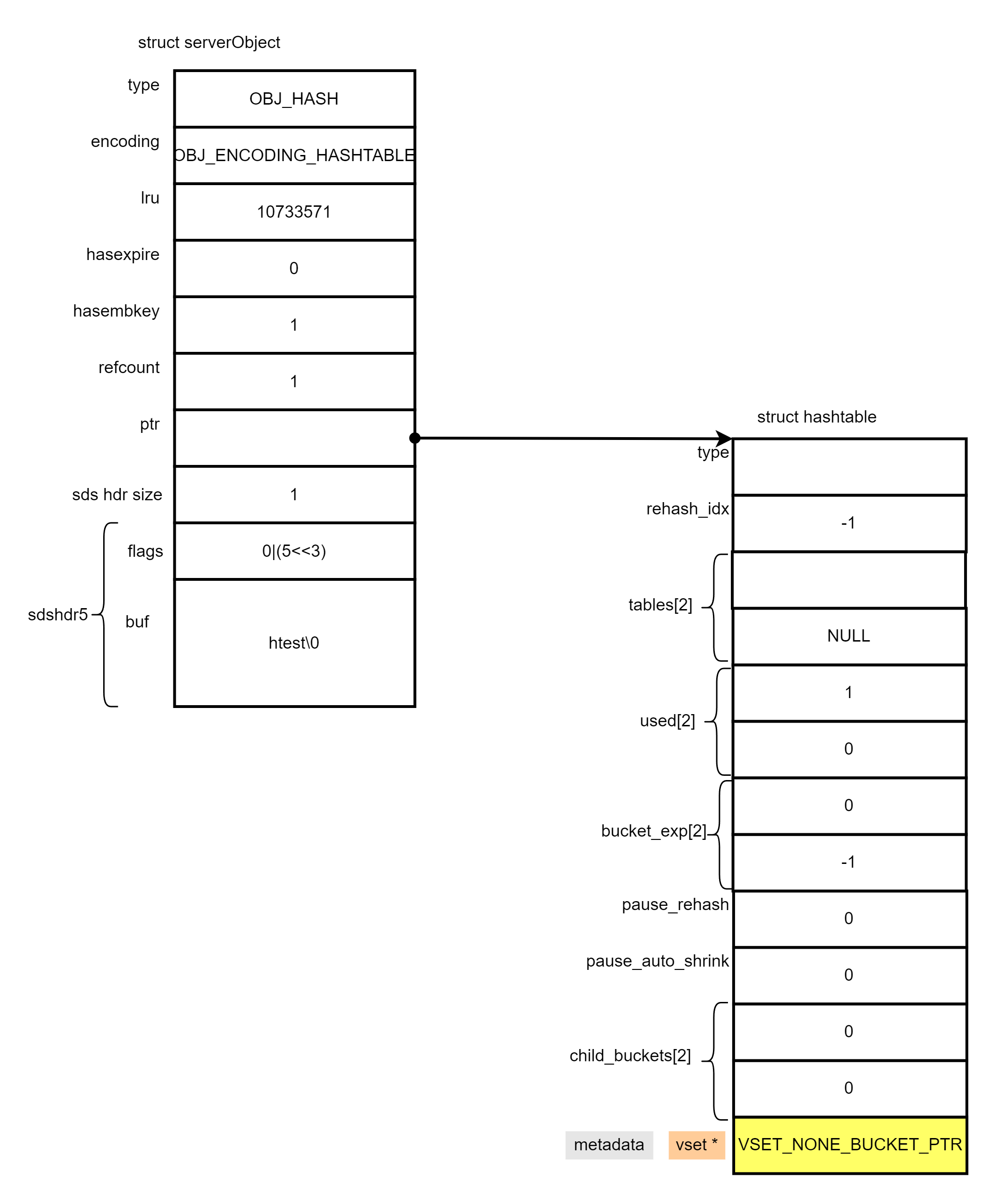

vset初始化
将entry插入vset中
bool vsetAddEntry(vset *set, vsetGetExpiryFunc getExpiry, void *entry) {long long expiry = getExpiry(entry);vsetBucket *expiry_buckets = *set;assert(expiry_buckets);int bucket_type = vsetBucketType(expiry_buckets);switch (bucket_type) {case VSET_BUCKET_NONE:expiry_buckets = insertToBucket_NONE(getExpiry, expiry_buckets, entry, expiry);break;case VSET_BUCKET_SINGLE:expiry_buckets = insertToBucket_SINGLE(getExpiry, expiry_buckets, entry, expiry);break;case VSET_BUCKET_VECTOR: {pVector *vec = vsetBucketVector(expiry_buckets);uint32_t len = pvLen(vec);/* in case the vector is full, we need to turn into RAX */if (len == VOLATILESET_VECTOR_BUCKET_MAX_SIZE) {rax *r = raxNew();long long min_expiry = getExpiry(pvGet(vec, 0));long long max_expiry = getExpiry(pvGet(vec, len - 1));if (get_max_bucket_ts(min_expiry) == get_max_bucket_ts(max_expiry)) {/* In case we can just insert the bucket, no need to iterate and insert it's elements. we can just push the bucket as a whole. */unsigned char key[VSET_BUCKET_KEY_LEN] = {0};size_t key_len = encodeNewExpiryBucketKey(key, max_expiry);raxInsert(r, key, key_len, expiry_buckets, NULL);expiry_buckets = vsetBucketFromRax(r);expiry_buckets = insertToBucket_RAX(getExpiry, expiry_buckets, entry, expiry);} else {/* We need to migrate entries to the new set of buckets since we do not know all entries are in the same bucket */expiry_buckets = vsetBucketFromRax(r);for (uint32_t i = 0; i < len; i++) {void *moved_entry = pvGet(vec, i);expiry_buckets = insertToBucket_RAX(getExpiry, expiry_buckets, moved_entry, getExpiry(moved_entry));}/* free the vector */pvFree(vec);/* now insert the new entry to the buckets */expiry_buckets = insertToBucket_RAX(getExpiry, expiry_buckets, entry, expiry);}} else {uint32_t pos = findInsertPosition(getExpiry, expiry_buckets, expiry);expiry_buckets = insertToBucket_VECTOR(getExpiry, expiry_buckets, entry, expiry, pos);}break;}case VSET_BUCKET_RAX:expiry_buckets = insertToBucket_RAX(getExpiry, expiry_buckets, entry, expiry);break;default:panic("Cannot insert to bucket which is not single, vector or rax");}/* update the set */*set = expiry_buckets;return true;
}
NONE|vSINGLE (1 entry)|vVECTOR (sorted, up to 127)|vRAX (holds multiple buckets, keyed by each bucket's end timestamp)Bucket types within a RAX:SINGLE|vVECTOR (sorted, up to 127, can split| into multiple vectors)|vHASHTABLE (only when a vector can't split)
首先从NONE到SINGLE

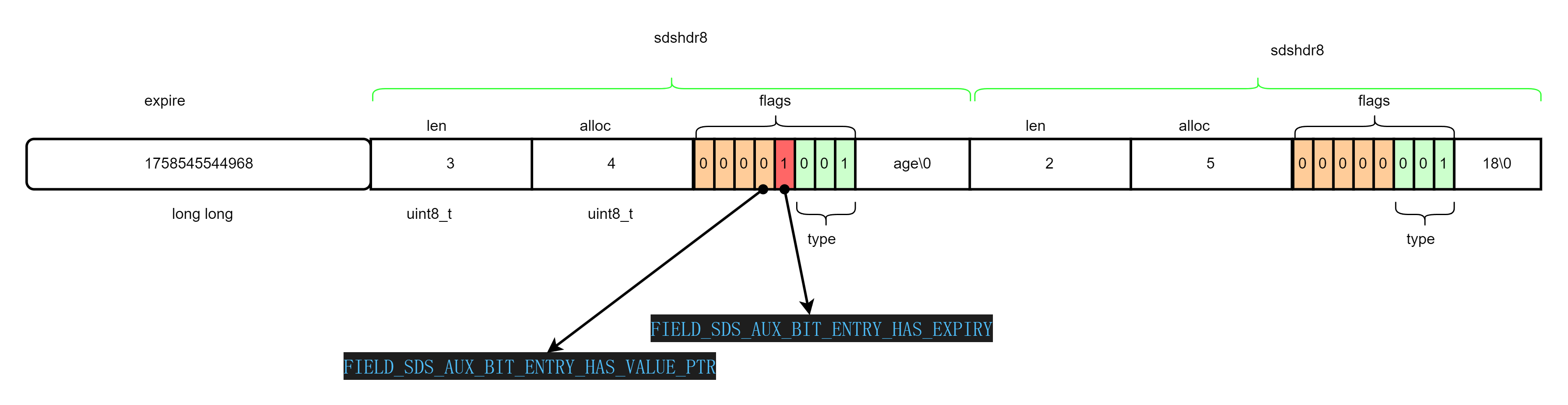

将field/value创建entry
将entry插入hashtable中
hashTypeTrackEntry

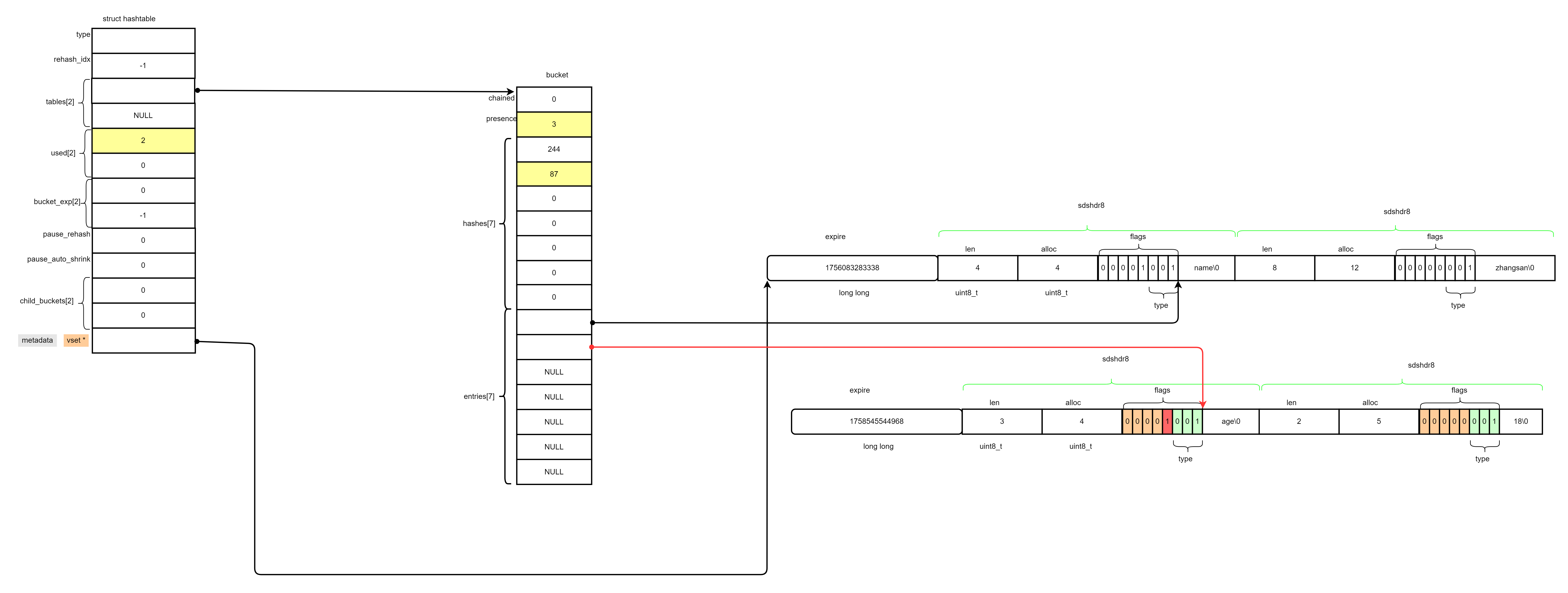

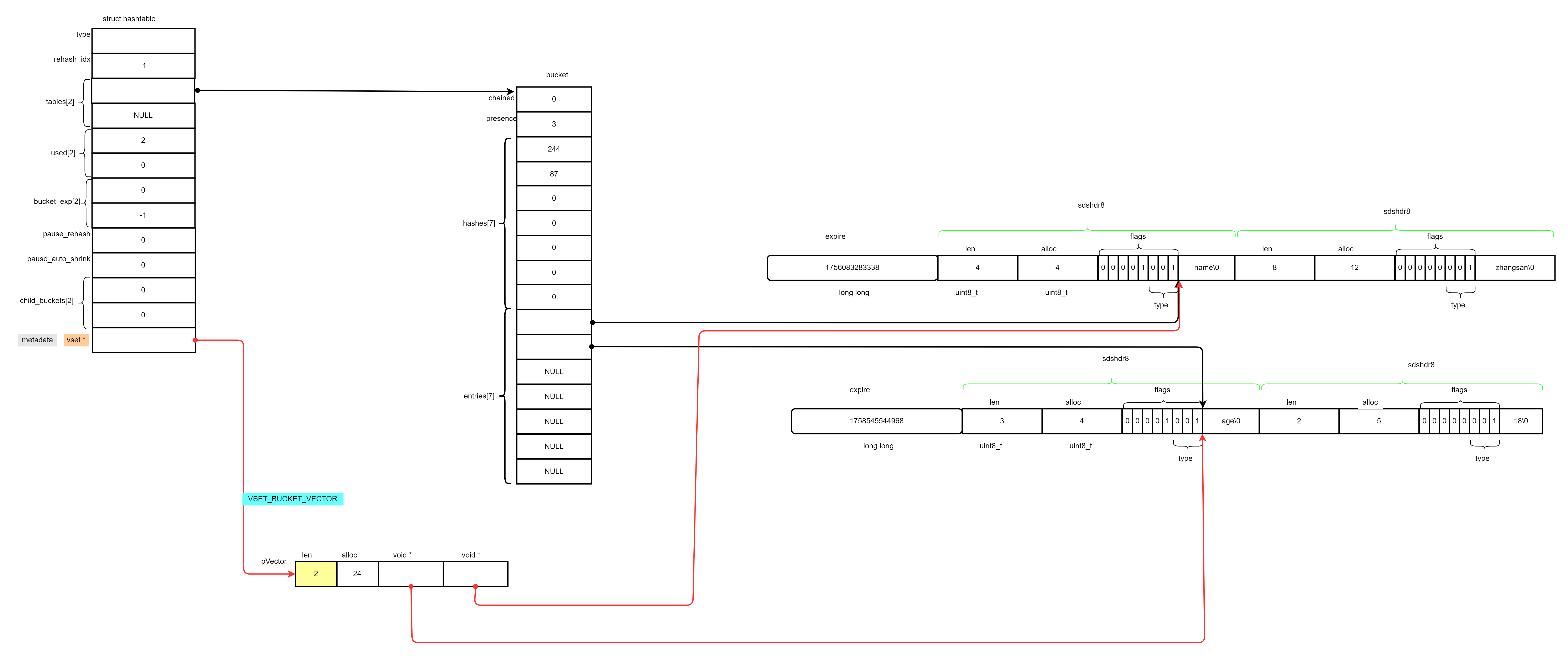

将SINGLE转换成vector, 分配空间，并根据expire大小进行插入，小的在前
static inline vsetBucket *insertToBucket_SINGLE(vsetGetExpiryFunc getExpiry, vsetBucket *bucket, void *entry, long long expiry) {/* Upgrade to vector */pVector *pv = pvNew(2);void *curr_entry = vsetBucketSingle(bucket);long long curr_expiry = getExpiry(curr_entry);if (curr_expiry < expiry) {pv = pvPush(pv, curr_entry);pv = pvPush(pv, entry);} else {pv = pvPush(pv, entry);pv = pvPush(pv, curr_entry);}bucket = vsetBucketFromVector(pv);return bucket;
}
最后将调用
dbUpdateObjectWithVolatileItemsTracking
|-> dbTrackKeyWithVolatileItems|-> kvstoreHashtableAdd(db->keys_with_volatile_items, dict_index, o);
将o插入keys_with_volatile_items hashtable中
后续继续学习HFE的过期逻辑
