MobileNetV3训练自定义数据集并通过C++进行推理模型部署

---

1 前言

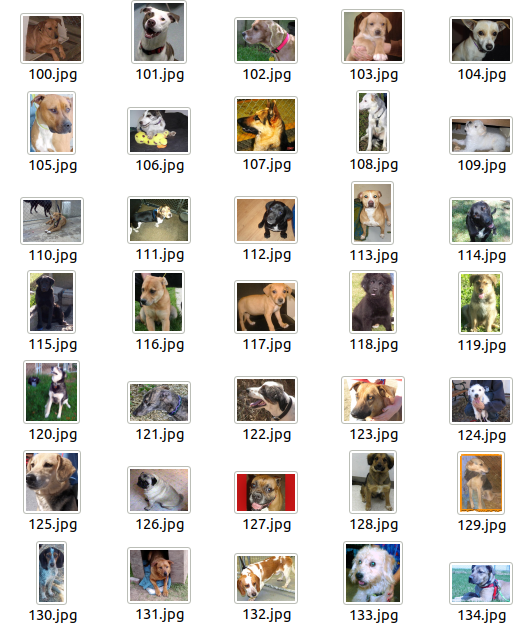

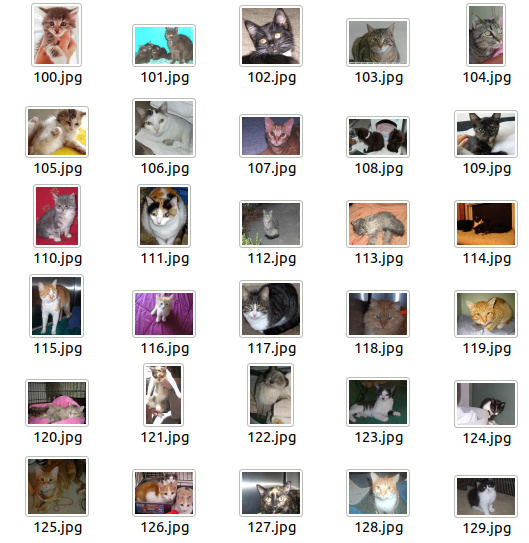

  本项目将实现MobileNetV3的自定义数据集训练，以及推理模型部署。本篇内容采用猫狗数据集，2分类模型。

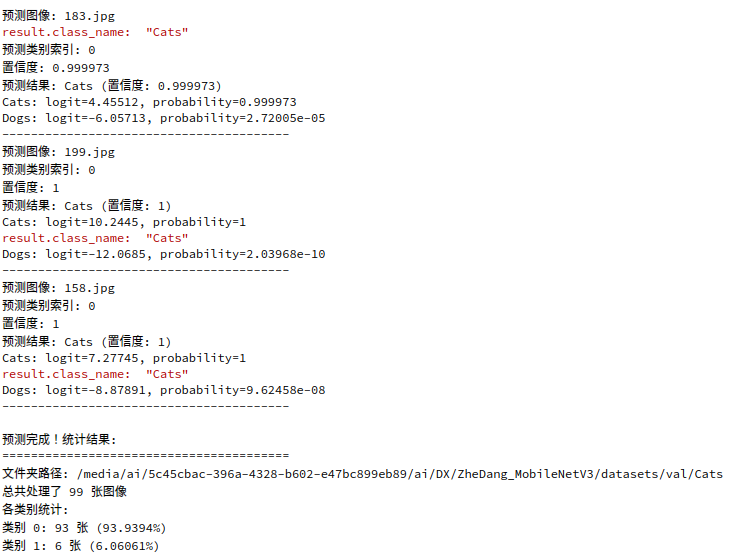

  C++端预测结果如下所示。

2 项目内容详细说明

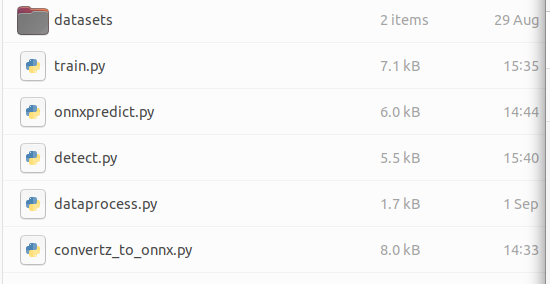

3.1 训练及模型转换

  在python环境下进行模型的训练与格式转换。





  （1）train.py 实现模型训练；
  （2）detect.py 通过pt模型验证推理；
  （3）convert_to_onnx.py 将pt模型转换成onnx模型；
  （4）onnxpredict.py 通过onnx模型推理验证；

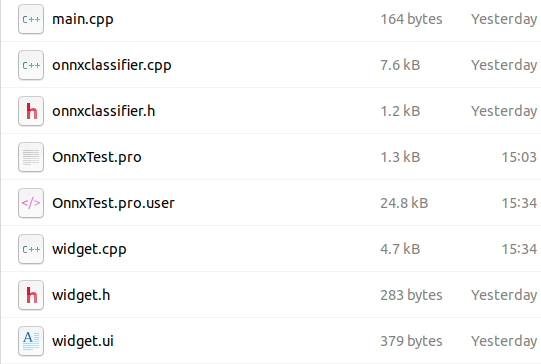

3.2 模型测试（C++）

  C++（Qt）环境下的onnx模型验证测试工程。

3 代码

3.1 train.py

  train.py实现如下所示。

import torch
import torch.nn as nn
import torch.optim as optim
from torchvision import datasets, transforms
from torch.utils.data import DataLoader
import torchvision.models as models
import os
import time
import copy
import matplotlib.pyplot as plt
from tqdm import tqdm# 设置设备
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
print(f"使用设备: {device}")# 数据增强和归一化
data_transforms = {'train': transforms.Compose([transforms.RandomResizedCrop(224),transforms.RandomHorizontalFlip(p=0.5),transforms.ColorJitter(brightness=0.2, contrast=0.2, saturation=0.2),transforms.ToTensor(),transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])]),'val': transforms.Compose([transforms.Resize((224,224)),transforms.ToTensor(),transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])]),
}# 数据集路径
data_dir = '/media/ai/5c45cbac-396a-4328-b602-e47bc899eb89/ai/DX/ZheDang_MobileNetV3/datasets'
train_dir = os.path.join(data_dir, 'train')
val_dir = os.path.join(data_dir, 'val')# 创建数据集
image_datasets = {'train': datasets.ImageFolder(train_dir, data_transforms['train']),'val': datasets.ImageFolder(val_dir, data_transforms['val'])
}# 创建数据加载器
dataloaders = {'train': DataLoader(image_datasets['train'], batch_size=32, shuffle=True, num_workers=4),'val': DataLoader(image_datasets['val'], batch_size=32, shuffle=False, num_workers=4)
}# 获取数据集信息
dataset_sizes = {x: len(image_datasets[x]) for x in ['train', 'val']}
class_names = image_datasets['train'].classes
num_classes = len(class_names)print(f"类别: {class_names}")
print(f"训练集大小: {dataset_sizes['train']}")
print(f"验证集大小: {dataset_sizes['val']}")# 加载预训练的MobileNetV3模型
def create_model(num_classes=2):model = models.mobilenet_v3_small(pretrained=True)# 修改最后的分类层num_features = model.classifier[3].in_featuresmodel.classifier[3] = nn.Linear(num_features, num_classes)return model# 创建模型
model = create_model(num_classes=num_classes)
model = model.to(device)# 定义损失函数和优化器
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)
scheduler = optim.lr_scheduler.StepLR(optimizer, step_size=7, gamma=0.1)# 训练函数
def train_model(model, criterion, optimizer, scheduler, num_epochs=25):since = time.time()best_model_wts = copy.deepcopy(model.state_dict())best_acc = 0.0# 记录训练过程train_loss_history = []val_loss_history = []train_acc_history = []val_acc_history = []for epoch in range(num_epochs):print(f'Epoch {epoch}/{num_epochs - 1}')print('-' * 10)# 每个epoch都有训练和验证阶段for phase in ['train', 'val']:if phase == 'train':model.train()  # 训练模式else:model.eval()  # 评估模式running_loss = 0.0running_corrects = 0# 使用tqdm显示进度条dataloader = dataloaders[phase]pbar = tqdm(dataloader, desc=f'{phase} Epoch {epoch}')# 迭代数据for inputs, labels in pbar:inputs = inputs.to(device)labels = labels.to(device)# 清零梯度optimizer.zero_grad()# 前向传播with torch.set_grad_enabled(phase == 'train'):outputs = model(inputs)_, preds = torch.max(outputs, 1)loss = criterion(outputs, labels)# 反向传播 + 优化（仅在训练阶段）if phase == 'train':loss.backward()optimizer.step()# 统计running_loss += loss.item() * inputs.size(0)running_corrects += torch.sum(preds == labels.data)# 更新进度条pbar.set_postfix({'loss': f'{loss.item():.4f}','acc': f'{torch.sum(preds == labels.data).item() / inputs.size(0):.4f}'})if phase == 'train':scheduler.step()epoch_loss = running_loss / dataset_sizes[phase]epoch_acc = running_corrects.double() / dataset_sizes[phase]print(f'{phase} Loss: {epoch_loss:.4f} Acc: {epoch_acc:.4f}')# 记录历史if phase == 'train':train_loss_history.append(epoch_loss)train_acc_history.append(epoch_acc.cpu().numpy())else:val_loss_history.append(epoch_loss)val_acc_history.append(epoch_acc.cpu().numpy())# 深度复制最佳模型if phase == 'val' and epoch_acc > best_acc:best_acc = epoch_accbest_model_wts = copy.deepcopy(model.state_dict())print()time_elapsed = time.time() - sinceprint(f'训练完成于 {time_elapsed // 60:.0f}m {time_elapsed % 60:.0f}s')print(f'最佳验证准确率: {best_acc:.4f}')# 加载最佳模型权重model.load_state_dict(best_model_wts)return model, train_loss_history, val_loss_history, train_acc_history, val_acc_history# 开始训练
print("开始训练模型...")
num_epochs = 100
model, train_loss, val_loss, train_acc, val_acc = train_model(model, criterion, optimizer, scheduler, num_epochs=num_epochs
)# 保存模型
torch.save(model.state_dict(), 'mobileNetV3_best_model.pth')
print("模型已保存为 mobileNetV3_best_model.pth")# 绘制训练曲线
plt.figure(figsize=(12, 5))plt.subplot(1, 2, 1)
plt.plot(train_loss, label='Train Loss')
plt.plot(val_loss, label='Val Loss')
plt.title('Training and Validation Loss')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.legend()plt.subplot(1, 2, 2)
plt.plot(train_acc, label='Train Accuracy')
plt.plot(val_acc, label='Val Accuracy')
plt.title('Training and Validation Accuracy')
plt.xlabel('Epochs')
plt.ylabel('Accuracy')
plt.legend()plt.tight_layout()
plt.savefig('training_curves.png')
plt.show()# 测试函数
def test_model(model, dataloader):model.eval()correct = 0total = 0with torch.no_grad():for inputs, labels in dataloader['val']:inputs = inputs.to(device)labels = labels.to(device)outputs = model(inputs)_, predicted = torch.max(outputs.data, 1)total += labels.size(0)correct += (predicted == labels).sum().item()accuracy = 100 * correct / totalprint(f'测试准确率: {accuracy:.2f}%')return accuracy# 测试模型
print("测试模型性能...")
test_accuracy = test_model(model, dataloaders)
print(f"最终测试准确率: {test_accuracy:.2f}%")

3.2 detect.py

predict_image方法具体实现如下所示。

    def predict_image(self, image_path):"""预测单张图像"""try:# 加载和预处理图像image = Image.open(image_path).convert('RGB')input_tensor = self.transform(image).unsqueeze(0).to(self.device)# 预测with torch.no_grad():outputs = self.model(input_tensor)probabilities = torch.softmax(outputs, dim=1)confidence, predicted = torch.max(probabilities, 1)# 获取结果class_name = self.class_names[predicted.item()]confidence_score = confidence.item()return class_name, confidence_scoreexcept Exception as e:print(f"预测时出错: {e}")return None, None

3.3 convert_to_onnx.py

  convert_to_onnx.py实现见第4章。

3.4 onnxpredict.py

  onnxpredict.py实现见第4章。

3.5 C++测试工程

  C++实现工程实现见第4章。

4 资源下载

  本案例中涉及到的所有代码请到此处下载。
