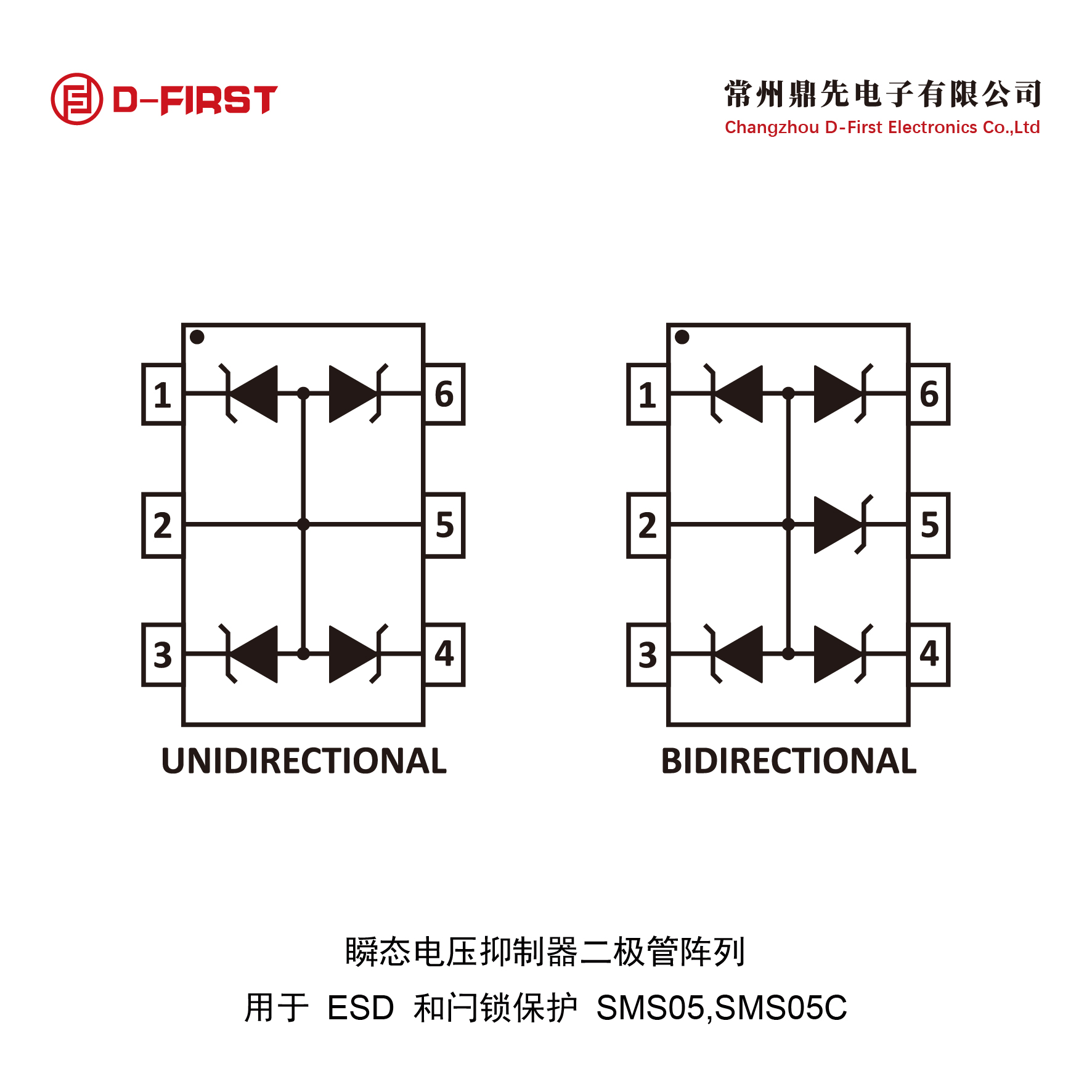

瞬态电压抑制器二极管阵列，用于 ESD 和闩锁保护，350W，SMS 系列The SMS series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events.
SMS 系列瞬态电压抑制器二极管可防止过电压损坏敏感电子元件。 它们特别适用于手机和移动电话附件、PDA、寻呼机和笔记本电脑等应用。 SMS 瞬态电压抑制器二极管还适用于基于微处理器的应用、外围设备和工业设备。
SMS 瞬态电压抑制器二极管的功能和优点
•350 W 峰值脉冲功率 (tp = 8/20μs)
•瞬时保护，用于数据线路，符合：
IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（触点）
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5（雷电） 24A (8/20μs)

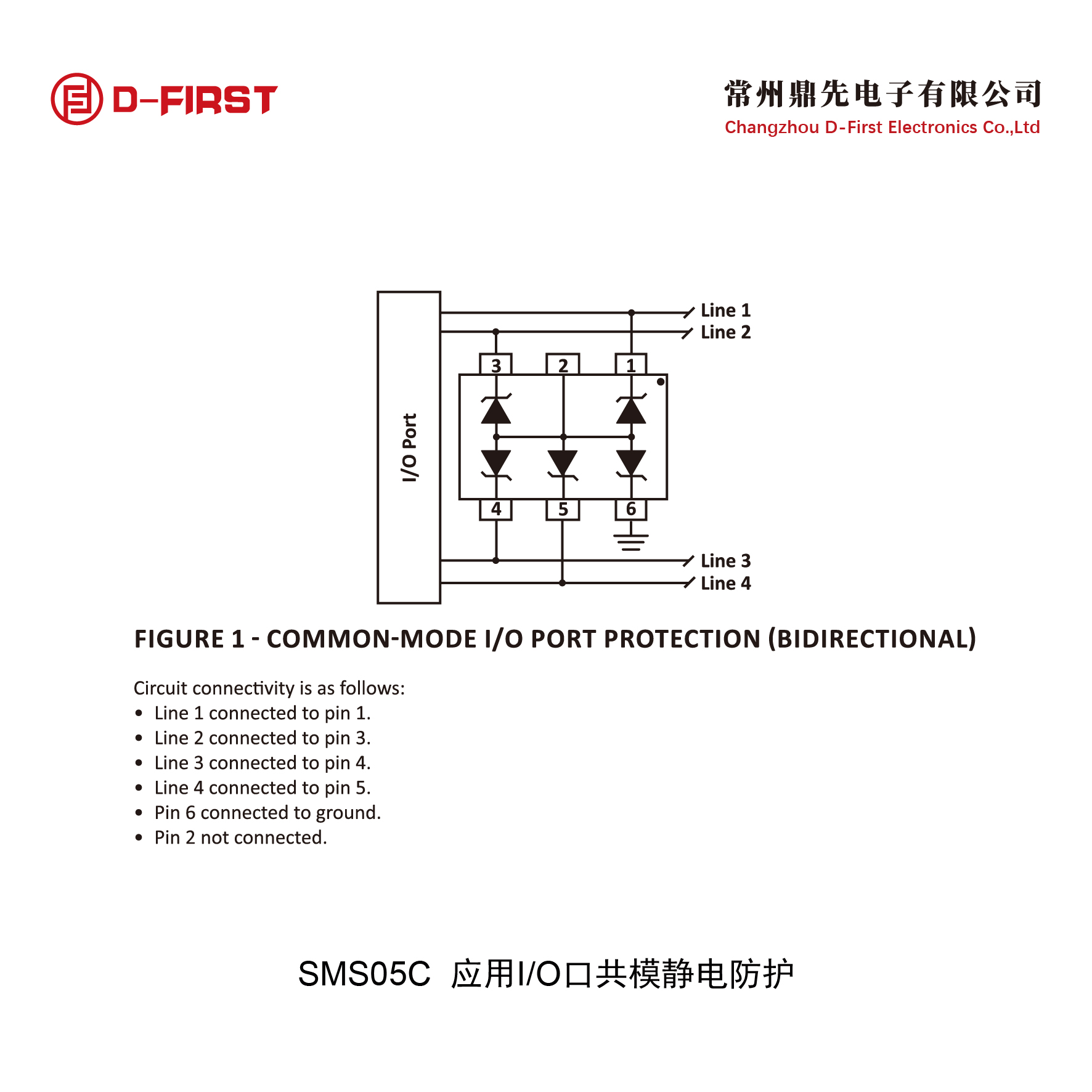

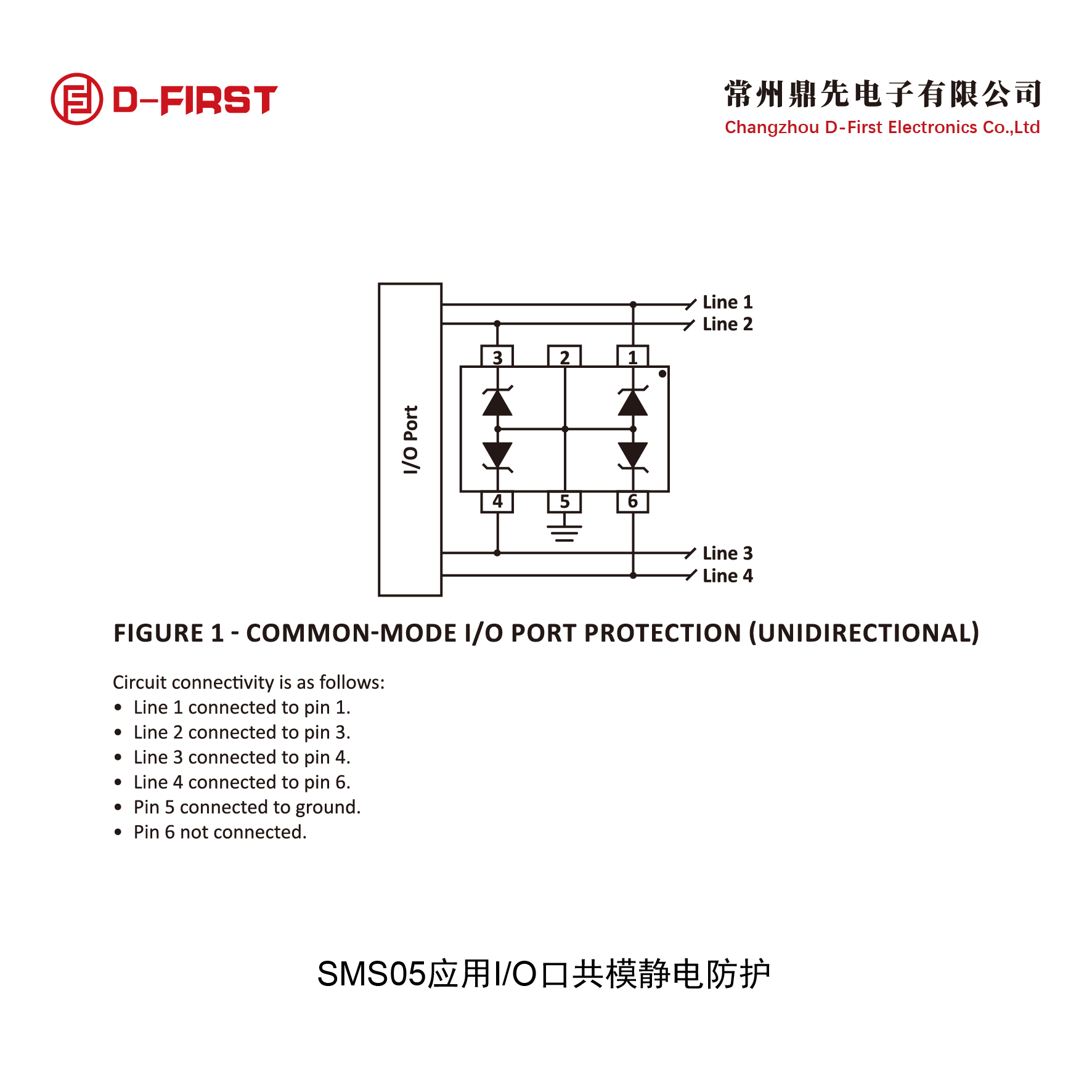

•保护输入/输出线路
•低漏泄电流Features
5 V working voltage
Transient protection for data lines to
IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
IEC 61000-4-4 (EFT) 40 A (5/50 ns)
IEC 61000-4-5 (Lightning) 24 A (8/20 µs)
Small package for use in portable electronics
Protects four I/O lines
Working voltages: 5V, 12V, 15V, and 24V
Low leakage current
Low operating and clamping voltages
Solid-state silicon-avalanche technology
Applications
Cell phone handsets and accessories
Microprocessor-based equipment
Personal digital assistants (PDAs) and pagers
Desktops PC and servers
Notebook, laptop, and palmtop computers
Portable instrumentation
Peripherals
MP3 players
Cordless phones
Packaging

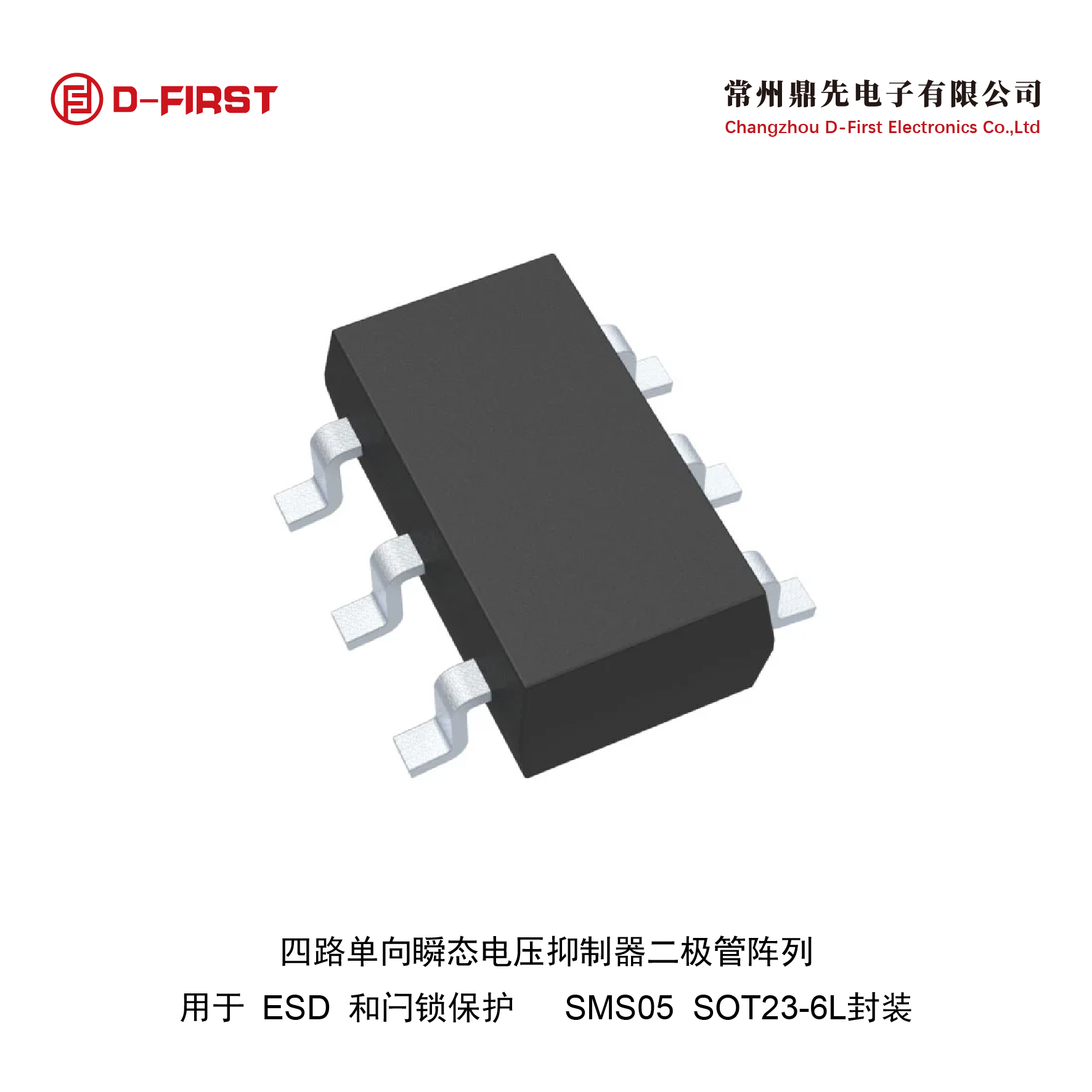

SOT-23 6L
