一次 Linux 高负载 (Load) 异常问题排查实录

news 2025/9/14 7:32:01

一次 Linux 高负载（Load）异常排查实录

- 一、背景及排查过程材料
- 二、排查分析
- - 2.1Load 的真正含义
  - 2.2：确认异常进程
  - 2.3：线程卡在哪（wchan）
  - 2.4：perf 采样（用户态/内核态热点）
  - 2.5：热点文件路径（谁在被频繁访问）
  - 2.6：打开文件数（以 /proc 为准）
  - 2.7：火焰图分析（生成 + 示意图）
  - 2.8：结论（本次事件）
  - 2.9：优化建议（可落地）
  - A. 线程状态与等待点巡检（watch）
  - B. 确认 lookup_slow 与 fstatat 热点路径
  - C. 进程级路径热点统计（openat/fstatat）
  - D. 聚焦前 N 个 lookup_slow 线程（内核栈 + 快速 syscalls）
- 三、本次排查总结

一、背景及排查过程材料

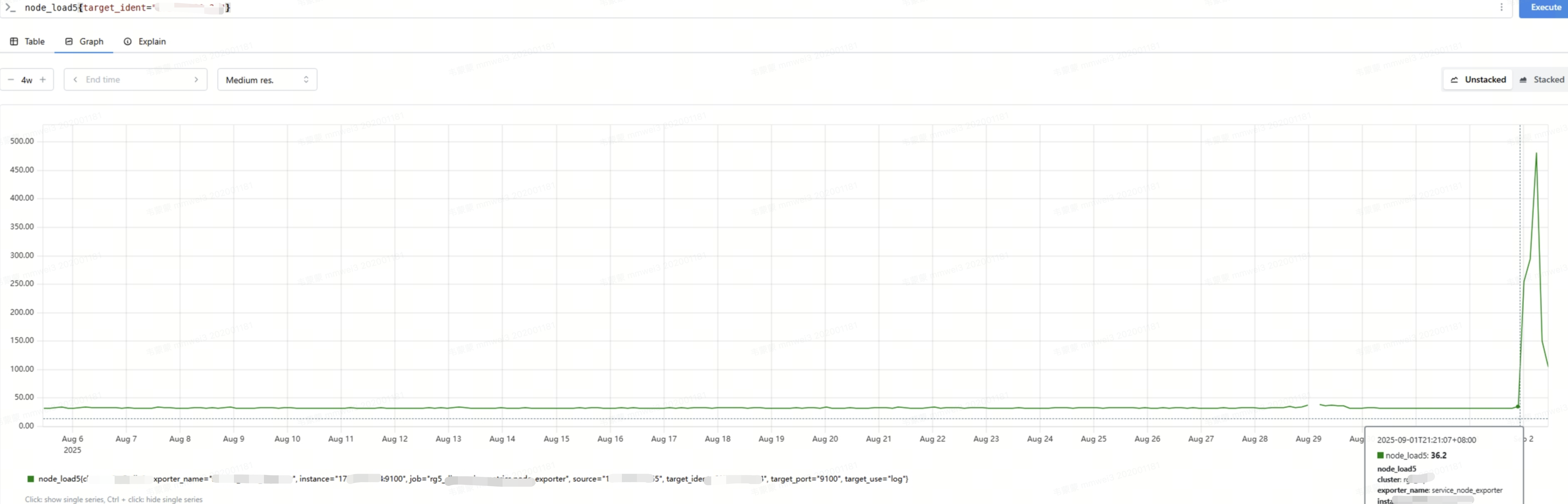

生产环境一台 64 核 Linux 服务器，load5 突然飙升至 500+。

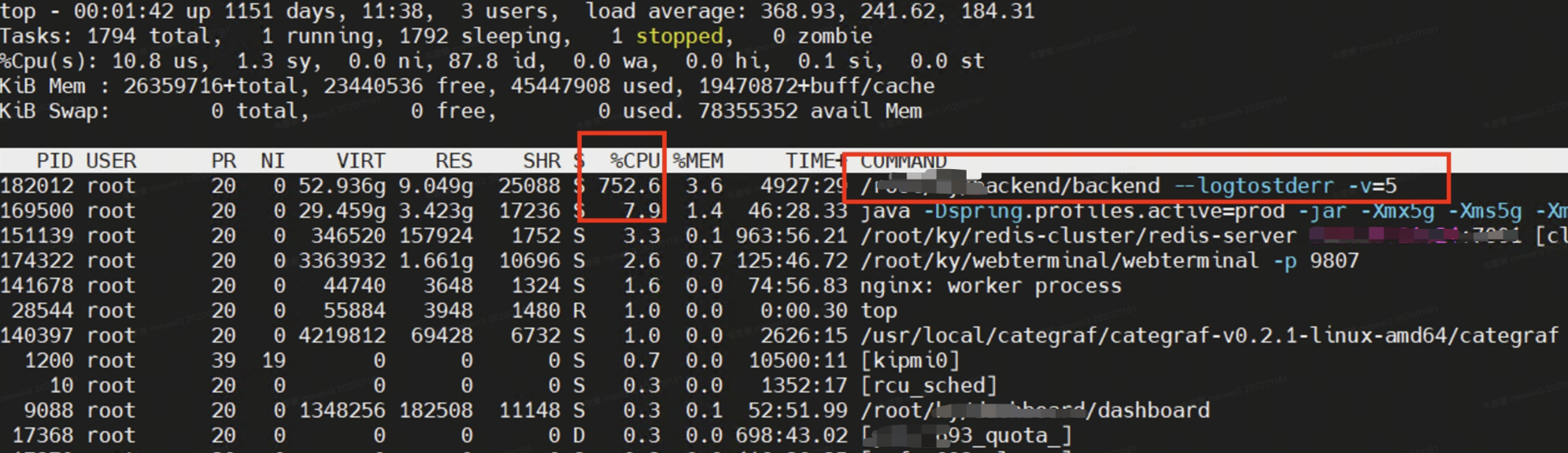

通过 top 观察，CPU idle 仍约 90%，CPU 未被打满。
自动化告警展示异常节点的 top5 进程，定位到 backend 组件。

疑问：CPU 很闲，为何 Load 还在飙升？

在这里插入图片描述

[root@kyserver-xxxx ~]# lscpu
Architecture:          x86_64
CPU op-mode(s):        32-bit, 64-bit
Byte Order:            Little Endian
CPU(s):                64
On-line CPU(s) list:   0-63
Thread(s) per core:    2
Core(s) per socket:    16
Socket(s):             2
NUMA node(s):          2
Vendor ID:             GenuineIntel
CPU family:            6
Model:                 85
Model name:            Intel(R) Xeon(R) Gold 5218 CPU @ 2.30GHz
Stepping:              7
CPU MHz:               2300.000
BogoMIPS:              4600.00
Virtualization:        VT-x
L1d cache:             32K
L1i cache:             32K
L2 cache:              1024K
L3 cache:              22528K
NUMA node0 CPU(s):     0-15,32-47
NUMA node1 CPU(s):     16-31,48-63
[root@kyserver-xxxxx ~]# free  -gtotal        used        free      shared  buff/cache   available
Mem:            251          41          53           3         156          75
Swap:             0           0           0

在这里插入图片描述

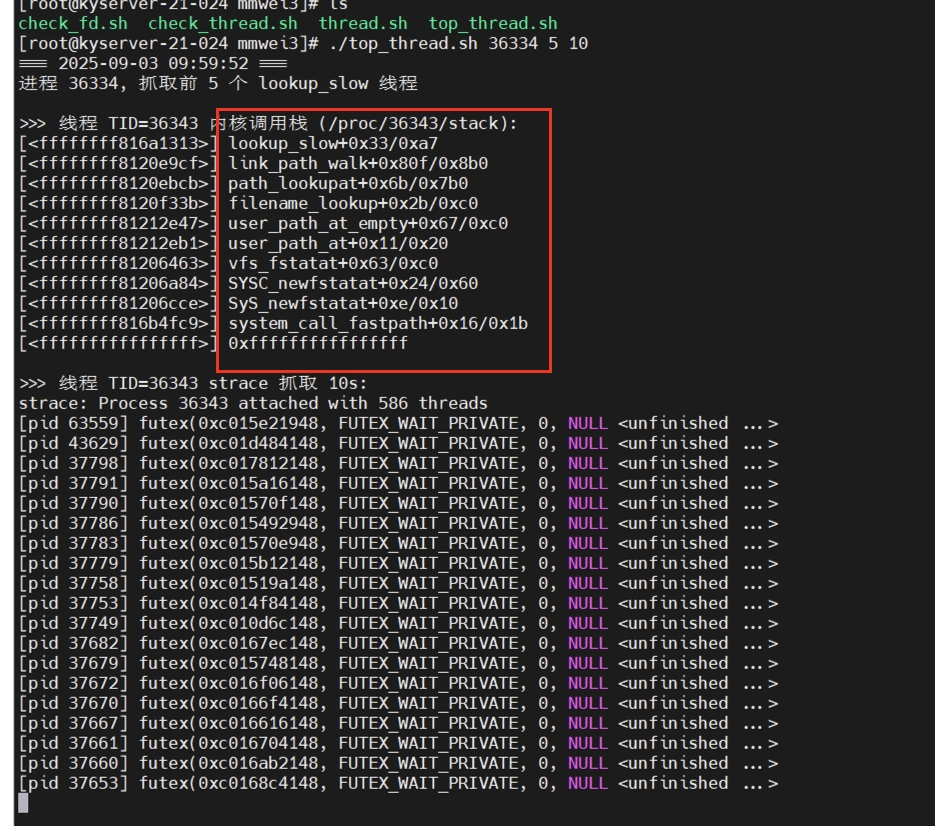

# 卡在 lookup_slow → link_path_walk → path_lookupat → vfs_fstatat
[root@kyserver-21-024 mmwei3]# ./top_thread.sh 36334 5 10
=== 2025-09-03 09:59:52 ===
进程 36334, 抓取前 5 个 lookup_slow 线程>>> 线程 TID=36343 内核调用栈 (/proc/36343/stack):
[<ffffffff816a1313>] lookup_slow+0x33/0xa7
[<ffffffff8120e9cf>] link_path_walk+0x80f/0x8b0
[<ffffffff8120ebcb>] path_lookupat+0x6b/0x7b0
[<ffffffff8120f33b>] filename_lookup+0x2b/0xc0
[<ffffffff81212e47>] user_path_at_empty+0x67/0xc0
[<ffffffff81212eb1>] user_path_at+0x11/0x20
[<ffffffff81206463>] vfs_fstatat+0x63/0xc0
[<ffffffff81206a84>] SYSC_newfstatat+0x24/0x60
[<ffffffff81206cce>] SyS_newfstatat+0xe/0x10
[<ffffffff816b4fc9>] system_call_fastpath+0x16/0x1b
[<ffffffffffffffff>] 0xffffffffffffffff>>> 线程 TID=36343 strace 抓取 10s:
strace: Process 36343 attached with 586 threads
[pid 63559] futex(0xc015e21948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43629] futex(0xc01d484148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37798] futex(0xc017812148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37791] futex(0xc015a16148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37790] futex(0xc01570f148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37786] futex(0xc015492948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37783] futex(0xc01570e948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37779] futex(0xc015b12148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37758] futex(0xc01519a148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37753] futex(0xc014f84148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37749] futex(0xc010d6c148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37682] futex(0xc0167ec148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37679] futex(0xc015748148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37672] futex(0xc016f06148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37670] futex(0xc0166f4148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37667] futex(0xc016616148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37661] futex(0xc016704148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37660] futex(0xc016ab2148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37653] futex(0xc0168c4148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>>>> 线程 TID=36344 内核调用栈 (/proc/36344/stack):
[<ffffffff810f5126>] futex_wait_queue_me+0xc6/0x130
[<ffffffff810f5deb>] futex_wait+0x17b/0x280
[<ffffffff810f7b26>] do_futex+0x106/0x5a0
[<ffffffff810f8040>] SyS_futex+0x80/0x180
[<ffffffff816b4fc9>] system_call_fastpath+0x16/0x1b
[<ffffffffffffffff>] 0xffffffffffffffff>>> 线程 TID=36344 strace 抓取 10s:
strace: Process 36344 attached with 586 threads
[pid 200441] futex(0xc04501c948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 200440] futex(0xc04501c148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 200439] futex(0xc00e47d948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 87025] futex(0xc016f80948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 85361] futex(0xc00d049948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 85360] futex(0xc015e3c948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 63559] futex(0xc015e21948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 45979] futex(0xc00e2a6148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 44863] futex(0xc02f980148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43635] futex(0xc01bce6148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43634] futex(0xc01dfea148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43633] futex(0xc028984148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43632] futex(0xc028540148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43631] restart_syscall(<... resuming interrupted futex ...> <unfinished ...>
[pid 43630] futex(0xc01c98a148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43629] futex(0xc01d484148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 38629] futex(0xc017472148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 38628] futex(0xc01810c148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37808] futex(0xc01532c148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>>>> 线程 TID=36345 内核调用栈 (/proc/36345/stack):
[<ffffffff810f5126>] futex_wait_queue_me+0xc6/0x130
[<ffffffff810f5deb>] futex_wait+0x17b/0x280
[<ffffffff810f7b26>] do_futex+0x106/0x5a0
[<ffffffff810f8040>] SyS_futex+0x80/0x180
[<ffffffff816b4fc9>] system_call_fastpath+0x16/0x1b
[<ffffffffffffffff>] 0xffffffffffffffff>>> 线程 TID=36345 strace 抓取 10s:
strace: Process 36345 attached with 586 threads
[pid 200441] futex(0xc04501c948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 200440] futex(0xc04501c148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 200439] futex(0xc00e47d948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 87025] futex(0xc016f80948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 85361] futex(0xc00d049948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 85360] futex(0xc015e3c948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 63559] futex(0xc015e21948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 45979] futex(0xc00e2a6148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 44863] futex(0xc02f980148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43635] futex(0xc01bce6148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43634] futex(0xc01dfea148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43633] futex(0xc028984148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43632] futex(0xc028540148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43631] futex(0xc01b9ee148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43630] futex(0xc01c98a148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43629] futex(0xc01d484148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 38629] futex(0xc017472148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 38628] futex(0xc01810c148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 37808] futex(0xc01532c148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>>>> 线程 TID=36354 内核调用栈 (/proc/36354/stack):
[<ffffffff810f5126>] futex_wait_queue_me+0xc6/0x130
[<ffffffff810f5deb>] futex_wait+0x17b/0x280
[<ffffffff810f7b26>] do_futex+0x106/0x5a0
[<ffffffff810f8040>] SyS_futex+0x80/0x180
[<ffffffff816b4fc9>] system_call_fastpath+0x16/0x1b
[<ffffffffffffffff>] 0xffffffffffffffff>>> 线程 TID=36354 strace 抓取 10s:
strace: Process 36354 attached with 586 threads
[pid 200441] getsockname(910,  <unfinished ...>
[pid 200440] socket(AF_INET, SOCK_STREAM|SOCK_CLOEXEC|SOCK_NONBLOCK, IPPROTO_IP <unfinished ...>
[pid 200439] futex(0xc00e47dd28, FUTEX_WAIT_PRIVATE, 4294967295, NULL <unfinished ...>
[pid 87025] futex(0xc016f80948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 85361] openat(AT_FDCWD, "/proc/36334/fd", O_RDONLY|O_CLOEXEC <unfinished ...>
[pid 85360] write(864, "+\1\0\0\33\377\267\1\0\0\0\0\335\7\0\0\0\0\1\0\0\26\1\0\0\20hello\0\1\0\0\0\10helloOk\0\1\3topologyVersion\0-\0\0\0\7processId\0f\341M\f \357\266\300\241qi\244\22counter\0\23\0\0\0\0\0\0\0\0\22maxAwaitTimeMS\0\20'\0\0\0\0\0\0\3$clusterTime\0X\0\0\0\21clusterTime\0\2\0\0\0\217\241\267h\3signature\0003\0\0\0\5hash\0\24\0\0\0\0\230\36\262"..., 299 <unfinished ...>
[pid 63559] read(667,  <unfinished ...>
[pid 45979] accept4(267,  <unfinished ...>
[pid 44863] futex(0xc02f980148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43633] write(45, "{\"level\":\"debug\",\"time\":\"2025-09-03 10:01:52.105\",\"caller\":\"imp/imp_mysql.go:659\",\"msg\":\"sql: SELECT dls_task_status.user_id,dls_task_status.sid,\\n\\tdls_task_status.task_name,dls_task_status.status,dl"..., 550 <unfinished ...>
[pid 43632] read(556,  <unfinished ...>
[pid 43630] futex(0xc01c98a148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 38629] openat(AT_FDCWD, "/proc/36334/fd", O_RDONLY|O_CLOEXEC <unfinished ...>
[pid 38628] read(559,  <unfinished ...>
[pid 37807] futex(0xc016bb6528, FUTEX_WAIT_PRIVATE, 4294967295, NULL <unfinished ...>
[pid 37806] futex(0xc011f74528, FUTEX_WAIT_PRIVATE, 4294967295, NULL <unfinished ...>
[pid 37805] read(157,  <unfinished ...>
[pid 37797] write(860, "+\1\0\0\34\377\267\1\0\0\0\0\335\7\0\0\0\0\1\0\0\26\1\0\0\20hello\0\1\0\0\0\10helloOk\0\1\3topologyVersion\0-\0\0\0\7processId\0eU\232\350N5\317\224dy\7\23\22counter\0\35\0\0\0\0\0\0\0\0\22maxAwaitTimeMS\0\20'\0\0\0\0\0\0\3$clusterTime\0X\0\0\0\21clusterTime\0\2\0\0\0\217\241\267h\3signature\0003\0\0\0\5hash\0\24\0\0\0\0\230\36\262"..., 299 <unfinished ...>
[pid 37796] futex(0xc016584948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>>>> 线程 TID=36355 内核调用栈 (/proc/36355/stack):
[<ffffffff810f5126>] futex_wait_queue_me+0xc6/0x130
[<ffffffff810f5deb>] futex_wait+0x17b/0x280
[<ffffffff810f7b26>] do_futex+0x106/0x5a0
[<ffffffff810f8040>] SyS_futex+0x80/0x180
[<ffffffff816b4fc9>] system_call_fastpath+0x16/0x1b
[<ffffffffffffffff>] 0xffffffffffffffff>>> 线程 TID=36355 strace 抓取 10s:
strace: Process 36355 attached with 586 threads
[pid 200441] read(1128,  <unfinished ...>
[pid 200440] futex(0xc04501c148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 200439] futex(0xc00e47dd28, FUTEX_WAIT_PRIVATE, 4294967295, NULL <unfinished ...>
[pid 85361] futex(0xc00d049948, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 45979] read(1405,  <unfinished ...>
[pid 44863] read(1062,  <unfinished ...>
[pid 43634] futex(0xc01dfea148, FUTEX_WAIT_PRIVATE, 0, NULL <unfinished ...>
[pid 43633] write(996, "\1\0\0\0\1", 5 <unfinished ...>
[pid 43630] futex(0xc01c98a528, FUTEX_WAIT_PRIVATE, 4294967295, NULL <unfinished ...>
[pid 43629] write(1053, "\1\0\0\0\1", 5 <unfinished ...>
[pid 38629] read(1406,  <unfinished ...>
[pid 38628] write(949, "\1\0\0\0\1", 5 <unfinished ...>
[pid 37808] read(927,  <unfinished ...>
[pid 37807] read(1252,  <unfinished ...>
[pid 37806] futex(0xc011f74528, FUTEX_WAIT_PRIVATE, 4294967295, NULL <unfinished ...>
[pid 37805] epoll_pwait(4,  <unfinished ...>
[pid 37804] futex(0xc01688e528, FUTEX_WAIT_PRIVATE, 4294967295, NULL <unfinished ...>
[pid 37798] epoll_pwait(4,  <unfinished ...>
[pid 37797] epoll_pwait(4,  <unfinished ...>

二、排查分析

2.1Load 的真正含义

Linux 的 loadavg 表示：
- 可运行队列（R 状态）中的进程/线程数；
- 不可中断等待（D 状态，IO/锁等待）中的进程/线程数。
关键认知：
- CPU 忙 → R 多 → Load 高；
- IO/锁等待严重 → D 多 → Load 同样高，即使 CPU 很闲。

补充定义（便于阅读）：

- R（Running/Runable）：可运行队列，等 CPU 或正在执行
- D（Uninterruptible sleep）：不可中断等待，多见于 IO 与锁
- S（Sleeping）：可中断睡眠
- futex（Fast Userspace Mutex）：用户态互斥锁，竞争/等待会进入内核等待点

2.2：确认异常进程

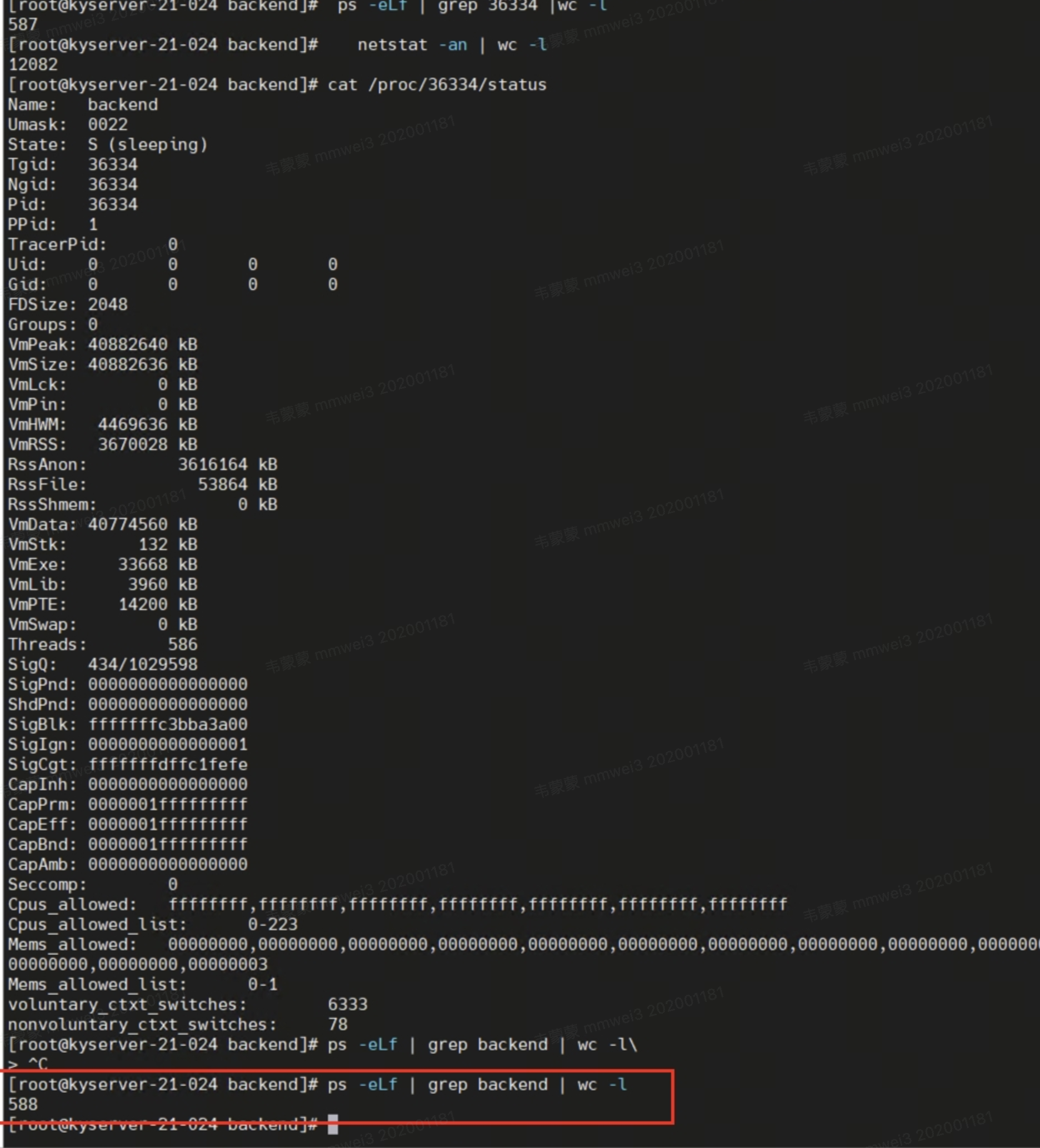

查看线程数：

ps -eLf | grep 36334 | wc -l

结果：

统计线程状态：

ps -eLf | awk '{print $2,$3,$5}' | sort | uniq -c | grep 36334

输出：

586 Sl

含义：backend 进程有 586 个线程，大多数处于轻度睡眠（Sl），并非疯狂跑 CPU。

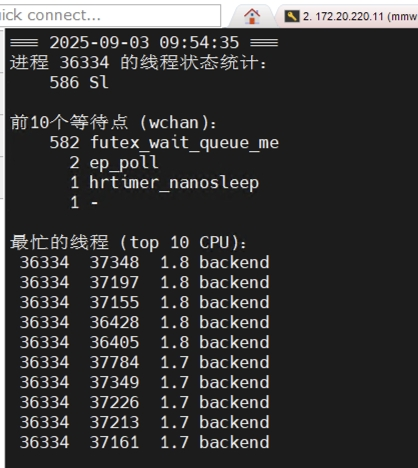

2.3：线程卡在哪（wchan）

查看线程等待点：

ps -eLo pid,tid,state,wchan:32,cmd | grep 36334 | awk '{print $4}' | sort | uniq -c | sort -nr | head

结果：

581 futex_wait_queue_me2 ep_poll1 hrtimer_nanosleep

👉 绝大多数线程卡在 futex_wait_queue_me，典型的“等锁”。

2.4：perf 采样（用户态/内核态热点）

对进程进行热点采样：

perf top -p 36334

输出热点（片段）：

55.83%  backend   [.] runtime.(*stkframe).getStackMap
15.95%  [kernel]  [k] down_read_trylock
15.95%  [kernel]  [k] osq_lock
12.22%  backend   [.] runtime.greyobject

分析：

用户态热点集中在 Go GC 路径（runtime.*）；
内核态热点集中在锁（down_read_trylock / osq_lock）。

若需要低风险取样并生成火焰图，见下文“Step 7：火焰图分析”。

2.5：热点文件路径（谁在被频繁访问）

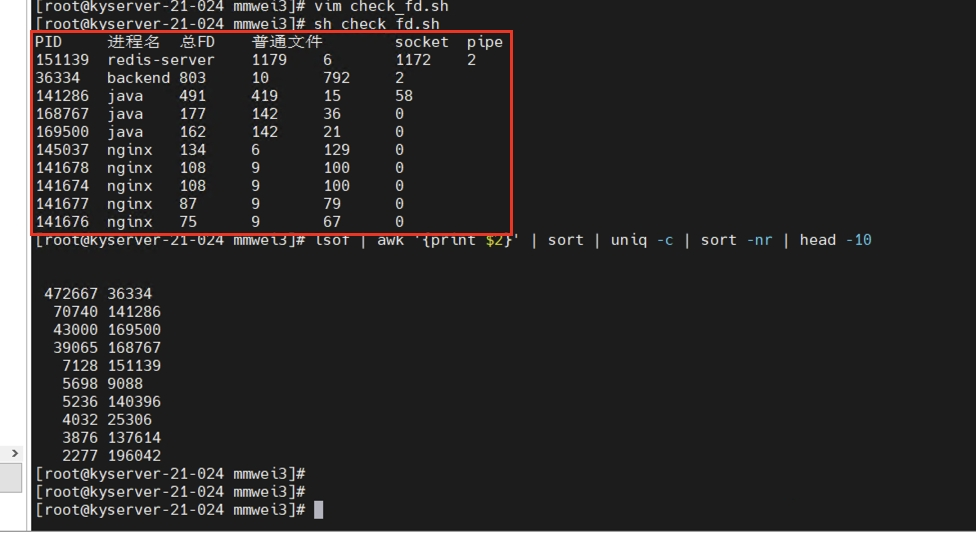

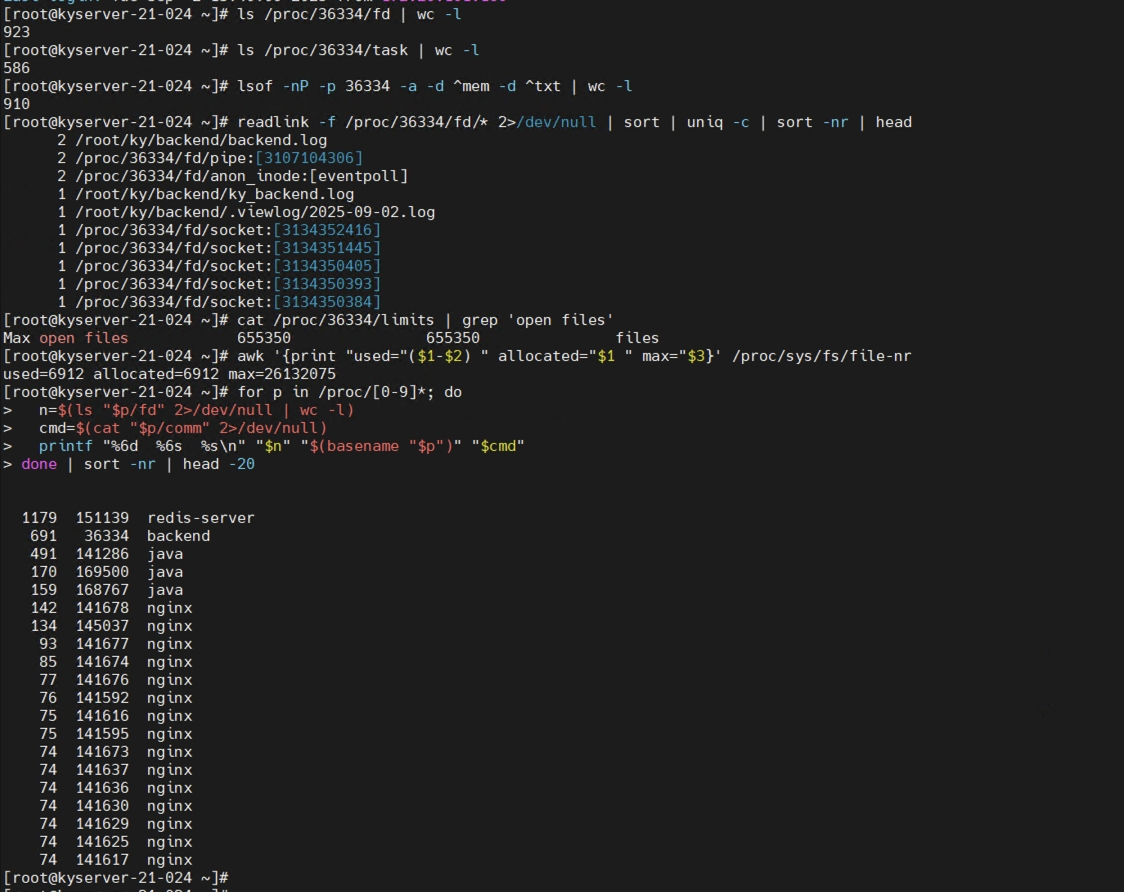

统计进程 FD 指向的热点路径：

ls -l /proc/36334/fd | awk '{print $NF}' | sort | uniq -c | sort -nr | head

结果（片段）：

5129 config.toml
5113 ./ky_backend.log90 /train28/cog8/permanent/jingye1117 ./backend.log12 /opt/dls_cli/config_3000p

解读：频繁访问配置文件与日志文件；部分路径位于分布式存储（/train28/...），更易导致 IO 延迟抖动。

2.6：打开文件数（以 /proc 为准）

精确统计（基于 /proc）：

ls /proc/36334/fd | wc -l

输出：

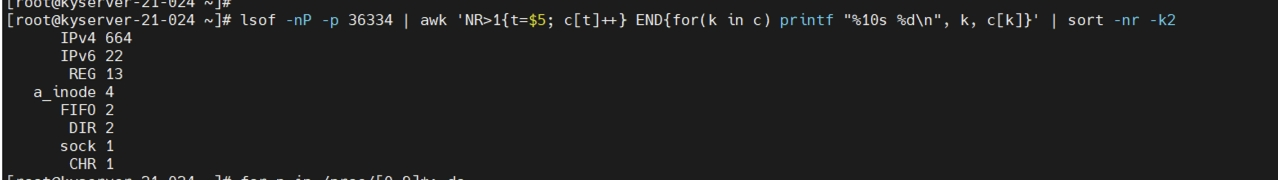

lsof 统计（会放大）：

lsof | awk '{print $2}' | sort | uniq -c | sort -nr | head -5

输出：

472667 36334

👉 lsof 默认按线程展开，存在重复统计。准确数字应以 /proc/<pid>/fd 为准。

2.7：火焰图分析（生成 + 示意图）

低风险采样生成火焰图：

# 1) 录制 30 秒的采样（49Hz，抓取调用栈）
perf record -F 49 -p 36334 -g -- sleep 30# 2) 将 perf 数据折叠为火焰图输入
perf script | ./FlameGraph/stackcollapse-perf.pl > out.folded# 3) 生成火焰图 SVG
./FlameGraph/flamegraph.pl out.folded > flame.svg

权限与环境注意：

# 若提示权限不足，可临时放宽（root 执行）：
sysctl -w kernel.perf_event_paranoid=-1
sysctl -w kernel.kptr_restrict=0# 或通过 /proc 接口（临时）：
echo -1 > /proc/sys/kernel/perf_event_paranoid
echo 0  > /proc/sys/kernel/kptr_restrict

火焰图 ASCII 示意（仅结构参考）：

^ 栈深度（越上层越深）
|
|             ██████████████ runtime.greyobject
|             ████████       runtime.gcDrain
|        ████ ████████       runtime.scanobject
|   ████ ████ ████████       futex_wait_queue_me
|   ████ ████ ████████       osq_lock
+----------------------------------------------> 采样时间占比（越长越宽）结论：
- 用户态：GC 相关路径明显（runtime.* 系列）。
- 内核态：futex/锁等待显著（`futex_wait_queue_me`、`osq_lock`）。

2.8：结论（本次事件）

backend 进程开启 ~586 个线程；
大量线程阻塞在 futex_wait_queue_me（锁等待）；
程序频繁进行 openat/fstatat（配置 + 日志 + 分布式存储路径）；
分布式存储响应慢，线程堆积，GC 活跃加剧锁竞争；
导致 load5 飙升至 500+，但 CPU idle 仍然很高。

2.9：优化建议（可落地）

减少频繁文件 IO：
- 对配置文件做缓存（内存+变更订阅或定期校验），避免每次请求都 stat/open；
- 日志改为异步写/批量 flush，控制日志级别与切分策略，避免热日志放大；
- 合理合并小文件访问，尽量减少路径解析与权限校验次数。
检查与隔离存储性能：
- 对分布式存储挂载路径做延迟/带宽基线评估与报警（fio/oss 工具）；
- 关键小文件下沉本地缓存（镜像内置或启动时下发），减少远端抖动影响；
- IO 读多写少场景，优先本地读，异步刷新远端。
线程池与锁竞争控制：
- 限制线程池上限与排队策略，避免“线程海”在 IO 上等待；
- 细化临界区，拆大锁或使用 RWLock/无锁结构，降低 futex 冲突；
- 避免在高并发路径上持有全局共享资源（如全局 logger）的长临界区。
Go GC 调优（针对 Go 服务）：
- 打开 GC trace：
```
GODEBUG=gctrace=1 ./backend
```
- 评估 GOGC（目标堆增长百分比），减少短生命周期对象分配，复用缓冲；
- 避免在 GC 敏感区内进行大量阻塞 IO。

A. 线程状态与等待点巡检（watch）

# check_thread.sh
#!/bin/bash
# 用法: ./check_thread.sh <pid> [interval]
# 默认间隔 1 秒，实时统计线程状态与前10个 wchanPID=$1
INTERVAL=${2:-1}if [ -z "$PID" ]; thenecho "用法: $0 <pid> [interval]"exit 1
fiwhile true; doclearecho "=== $(date '+%F %T') ==="echo "进程 $PID 的线程状态统计："ps -eLo pid,tid,stat,wchan:20,comm | awk -v pid=$PID '$1==pid {print $3}' | sort | uniq -c | sort -nrechoecho "前10个等待点 (wchan)："ps -eLo pid,tid,stat,wchan:20,comm | awk -v pid=$PID '$1==pid {print $4}' | sort | uniq -c | sort -nr | head -10sleep $INTERVAL
done

B. 确认 lookup_slow 与 fstatat 热点路径

# confirm_lookup_slow.sh
#!/bin/bash
# 用法: ./confirm_lookup_slow.sh <pid> [topN] [seconds]
# 例: ./confirm_lookup_slow.sh 36334 5 10PID=$1
TOPN=${2:-5}
DURATION=${3:-10}if [ -z "$PID" ]; thenecho "用法: $0 <pid> [topN] [seconds]"exit 1
fiecho "=== $(date '+%F %T') ==="
echo "进程 $PID, 抓取前 $TOPN 个 lookup_slow 线程, 每个采样 ${DURATION}s"# 找出 lookup_slow 的前 N 个线程
TIDS=$(ps -eLo pid,tid,wchan | awk -v pid=$PID '$1==pid && $3=="lookup_slow" {print $2}' | head -$TOPN)for tid in $TIDS; doechoecho ">>> TID=$tid 内核栈:"cat /proc/$tid/stackechoecho ">>> TID=$tid fstatat 调用路径 (采样 ${DURATION}s):"timeout $DURATION strace -p $tid -e trace=fstat,fstatat,newfstatat,fstat64 -s 200 2>&1 \| grep -E 'fstat|fstatat|newfstatat' \| grep -oE '\".*\"' \| tr -d '"' \| sort | uniq -c | sort -nr | head -20
done

C. 进程级路径热点统计（openat/fstatat）

# trace_lookup_paths.sh
#!/bin/bash
# 用法: ./trace_lookup_paths.sh <pid> [seconds]
# 用 strace 抓取 openat/fstatat 调用并统计最热路径PID=$1
DURATION=${2:-10}if [ -z "$PID" ]; thenecho "用法: $0 <pid> [seconds]"exit 1
fiecho "=== $(date '+%F %T') ==="
echo "进程 $PID, 采样 ${DURATION}s, 统计路径热点"# 只 trace 路径相关 syscall，减少干扰
timeout $DURATION strace -e trace=openat,newfstatat,fstatat64 -s 200 -fp $PID 2>&1 \| grep -E 'openat|fstatat|newfstatat' \| awk -F\" '{print $2}' \| sort | uniq -c | sort -nr | head -20

D. 聚焦前 N 个 lookup_slow 线程（内核栈 + 快速 syscalls）

# trace_lookup_slow.sh
#!/bin/bash
# 用法: ./trace_lookup_slow.sh <pid> [topN] [trace_seconds]
# 例如: ./trace_lookup_slow.sh 36334 5 10PID=$1
TOPN=${2:-5}
TRACE_SEC=${3:-5}if [ -z "$PID" ]; thenecho "用法: $0 <pid> [topN] [trace_seconds]"exit 1
fiecho "=== $(date '+%F %T') ==="
echo "进程 $PID, 抓取前 $TOPN 个 lookup_slow 线程"# 找出 lookup_slow 的 TID
TIDS=$(ps -eLo pid,tid,stat,wchan:30,comm | \awk -v pid=$PID '$1==pid && $3 ~ /^D/ && $4=="lookup_slow" {print $2}' | \head -n $TOPN)if [ -z "$TIDS" ]; thenecho "没有找到 lookup_slow 线程"exit 0
fifor tid in $TIDS; doechoecho ">>> 线程 TID=$tid 内核调用栈 (/proc/$tid/stack):"cat /proc/$tid/stack 2>/dev/null || echo "  (无法读取 stack，可能内核不支持)"echoecho ">>> 线程 TID=$tid strace 抓取 ${TRACE_SEC}s:"timeout $TRACE_SEC strace -s 200 -fp $tid 2>&1 | head -20
done

三、本次排查总结

本次问题根因：backend 频繁访问配置/日志文件 + 部分 IO 落在分布式存储导致延迟；配合 Go GC 活跃与锁竞争，线程大量阻塞于 futex_wait_queue_me，最终引发 Load 飙升但 CPU 仍闲。
经验要点：
- Load 高 ≠ CPU 忙；优先排查 IO/锁等待；
- 先看线程状态与 wchan 快速定向；
- 再用 perf/strace 与火焰图定位热点；
- 以 /proc/<pid>/fd 获取真实 FD 数；
- 方案从“缓存/异步/隔离/限并发/调 GC”多层优化落地。

📌 经验教训：遇到 Load 高问题，不要只盯 CPU 使用率；更多时候是 IO + 锁在背后捣鬼。
