【MybatisPlus】SpringBoot3整合MybatisPlus
目录
一、依赖
二、yml 配置
三、xml 配置
四、config 配置
五、使用
实体类
Mapper.java
Service.java
ServiceImpl.java
Mapper.xml
六、逻辑删除
一、依赖
<!-- springboot3 / mybatis-plus 配置，mybatis使用 3.5.16 版本，避免版本冲突 --><dependency><groupId>org.mybatis</groupId><artifactId>mybatis</artifactId><version>3.5.16</version></dependency><dependency><groupId>com.baomidou</groupId><artifactId>mybatis-plus-spring-boot3-starter</artifactId><version>${mybatis-plus-spring-boot3.version}</version></dependency><dependency><groupId>com.baomidou</groupId><artifactId>mybatis-plus-jsqlparser</artifactId><version>${mybatis-plus-spring-boot3.version}</version></dependency> <mybatis-plus-spring-boot3.version>3.5.10</mybatis-plus-spring-boot3.version>二、yml 配置
application.yml
# MyBatis配置
#mybatis:
# # 搜索指定包别名
# typeAliasesPackage: com.leslie.**.domain
# # 配置mapper的扫描，找到所有的mapper.xml映射文件
# mapperLocations: classpath*:mapper/**/*Mapper.xml
# # 加载全局的配置文件
# configLocation: classpath:mybatis/mybatis-config.xml# mybatis-plus配置
mybatis-plus:# 配置mapper的扫描，找到所有的mapper.xml映射文件mapper-locations: classpath*:mapper/**/*Mapper.xml# 搜索指定包别名，多个用【;】分隔type-aliases-package: com.leslie.**.domain;global-config:#数据库相关配置db-config:#主键类型 AUTO:"数据库ID自增", INPUT:"用户输入ID", ID_WORKER:"全局唯一ID (数字类型唯一ID)", UUID:"全局唯一ID UUID";id-type: AUTOlogic-delete-value: 1 # 逻辑删除时，is_delete 为删除的值logic-not-delete-value: 0 # 逻辑删除时，is_delete 为未删除的值banner: false#原生配置configuration:map-underscore-to-camel-case: truecache-enabled: falsecall-setters-on-nulls: true
# log-impl: org.apache.ibatis.logging.stdout.StdOutImpl #日志输出# PageHelper分页插件
pagehelper:helperDialect: mysqlsupportMethodsArguments: trueparams: count=countSql三、xml 配置
mybatis-config.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration><!-- 全局参数 --><settings><!-- 使全局的映射器启用或禁用缓存 --><setting name="cacheEnabled" value="true" /><!-- 允许JDBC 支持自动生成主键 --><setting name="useGeneratedKeys" value="true" /><!-- 配置默认的执行器.SIMPLE就是普通执行器;REUSE执行器会重用预处理语句(prepared statements);BATCH执行器将重用语句并执行批量更新 --><setting name="defaultExecutorType" value="SIMPLE" /><!-- 指定 MyBatis 所用日志的具体实现 --><setting name="logImpl" value="SLF4J" /><!-- 使用驼峰命名法转换字段 --><!-- <setting name="mapUnderscoreToCamelCase" value="true"/> --></settings></configuration>四、config 配置
MybatisPlusConfig.java
import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.BlockAttackInnerInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.OptimisticLockerInnerInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.transaction.annotation.EnableTransactionManagement;/*** Mybatis Plus 配置*/
@EnableTransactionManagement(proxyTargetClass = true)
@Configuration
public class MybatisPlusConfig {@Beanpublic MybatisPlusInterceptor mybatisPlusInterceptor() {MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();// 分页插件interceptor.addInnerInterceptor(paginationInnerInterceptor());// 乐观锁插件interceptor.addInnerInterceptor(optimisticLockerInnerInterceptor());// 阻断插件interceptor.addInnerInterceptor(blockAttackInnerInterceptor());return interceptor;}/*** 分页插件，自动识别数据库类型 <a href="https://baomidou.com/guide/interceptor-pagination.html">...</a>*/public PaginationInnerInterceptor paginationInnerInterceptor() {PaginationInnerInterceptor paginationInnerInterceptor = new PaginationInnerInterceptor();// 设置数据库类型为mysqlpaginationInnerInterceptor.setDbType(DbType.MYSQL);// 设置最大单页限制数量，默认 500 条，-1 不受限制paginationInnerInterceptor.setMaxLimit(-1L);return paginationInnerInterceptor;}/*** 乐观锁插件 <a href="https://baomidou.com/guide/interceptor-optimistic-locker.html">...</a>*/public OptimisticLockerInnerInterceptor optimisticLockerInnerInterceptor() {return new OptimisticLockerInnerInterceptor();}/*** 如果是对全表的删除或更新操作，就会终止该操作 <a href="https://baomidou.com/guide/interceptor-block-attack.html">...</a>*/public BlockAttackInnerInterceptor blockAttackInnerInterceptor() {return new BlockAttackInnerInterceptor();}
}五、使用
实体类
import com.alibaba.excel.annotation.ExcelIgnoreUnannotated;
import com.alibaba.excel.annotation.ExcelProperty;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableLogic;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;import java.io.Serial;
import java.io.Serializable;
import java.time.LocalDate;/*** @author Leslie Lee* @version 2003/04/01* @date 1956/09/12*/
@Data
@TableName("test")
@ExcelIgnoreUnannotated
public class TestEntity implements Serializable {@Serialprivate static final long serialVersionUID = 1L;// @TableId(type = IdType.AUTO)private Integer id;@ExcelProperty("姓名")private String name;@ExcelProperty("性别")private String sex;private LocalDate createTime;private LocalDate updateTime;@TableLogicprivate Integer isDelete;}
@TableName("表名") ：当实体类名与数据库表名不一致时，需用此注解来标明对应的表
@TableId(type = IdType.AUTO)：如果 id 为自增，可用此注解进行标识
Mapper.java
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.leslie.ai.domain.TestEntity;
import org.apache.ibatis.annotations.Mapper;import java.util.List;/*** Mapper 测试** @author Leslie Lee* @TIME 1956/09/12* @Version 2003/04/01*/
@Mapper
public interface TestEntityMapper extends BaseMapper<TestEntity> {List<TestEntity> queryTestEntityList(TestEntity o);
}@Mapper：动态代理，与 Mapper.xml 对应
extends BaseMapper<实体类>：提供基本的增删改查方法
Service.java
里面的方法需与 Mapper.java 中对应，deleteById 方法实现是用的自带的删除方法，所以不对应也不影响，但是需要重写 sql 语句的方法都要对应
import com.leslie.ai.domain.TestEntity;import java.util.List;/*** Service** @author Leslie Lee* @TIME 1956/09/12* @Version 2003/04/01*/
public interface TestEntityService {List<TestEntity> queryTestEntityList(TestEntity o);int deleteById(Integer id);
}ServiceImpl.java
直接使用 this.baseMapper 可以拿到Mapper.java 中对应的方法
import com.leslie.ai.domain.TestEntity;
import com.leslie.ai.mapper.TestEntityMapper;
import com.leslie.ai.service.TestEntityService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;import java.util.List;/*** ServiceImpl** @author Leslie Lee* @TIME 1956/09/12* @Version 2003/04/01*/
@Service
public class TestEntityServiceImpl extends ServiceImpl<TestEntityMapper, TestEntity> implements TestEntityService {@Overridepublic List<TestEntity> queryTestEntityList(TestEntity o) {return this.baseMapper.queryTestEntityList(o);}@Overridepublic int deleteById(Integer id) {return this.baseMapper.deleteById(id);}
}Mapper.xml
此类文件放在 resources 文件夹下，建议文件路径与实体类一致
namespace：对应实体类全路径
resultMap：方法返回参数，实体类使用表字段名驼峰命名时，不需要再写字段对应关系
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.leslie.ai.mapper.TestEntityMapper"><!-- 实体类 --><resultMap type="TestEntity" id="TestEntityResult">
<!-- <result property="createTime" column="create_time" jdbcType="TIMESTAMP"/>--></resultMap><!-- sql语句 --><sql id="selectTestEntityList"></sql><!-- 方法 --><select id="queryTestEntityList" parameterType="TestEntity" resultMap="TestEntityResult"><include refid="selectTestEntityList"/><where> <if test="fieldName != null and fieldName != ''"> and tableFieldName like concat('%', #{fieldName}, '%')</if><if test="startDate != null and startDate != ''">and applicationDate >= #{startDate}</if><if test="endDate != null and endDate != ''">and applicationDate <= #{endDate}</if></where></select>
</mapper>六、逻辑删除
通过更改表的某一字段状态，区分是否删除
实体类
实体类增加字段：isDelete ===> 对应表字段 is_delete （也可以用其他字段，对应就行）
添加注解：@TableLogic
@TableLogicprivate Integer isDelete;还可以添加两个字段：创建时间、修改时间
private LocalDate createTime; // create_timeprivate LocalDate updateTime; // update_timeyml 配置
logic-delete-value: 1 # 逻辑删除时，is_delete 为删除的值logic-not-delete-value: 0 # 逻辑删除时，is_delete 为未删除的值数据库

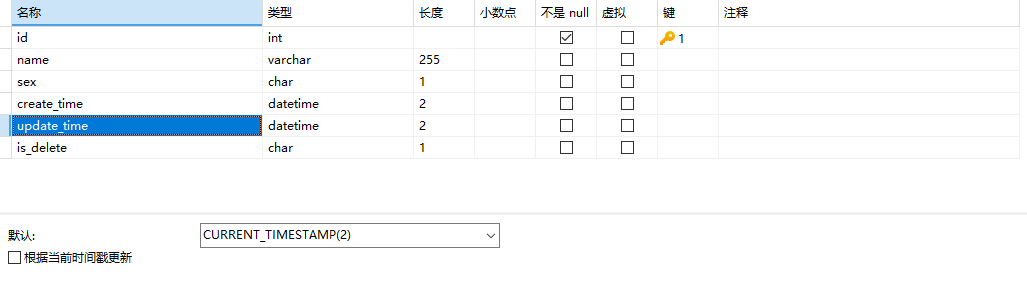

创建时间、修改时间，字段名就用下面的两个，
然后设置默认值 CURRENT_TIMESTAMP(2)
修改时间会在表数据变动时自动更新
