vue3+arcgisAPI4示例:绘图工具动态修改样式导出GeoJSON(附源码下载)

demo源码运行环境以及配置

运行环境：依赖Node安装环境，需要安装Node。 运行工具：vscode或者其他工具。
配置方式：下载demo源码，vscode打开，然后顺序执行以下命令： （1）下载demo环境依赖包命令：npm install -g
（2）yarn install （3）启动demo命令：yarn dev （4）打包demo命令： yarn build:prod

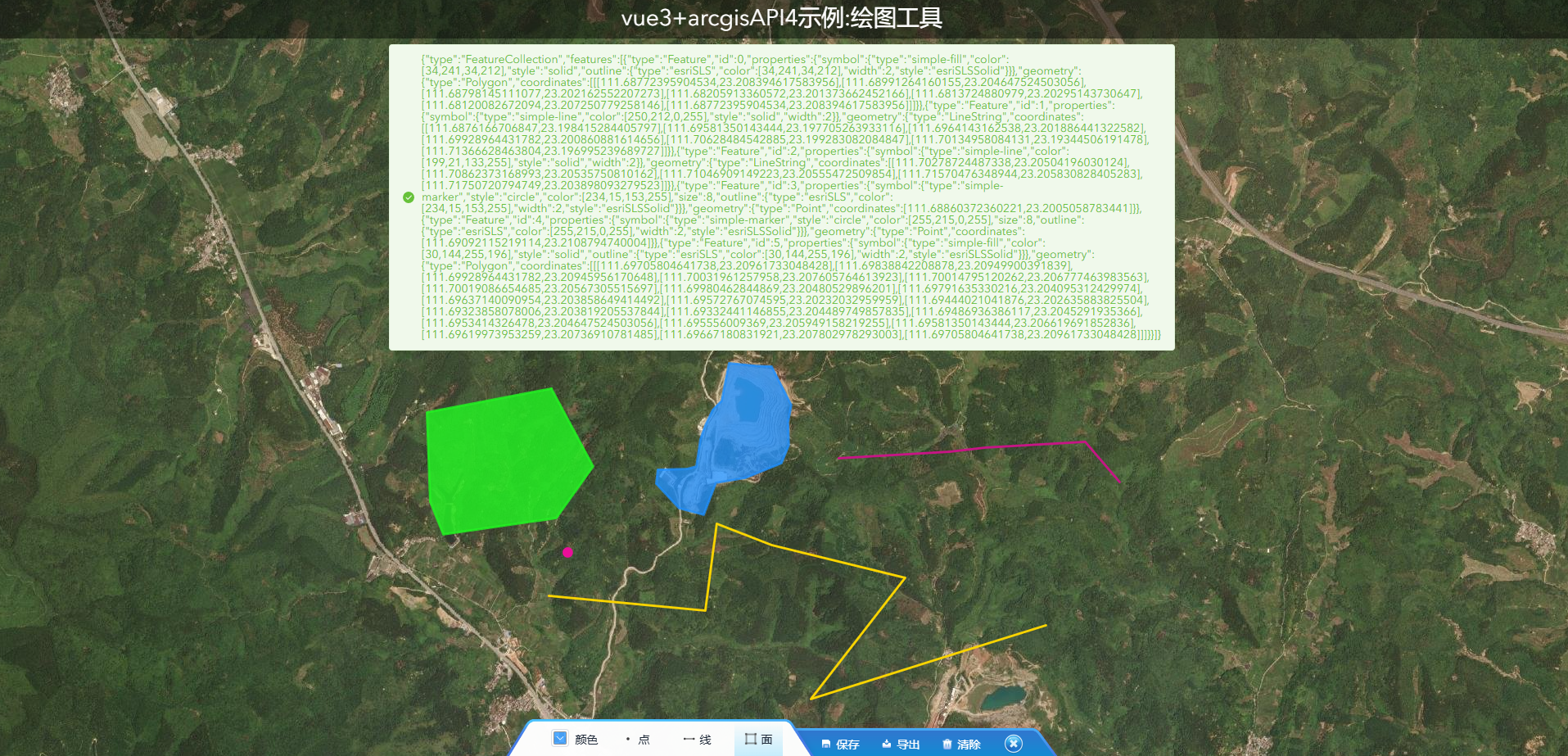

示例效果

核心部分代码

<template><div v-if="isSHowPlotPanel" class="map-plot-panel"><div class="plot-img"><div class="plot-marginleft"><el-color-picker v-model="color" show-alpha :predefine="predefineColors" @change="handleColorChange" /><span class="plot-span ml8">颜色</span></div><div :class="['plot-marginleft-1', currentTool == 'point' && 'active']" @click="ceateActiveTool('point')"><img src="@/views/plotMap/assets/point.png" alt="" class="tool-icon"><span class="plot-span">点</span></div><div :class="['plot-marginleft-1', currentTool == 'polyline' && 'active']"@click="ceateActiveTool('polyline')"><img src="@/views/plotMap/assets/line.png" alt="" class="tool-icon"><span class="plot-span">线</span></div><div :class="['plot-marginleft-1', currentTool == 'polygon' && 'active']"@click="ceateActiveTool('polygon')"><img src="@/views/plotMap/assets/polygon.png" alt="" class="tool-icon"><span class="plot-span">面</span></div><div class="plot-marginleft-2" @click="savePlotData"><img src="@/views/plotMap/assets/save.png" alt="" class="tool-icon"><span class="plot-span-1">保存</span></div><div class="plot-marginleft-3" @click="exportPlotData"><img src="@/views/plotMap/assets/export.png" alt="" class="tool-icon"><span class="plot-span-1">导出</span></div><div class="plot-marginleft-3" @click="clearPlotData"><img src="@/views/plotMap/assets/delete.png" alt="" class="tool-icon"><span class="plot-span-1">清除</span></div><div class="plot-marginleft-3" title="关闭绘图工具" @click="closePlotPanel"><img src="@/views/plotMap/assets/close.png" alt="" class="tool-icon-1"></div></div></div><div v-else class="map-plot-panel set-pointer-events" title="打开绘图工具" @click="openPlotPanel"><img src="@/views/plotMap/assets/side-collapse-up.png" alt="" class="tool-icon-2"></div>
</template>
<script setup>
import { onMounted, onUnmounted, ref, getCurrentInstance } from "vue";
import SketchViewModel from "@arcgis/core/widgets/Sketch/SketchViewModel.js";
import { xyToLngLat } from "@arcgis/core/geometry/support/webMercatorUtils.js";
import { ElMessage } from "element-plus";
const { proxy } = getCurrentInstance();
const currentTool = ref('');
const color = ref('rgba(72, 187, 250, 0.75)');
const predefineColors = ref(['#ff4500','#ff8c00','#ffd700','#90ee90','#00ced1','#1e90ff','#c71585','rgba(255, 69, 0, 0.68)','rgb(255, 120, 0)','hsv(51, 100, 98)','hsva(120, 40, 94, 0.5)','hsl(181, 100%, 37%)','hsla(209, 100%, 56%, 0.73)','#c7158577',
])
const isSHowPlotPanel = ref(true);
let sketchViewModel = null;
let polygonSymbol = {type: "simple-fill",color: color.value,outline: {color: color.value,width: 2}
};
let polylineSymbol = {type: "simple-line",color: color.value,width: 2
};
let pointSymbol = {type: "simple-marker",style: "circle",color: color.value,size: 8,outline: {color: color.value,width: 2}
};
let view = null;
onMounted(() => {proxy.$Bus.on('init-PlotLayers', initPlotLayers);
});
onUnmounted(() => {proxy.$Bus.off('init-PlotLayers', initPlotLayers);
})
const initPlotLayers = (activeView) => {view = activeView;const plotLayer = view.map.findLayerById("plotLayer");if (plotLayer) {sketchViewModel = new SketchViewModel({view: view,layer: plotLayer,polygonSymbol: polygonSymbol,polylineSymbol: polylineSymbol,pointSymbol: pointSymbol,defaultCreateOptions: {hasZ: true  // default value},defaultUpdateOptions: {enableZ: true  // default value}});sketchViewModel.on("update", function (event) {if (event.state === "complete") {console.log("绘制完成");setGraphicsSymbol(event.graphics);}});}
}
//动态修改选中的绘制图形graphics
const setGraphicsSymbol = (graphics) => {if (graphics) {graphics.forEach((graphic) => {if (graphic.geometry.type === "point") {graphic.symbol = pointSymbol;} else if (graphic.geometry.type === "polyline") {graphic.symbol = polylineSymbol;} else if (graphic.geometry.type === "polygon") {graphic.symbol = polygonSymbol;}});}
}
const handleColorChange = (val) => {if (sketchViewModel) {// 更新符号颜色polygonSymbol.color = val;polygonSymbol.outline.color = val;polylineSymbol.color = val;pointSymbol.color = val;pointSymbol.outline.color = val;sketchViewModel.polygonSymbol = polygonSymbol;sketchViewModel.polylineSymbol = polylineSymbol;sketchViewModel.pointSymbol = pointSymbol;// 如果有需要可以在这里添加其他逻辑console.log('颜色已更新为:', val);sketchViewModel.cancel();}
};
// 绘制点线面
const ceateActiveTool = (activeTool) => {if (!sketchViewModel) return;if (sketchViewModel.activeTool === activeTool) {sketchViewModel.cancel();currentTool.value = '';return;}currentTool.value = activeTool;sketchViewModel.create(activeTool);
}
const openPlotPanel = () => {isSHowPlotPanel.value = true;
}
// 关闭绘制工具面板
const closePlotPanel = () => {// clearPlotData();isSHowPlotPanel.value = false;
}
const clearPlotData = () => {const plotLayer = view.map.findLayerById("plotLayer");if (plotLayer) {plotLayer.removeAll();}sketchViewModel.cancel();
}
const savePlotData = () => {const plotLayer = view.map.findLayerById("plotLayer");if (plotLayer) {const geoJSON = plotLayerToGeoJSON(plotLayer);// console.log('geoJSON', geoJSON);ElMessage.success(JSON.stringify(geoJSON));}
}
const exportPlotData = () => {const plotLayer = view.map.findLayerById("plotLayer");if (plotLayer) {const geoJSON = plotLayerToGeoJSON(plotLayer);// console.log('geoJSON', geoJSON);// ElMessage.success(JSON.stringify(geoJSON));const blob = new Blob([JSON.stringify(geoJSON)], { type: `application/json` });const blobUrl = URL.createObjectURL(blob);// 创建一个临时的<a>标签const downloadLink = document.createElement('a');downloadLink.href = blobUrl;// 指定下载文件名downloadLink.download = `geojson`;// 触发下载document.body.appendChild(downloadLink);downloadLink.click();// 清理临时创建的元素和URL对象document.body.removeChild(downloadLink);URL.revokeObjectURL(blobUrl);}
}
/*** 将plotLayer图层中的数据按照点线面分组转换为GeoJSON格式* @param {Object} plotLayer - 图层对象* @returns {Object} - 返回GeoJSON数据的对象*/
const plotLayerToGeoJSON = (plotLayer) => {// 初始化结果对象const result = {type: "FeatureCollection",features: []};// 检查图层是否存在if (!plotLayer) {console.warn("plotLayer图层不存在");return result;}// 检查图层中是否有图形数据if (!plotLayer.graphics || plotLayer.graphics.length === 0) {console.warn("plotLayer图层中没有图形数据");return result;}// 遍历图层中的所有图形plotLayer.graphics.forEach((graphic, index) => {if (!graphic.geometry) return;// 根据几何类型分类const geometryType = graphic.geometry.type;let geoJSONType = "";let coordinates = [];let symbol = "";// 转换坐标和类型switch (geometryType) {case "point":geoJSONType = "Point";coordinates = [graphic.geometry.longitude, graphic.geometry.latitude];symbol = {type: graphic.symbol?.type || "",style: graphic.symbol?.style || "",color: graphic.symbol?.color || "",size: graphic.symbol?.size || "",outline: graphic.symbol?.outline || ""};break;case "polyline":geoJSONType = "LineString";coordinates = graphic.geometry.paths[0].map(point => xyToLngLat(point[0], point[1]));symbol = {type: graphic.symbol?.type || "",color: graphic.symbol?.color || "",style: graphic.symbol?.style || "",width: graphic.symbol?.width || ""};break;case "polygon":geoJSONType = "Polygon";coordinates = [graphic.geometry.rings[0].map(point => xyToLngLat(point[0], point[1]))];symbol = {type: graphic.symbol?.type || "",color: graphic.symbol?.color || "",style: graphic.symbol?.style || "",outline: graphic.symbol?.outline || ""};break;default:return; // 跳过不支持的几何类型}// 创建GeoJSON特征对象const feature = {type: "Feature",id: index,properties: {// 添加属性信息，如果graphic有attributes则使用...(graphic.attributes || {}),// 添加符号信息symbol: symbol},geometry: {type: geoJSONType,coordinates: coordinates}};result.features.push(feature);});return result;
}
