搭建一个Spring cloud 非阻塞式微服务架构

news 2025/8/29 8:21:05

搭建一个非阻塞式微服务架构

本文简述如何搭建一个非阻塞式的微服务架构，使用Spring gateway进行路由配置、Spring Security 进行用户登录、生成JWT 令牌、token校验,使用Redis存储token信息，使用mysql数据库存储用户信息；使用全局traceId搭配gateway、slf4j实现全局日志跟踪。主要有四个子服务组成eurekaServer、gateway、auth-service、user-service。eurekaServer负责服务注册与发现、gateway负责统一的入口配置、auth-service 负责登录、认证；user-service用户管理。
版本介绍：
Spring Boot: 3.5.5
JDK:17.0.12
Spring Cloud版本：2025.0.0

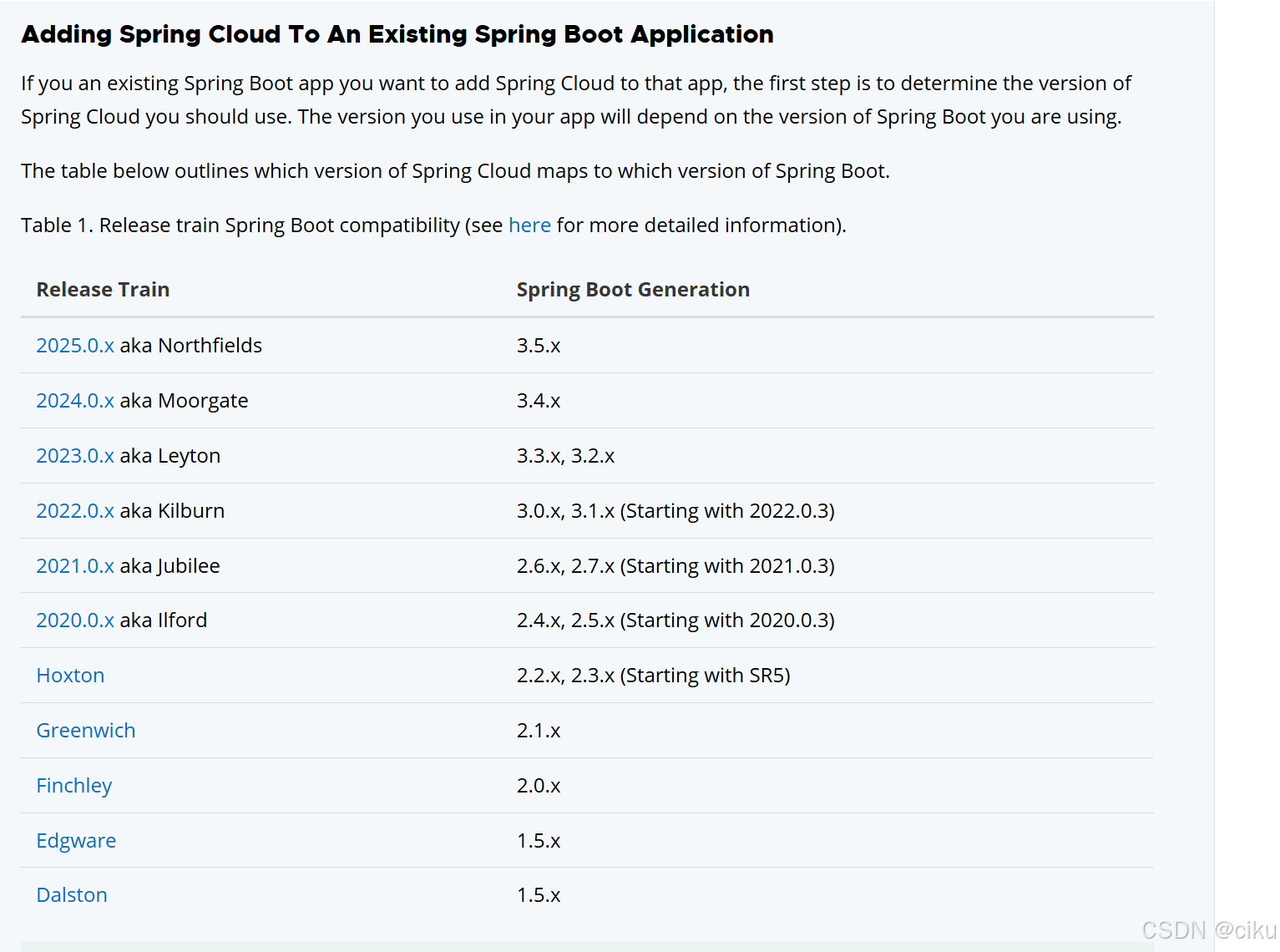

Spring Boot和Spring cloud依赖关系如下：在这里插入图片描述

父工程配置

pom.xml
引入基本的webflux、devtools、数据库连接工具、ribbon与OpenFeign依赖、spring colud管理包、定义子服务等。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-parent</artifactId><version>3.5.5</version><relativePath/> <!-- lookup parent from repository --></parent><groupId>com.example</groupId><artifactId>TraceLogDemo</artifactId><version>0.0.1-SNAPSHOT</version><name>TraceLogDemo</name><description>TraceLogDemo</description><packaging>pom</packaging> <!-- 不打包成jar--><modules><!-- 子服务--><module>eurekaServer</module><module>gateway</module><module>user-service</module><module>auth-service</module></modules><properties><java.version>17</java.version><spring-cloud.version>2025.0.0</spring-cloud.version></properties><dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-webflux</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-devtools</artifactId><scope>runtime</scope><optional>true</optional></dependency><dependency><groupId>com.mysql</groupId><artifactId>mysql-connector-j</artifactId><scope>runtime</scope></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-loadbalancer</artifactId></dependency><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-openfeign</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency></dependencies><dependencyManagement><dependencies><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-dependencies</artifactId><version>${spring-cloud.version}</version><type>pom</type><scope>import</scope></dependency></dependencies></dependencyManagement><build><plugins><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><configuration><annotationProcessorPaths><path><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId></path></annotationProcessorPaths></configuration></plugin><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId><configuration><excludes><exclude><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId></exclude></excludes></configuration></plugin></plugins></build></project>

搭建eurekaServer

1.pom.xml
pom中修改parent为父工程的groupId、artifactid等信息，引入spring-cloud-starter-netflix-eureka-server依赖。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>com.example</groupId><artifactId>TraceLogDemo</artifactId><version>0.0.1-SNAPSHOT</version></parent><artifactId>eurekaServer</artifactId><version>0.0.1-SNAPSHOT</version><name>eurekaServer</name><description>eurekaServer</description><properties><java.version>17</java.version></properties><dependencies><!--eureka Server依赖--><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-netflix-eureka-server</artifactId></dependency></dependencies><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build></project>

2.修改配置文件

spring:application:name: eurekaServer
server:port: 8761
eureka:client:register-with-eureka: false #是否注册为客户端fetch-registry: false

3.修改启动类


import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;@SpringBootApplication
@EnableEurekaServer
public class EurekaServerApplication {public static void main(String[] args) {SpringApplication.run(EurekaServerApplication.class, args);}}

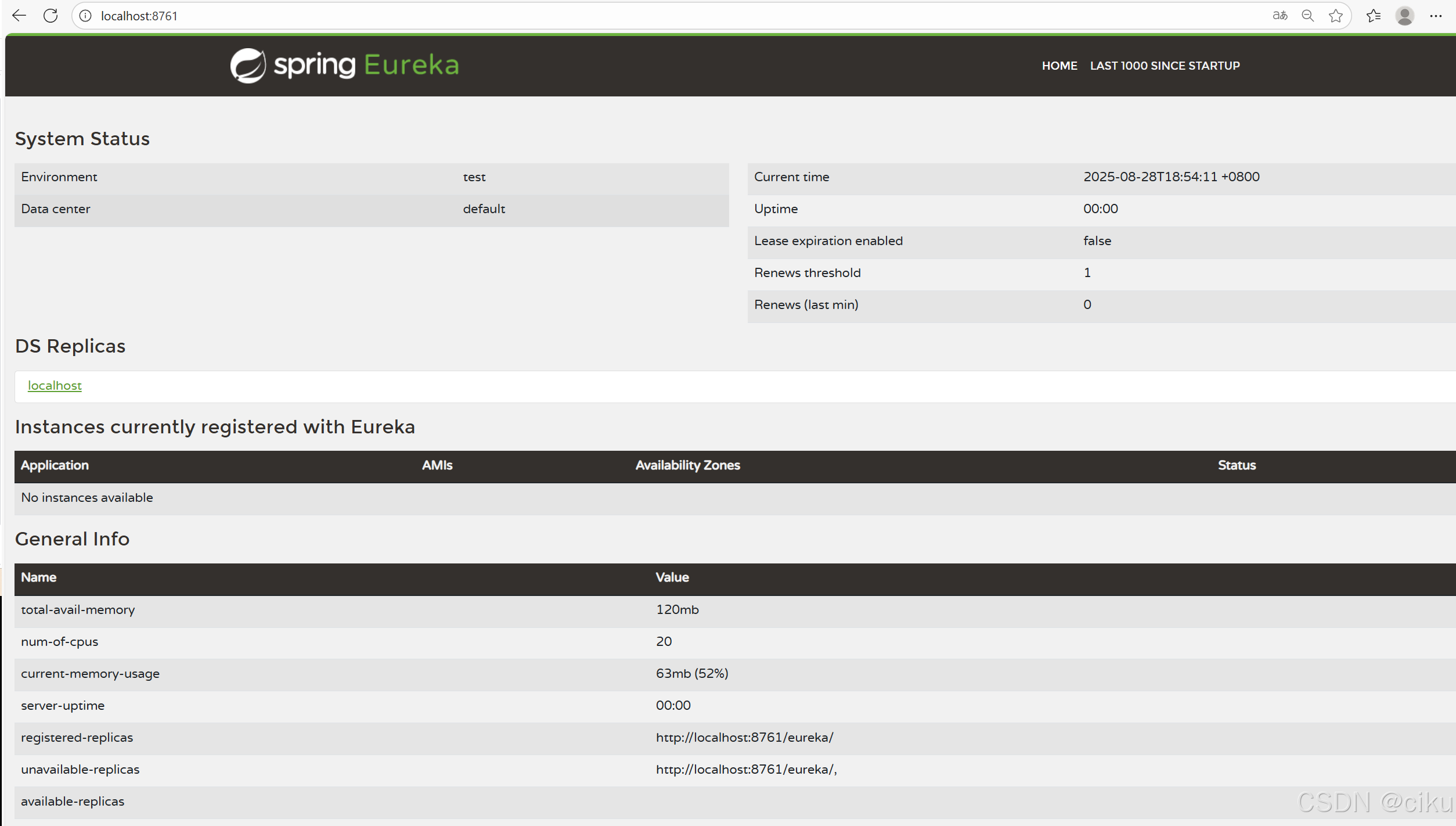

启动后访问locahost:8761，显示如下界面：
在这里插入图片描述

搭建Auth-Service认证服务

1.pom.xml
核心引入Spring security和jwt依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>com.example</groupId><artifactId>TraceLogDemo</artifactId><version>0.0.1-SNAPSHOT</version></parent><artifactId>auth-service</artifactId><version>0.0.1-SNAPSHOT</version><name>auth-service</name><description>auth-service</description><properties><java.version>17</java.version></properties><dependencies><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-netflix-eureka-client</artifactId></dependency><!--spring security依赖--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-security</artifactId><exclusions><exclusion><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></exclusion><exclusion><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-netflix-zuul</artifactId></exclusion></exclusions></dependency><dependency><groupId>jakarta.servlet</groupId><artifactId>jakarta.servlet-api</artifactId><version>6.0.0</version><scope>provided</scope></dependency><!--引入jwt依赖--><dependency><groupId>io.jsonwebtoken</groupId><artifactId>jjwt-api</artifactId><version>0.11.5</version></dependency><dependency><groupId>io.jsonwebtoken</groupId><artifactId>jjwt-impl</artifactId><version>0.11.5</version><scope>runtime</scope></dependency><dependency><groupId>io.jsonwebtoken</groupId><artifactId>jjwt-jackson</artifactId><version>0.11.5</version><scope>runtime</scope></dependency><!--mybatis plus依赖--><dependency><groupId>com.baomidou</groupId><artifactId>mybatis-plus-spring-boot3-starter</artifactId><version>3.5.10</version></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-jdbc</artifactId></dependency><!--redis依赖--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-redis</artifactId></dependency></dependencies><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build></project>

2.修改配置文件
数据库配置、redis配置、mybatis plus配置、eureka注册

spring:application:name: auth-servicedatasource:url: jdbc:mysql://192.168.48.164:3306/db01?severTimezone=UTCusername: rootpassword: 123456driver-class-name: com.mysql.cj.jdbc.Drivermain:allow-bean-definition-overriding: trueautoconfigure:exclude: org.springframework.boot.autoconfigure.security.servlet.SecurityAutoConfigurationdata:redis:host: 192.168.48.164port: 6379password: 123456database: 10
server:port: 8082
mybatis-plus:mapper-locations: classpath*:mapper/**/*.xmltype-aliases-package: com.example.entityconfiguration:log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
eureka:client:service-url:defaultZone: http://localhost:8761/eureka/

3.业务代码
由于此处代码很多省略基础查询代码以及redis相关代码。只给核心代码
SecurityConfig.java:

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpStatus;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.ReactiveAuthenticationManager;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.config.annotation.web.configuration.WebSecurityCustomizer;
import org.springframework.security.config.annotation.web.reactive.EnableWebFluxSecurity;
import org.springframework.security.config.web.server.ServerHttpSecurity;
import org.springframework.security.core.userdetails.ReactiveUserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.server.SecurityWebFilterChain;
import reactor.core.publisher.Mono;/*** @ClassName：SecurityConfig* @Author: xuli* @Date: 2025/8/26 18:22* @Description: 必须描述类做什么事情, 实现什么功能*/
@Configuration
@EnableWebFluxSecurity
public class SecurityConfig {@Beanpublic SecurityWebFilterChain securityWebFilterChain(ServerHttpSecurity http) {return http.csrf(ServerHttpSecurity.CsrfSpec::disable)//禁用csrf.formLogin(ServerHttpSecurity.FormLoginSpec::disable)//禁用表单登录.httpBasic(ServerHttpSecurity.HttpBasicSpec::disable)//禁用基础登录.authorizeExchange(exchanges -> exchanges.pathMatchers("/auth/**","/user/**").permitAll()//允许/auth/**所有的.anyExchange().authenticated()//其他都要授权).exceptionHandling(handling -> handling.authenticationEntryPoint((exchange, ex) ->Mono.fromRunnable(() -> {//设置异常状态exchange.getResponse().setStatusCode(HttpStatus.UNAUTHORIZED);})).accessDeniedHandler((exchange, denied) ->Mono.fromRunnable(() -> {exchange.getResponse().setStatusCode(HttpStatus.FORBIDDEN);}))).build();}/*** 响应式认证管理器（核心组件）* @param userDetailsService 实现ReactiveUserDetailsService接口的用户服务* @param passwordEncoder 已配置的密码编码器* @return 认证处理链，完成凭证验证和权限注入*/@Beanpublic ReactiveAuthenticationManager AuthenticationManager(ReactiveUserDetailsService userDetailsService,PasswordEncoder passwordEncoder) {return authentication -> {//调用userDetailsService实现校验UsernamePasswordAuthenticationToken authToken =(UsernamePasswordAuthenticationToken) authentication;return userDetailsService.findByUsername(authToken.getName()).filter(user -> passwordEncoder.matches(authToken.getCredentials().toString(),user.getPassword())).switchIfEmpty(Mono.error(new BadCredentialsException("Invalid credentials"))).map(user -> new UsernamePasswordAuthenticationToken(user.getUsername(),user.getPassword(),user.getAuthorities()));};}@Beanpublic WebSecurityCustomizer webSecurityCustomizer() {return web -> web.debug(true);}/*** BCrypt密码编码器（安全必须）* @return 强度10的BCrypt实现*/@Beanpublic PasswordEncoder passwordEncoder() {return new BCryptPasswordEncoder();}@Beanpublic TraceWebFilter TraceWebFilter() {return new TraceWebFilter();}@Beanpublic JwtAuthenticationFilter jwtAuthenticationFilter() {return new JwtAuthenticationFilter();}}

全局日志拦截过滤器：

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.slf4j.MDC;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import org.springframework.web.server.WebFilter;
import org.springframework.web.server.WebFilterChain;
import reactor.core.publisher.Mono;/*** @ClassName：TraceWebFilter* @Author: ciku* @Date: 2025/8/28 15:54* @Description: 全局traceFilter,用于从request中获取traceId设置在MDC中*/
@Component
public class TraceWebFilter implements WebFilter {private static final String TRACE_ID_HEADER = "X-Trace-Id";private Logger logger= LoggerFactory.getLogger(TraceWebFilter.class);@Overridepublic Mono<Void> filter(ServerWebExchange exchange, WebFilterChain chain) {return Mono.defer(()->{String traceId = exchange.getRequest().getHeaders().getFirst(TRACE_ID_HEADER);//获取header里面的traceIdif(!traceId.isBlank()){MDC.put("traceId",traceId);}return chain.filter(exchange);});}
}

JwtUtil:

package com.example.authservice.util;import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.security.Keys;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;import java.util.Date;
/*** @ClassName：JwtUtil* @Author: xuli* @Date: 2025/8/26 21:48* @Description: 必须描述类做什么事情, 实现什么功能**/
@Component
public class JwtUtil {private static final String SECRET_KEY = "u/4W2VX5J6QbLdE9NfG3BcH7YzA1kDmP8sR0tIw=";private static final long EXPIRATION_TIME = 86400000; // 24小时private static Logger logger= LoggerFactory.getLogger(JwtUtil.class);/*** 根据用户名生成token* @param username* @return*/public static String generateToken(String username) {String token = Jwts.builder().setSubject(username).setIssuedAt(new Date()).setExpiration(new Date(System.currentTimeMillis() + EXPIRATION_TIME)).signWith(Keys.hmacShaKeyFor(SECRET_KEY.getBytes())).compact();logger.info("生成token成功！token:"+token);return token;}}

获取用户对象，实现ReactiveUserDetailsService 接口是Spring security提供的SPI接口。

import com.example.authservice.user.entity.User;
import com.example.authservice.user.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.userdetails.ReactiveUserDetailsService;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;
import reactor.core.publisher.Mono;import java.util.ArrayList;/*** @ClassName：UserDetailsServiceImpl* @Author: xuli* @Date: 2025/8/26 22:20* @Description: 实现ReactiveUserDetailsService的方法，进行用户名密码校验*/@Service
public class UserDetailsServiceImpl implements ReactiveUserDetailsService {@Autowiredprivate UserService userService;@Overridepublic Mono<UserDetails> findByUsername(String username) {return Mono.just(loadUserByUsername(username));}private UserDetails loadUserByUsername(String username) {User user = userService.findUserByUsername(username);//查询数据库的用户信息if(user==null){throw new UsernameNotFoundException("user not found");}return new org.springframework.security.core.userdetails.User(user.getUserName(),user.getPassword(),new ArrayList<>());}
}

所有业务自服务需要增加 logback-spring.xml,后续不再重复：

<configuration><property name="LOG_PATTERN" value="%d{yyyy-MM-dd HH:mm:ss} [%thread] [%X{traceId}] %-5level %logger{36} - %msg%n"/><appender name="CONSOLE" class="ch.qos.logback.core.ConsoleAppender"><encoder><pattern>${LOG_PATTERN}</pattern></encoder></appender><root level="INFO"><appender-ref ref="CONSOLE"/></root>
</configuration>

搭建Gateway网关服务

1.pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>com.example</groupId><artifactId>TraceLogDemo</artifactId><version>0.0.1-SNAPSHOT</version></parent><artifactId>gateway</artifactId><version>0.0.1-SNAPSHOT</version><name>gateway</name><description>gateway</description><properties><java.version>17</java.version></properties><dependencies><!--webflux对应的gateway依赖--><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-gateway-server-webflux</artifactId></dependency><!--基于netflix的eureka client依赖--><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-netflix-eureka-client</artifactId></dependency></dependencies><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build></project>

2.配置文件
注册到 http://localhost:8761 eureka服务端

spring:application:name: gateway
server:port: 8080
eureka:client:service-url:defaultZone: http://localhost:8761/eureka/fetch-registry: trueregister-with-eureka: true

3.启动类

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;@SpringBootApplication
@EnableDiscoveryClient  //标记为客户端
public class GatewayApplication {public static void main(String[] args) {SpringApplication.run(GatewayApplication.class, args);}}

4.配置路由信息

import org.springframework.cloud.gateway.route.RouteLocator;
import org.springframework.cloud.gateway.route.builder.RouteLocatorBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;/*** @ClassName：BeanConfig* @Author: xuli* @Date: 2025/8/26 16:55* @Description: 配置网关路由*/
@Configuration
public class RuteConfiguration {@Beanpublic RouteLocator myRoutes(RouteLocatorBuilder builder){return builder.routes().route("user-service",p->p.path("/userService/**")//设置路由，以userService开头的都调用user-service服务.filters(f->f.stripPrefix(1)).uri("lb://user-service")).route("auth-service",p->p.path("/authService/**")//设置路由，以authService开头的都调用auth-service服务.filters(f->f.stripPrefix(1)).uri("lb://auth-service")//默认规则lb://服务名，eureka大小写不限，nacos小大写区分).build();}}

5.定义jwt校验返回对象

package com.example.gateway.config;import com.fasterxml.jackson.annotation.JsonInclude;
import lombok.Data;/*** @ClassName：JwtResponse* @Author: xuli* @Date: 2025/8/26 22:56* @Description: jwt校验返回对象*/
@Data
@JsonInclude
public class JwtResponse {private String token;private boolean isExpiration;private String error;// 必须有无参构造函数public JwtResponse() {}public JwtResponse(String token, String error) {this.token = token;this.error=error;}public JwtResponse(String token, boolean isExpiration, String error) {this.token = token;this.isExpiration = isExpiration;this.error = error;}public String getToken() {return token;}public void setToken(String token) {this.token = token;}public boolean isExpiration() {return isExpiration;}public void setExpiration(boolean expiration) {isExpiration = expiration;}public String getError() {return error;}public void setError(String error) {this.error = error;}
}

6.配置过滤器
用于请求拦截，获取jwt 令牌，再调用auth-service校验，并设置全局traceId

package com.example.gateway.filter;import com.example.gateway.config.JwtResponse;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.slf4j.MDC;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.loadbalancer.LoadBalancerClient;
import org.springframework.cloud.client.loadbalancer.reactive.ReactiveLoadBalancer;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.client.reactive.ReactorClientHttpConnector;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.stereotype.Component;
import org.springframework.util.CollectionUtils;
import org.springframework.util.StringUtils;
import org.springframework.web.reactive.function.client.WebClient;
import org.springframework.web.server.ResponseStatusException;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;
import reactor.netty.http.client.HttpClient;
import reactor.util.retry.Retry;import java.time.Duration;
import java.util.List;
import java.util.Objects;
import java.util.UUID;/*** @ClassName：JwtAuthFilter* @Author: xuli* @Date: 2025/8/27 23:50* @Description: JWT过滤器，接口调用是校验token并设置traceId*/
@Component
public class JwtAuthFilter implements GlobalFilter {private final ReactiveLoadBalancer.Factory<ServiceInstance> loadBalancerFactory;private static final Logger logger = LoggerFactory.getLogger(JwtAuthFilter.class);private final static String TRACE_HEADER="X-Trace-Id";private final WebClient webClient;public JwtAuthFilter(ReactiveLoadBalancer.Factory<ServiceInstance> loadBalancerFactory,WebClient.Builder webClientBuilder,LoadBalancerClient loadBalancerClient){this.loadBalancerFactory = loadBalancerFactory;this.webClient = webClientBuilder.clientConnector(new ReactorClientHttpConnector(HttpClient.create().responseTimeout(Duration.ofSeconds(10)).keepAlive(true))).build();}
@Override
public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {ReactiveLoadBalancer<ServiceInstance> loadBalancer =  loadBalancerFactory.getInstance("auth-service");//获取实际地址ServerHttpRequest request = exchange.getRequest();String path = exchange.getRequest().getURI().getPath();if("/auth/login".equals(path)){//如果是登录接口直接放行//增加全局traceIdString  traceId= UUID.randomUUID().toString();MDC.put("traceId",traceId);//traceId设置在请求头中ServerHttpRequest mutatedRequest = exchange.getRequest().mutate().header("X-Trace-Id",traceId).build();return chain.filter(exchange.mutate().request(mutatedRequest).build());}String loginName = extractLoginName(request);String token = extractToken(request);return Flux.from(loadBalancer.choose()).take(1).single().flatMap(response->{ServiceInstance instance = response.getServer();//获取返回的实例if(instance!=null){logger.info("获取到实例地址"+instance.getUri());}//生成traceIdString  traceId= UUID.randomUUID().toString();MDC.put("traceId",traceId);//调用校验token接口return webClient.get().uri( instance.getUri()+"/auth/validateToken").header(HttpHeaders.AUTHORIZATION,token).header("X-User-Id",loginName).header("Content-Type","application/json").header("X-Trace-Id",traceId).retrieve().bodyToMono(JwtResponse.class)//设置返回类型，与接口返回类型一直.flatMap(jwtResponse -> {if(!jwtResponse.isExpiration()){//获取返回结果logger.info("接口校验失败，返回"+jwtResponse.isExpiration()+"请确认token是否过期");}if (jwtResponse.isExpiration()) {//校验通过，调用请求的接口ServerHttpRequest mutatedRequest = exchange.getRequest().mutate().header("X-User-Id", loginName).header("Authorization").header("X-Trace-Id",traceId).build();logger.info(instance.getUri()+"/auth/validateToken"+"校验成功");return chain.filter(exchange.mutate().request(mutatedRequest).build());}return Mono.error(new ResponseStatusException(HttpStatus.UNAUTHORIZED));//失败返回401});}).onErrorResume(e -> {//异常处理logger.error(e.getMessage());exchange.getResponse().setStatusCode(HttpStatus.UNAUTHORIZED);return exchange.getResponse().setComplete();});}/*** 未授权设置401* @param exchange* @param error* @return*/private Mono<Void> unauthorized(ServerWebExchange exchange, String error) {exchange.getResponse().setStatusCode(HttpStatus.UNAUTHORIZED);return exchange.getResponse().setComplete();}/*** 获取token* @param request* @return*/private String extractToken(ServerHttpRequest request) {HttpHeaders headers = request.getHeaders();List<String> list = headers.get("Authorization");if(!CollectionUtils.isEmpty(list)){String string = list.get(0);return !string.isBlank()?string.replaceAll("Bearer ", ""):"";}return "";}/*** 获取登录名* @param request* @return*/private String extractLoginName(ServerHttpRequest request) {HttpHeaders headers = request.getHeaders();List<String> list = headers.get("X-User-Id");if(!CollectionUtils.isEmpty(list)){String string = list.get(0);return !string.isBlank()?string:"";}return "";}}

搭建业务服务 UserSevice

userService简单实现，仅供演示
1.pom.xml
只需引入eureka-client

 <dependencies><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-netflix-eureka-client</artifactId></dependency></dependencies>

2.全局trace过滤器

@Component
public class TraceWebFilter implements WebFilter {private static final String TRACE_ID_HEADER = "X-Trace-Id";@Overridepublic Mono<Void> filter(ServerWebExchange exchange, WebFilterChain chain) {return Mono.defer(()->{String traceId = exchange.getRequest().getHeaders().getFirst(TRACE_ID_HEADER);return chain.filter(exchange).contextWrite(ctx->ctx.put("traceId", traceId)).doOnEach(sinal->{if(sinal.isOnComplete()){MDC.put("traceId",traceId);//设置在slf4j的日志对象中}});});}
}

3.controller简单实现

@RestController
@RequestMapping("/user")
public class TestController {private Logger logger= LoggerFactory.getLogger(TestController.class);@GetMapping("/sayHello")public String sayHello(){//todologger.info("调用user-service/user/sayHello接口成功！");return "welcome User service";}
}

配置文件就不再赘述，只需要注册到eurake中即可。

运行结果

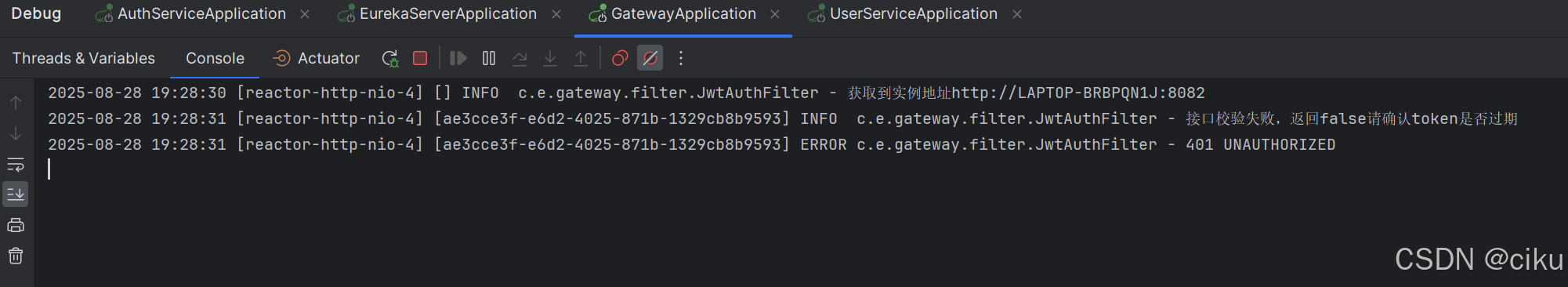

1.未登录调用userService
在这里插入图片描述

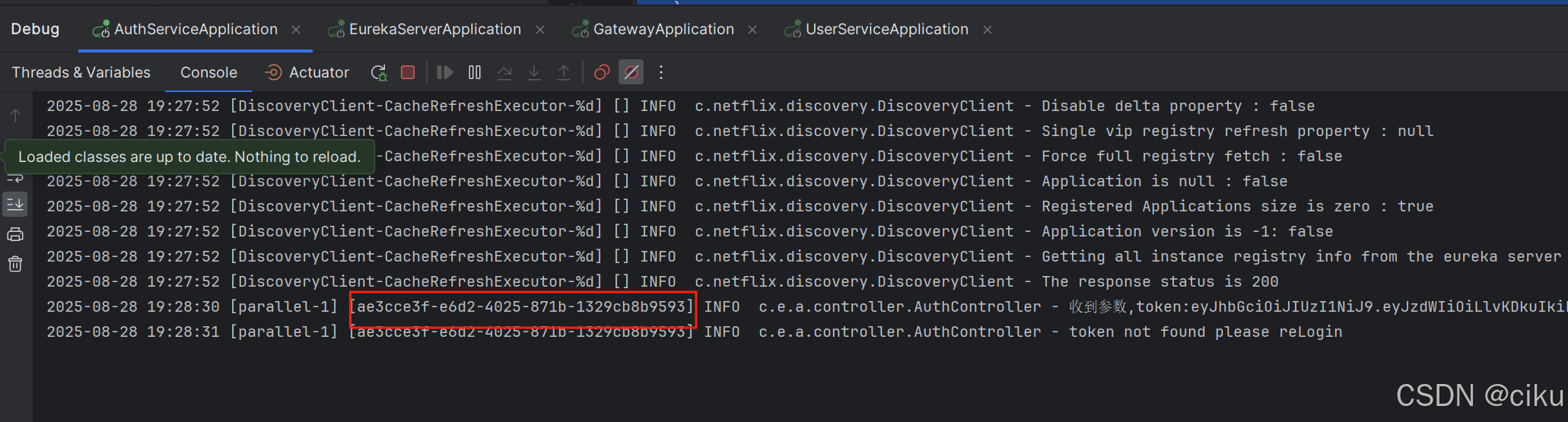

2.全局日志跟踪
在这里插入图片描述

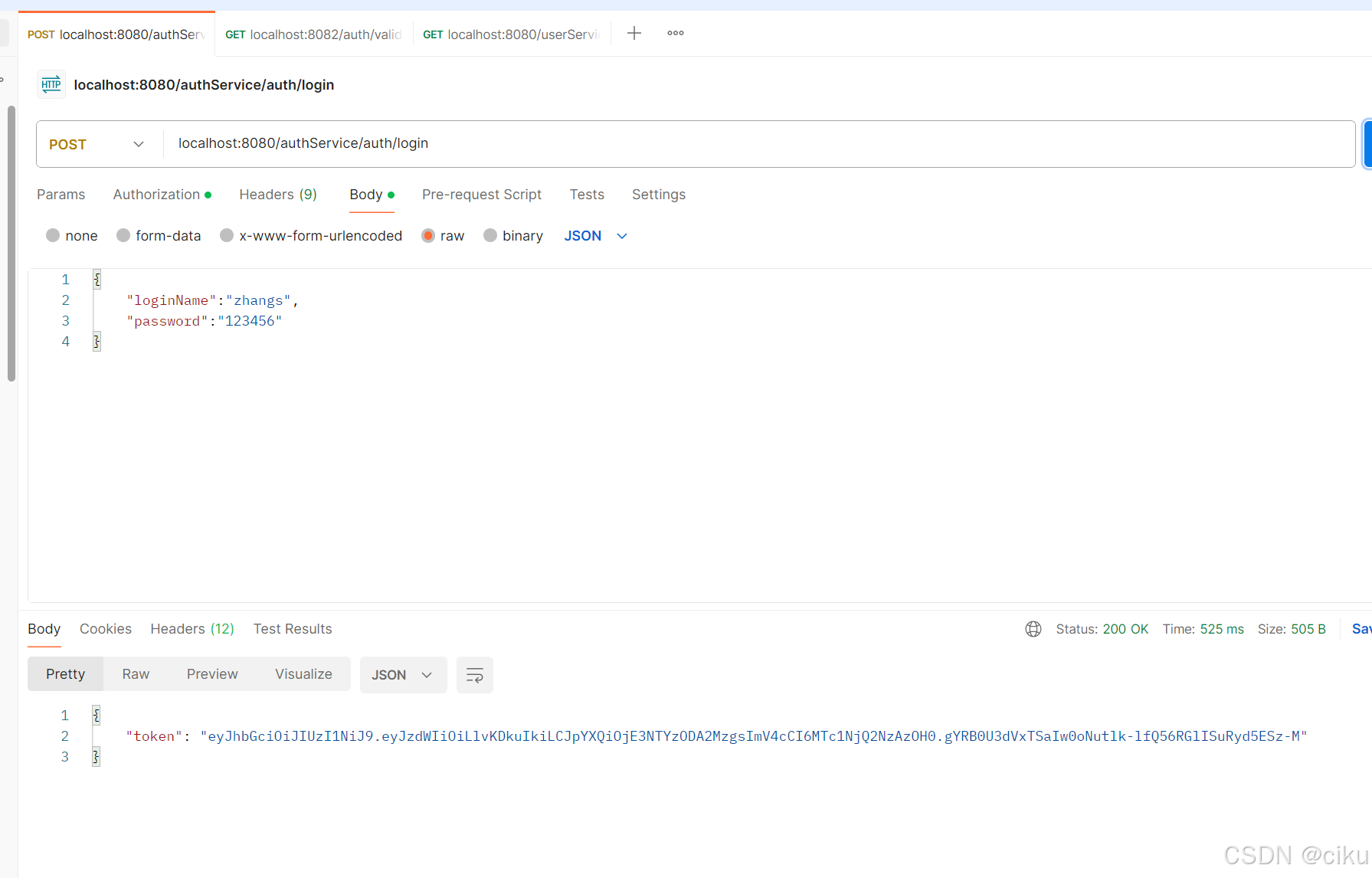

3.用户登录成功

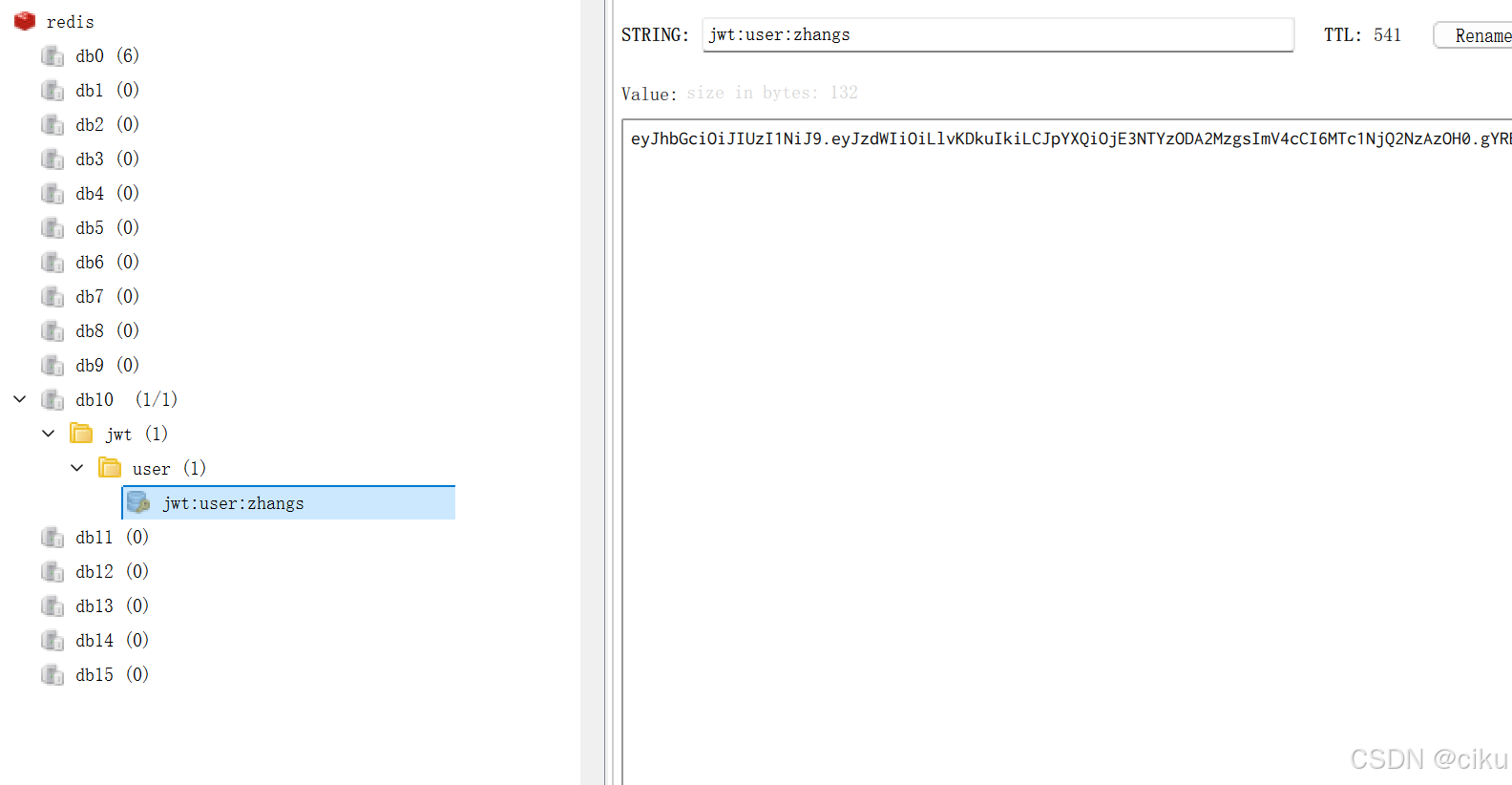

采用统一入口调用登录方法，成功返回token，并记录在redis中
在这里插入图片描述
在这里插入图片描述

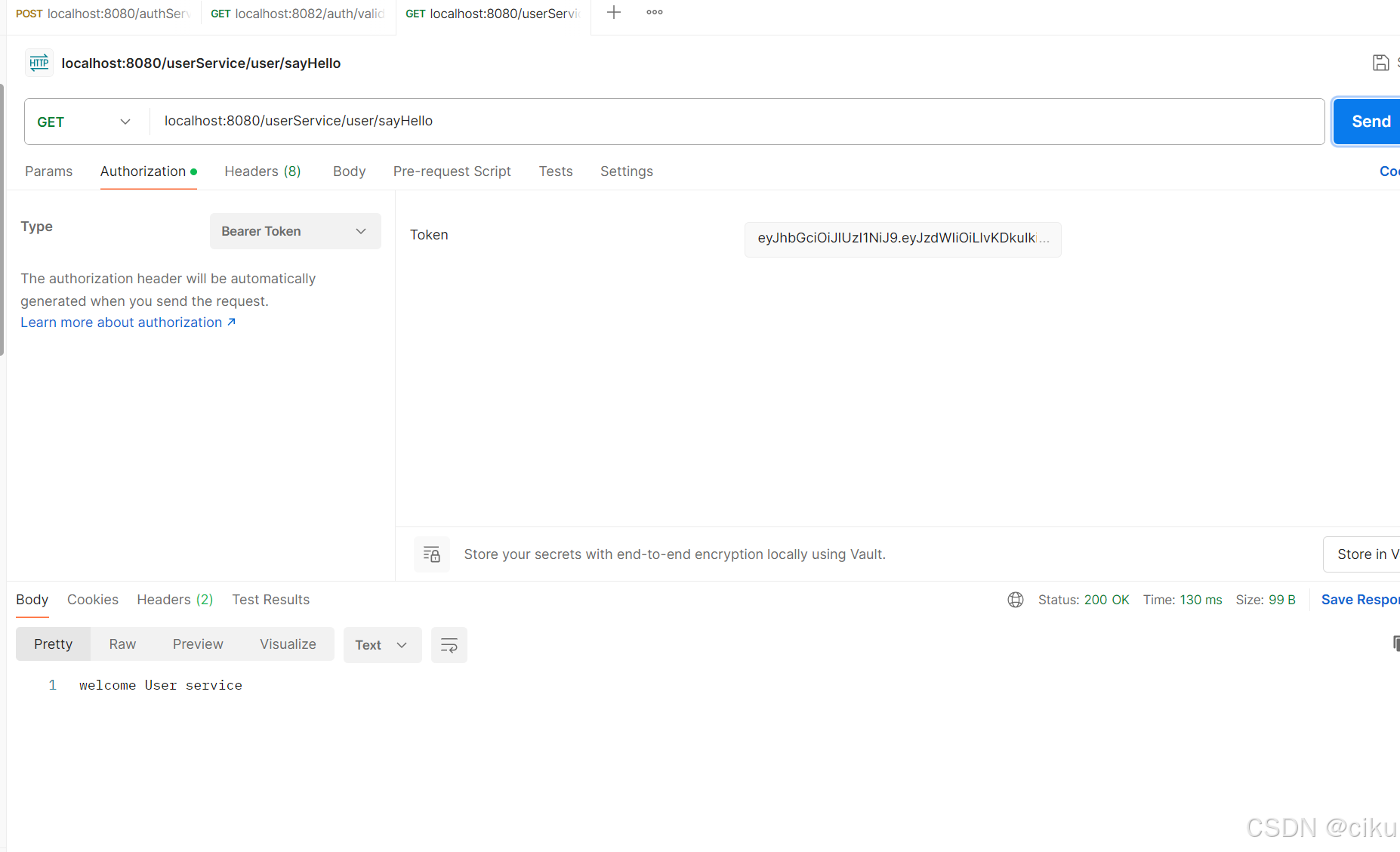

4.携带最新token访问user-Service
在这里插入图片描述

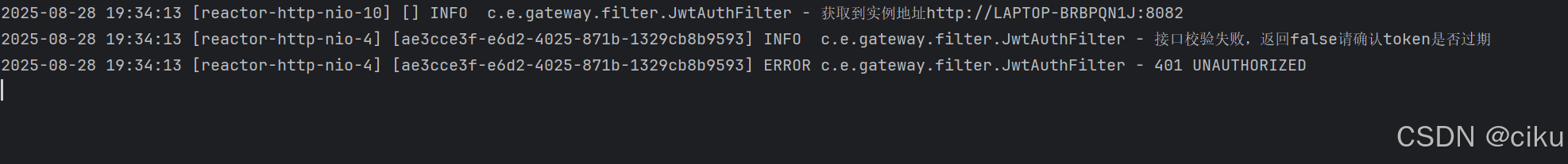

5.失效token或错误token

在这里插入图片描述
