一、使用

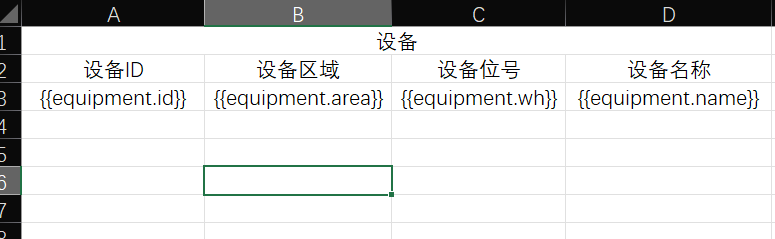

1. 创建Excel模板，如图：
2. 使用工具导出，代码示例：
1 @GetMapping("/excel")2 public void exportExcel(HttpServletResponse response) throws Exception {3 List<Equipment> equipmentList = Arrays.asList(4 new Equipment("001", "设备A", "区域1", "仓库X"),5 new Equipment("002", "设备B", "区域2", "仓库Y"),6 new Equipment("003", "设备C", "区域3", "仓库Z")7 );8 9 List<Map<String, Object>> tempDataList = MapObjectUtil.objListToMapList(equipmentList);
10 List<DynamicDataMapping> dynamicDataMappingList = DynamicDataMapping.createOneDataList("equipment", tempDataList);
11 ExcelTemplateProc.doExportExcelByTemplateProc("excel-template/equipment.xlsx", response, null, dynamicDataMappingList);
12 }
13
14
15
16 @Data
17 @AllArgsConstructor
18 class Equipment {
19 private String id;
20 private String name;
21 private String area;
22 private String wh;
23 }
二、工具类
1. 数据格式转换工具类：
1 import java.lang.reflect.Field;2 import java.util.ArrayList;3 import java.util.HashMap;4 import java.util.List;5 import java.util.Map;6 7 public class MapObjectUtil {8 9 /**
10 * @description: 将object的list数据 转换成 map的list（如：List<Map<String, Object>>）
11 * @param objDataList
12 * @return java.util.List<java.util.Map<java.lang.String,java.lang.Object>>
13 */
14 public static List<Map<String, Object>> objListToMapList(List<?> objDataList){
15 List<Map<String, Object>> dataList = new ArrayList<>();
16 if (objDataList==null || objDataList.size()<1){
17 return null;
18 }
19 objDataList.forEach(obj->{
20 try {
21 Map<String, Object> map = MapObjectUtil.objectToMap(obj);
22 dataList.add(map);
23 } catch (IllegalAccessException e) {
24 throw new RuntimeException(e);
25 }
26 });
27 return dataList;
28 }
29
30 /**
31 * @description: 将object数据转换成map数据
32 * @param obj
33 * @return java.util.Map<java.lang.String,java.lang.Object>
34 */
35 public static Map<String, Object> objectToMap(Object obj) throws IllegalAccessException {
36 Map<String, Object> map = new HashMap();
37 Class<?> cla = obj.getClass();
38 Field[] fields = cla.getDeclaredFields();
39 for (Field field : fields) {
40 field.setAccessible(true);
41 String keyName = field.getName();
42 Object value = field.get(obj);
43 if (value == null)
44 value = "";
45 map.put(keyName, value);
46 }
47 return map;
48 }
49
50 }
2. 存放导出动态数据类：
1 import lombok.Data;2 3 import java.util.ArrayList;4 import java.util.Collections;5 import java.util.List;6 import java.util.Map;7 8 /**9 * @Description 存放需要导出的动态数据
10 */
11 @Data
12 public class DynamicDataMapping {
13
14 private String dataId;
15 private List<Map<String, Object>> dataList;
16
17
18 /**
19 * @description: 组装只有一个list类型的动态数据
20 * @param dataId
21 * @param dataList
22 * @return
23 */
24 public static List<DynamicDataMapping> createOneDataList(String dataId, List<Map<String, Object>> dataList) {
25 if (dataList == null)
26 return null;
27 return Collections.singletonList(getDynamicDataMapping(dataId,dataList));
28 }
29
30 /**
31 * @description: 组装只有多个list类型的动态数据
32 * @param transMap
33 * @return
34 */
35 public static List<DynamicDataMapping> createMorDataList(Map<String,List<Map<String, Object>>> transMap) {
36 if (transMap == null)
37 return null;
38 List<DynamicDataMapping> list = new ArrayList<>();
39 transMap.forEach((dataId,dataList)->{
40 list.add(getDynamicDataMapping(dataId,dataList));
41 });
42 return list;
43 }
44
45 public static DynamicDataMapping getDynamicDataMapping(String dataId, List<Map<String, Object>> dataList){
46 DynamicDataMapping dynamicData = new DynamicDataMapping();
47 dynamicData.dataId = dataId;
48 dynamicData.dataList = dataList;
49 return dynamicData;
50 }
51
52 }
3. 导出Excel工具类：
1 import jakarta.servlet.http.HttpServletResponse;2 import org.apache.poi.ss.usermodel.*;3 import org.apache.poi.xssf.usermodel.XSSFCell;4 import org.apache.poi.xssf.usermodel.XSSFRow;5 import org.apache.poi.xssf.usermodel.XSSFSheet;6 import org.apache.poi.xssf.usermodel.XSSFWorkbook;7 8 import java.io.*;9 import java.util.List;10 import java.util.Map;11 12 /**13 * @Description 根据模版导出Excel程序14 */15 public class ExcelTemplateProc {16 17 /**18 * @param templateFileName19 * @param20 * @param staticDataMap21 * @param dynamicDataMappingList22 * @return void23 * @description: 根据模版导出Excel入口24 */25 public static void doExportExcelByTemplateProc(String templateFileName, HttpServletResponse response,26 Map<String, Object> staticDataMap,27 List<DynamicDataMapping> dynamicDataMappingList) throws IOException {28 /**29 * 1. 从resources下加载模板并替换30 * 使用 ResourceUtils 加载文件31 */32 InputStream inputStream = ExcelTemplateProc.class.getClassLoader().getResourceAsStream(templateFileName);33 Workbook workbook = dealFirstSheetByTemplate(inputStream, staticDataMap, dynamicDataMappingList);34 // 替换里信息35 // extracted(workbook);36 // 2. 反遣给前端37 try {38 //设置响应头39 response.setContentType("application/vnd.openxmlformats-officedocument.spreadsheetml.sheet");40 response.setHeader("Content-Disposition", "attachment; filename=" + templateFileName);41 // 输出流42 OutputStream outputStream = response.getOutputStream();43 workbook.write(outputStream);44 outputStream.flush();45 } finally {46 // Clean up resources47 if (workbook != null) {48 workbook.close();49 }50 if (inputStream != null) {51 inputStream.close();52 }53 }54 }55 56 private static void extracted(Workbook workbook) {57 Sheet sheet = workbook.getSheetAt(0); // 获取第一张表58 for (Row row : sheet) {59 for (Cell cell : row) {60 if (cell.getCellType() == CellType.STRING) {61 String cellValue = cell.getStringCellValue();62 if ("已打卡".equals(cellValue) || "申诉成功".equals(cellValue)) {63 // 替换成绿色对勾64 CellStyle greenCheckStyle = workbook.createCellStyle();65 Font greenFont = workbook.createFont();66 greenFont.setColor(IndexedColors.GREEN.getIndex());67 greenFont.setBold(true);68 greenCheckStyle.setFont(greenFont);69 cell.setCellValue("✓"); // 使用绿色对勾的替换字符70 cell.setCellStyle(greenCheckStyle);71 } else if (cellValue == null || "".equals(cellValue) || "申诉驳回".equals(cellValue)) {72 // 替换成红色叉号73 CellStyle redCrossStyle = workbook.createCellStyle();74 Font redFont = workbook.createFont();75 redFont.setColor(IndexedColors.RED.getIndex());76 redFont.setBold(true);77 redCrossStyle.setFont(redFont);78 cell.setCellValue("✗"); // 使用红色叉号的替换字符79 cell.setCellStyle(redCrossStyle);80 } else if ("未签退".equals(cellValue)) {81 // 替换成绿色对勾82 CellStyle greenCheckStyle = workbook.createCellStyle();83 Font yellowFont = workbook.createFont();84 yellowFont.setColor(IndexedColors.ORANGE.getIndex());85 yellowFont.setBold(true);86 greenCheckStyle.setFont(yellowFont);87 cell.setCellValue("✓"); // 使用橘色对勾的替换字符88 cell.setCellStyle(greenCheckStyle);89 } else if ("请假".equals(cellValue)) {90 // 替换成黄色对勾91 CellStyle greenCheckStyle = workbook.createCellStyle();92 Font yellowFont = workbook.createFont();93 yellowFont.setColor(IndexedColors.YELLOW.getIndex());94 yellowFont.setBold(true);95 greenCheckStyle.setFont(yellowFont);96 cell.setCellValue("⚪"); // 使用绿色对勾的替换字符97 cell.setCellStyle(greenCheckStyle);98 }99 else if ("申诉中".equals(cellValue)) {
100 // 替换成宗色对勾
101 CellStyle greenCheckStyle = workbook.createCellStyle();
102 Font yellowFont = workbook.createFont();
103 yellowFont.setColor(IndexedColors.BROWN.getIndex());
104 yellowFont.setBold(true);
105 greenCheckStyle.setFont(yellowFont);
106 cell.setCellValue("🔺"); // 使用zong色对勾的替换字符
107 cell.setCellStyle(greenCheckStyle);
108 }
109 }
110 }
111 }
112 }
113
114 /**
115 * @param workbook
116 * @param excelFilePath
117 * @return void
118 * @description: 保存导出的Excel文件到服务器
119 */
120 public static void saveExportFile(Workbook workbook, String excelFilePath) throws IOException {
121 FileOutputStream outputStream = new FileOutputStream(excelFilePath);
122 executeWorkBookWrite(workbook, outputStream);
123 }
124
125 /**
126 * @param workbook
127 * @param outputStream
128 * @return void
129 * @description: 数据输出
130 */
131 public static void executeWorkBookWrite(Workbook workbook, OutputStream outputStream) throws IOException {
132 workbook.write(outputStream);
133 outputStream.flush();
134 outputStream.close();
135 workbook.close();
136 }
137
138 /**
139 * @param inputStream
140 * @param staticDataMap
141 * @param dynamicDataMappingList
142 * @return org.apache.poi.ss.usermodel.Workbook
143 * @description: 处理只有一个sheet页的模版
144 */
145 public static Workbook dealFirstSheetByTemplate(InputStream inputStream,
146 Map<String, Object> staticDataMap,
147 List<DynamicDataMapping> dynamicDataMappingList) throws IOException {
148 XSSFWorkbook workbook = new XSSFWorkbook(inputStream);
149 XSSFSheet sheet = workbook.getSheetAt(0);
150 // 按模板处理sheet页
151 dealSheetDataByTemplate(sheet, staticDataMap, dynamicDataMappingList);
152 return workbook;
153 }
154
155 /**
156 * @param sheet
157 * @param staticDataMap
158 * @param dynamicDataMappingList
159 * @return void
160 * @description: 按模板处理sheet页里的数据
161 */
162 private static void dealSheetDataByTemplate(XSSFSheet sheet, Map<String, Object> staticDataMap, List<DynamicDataMapping> dynamicDataMappingList) {
163 // 循环sheet里每一行
164 for (int i = sheet.getFirstRowNum(); i <= sheet.getLastRowNum(); i++) {
165 XSSFRow row = sheet.getRow(i);
166 DynamicDataMapping dynamicDataMapping = getDynamicRowDataByMatch(row, dynamicDataMappingList);
167 if (dynamicDataMapping != null) {
168 i = getTemplateLastRowIndexAfterDealTemplate(sheet, i, dynamicDataMapping);
169 } else {
170 dealTemplateDataRow(row, null, staticDataMap);
171 }
172 }
173 }
174
175 /**
176 * @param row
177 * @param dataMap
178 * @param dataPrefix
179 * @return void
180 * @description: 循环处理模版中每行的数据
181 */
182 private static void dealTemplateDataRow(XSSFRow row, String dataPrefix, Map<String, Object> dataMap) {
183 if (dataMap == null) {
184 return;
185 }
186 for (int i = row.getFirstCellNum(); i < row.getLastCellNum(); i++) {
187 XSSFCell cell = row.getCell(i);
188 fillInTemplateCellDataValue(cell, dataPrefix, dataMap);
189 }
190 }
191
192 /**
193 * @param cell
194 * @param dataPrefix
195 * @param dataMap
196 * @return void
197 * @description: 填充模版里单元格的值
198 */
199 private static void fillInTemplateCellDataValue(XSSFCell cell, String dataPrefix, Map<String, Object> dataMap) {
200 if (cell == null) {
201 return;
202 }
203 String cellValue = cell.getStringCellValue(); // 获取模版里设置的数据
204 if (cellValue == null || cellValue.trim().isEmpty()) {
205 return;
206 }
207 boolean flag = false;
208 dataPrefix = (dataPrefix == null || dataPrefix.isEmpty()) ? "" : (dataPrefix + ".");
209 for (Map.Entry<String, Object> entry : dataMap.entrySet()) {
210 // 循环所有，因为可能一行有多个占位符
211 String cellTemplateStr = "{{" + dataPrefix + entry.getKey() + "}}";
212 if (cellValue.contains(cellTemplateStr)) {
213 // 替换模版中单元格的数据
214 cellValue = cellValue.replace(cellTemplateStr, entry.getValue() == null ? "" : entry.getValue().toString());
215 flag = true;
216 }
217 }
218 if (flag) {
219 cell.setCellValue(cellValue);
220 }
221 }
222
223 /**
224 * @param row
225 * @param dynamicDataMappingList
226 * @return com.liu.susu.excel.template.poi.common.DynamicDataMapping
227 * @description: 通过模版sheet中的行数据 与 动态数据匹配,获取此行需要填充的动态数据
228 */
229 private static DynamicDataMapping getDynamicRowDataByMatch(XSSFRow row, List<DynamicDataMapping> dynamicDataMappingList) {
230 if (dynamicDataMappingList == null || dynamicDataMappingList.size() < 1) {
231 return null;
232 }
233 if (row != null) {
234 for (int j = row.getFirstCellNum(); j < row.getLastCellNum(); j++) {
235 XSSFCell cell = row.getCell(j);
236 CellType cellType = cell.getCellType();
237 switch (cellType) {
238 case STRING:
239 String value = cell.getStringCellValue();
240 if (value != null) {
241 for (DynamicDataMapping dynamicData : dynamicDataMappingList) {
242 if (value.startsWith("{{" + dynamicData.getDataId() + ".")) {
243 return dynamicData;
244 }
245 }
246 }
247 ;
248 break;
249 }
250
251 }
252 }
253 return null;
254
255 }
256
257 /**
258 * @param sheet
259 * @param rowIndex
260 * @param dynamicDataMapping
261 * @return int
262 * @description: 根据动态数据的条数动态复制模版行，每处理一个类型的list返回最后的行数，进而处理下一个类型的list
263 */
264 private static int getTemplateLastRowIndexAfterDealTemplate(XSSFSheet sheet, int rowIndex, DynamicDataMapping dynamicDataMapping) {
265 if (dynamicDataMapping == null) {
266 return rowIndex;
267 }
268 int dataRows = dynamicDataMapping.getDataList().size();
269 // 需要拷贝的行数（因为模板行本身占1行，所以-1）
270 int copyRows = dataRows - 1;
271 if (copyRows > 0) {
272 /**
273 * shiftRows: 从动态数据模版行(rowIndex)到最后一行，这些全部行都向下移copyRows行
274 * 相当于模版行上面插入n行空行（n=copyRows）
275 */
276 sheet.shiftRows(rowIndex, sheet.getLastRowNum(), copyRows, true, false);
277 // 拷贝策略
278 CellCopyPolicy cellCopyPolicy = makeCellCopyPolicy();
279 // 因为从模版行开始向下平移了copyRows行，所以这里 模板行=rowIndex + copyRows,
280 int templateDataRow = rowIndex + copyRows;
281 // 因为模版行上新增了空行，所以要把模板所在行的模版 拷贝到上面新增的空行
282 for (int i = 0; i < copyRows; i++) {
283 //templateDataRow-模版行数据 rowIndex + i循环的当前空行
284 sheet.copyRows(templateDataRow, templateDataRow, rowIndex + i, cellCopyPolicy);
285 }
286 }
287 // 循环模版行：动态替换模版行（将模版行里的模版替换成动态数据）
288 for (int j = rowIndex; j < rowIndex + dataRows; j++) {
289 Map<String, Object> dataMap = dynamicDataMapping.getDataList().get(j - rowIndex);
290 dealTemplateDataRow(sheet.getRow(j), dynamicDataMapping.getDataId(), dataMap);
291 }
292 return rowIndex + copyRows;
293 }
294
295 /**
296 * @param
297 * @return org.apache.poi.ss.usermodel.CellCopyPolicy
298 * @description: 拷贝策略
299 */
300 public static CellCopyPolicy makeCellCopyPolicy() {
301 CellCopyPolicy cellCopyPolicy = new CellCopyPolicy();
302 cellCopyPolicy.setCopyCellValue(true);
303 cellCopyPolicy.setCopyCellStyle(true);
304 return cellCopyPolicy;
305 }
306
307
308 }
