组件导航 (HMRouter)+flutter项目搭建-混合开发+分栏效果

news 来源：原创 2025/5/17 6:28:45

组件导航 (Navigation)+flutter项目搭建
接上一章flutter项目的环境变量配置并运行flutter

1.flutter创建项目并运行

flutter create fluter_hmrouter

进入ohos目录打开编辑器先自动签名

编译项目-生成签名包

flutter build hap --debug

运行项目

HMRouter搭建安装

1.安装oh-package.json5安装

{"dependencies": {"@hadss/hmrouter": "latest"},}

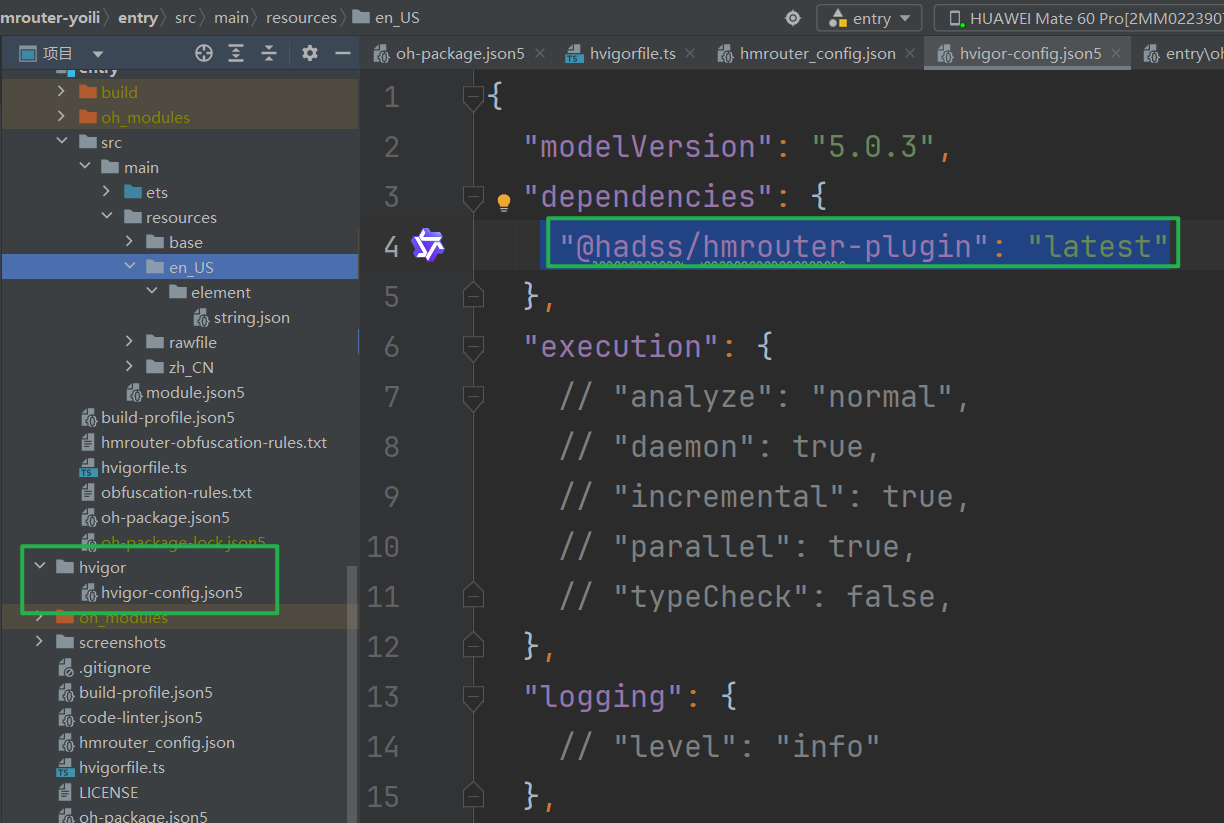

2.修改工程的hvigor/hvigor-config.json

“@hadss/hmrouter-plugin”: “latest”

在这里插入图片描述

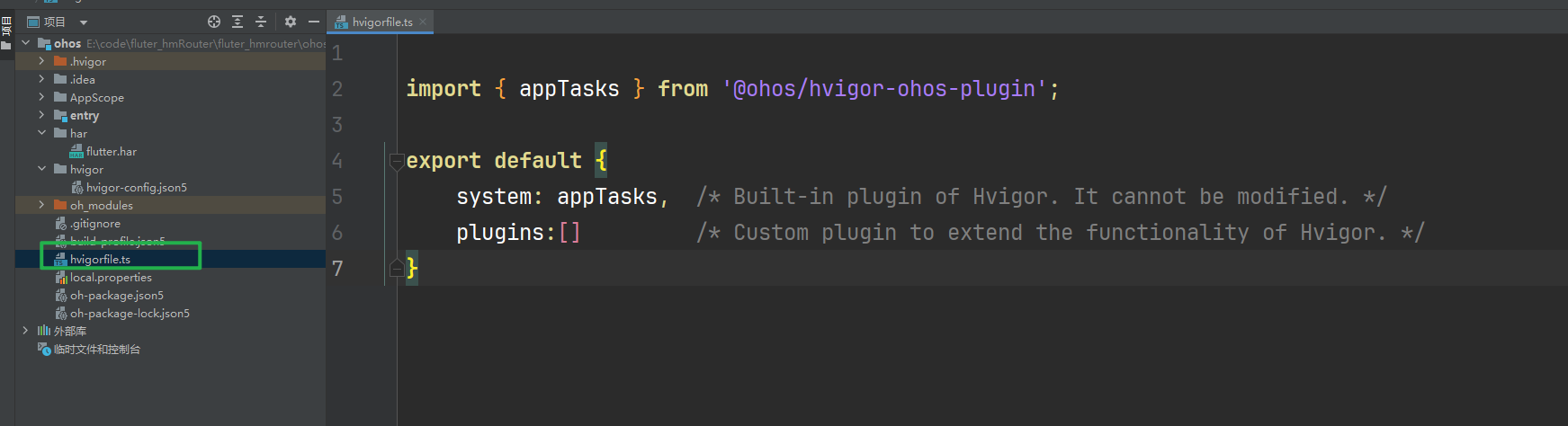

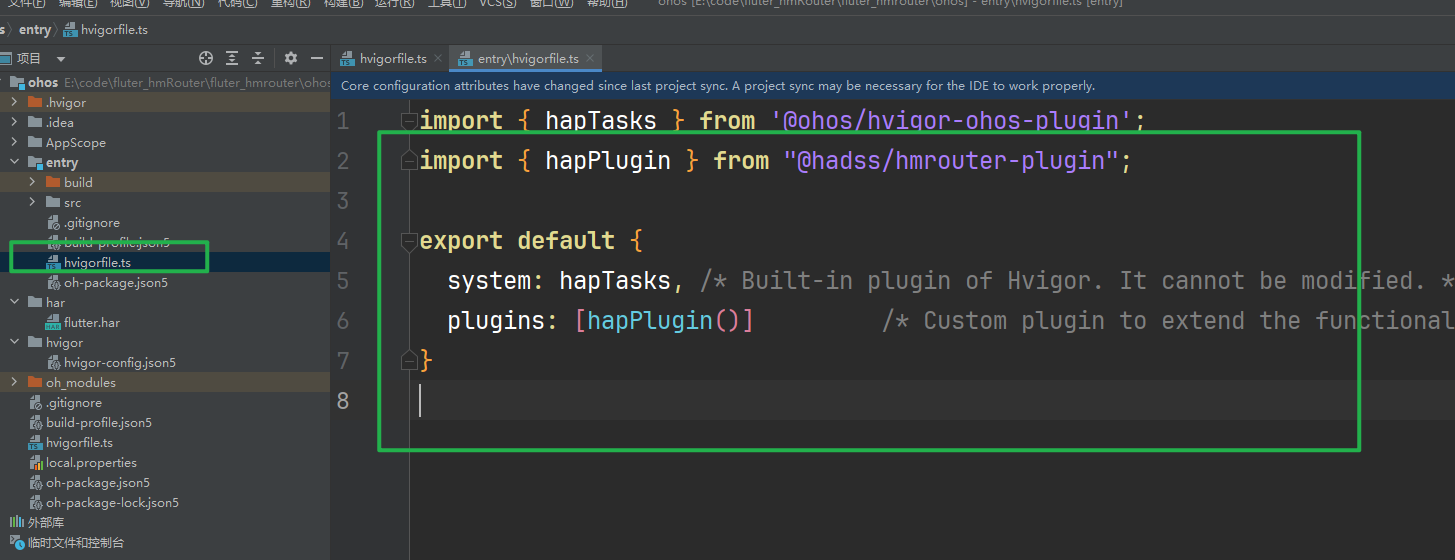

3.修改每个模块的hvigorfile.ts

在这里插入图片描述

代码如下


// ./hvigorfile.ts  工程根目录的hvigorfile.ts
import { appTasks } from '@ohos/hvigor-ohos-plugin';export default {system: appTasks,plugins:[]
}// entry/hvigorfile.ts  entry模块的hvigorfile.ts
import { hapTasks } from '@ohos/hvigor-ohos-plugin';
import { hapPlugin } from '@hadss/hmrouter-plugin';export default {system: hapTasks,plugins: [hapPlugin()] // 使用HMRouter标签的模块均需要配置，与模块类型保持一致
}// libHar/hvigorfile.ts  libHar模块的hvigorfile.ts
import { harTasks } from '@ohos/hvigor-ohos-plugin';
import { harPlugin } from '@hadss/hmrouter-plugin';export default {system: harTasks,plugins:[harPlugin()]  // 使用HMRouter标签的模块均需要配置，与模块类型保持一致
}// libHsp/hvigorfile.ts  libHsp模块的hvigorfile.ts
import { hspTasks } from '@ohos/hvigor-ohos-plugin';
import { hspPlugin } from '@hadss/hmrouter-plugin';export default {system: hspTasks,plugins: [hspPlugin()]  // 使用HMRouter标签的模块均需要配置，与模块类型保持一致
}

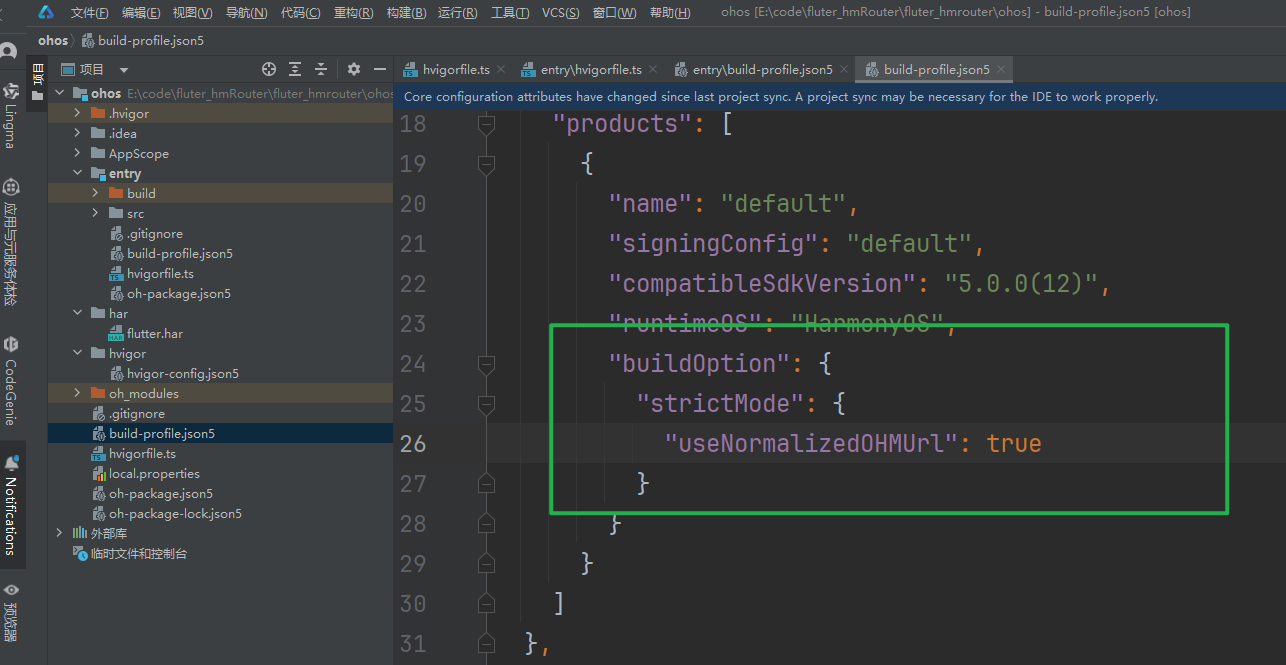

4在工程目录下的build-profile.json5中，配置useNormalizedOHMUrl属性为true

在这里插入图片描述

{"app": {"products": [{"name": "default","signingConfig": "default","compatibleSdkVersion": "5.0.0(12)","runtimeOS": "HarmonyOS","buildOption": {"strictMode": {"useNormalizedOHMUrl": true}}}],// ...其他配置}
}

5新建启动页

创建/abilitystage/MyAbilityStage.ets文件

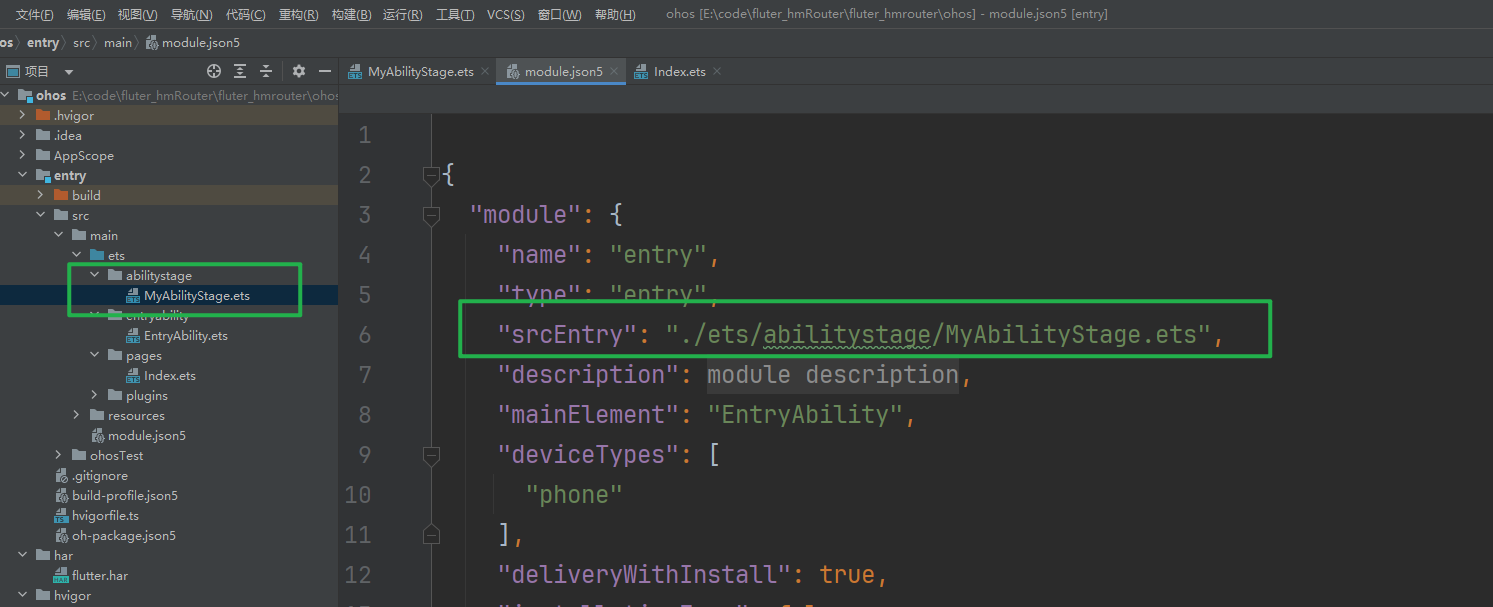

module.json5配置启动页

“srcEntry”: “./ets/abilitystage/MyAbilityStage.ets”,
在这里插入图片描述

import AbilityStage from '@ohos.app.ability.AbilityStage';
import { HMRouterMgr } from '@hadss/hmrouter';// 相当于Android的application, 在页面创建前执行一些初始化工作
export default class MyAbilityStage extends AbilityStage {onCreate(): void {console.log('[MyAbilityStage] onCreate1')HMRouterMgr.init({context: this.context})}
}

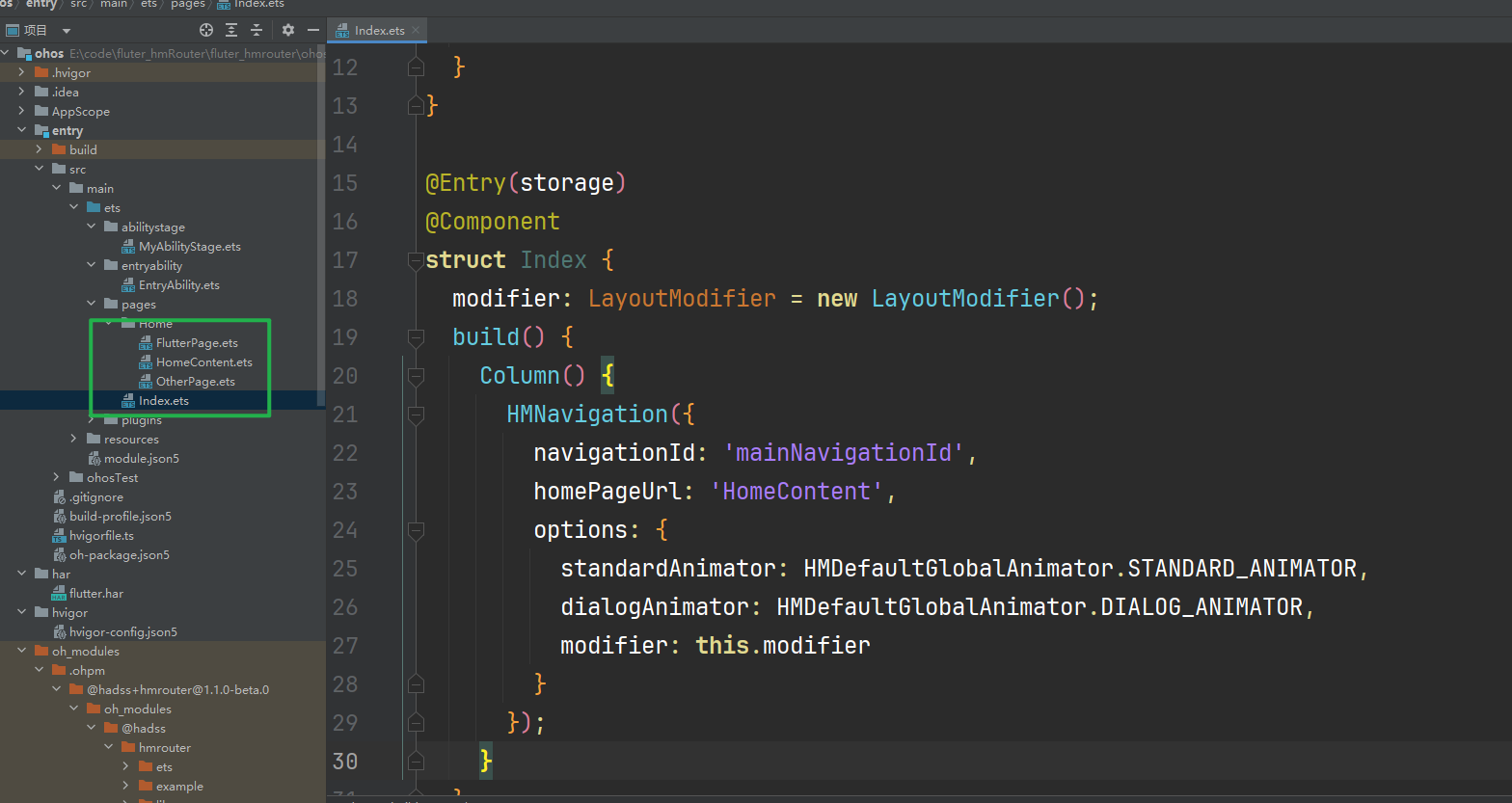

至此配置工作结束，以下是项目中使用

在这里插入图片描述
入口文件配置
Index.ets

import { HMDefaultGlobalAnimator, HMNavigation } from '@hadss/hmrouter';
import common from '@ohos.app.ability.common';import { AttributeUpdater } from '@kit.ArkUI';let storage = LocalStorage.getShared()class LayoutModifier extends AttributeUpdater<NavigationAttribute> {initializeModifier(instance: NavigationAttribute): void {instance.backgroundColor('#EFEFEF');instance.mode(NavigationMode.Auto);}
}@Entry(storage)
@Component
struct Index {modifier: LayoutModifier = new LayoutModifier();build() {Column() {HMNavigation({navigationId: 'mainNavigationId',homePageUrl: 'HomeContent',options: {standardAnimator: HMDefaultGlobalAnimator.STANDARD_ANIMATOR,dialogAnimator: HMDefaultGlobalAnimator.DIALOG_ANIMATOR,modifier: this.modifier}});}}}

FlutterPage.ets

import { HMRouter, HMRouterMgr } from "@hadss/hmrouter"
import { FlutterPage } from '@ohos/flutter_ohos'
import { common } from "@kit.AbilityKit";const EVENT_BACK_PRESS = 'EVENT_BACK_PRESS'@HMRouter({ pageUrl: 'FlutterContent', singleton: true})
@Component
export struct FlutterContent {@LocalStorageLink('viewId') viewId: string = "";private context = getContext(this) as common.UIAbilityContextonBackPress(): boolean {this.context.eventHub.emit(EVENT_BACK_PRESS)return true}build() {Column() {Text('首页')Button('点击到flutter页面').margin({top: 20}).onClick(()=>{HMRouterMgr.push({ pageUrl: 'FlutterContent' });})FlutterPage({ viewId: this.viewId })}}
}

HomeContent.ets

import { HMNavigation, HMRouter, HMRouterMgr } from "@hadss/hmrouter";
import { AttributeUpdater } from "@kit.ArkUI";class LayoutModifier extends AttributeUpdater<NavigationAttribute> {initializeModifier(instance: NavigationAttribute): void {instance.backgroundColor('#EFEFEF');instance.mode(NavigationMode.Auto);}
}@HMRouter({ pageUrl: "HomeContent", singleton: true })
@Component
export struct split {navigationId = 'NavigationLayoutNavigationId';modifier: LayoutModifier = new LayoutModifier();build() {HMNavigation({navigationId: this.navigationId,options: {modifier: this.modifier}}) {// 左边区域Button('点击跳转flutter').onClick(()=>{HMRouterMgr.push({ pageUrl: 'FlutterContent',param:{url:"https://agreement-drcn.hispace.dbankcloud.cn/index.html?lang=zh&agreementId=1655720346340328704"}});}).margin({top:20})Button('点击跳转其他页面').onClick(()=>{HMRouterMgr.push({ pageUrl: 'OtherPage'});}).margin({top:20})};}
}

OtherPage.ets

import { HMRouter, HMRouterMgr } from "@hadss/hmrouter"@HMRouter({ pageUrl: 'OtherPage', singleton: true})
@Component
export struct OtherPage {build() {Column() {Text('其他页面')}}
}

分栏效果图如下

在这里插入图片描述
