BGP实验2

news 来源：原创 2025/5/15 10:05:31

一.IP划分以及配置：

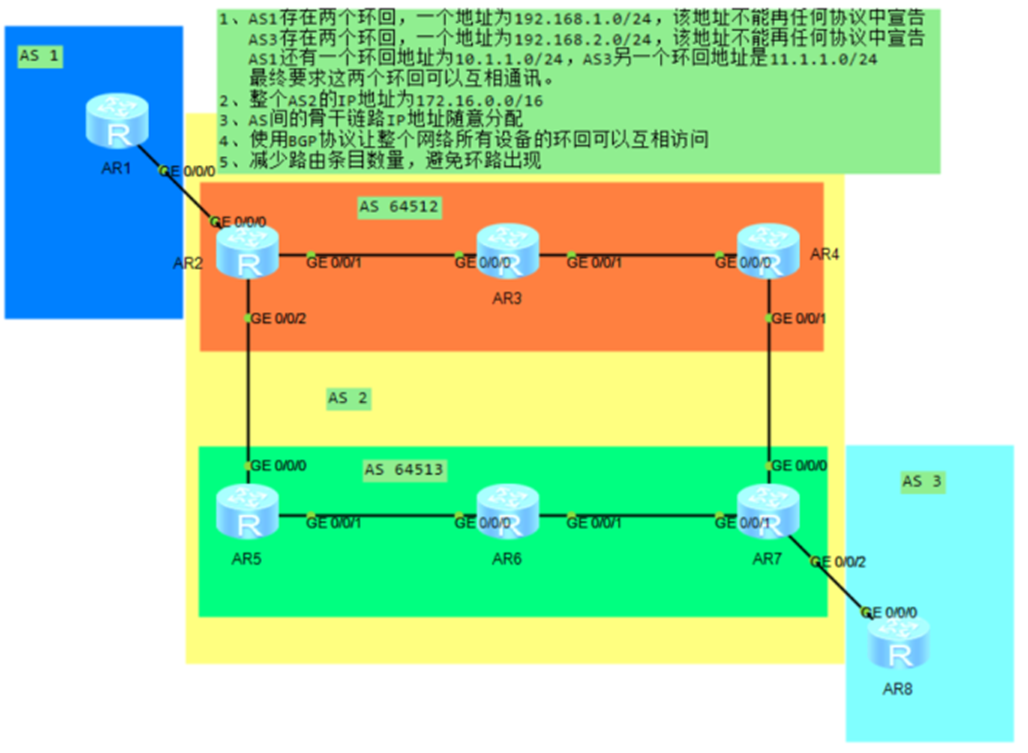

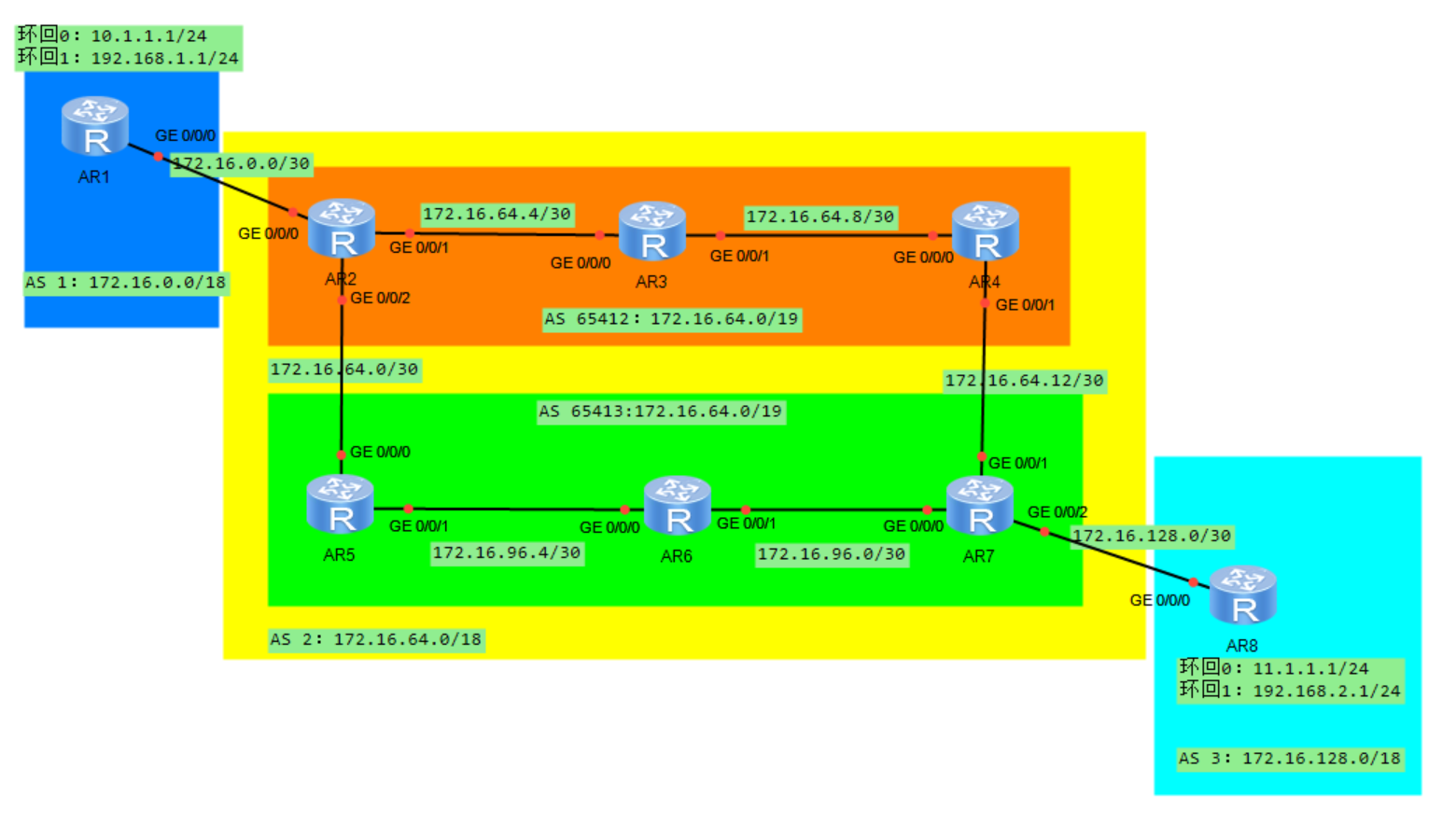

IP划分：

可以看出有三个AS大区所以先将网段一分为三然后，AS二中也有俩个私有as所以还需要再把as2的ip一分为二

as 1：172.16.0.0 18

as 2：172.16.64.0 18

as 3：172.16.128.0 18

as1：

骨干链路：172.16.0.0 30

as 2：

as 64512：172.16.64.0 19

骨干链路:172.16.64.0 30

172.16.64.4 30

172.16.64.8 30

172.16.64.12 30

as 64513：172.16.96.0 19

骨干链路:172.16.96.0 30

172.16.96.4 30

as 3：

骨干链路：172.16.128.0 30

配置：

-----R1-----

[r1]interface GigabitEthernet 0/0/0

[r1-GigabitEthernet0/0/0]ip address 172.16.0.1 30

[r1]interface LoopBack 0

[r1-LoopBack0]ip address 10.1.1.1 24

[r1]interface LoopBack 1

[r1-LoopBack1]ip address 192.168.1.1 24

-----R2-----

[r2]interface g 0/0/0

[r2-GigabitEthernet0/0/0]ip address 172.16.0.2 30

[r2]interface GigabitEthernet 0/0/1

[r2-GigabitEthernet0/0/1]ip address 172.16.64.5 30

[r2]interface GigabitEthernet 0/0/2

[r2-GigabitEthernet0/0/2]ip address 172.16.64.2 30

[r2]interface LoopBack 0
[r2-LoopBack0]ip address 2.2.2.2 24

-----R3-----

[r3]interface GigabitEthernet 0/0/0

[r3-GigabitEthernet0/0/0]ip address 172.16.64.6 30

[r3-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1

[r3-GigabitEthernet0/0/1]ip address 172.16.64.9 30

[r3]interface LoopBack 0
[r3-LoopBack0]ip address 3.3.3.3 24

-----R4-----

[r4]interface g 0/0/0

[r4-GigabitEthernet0/0/0]ip address 172.16.64.10 30

[r4-GigabitEthernet0/0/0]interface g 0/0/1
[r4-GigabitEthernet0/0/1]ip address 172.16.64.13 30

[r4]interface LoopBack 0
[r4-LoopBack0]ip address 4.4.4.4 24

-----R5-----

[r5]interface g 0/0/0
[r5-GigabitEthernet0/0/0]ip address 172.16.64.1 30

[r5-GigabitEthernet0/0/0]interface g 0/0/1
[r5-GigabitEthernet0/0/1]ip address 172.16.96.6 30

[r5]interface LoopBack 0
[r5-LoopBack0]ip address 5.5.5.5 24

-----R6-----

[r6]interface g 0/0/0
[r6-GigabitEthernet0/0/0]ip address 172.16.96.5 30

[r6-GigabitEthernet0/0/0]interface g 0/0/1
[r6-GigabitEthernet0/0/1]ip address 172.16.96.2 30

[r6]interface LoopBack 0
[r6-LoopBack0]ip address 6.6.6.6 24

-----R7-----

[r7]interface GigabitEthernet 0/0/0

[r7-GigabitEthernet0/0/0]ip address 172.16.96.1 30

[r7-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1
[r7-GigabitEthernet0/0/1]ip address 172.16.64.14 30

[r7-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[r7-GigabitEthernet0/0/2]ip address 172.16.128.1 30

[r7]interface LoopBack 0
[r7-LoopBack0]ip address 7.7.7.7 24

-----R8-----

[r8]interface g 0/0/0

[r8-GigabitEthernet0/0/0]ip address 172.16.128.2 30

[r8]interface LoopBack 0

[r8-LoopBack0]ip address 11.1.1.1 24

[r8]interface LoopBack 1

[r8-LoopBack1]ip address 192.168.2.1 24

二.使用BGP协议使所有环回都能访问

想要使用BGP协议必须要有对应的路由所以在AS2区域中我们使用ospf协议使AS2区域的设备互通，然后在AR1与AR2,AR7与AR8身上使用静态的的方式使1.1.1.1与2.2.2.2 ，7.7.7.7与8.8.8.8互通。

配置ospf:

-----AR2-----

[r2]ospf 1 router-id 2.2.2.2
[r2-ospf-1]area 0

[r2-ospf-1-area-0.0.0.0]network 172.16.0.2 0.0.0.0
[r2-ospf-1-area-0.0.0.0]network 172.16.64.5 0.0.0.0
[r2-ospf-1-area-0.0.0.0]network 172.16.64.2 0.0.0.0
[r2-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.255

-----AR3-----

[r3]ospf 1 router-id 3.3.3.3
[r3-ospf-1]area 0
[r3-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.255
[r3-ospf-1-area-0.0.0.0]network 172.16.64.6 0.0.0.0

[r3-ospf-1-area-0.0.0.0]network 172.16.64.9 0.0.0.0

-----AR4------

[r4]ospf 1 router-id 4.4.4.4
[r4-ospf-1]area 0
[r4-ospf-1-area-0.0.0.0]network 172.16.64.10 0.0.0.0

[r4-ospf-1-area-0.0.0.0]network 172.16.64.13 0.0.0.0

[r4-ospf-1-area-0.0.0.0]network 4.4.4.4 0.0.0.255

-----AR5-----

[r5]ospf 1 router-id 5.5.5.5
[r5-ospf-1]area 0
[r5-ospf-1-area-0.0.0.0]network 172.16.96.6 0.0.0.0
[r5-ospf-1-area-0.0.0.0]network 172.16.64.1 0.0.0.0

[r5-ospf-1-area-0.0.0.0]network 5.5.5.5 0.0.0.255

-----AR6-----

[r6]ospf 1 router-id 6.6.6.6
[r6-ospf-1]area 0
[r6-ospf-1-area-0.0.0.0]network 172.16.96.5 0.0.0.0

[r6-ospf-1-area-0.0.0.0]network 172.16.96.2 0.0.0.0
[r6-ospf-1-area-0.0.0.0]network 6.6.6.6 0.0.0.255

-----AR7-----

[r7]ospf 1 router-id 7.7.7.7
[r7-ospf-1]area 0
[r7-ospf-1-area-0.0.0.0]network 172.16.96.1 0.0.0.0

[r7-ospf-1-area-0.0.0.0]network 172.16.64.14 0.0.0.0

[r7-ospf-1-area-0.0.0.0]network 172.16.128.1 0.0.0.0

[r7-ospf-1-area-0.0.0.0]network 7.7.7.7 0.0.0.255

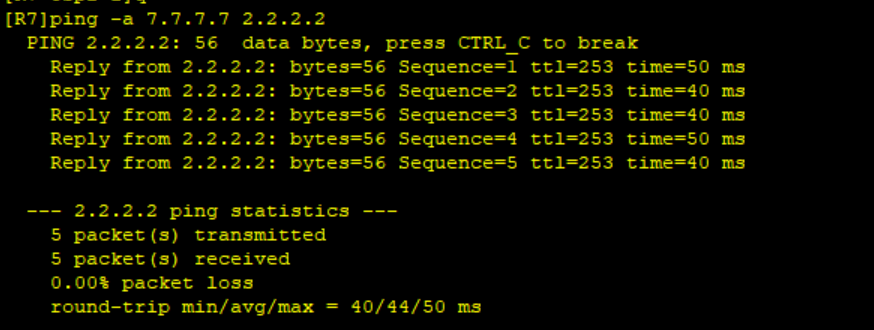

配置完成后R7可以ping通R2

BGP配置：

AR1与AR2,AR8与AR7采用直连建邻

/虽然AR2在AS64512中但也属于公共的AS2所以需要使用confederation去宣告

-----AR1-----

[r1]bgp 1

[r1-bgp]router-id 1.1.1.1
[r1-bgp]peer 172.16.0.2 as-number 2

------AR2-----

[r2]bgp 65512
[r2-bgp]router-id 2.2.2.2

[r2-bgp]confederation id 2
[r2-bgp]peer 172.16.0.1 as-number 1

------AR8-----

[r8]bgp 3
[r8-bgp]router-id 8.8.8.8
[r8-bgp]peer 172.16.128.1 as-number 2

------AR7------

[r7]bgp 65513
[r7-bgp]router-id 7.7.7.7
[r7-bgp]confederation id 2
[r7-bgp]peer 172.16.128.2 as-number 3

----- AS 64512-----

AR2:

[r2]bgp 64512
[r2-bgp]peer 3.3.3.3 as-number 64512
[r2-bgp]peer 3.3.3.3 connect-interface LoopBack 0

AS3:

[r3]bgp 64512
[r3-bgp]router-id 3.3.3.3
[r3-bgp]peer 2.2.2.2 as-number 64512
[r3-bgp]peer 2.2.2.2 connect-interface LoopBack 0
[r3-bgp]peer 2.2.2.2 next-hop-local
[r3-bgp]peer 4.4.4.4 as-number 64512
[r3-bgp]peer 4.4.4.4 connect-interface LoopBack 0
[r3-bgp]peer 4.4.4.4 next-hop-local

AS4:

[r4]bgp 64512

[r4-bgp]confederation id 2
[r4-bgp]peer 3.3.3.3 as-number 64512
[r4-bgp]peer 3.3.3.3 connect-interface LoopBack 0

----- AS 64513-----

AR5:

[r5]bgp 64513
[r5-bgp]router-id 5.5.5.5
[r5-bgp]peer 6.6.6.6 as-number 64513
[r5-bgp]peer 6.6.6.6 connect-interface LoopBack 0

[r5-bgp]confederation id 2

AR6:

[r6]bgp 64513
[r6-bgp]router-id 6.6.6.6
[r6-bgp]peer 5.5.5.5 as-number 64513
[r6-bgp]peer 5.5.5.5 connect-interface LoopBack 0
[r6-bgp]peer 5.5.5.5 next-hop-local
[r6-bgp]peer 7.7.7.7 as-number 64512
[r6-bgp]peer 7.7.7.7 connect-interface LoopBack 0
[r6-bgp]peer 7.7.7.7 next-hop-local

AR7:

[r7-bgp]router-id 7.7.7.7
[r7-bgp]peer 6.6.6.6 as-number 64513
[r7-bgp]peer 6.6.6.6 connect-interface LoopBack 0

AS64512与AS64513之间建立EBGP对等体

----- AS 64512-----

  AR2:

[r2]BGP 64512

[r2-bgp]confederation peer-as 64513
[r2-bgp]peer 5.5.5.5 as 64513
[r2-bgp]peer 5.5.5.5 connect-interface LoopBack 0
[r2-bgp]peer 5.5.5.5 ebgp-max-hop

AR4:

[r4]bgp 64512

[r4-bgp]confederation id 2

[r4-bgp]confederation peer-as 64513
[r4-bgp]peer 7.7.7.7 as-number 64513
[r4-bgp]peer 7.7.7.7 connect-interface LoopBack 0
[r4-bgp]peer 7.7.7.7 ebgp-max-hop

----- AS 64513-----

  AR5:

   [r5]BGP 64513

[r5-bgp]confederation id 2
[r5-bgp]confederation peer-as 64512
[r5-bgp]peer 2.2.2.2 as-number 64512
[r5-bgp]peer 2.2.2.2 connect-interface LoopBack 0
[r5-bgp]peer 2.2.2.2 ebgp-max-hop

   AR7：

[r7]bgp 64513
   [r7-bgp]confederation peer-as 64512
[r7-bgp]peer 4.4.4.4 as-number 64512
[r7-bgp]peer 4.4.4.4 connect-interface LoopBack 0
[r7-bgp]peer 4.4.4.4 ebgp-max-hop

宣告网段：

----- AR2-----

[r2]bgp 64512
[r2-bgp]network 172.16.0.2 30
[r2-bgp]network 172.16.64.5 30
[r2-bgp]network 172.16.64.2 30

[r2-bgp]network 2.2.2.2 24

----- AR3-----

[r3]bgp 64512
[r3-bgp]network 172.16.64.6 30
[r3-bgp]network 172.16.64.9 30
[r3-bgp]network 3.3.3.3 24

----- AR4-----

[r4]bgp 64512
[r4-bgp]network 172.16.64.10 30
[r4-bgp]network 172.16.64.13 30
[r4-bgp]network 4.4.4.4 24

----- AR5-----

[r5]bgp 64513
[r5-bgp]network 172.16.96.6 30
[r5-bgp]network 172.16.64.1 30
[r5-bgp]network 5.5.5.5 24

----- AR6-----

[r6]bgp 64513
[r6-bgp]network 172.16.96.5
[r6-bgp]network 172.16.96.5 30
[r6-bgp]network 172.16.96.2 30
[r6-bgp]network 6.6.6.6 24

----- AR7-----

[r7]bgp 64513
[r7-bgp]network 172.16.96.1 30
[r7-bgp]network 172.16.64.14 30
[r7-bgp]network 172.16.128.1 30
[r7-bgp]network 7.7.7.7 24

------ AR1-----

[r1]bgp 1

[r1-bgp]network 172.16.0.1 30
[r1-bgp]network 1.1.1.1 24

----- AR8-----

[r8]BGP 3
[r8-bgp]network 172.16.128.2 30

[r8-bgp]network 8.8.8.8 24

配置反射器：

----- AR3-----

[r3]bgp 65512
[r3-bgp]peer 4.4.4.4 reflect-client
[r3-bgp]peer 2.2.2.2 reflect-client

----- AR6-----

[r6]bgp 65513
[r6-bgp]peer 5.5.5.5 reflect-client
[r6-bgp]peer 7.7.7.7 reflect-client

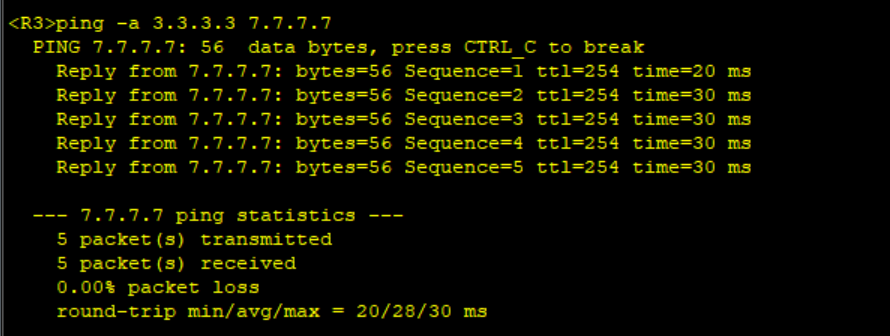

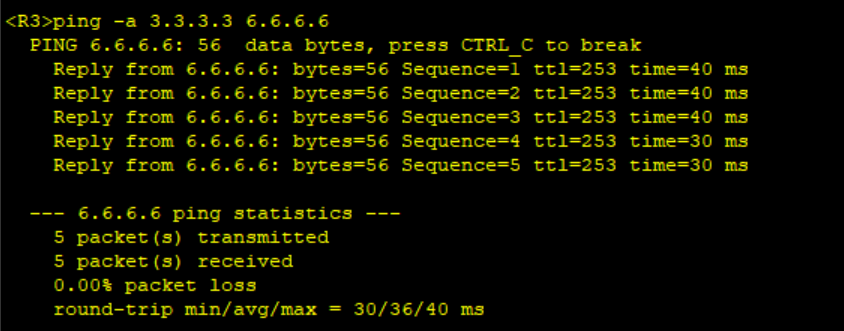

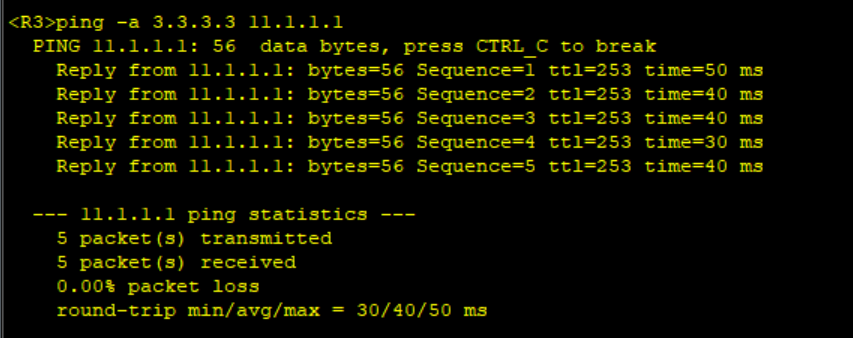

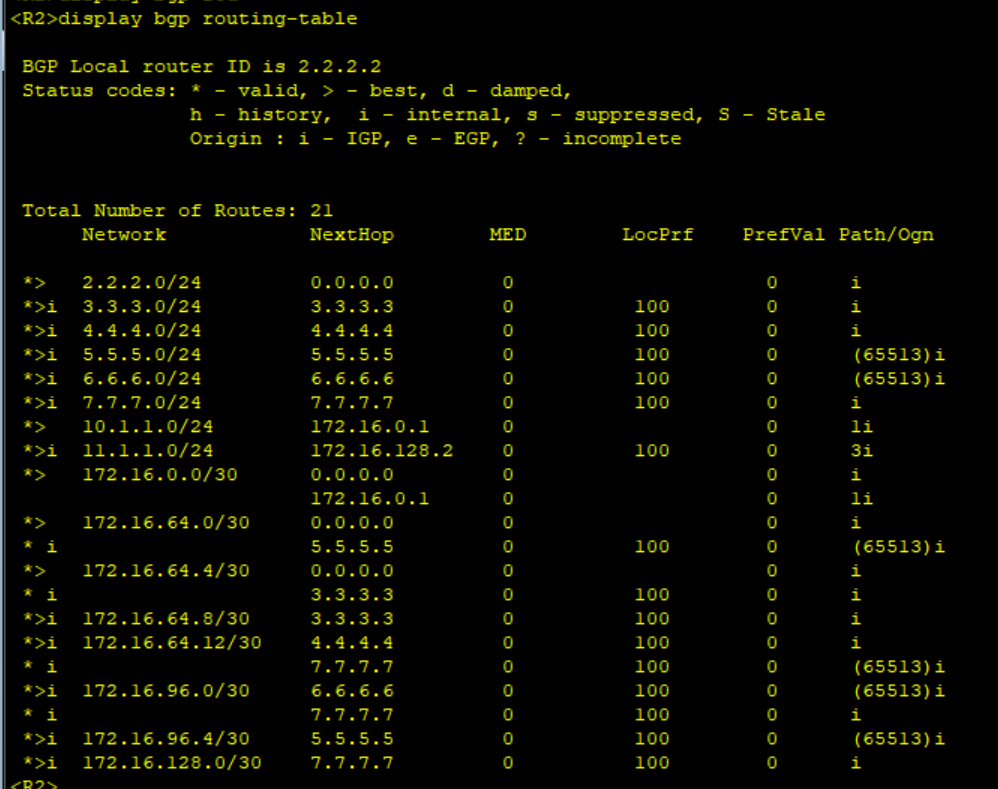

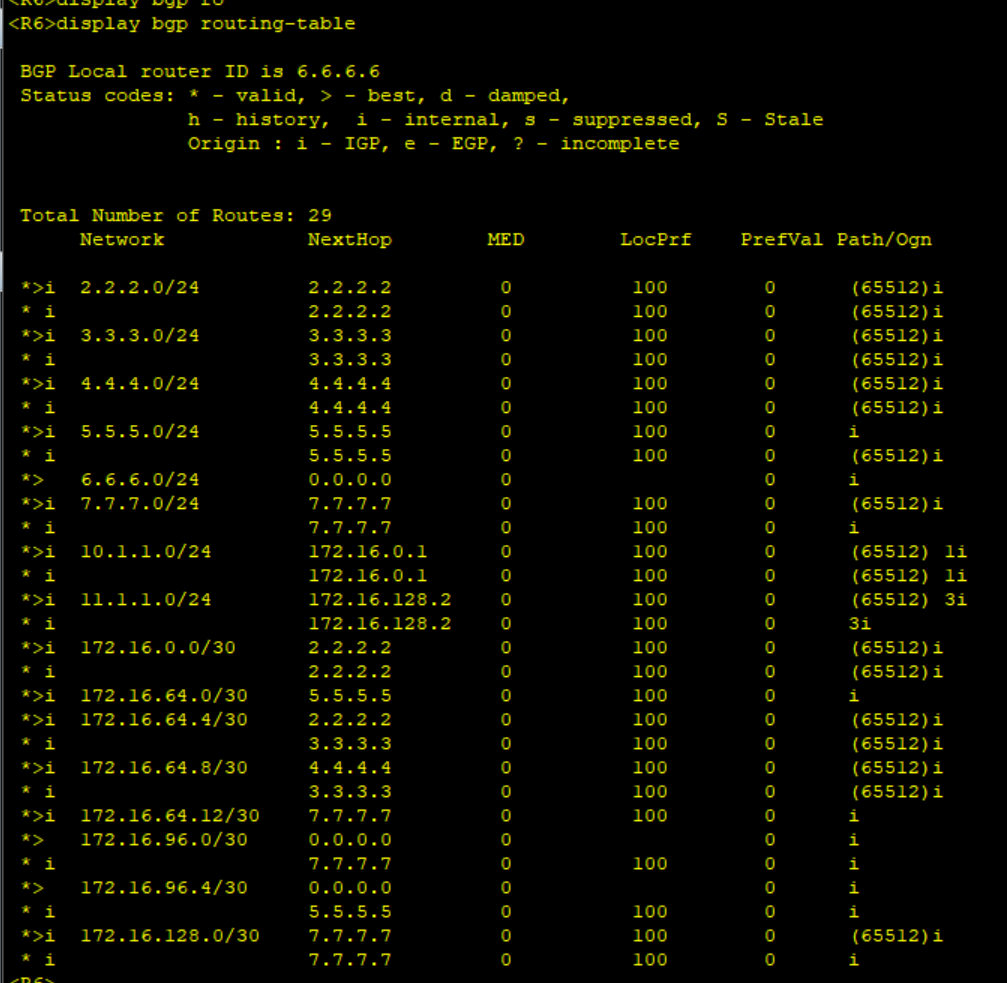

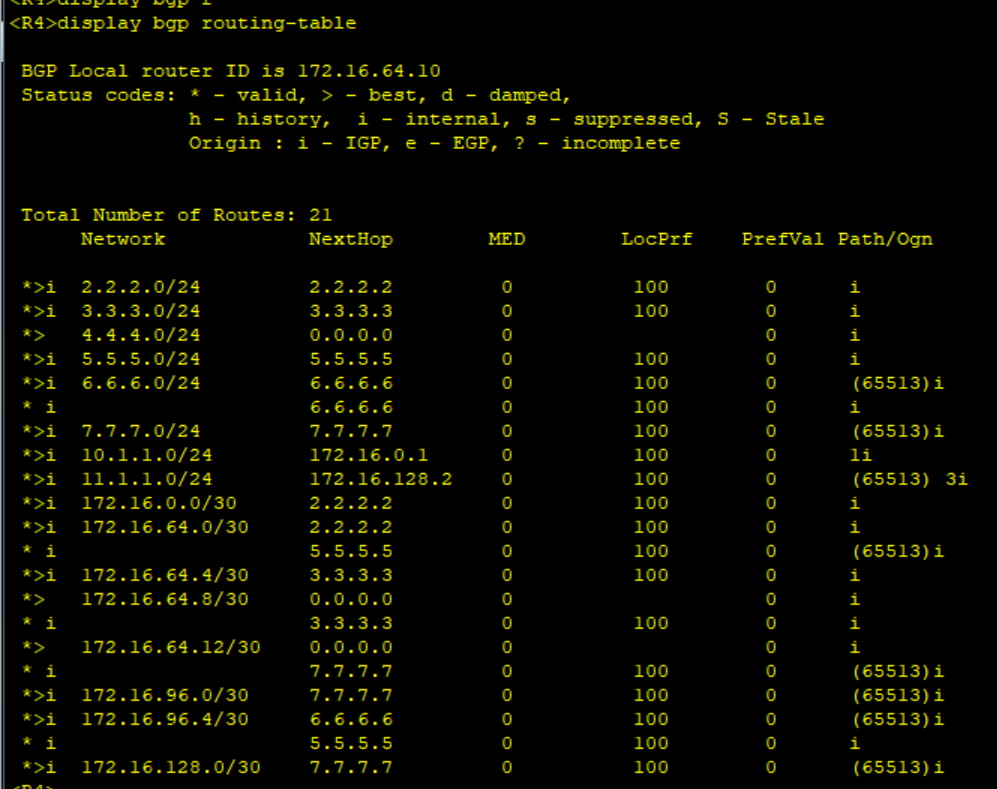

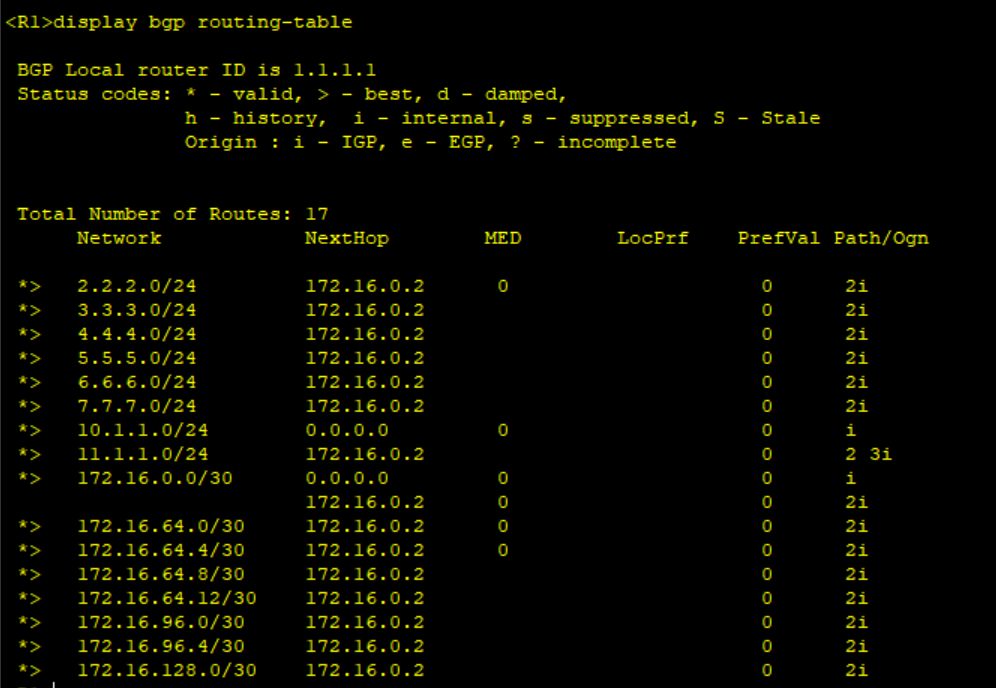

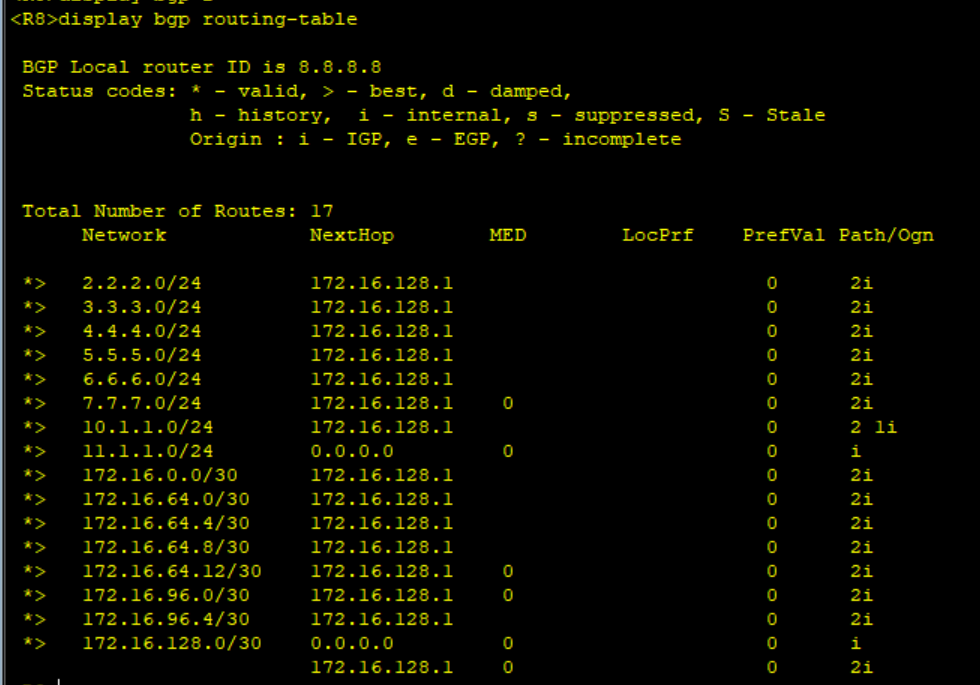

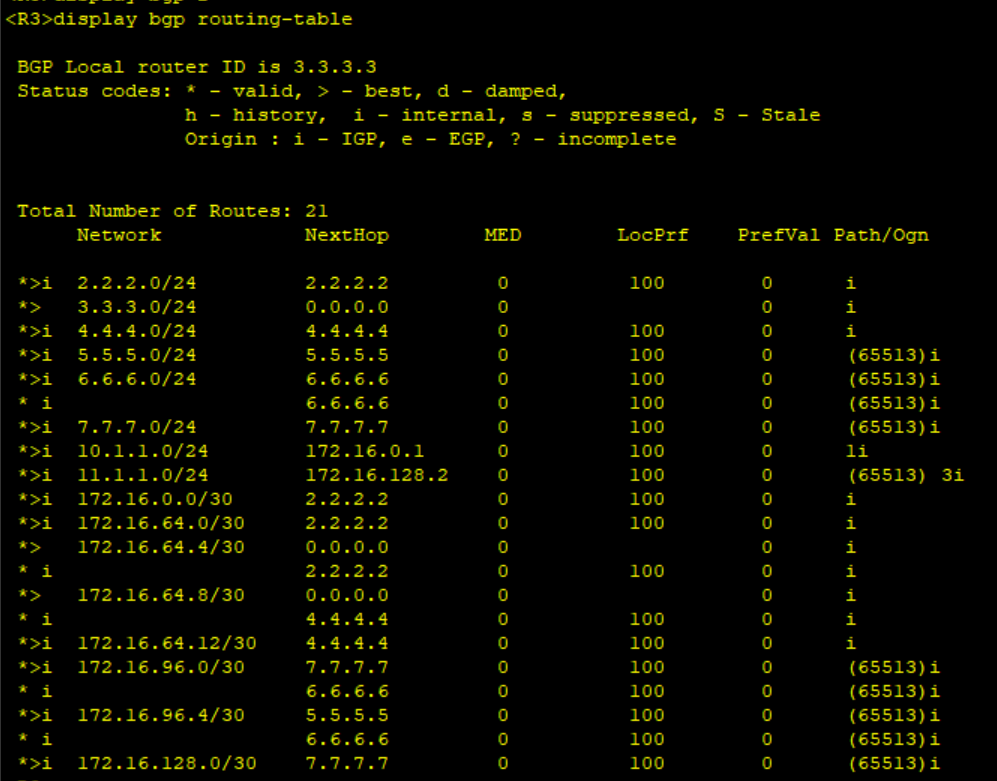

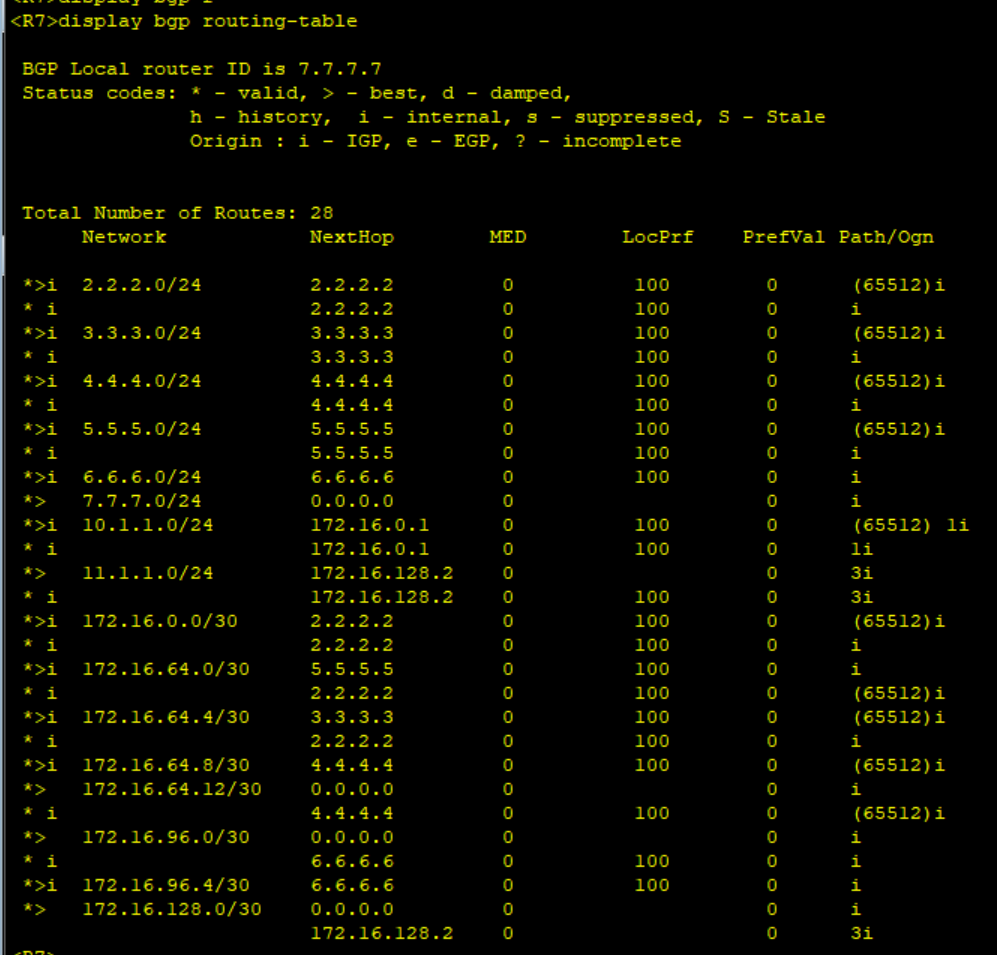

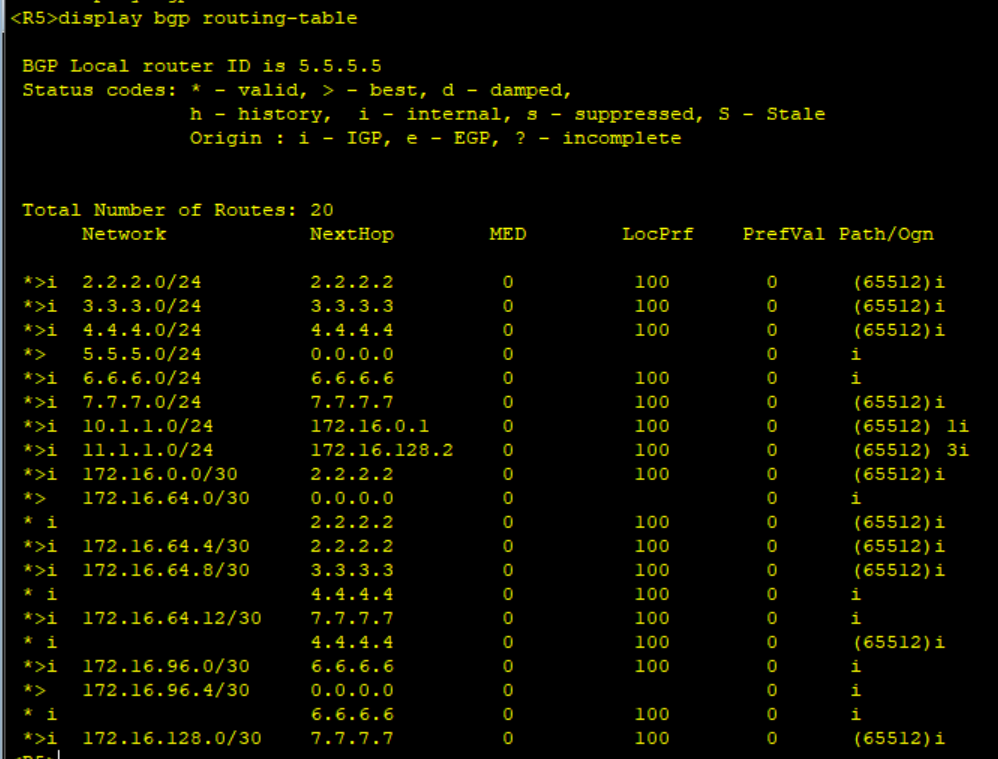

看一下路由器bgp的网段

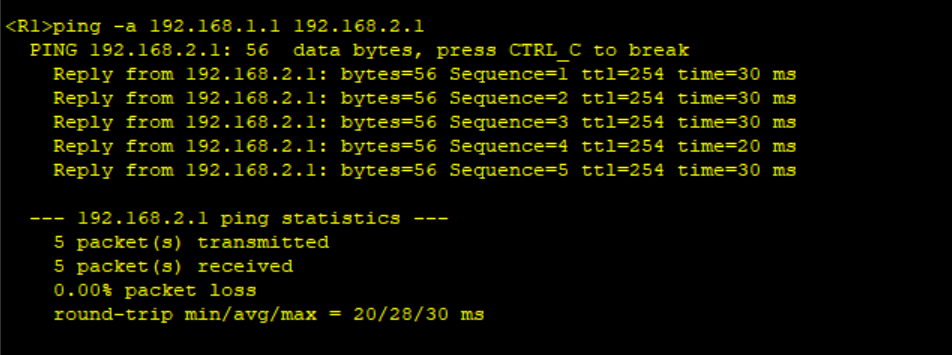

最后让192.168.1.1和192.168.2.1不能宣告的两个网段互相ping通

[r1]ip route-static 192.168.2.0 255.255.255.0 172.16.0.2

[r2]ip route-static 192.168.2.0 255.255.255.0 172.16.64.6

[r3]ip route-static 192.168.2.0 255.255.255.0 172.16.64.10

[r4]ip route-static 192.168.2.0 255.255.255.0 172.16.64.14

[r7]ip route-static 192.168.2.0 255.255.255.0 172.16.128.2

//

[r2]ip route-static 192.168.1.0 255.255.255.0 172.16.0.1

[r3]ip route-static 192.168.1.0 255.255.255.0 172.16.64.5

[r4]ip route-static 192.168.1.0 255.255.255.0 172.16.64.9

[r7]ip route-static 192.168.1.0 255.255.255.0 172.16.64.13

[r8]ip route-static 192.168.1.0 255.255.255.0 172.16.128.1
