paimon中批和流查看过去的快照的数据及变动的数据

news 来源：原创 2025/5/14 11:10:17

1、批处理

创建表并插入三条数据

CREATE TABLE ws_t (id INT,ts BIGINT,vc INT,PRIMARY KEY (id) NOT ENFORCED
);
INSERT INTO ws_t VALUES(2,2,2),(3,3,3),(4,4,4),(5,5,5);
--设置执行模式为批处理
RESET 'execution.checkpointing.interval';
SET 'execution.runtime-mode' = 'batch';
+----+----+----+
| id | ts | vc |
+----+----+----+
|  2 |  2 |  2 |
|  3 |  3 |  3 |
|  4 |  4 |  4 |
|  5 |  5 |  5 |
+----+----+----+
4 rows in set

变动两次数据让数据产生新的快照

第一次删除一条数据
delte from ws_t where id=2;
+----+----+----+
| id | ts | vc |
+----+----+----+
|  3 |  3 |  3 |
|  4 |  4 |  4 |
|  5 |  5 |  5 |
+----+----+----+
3 rows in set
----------------------------------------
第二次变更一次数据
update ws_t set ts=6 where id=3;
+----+----+----+
| id | ts | vc |
+----+----+----+
|  3 |  6 |  3 |
|  4 |  4 |  4 |
|  5 |  5 |  5 |
+----+----+----+
3 rows in set

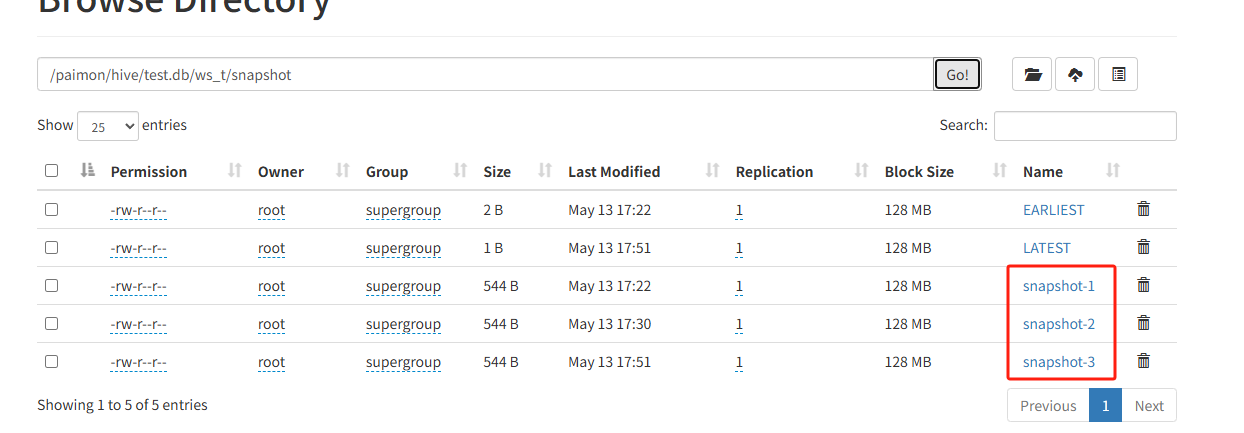

现在在hdfs上有三个快照

1.1、通过指定快照id来查询数据

SELECT * FROM ws_t /*+ OPTIONS('scan.snapshot-id' = '1') */;

1.2、读取指定时间戳的快照

SELECT * FROM ws_t$snapshots;
+-------------+-----------+--------------------------------+---------------------+-------------+-------------------------+--------------------+--------------------+------------------------+----------------------+
| snapshot_id | schema_id |                    commit_user |   commit_identifier | commit_kind |             commit_time | total_record_count | delta_record_count | changelog_record_count |            watermark |
+-------------+-----------+--------------------------------+---------------------+-------------+-------------------------+--------------------+--------------------+------------------------+----------------------+
|           1 |         0 | fdf3e8ff-d8e4-47a6-a9b2-759... | 9223372036854775807 |      APPEND | 2025-05-13 17:22:18.457 |                  4 |                  4 |                      0 | -9223372036854775808 |
|           2 |         0 | a631b852-19f4-463b-aee8-67a... | 9223372036854775807 |      APPEND | 2025-05-13 17:30:21.173 |                  5 |                  1 |                      0 | -9223372036854775808 |
|           3 |         0 | 9940bb36-7e55-40b7-90cf-cc1... | 9223372036854775807 |      APPEND | 2025-05-13 17:51:10.679 |                  6 |                  1 |                      0 | -9223372036854775808 |
+-------------+-----------+--------------------------------+---------------------+-------------+-------------------------+--------------------+--------------------+------------------------+----------------------+
需要把时间转换为数字，也可以直接去hdfs页面查询
SELECT * FROM ws_t /*+ OPTIONS('scan.timestamp-millis' = '1688369660841') */;

1.3、增量查询（查询几个快照之间的变化）

只能查询出修改的
SELECT * FROM ws_t /*+ OPTIONS('incremental-between' = '1,3') */;
+----+----+----+
| id | ts | vc |
+----+----+----+
|  3 |  6 |  3 |
+----+----+----+
1 row in setaudit_log 系统表能查询出不同快照之间删除的数据
SELECT * FROM ws_t$audit_log /*+ OPTIONS('incremental-between' = '1,2') */;
+---------+----+----+----+
| rowkind | id | ts | vc |
+---------+----+----+----+
|      -D |  2 |  2 |  2 |
+---------+----+----+----+
1 row in set

2、流式查询

先把环境修改成流式

SET 'execution.checkpointing.interval'='30s';
SET 'execution.runtime-mode' = 'streaming';

op值对应的含义

+I：插入操作。-U：使用更新行的先前内容进行更新操作。+U：使用更新行的新内容进行更新操作。-D：删除操作。

2.1从指定快照id开始读取变更数据

SELECT * FROM ws_t /*+ OPTIONS('scan.snapshot-id' = '1') */;
+----+-------------+----------------------+-------------+
| op |          id |                   ts |          vc |
+----+-------------+----------------------+-------------+
| +I |           2 |                    2 |           2 |
| +I |           3 |                    3 |           3 |
| +I |           4 |                    4 |           4 |
| +I |           5 |                    5 |           5 || -D |           2 |                    2 |           2 |
| -U |           3 |                    3 |           3 |
| +U |           3 |                    6 |           3 |

2.2、从指定时间戳开始读取

SELECT * FROM ws_t /*+ OPTIONS('scan.timestamp-millis' = '1688369660841') */;

2.3、第一次启动时读取指定快照数据，并继续读取变化

SELECT * FROM ws_t /*+ OPTIONS('scan.mode'='from-snapshot-full','scan.snapshot-id' = '2') */;
+----+-------------+----------------------+-------------+
| op |          id |                   ts |          vc |
+----+-------------+----------------------+-------------+
| +I |           3 |                    3 |           3 |
| +I |           4 |                    4 |           4 |
| +I |           5 |                    5 |           5 |
| -U |           3 |                    3 |           3 |
| +U |           3 |                    6 |           3 |
