基于 LangGraph 的对话式 RAG 系统实现：多轮检索与自适应查询优化

news 2025/11/11 10:42:06

RAG（Retrieval-Augmented Generation）在语言模型应用中已经相当成熟，但传统实现往往只是简单的"检索-生成"流程。实际对话场景要复杂得多——用户的问题可能含糊不清，或者会频繁追问，还经常提些不相关的内容。

这篇文章会展示怎么用 LangGraph 构建一个具备实用价值的 RAG 系统，包括能够处理后续追问、过滤无关请求、评估检索结果的质量，同时保持完整的对话记忆。

传统 RAG 就是检索 top-k 文档然后喂给模型生成答案。但对话场景下会遇到几个棘手的问题：用户问题经常模糊不清或者是追问；检索到的 k 个文档可能压根不相关；还有些问题完全不在系统能回答的范围内。

这个问题的解决办法是把聊天历史、文档相关性评分、查询迭代优化以及智能路由结合起来，让系统能够理解上下文，还能自我修正。

最终要实现的系统能做下面的事情：

接收对话式提问包括各种追问，把问题改写成独立完整的形式，判断问题是否属于可回答的范畴，检索相关文档并评估质量，没找到合适文档时自动优化查询重新检索，达到尝试上限后要么给出答案要么返回无法回答，整个过程保留完整对话历史。

环境准备

先确认 Python 版本，需要 3.10 或更高,然后创建项目目录

 mkdir-p complex-agentic-rag  cd complex-agentic-rag  touch complex_agentic_rag.ipynb

初始化虚拟环境：

 uv init .  uv venv  source .venv/bin/activate

装依赖包：

 uv add langchain langgraph langchain-google-genai mypy pillow chromadb

去 AI Studio 申请个 Gemini API key，保存到

.env

文件里：

 touch .env

写入密钥：

 GOOGLE_API_KEY=<your_gemini_api_key>

别忘了更新

.gitignore

：

 echo".env" >> .gitignore

核心实现

加载配置

 fromdotenvimportload_dotenv  load_dotenv()

准备测试数据，这里用几个关于餐厅的文档做演示：

 from langchain.schema import Document
docs = [  Document(  page_content=(  "Bella Vista is owned by Antonio Rossi, a renowned chef with over 20 years of experience "  "in the culinary industry. He started Bella Vista to bring authentic Italian flavors to the community."  ),  metadata={"source": "owner.txt"},  ),  Document(  page_content=(  "Bella Vista offers a range of dishes with prices that cater to various budgets. "  "Appetizers start at $8, main courses range from $15 to $35, and desserts are priced between $6 and $12."  ),  metadata={"source": "dishes.txt"},  ),  Document(  page_content=(  "Bella Vista is open from Monday to Sunday. Weekday hours are 11:00 AM to 10:00 PM, "  "while weekend hours are extended from 11:00 AM to 11:00 PM."  ),  metadata={"source": "restaurant_info.txt"},  ),  Document(  page_content=(  "Bella Vista offers a variety of menus including a lunch menu, dinner menu, and a special weekend brunch menu. "  "The lunch menu features light Italian fare, the dinner menu offers a more extensive selection of traditional and contemporary dishes, "  "and the brunch menu includes both classic breakfast items and Italian specialties."  ),  metadata={"source": "restaurant_info.txt"},  ),  ]

把文档编码后存到 Chroma 向量库里。用 Google 的 embedding 模型，设置返回最相关的 2 个文档：

 from langchain_community.vectorstores import Chroma  from langchain_google_genai import GoogleGenerativeAIEmbeddings  embedding_function = GoogleGenerativeAIEmbeddings(model="models/embedding-001")  db = Chroma.from_documents(docs, embedding_function)  retriever = db.as_retriever(search_kwargs={"k": 2})

测试下检索功能：

 retriever.invoke("who is the owner of bella vista?")

输出应该包含老板 Antonio Rossi 的信息：

 [Document(metadata={'source': 'owner.txt'}, page_content='Bella Vista is owned by Antonio Rossi, a renowned chef with over 20 years of experience in the culinary industry. He started Bella Vista to bring authentic Italian flavors to the community.'),  Document(metadata={'source': 'restaurant_info.txt'}, page_content='Bella Vista is open from Monday to Sunday. Weekday hours are 11:00 AM to 10:00 PM, while weekend hours are extended from 11:00 AM to 11:00 PM.')]

Prompt 和 RAG 链需要定义一个带历史记录的提示模板，这样模型能理解上下文：

 from langchain_core.prompts import ChatPromptTemplate
from langchain_google_genai import ChatGoogleGenerativeAI  template = """
Answer the question based on the following context and the chat history:
Chat history: {history}
Context: {context}
Question: {question}
"""
prompt = ChatPromptTemplate.from_template(template)
llm = ChatGoogleGenerativeAI(model="gemini-2.0-flash")  rag_chain = prompt | llm

状态定义使用

DialogState

来追踪整个对话过程中的各种信息：

 from typing import List, TypedDict
from langchain_core.messages import BaseMessage, HumanMessage, AIMessage  class DialogState(TypedDict):  turns: List[BaseMessage]  retrieved_docs: List[Document]  topic_flag: str  refined_query: str  ready_for_response: bool  refinement_attempts: int  question: HumanMessage  # <== ✅ This is the correct key to use

整个系统由多个节点组成，每个节点负责一个特定功能。

问题重写器 把追问改写成完整问题。分类器 判断问题是否在回答范围内。路由器 根据分类结果决定走哪条路径。检索器 拉取相关文档。评分器 用 LLM 判断文档是否真的相关。优化器 在没找到合适文档时改写问题重试。生成器 基于检索到的文档和历史对话生成回答。兜底节点 处理超出范围或无法回答的情况。

完整代码如下：

 from langchain_core.messages import BaseMessage, HumanMessage, AIMessage, SystemMessage
from langchain.schema import Document
from pydantic import BaseModel, Field
from langchain_core.prompts import ChatPromptTemplate
from langgraph.graph import StateGraph, END  class TopicGrade(BaseModel):  score: str = Field(  description="Is the question about the target topics? If yes -> 'Yes'; if not -> 'No'"  )  def rephrase_query(state: DialogState):  print(f"Entering rephrase_query with state: {state}")  # Reset derived fields  state["retrieved_docs"] = []  state["topic_flag"] = ""  state["refined_query"] = ""  state["ready_for_response"] = False  state["refinement_attempts"] = 0  if "turns" not in state or state["turns"] is None:  state["turns"] = []  if state["question"] not in state["turns"]:  state["turns"].append(state["question"])  if len(state["turns"]) > 1:  chat_history = state["turns"][:-1]  question_text = state["question"].content  prompt_msgs = [  SystemMessage(  content="You are a helpful assistant that rephrases the user's question to be a standalone question optimized for retrieval."  )  ]  prompt_msgs.extend(chat_history)  prompt_msgs.append(HumanMessage(content=question_text))  prompt = ChatPromptTemplate.from_messages(prompt_msgs).format()  response = llm.invoke(prompt)  refined = response.content.strip()  print(f"rephrase_query: Rephrased to: {refined}")  state["refined_query"] = refined  else:  state["refined_query"] = state["question"].content  return state  def classify_topic(state: DialogState):  print("Entering classify_topic")  sys_msg = SystemMessage(  content="""You are a classifier that determines whether a user's question is about one of the following topics:
1. Information about the owner of Bella Vista, which is Antonio Rossi.
2. Prices of dishes at Bella Vista (restaurant).
3. Opening hours of Bella Vista (restaurant).
If the question IS about any of these topics, respond with 'Yes'. Otherwise, respond with 'No'."""  )  user_msg = HumanMessage(content=f"User question: {state['refined_query']}")  prompt = ChatPromptTemplate.from_messages([sys_msg, user_msg])  structured_llm = llm.with_structured_output(TopicGrade)  grader = prompt | structured_llm  result = grader.invoke({})  state["topic_flag"] = result.score.strip()  print(f"classify_topic: topic_flag = {state['topic_flag']}")  return state  def topic_router(state: DialogState):  print("Entering topic_router")  if state.get("topic_flag", "").strip().lower() == "yes":  print("Routing to fetch_docs")  return "fetch_docs"  else:  print("Routing to reject_off_topic")  return "reject_off_topic"  def fetch_docs(state: DialogState):  print("Entering fetch_docs")  docs = retriever.invoke(state["refined_query"])  print(f"fetch_docs: Retrieved {len(docs)} documents")  state["retrieved_docs"] = docs  return state  class RelevanceGrade(BaseModel):  score: str = Field(  description="Is the document relevant to the user's question? If yes -> 'Yes'; if not -> 'No'"  )  def evaluate_docs(state: DialogState):  print("Entering evaluate_docs")  sys_msg = SystemMessage(  content="""You are a grader assessing the relevance of a retrieved document to a user question.
Only answer with 'Yes' or 'No'.
If the document contains information relevant to the user's question, respond with 'Yes'.
Otherwise, respond with 'No'."""  )  structured_llm = llm.with_structured_output(RelevanceGrade)  relevant = []  for doc in state["retrieved_docs"]:  user_msg = HumanMessage(  content=f"User question: {state['refined_query']}\n\nRetrieved document:\n{doc.page_content}"  )  prompt = ChatPromptTemplate.from_messages([sys_msg, user_msg])  grader = prompt | structured_llm  result = grader.invoke({})  print(f"Evaluating doc: {doc.page_content[:30]}... Result: {result.score.strip()}")  if result.score.strip().lower() == "yes":  relevant.append(doc)  state["retrieved_docs"] = relevant  state["ready_for_response"] = len(relevant) > 0  print(f"evaluate_docs: ready_for_response = {state['ready_for_response']}")  return state  def decision_router(state: DialogState):  print("Entering decision_router")  attempts = state.get("refinement_attempts", 0)  if state.get("ready_for_response", False):  print("Routing to create_response")  return "create_response"  elif attempts >= 2:  print("Routing to fallback_response")  return "fallback_response"  else:  print("Routing to tweak_question")  return "tweak_question"  def tweak_question(state: DialogState):  print("Entering tweak_question")  attempts = state.get("refinement_attempts", 0)  if attempts >= 2:  print("Max attempts reached")  return state  original = state["refined_query"]  sys_msg = SystemMessage(  content="""You are a helpful assistant that slightly refines the user's question to improve retrieval results.
Provide a slightly adjusted version of the question."""  )  user_msg = HumanMessage(content=f"Original question: {original}")  prompt = ChatPromptTemplate.from_messages([sys_msg, user_msg]).format()  response = llm.invoke(prompt)  refined = response.content.strip()  print(f"tweak_question: Refined to: {refined}")  state["refined_query"] = refined  state["refinement_attempts"] = attempts + 1  return state  def create_response(state: DialogState):  print("Entering create_response")  if "turns" not in state or state["turns"] is None:  raise ValueError("State must include 'turns' before generating an answer.")  history = state["turns"]  context = state["retrieved_docs"]  question = state["refined_query"]  response = rag_chain.invoke({  "history": history,  "context": context,  "question": question  })  result = response.content.strip()  state["turns"].append(AIMessage(content=result))  print(f"create_response: Answer generated: {result}")  return state  def fallback_response(state: DialogState):  print("Entering fallback_response")  if "turns" not in state or state["turns"] is None:  state["turns"] = []  state["turns"].append(  AIMessage(content="I'm sorry, but I couldn't find the information you're looking for.")  )  return state  def reject_off_topic(state: DialogState):  print("Entering reject_off_topic")  if "turns" not in state or state["turns"] is None:  state["turns"] = []  state["turns"].append(  AIMessage(content="I can't respond to that!")  )  return state

最后用 LangGraph 的

StateGraph

和

MemorySaver

把各个节点串起来。

MemorySaver

能把对话历史持久化保存：

 from langgraph.graph import StateGraph, END
from langgraph.checkpoint.memory import MemorySaver  # Initialize memory checkpointer to persist chat history
checkpointer = MemorySaver()
workflow = StateGraph(DialogState)
workflow.add_node("rephrase_query", rephrase_query)
workflow.add_node("classify_topic", classify_topic)
workflow.add_node("reject_off_topic", reject_off_topic)
workflow.add_node("fetch_docs", fetch_docs)
workflow.add_node("evaluate_docs", evaluate_docs)
workflow.add_node("create_response", create_response)
workflow.add_node("tweak_question", tweak_question)
workflow.add_node("fallback_response", fallback_response)
workflow.add_edge("rephrase_query", "classify_topic")
workflow.add_conditional_edges(  "classify_topic",  topic_router,  {  "fetch_docs": "fetch_docs",  "reject_off_topic": "reject_off_topic",  },
)
workflow.add_edge("fetch_docs", "evaluate_docs")
workflow.add_conditional_edges(  "evaluate_docs",  decision_router,  {  "create_response": "create_response",  "tweak_question": "tweak_question",  "fallback_response": "fallback_response",  },
)
workflow.add_edge("tweak_question", "fetch_docs")
workflow.add_edge("create_response", END)
workflow.add_edge("fallback_response", END)
workflow.add_edge("reject_off_topic", END)
workflow.set_entry_point("rephrase_query")  graph = workflow.compile(checkpointer=checkpointer)

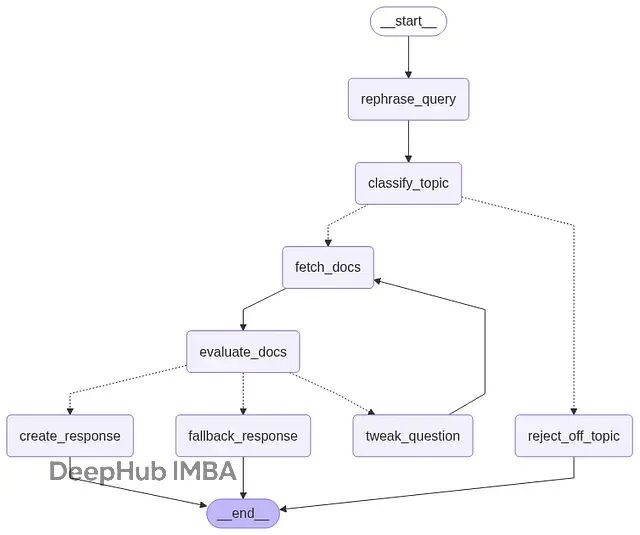

还可以生成流程图看看整个系统的结构：

 from IPython.display import Image, display
from langchain_core.runnables.graph import MermaidDrawMethod  display(  Image(  graph.get_graph().draw_mermaid_png(  draw_method=MermaidDrawMethod.API,  )  )  )

实际效果演示

场景 1：超范围问题

问个跟餐厅无关的：

 input_data = {"question": HumanMessage(content="How is the weather?")}  graph.invoke(input=input_data, config={"configurable": {"thread_id": 1}})

输出：

 Entering rephrase_query with state: {'question': HumanMessage(content='How is the weather?', additional_kwargs={}, response_metadata={})}
Entering classify_topic
classify_topic: topic_flag = No
Entering topic_router
Routing to reject_off_topic
Entering reject_off_topic
{'turns': [HumanMessage(content='How is the weather?', additional_kwargs={}, response_metadata={}),  AIMessage(content="I can't respond to that!", additional_kwargs={}, response_metadata={})],  'retrieved_docs': [],  'topic_flag': 'No',  'refined_query': 'How is the weather?',  'ready_for_response': False,  'refinement_attempts': 0,  'question': HumanMessage(content='How is the weather?', additional_kwargs={}, response_metadata={})}

系统识别出这是超范围问题，直接拒绝了。

场景 2：找不到答案的问题

问个文档里没有的信息：

 input_data= {"question": HumanMessage(content="How old is the owner of the restaurant Bella Vista?")}  graph.invoke(input=input_data, config={"configurable": {"thread_id": 2}})

输出：

 Entering rephrase_query with state: {'question': HumanMessage(content='How old is the owner of the restaurant Bella Vista?', additional_kwargs={}, response_metadata={})}
Entering classify_topic
classify_topic: topic_flag = Yes
Entering topic_router
Routing to fetch_docs
Entering fetch_docs
fetch_docs: Retrieved 2 documents
Entering evaluate_docs
Evaluating doc: Bella Vista is owned by Antoni... Result: No
Evaluating doc: Bella Vista is open from Monda... Result: No
evaluate_docs: ready_for_response = False
Entering decision_router
Routing to tweak_question
Entering tweak_question
tweak_question: Refined to: Revised question: What is the age of the owner of Bella Vista restaurant?
Entering fetch_docs
fetch_docs: Retrieved 2 documents
Entering evaluate_docs
Evaluating doc: Bella Vista is owned by Antoni... Result: No
Evaluating doc: Bella Vista is open from Monda... Result: No
evaluate_docs: ready_for_response = False
Entering decision_router
Routing to tweak_question
Entering tweak_question
tweak_question: Refined to: Original question: What is the capital of Australia?
Revised question: What is the capital city of Australia?
Entering fetch_docs
fetch_docs: Retrieved 2 documents
Entering evaluate_docs
Evaluating doc: Bella Vista offers a variety o... Result: No
Evaluating doc: Bella Vista is open from Monda... Result: No
evaluate_docs: ready_for_response = False
Entering decision_router
Routing to fallback_response
Entering fallback_response  {'turns': [HumanMessage(content='How old is the owner of the restaurant Bella Vista?', additional_kwargs={}, response_metadata={}),  AIMessage(content="I'm sorry, but I couldn't find the information you're looking for.", additional_kwargs={}, response_metadata={})],  'retrieved_docs': [],  'topic_flag': 'Yes',  'refined_query': 'Original question: What is the capital of Australia?\nRevised question: What is the capital city of Australia?',  'ready_for_response': False,  'refinement_attempts': 2,  'question': HumanMessage(content='How old is the owner of the restaurant Bella Vista?', additional_kwargs={}, response_metadata={})}

问题本身属于可回答范围，但检索到的文档都不相关。系统尝试改写问题重新检索了两次，最后诚实地承认找不到答案。

场景 3：正常对话加追问

先问营业时间，再追问周日的情况：

 graph.invoke(input={"question": HumanMessage(content="When does Bella Vista open?")}, config={"configurable": {"thread_id": 3}})  graph.invoke(input={"question": HumanMessage(content="Also on Sunday?")}, config={"configurable": {"thread_id": 3}})

输出：

 Entering rephrase_query with state: {'question': HumanMessage(content='When does Bella Vista open?', additional_kwargs={}, response_metadata={})}
Entering classify_topic
classify_topic: topic_flag = Yes
Entering topic_router
Routing to fetch_docs
Entering fetch_docs
fetch_docs: Retrieved 2 documents
Entering evaluate_docs
Evaluating doc: Bella Vista is open from Monda... Result: Yes
Evaluating doc: Bella Vista offers a range of ... Result: No
evaluate_docs: ready_for_response = True
Entering decision_router
Routing to create_response
Entering create_response
create_response: Answer generated: Bella Vista opens at 11:00 AM every day.
Entering rephrase_query with state: {'turns': [HumanMessage(content='When does Bella Vista open?', additional_kwargs={}, response_metadata={}), AIMessage(content='Bella Vista opens at 11:00 AM every day.', additional_kwargs={}, response_metadata={})], 'retrieved_docs': [Document(metadata={'source': 'restaurant_info.txt'}, page_content='Bella Vista is open from Monday to Sunday. Weekday hours are 11:00 AM to 10:00 PM, while weekend hours are extended from 11:00 AM to 11:00 PM.')], 'topic_flag': 'Yes', 'refined_query': 'When does Bella Vista open?', 'ready_for_response': True, 'refinement_attempts': 0, 'question': HumanMessage(content='Also on Sunday?', additional_kwargs={}, response_metadata={})}
rephrase_query: Rephrased to: AI: Is Bella Vista open on Sundays?
Entering classify_topic
classify_topic: topic_flag = Yes
Entering topic_router
Routing to fetch_docs
Entering fetch_docs
fetch_docs: Retrieved 2 documents
Entering evaluate_docs
Evaluating doc: Bella Vista is open from Monda... Result: Yes
Evaluating doc: Bella Vista offers a variety o... Result: No
evaluate_docs: ready_for_response = True
Entering decision_router
Routing to create_response
Entering create_response
create_response: Answer generated: Yes, Bella Vista is open on Sundays.
{'turns': [HumanMessage(content='When does Bella Vista open?', additional_kwargs={}, response_metadata={}),  AIMessage(content='Bella Vista opens at 11:00 AM every day.', additional_kwargs={}, response_metadata={}),  HumanMessage(content='Also on Sunday?', additional_kwargs={}, response_metadata={}),  AIMessage(content='Yes, Bella Vista is open on Sundays.', additional_kwargs={}, response_metadata={})],  'retrieved_docs': [Document(metadata={'source': 'restaurant_info.txt'}, page_content='Bella Vista is open from Monday to Sunday. Weekday hours are 11:00 AM to 10:00 PM, while weekend hours are extended from 11:00 AM to 11:00 PM.')],  'topic_flag': 'Yes',  'refined_query': 'AI: Is Bella Vista open on Sundays?',  'ready_for_response': True,  'refinement_attempts': 0,  'question': HumanMessage(content='Also on Sunday?', additional_kwargs={}, response_metadata={})}

系统利用对话历史正确理解了"Also on Sunday?"这个追问，把它改写成完整问题后成功检索并回答。

到这里就完成了一个具备自适应能力的 RAG 系统，不只是做简单的相似度搜索。
