上海域格ASR平台cat1模块GPS功能介绍及测试

主推模块型号和功能介绍

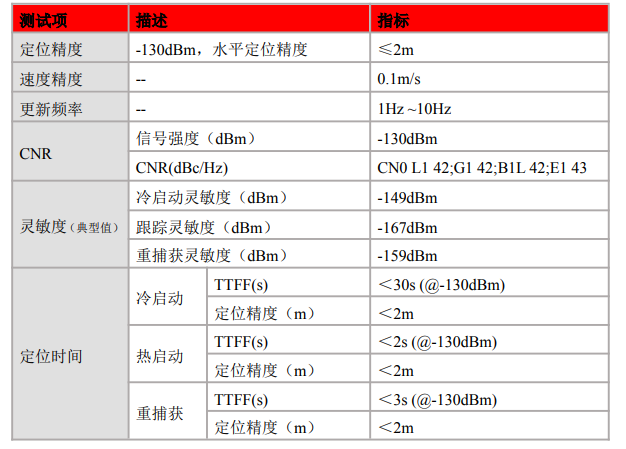

域格YM310 A09 ASR cat1模块内置多星座高精度定位，支持 GPS、GLONASS、BDS、Galileo，QZSS，可多系统联合定位。可通过 AT 指令关闭与打开 GNSS 功能，具体见域格 AT 指令集。

模块小尺寸，高性能，超低功耗的 LTE Cat.1 bis + GNSS 定位二合一
无线通信模组。模组支持 LTE-FDD 和 LTE-TDD 网络数据连接通信协议，支持 LTE 3GPP
R13 Cat1，最高 10Mbps 下载速率和 5Mbps 上传速率。支持 WiFi SCAN 功能。
YM310 A09 设计为片式模组，采用 LCC+LGA 贴片封装，共有 109 个引脚。模组尺
寸只有 (17.7±0.1)mm*(15.8±0.1)mm*(2.3±0.15)mm。YM310 A09 小身材，大应用，其和主
流的 GSM 和NBIOT 模组尺寸相同，能满足几乎所有 M2M 应用需求。

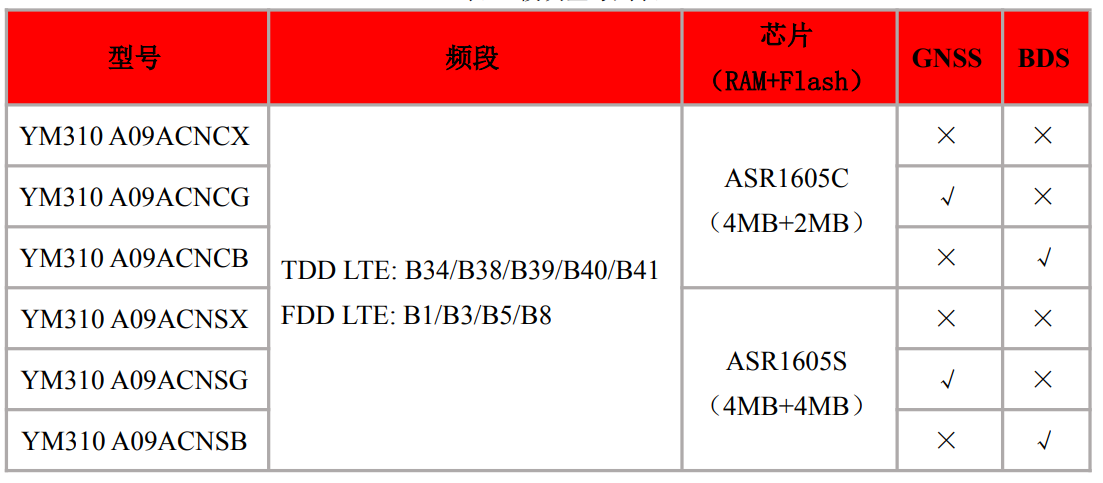

我们还在支持单北斗的模组。

开发板GPS功能操作

我们EVB开发板可测试GPS，板子接USB可供电，GPS天线板子已做处理有源和无源天线都可支持，windows系统调试安装模块驱动发AT可直接打开GPS。

GPS 信息获取

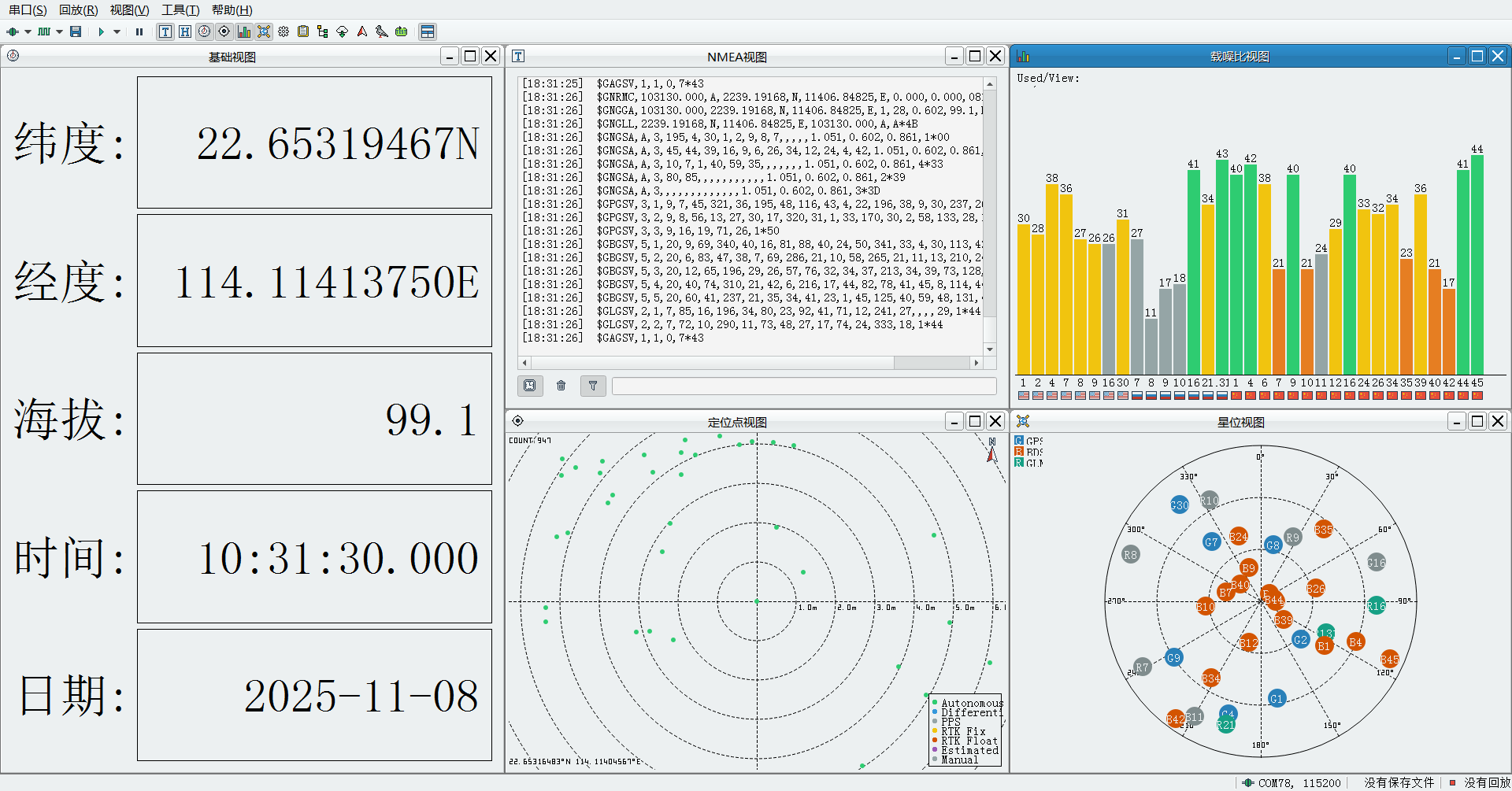

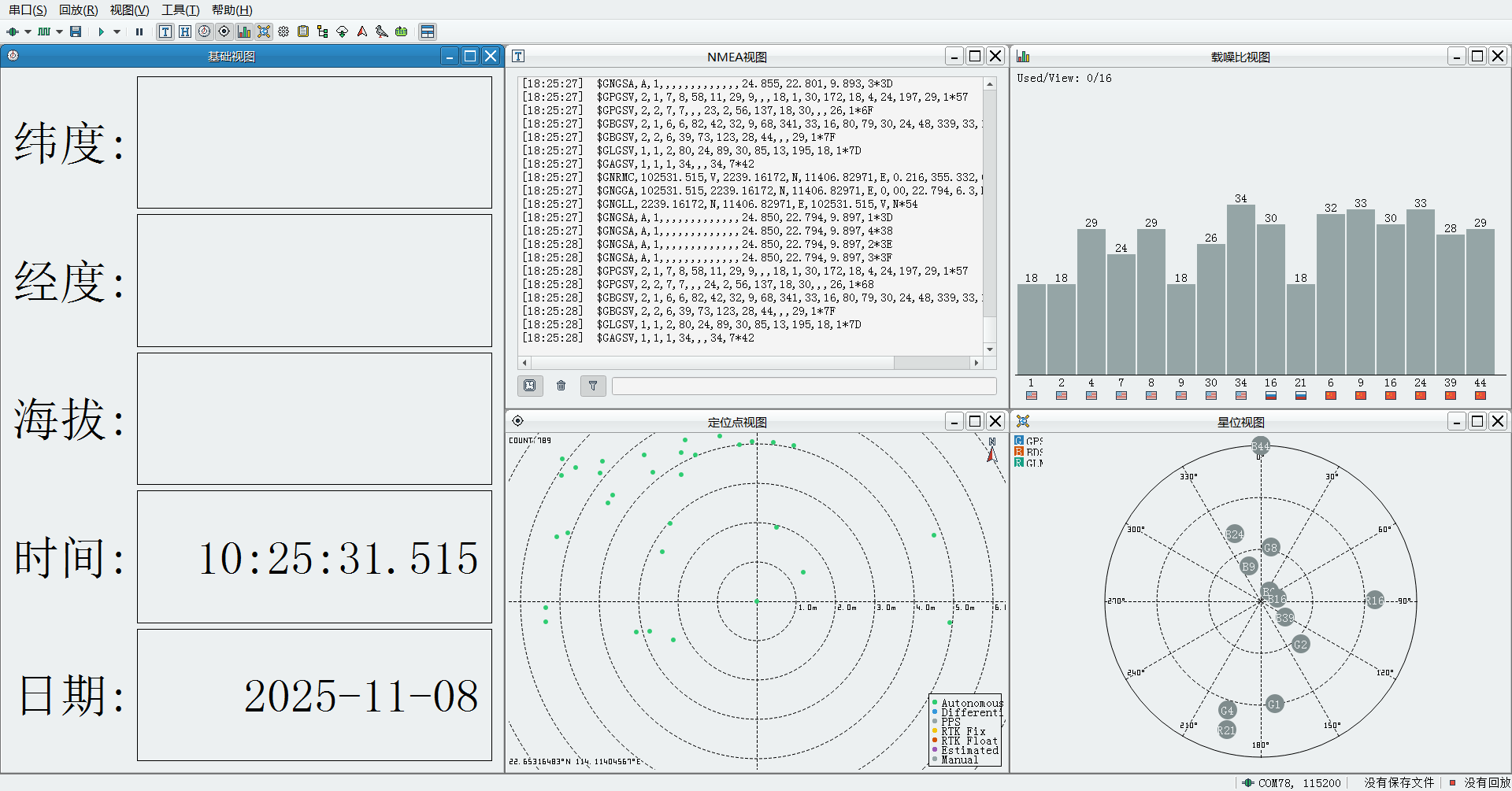

模块开机 20S 后可通过 AT+CGPS=1 开启 GPS 功能，环境和天线正常的情况下，冷启动一般 45S 左右可成功获取定位信息。GPS 定位信息可通过 GPS 标准数据流或AT 命令获取。
GPS 标准数据流默认从 modem 口上报， 可以通过 AT+CGPSPORT 设置 GPS 标准数据流的上报端口。
AT+CGPSPORT=1 //modem 口上报 GPS 信息
AT+CGPSPORT=2 //AT 口上报 GPS 信息
AT+CGPSPORT=3 // UART 口上报 GPS 信息

如需要快速定位可以发AT+CGPS=4 下载星历快速定位，指令需要网络才能下载星历快速定位，如在无网络情况下发送跟AT+CGPS=1效果一样。

快速定位测试实例：
[14:51:38.456]发→◇at^sysinfo
□
[14:51:38.459]收←◆at^sysinfo
^SYSINFO: 2,2,0,9,1

OK

[14:51:51.326]发→◇AT+CGPS=4
□
[14:51:51.328]收←◆AT+CGPS=4
OK

[14:51:51.426]收←◆
CC1161W
PN N/A
SN N/A
HWVer N/A
FWVer N1000 R3.0.2.100Build9644
Copyright ©, ICOE(Shanghai) Technologies Co.,Ltd.
All rights reserved.

[14:51:51.978]收←◆
+AGNSS: 0

[14:51:52.424]收←◆$GNRMC,V,0000.00000,N,00000.00000,E,0.000,0.000,000000,N,V0C
$GNGGA,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,6D
$GNGLL,0000.00000,N,00000.00000,E,V,N41
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,1,1,2,3,35,4,43,150
$GBGSV,1,1,0,146
$GLGSV,1,1,0,148
$GAGSV,1,1,0,7*43

[14:51:53.426]收←◆$GNRMC,V,0000.00000,N,00000.00000,E,0.000,0.000,000000,N,V0C
$GNGGA,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,6D
$GNGLL,0000.00000,N,00000.00000,E,V,N41
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,1,1,2,3,35,4,43,150
$GBGSV,1,1,1,9,41,17B
$GLGSV,1,1,2,41,37,14B
$GAGSV,1,1,0,7*43

[14:51:54.427]收←◆$GNRMC,V,0000.00000,N,00000.00000,E,0.000,0.000,000000,N,V0C
$GNGGA,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,6D
$GNGLL,0000.00000,N,00000.00000,E,V,N41
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,1,1,2,3,35,4,43,150
$GBGSV,1,1,2,9,41,29,39,179
$GLGSV,1,1,4,40,37,40,40,14C
$GAGSV,1,1,0,7*43

[14:51:55.427]收←◆$GNRMC,V,0000.00000,N,00000.00000,E,0.000,0.000,000000,N,V0C
$GNGGA,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,6D
$GNGLL,0000.00000,N,00000.00000,E,V,N41
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,1,1,2,3,36,4,43,153
$GBGSV,1,1,2,9,41,29,39,179
$GLGSV,1,1,4,40,37,40,40,14C
$GAGSV,1,1,1,3,44,7*71

[14:51:56.427]收←◆$GNRMC,V,0000.00000,N,00000.00000,E,0.000,0.000,000000,N,V0C
$GNGGA,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,6D
$GNGLL,0000.00000,N,00000.00000,E,V,N41
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,1,1,2,3,36,4,43,153
$GBGSV,1,1,2,9,41,29,39,179
$GLGSV,1,1,4,40,36,39,40,143
$GAGSV,1,1,2,8,45,3,44,7*4B

[14:51:57.427]收←◆$GNRMC,V,0000.00000,N,00000.00000,E,0.000,0.000,000000,N,V0C
$GNGGA,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,6D
$GNGLL,0000.00000,N,00000.00000,E,V,N41
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,1,1,3,3,36,4,43,8,33,16A
$GBGSV,1,1,2,9,41,29,39,179
$GLGSV,1,1,4,40,36,39,40,143
$GAGSV,1,1,2,8,45,3,44,7*4B

[14:51:58.428]收←◆$GNRMC,065202.306,V,0000.00000,N,00000.00000,E,0.000,0.000,081125,N,V1B
$GNGGA,065202.306,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,75
$GNGLL,0000.00000,N,00000.00000,E,065202.306,V,N59
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,1,1,4,3,36,4,43,8,33,16,29,161
$GBGSV,1,1,2,9,41,29,39,179
$GLGSV,1,1,4,39,36,39,40,14D
$GAGSV,1,1,2,8,45,3,44,7*4B

[14:51:59.429]收←◆$GNRMC,065203.306,V,0000.00000,N,00000.00000,E,0.000,0.000,081125,N,V1A
$GNGGA,065203.306,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,74
$GNGLL,0000.00000,N,00000.00000,E,065203.306,V,N58
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,2,1,6,3,36,4,43,8,33,16,29,160
$GPGSV,2,2,6,28,27,27,32,159
$GBGSV,1,1,2,9,41,29,39,179
$GLGSV,1,1,4,39,36,38,40,14C
$GAGSV,1,1,2,8,45,3,44,74B

[14:52:00.428]收←◆$GNRMC,065204.306,V,0000.00000,N,00000.00000,E,0.000,0.000,081125,N,V1D
$GNGGA,065204.306,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,73
$GNGLL,0000.00000,N,00000.00000,E,065204.306,V,N5F
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,2,1,7,3,36,4,43,8,33,16,29,161
$GPGSV,2,2,7,28,27,27,32,194,33,164
$GBGSV,1,1,2,9,41,29,39,179
$GLGSV,1,1,4,39,36,38,40,14C
$GAGSV,1,1,2,8,45,3,44,74B

[14:52:01.425]收←◆$EPHABNORMAL,150
$GNRMC,065205.306,V,0000.00000,N,00000.00000,E,0.000,0.000,081125,N,V1C
$GNGGA,065205.306,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,72
$GNGLL,0000.00000,N,00000.00000,E,065205.306,V,N5E
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,2,1,7,3,36,4,43,8,33,16,29,161
$GPGSV,2,2,7,28,27,27,32,194,33,164
$GBGSV,1,1,2,9,41,29,39,179
$GLGSV,1,1,4,39,36,38,40,14C
$GAGSV,1,1,2,8,45,3,44,7*4B

[14:52:02.429]收←◆$GNRMC,065206.306,V,0000.00000,N,00000.00000,E,0.000,0.000,081125,N,V1F
$GNGGA,065206.306,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,71
$GNGLL,0000.00000,N,00000.00000,E,065206.306,V,N5D
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,2,1,7,3,36,4,43,8,33,16,29,161
$GPGSV,2,2,7,28,28,27,32,194,33,16B
$GBGSV,1,1,3,9,41,29,39,1,38,142
$GLGSV,2,1,5,39,36,38,40,14E
$GLGSV,2,2,5,33,14D
$GAGSV,1,1,2,8,45,3,44,7*4B

[14:52:03.429]收←◆$GNRMC,065207.306,V,0000.00000,N,00000.00000,E,0.000,0.000,081125,N,V1E
$GNGGA,065207.306,0000.00000,N,00000.00000,E,0,00,0.000,0.0,M,0.0,M,70
$GNGLL,0000.00000,N,00000.00000,E,065207.306,V,N5C
$GNGSA,A,1,0.000,0.000,0.000,133
$GNGSA,A,1,0.000,0.000,0.000,436
$GNGSA,A,1,0.000,0.000,0.000,230
$GNGSA,A,1,0.000,0.000,0.000,331
$GPGSV,2,1,7,3,36,4,43,8,33,16,29,161
$GPGSV,2,2,7,28,28,27,33,194,33,16A
$GBGSV,2,1,5,9,41,29,39,1,38,4,35,175
$GBGSV,2,2,5,6,34,172
$GLGSV,2,1,5,39,36,37,40,141
$GLGSV,2,2,5,33,14D
$GAGSV,1,1,2,8,45,3,44,74B

[14:52:04.484]收←◆$GNRMC,065208.263,A,2239.19612,N,11406.84313,E,0.000,0.000,081125,A,S06
$GNGGA,065208.263,2239.19612,N,11406.84313,E,1,21,0.647,106.3,M,-2.0,M,59
$GNGLL,2239.19612,N,11406.84313,E,065208.263,A,A41
$GNGSA,A,3,4,8,3,27,16,28,31,32,1.697,0.647,1.568,103
$GNGSA,A,3,9,6,10,29,16,21,39,4,38,1,26,13,1.697,0.647,1.568,431
$GNGSA,A,3,35,1.697,0.647,1.568,434
$GNGSA,A,3,1.697,0.647,1.568,234
$GNGSA,A,3,1.697,0.647,1.568,335
$GPGSV,3,1,9,3,26,266,37,4,33,321,44,8,15,198,34,16,65,290,30,16D
$GPGSV,3,2,9,28,31,73,29,27,40,178,34,194,34,31,47,39,25,154
$GPGSV,3,3,9,32,19,144,30,166
$GBGSV,4,1,13,9,45,328,42,29,26,88,40,1,46,124,39,4,31,113,36,173
$GBGSV,4,2,13,6,52,353,35,10,37,194,23,13,29,218,25,21,59,252,34,140
$GBGSV,4,3,13,26,37,297,31,35,25,154,26,38,18,193,26,39,53,20,23,14A
$GBGSV,4,4,13,16,52,3,30,144
$GLGSV,2,1,5,40,36,38,41,141
$GLGSV,2,2,5,34,14A
$GAGSV,1,1,2,8,46,3,45,749

[14:52:06.239]收←◆$GNRMC,065210.000,A,2239.19612,N,11406.84313,E,0.000,0.000,081125,A,S08
$GNGGA,065210.000,2239.19612,N,11406.84313,E,1,25,0.560,106.3,M,-2.0,M,55
$GNGLL,2239.19612,N,11406.84313,E,065210.000,A,A4F
$GNGSA,A,3,4,27,8,3,16,28,31,1.316,0.560,1.190,10B
$GNGSA,A,3,9,29,39,6,21,16,1,22,26,10,40,4,1.316,0.560,1.190,435
$GNGSA,A,3,38,13,35,1.316,0.560,1.190,434
$GNGSA,A,3,81,69,70,1.316,0.560,1.190,23C
$GNGSA,A,3,1.316,0.560,1.190,33C
$GPGSV,3,1,9,3,26,266,37,4,33,321,44,8,15,198,34,16,65,290,30,16D
$GPGSV,3,2,9,28,31,73,29,27,40,178,34,194,34,31,47,39,25,154
$GPGSV,3,3,9,32,19,144,30,166
$GBGSV,4,1,16,9,45,328,42,29,26,88,40,1,46,124,39,4,31,113,36,176
$GBGSV,4,2,16,6,52,353,34,10,37,194,24,13,29,218,25,40,47,164,23,14B
$GBGSV,4,3,16,21,59,252,34,26,37,297,31,35,25,154,27,36,11,60,24,144
$GBGSV,4,4,16,38,18,193,26,39,53,20,23,22,33,177,26,16,52,3,31,147
$GLGSV,2,1,5,40,70,31,323,36,69,68,205,38,81,16,84,41,142
$GLGSV,2,2,5,34,14A
$GAGSV,1,1,2,8,46,3,45,749

[14:52:07.239]收←◆$GNRMC,065211.000,A,2239.19612,N,11406.84313,E,0.000,0.000,081125,A,S09
$GNGGA,065211.000,2239.19612,N,11406.84313,E,1,25,0.560,106.3,M,-2.0,M,54
$GNGLL,2239.19612,N,11406.84313,E,065211.000,A,A4E
$GNGSA,A,3,4,3,8,27,28,16,31,1.316,0.560,1.190,10B
$GNGSA,A,3,29,9,21,6,26,16,22,10,13,1,39,38,1.316,0.560,1.190,40C
$GNGSA,A,3,40,4,35,1.316,0.560,1.190,40D
$GNGSA,A,3,81,70,69,1.316,0.560,1.190,23C
$GNGSA,A,3,1.316,0.560,1.190,33C
$GPGSV,3,1,9,3,26,266,37,4,33,321,44,8,15,198,34,16,65,290,30,16D
$GPGSV,3,2,9,28,31,73,29,27,40,178,34,194,34,31,47,39,25,154
$GPGSV,3,3,9,32,19,144,30,166
$GBGSV,5,1,17,9,45,328,42,29,26,88,40,1,46,124,39,4,31,113,36,176
$GBGSV,5,2,17,6,52,353,34,10,37,194,24,13,29,218,25,40,47,164,23,14B
$GBGSV,5,3,17,21,59,252,34,26,37,297,31,35,25,154,27,36,11,60,23,143
$GBGSV,5,4,17,38,18,193,26,39,53,20,23,22,33,177,26,45,45,21,24,173
$GBGSV,5,5,17,16,52,3,31,141
$GLGSV,2,1,5,40,70,31,323,36,69,68,205,38,81,16,84,41,142
$GLGSV,2,2,5,34,14A
$GAGSV,1,1,2,8,46,3,45,7*49

[14:52:08.237]收←◆$GNRMC,065212.000,A,2239.19697,N,11406.84405,E,0.000,0.000,081125,A,S07
$GNGGA,065212.000,2239.19697,N,11406.84405,E,1,27,0.522,100.2,M,-2.0,M,59
$GNGLL,2239.19697,N,11406.84405,E,065212.000,A,A40
$GNGSA,A,3,4,27,16,3,8,28,31,1.241,0.522,1.126,103
$GNGSA,A,3,9,21,29,6,16,22,26,13,10,4,45,1,1.241,0.522,1.126,430
$GNGSA,A,3,35,39,40,38,42,1.241,0.522,1.126,436
$GNGSA,A,3,81,69,70,1.241,0.522,1.126,234
$GNGSA,A,3,1.241,0.522,1.126,334
$GPGSV,3,1,9,3,26,266,37,4,33,321,44,8,15,198,34,16,65,290,30,16D
$GPGSV,3,2,9,28,31,73,29,27,40,178,34,194,34,31,47,39,25,154
$GPGSV,3,3,9,32,19,144,30,166
$GBGSV,5,1,18,9,45,328,42,29,26,88,40,1,46,124,39,4,31,113,37,178
$GBGSV,5,2,18,6,52,353,34,10,37,194,25,13,29,218,25,40,47,164,24,142
$GBGSV,5,3,18,21,59,252,34,42,26,311,22,26,37,297,32,35,25,154,27,17C
$GBGSV,5,4,18,36,11,60,23,38,18,193,26,39,53,20,23,22,33,177,26,17B
$GBGSV,5,5,18,45,45,21,24,16,52,3,31,14B
$GLGSV,2,1,5,40,70,31,323,36,69,68,205,37,81,16,84,41,14D
$GLGSV,2,2,5,34,14A
$GAGSV,1,1,2,8,46,3,45,7*49

[14:52:09.239]收←◆$GNRMC,065213.000,A,2239.19697,N,11406.84405,E,0.000,0.000,081125,A,S06
$GNGGA,065213.000,2239.19697,N,11406.84405,E,1,27,0.520,100.2,M,-2.0,M,5A
$GNGLL,2239.19697,N,11406.84405,E,065213.000,A,A41
$GNGSA,A,3,4,8,3,27,28,16,31,32,1.236,0.520,1.121,107
$GNGSA,A,3,9,29,6,21,22,13,39,40,45,16,26,38,1.236,0.520,1.121,434
$GNGSA,A,3,1,42,10,4,1.236,0.520,1.121,434
$GNGSA,A,3,70,81,69,1.236,0.520,1.121,231
$GNGSA,A,3,1.236,0.520,1.121,331
$GPGSV,3,1,9,3,26,265,37,4,33,321,44,8,15,198,34,16,65,290,30,16E
$GPGSV,3,2,9,28,31,73,29,27,40,178,33,194,34,31,47,39,25,153
$GPGSV,3,3,9,32,19,144,30,166
$GBGSV,5,1,18,9,45,328,42,29,26,88,40,1,46,124,39,4,31,113,37,178
$GBGSV,5,2,18,6,52,353,34,10,37,194,25,13,29,218,25,40,47,164,24,142
$GBGSV,5,3,18,21,59,252,34,42,26,311,22,26,37,297,32,35,25,154,27,17C
$GBGSV,5,4,18,36,11,60,23,38,18,193,26,39,53,20,23,22,33,177,27,17A
$GBGSV,5,5,18,45,45,21,24,16,52,3,31,14B
$GLGSV,2,1,5,40,70,31,323,36,69,68,205,37,81,16,84,41,14D
$GLGSV,2,2,5,34,14A
$GAGSV,1,1,2,8,46,3,45,7*49

如何看GPS CN值

在GPS系统中，CN值是衡量接收机性能的重要指标之一。它表示接收机接收到的卫星信号的载波功率与噪声功率的比值。CN值越高，表示信号质量越好，接收机的定位精度和可靠性也越高。

这个用了专门测试GPS的工具，工具需要接模组串口才有数据，USB口不识别。

载噪比视图就是GPS天线信号，一般GPS定位需要4颗卫星，同时需要载噪比信号至少要到35以上才能正常定位，此图信号差没定位上。

信号达到35以上时成功定位上，GPS定位需要室外空旷地方定位你叫快，如在室外空旷地方定位时间比较长，可能是天线信号不行，建议用GPS专用天线。

GPS有源天线测试效果

信号值40以上的越多信号越好，定位就越快。

域格YM310 A09小封装ASR平台超低功耗支持GPS+北斗辅助定位模组

原厂支持调试
