基于 Flask + APScheduler + MySQL 的自动报表系统设计

news 2025/10/31 13:29:37

背景

在日常运维与自动化任务中，定时生成并发送报表是非常常见的场景。比如每天早上汇总前一日任务执行情况、日志统计、业务指标、错误趋势等内容，再通过邮件推送给相关负责人。
本文将介绍一个基于 Flask、Flask-SQLAlchemy、APScheduler、MySQL 组成的轻量级自动报表系统的核心设计原理。

一、系统目标与整体思路

系统的目标非常明确：

通过一个长期运行的 API 服务，接收外部任务上报的数据，并在每天固定时间自动生成邮件报表。

这意味着系统需要同时具备：

持续运行的 HTTP 服务（用于数据接收）
定时任务调度能力（用于报表生成与发送）
可靠的数据存储与查询机制

从架构上看，可以分为三个核心模块：

API 服务器（数据入口）
数据库层（数据持久化）
定时调度器（报表生成与发送）

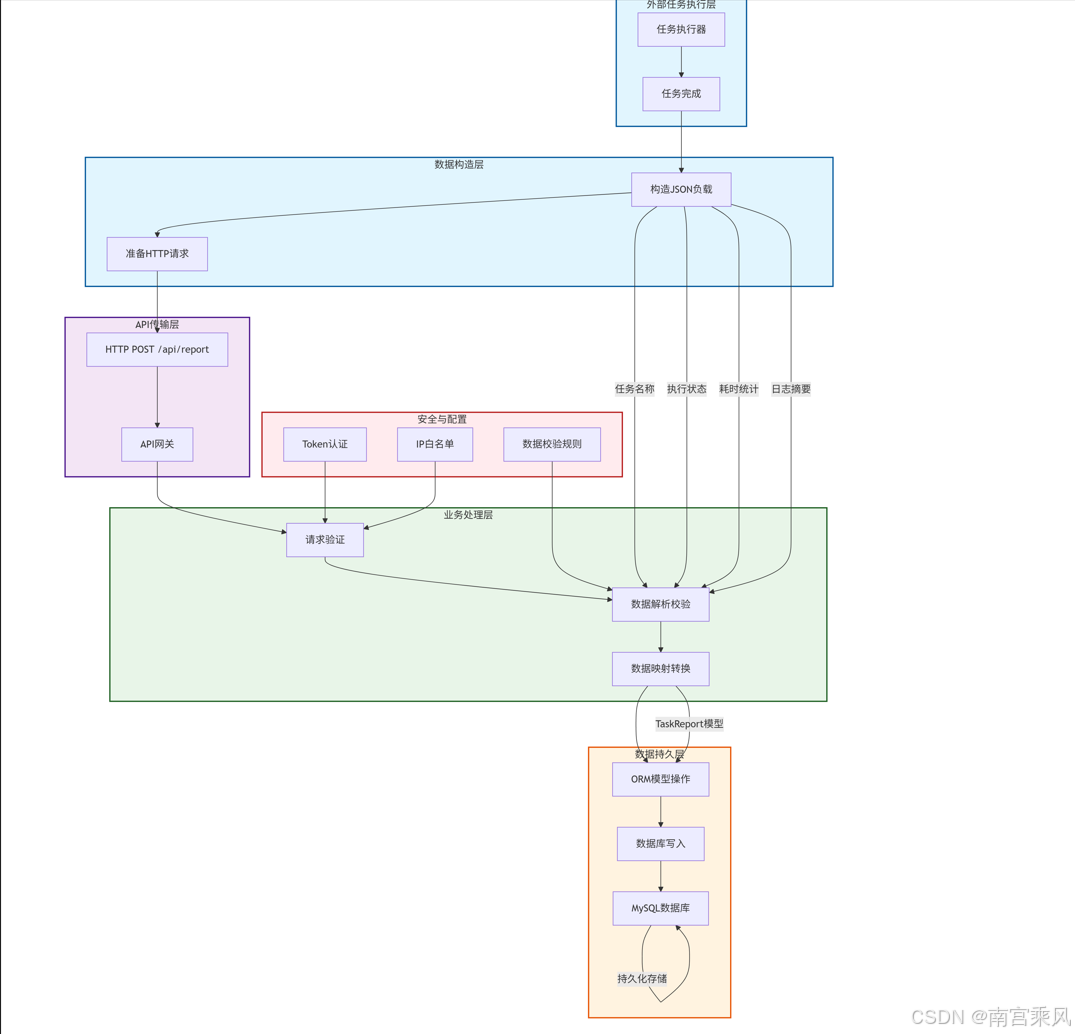

工作机制

外部任务在完成执行后，会构造一个结构化的 JSON 负载，包含任务名称、执行状态（成功/失败）、耗时、日志摘要等关键信息。
通过 HTTP POST 请求将数据发送至预设的 API 端点（例如 /api/report）。
API 服务接收到请求后，进行以下处理：
- 验证请求来源（可选使用 Token 或 IP 白名单）；
- 解析并校验 JSON 数据格式；
- 将有效数据映射为 ORM 模型对象（如 TaskReport）；
- 利用 Flask-SQLAlchemy 将对象写入 MySQL 数据库，实现持久化存储。

这一设计实现了解耦合：外部任务只需关心自身逻辑和上报动作，无需了解后续的数据处理流程。同时，API 层提供了标准化接口，便于未来扩展更多类型的任务接入。
在这里插入图片描述

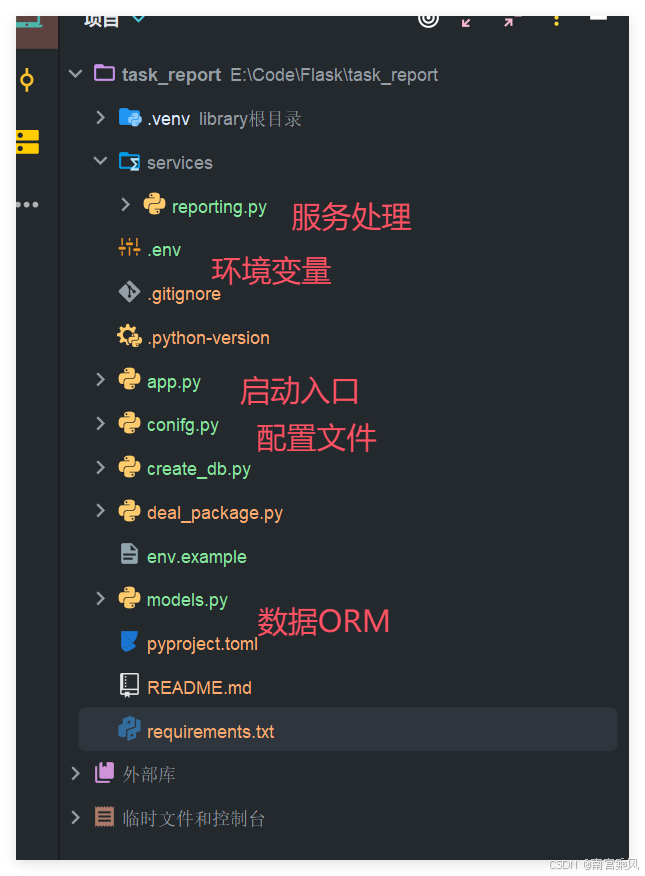

系统架构设计

项目采用模块化结构，以清晰的职责划分和易扩展性为设计核心：

project/
├── app.py                # 主应用入口，初始化 Flask 与调度器
├── config.py             # 配置文件（数据库、调度、邮件等）
├── models.py             # 数据库模型定义
├── services/
│   └── reporting.py      # 报表生成与发送逻辑
└── requirements.txt

.env 环境变量

# Flask environment
FLASK_ENV=development
PORT=5000# Security
SECRET_KEY=heiankey
API_KEY=123456# Database (MySQL)
DB_USER=task_reporter
DB_PASSWORD=zk33kzd3GFEFTfbE
DB_HOST=43.xx4.xxx.xx
DB_PORT=3306
DB_NAME=task_reporter# Optionally, override the full SQLAlchemy URI
# DATABASE_URL=mysql+pymysql://user:pass@host:3306/dbname?charset=utf8mb4# MailMAIL_SERVER=smtp.qq.comMAIL_PORT=465MAIL_USE_TLS=falseMAIL_USE_SSL=trueMAIL_USERNAME=xxxx@qq.comMAIL_PASSWORD=tdgekwgjsxxxxMAIL_SENDER=xxxx@qq.comMAIL_RECIPIENTS=xxxx@qq.com

conifg.py 配置文件

import os
from urllib.parse import quote_plusfrom dotenv import load_dotenvload_dotenv()class Config:"""Application configuration loaded from environment variables."""SECRET_KEY = os.getenv("SECRET_KEY", "dev-secret-key")API_KEY = os.getenv("API_KEY", "change-me")DB_USER = os.getenv("DB_USER", "root")DB_PASSWORD = os.getenv("DB_PASSWORD", "")DB_HOST = os.getenv("DB_HOST", "127.0.0.1")DB_PORT = os.getenv("DB_PORT", "3306")DB_NAME = os.getenv("DB_NAME", "task_reporter")DEFAULT_MYSQL_URI = (f"mysql+pymysql://{DB_USER}:{quote_plus(DB_PASSWORD)}@{DB_HOST}:{DB_PORT}/{DB_NAME}?charset=utf8mb4")SQLALCHEMY_DATABASE_URI = os.getenv("DATABASE_URL", DEFAULT_MYSQL_URI)SQLALCHEMY_TRACK_MODIFICATIONS = False# Mail settingsMAIL_SERVER = os.getenv("MAIL_SERVER", "")MAIL_PORT = int(os.getenv("MAIL_PORT", "0") or 0)MAIL_USE_TLS = os.getenv("MAIL_USE_TLS", "false").lower() in {"1", "true", "yes"}MAIL_USE_SSL = os.getenv("MAIL_USE_SSL", "false").lower() in {"1", "true", "yes"}MAIL_USERNAME = os.getenv("MAIL_USERNAME", "") or NoneMAIL_PASSWORD = os.getenv("MAIL_PASSWORD", "") or NoneMAIL_SENDER = os.getenv("MAIL_SENDER", "") or NoneMAIL_RECIPIENTS = [email.strip() for email in os.getenv("MAIL_RECIPIENTS", "").split(",") if email.strip()]if __name__ == "__main__":print(os.getenv("PORT", "task_reporter"))

models.py 数据库模块

from flask_sqlalchemy import SQLAlchemy
from sqlalchemy import func# SQLAlchemy instance to be initialized by the application factory
db = SQLAlchemy()class TaskReport(db.Model):"""Task execution report entity stored in the database."""__tablename__ = "task_reports"id = db.Column(db.Integer, primary_key=True)task_id = db.Column(db.String(128), nullable=False, index=True)task_name = db.Column(db.String(255), nullable=False)status = db.Column(db.String(32), nullable=False)message = db.Column(db.String(1024), nullable=True)details = db.Column(db.Text, nullable=True)execution_time = db.Column(db.Float, nullable=True)created_at = db.Column(db.DateTime,nullable=False,server_default=func.now(),index=True,)def __repr__(self) -> str:return f"<TaskReport id={self.id} task_id={self.task_id} status={self.status}>"

reporting.py 发送处理模块


"""

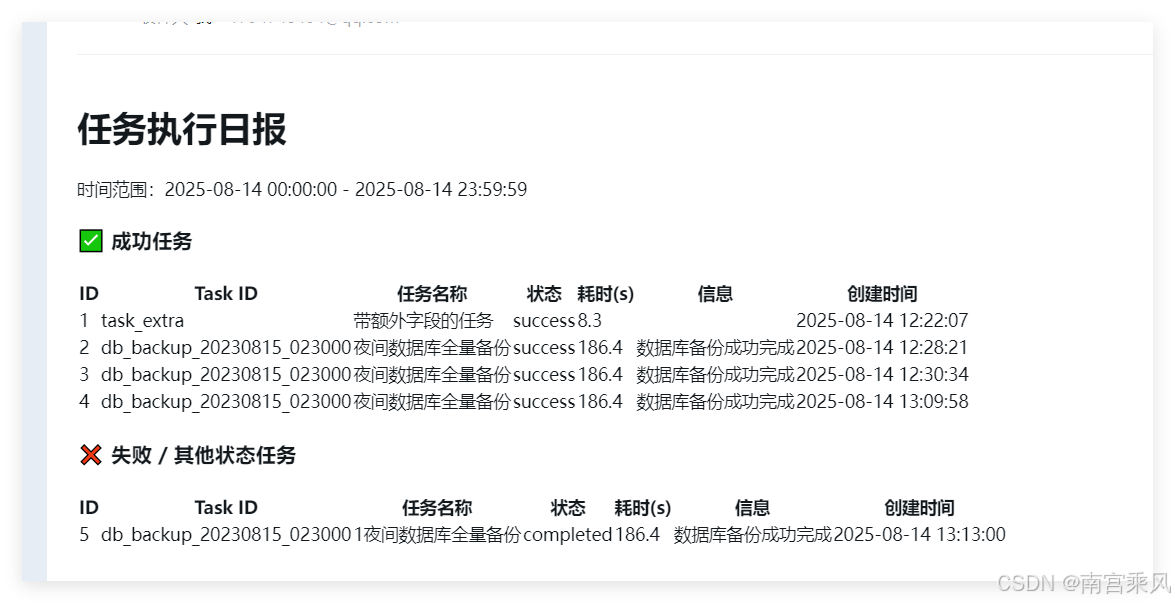

任务执行日报生成与邮件发送模块功能：
1. 从数据库中获取指定时间范围内的任务执行记录。
2. 生成 HTML 格式的日报（成功任务 & 失败任务）。
3. 通过 SMTP 将日报发送到指定邮箱。
"""from __future__ import annotationsimport datetime as dt
import smtplib
from email.mime.multipart import MIMEMultipart
from email.mime.text import MIMEText
from typing import Iterable, List, Tuplefrom flask import current_app
from app import create_app
from models import TaskReport, dbdef _get_previous_day_range(now: dt.datetime | None = None) -> Tuple[dt.datetime, dt.datetime]:"""获取前一天的时间范围（本地时间）。起始时间为 00:00:00，结束时间为 23:59:59.999999。"""now = now or dt.datetime.now()# prev_day = now.date() - dt.timedelta(days=1)prev_day= dt.date.fromisoformat("2025-08-14")start = dt.datetime.combine(prev_day, dt.time.min)end = dt.datetime.combine(prev_day, dt.time.max)return start, enddef generate_daily_report(start_time: dt.datetime | None = None,end_time: dt.datetime | None = None,
) -> str:"""生成任务执行日报的 HTML 内容。:param start_time: 起始时间（默认前一天 00:00:00）:param end_time:   结束时间（默认前一天 23:59:59.999999）:return: HTML 报告字符串"""if not start_time or not end_time:start_time, end_time = _get_previous_day_range()# 查询时间范围内的任务执行记录reports: List[TaskReport] = (TaskReport.query.filter(TaskReport.created_at >= start_time).filter(TaskReport.created_at <= end_time).order_by(TaskReport.created_at.asc()).all())# 分类任务记录success_items = [r for r in reports if (r.status or "").lower() == "success"]failure_items = [r for r in reports if (r.status or "").lower() != "success"]return _render_html(success_items, failure_items, start_time, end_time)def _render_html(success_items: Iterable[TaskReport],failure_items: Iterable[TaskReport],start_time: dt.datetime,end_time: dt.datetime,
) -> str:"""渲染 HTML 报表，使用 Bootstrap 美化样式。"""def _row(r: TaskReport) -> str:return (f"<tr>"f"<td>{r.id}</td>"f"<td>{r.task_id}</td>"f"<td>{r.task_name}</td>"f"<td>{r.status}</td>"f"<td>{r.execution_time or ''}</td>"f"<td>{(r.message or '').replace('<', '&lt;').replace('>', '&gt;')}</td>"f"<td>{r.created_at or ''}</td>"f"</tr>")success_rows = "".join(_row(r) for r in success_items) or ("<tr><td colspan=7 class='text-center text-muted'>无成功记录</td></tr>")failure_rows = "".join(_row(r) for r in failure_items) or ("<tr><td colspan=7 class='text-center text-muted'>无失败记录</td></tr>")start_str = start_time.strftime("%Y-%m-%d %H:%M:%S")end_str = end_time.strftime("%Y-%m-%d %H:%M:%S")return f"""<!doctype html><html><head><meta charset="utf-8" /><title>任务执行日报</title><!-- 引入 Bootstrap 5 CDN --><link href="https://cdn.jsdelivr.net/npm/bootstrap@5.3.0/dist/css/bootstrap.min.css" rel="stylesheet"></head><body class="p-4"><div class="container"><h1 class="mb-3">任务执行日报</h1><p class="text-muted">时间范围：{start_str} - {end_str}</p><h3 class="mt-4">✅ 成功任务</h3><table class="table table-bordered table-hover table-sm align-middle"><thead class="table-success"><tr><th>ID</th><th>Task ID</th><th>任务名称</th><th>状态</th><th>耗时(s)</th><th>信息</th><th>创建时间</th></tr></thead><tbody>{success_rows}</tbody></table><h3 class="mt-4">❌ 失败 / 其他状态任务</h3><table class="table table-bordered table-hover table-sm align-middle"><thead class="table-danger"><tr><th>ID</th><th>Task ID</th><th>任务名称</th><th>状态</th><th>耗时(s)</th><th>信息</th><th>创建时间</th></tr></thead><tbody>{failure_rows}</tbody></table></div></body></html>"""def send_email(html_content: str,subject: str | None = None,recipients: Iterable[str] | None = None
) -> None:"""发送 HTML 邮件。:param html_content: 邮件 HTML 内容:param subject: 邮件主题:param recipients: 收件人列表"""app = current_appconfig = app.configserver = config.get("MAIL_SERVER", "")port = int(config.get("MAIL_PORT", 0) or 0)use_tls = bool(config.get("MAIL_USE_TLS", False))use_ssl = bool(config.get("MAIL_USE_SSL", False))username = config.get("MAIL_USERNAME")password = config.get("MAIL_PASSWORD")sender = config.get("MAIL_SENDER", username)recips = list(recipients) if recipients else list(config.get("MAIL_RECIPIENTS", []) or [])if not server or not port:raise RuntimeError("MAIL_SERVER 和 MAIL_PORT 必须配置")if not sender:raise RuntimeError("MAIL_SENDER 必须配置（或 MAIL_USERNAME）")if not recips:raise RuntimeError("收件人为空，请配置 MAIL_RECIPIENTS 或传入 recipients")subject = subject or "任务执行日报"msg = MIMEMultipart("alternative")msg["Subject"] = subjectmsg["From"] = sendermsg["To"] = ", ".join(recips)msg.attach(MIMEText(html_content, "html", "utf-8"))if use_ssl:smtp = smtplib.SMTP_SSL(server, port)else:smtp = smtplib.SMTP(server, port)if use_tls:smtp.starttls()try:if username and password:smtp.login(username, password)smtp.sendmail(sender, recips, msg.as_string())finally:smtp.quit()def generate_and_send_report(start_time: dt.datetime | None = None,end_time: dt.datetime | None = None,subject: str | None = None,recipients: Iterable[str] | None = None,
) -> None:"""生成日报并发送邮件的便捷方法。"""html = generate_daily_report(start_time=start_time, end_time=end_time)print(html)send_email(html, subject=subject, recipients=recipients)if __name__ == "__main__":with create_app().app_context():generate_and_send_report()

app.py 启动入口

from functools import wrapsfrom apscheduler.schedulers.background import BackgroundScheduler
from flask import Flask, requestfrom conifg import Config
from models import db, TaskReportdef create_app():app = Flask(__name__)app.config.from_object(Config)# Initialize SQLAlchemydb.init_app(app)# 创建一个后台调度器scheduler = BackgroundScheduler(timezone="Asia/Shanghai")# 添加一个每隔20秒执行一次的定时任务# scheduler.add_job(func=send_alert, trigger="interval", seconds=20)# 添加一个每天早上9点执行的定时任务# scheduler.add_job(func=send_alert, trigger=CronTrigger(hour=9, minute=0))# 启动调度器# scheduler.start()return appapp = create_app()@app.route("/health")
def health() -> tuple[dict, int]:return {"status": "ok"}, 200def require_api_key(func):@wraps(func)def wrapper(*args, **kwargs):provided = request.headers.get("X-API-KEY")if not provided or provided != app.config.get("API_KEY"):return {"error": "Unauthorized failed, please check API_KEY"}, 401return func(*args, **kwargs)return wrapper@app.route("/api/v1/task-report", methods=["POST"])
@require_api_key
def create_task_report() -> tuple[dict, int]:data = request.get_json(silent=True)if not isinstance(data, dict):return {"error": "Invalid JSON body"}, 400required_fields = ["task_id", "task_name", "status"]missing_fields = [f for f in required_fields if f not in data]if missing_fields:return {"error": f"Missing fields: {', '.join(missing_fields)}"}, 400execution_time_value = data.get("execution_time")try:execution_time_parsed = (float(execution_time_value) if execution_time_value is not None else None)except (TypeError, ValueError):return {"error": "execution_time must be a number"}, 400report = TaskReport(task_id=str(data["task_id"]),task_name=str(data["task_name"]),status=str(data["status"]),message=data.get("message"),details=data.get("details"),execution_time=execution_time_parsed,)try:db.session.add(report)db.session.commit()return {"success": True, "id": report.id}, 201except Exception as e:print(e)db.session.rollback()return {"error": "Database error"}, 500if __name__ == "__main__":app.run(debug=True)

requirements.txt 版本依赖

blinker==1.9.0
click==8.2.1
colorama==0.4.6
Flask==3.1.1
itsdangerous==2.2.0
Jinja2==3.1.6
MarkupSafe==3.0.2
python-frontmatter==1.1.0
PyYAML==6.0.2
Werkzeug==3.1.3

在这里插入图片描述

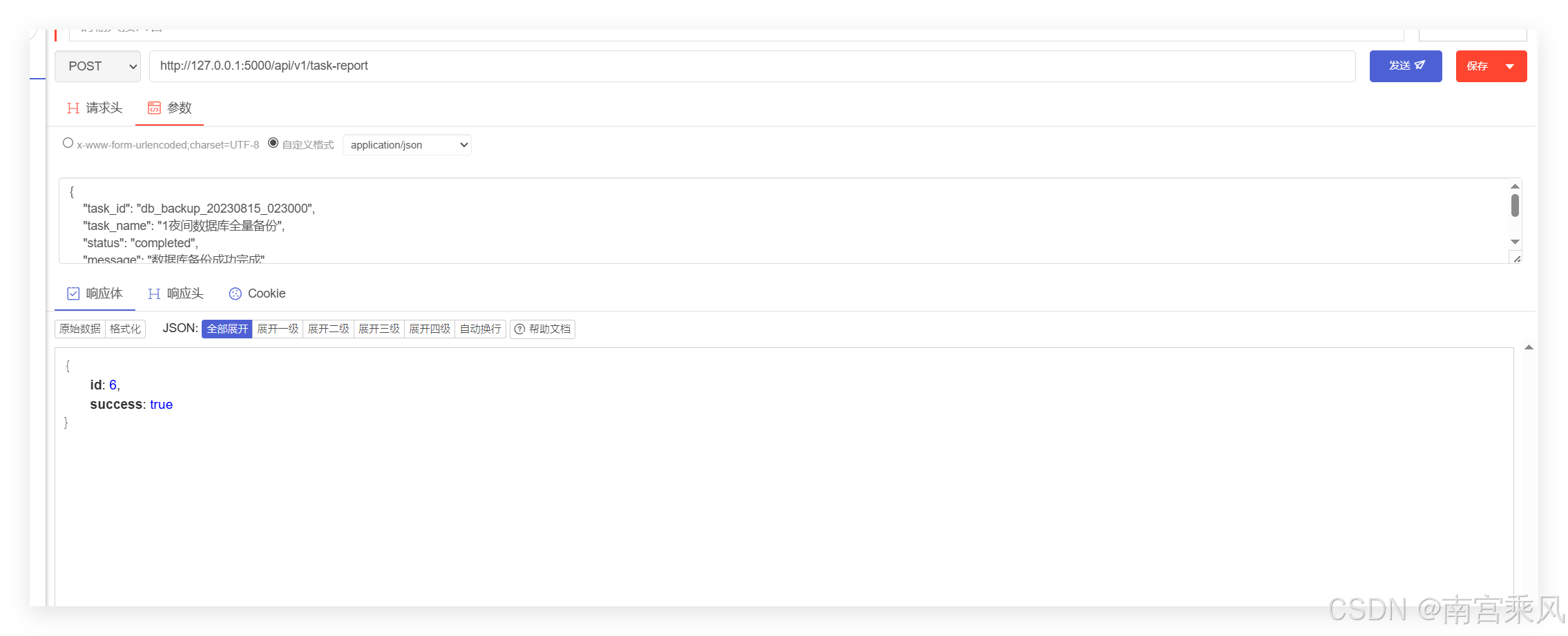

Post请求这个接口
http://127.0.0.1:5000/api/v1/task-report

{"task_id": "db_backup_20230815_023000","task_name": "1夜间数据库全量备份","status": "completed","message": "数据库备份成功完成","details": "{\"database\": \"production_primary\", \"backup_type\": \"full\", \"size\": \"24.7GB\", \"tables\": 42, \"location\": \"/backups/db/2023-08-15_0200.sql.gz\", \"checksum\": \"sha256:9a8b7c6d5e4f3g2h1i0j9k8l7m6n5o4p3q2r1s0\"}","execution_time": 186.4
}
