SAP PP BOM查询报表分享

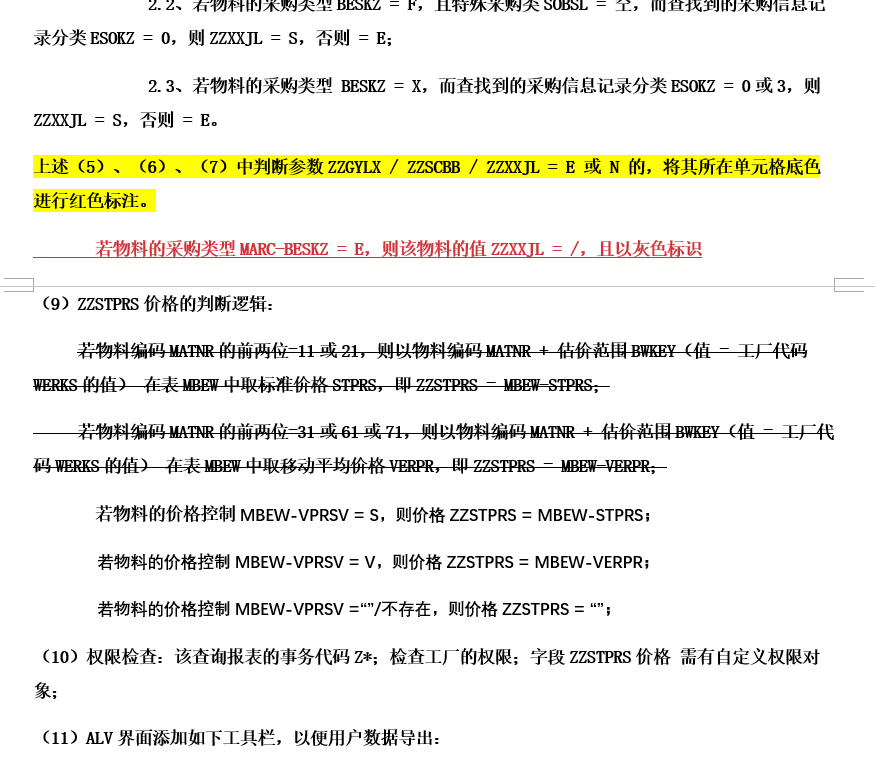

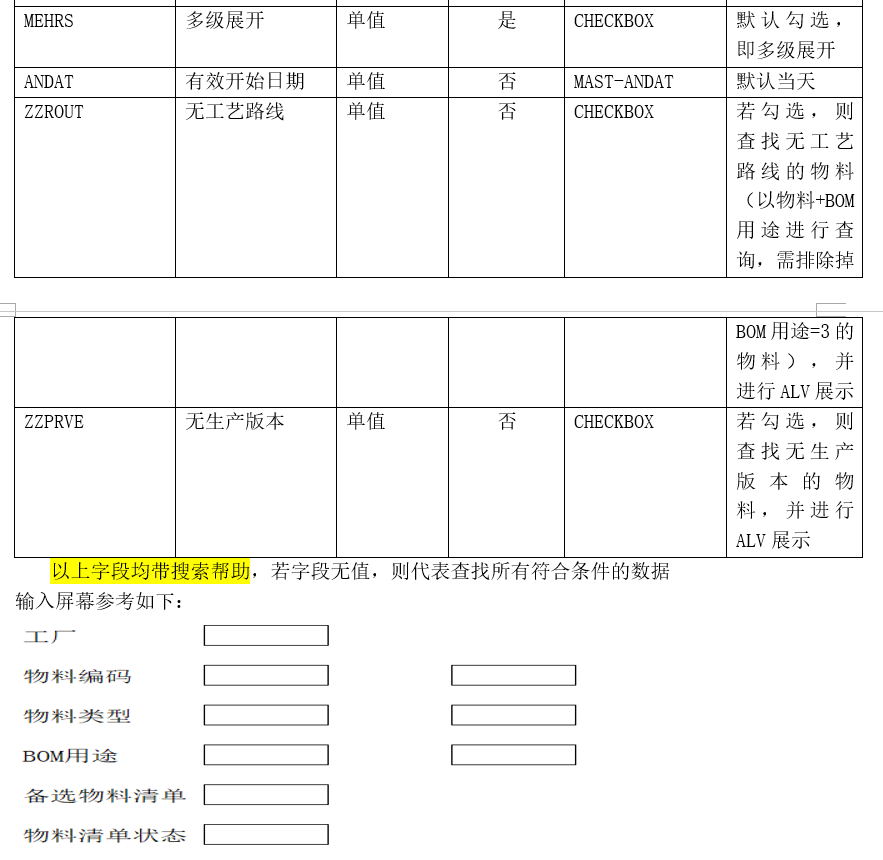

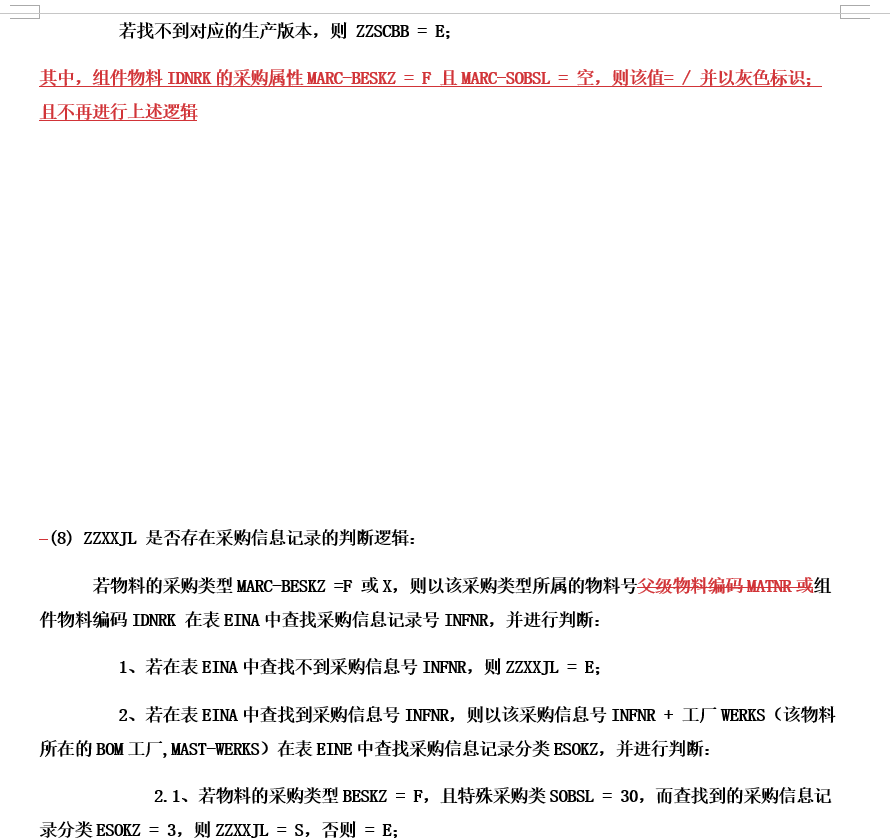

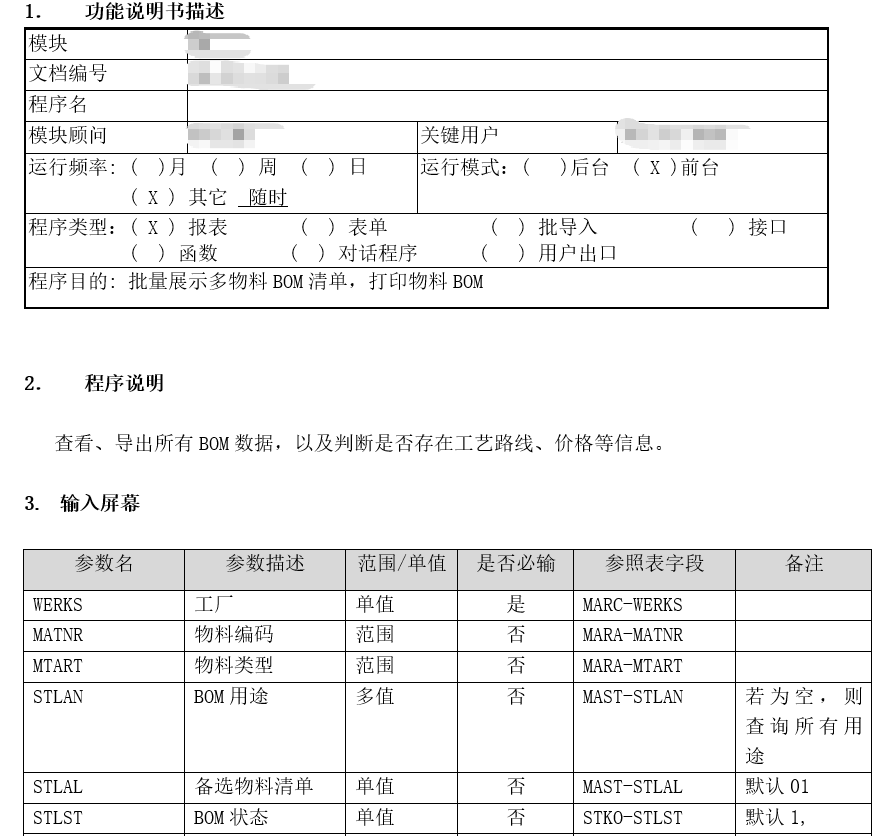

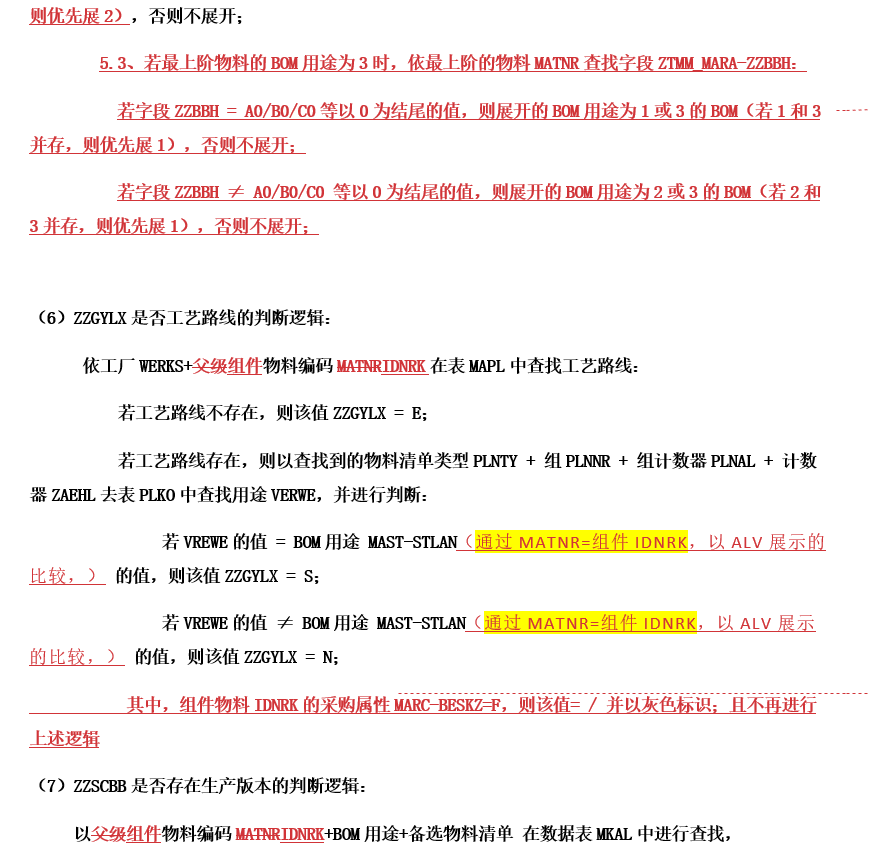

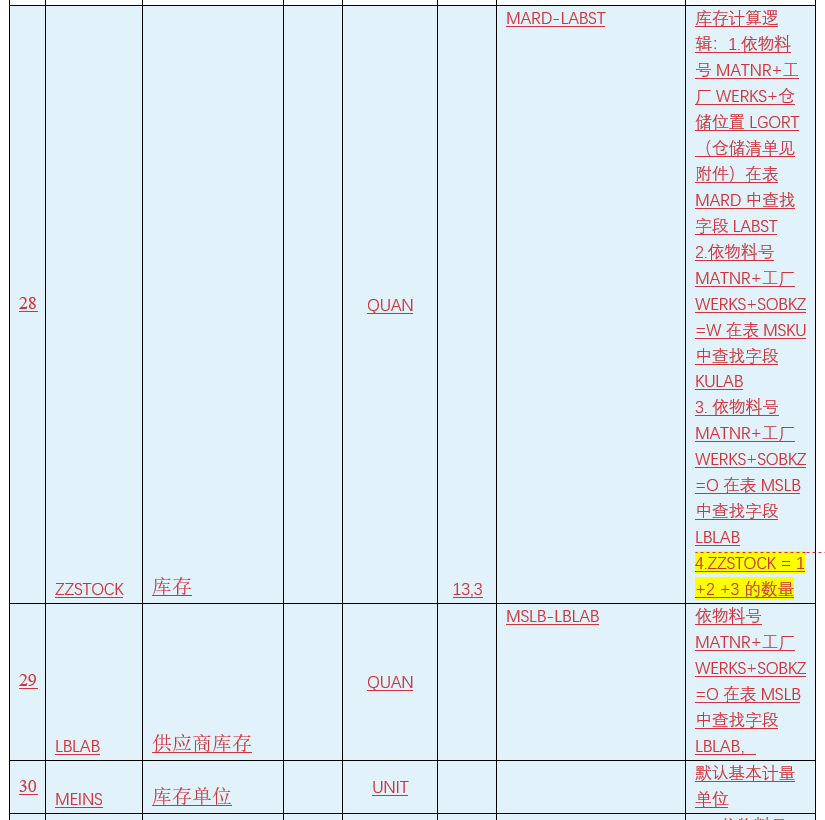

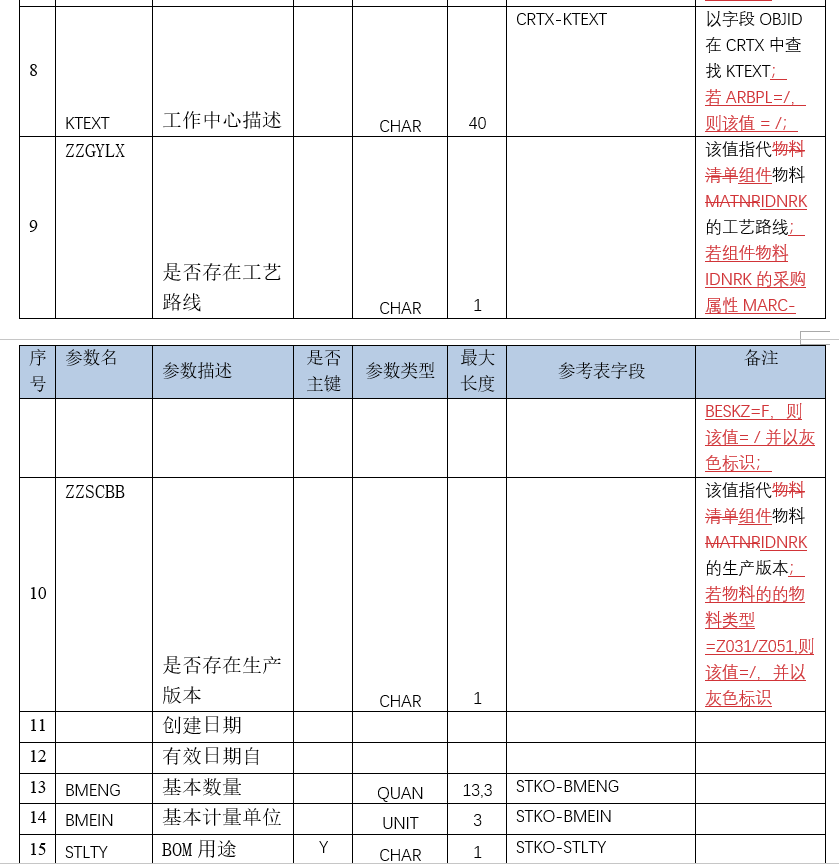

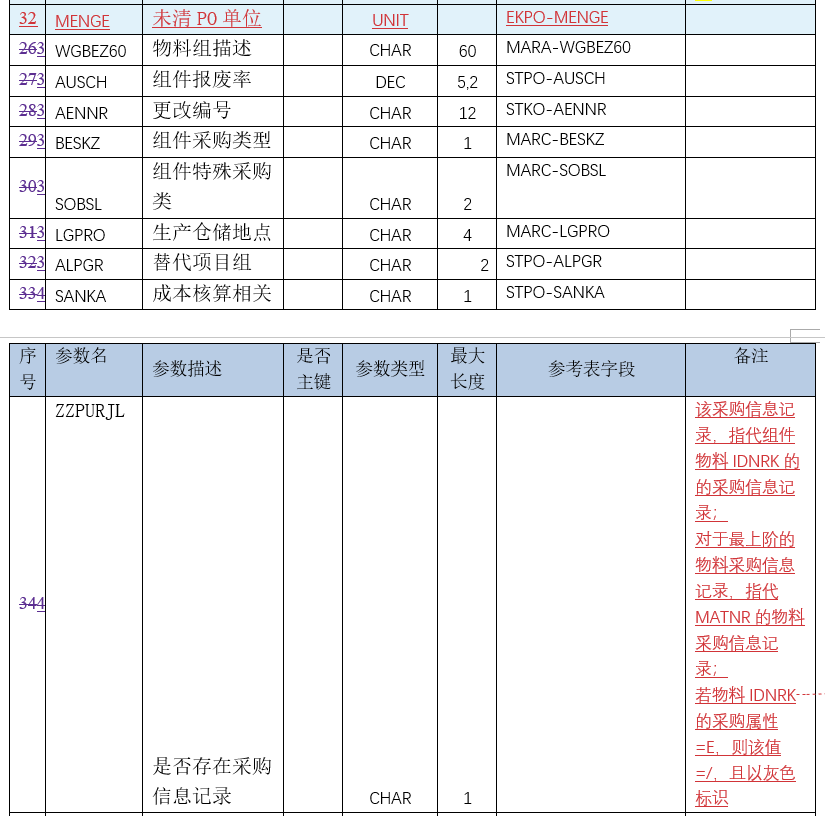

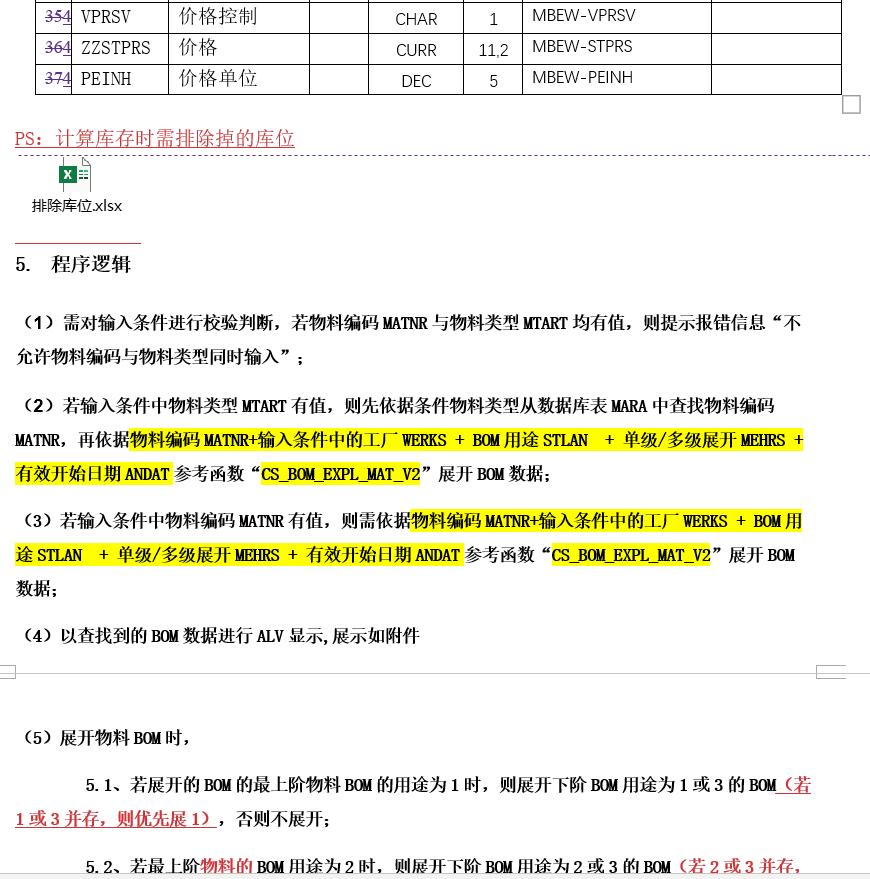

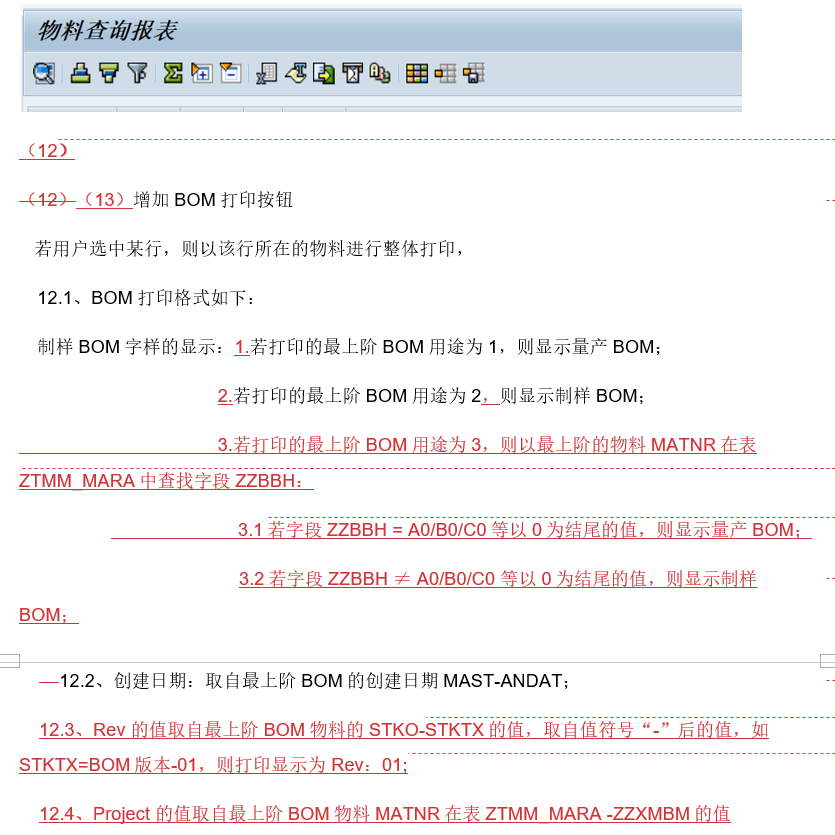

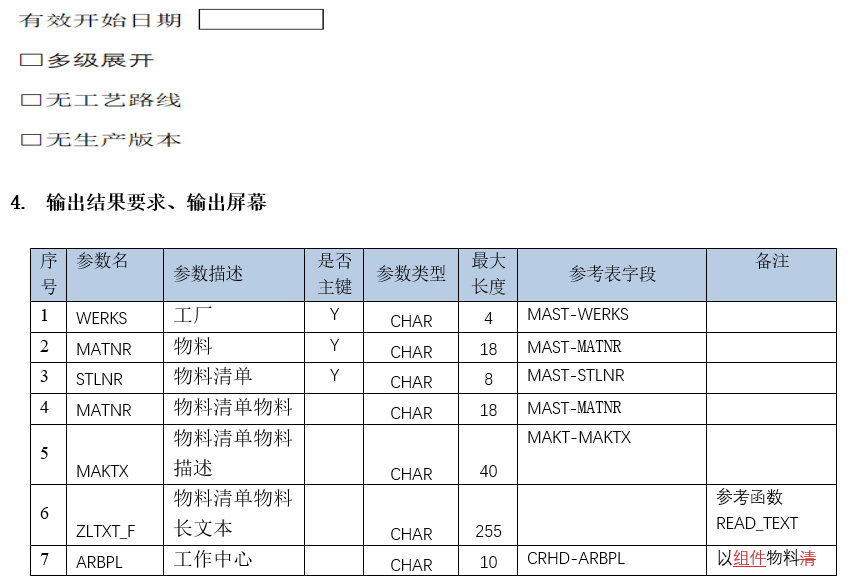

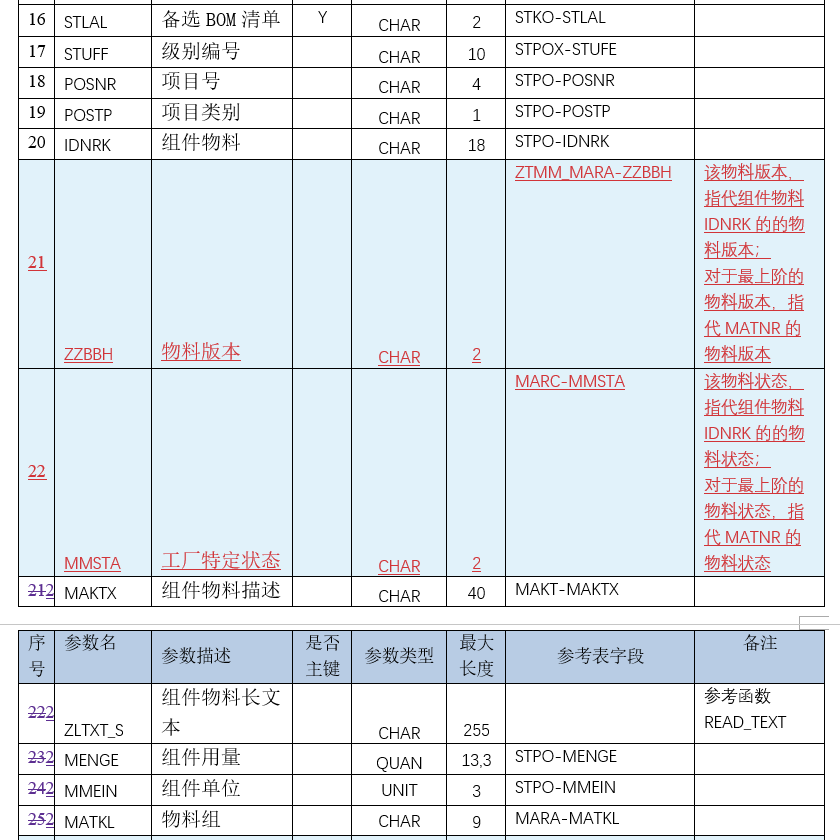

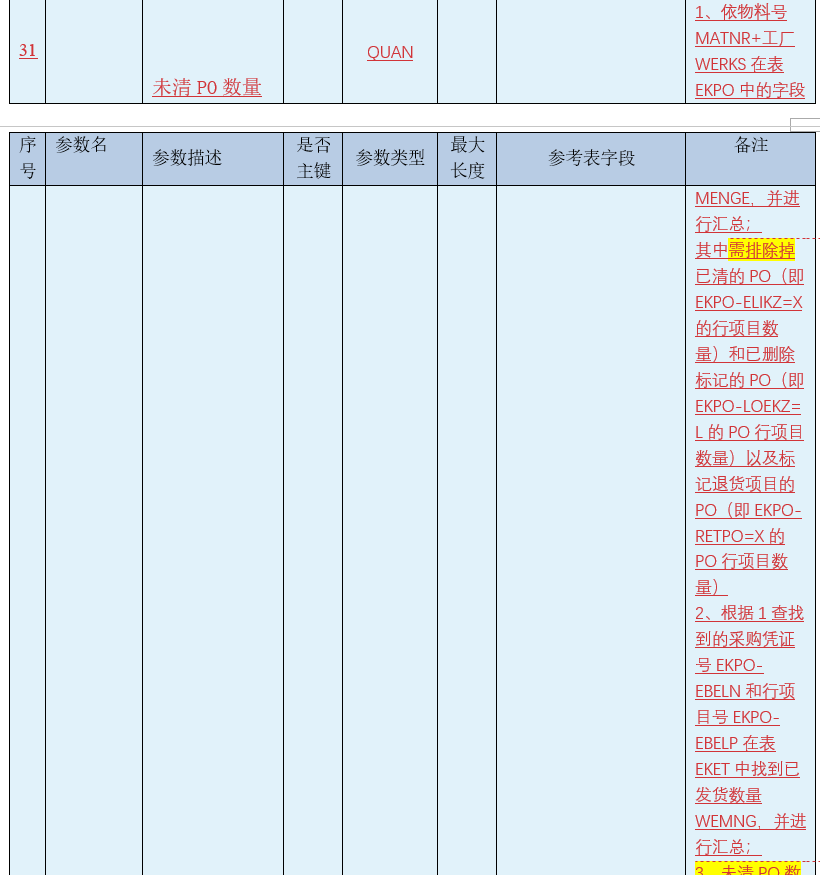

一、报表逻辑

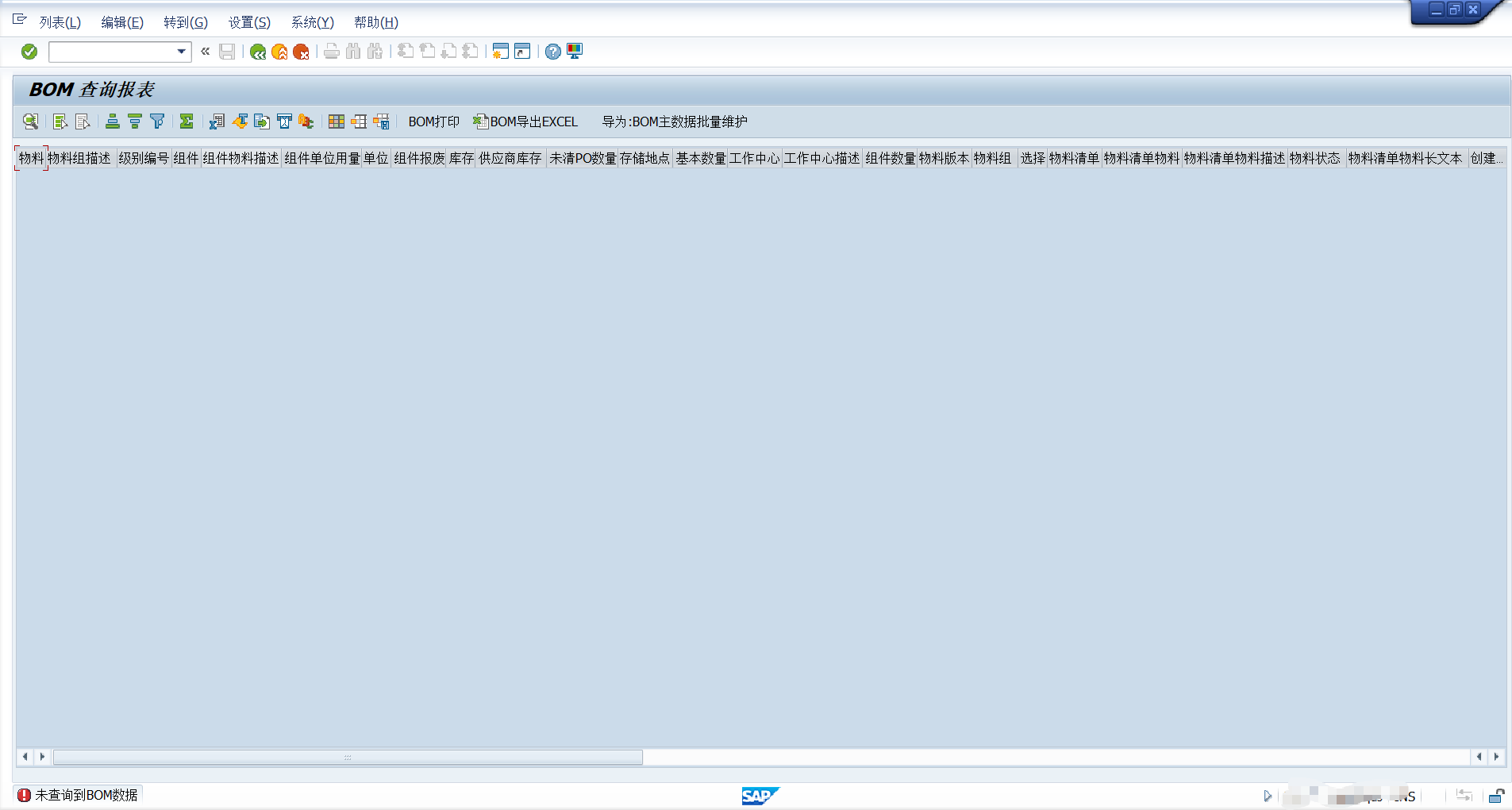

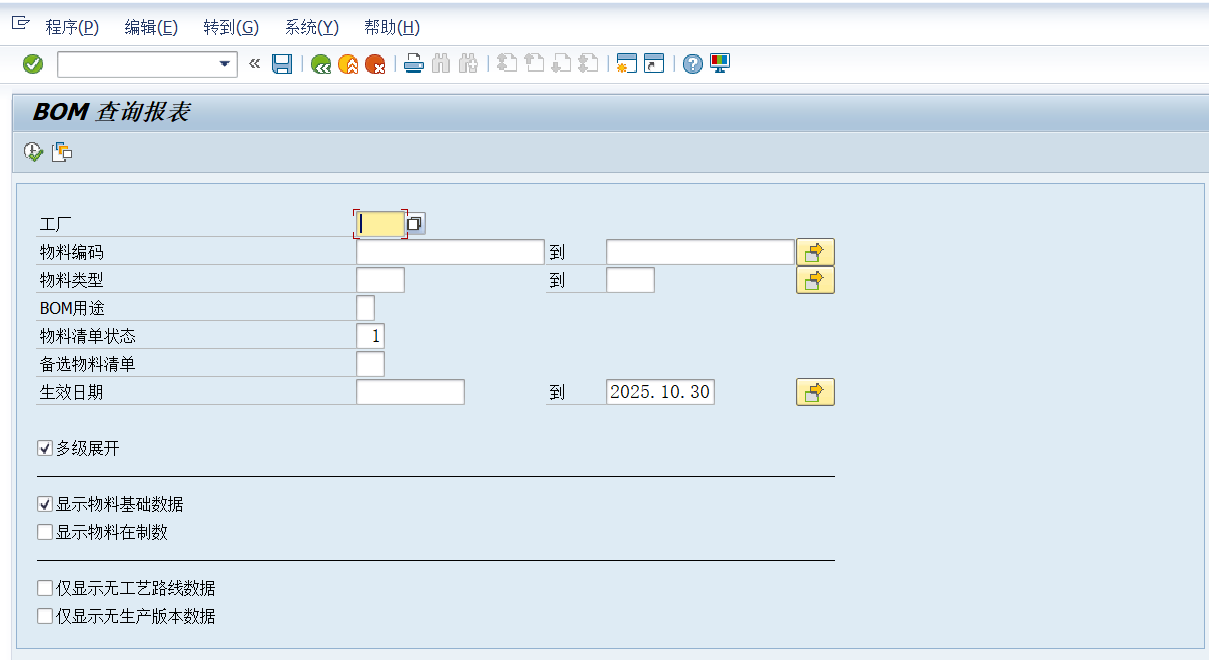

二、报表界面
三、报表代码
*&---------------------------------------------------------------------*
*& Report ZRPPP_0002
*&---------------------------------------------------------------------*
*& 08.06.2021 09:25:14 BOM查询报表
*&---------------------------------------------------------------------*
REPORT zrppp_0002.
TABLES: marc,mara,mast,stko,stxh .
INCLUDE <color>.
DATA: gr_table TYPE REF TO cl_salv_table,
gr_layout TYPE REF TO cl_salv_layout,
gs_program TYPE salv_s_layout_key,
gr_columns TYPE REF TO cl_salv_columns_table,
gr_column TYPE REF TO cl_salv_column_table,
gr_display TYPE REF TO cl_salv_display_settings,
gt_s_color TYPE lvc_t_scol,
gs_s_color TYPE lvc_s_scol.
DATA:directory TYPE string.
TYPES: BEGIN OF ty_head ,
werks TYPE mast-werks,
* stufe TYPE stpox-stufe,
matnr TYPE mast-matnr,
stlnr TYPE mast-stlnr,
matnr1 TYPE mast-matnr,
maktx1 TYPE makt-maktx,
ltext1 TYPE char255,
arbpl TYPE crhd-arbpl,
ktext TYPE crtx-ktext,
* stlan1 TYPE mast-stlan,
andat TYPE mast-andat,
datuv TYPE stko-datuv,
* maktx TYPE makt-maktx,
bmeng TYPE stko-bmeng,
bmein TYPE stko-bmein,
stlan TYPE mast-stlan,
stlty TYPE stko-stlty,
stlal TYPE stko-stlal,
stufe TYPE char15,
stlst TYPE stko-stlst,
END OF ty_head .
DATA:gw_head TYPE ty_head .
TYPES:BEGIN OF ty_tab ,
chk TYPE c.
INCLUDE TYPE ty_head .
TYPES:
posnr TYPE stpo-posnr,
postp TYPE stpo-postp,
idnrk TYPE stpo-idnrk,
idnrk_maktx TYPE makt-maktx,
zzbbh TYPE ztmm_mara-zzbbh,
mmsta TYPE marc-mmsta,
ltext2 TYPE char255,
matkl TYPE mara-matkl,
labst TYPE mard-labst,
lblab TYPE mslb-lblab,
meins TYPE mara-meins,
wqsl TYPE ekpo-menge,
wqsldw TYPE ekpo-meins,
wgbez60 TYPE t023t-wgbez60,
menge TYPE stpo-menge,
mmein TYPE stpo-meins,
zjdwyl(16) TYPE p DECIMALS 9,
ausch TYPE stpo-ausch,
aennr TYPE stko-aennr,
beskz TYPE marc-beskz,
sobsl TYPE marc-sobsl,
lgpro TYPE marc-lgpro,
alpgr TYPE stpo-alpgr,
sanka TYPE stpo-sanka,
alprf LIKE stpo-alprf,
ewahr LIKE stpo-ewahr,
alpst LIKE stpo-alpst,
zzgylx TYPE char1,
zzscbb TYPE char1,
zzxxjl TYPE char1,
vprsv TYPE mbew-vprsv,
zzstprs TYPE mbew-stprs,
peinh TYPE mbew-peinh,
brgew TYPE mara-brgew,
ntgew TYPE mara-ntgew,
zzmpq1 TYPE ztmm_mara-zzmpq1,
zzmpq2 TYPE ztmm_mara-zzmpq2,
sortf TYPE sortp, "排序字段
dumps TYPE dumps, "虚拟项目
* sortfield(255) TYPE c,
t_color TYPE lvc_t_scol, "设置单元格颜色用
zflag TYPE c,
stlkn TYPE stlkn,
umlme TYPE mard-umlme, " 不良品
insme TYPE mard-insme, " 冻结
zzp TYPE resb-enmng , " 在制品
kausf TYPE marc-kausf, "组件报废率
* IF S_WERKS-LOW = '8010'.
END OF ty_tab .
DATA:gt_tab TYPE TABLE OF ty_tab WITH HEADER LINE.
TYPES: BEGIN OF ty_zzp ,
matnr1 TYPE afpo-matnr,
zenmng2 TYPE resb-enmng,
END OF ty_zzp .
DATA gt_zzp TYPE TABLE OF ty_zzp.
DATA:BEGIN OF gw_info.
DATA: ztype TYPE bapi_mtype,
zmsg TYPE bapi_msg,
zauth_wrk TYPE char1, "工厂权限
zauth_prs TYPE char1, "价格权限
END OF gw_info .
DATA: gv_path TYPE string .
"打印相关参数
DATA: lv_fname TYPE rs38l_fnam,
gv_option TYPE ssfcompop,
gv_control_parameters TYPE ssfctrlop,
gs_output TYPE ssfcresop.
DATA: r_lgort1 TYPE RANGE OF mard-lgort,
r_lgort2 TYPE RANGE OF mard-lgort.
SELECTION-SCREEN BEGIN OF BLOCK part1 WITH FRAME TITLE TEXT-001.
SELECT-OPTIONS:
s_werks FOR marc-werks NO INTERVALS NO-EXTENSION OBLIGATORY MEMORY ID wrk,
s_matnr FOR mara-matnr,
s_mtart FOR mara-mtart ,
s_stlan FOR mast-stlan NO INTERVALS NO-EXTENSION.
PARAMETERS: p_stlst TYPE stko-stlst DEFAULT '1'.
SELECT-OPTIONS:s_stlal FOR mast-stlal NO-EXTENSION NO INTERVALS ,"DEFAULT '01',
s_andat FOR mast-andat .
SELECTION-SCREEN SKIP 1.
PARAMETERS: c_01 AS CHECKBOX DEFAULT 'X'.
SELECTION-SCREEN ULINE.
PARAMETERS: c_11 AS CHECKBOX DEFAULT 'X',
c_12 AS CHECKBOX DEFAULT ''.
SELECTION-SCREEN ULINE.
PARAMETERS: c_02 AS CHECKBOX DEFAULT '' USER-COMMAND cmd,
c_03 AS CHECKBOX DEFAULT '' USER-COMMAND cmd.
SELECTION-SCREEN END OF BLOCK part1.
CLASS l_cl_handle_events DEFINITION.
PUBLIC SECTION.
METHODS: on_user_command FOR EVENT added_function OF cl_salv_events_table
IMPORTING e_salv_function.
METHODS: on_link_click FOR EVENT link_click OF cl_salv_events_table
IMPORTING row column.
ENDCLASS.
CLASS l_cl_handle_events IMPLEMENTATION.
METHOD on_user_command.
PERFORM handle_user_command USING e_salv_function.
ENDMETHOD.
METHOD on_link_click.
PERFORM handle_link_click USING row column.
ENDMETHOD.
ENDCLASS.
INITIALIZATION.
s_andat-high = sy-datum .
APPEND s_andat .
"1001
r_lgort1 = VALUE #( sign = 'I' option = 'EQ' ( low = 'BRJ1' )
( low = 'BRJ2' )
( low = 'CMP1' )
( low = 'RJS1' )
( low = 'CMS1' )
( low = 'FGR1' )
( low = 'LD01' )
( low = 'RJ01' )
( low = 'RJ0Z' )
( low = 'RJP1' )
( low = 'ZY02' )
( low = 'ZY03' )
( low = 'ZY06' )
( low = 'ZYLD' )
( low = '9999' )
( low = 'XN02' )
( low = 'ZY04' )
( low = 'ZY05' )
( low = 'ZY07' )
( low = 'FGR2' ) ) .
"1002
r_lgort2 = VALUE #( sign = 'I' option = 'EQ'
( low = 'BRJ1' )
( low = 'BRJ2' )
( low = 'CMS1' )
( low = 'RJ01' )
( low = 'RJ03' )
( low = 'ZY02' )
( low = 'ZY03' )
( low = 'ZY06' )
( low = '9999' )
( low = 'XN02' )
( low = 'ZY04' )
( low = 'ZY05' )
( low = 'ZY07' )
( low = 'FGR2' ) ) .
AT SELECTION-SCREEN OUTPUT.
IF ( c_02 = 'X' OR c_03 = 'X' ) AND c_11 = ''.
c_11 = 'X'.
ENDIF.
START-OF-SELECTION.
PERFORM frm_check_input .
CHECK gw_info-ztype NE 'E' .
PERFORM frm_get_data .
PERFORM frm_show_alv .
*&---------------------------------------------------------------------*
*& Form frm_get_data
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& --> p1 text
*& <-- p2 text
*&---------------------------------------------------------------------*
FORM frm_get_data .
DATA: lt_stb TYPE TABLE OF stpox WITH HEADER LINE,
lw_topmat TYPE cstmat,
lv_dstst TYPE csdata-xfeld,
lv_werks TYPE werks_d,
lv_stlan TYPE stlan,
lv_matnr TYPE matnr,
lv_bmeng TYPE stko-bmeng,
lv_bmein TYPE stko-bmein.
DATA:BEGIN OF lt_ekpo OCCURS 0 .
DATA:matnr TYPE matnr,
menge TYPE menge_d,
meins TYPE meins,
END OF lt_ekpo .
DATA:flg_end TYPE c .
DATA gh_mard TYPE mard.
DATA gd_mard TYPE TABLE OF mard.
DATA gh_mard_sun TYPE mard.
DATA gd_mard_sun TYPE TABLE OF mard.
* BREAK guoxiongjie .
SELECT
marc~matnr AS lp_matnr,
CAST( @space AS CHAR( 1 ) ) AS done,
mast~stlnr,
mast~stlan,
mast~stlal,
mara~meins,
marc~beskz,
marc~sobsl,
mara~matkl,
mast~andat AS datuv
* stko~datuv
INTO TABLE @DATA(lt_mat)
FROM mara INNER JOIN marc ON mara~matnr = marc~matnr
INNER JOIN mast ON marc~matnr = mast~matnr AND marc~werks = mast~werks
* INNER JOIN stko ON mast~stlnr = stko~stlnr AND mast~stlal = stko~stlal
WHERE marc~werks IN @s_werks
AND marc~matnr IN @s_matnr
AND mara~mtart IN @s_mtart
AND mast~stlan IN @s_stlan
AND mast~stlal IN @s_stlal
* AND stko~datuv IN @s_andat
AND mara~lvorm = ' '
AND marc~lvorm = ' '.
SELECT b~stlnr, b~stlal, b~stkoz, b~vgkzl, b~datuv, CAST( @space AS CHAR( 1 ) ) AS chk
FROM @lt_mat AS a INNER JOIN stko AS b ON a~stlnr = b~stlnr AND a~stlal = b~stlal
WHERE b~datuv IN @s_andat
INTO TABLE @DATA(lt_stko) .
LOOP AT lt_stko INTO DATA(lw_stko) WHERE vgkzl IS NOT INITIAL.
READ TABLE lt_stko ASSIGNING FIELD-SYMBOL(<fs_stko>)
WITH KEY stlnr = lw_stko-stlnr stlal = lw_stko-stlal stkoz = lw_stko-vgkzl .
IF sy-subrc EQ 0.
<fs_stko>-chk = 'E' .
ENDIF.
ENDLOOP.
DELETE lt_stko WHERE chk = 'E' .
LOOP AT lt_mat ASSIGNING FIELD-SYMBOL(<fs_mat>) .
READ TABLE lt_stko INTO lw_stko WITH KEY stlnr = <fs_mat>-stlnr stlal = <fs_mat>-stlal .
IF sy-subrc EQ 0.
<fs_mat>-datuv = lw_stko-datuv .
ELSE.
<fs_mat>-done = 'E' .
ENDIF.
ENDLOOP.
DELETE lt_mat WHERE done = 'E' .
* SELECT a~*
* FROM @lt_mat AS a JOIN @lt_stko AS b ON a~stlnr = b~stlnr AND a~stlal = b~stlal
* INTO TABLE lt_mat .
IF lt_mat[] IS INITIAL.
MESSAGE '未查询到BOM数据' TYPE 'S' DISPLAY LIKE 'E'.
RETURN .
ENDIF.
CLEAR:gt_tab,gt_tab[].
SORT lt_mat ASCENDING BY lp_matnr stlan stlal .
* BREAK guoxiongjie .
lv_werks = s_werks-low .
DATA:lv_total TYPE char6,
lv_row TYPE char6,
lv_text TYPE char50.
* BREAK GUOXIONGJIE .
lv_total = lines( lt_mat ) .
LOOP AT lt_mat INTO DATA(lw_mat) WHERE done = ''.
DATA(lv_lpmatnr) = |{ lw_mat-lp_matnr ALPHA = OUT }|.
ADD 1 TO lv_row .
CONCATENATE lv_row '/' lv_total ', 查询物料BOM:' lv_lpmatnr INTO lv_text .
CONDENSE lv_text NO-GAPS .
CALL FUNCTION 'SAPGUI_PROGRESS_INDICATOR'
EXPORTING
percentage = 25 "lv_percentage
text = lv_text.
"判断期间~
SELECT SINGLE bmeng bmein INTO (lv_bmeng ,lv_bmein ) FROM mast INNER JOIN stko ON mast~stlnr = stko~stlnr AND mast~stlal = stko~stlal
WHERE matnr = lw_mat-lp_matnr AND werks = lv_werks AND stlan = lw_mat-stlan
AND datuv LE sy-datum AND valid_to GE sy-datum .
CALL FUNCTION 'ZCS_BOM_EXPL_MAT_V2'
EXPORTING
* aufsw = ' '
capid = 'PP01'
datuv = lw_mat-datuv
ehndl = '1'
emeng = lv_bmeng
mtnrv = lw_mat-lp_matnr
mehrs = c_01 "多层
stlan = lw_mat-stlan " BOM用途
stlal = lw_mat-stlal "备选物料清单
werks = lv_werks
i_stlan = s_stlan-low
IMPORTING
topmat = lw_topmat
* dstst = lv_dstst
TABLES
stb = lt_stb.
lw_mat-done = 'X'.
MODIFY lt_mat FROM lw_mat TRANSPORTING done.
IF p_stlst IS NOT INITIAL.
* CHECK lw_topmat-stlst EQ p_stlst .
ENDIF.
READ TABLE gt_tab WITH KEY matnr = lw_topmat-matnr stlan = lw_topmat-stlan stufe = '0' TRANSPORTING NO FIELDS .
IF sy-subrc NE 0.
CLEAR gt_tab .
gt_tab = VALUE #( werks = lw_topmat-werks matnr = lw_topmat-matnr maktx1 = lw_topmat-maktx
stufe = '0' idnrk = lw_topmat-matnr andat = lw_topmat-andat stlan = lw_topmat-stlan
menge = lv_bmeng mmein = lv_bmein stlst = lw_topmat-stlst ) .
SELECT SINGLE matkl INTO gt_tab-matkl FROM mara WHERE matnr = gt_tab-matnr .
gt_tab-bmeng = lv_bmeng.
gt_tab-bmein = lv_bmein.
APPEND gt_tab .
END
