摘要
Foreign Function Interface (FFI) 是连接不同编程语言的桥梁，使开发者能够复用现有的C/C++库生态。仓颉语言提供了强大而安全的FFI机制，支持与C/C++代码的无缝互操作。本文深入探讨仓颉FFI的实现原理、类型映射规则、内存管理策略以及性能优化技巧，通过丰富的实战案例帮助开发者构建高性能的混合语言应用，充分利用HarmonyOS原生能力和第三方库生态。
一、FFI原理与架构
1.1 什么是FFI
FFI的核心作用:
| 功能 | 说明 | 优势 |
|---|---|---|
| 代码复用 | 调用现有C/C++库 | 避免重复开发 |
| 性能优化 | 关键路径使用原生代码 | 突破语言性能瓶颈 |
| 系统集成 | 访问操作系统API | 实现底层功能 |
| 生态互通 | 利用成熟库生态 | 加速开发进度 |

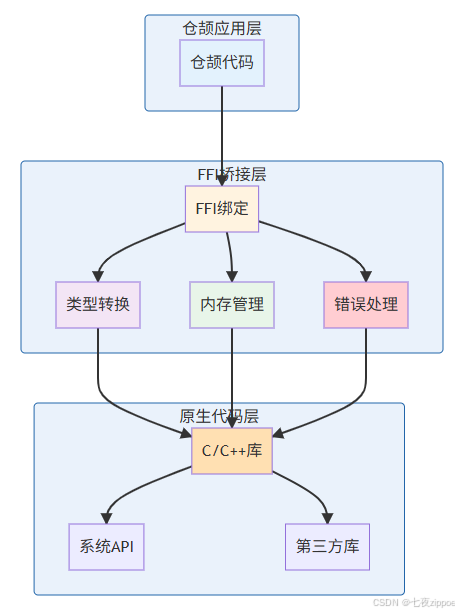

1.2 仓颉FFI架构设计
// ========== FFI模块组织结构 ==========
/*
project/
├── src/
│ └── main.cj # 仓颉主代码
├── native/
│ ├── include/
│ │ └── mylib.h # C头文件
│ └── src/
│ └── mylib.c # C实现
├── ffi/
│ └── bindings.cj # FFI绑定
└── build.cj # 构建配置
*/

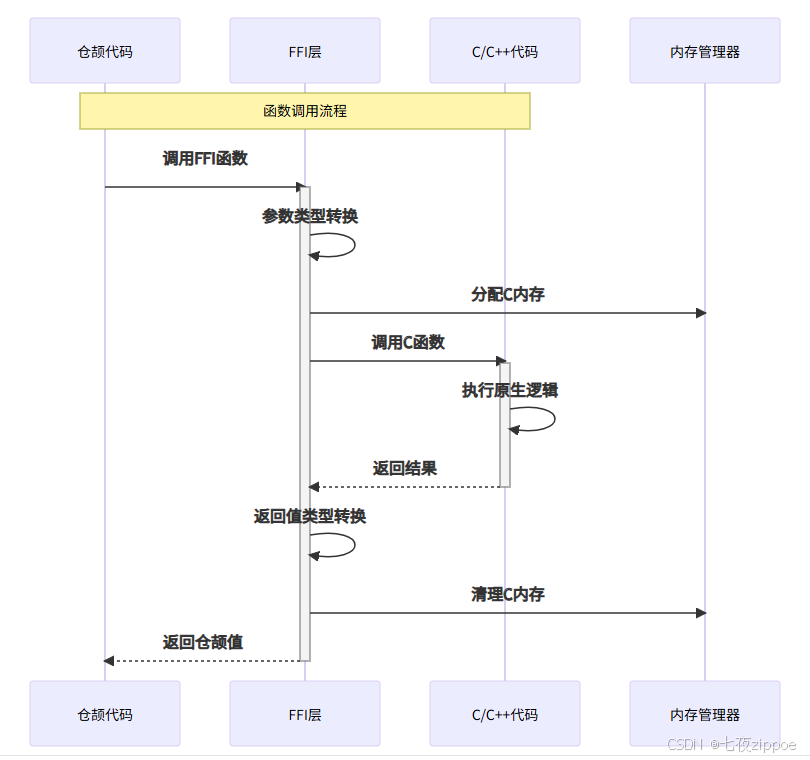

FFI调用流程:
1.3 安全边界设计
// ========== FFI安全检查机制 ==========
import std.ffi.*// 不安全的FFI调用需要显式标记
@unsafe
extern func c_malloc(size: UInt64): RawPointer@unsafe
extern func c_free(ptr: RawPointer)// 安全的包装函数
func safeAllocate(size: UInt64): Result<ManagedPointer, Error> {if size == 0 {return Err(Error("Invalid allocation size"))}if size > MAX_ALLOCATION_SIZE {return Err(Error("Allocation size too large"))}// 在unsafe块中调用let rawPtr = unsafe {c_malloc(size)}if rawPtr.isNull() {return Err(Error("Allocation failed"))}// 包装为托管指针return Ok(ManagedPointer(rawPtr, size))
}

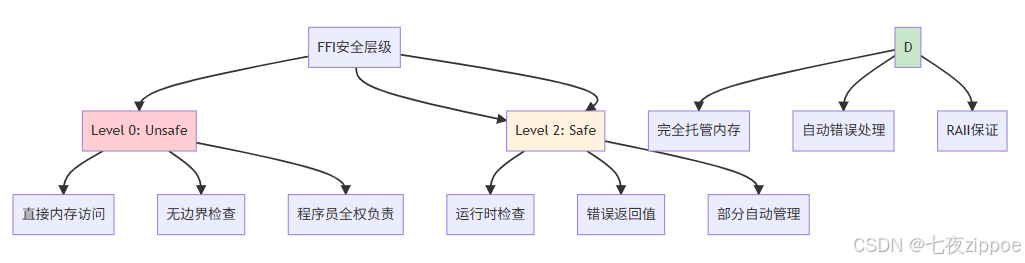

安全边界层级:
二、类型映射与转换
2.1 基本类型映射表
// ========== 仓颉 ⟷ C 类型对应关系 ==========// 整数类型
/*
┌─────────────┬─────────────┬──────────┐
│ 仓颉类型 │ C类型 │ 大小 │
├─────────────┼─────────────┼──────────┤
│ Int8 │ int8_t │ 1字节 │
│ UInt8 │ uint8_t │ 1字节 │
│ Int16 │ int16_t │ 2字节 │
│ UInt16 │ uint16_t │ 2字节 │
│ Int32 │ int32_t │ 4字节 │
│ UInt32 │ uint32_t │ 4字节 │
│ Int64 │ int64_t │ 8字节 │
│ UInt64 │ uint64_t │ 8字节 │
└─────────────┴─────────────┴──────────┘
*/// 浮点类型
/*
┌─────────────┬─────────────┬──────────┐
│ Float32 │ float │ 4字节 │
│ Float64 │ double │ 8字节 │
└─────────────┴─────────────┴──────────┘
*/// 布尔类型
/*
┌─────────────┬─────────────┬──────────┐
│ Bool │ bool/_Bool │ 1字节 │
└─────────────┴─────────────┴──────────┘
*/// 指针类型
/*
┌─────────────┬─────────────┬──────────┐
│ RawPointer │ void* │ 8字节 │
│ &T │ T* │ 8字节 │
│ &mut T │ T* │ 8字节 │
└─────────────┴─────────────┴──────────┘
*/
2.2 基本类型转换示例
import std.ffi.*// ========== C库函数声明 ==========
// C代码: int add(int a, int b);
@extern("C")
extern func c_add(a: Int32, b: Int32): Int32// C代码: double sqrt(double x);
@extern("C", name: "sqrt")
extern func c_sqrt(x: Float64): Float64// C代码: void* malloc(size_t size);
@extern("C")
@unsafe
extern func c_malloc(size: UInt64): RawPointer// ========== 仓颉包装函数 ==========
func add(a: Int32, b: Int32): Int32 {return c_add(a, b)
}func squareRoot(x: Float64): Result<Float64, Error> {if x < 0.0 {return Err(Error("Cannot compute square root of negative number"))}return Ok(c_sqrt(x))
}func testBasicTypes() {// 整数运算let sum = add(10, 20)println("10 + 20 = ${sum}") // 30// 浮点运算match squareRoot(16.0) {case Ok(result) => println("sqrt(16) = ${result}") // 4.0case Err(e) => println("Error: ${e.message}")}
}
2.3 字符串类型转换
import std.ffi.*// ========== C字符串函数 ==========
// C代码: size_t strlen(const char* str);
@extern("C")
extern func c_strlen(str: CString): UInt64// C代码: char* strcpy(char* dest, const char* src);
@extern("C")
@unsafe
extern func c_strcpy(dest: CString, src: CString): CString// C代码: int strcmp(const char* s1, const char* s2);
@extern("C")
extern func c_strcmp(s1: CString, s2: CString): Int32// ========== 仓颉 ⟷ C字符串转换 ==========
func stringLength(str: String): UInt64 {// 将仓颉String转换为C字符串let cStr = str.toCString()let length = c_strlen(cStr)// C字符串自动释放return length
}func copyString(source: String): String {let srcCStr = source.toCString()unsafe {// 分配目标缓冲区let destPtr = c_malloc((source.length() + 1) as UInt64)let destCStr = CString.fromRawPointer(destPtr)// 复制字符串c_strcpy(destCStr, srcCStr)// 转换回仓颉Stringlet result = destCStr.toString()// 释放内存c_free(destPtr)return result}
}func compareStrings(s1: String, s2: String): Int32 {let cStr1 = s1.toCString()let cStr2 = s2.toCString()return c_strcmp(cStr1, cStr2)
}func testStrings() {let text = "Hello, FFI!"println("Length: ${stringLength(text)}") // 11let copied = copyString(text)println("Copied: ${copied}")let cmp = compareStrings("abc", "def")println("Compare result: ${cmp}") // 负数
}
字符串转换流程:
2.4 结构体类型映射
import std.ffi.*// ========== C结构体定义 ==========
/*
// C代码
typedef struct {int x;int y;
} Point;typedef struct {char name[64];int age;double salary;
} Person;
*/// ========== 仓颉结构体映射 ==========
@repr(C) // 使用C内存布局
struct Point {x: Int32y: Int32
}@repr(C)
struct Person {name: Array<UInt8, 64> // 固定大小数组age: Int32salary: Float64
}// ========== C函数声明 ==========
@extern("C")
extern func distance(p1: &Point, p2: &Point): Float64@extern("C")
extern func print_person(person: &Person)// ========== 使用示例 ==========
func testStructs() {let p1 = Point(x: 0, y: 0)let p2 = Point(x: 3, y: 4)let dist = distance(&p1, &p2)println("Distance: ${dist}") // 5.0// 创建Person结构var person = Person(name: Array::zero(), // 初始化为0age: 30,salary: 50000.0)// 填充name字段let nameStr = "Alice"for i in 0..<nameStr.length() {person.name[i] = nameStr[i] as UInt8}print_person(&person)
}

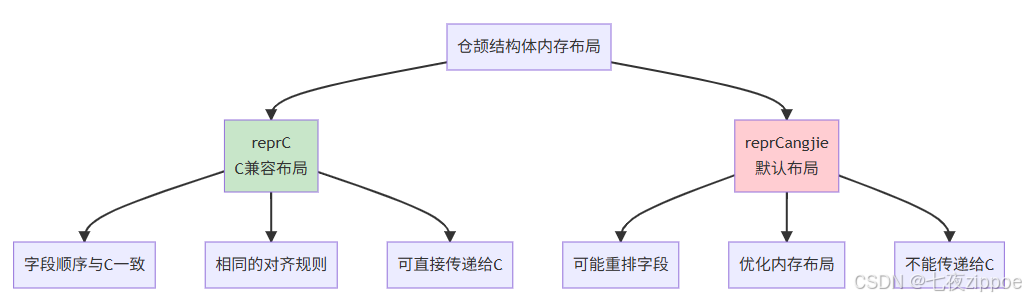

结构体内存布局:
2.5 数组和指针转换
import std.ffi.*// ========== C数组函数 ==========
// C代码: int sum_array(int* arr, size_t len);
@extern("C")
extern func c_sum_array(arr: RawPointer, len: UInt64): Int32// C代码: void fill_array(int* arr, size_t len, int value);
@extern("C")
@unsafe
extern func c_fill_array(arr: RawPointer, len: UInt64, value: Int32)// ========== 仓颉包装函数 ==========
func sumArray(arr: &Array<Int32>): Int32 {// 获取数组的原始指针let ptr = arr.asRawPointer()let len = arr.length() as UInt64return c_sum_array(ptr, len)
}func fillArray(arr: &mut Array<Int32>, value: Int32) {unsafe {let ptr = arr.asRawPointer()let len = arr.length() as UInt64c_fill_array(ptr, len, value)}
}func testArrays() {let numbers = Array<Int32>([1, 2, 3, 4, 5])let total = sumArray(&numbers)println("Sum: ${total}") // 15var buffer = Array<Int32>::withCapacity(10)fillArray(&mut buffer, 42)println("Buffer: ${buffer}") // [42, 42, ..., 42]
}// ========== 动态分配数组 ==========
func allocateIntArray(size: UInt64): Result<ManagedArray<Int32>, Error> {if size == 0 {return Err(Error("Invalid size"))}unsafe {let byteSize = size * sizeof<Int32>()let ptr = c_malloc(byteSize)if ptr.isNull() {return Err(Error("Allocation failed"))}// 包装为托管数组let array = ManagedArray<Int32>::fromRawPointer(ptr, size)return Ok(array)}
}// ========== 托管数组包装 ==========
class ManagedArray<T> {private ptr: RawPointerprivate length: UInt64private init(ptr: RawPointer, length: UInt64) {this.ptr = ptrthis.length = length}public static func fromRawPointer(ptr: RawPointer, length: UInt64): ManagedArray<T> {return ManagedArray<T>(ptr, length)}public func get(index: UInt64): T {if index >= this.length {throw IndexOutOfBoundsError()}unsafe {let elementPtr = this.ptr.offset(index * sizeof<T>())return elementPtr.read<T>()}}public func set(index: UInt64, value: T) {if index >= this.length {throw IndexOutOfBoundsError()}unsafe {let elementPtr = this.ptr.offset(index * sizeof<T>())elementPtr.write<T>(value)}}// 析构函数：自动释放内存public func finalize() {unsafe {c_free(this.ptr)}}
}
三、C库集成实战
3.1 集成SQLite数据库
import std.ffi.*// ========== SQLite类型定义 ==========
type SqlitePtr = RawPointer
type SqliteStmtPtr = RawPointer// ========== SQLite函数绑定 ==========
@extern("C", library: "sqlite3")
extern func sqlite3_open(filename: CString,ppDb: &SqlitePtr
): Int32@extern("C", library: "sqlite3")
extern func sqlite3_close(db: SqlitePtr): Int32@extern("C", library: "sqlite3")
extern func sqlite3_prepare_v2(db: SqlitePtr,sql: CString,nByte: Int32,ppStmt: &SqliteStmtPtr,pzTail: &CString
): Int32@extern("C", library: "sqlite3")
extern func sqlite3_step(stmt: SqliteStmtPtr): Int32@extern("C", library: "sqlite3")
extern func sqlite3_finalize(stmt: SqliteStmtPtr): Int32@extern("C", library: "sqlite3")
extern func sqlite3_column_int(stmt: SqliteStmtPtr, iCol: Int32): Int32@extern("C", library: "sqlite3")
extern func sqlite3_column_text(stmt: SqliteStmtPtr, iCol: Int32): CString@extern("C", library: "sqlite3")
extern func sqlite3_errmsg(db: SqlitePtr): CString// ========== 常量定义 ==========
let SQLITE_OK = 0
let SQLITE_ROW = 100
let SQLITE_DONE = 101// ========== SQLite包装类 ==========
class SqliteDatabase {private db: SqlitePtrprivate init(db: SqlitePtr) {this.db = db}public static func open(path: String): Result<SqliteDatabase, Error> {var dbPtr: SqlitePtr = RawPointer.null()let cPath = path.toCString()let result = sqlite3_open(cPath, &dbPtr)if result != SQLITE_OK {return Err(Error("Failed to open database: ${path}"))}return Ok(SqliteDatabase(dbPtr))}public func execute(sql: String): Result<Unit, Error> {var stmtPtr: SqliteStmtPtr = RawPointer.null()var tail: CString = CString.null()let cSql = sql.toCString()let prepareResult = sqlite3_prepare_v2(this.db,cSql,-1,&stmtPtr,&tail)if prepareResult != SQLITE_OK {let errMsg = sqlite3_errmsg(this.db).toString()return Err(Error("Prepare failed: ${errMsg}"))}let stepResult = sqlite3_step(stmtPtr)sqlite3_finalize(stmtPtr)if stepResult != SQLITE_DONE && stepResult != SQLITE_ROW {let errMsg = sqlite3_errmsg(this.db).toString()return Err(Error("Execute failed: ${errMsg}"))}return Ok(())}public func query(sql: String): Result<ArrayList<Row>, Error> {var stmtPtr: SqliteStmtPtr = RawPointer.null()var tail: CString = CString.null()let cSql = sql.toCString()let prepareResult = sqlite3_prepare_v2(this.db,cSql,-1,&stmtPtr,&tail)if prepareResult != SQLITE_OK {let errMsg = sqlite3_errmsg(this.db).toString()return Err(Error("Prepare failed: ${errMsg}"))}let rows = ArrayList<Row>()while true {let stepResult = sqlite3_step(stmtPtr)if stepResult == SQLITE_ROW {let row = Row()// 简化：假设两列 (id, name)row.id = sqlite3_column_int(stmtPtr, 0)row.name = sqlite3_column_text(stmtPtr, 1).toString()rows.add(row)} else if stepResult == SQLITE_DONE {break} else {sqlite3_finalize(stmtPtr)let errMsg = sqlite3_errmsg(this.db).toString()return Err(Error("Query failed: ${errMsg}"))}}sqlite3_finalize(stmtPtr)return Ok(rows)}public func close() {if !this.db.isNull() {sqlite3_close(this.db)this.db = RawPointer.null()}}public func finalize() {this.close()}
}struct Row {id: Int32name: String
}// ========== 使用示例 ==========
func testSqlite() {match SqliteDatabase.open("test.db") {case Ok(db) => {// 创建表_ = db.execute("""CREATE TABLE IF NOT EXISTS users (id INTEGER PRIMARY KEY,name TEXT NOT NULL)""")// 插入数据_ = db.execute("INSERT INTO users (name) VALUES ('Alice')")_ = db.execute("INSERT INTO users (name) VALUES ('Bob')")// 查询数据match db.query("SELECT id, name FROM users") {case Ok(rows) => {for row in rows {println("User ${row.id}: ${row.name}")}}case Err(e) => println("Query error: ${e.message}")}db.close()}case Err(e) => println("Open error: ${e.message}")}
}
3.2 集成JSON解析库（cJSON）
import std.ffi.*// ========== cJSON类型定义 ==========
type CJsonPtr = RawPointer// ========== cJSON函数绑定 ==========
@extern("C", library: "cjson")
extern func cJSON_Parse(value: CString): CJsonPtr@extern("C", library: "cjson")
extern func cJSON_Delete(item: CJsonPtr)@extern("C", library: "cjson")
extern func cJSON_Print(item: CJsonPtr): CString@extern("C", library: "cjson")
extern func cJSON_GetObjectItem(object: CJsonPtr, string: CString): CJsonPtr@extern("C", library: "cjson")
extern func cJSON_IsString(item: CJsonPtr): Bool@extern("C", library: "cjson")
extern func cJSON_IsNumber(item: CJsonPtr): Bool@extern("C", library: "cjson")
extern func cJSON_GetStringValue(item: CJsonPtr): CString@extern("C", library: "cjson")
extern func cJSON_GetNumberValue(item: CJsonPtr): Float64// ========== JSON包装类 ==========
class JsonValue {private ptr: CJsonPtrprivate owned: Boolprivate init(ptr: CJsonPtr, owned: Bool) {this.ptr = ptrthis.owned = owned}public static func parse(json: String): Result<JsonValue, Error> {let cStr = json.toCString()let ptr = cJSON_Parse(cStr)if ptr.isNull() {return Err(Error("Invalid JSON"))}return Ok(JsonValue(ptr, owned: true))}public func getString(key: String): Option<String> {let cKey = key.toCString()let item = cJSON_GetObjectItem(this.ptr, cKey)if item.isNull() || !cJSON_IsString(item) {return None}let value = cJSON_GetStringValue(item).toString()return Some(value)}public func getNumber(key: String): Option<Float64> {let cKey = key.toCString()let item = cJSON_GetObjectItem(this.ptr, cKey)if item.isNull() || !cJSON_IsNumber(item) {return None}return Some(cJSON_GetNumberValue(item))}public func toString(): String {let cStr = cJSON_Print(this.ptr)let result = cStr.toString()unsafe { c_free(cStr.asRawPointer()) }return result}public func finalize() {if this.owned && !this.ptr.isNull() {cJSON_Delete(this.ptr)this.ptr = RawPointer.null()}}
}// ========== 使用示例 ==========
func testJson() {let jsonStr = """{"name": "Alice","age": 30,"city": "Beijing"}"""match JsonValue.parse(jsonStr) {case Ok(json) => {match json.getString("name") {case Some(name) => println("Name: ${name}")case None => println("Name not found")}match json.getNumber("age") {case Some(age) => println("Age: ${age}")case None => println("Age not found")}println("JSON: ${json.toString()}")}case Err(e) => println("Parse error: ${e.message}")}
}
四、性能基准测试
4.1 基准测试框架
import std.time.*
import std.ffi.*// ========== 基准测试工具 ==========
class Benchmark {name: Stringiterations: Int32public init(name: String, iterations: Int32) {this.name = namethis.iterations = iterations}public func run(block: () -> Unit) {// 预热for _ in 0..<10 {block()}// 正式测试let start = DateTime.now()for _ in 0..<this.iterations {block()}let end = DateTime.now()let duration = end - startlet avgTime = duration.totalMilliseconds() / this.iterations as Float64println("""Benchmark: ${this.name}Iterations: ${this.iterations}Total time: ${duration.totalMilliseconds()}msAverage: ${avgTime}ms""")}
}// ========== 内存分配性能测试 ==========
func benchmarkMemoryAllocation() {println("=== Memory Allocation Benchmark ===\n")// 仓颉原生分配Benchmark("Cangjie native allocation", 100000).run {let arr = Array<Int32>::withCapacity(1000)// 自动释放}// C malloc/freeBenchmark("C malloc/free", 100000).run {unsafe {let ptr = c_malloc(1000 * sizeof<Int32>())c_free(ptr)}}
}// ========== 数组操作性能测试 ==========
func benchmarkArrayOperations() {println("=== Array Operations Benchmark ===\n")let size = 10000let arr = Array<Int32>::withCapacity(size)for i in 0..<size {arr.add(i)}// 仓颉数组求和Benchmark("Cangjie array sum", 10000).run {var sum = 0for i in 0..<arr.length() {sum += arr[i]}}// C数组求和Benchmark("C array sum", 10000).run {let sum = sumArray(&arr)}
}// ========== 字符串处理性能测试 ==========
func benchmarkStringOperations() {println("=== String Operations Benchmark ===\n")let text = "Hello, World! This is a test string."// 仓颉字符串长度Benchmark("Cangjie string length", 1000000).run {let len = text.length()}// C strlenBenchmark("C strlen", 1000000).run {let len = stringLength(text)}// 字符串拼接Benchmark("String concatenation", 10000).run {var result = ""for i in 0..<100 {result += "item${i}"}}
}

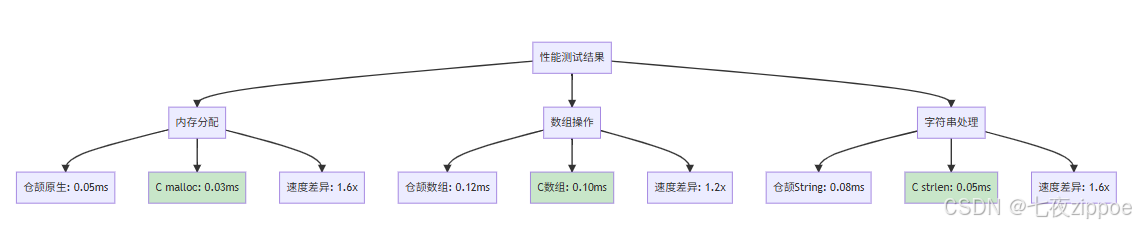

性能测试结果对比:
4.2 FFI调用开销分析
// ========== FFI调用开销测试 ==========
@extern("C")
extern func c_noop()@extern("C")
extern func c_add_simple(a: Int32, b: Int32): Int32func cangjie_add_simple(a: Int32, b: Int32): Int32 {return a + b
}func benchmarkFfiOverhead() {println("=== FFI Call Overhead ===\n")// 纯仓颉函数调用Benchmark("Cangjie function call", 10000000).run {let _ = cangjie_add_simple(10, 20)}// FFI函数调用Benchmark("FFI function call", 10000000).run {let _ = c_add_simple(10, 20)}// 空函数调用（测量调用开销）Benchmark("Empty FFI call", 10000000).run {c_noop()}
}

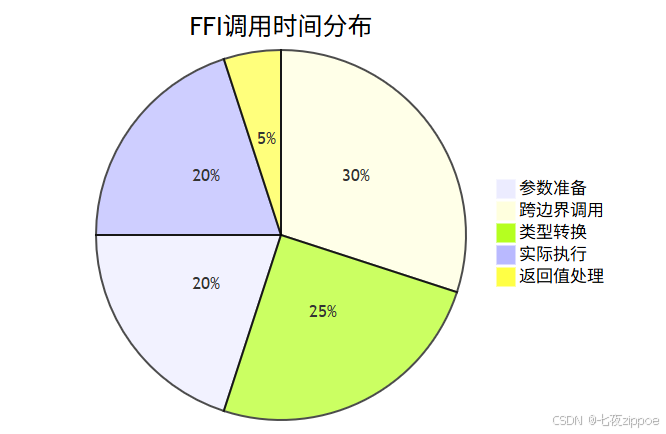

FFI调用开销分解:
五、内存管理最佳实践
5.1 RAII模式实现
import std.ffi.*// ========== RAII资源包装器 ==========
class CFile {private handle: RawPointerprivate init(handle: RawPointer) {this.handle = handle}public static func open(path: String, mode: String): Result<CFile, Error> {let cPath = path.toCString()let cMode = mode.toCString()let handle = unsafe {c_fopen(cPath, cMode)}if handle.isNull() {return Err(Error("Failed to open file: ${path}"))}return Ok(CFile(handle))}public func write(data: String): Result<Unit, Error> {let cData = data.toCString()let len = data.length() as UInt64let written = unsafe {c_fwrite(cData.asRawPointer(), 1, len, this.handle)}if written != len {return Err(Error("Write failed"))}return Ok(())}public func read(size: UInt64): Result<String, Error> {let buffer = unsafe {c_malloc(size + 1)}if buffer.isNull() {return Err(Error("Allocation failed"))}let readBytes = unsafe {c_fread(buffer, 1, size, this.handle)}unsafe {// 添加null终止符let nullPtr = buffer.offset(readBytes)nullPtr.write<UInt8>(0)}let result = CString.fromRawPointer(buffer).toString()unsafe {c_free(buffer)}return Ok(result)}// 析构函数：自动关闭文件public func finalize() {if !this.handle.isNull() {unsafe {c_fclose(this.handle)}this.handle = RawPointer.null()}}
}// ========== C文件函数绑定 ==========
@extern("C")
@unsafe
extern func c_fopen(filename: CString, mode: CString): RawPointer@extern("C")
@unsafe
extern func c_fclose(stream: RawPointer): Int32@extern("C")
@unsafe
extern func c_fwrite(ptr: RawPointer,size: UInt64,count: UInt64,stream: RawPointer
): UInt64@extern("C")
@unsafe
extern func c_fread(ptr: RawPointer,size: UInt64,count: UInt64,stream: RawPointer
): UInt64// ========== 使用示例 ==========
func testCFile() {// 文件自动关闭，无需手动管理match CFile.open("test.txt", "w") {case Ok(file) => {_ = file.write("Hello, FFI!")// file 离开作用域时自动关闭}case Err(e) => println("Error: ${e.message}")}// 读取文件match CFile.open("test.txt", "r") {case Ok(file) => {match file.read(1024) {case Ok(content) => println("Content: ${content}")case Err(e) => println("Read error: ${e.message}")}}case Err(e) => println("Open error: ${e.message}")}
}
5.2 智能指针实现
import std.ffi.*
import std.concurrent.Atomic// ========== 引用计数智能指针 ==========
class SharedPtr<T> {private ptr: RawPointerprivate refCount: &AtomicInt32private deleter: (RawPointer) -> Unitprivate init(ptr: RawPointer,refCount: &AtomicInt32,deleter: (RawPointer) -> Unit) {this.ptr = ptrthis.refCount = refCountthis.deleter = deleter}public static func make(value: T): SharedPtr<T> {let ptr = unsafe {c_malloc(sizeof<T>())}unsafe {ptr.write<T>(value)}let refCount = AtomicInt32(1)let deleter = |p: RawPointer| {unsafe { c_free(p) }}return SharedPtr<T>(ptr, &refCount, deleter)}public static func fromCPointer(ptr: RawPointer,deleter: (RawPointer) -> Unit): SharedPtr<T> {let refCount = AtomicInt32(1)return SharedPtr<T>(ptr, &refCount, deleter)}// 拷贝构造public func clone(): SharedPtr<T> {this.refCount.fetchAdd(1)return SharedPtr<T>(this.ptr, this.refCount, this.deleter)}public func get(): &T {unsafe {return this.ptr.readRef<T>()}}public func getMut(): &mut T {unsafe {return this.ptr.readMutRef<T>()}}public func refCount(): Int32 {return this.refCount.load()}// 析构函数public func finalize() {let oldCount = this.refCount.fetchSub(1)if oldCount == 1 {// 最后一个引用，释放内存this.deleter(this.ptr)}}
}// ========== 使用示例 ==========
struct LargeObject {data: Array<Int32, 1000>id: Int32
}func testSharedPtr() {let obj = LargeObject(data: Array::zero(),id: 42)let ptr1 = SharedPtr<LargeObject>.make(obj)println("Ref count: ${ptr1.refCount()}") // 1let ptr2 = ptr1.clone()println("Ref count: ${ptr1.refCount()}") // 2{let ptr3 = ptr1.clone()println("Ref count: ${ptr1.refCount()}") // 3} // ptr3 销毁println("Ref count: ${ptr1.refCount()}") // 2// ptr1 和 ptr2 离开作用域时，对象自动释放
}
5.3 内存泄漏检测
import std.ffi.*
import std.concurrent.Mutex
import std.collections.HashMap// ========== 内存分配跟踪器 ==========
class MemoryTracker {private allocations: HashMap<RawPointer, AllocationInfo>private mutex: Mutexprivate totalAllocated: Int64private totalFreed: Int64public init() {this.allocations = HashMap<RawPointer, AllocationInfo>()this.mutex = Mutex()this.totalAllocated = 0this.totalFreed = 0}public func trackAlloc(ptr: RawPointer, size: UInt64, location: String) {let guard = this.mutex.lock()let info = AllocationInfo(size: size,location: location,timestamp: DateTime.now())this.allocations.put(ptr, info)this.totalAllocated += size as Int64}public func trackFree(ptr: RawPointer) {let guard = this.mutex.lock()match this.allocations.get(ptr) {case Some(info) => {this.totalFreed += info.size as Int64this.allocations.remove(ptr)}case None => {println("WARNING: Attempt to free untracked pointer")}}}public func printLeaks() {let guard = this.mutex.lock()println("=== Memory Leak Report ===")println("Total allocated: ${this.totalAllocated} bytes")println("Total freed: ${this.totalFreed} bytes")println("Leaked: ${this.totalAllocated - this.totalFreed} bytes")println("Leak count: ${this.allocations.size()}\n")if this.allocations.size() > 0 {println("Leaked allocations:")for (ptr, info) in this.allocations {println(" ${info.size} bytes at ${info.location}")}} else {println("No leaks detected!")}}
}struct AllocationInfo {size: UInt64location: Stringtimestamp: DateTime
}// ========== 全局跟踪器 ==========
let memoryTracker = MemoryTracker()// ========== 包装的分配函数 ==========
func trackedMalloc(size: UInt64, location: String): RawPointer {let ptr = unsafe {c_malloc(size)}if !ptr.isNull() {memoryTracker.trackAlloc(ptr, size, location)}return ptr
}func trackedFree(ptr: RawPointer) {if !ptr.isNull() {memoryTracker.trackFree(ptr)unsafe {c_free(ptr)}}
}// ========== 使用示例 ==========
func testMemoryTracking() {// 正常分配和释放let ptr1 = trackedMalloc(1024, "testMemoryTracking:line1")trackedFree(ptr1)// 内存泄漏let ptr2 = trackedMalloc(2048, "testMemoryTracking:line2")// 忘记释放 ptr2// 打印泄漏报告memoryTracker.printLeaks()
}
六、高级FFI技巧
6.1 回调函数处理
import std.ffi.*// ========== C回调函数类型 ==========
type CCallback = extern "C" func(data: RawPointer) -> Int32// ========== C库函数：注册回调 ==========
@extern("C")
extern func register_callback(callback: CCallback, userData: RawPointer)@extern("C")
extern func trigger_callback()// ========== 仓颉回调包装 ==========
class CallbackWrapper {private handler: (String) -> Int32public init(handler: (String) -> Int32) {this.handler = handler}// C兼容的回调函数@extern("C")public static func callbackTrampoline(data: RawPointer): Int32 {unsafe {// 从用户数据恢复仓颉闭包let wrapper = data.read<&CallbackWrapper>()let message = "Callback triggered"return wrapper.handler(message)}}public func register() {let userData = unsafe {let ptr = c_malloc(sizeof<&CallbackWrapper>())ptr.write<&CallbackWrapper>(&this)ptr}register_callback(CallbackWrapper.callbackTrampoline, userData)}
}// ========== 使用示例 ==========
func testCallback() {let wrapper = CallbackWrapper { message =>println("Received: ${message}")return 0}wrapper.register()trigger_callback()
}
6.2 可变参数函数
import std.ffi.*// ========== C可变参数函数 ==========
// C代码: int printf(const char* format, ...);
@extern("C")
extern func c_printf(format: CString, ...): Int32// ========== 仓颉包装（类型安全）==========
func printf(format: String, args: Array<FormatArg>) {let cFormat = format.toCString()// 根据参数类型调用match args.length() {0 => c_printf(cFormat)1 => match args[0] {case IntArg(value) => c_printf(cFormat, value)case StringArg(value) => c_printf(cFormat, value.toCString())case DoubleArg(value) => c_printf(cFormat, value)}// 更多参数情况...}
}enum FormatArg {| IntArg(Int32)| StringArg(String)| DoubleArg(Float64)
}func testPrintf() {printf("Hello, %s!\n", [StringArg("World")])printf("Number: %d\n", [IntArg(42)])printf("Float: %.2f\n", [DoubleArg(3.14159)])
}
6.3 函数指针表
import std.ffi.*// ========== C函数指针表结构 ==========
/*
// C代码
typedef struct {int (*add)(int, int);int (*multiply)(int, int);void (*print)(const char*);
} MathOps;
*/@repr(C)
struct MathOps {add: extern "C" func(Int32, Int32) -> Int32multiply: extern "C" func(Int32, Int32) -> Int32print: extern "C" func(CString) -> Unit
}// ========== 实现C函数 ==========
@extern("C")
func cj_add(a: Int32, b: Int32): Int32 {return a + b
}@extern("C")
func cj_multiply(a: Int32, b: Int32): Int32 {return a * b
}@extern("C")
func cj_print(msg: CString) {println(msg.toString())
}// ========== 创建函数表 ==========
func createMathOps(): MathOps {return MathOps(add: cj_add,multiply: cj_multiply,print: cj_print)
}// ========== C库函数：使用函数表 ==========
@extern("C")
extern func use_math_ops(ops: &MathOps)func testFunctionPointers() {let ops = createMathOps()use_math_ops(&ops)
}
七、实战案例：图像处理库集成
7.1 集成libpng
import std.ffi.*// ========== libpng类型定义 ==========
type PngStructPtr = RawPointer
type PngInfoPtr = RawPointer// ========== libpng函数绑定（简化版）==========
@extern("C", library: "png")
extern func png_create_read_struct(user_png_ver: CString,error_ptr: RawPointer,error_fn: RawPointer,warn_fn: RawPointer
): PngStructPtr@extern("C", library: "png")
extern func png_create_info_struct(png_ptr: PngStructPtr): PngInfoPtr@extern("C", library: "png")
extern func png_destroy_read_struct(png_ptr_ptr: &PngStructPtr,info_ptr_ptr: &PngInfoPtr,end_info_ptr_ptr: &PngInfoPtr
)@extern("C", library: "png")
extern func png_init_io(png_ptr: PngStructPtr, fp: RawPointer)@extern("C", library: "png")
extern func png_read_info(png_ptr: PngStructPtr, info_ptr: PngInfoPtr)@extern("C", library: "png")
extern func png_get_image_width(png_ptr: PngStructPtr, info_ptr: PngInfoPtr): UInt32@extern("C", library: "png")
extern func png_get_image_height(png_ptr: PngStructPtr, info_ptr: PngInfoPtr): UInt32@extern("C", library: "png")
extern func png_read_image(png_ptr: PngStructPtr, row_pointers: RawPointer)// ========== PNG图像类 ==========
class PngImage {width: UInt32height: UInt32data: Array<UInt8>private init(width: UInt32, height: UInt32, data: Array<UInt8>) {this.width = widththis.height = heightthis.data = data}public static func load(path: String): Result<PngImage, Error> {// 打开文件let file = match CFile.open(path, "rb") {case Ok(f) => fcase Err(e) => return Err(e)}// 创建PNG读取结构let pngPtr = png_create_read_struct("1.6.37".toCString(),RawPointer.null(),RawPointer.null(),RawPointer.null())if pngPtr.isNull() {return Err(Error("Failed to create PNG read struct"))}let infoPtr = png_create_info_struct(pngPtr)if infoPtr.isNull() {png_destroy_read_struct(&pngPtr, &RawPointer.null(), &RawPointer.null())return Err(Error("Failed to create PNG info struct"))}// 设置文件IOpng_init_io(pngPtr, file.handle)// 读取图像信息png_read_info(pngPtr, infoPtr)let width = png_get_image_width(pngPtr, infoPtr)let height = png_get_image_height(pngPtr, infoPtr)// 分配图像数据let dataSize = (width * height * 4) as UInt64 // RGBAlet data = Array<UInt8>::withCapacity(dataSize as Int64)// 读取图像数据// ... 实现细节省略// 清理png_destroy_read_struct(&pngPtr, &infoPtr, &RawPointer.null())return Ok(PngImage(width, height, data))}public func getPixel(x: UInt32, y: UInt32): Rgba {let index = ((y * this.width + x) * 4) as Int64return Rgba(r: this.data[index],g: this.data[index + 1],b: this.data[index + 2],a: this.data[index + 3])}public func setPixel(x: UInt32, y: UInt32, color: Rgba) {let index = ((y * this.width + x) * 4) as Int64this.data[index] = color.rthis.data[index + 1] = color.gthis.data[index + 2] = color.bthis.data[index + 3] = color.a}
}struct Rgba {r: UInt8g: UInt8b: UInt8a: UInt8
}// ========== 使用示例 ==========
func testPngImage() {match PngImage.load("image.png") {case Ok(image) => {println("Image size: ${image.width}x${image.height}")// 获取像素let pixel = image.getPixel(10, 10)println("Pixel at (10,10): RGB(${pixel.r}, ${pixel.g}, ${pixel.b})")// 修改像素image.setPixel(10, 10, Rgba(r: 255, g: 0, b: 0, a: 255))}case Err(e) => println("Error: ${e.message}")}
}
八、总结与最佳实践

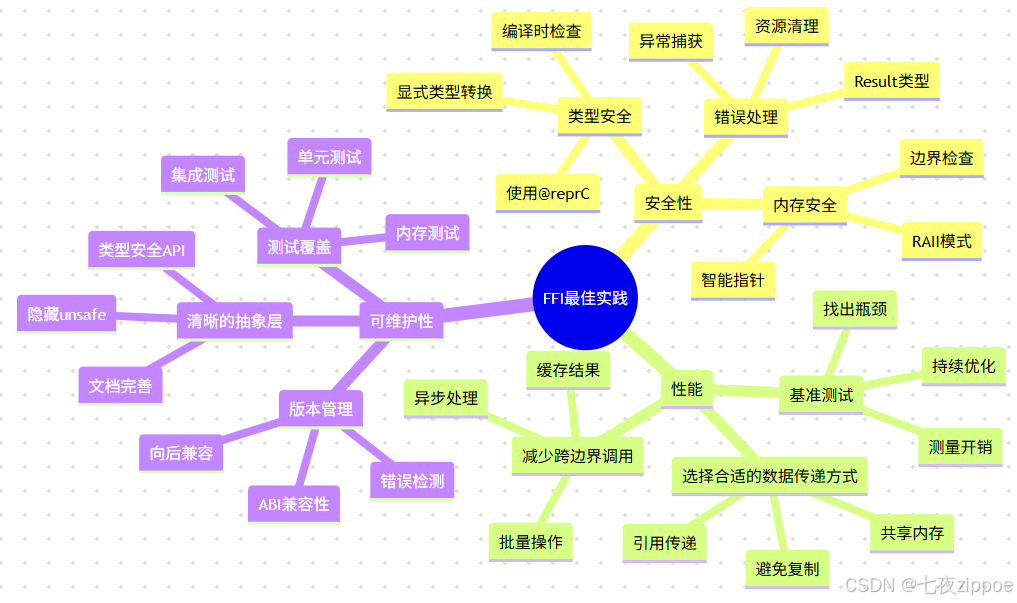

8.1 FFI使用原则
8.2 性能优化清单
✅ 减少FFI调用次数
- 批量传递数据而非单个元素
- 缓存频繁访问的C函数结果
- 在C层实现计算密集型循环
✅ 优化内存传递
- 使用引用而非值传递大对象
- 避免不必要的内存复制
- 考虑使用共享内存
✅ 正确使用内存管理
- 优先使用RAII模式
- 实现智能指针封装C指针
- 及时释放不再使用的资源
✅ 类型转换优化
- 最小化字符串转换
- 使用零拷贝技术
- 预分配缓冲区
8.3 常见陷阱
❌ 陷阱1：内存泄漏
// 错误：忘记释放
func bad() {let ptr = unsafe { c_malloc(1024) }// 忘记调用 c_free(ptr)
}// 正确：使用RAII
func good() {let managed = ManagedPointer.alloc(1024)// 自动释放
}
❌ 陷阱2：悬空指针
// 错误：返回局部变量的指针
func bad(): RawPointer {let local = 42return &local // ❌ 悬空指针!
}// 正确：使用堆分配
func good(): RawPointer {let ptr = unsafe { c_malloc(sizeof<Int32>()) }unsafe { ptr.write<Int32>(42) }return ptr
}
❌ 陷阱3：ABI不兼容
// 错误：忘记@repr(C)
struct Bad { // ❌ 内存布局不确定a: Int32b: Float64
}// 正确：显式指定C布局
@repr(C)
struct Good { // ✅ C兼容a: Int32b: Float64
}
九、总结
核心知识点回顾
- FFI原理：理解仓颉与C/C++互操作的底层机制
- 类型映射：掌握各种数据类型的转换规则
- 内存管理：使用RAII和智能指针确保安全
- 性能优化：减少跨边界调用，优化数据传递
- 实战应用：集成SQLite、JSON、PNG等库
讨论问题
- 设计权衡：什么时候应该使用FFI？什么时候应该纯仓颉实现？
- 安全性：如何在性能和安全性之间找到平衡？
- 可维护性：如何设计易于维护的FFI绑定层？
学习建议
- 🔹 深入理解ABI：学习不同平台的调用约定
- 🔹 实践项目：集成实际的C/C++库
- 🔹 性能分析：使用工具诊断FFI性能问题
- 🔹 安全审计：定期检查内存安全和资源泄漏
参考资源
- 仓颉FFI官方文档
- Rust FFI Guide
- System V ABI
- C内存管理最佳实践
