Geoserver修行记-安装CSS插件避坑

news 2025/10/28 10:16:45

项目场景

要在Geoserver中安装CSS插件，使用CSS样式表来为地图层添加样式。Geoserver本身不直接支持CSS插件，因为它是基于Java开发的，主要用于处理地理空间数据和Web地图服务。
今天遇到一个复杂的样式使用SLD无法实现，部署一下CSS插件测试一下，结果在安装的时候就遇到一个坑，先记录并分享一下解决办法，希望大家不要踩坑。

环境描述

  • Geoserver 2.23.1
  • Windows Server 2019 Standard

下载安装

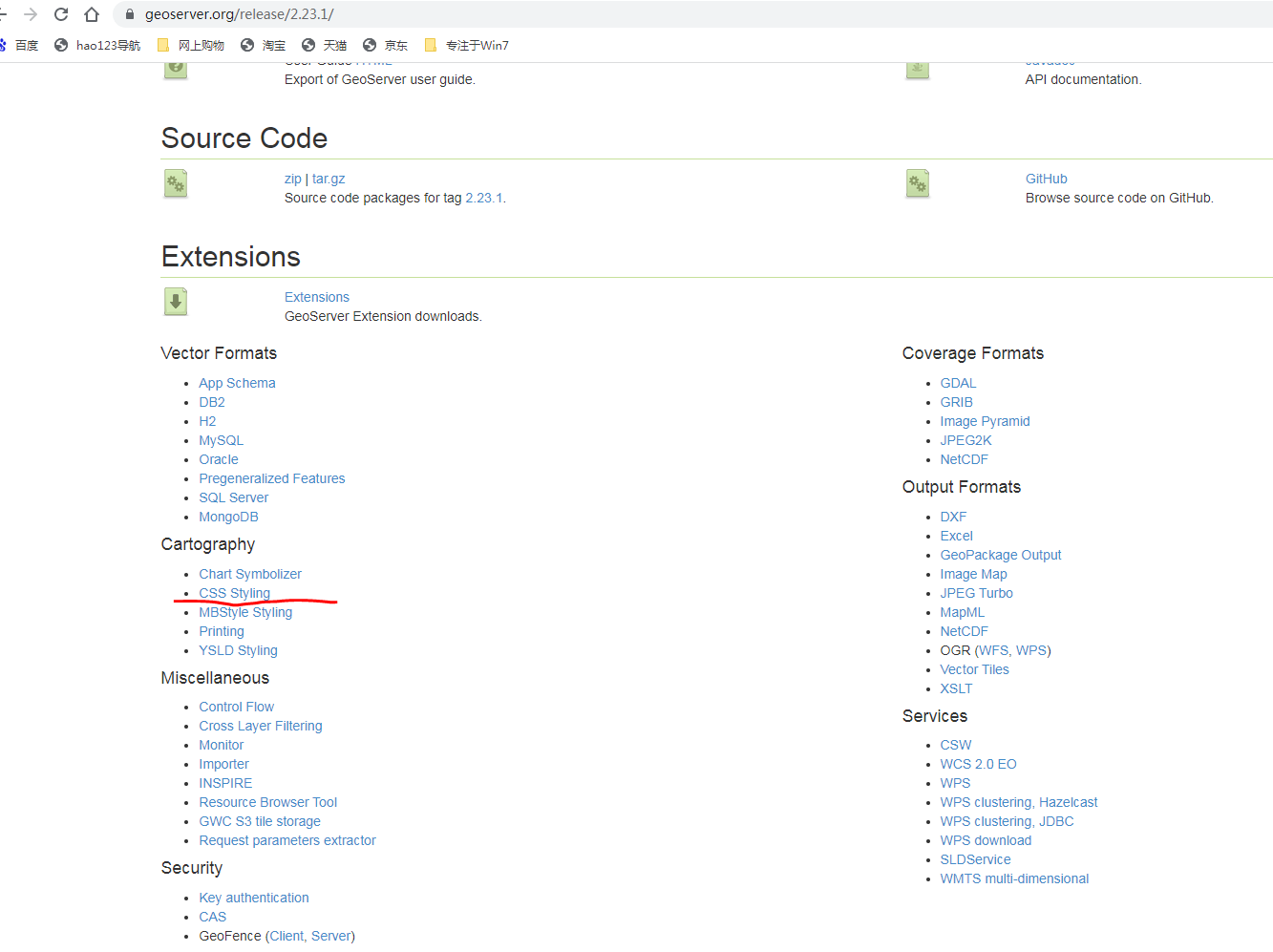

1.下载对应版本的CSS插件geoserver-2.23.1-css-plugin.zip
在这里插入图片描述

2.解压geoserver-2.23.1-css-plugin.zip，将解压后的jar文件，复制到对应geoserver版本的WEB-INF/lib目录中。
3 重启GeoServer即可。

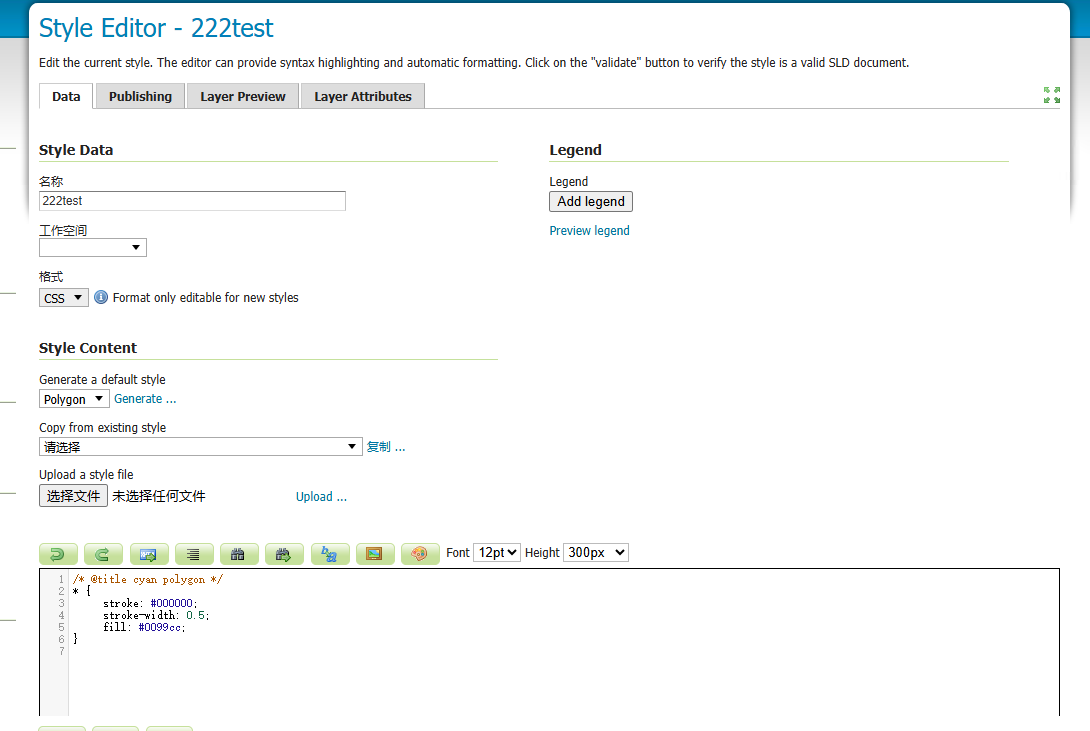

在新建Style页面看到Format有CSS选项即代表可以正常使用了。

遇到的问题

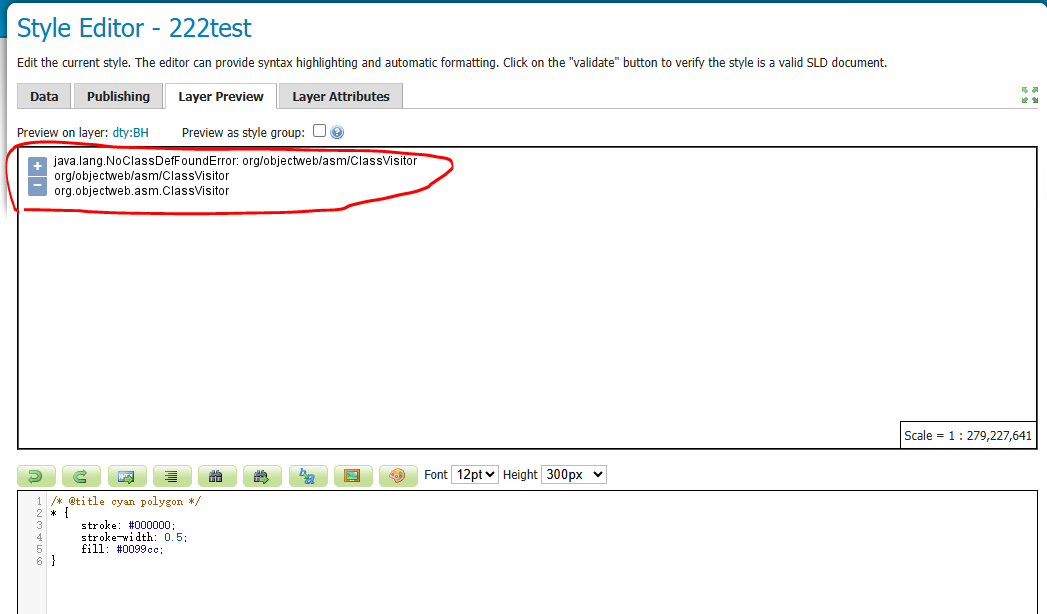

安装css插件后点击验证报错：
在这里插入图片描述

An error occurred while loading the page
哎呀，出错了…
抱歉，服务器上发生了意想不到的事情。
The GeoServer user list might help you address this issue. Click here to subscribe, and then include in your message the GeoServer version, the stack trace below and the steps to reproduce the problem.

org.apache.wicket.WicketRuntimeException: Method onRequest of interface org.apache.wicket.behavior.IBehaviorListener targeted at org.apache.wicket.ajax.markup.html.form.AjaxSubmitLink$1@70b723f7 on component [GeoServerAjaxFormLink [Component id = validate]] threw an exceptionat org.apache.wicket.RequestListenerInterface.internalInvoke(RequestListenerInterface.java:268)at org.apache.wicket.RequestListenerInterface.invoke(RequestListenerInterface.java:241)at org.apache.wicket.core.request.handler.ListenerInterfaceRequestHandler.invokeListener(ListenerInterfaceRequestHandler.java:248)at org.apache.wicket.core.request.handler.ListenerInterfaceRequestHandler.respond(ListenerInterfaceRequestHandler.java:234)at org.apache.wicket.core.request.handler.RequestSettingRequestHandler.respond(RequestSettingRequestHandler.java:78)at org.apache.wicket.request.cycle.RequestCycle$HandlerExecutor.respond(RequestCycle.java:895)at org.apache.wicket.request.RequestHandlerStack.execute(RequestHandlerStack.java:64)at org.apache.wicket.request.cycle.RequestCycle.execute(RequestCycle.java:265)at org.apache.wicket.request.cycle.RequestCycle.processRequest(RequestCycle.java:222)at org.apache.wicket.request.cycle.RequestCycle.processRequestAndDetach(RequestCycle.java:293)at org.apache.wicket.protocol.http.WicketFilter.processRequestCycle(WicketFilter.java:261)at org.apache.wicket.protocol.http.WicketFilter.processRequest(WicketFilter.java:203)at org.apache.wicket.protocol.http.WicketServlet.doPost(WicketServlet.java:159)at javax.servlet.http.HttpServlet.service(HttpServlet.java:707)at javax.servlet.http.HttpServlet.service(HttpServlet.java:790)at org.springframework.web.servlet.mvc.ServletWrappingController.handleRequestInternal(ServletWrappingController.java:166)at org.springframework.web.servlet.mvc.AbstractController.handleRequest(AbstractController.java:177)at org.springframework.web.servlet.mvc.SimpleControllerHandlerAdapter.handle(SimpleControllerHandlerAdapter.java:51)at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1072)at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:965)at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)at org.springframework.web.servlet.FrameworkServlet.doPost(FrameworkServlet.java:909)at javax.servlet.http.HttpServlet.service(HttpServlet.java:707)at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883)at javax.servlet.http.HttpServlet.service(HttpServlet.java:790)at org.eclipse.jetty.servlet.ServletHolder$NotAsync.service(ServletHolder.java:1459)at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:799)at org.eclipse.jetty.servlet.ServletHandler$ChainEnd.doFilter(ServletHandler.java:1656)at org.geoserver.filters.ThreadLocalsCleanupFilter.doFilter(ThreadLocalsCleanupFilter.java:28)at org.eclipse.jetty.servlet.FilterHolder.doFilter(FilterHolder.java:193)at org.eclipse.jetty.servlet.ServletHandler$Chain.doFilter(ServletHandler.java:1626)at org.geoserver.filters.SpringDelegatingFilter$Chain.doFilter(SpringDelegatingFilter.java:73)at org.geoserver.ows.HTTPHeadersCollector.doFilter(HTTPHeadersCollector.java:48)at org.geoserver.filters.SpringDelegatingFilter$Chain.doFilter(SpringDelegatingFilter.java:70)at org.geoserver.filters.HTTPMethodFilter.doFilter(HTTPMethodFilter.java:36)at org.geoserver.filters.SpringDelegatingFilter$Chain.doFilter(SpringDelegatingFilter.java:70)at org.geoserver.filters.LoggingFilter.doFilter(LoggingFilter.java:194)at org.geoserver.filters.SpringDelegatingFilter$Chain.doFilter(SpringDelegatingFilter.java:70)at org.geoserver.filters.SpringDelegatingFilter.doFilter(SpringDelegatingFilter.java:43)at org.eclipse.jetty.servlet.FilterHolder.doFilter(FilterHolder.java:193)at org.eclipse.jetty.servlet.ServletHandler$Chain.doFilter(ServletHandler.java:1626)at org.geoserver.platform.AdvancedDispatchFilter.doFilter(AdvancedDispatchFilter.java:39)at org.eclipse.jetty.servlet.FilterHolder.doFilter(FilterHolder.java:193)at org.eclipse.jetty.servlet.ServletHandler$Chain.doFilter(ServletHandler.java:1626)at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:337)at org.geoserver.security.filter.GeoServerCompositeFilter$NestedFilterChain.doFilter(GeoServerCompositeFilter.java:71)at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.invoke(FilterSecurityInterceptor.java:115)at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.doFilter(FilterSecurityInterceptor.java:81)at org.geoserver.security.filter.GeoServerCompositeFilter$NestedFilterChain.doFilter(GeoServerCompositeFilter.java:75)at org.geoserver.security.filter.GeoServerCompositeFilter.doFilter(GeoServerCompositeFilter.java:92)at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)at org.geoserver.security.filter.GeoServerCompositeFilter$NestedFilterChain.doFilter(GeoServerCompositeFilter.java:71)at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:122)at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:116)at org.geoserver.security.filter.GeoServerCompositeFilter$NestedFilterChain.doFilter(GeoServerCompositeFilter.java:75)at org.geoserver.security.filter.GeoServerCompositeFilter.doFilter(GeoServerCompositeFilter.java:92)at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)at org.geoserver.security.filter.GeoServerAnonymousAuthenticationFilter.doFilter(GeoServerAnonymousAuthenticationFilter.java:53)at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)at org.geoserver.security.filter.GeoServerCompositeFilter$NestedFilterChain.doFilter(GeoServerCompositeFilter.java:71)at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:223)at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:217)at org.geoserver.security.filter.GeoServerCompositeFilter$NestedFilterChain.doFilter(GeoServerCompositeFilter.java:75)at org.geoserver.security.filter.GeoServerCompositeFilter.doFilter(GeoServerCompositeFilter.java:92)at org.geoserver.security.filter.GeoServerUserNamePasswordAuthenticationFilter.doFilter(GeoServerUserNamePasswordAuthenticationFilter.java:122)at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)at org.geoserver.security.filter.GeoServerCompositeFilter$NestedFilterChain.doFilter(GeoServerCompositeFilter.java:71)at org.springframework.security.web.authentication.rememberme.RememberMeAuthenticationFilter.doFilter(RememberMeAuthenticationFilter.java:106)at org.springframework.security.web.authentication.rememberme.RememberMeAuthenticationFilter.doFilter(RememberMeAuthenticationFilter.java:97)at org.geoserver.security.filter.GeoServerCompositeFilter$NestedFilterChain.doFilter(GeoServerCompositeFilter.java:75)at org.geoserver.security.filter.GeoServerCompositeFilter.doFilter(GeoServerCompositeFilter.java:92)at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)at org.geoserver.security.filter.GeoServerCompositeFilter$NestedFilterChain.doFilter(GeoServerCompositeFilter.java:71)at org.geoserver.security.filter.GeoServerSecurityContextPersistenceFilter$1.doFilterInternal(GeoServerSecurityContextPersistenceFilter.java:72)at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)at org.geoserver.security.filter.GeoServerCompositeFilter$NestedFilterChain.doFilter(GeoServerCompositeFilter.java:75)at org.geoserver.security.filter.GeoServerCompositeFilter.doFilter(GeoServerCompositeFilter.java:92)at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:346)at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:221)at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:186)at org.geoserver.security.GeoServerSecurityFilterChainProxy.doFilter(GeoServerSecurityFilterChainProxy.java:142)at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:354)at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:267)at org.eclipse.jetty.servlet.FilterHolder.doFilter(FilterHolder.java:193)at org.eclipse.jetty.servlet.ServletHandler$Chain.doFilter(ServletHandler.java:1626)at org.geoserver.filters.XFrameOptionsFilter.doFilter(XFrameOptionsFilter.java:77)at org.eclipse.jetty.servlet.FilterHolder.doFilter(FilterHolder.java:193)at org.eclipse.jetty.servlet.ServletHandler$Chain.doFilter(ServletHandler.java:1626)at org.geoserver.filters.GZIPFilter.doFilter(GZIPFilter.java:48)at org.eclipse.jetty.servlet.FilterHolder.doFilter(FilterHolder.java:193)at org.eclipse.jetty.servlet.ServletHandler$Chain.doFilter(ServletHandler.java:1626)at org.geoserver.filters.SessionDebugFilter.doFilter(SessionDebugFilter.java:49)at org.eclipse.jetty.servlet.FilterHolder.doFilter(FilterHolder.java:193)at org.eclipse.jetty.servlet.ServletHandler$Chain.doFilter(ServletHandler.java:1626)at org.geoserver.filters.FlushSafeFilter.doFilter(FlushSafeFilter.java:42)at org.eclipse.jetty.servlet.FilterHolder.doFilter(FilterHolder.java:193)at org.eclipse.jetty.servlet.ServletHandler$Chain.doFilter(ServletHandler.java:1626)at org.eclipse.jetty.servlets.CrossOriginFilter.handle(CrossOriginFilter.java:319)at org.eclipse.jetty.servlets.CrossOriginFilter.doFilter(CrossOriginFilter.java:273)at org.eclipse.jetty.servlet.FilterHolder.doFilter(FilterHolder.java:193)at org.eclipse.jetty.servlet.ServletHandler$Chain.doFilter(ServletHandler.java:1626)at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201)at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)at org.eclipse.jetty.servlet.FilterHolder.doFilter(FilterHolder.java:201)at org.eclipse.jetty.servlet.ServletHandler$Chain.doFilter(ServletHandler.java:1626)at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:552)at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:143)at org.eclipse.jetty.security.SecurityHandler.handle(SecurityHandler.java:600)at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:127)at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:235)at org.eclipse.jetty.server.session.SessionHandler.doHandle(SessionHandler.java:1624)at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:233)at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1440)at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:188)at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:505)at org.eclipse.jetty.server.session.SessionHandler.doScope(SessionHandler.java:1594)at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:186)at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1355)at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:141)at org.eclipse.jetty.server.handler.ContextHandlerCollection.handle(ContextHandlerCollection.java:234)at org.eclipse.jetty.server.handler.HandlerCollection.handle(HandlerCollection.java:146)at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:127)at org.eclipse.jetty.server.Server.handle(Server.java:516)at org.eclipse.jetty.server.HttpChannel.lambda$handle$1(HttpChannel.java:487)at org.eclipse.jetty.server.HttpChannel.dispatch(HttpChannel.java:732)at org.eclipse.jetty.server.HttpChannel.handle(HttpChannel.java:479)at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:277)at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:311)at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:105)at org.eclipse.jetty.io.ChannelEndPoint$1.run(ChannelEndPoint.java:104)at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.runTask(EatWhatYouKill.java:338)at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.doProduce(EatWhatYouKill.java:315)at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.tryProduce(EatWhatYouKill.java:173)at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.run(EatWhatYouKill.java:131)at org.eclipse.jetty.util.thread.ReservedThreadExecutor$ReservedThread.run(ReservedThreadExecutor.java:409)at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:883)at org.eclipse.jetty.util.thread.QueuedThreadPool$Runner.run(QueuedThreadPool.java:1034)at java.base/java.lang.Thread.run(Thread.java:834)
Caused by: java.lang.reflect.InvocationTargetExceptionat jdk.internal.reflect.GeneratedMethodAccessor340.invoke(Unknown Source)at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)at java.base/java.lang.reflect.Method.invoke(Method.java:566)at org.apache.wicket.RequestListenerInterface.internalInvoke(RequestListenerInterface.java:258)... 137 more
Caused by: java.lang.NoClassDefFoundError: org/objectweb/asm/ClassVisitorat org.parboiled.Parboiled.createParser(Parboiled.java:54)at org.geotools.styling.css.CssParser.getInstance(CssParser.java:108)at org.geotools.styling.css.CssParser.parse(CssParser.java:119)at org.geoserver.community.css.web.CssHandler.convertToSLD(CssHandler.java:154)at org.geoserver.community.css.web.CssHandler.validate(CssHandler.java:172)at org.geoserver.wms.web.data.AbstractStylePage.validateSLD(AbstractStylePage.java:523)at org.geoserver.wms.web.data.AbstractStylePage$10.onClick(AbstractStylePage.java:486)at org.geoserver.web.wicket.GeoServerAjaxFormLink.onSubmit(GeoServerAjaxFormLink.java:45)at org.apache.wicket.ajax.markup.html.form.AjaxSubmitLink$1.onSubmit(AjaxSubmitLink.java:111)at org.apache.wicket.ajax.form.AjaxFormSubmitBehavior$AjaxFormSubmitter.onSubmit(AjaxFormSubmitBehavior.java:218)at org.apache.wicket.markup.html.form.Form.onFormSubmitted(Form.java:787)at org.apache.wicket.ajax.form.AjaxFormSubmitBehavior.onEvent(AjaxFormSubmitBehavior.java:174)at org.apache.wicket.ajax.AjaxEventBehavior.respond(AjaxEventBehavior.java:155)at org.apache.wicket.ajax.AbstractDefaultAjaxBehavior.onRequest(AbstractDefaultAjaxBehavior.java:601)... 141 more
Caused by: java.lang.ClassNotFoundException: org.objectweb.asm.ClassVisitorat java.base/java.net.URLClassLoader.findClass(URLClassLoader.java:476)at java.base/java.lang.ClassLoader.loadClass(ClassLoader.java:588)at java.base/java.lang.ClassLoader.loadClass(ClassLoader.java:521)at org.eclipse.jetty.webapp.WebAppClassLoader.loadClass(WebAppClassLoader.java:538)at java.base/java.lang.ClassLoader.loadClass(ClassLoader.java:521)... 155 more
An error occurred while loading the page

在这里插入图片描述

…
Caused by: java.lang.reflect.InvocationTargetException
…
Caused by: java.lang.NoClassDefFoundError: org/objectweb/asm/ClassVisitor
…
Caused by: java.lang.ClassNotFoundException: org.objectweb.asm.ClassVisitor
…
通过分析可知缺少必要的asm文件

解决方案

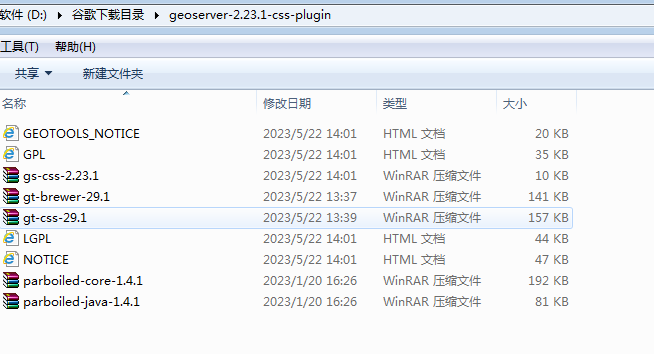

1.我检查了一下载下来的压缩包内的jar包，没有asm包
在这里插入图片描述

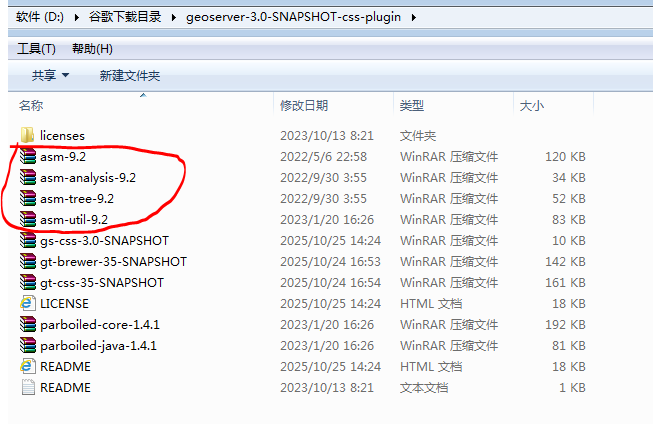

2.于是我有了一个想法，使用最新的版本CSS的插件中的asm包试一下，寻找包含asm-
*.jar包的插件版本，竟然成功了。我使用的是geoserver-3.0-SNAPSHOT-css-plugin.zip中的asm-*.jar包。将下述文件复制geoserver的WEB-INF/lib目录中，只复制下图所圈的文件，其余不要复制，如下图所示：
在这里插入图片描述
问题解决

小结

  • 在网上也没有找到解决方法，关键时候还得靠自己啊！
  • 没想到高版本的插件包，也有可以在低版本上使用的。
  • 遇到这种问题，关键在于如何找到问题的症结所在。
