SAP SD交货单批导功能分享

news 2025/10/25 12:55:54

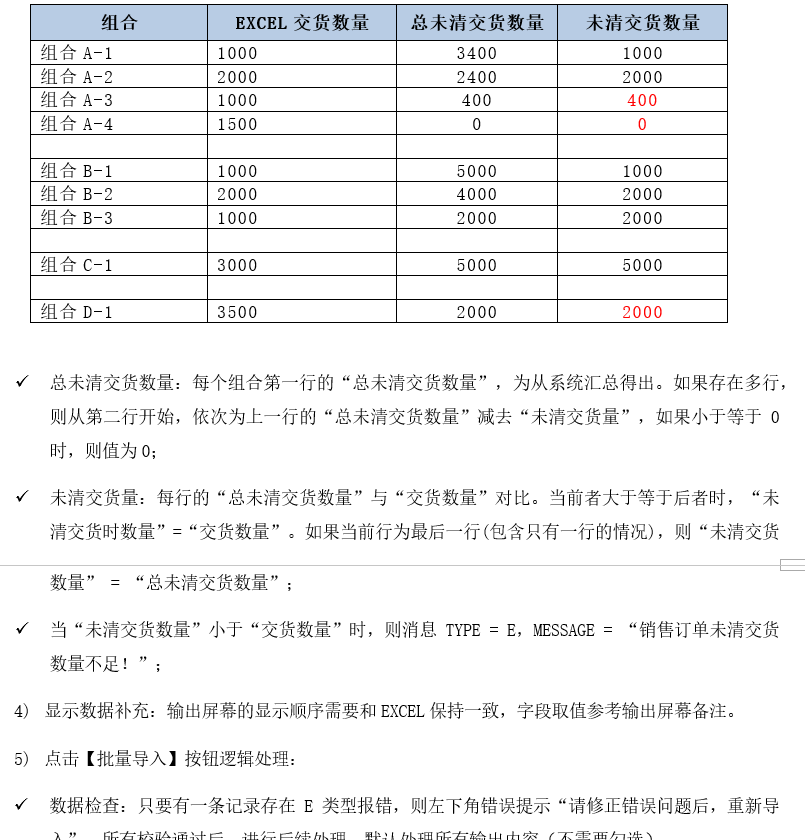

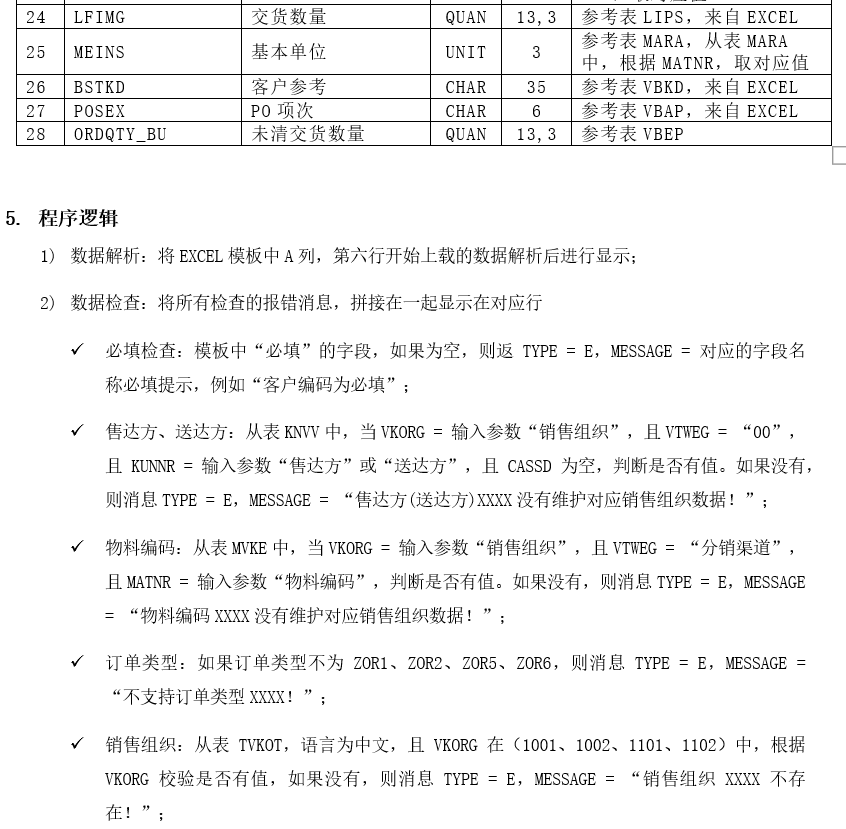

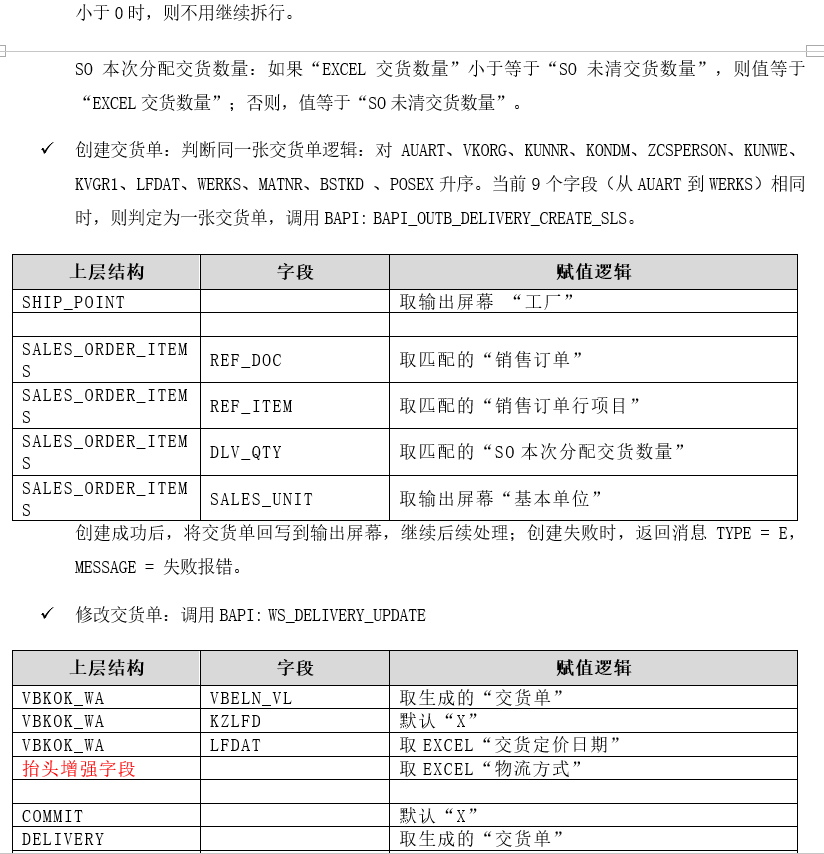

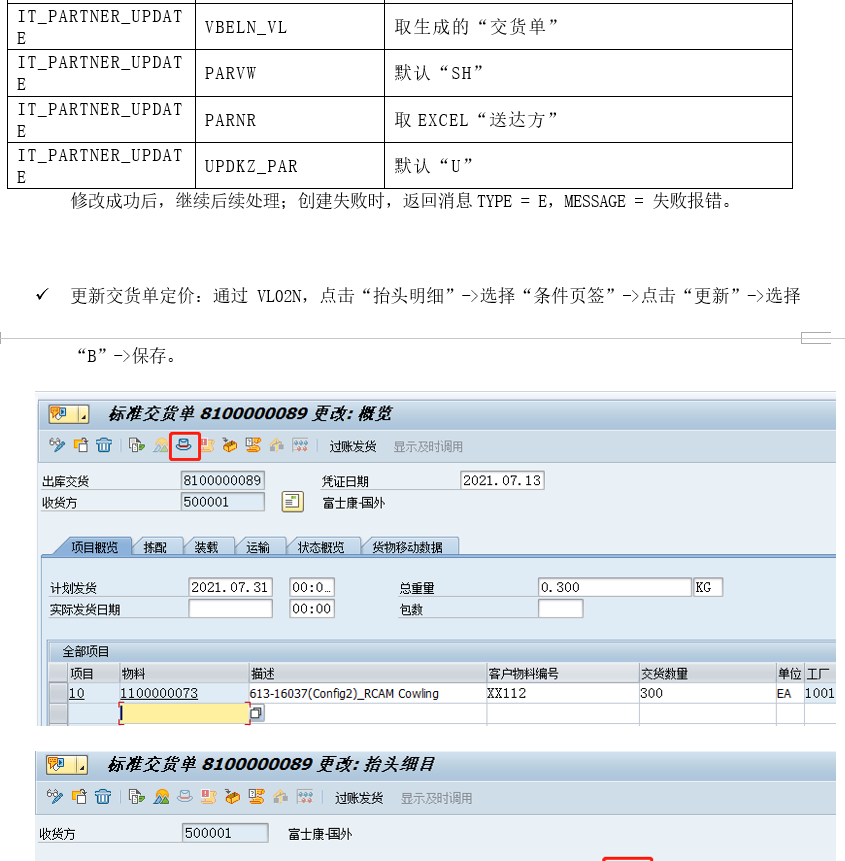

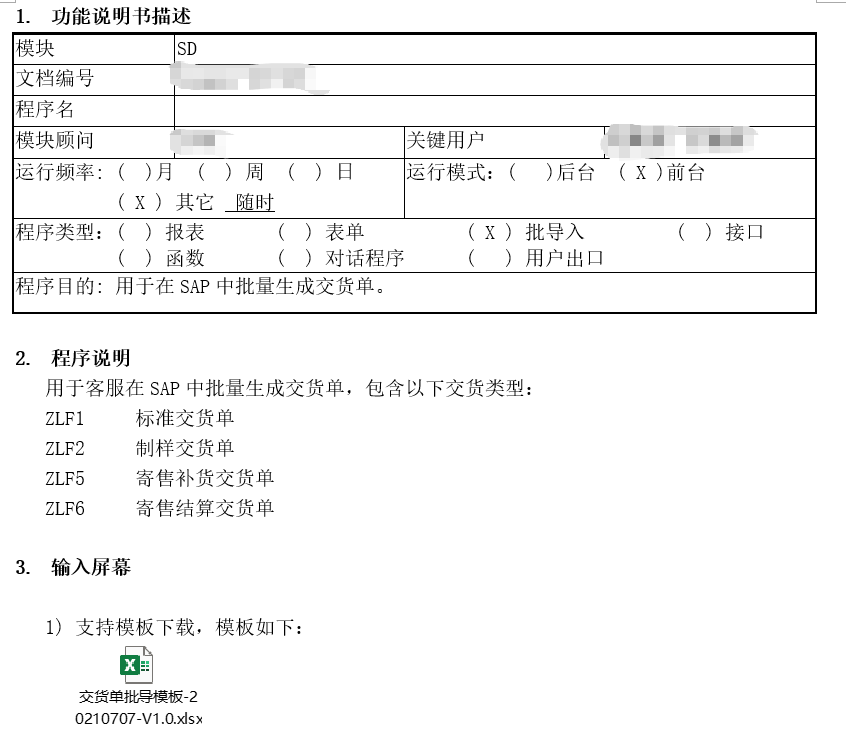

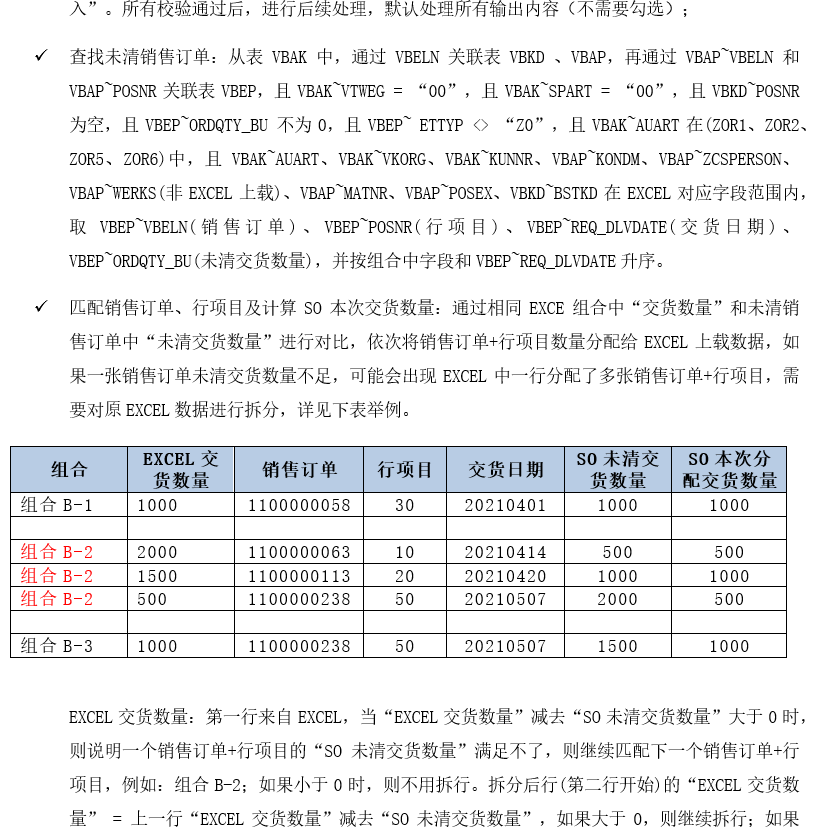

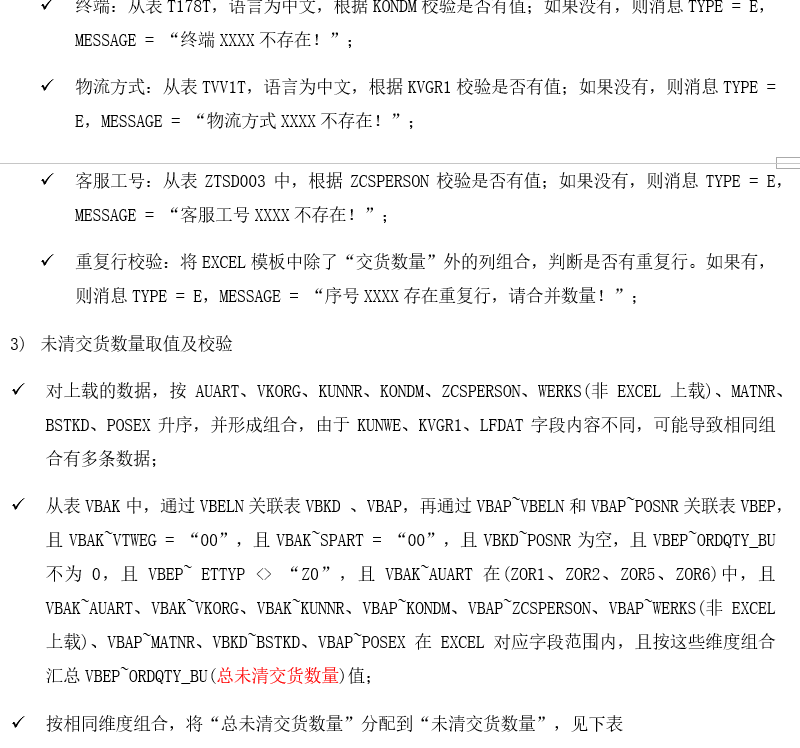

一、功能逻辑

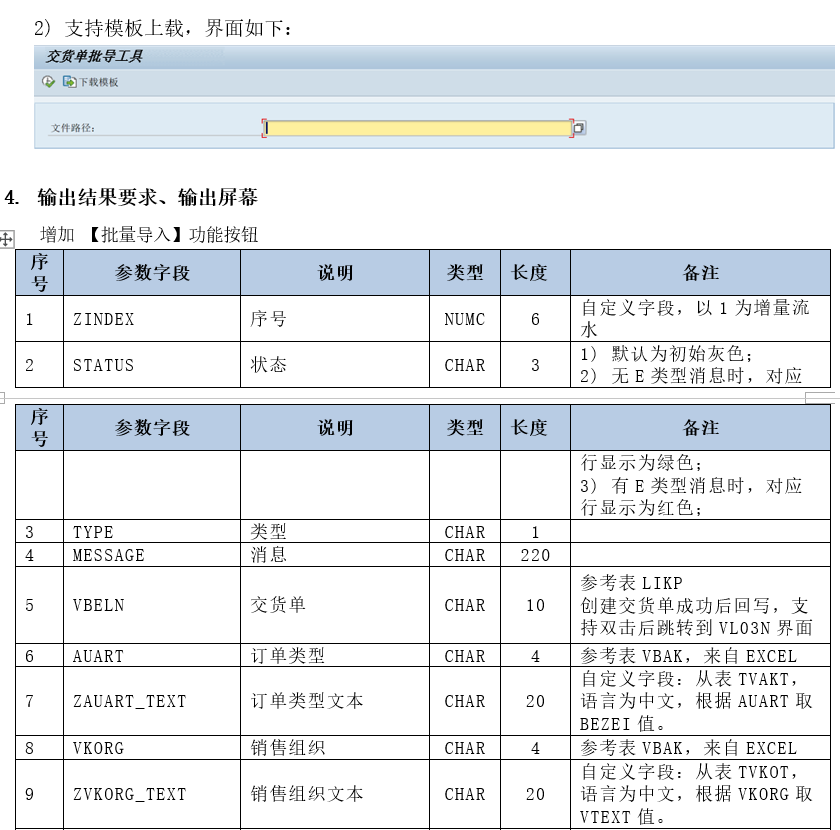

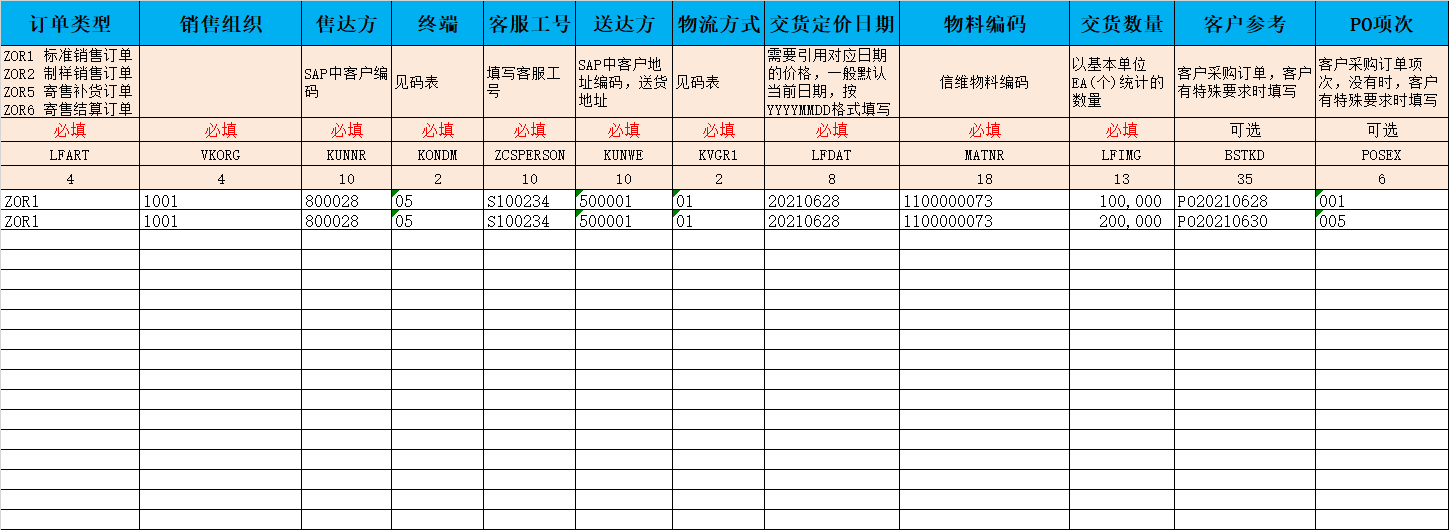

二、批导模板

三、功能代码

*&---------------------------------------------------------------------*
*& 程序名： ZRPSD_0001
*& 创建者(公司)/日期：*
*& 程序描述：
*&
*&---------------------------------------------------------------------*
*& 版本/修改者(公司)/日期//修改描述
*&
*&---------------------------------------------------------------------*
REPORT zrpsd_0001 MESSAGE-ID 00.

INCLUDE zrpsd_0001_top."变量定义

INCLUDE zrpsd_0001_f01."核心业务代码

INCLUDE zrpsd_0001_f02."响应事件的代码

INCLUDE zrpsd_0001_c01."Class Definition

INCLUDE zrpsd_0001_s01."ALV显示与控制

INITIALIZATION.
  PERFORM frm_init_screen.

AT SELECTION-SCREEN ON VALUE-REQUEST FOR p_fpath.
  PERFORM frm_get_filepath CHANGING p_fpath.

AT SELECTION-SCREEN.
  CASE sscrfields-ucomm.
    WHEN 'FC01'.
      PERFORM frm_download_template USING 'ZRPSD_0001'.
  ENDCASE.

START-OF-SELECTION.

  PERFORM frm_upload_file USING p_fpath.

  PERFORM frm_check_data.

  PERFORM frm_process_data.

  PERFORM frm_show_alv USING gt_alv.

*&---------------------------------------------------------------------*
*& 包含               ZRPSD_0001_TOP
*&---------------------------------------------------------------------*
TABLES sscrfields.

* Switch for list display yes / no
DATA:gv_list_display TYPE sap_bool.
* Reference for container control
DATA:gr_cont TYPE REF TO cl_gui_custom_container.
* Reference for ALV instance
DATA:gr_alv TYPE REF TO cl_salv_table.
* Reference for error situations
DATA:gr_error TYPE REF TO cx_salv_error.

DATA:gs_functxt TYPE smp_dyntxt.

DATA:gt_excel TYPE TABLE OF zssd_batch_input_002,
     gs_excel TYPE zssd_batch_input_002.

DATA: lt_credit LIKE STANDARD TABLE OF zssd_input_025 WITH HEADER LINE.

DATA:gt_alv TYPE TABLE OF zssd_batch_input_001,
     gs_alv TYPE zssd_batch_input_001.

DATA: ls_color TYPE lvc_s_scol,
      lt_color TYPE lvc_t_scol.

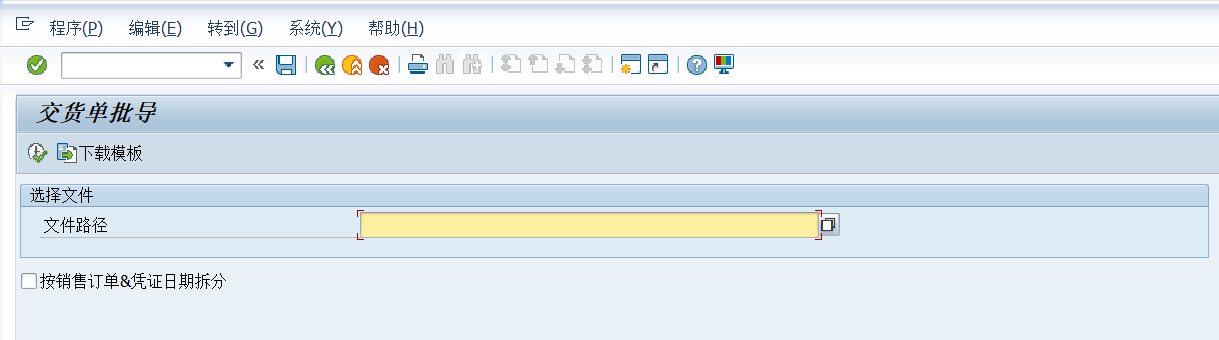

SELECTION-SCREEN BEGIN OF BLOCK b_01 WITH FRAME TITLE TEXT-002.
  PARAMETERS:p_fpath TYPE rlgrap-filename.
SELECTION-SCREEN END OF BLOCK b_01.

PARAMETERS p_typ1 AS CHECKBOX .

SELECTION-SCREEN:FUNCTION KEY 1.

*&---------------------------------------------------------------------*
*& 包含               ZRPSD_0001_F01
*&---------------------------------------------------------------------*
*&---------------------------------------------------------------------*
*& Form FRM_INIT_SCREEN
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_init_screen .
  CLEAR:gs_functxt.
  gs_functxt-icon_id   = icon_export.
  gs_functxt-icon_text = TEXT-001.
  sscrfields-functxt_01 = gs_functxt.
ENDFORM.
*&---------------------------------------------------------------------*
*& Form frm_get_filepath
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*&      <-- P_FPATH
*&---------------------------------------------------------------------*
FORM frm_get_filepath  CHANGING c_path.
  FIELD-SYMBOLS:<fs_file_table> TYPE file_table.

  DATA:lt_file_table TYPE filetable,
       lv_rc         TYPE i.

  CALL METHOD cl_gui_frontend_services=>file_open_dialog
    CHANGING
      file_table = lt_file_table
      rc         = lv_rc.
  IF lt_file_table IS INITIAL.
    MESSAGE s001 WITH TEXT-m01 DISPLAY LIKE 'E'.
    RETURN.
  ENDIF.

  LOOP AT lt_file_table ASSIGNING <fs_file_table>.
    CONCATENATE c_path <fs_file_table>-filename INTO c_path.
  ENDLOOP.
ENDFORM.
*&---------------------------------------------------------------------*
*& Form frm_download_template
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*&      --> P_
*&---------------------------------------------------------------------*
FORM frm_download_template USING u_template.
  DATA:lv_fname TYPE string,
       lv_title TYPE string,
       lv_path  TYPE string,
       lv_fpath TYPE string,
       lv_file  TYPE rlgrap-filename.

  DATA:ls_wdatb LIKE wwwdatatab.

  DATA:lv_subrc TYPE sy-subrc.

  lv_title =  '模板下载' .

  lv_fname = '交货单批量导入模板.xlsx'.

  CALL METHOD cl_gui_frontend_services=>file_save_dialog
    EXPORTING
      window_title         = lv_title
      default_extension    = 'xlsx'
      default_file_name    = lv_fname
*     INITIAL_DIRECTORY    = 'C:\'
      file_filter          = 'Excel文件(*.xls)|*.xls|全部文件 (*.*)|*.*|'
      prompt_on_overwrite  = 'X'
    CHANGING
      filename             = lv_fname
      path                 = lv_path
      fullpath             = lv_fpath
    EXCEPTIONS
      cntl_error           = 1
      error_no_gui         = 2
      not_supported_by_gui = 3
      OTHERS               = 4.
  IF sy-subrc <> 0.
    MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
       WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  ELSE.
    SELECT SINGLE relid objid FROM wwwdata INTO CORRESPONDING FIELDS OF ls_wdatb
      WHERE srtf2 = 0
        AND relid = 'MI'
        AND objid = u_template.
    IF ls_wdatb IS INITIAL.
      MESSAGE e398(00) WITH '模板文件不存在！'.
    ELSE.
      lv_file = lv_fpath.
      IF lv_file IS NOT INITIAL.
        CALL FUNCTION 'DOWNLOAD_WEB_OBJECT'
          EXPORTING
            key         = ls_wdatb
            destination = lv_file
          IMPORTING
            rc          = lv_subrc.
        IF lv_subrc NE 0.
          MESSAGE e398(00) WITH '模板下载失败！'.
        ELSE.
          MESSAGE s398(00) WITH '下载成功'.
        ENDIF.
      ENDIF.
    ENDIF.
  ENDIF.
ENDFORM.
*&---------------------------------------------------------------------*
*& Form pf_upload_file
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*&      --> P_FPATH
*&---------------------------------------------------------------------*
FORM frm_upload_file USING u_fpath TYPE rlgrap-filename.
  DATA:lt_alsmex_tabline TYPE TABLE OF zalsmex_tabline.

  DATA:lv_posex TYPE vbap-posex.
  DATA:lv_result TYPE string.

  FIELD-SYMBOLS:<fs_row_value> TYPE any.

  CLEAR:gt_excel.

  CALL FUNCTION 'ZALSM_EXCEL_TO_INTERNAL_TABLE'
    EXPORTING
      filename                = u_fpath
      i_begin_col             = 1
      i_begin_row             = 6
      i_end_col               = 14
      i_end_row               = 9999
    TABLES
      intern                  = lt_alsmex_tabline
    EXCEPTIONS
      inconsistent_parameters = 1
      upload_ole              = 2
      OTHERS                  = 3.
  IF sy-subrc <> 0.
*    MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
*       WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
    MESSAGE '数据读取异常，请联系管理员' TYPE 'E'.
  ENDIF.

  IF lt_alsmex_tabline IS NOT INITIAL.
    TRY .
        LOOP AT lt_alsmex_tabline INTO DATA(gs_intern).
          AT NEW row.
            CLEAR:gs_excel.
            gs_excel-zindex = gs_intern-row.
          ENDAT.

          ASSIGN COMPONENT gs_intern-col OF STRUCTURE gs_excel TO <fs_row_value>.
          IF gs_intern-col  EQ 10.
            REPLACE ALL OCCURRENCES OF ',' IN gs_intern-value WITH space.
            CONDENSE gs_intern-value  NO-GAPS.
            <fs_row_value> = gs_intern-value.
          ELSE.
            <fs_row_value> = gs_intern-value.
          ENDIF.

          AT END OF row.
            IF gs_excel-vkorg EQ '1001' OR gs_excel-vkorg = '1101'.
              gs_excel-werks = '1001'.
            ELSEIF gs_excel-vkorg EQ '1002' OR gs_excel-vkorg = '1102'.
              gs_excel-werks = '1002'.
            ENDIF.

            IF p_typ1 = 'X'.
              DATA(tmp_bldat) = gs_excel-bldat .
            ELSE.
              tmp_bldat = '' .
            ENDIF.

            gs_excel-str = gs_excel-auart && gs_excel-vkorg &&
              gs_excel-kunnr && gs_excel-kondm && gs_excel-zcsperson &&
              gs_excel-kunwe && gs_excel-kvgr1 && gs_excel-lfdat &&
              gs_excel-matnr && gs_excel-bstkd && gs_excel-posex && tmp_bldat.
            CONDENSE gs_excel-str NO-GAPS. "str用于校验数据是否有重复行

            gs_excel-str1 = gs_excel-auart && gs_excel-vkorg && gs_excel-kunnr
              && gs_excel-kondm && gs_excel-zcsperson && gs_excel-werks && gs_excel-matnr
              && gs_excel-bstkd && gs_excel-posex.
            CONDENSE gs_excel-str1 NO-GAPS. "str1用于形成组合，方便分配未清交货数量

            gs_excel-str2 = gs_excel-auart && gs_excel-vkorg && gs_excel-kunnr
              && gs_excel-kondm && gs_excel-zcsperson && gs_excel-kunwe && gs_excel-kvgr1
              && gs_excel-lfdat  && gs_excel-werks  "&& gs_excel-bstkd&& gs_excel-posex
              && tmp_bldat .
*          && GS_EXCEL-MATNR
*          && GS_EXCEL-BSTKD && GS_EXCEL-POSEX.
            CONDENSE gs_excel-str2 NO-GAPS. "str2用于形成产生DN组合，同一组合产生一张DN

            CALL FUNCTION 'CONVERSION_EXIT_MATN1_INPUT'
              EXPORTING
                input  = gs_excel-matnr
              IMPORTING
                output = gs_excel-matnr.

            CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
              EXPORTING
                input  = gs_excel-kunnr
              IMPORTING
                output = gs_excel-kunnr.

            CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
              EXPORTING
                input  = gs_excel-kunwe
              IMPORTING
                output = gs_excel-kunwe.

            IF gs_excel-posex IS  NOT INITIAL.
              lv_posex  = gs_excel-posex.
              CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
                EXPORTING
                  input  = lv_posex
                IMPORTING
                  output = gs_excel-posex.

            ENDIF.

            APPEND gs_excel TO gt_excel.
            CLEAR gs_excel.
          ENDAT.
        ENDLOOP.
      CATCH cx_root INTO DATA(lo_root) .
        CALL METHOD lo_root->if_message~get_text
          RECEIVING
            result = lv_result.
        "报错提示
        WRITE:/ '导入文件出现错误:' .
        WRITE:/ '内容行:' && gs_intern-row && ',' && lv_result && '请检查以下数据: '.
        ULINE.
        LOOP AT lt_alsmex_tabline INTO gs_intern WHERE row = gs_intern-row .
          WRITE:/ gs_intern-value .
        ENDLOOP.
    ENDTRY.
  ENDIF.

  SORT gt_excel ASCENDING BY str1.

  MOVE-CORRESPONDING gt_excel TO gt_alv.

  CLEAR:lt_alsmex_tabline.
ENDFORM.
*&---------------------------------------------------------------------*
*& Form frm_check_data
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_check_data .
  DATA:lv_msg       TYPE bapiret2-message,
       lv_ordqty_bu TYPE ordqty.

  DATA:lv_matnr TYPE mara-matnr.

  SELECT kunnr,vkorg,vtweg,spart INTO TABLE @DATA(lt_knvv) FROM knvv
    WHERE vtweg = '00'
      AND cassd = ''
    ORDER BY kunnr.

  IF gt_alv IS NOT INITIAL.
    SELECT matnr,vkorg,vtweg INTO TABLE @DATA(lt_mvke) FROM mvke
      FOR ALL ENTRIES IN @gt_alv
      WHERE matnr = @gt_alv-matnr
        AND vkorg = @gt_alv-vkorg
        AND vtweg = '00'.

    SELECT mara~matnr,maktx,meins INTO TABLE @DATA(lt_makt) FROM mara
      INNER JOIN makt ON makt~matnr = mara~matnr
        AND spras = @sy-langu
       FOR ALL ENTRIES IN @gt_alv
      WHERE mara~matnr = @gt_alv-matnr.

    SELECT kunnr,name1,name2 FROM kna1 INTO TABLE @DATA(lt_kna1)
      FOR ALL ENTRIES IN @gt_alv
      WHERE kunnr = @gt_alv-kunnr
        OR kunnr = @gt_alv-kunwe.

** MODIFY BY HELQ 20210819>>>

*    SELECT * INTO TABLE @DATA(lt_vbep_001) FROM zvsdvbep001
*      FOR ALL ENTRIES IN @gt_alv
*      WHERE kunnr = @gt_alv-kunnr
*        AND matnr = @gt_alv-matnr
*        AND bstkd = @gt_alv-bstkd.

    SELECT a~auart ,
          a~vkorg,
          a~kunnr,
          a~kondm,
          a~zcsperson,
          a~kunwe,
          a~kvgr1 ,
          a~lfdat,
          a~matnr,
          a~bstkd,
          a~posex,
          a900~kappl FROM    a900
*       FOR ALL ENTRIES IN @GT_ALV
          INNER JOIN @gt_alv AS  a ON a~vkorg = a900~vkorg
                                  AND a~kunnr = a900~kunnr
                                  AND a~kondm = a900~kondm
                                  AND a~matnr = a900~matnr
         INNER JOIN konp ON a900~knumh = konp~knumh
          WHERE a900~kappl = 'V'
            AND a900~kschl = 'ZPR0'
            AND vtweg = '00'
            AND loevm_ko  = ''
            AND auart IN ( 'ZOR1','ZOR5','ZOR6' )
            AND datab <= a~lfdat
            AND datbi >= a~lfdat
      INTO TABLE @DATA(lt_a900).

    SELECT a~auart ,
           a~vkorg,
           a~kunnr,
           a~kondm,
           a~zcsperson,
           a~kunwe,
           a~kvgr1 ,
           a~lfdat,
           a~matnr,
