20251023在Ubuntu20.04.6上编译AIO-3576Q38开发板的Android14

news 2025/10/24 8:29:56

20251023在Ubuntu20.04.6上编译AIO-3576Q38开发板的Android14
2025/10/23 20:53

缘起：编译firefly的AIO-3576Q38开发板的Android14。
开动！

https://www.t-firefly.com/doc/download/320.html
AIO-3576C

源代码
https://pan.baidu.com/s/1mGkGxlxodHedXJZqLKRRRg?pwd=1234
Android14.0 bundle
提取码：1234

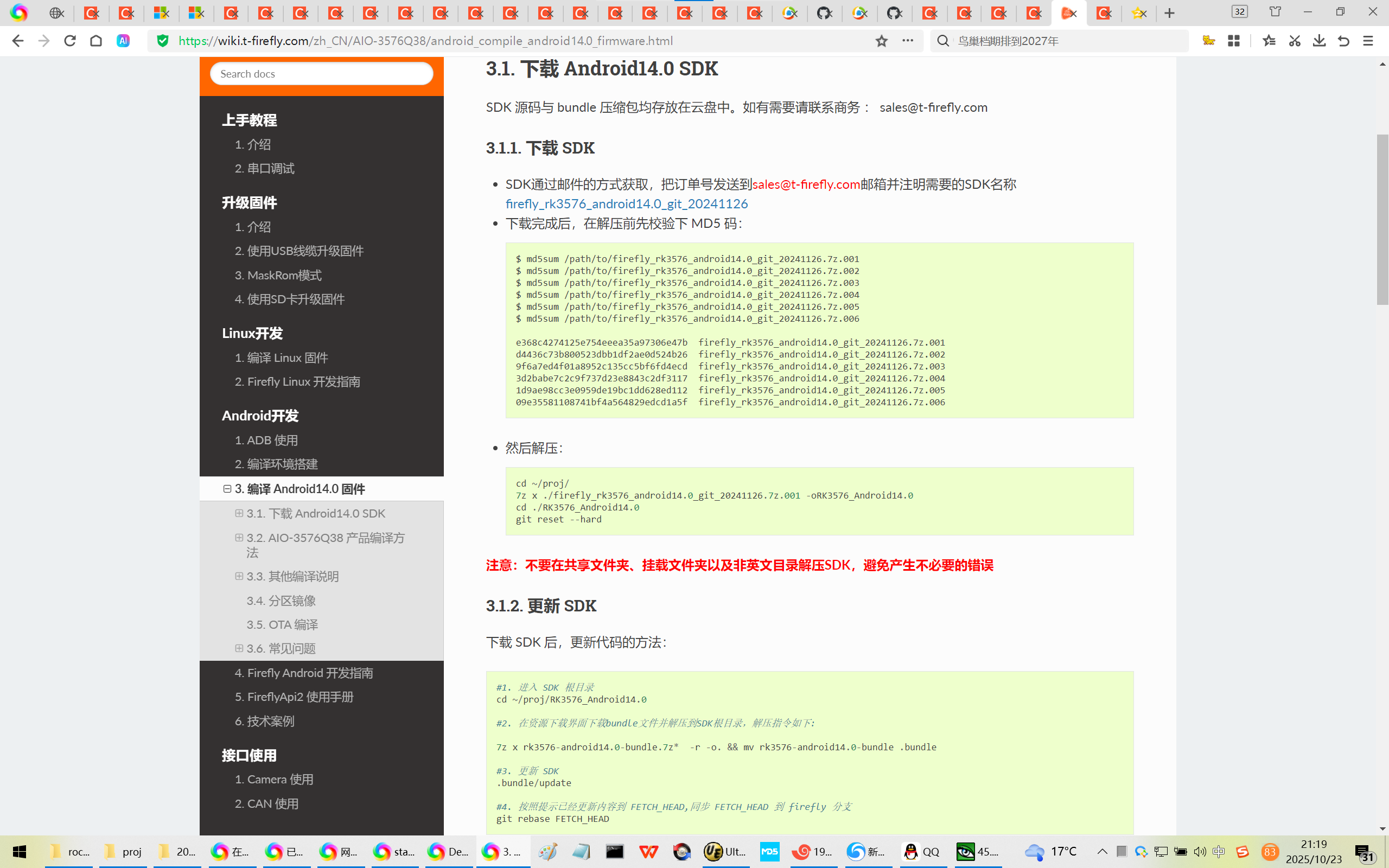

https://wiki.t-firefly.com/zh_CN/AIO-3576Q38/android_compile_android14.0_firmware.html
AIO-3576Q38

3. 编译 Android14.0 固件
3.1. 下载 Android14.0 SDK
SDK 源码与 bundle 压缩包均存放在云盘中。如有需要请联系商务： sales@t-firefly.com

3.1.1. 下载 SDK
SDK通过邮件的方式获取，把订单号发送到sales@t-firefly.com邮箱并注明需要的SDK名称firefly_rk3576_android14.0_git_20241126

下载完成后，在解压前先校验下 MD5 码：

$ md5sum /path/to/firefly_rk3576_android14.0_git_20241126.7z.001
$ md5sum /path/to/firefly_rk3576_android14.0_git_20241126.7z.002
$ md5sum /path/to/firefly_rk3576_android14.0_git_20241126.7z.003
$ md5sum /path/to/firefly_rk3576_android14.0_git_20241126.7z.004
$ md5sum /path/to/firefly_rk3576_android14.0_git_20241126.7z.005
$ md5sum /path/to/firefly_rk3576_android14.0_git_20241126.7z.006

e368c4274125e754eeea35a97306e47b firefly_rk3576_android14.0_git_20241126.7z.001
d4436c73b800523dbb1df2ae0d524b26 firefly_rk3576_android14.0_git_20241126.7z.002
9f6a7ed4f01a8952c135cc5bf6fd4ecd firefly_rk3576_android14.0_git_20241126.7z.003
3d2babe7c2c9f737d23e8843c2df3117 firefly_rk3576_android14.0_git_20241126.7z.004
1d9ae98cc3e0959de19bc1dd628ed112 firefly_rk3576_android14.0_git_20241126.7z.005
09e35581108741bf4a564829edcd1a5f firefly_rk3576_android14.0_git_20241126.7z.006

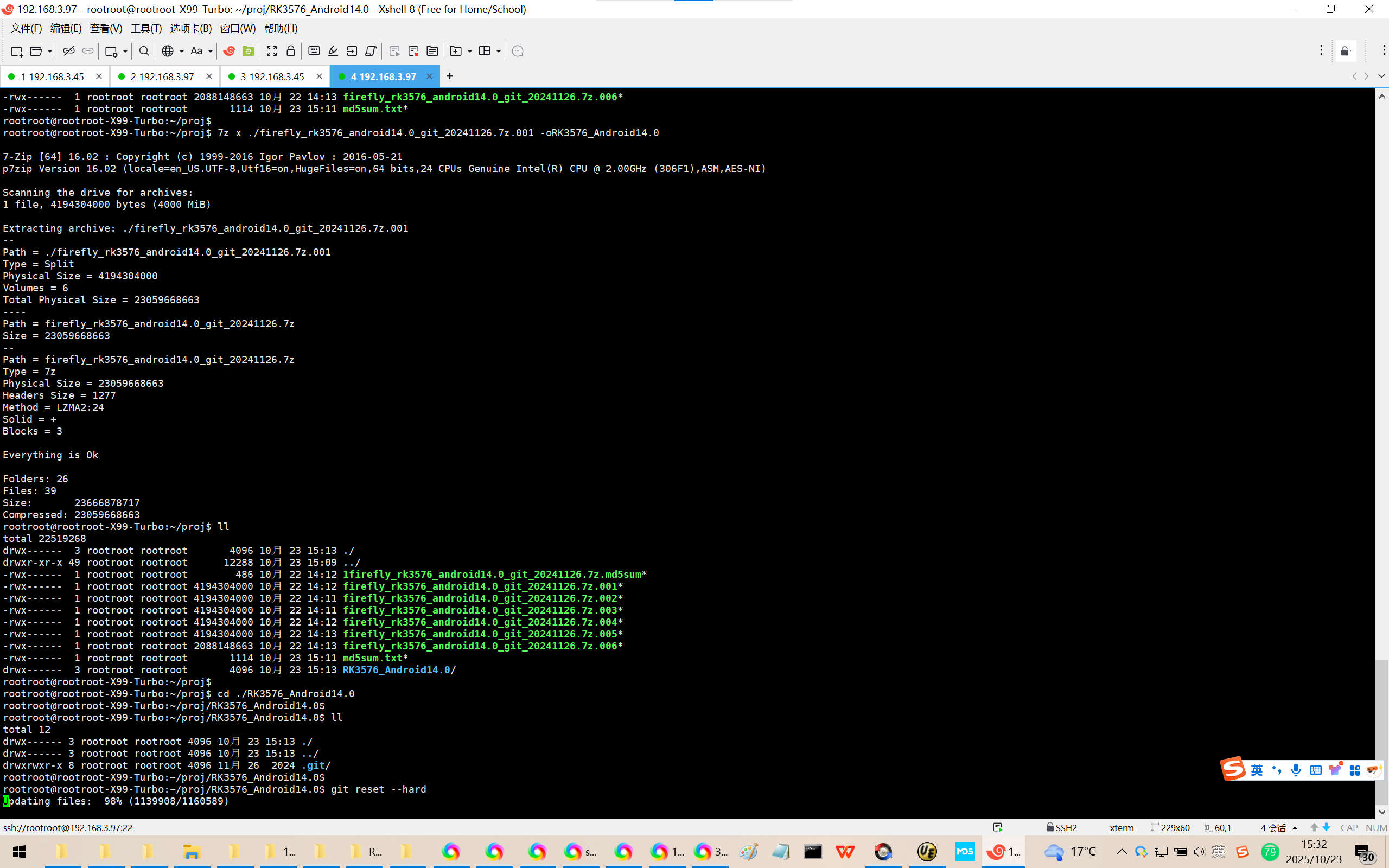

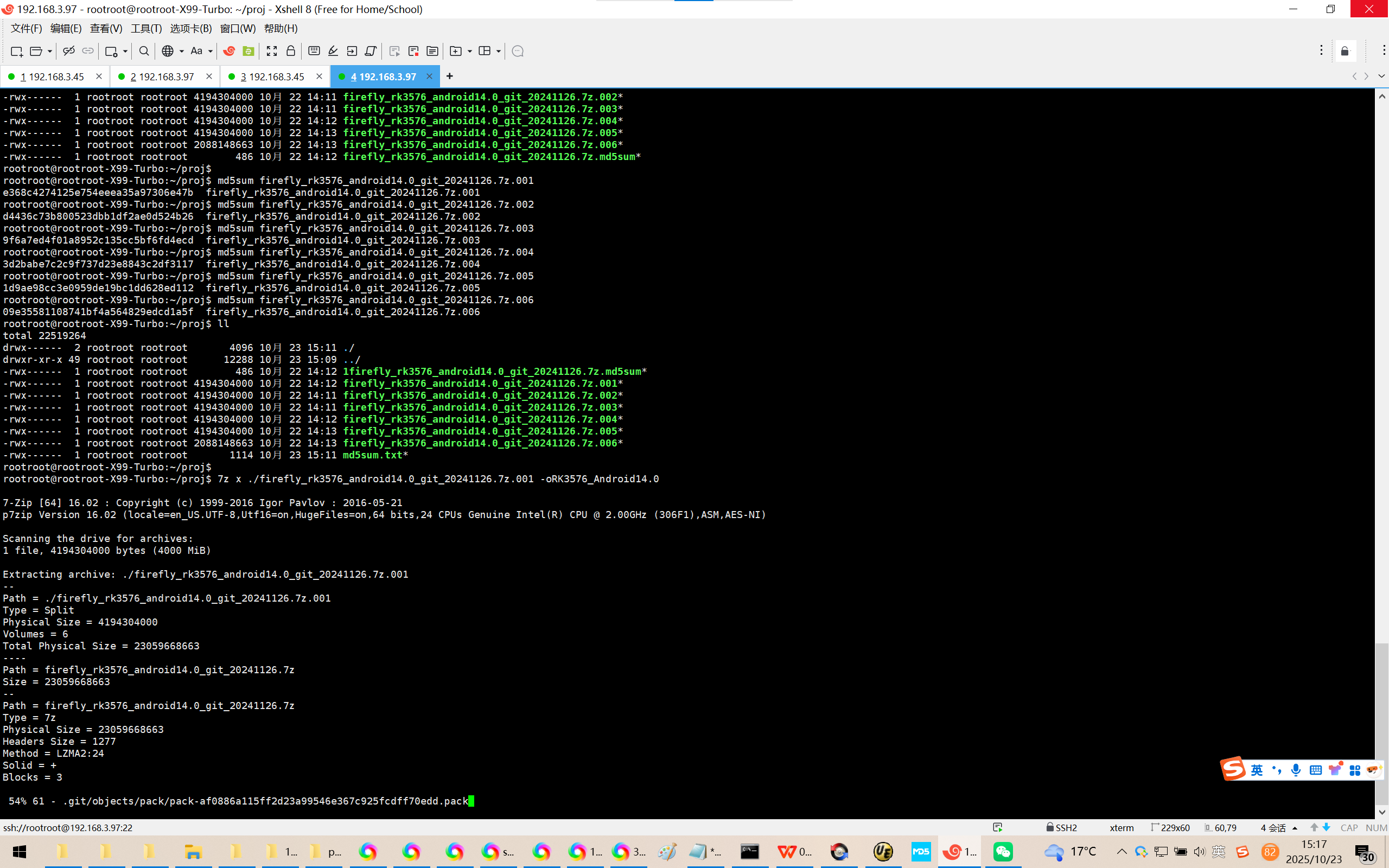

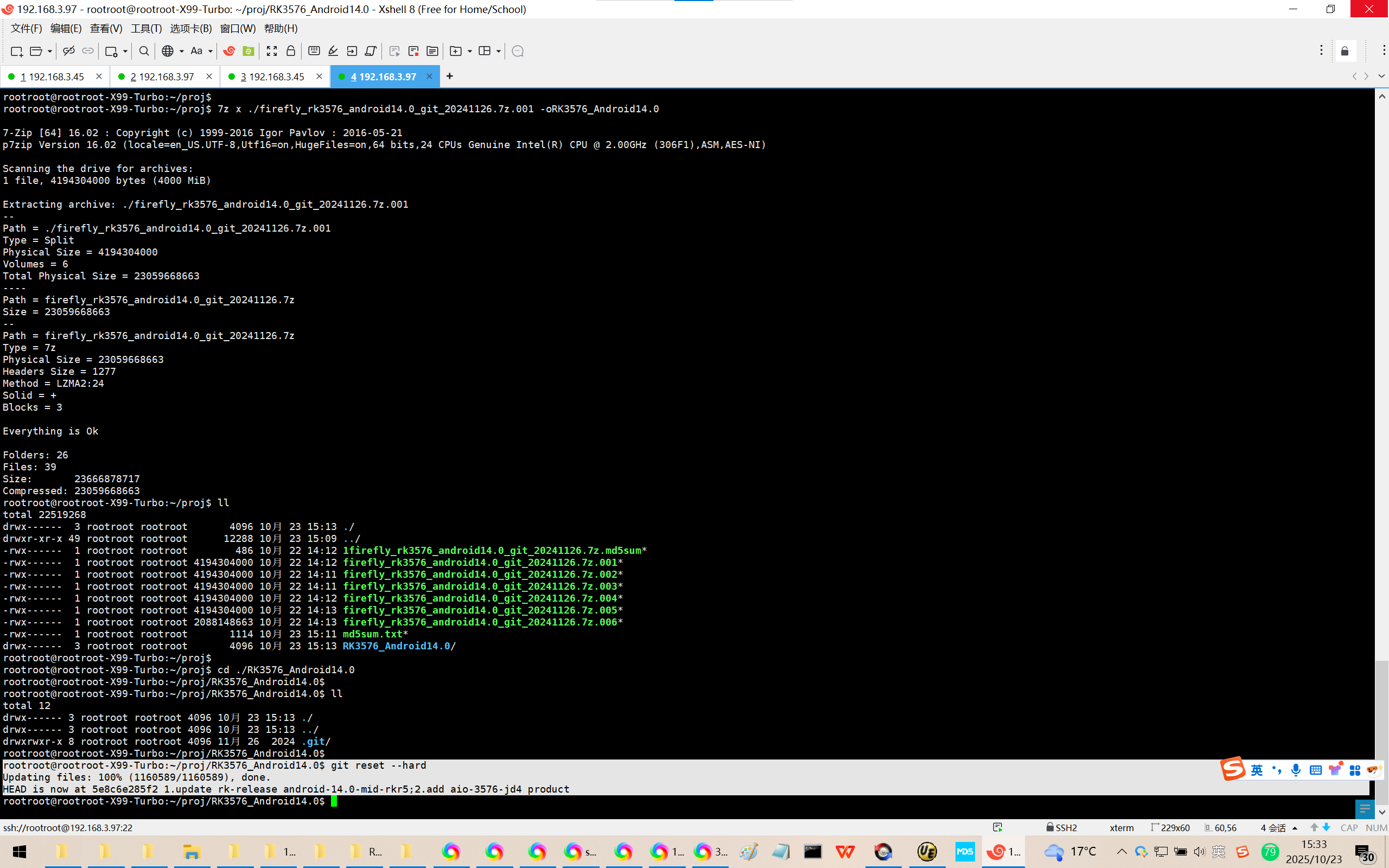

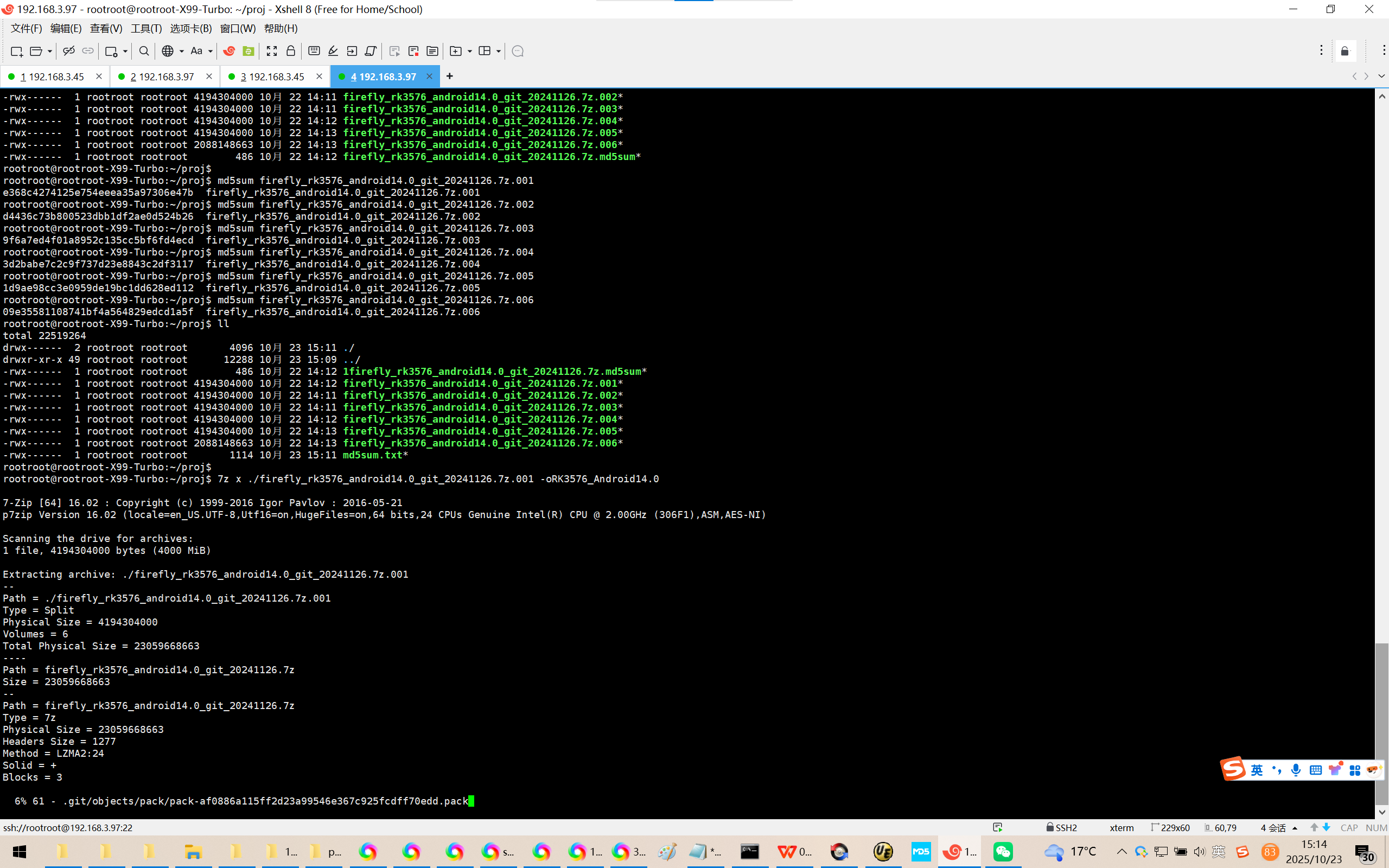

然后解压：

cd ~/proj/
7z x ./firefly_rk3576_android14.0_git_20241126.7z.001 -oRK3576_Android14.0
cd ./RK3576_Android14.0

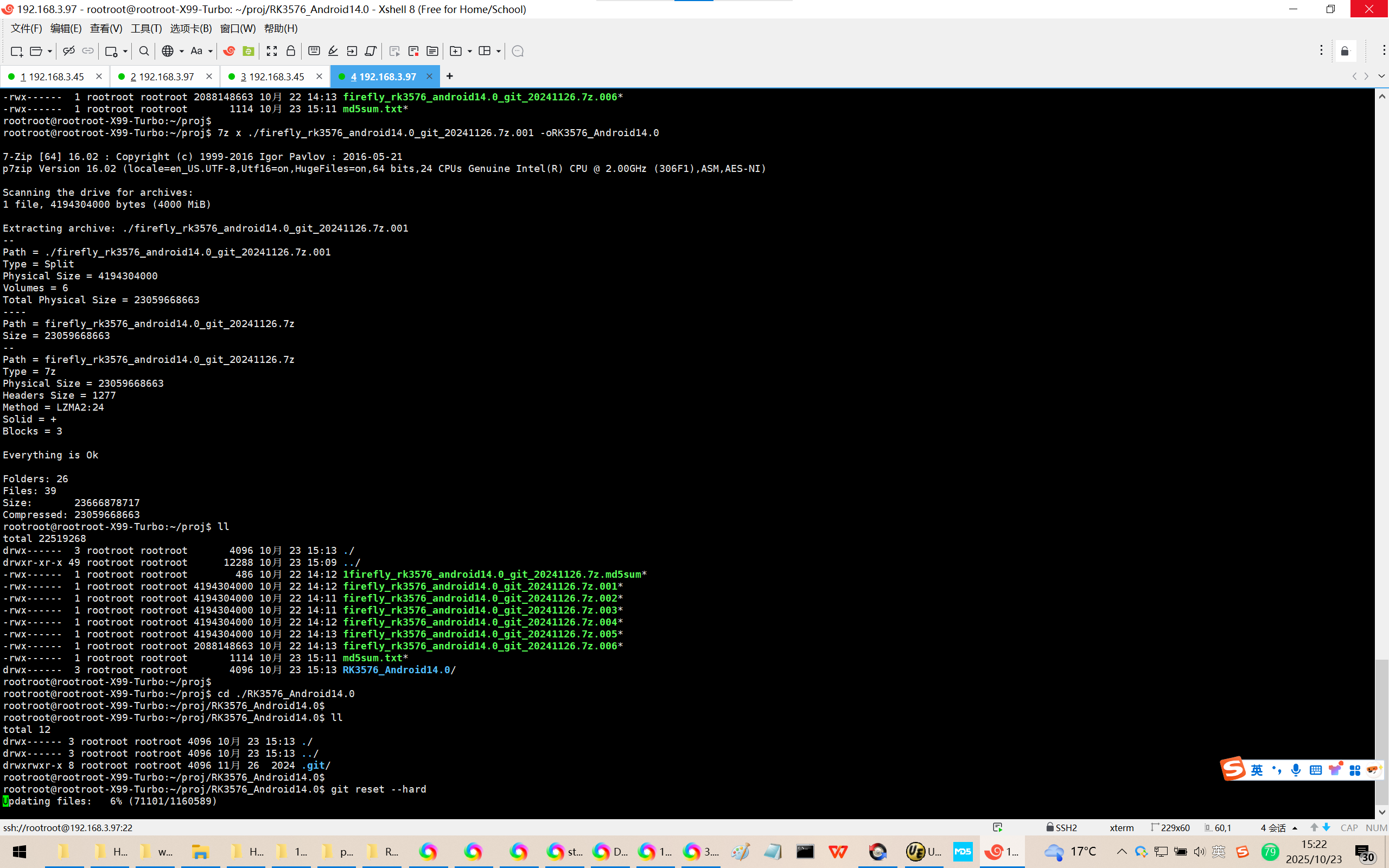

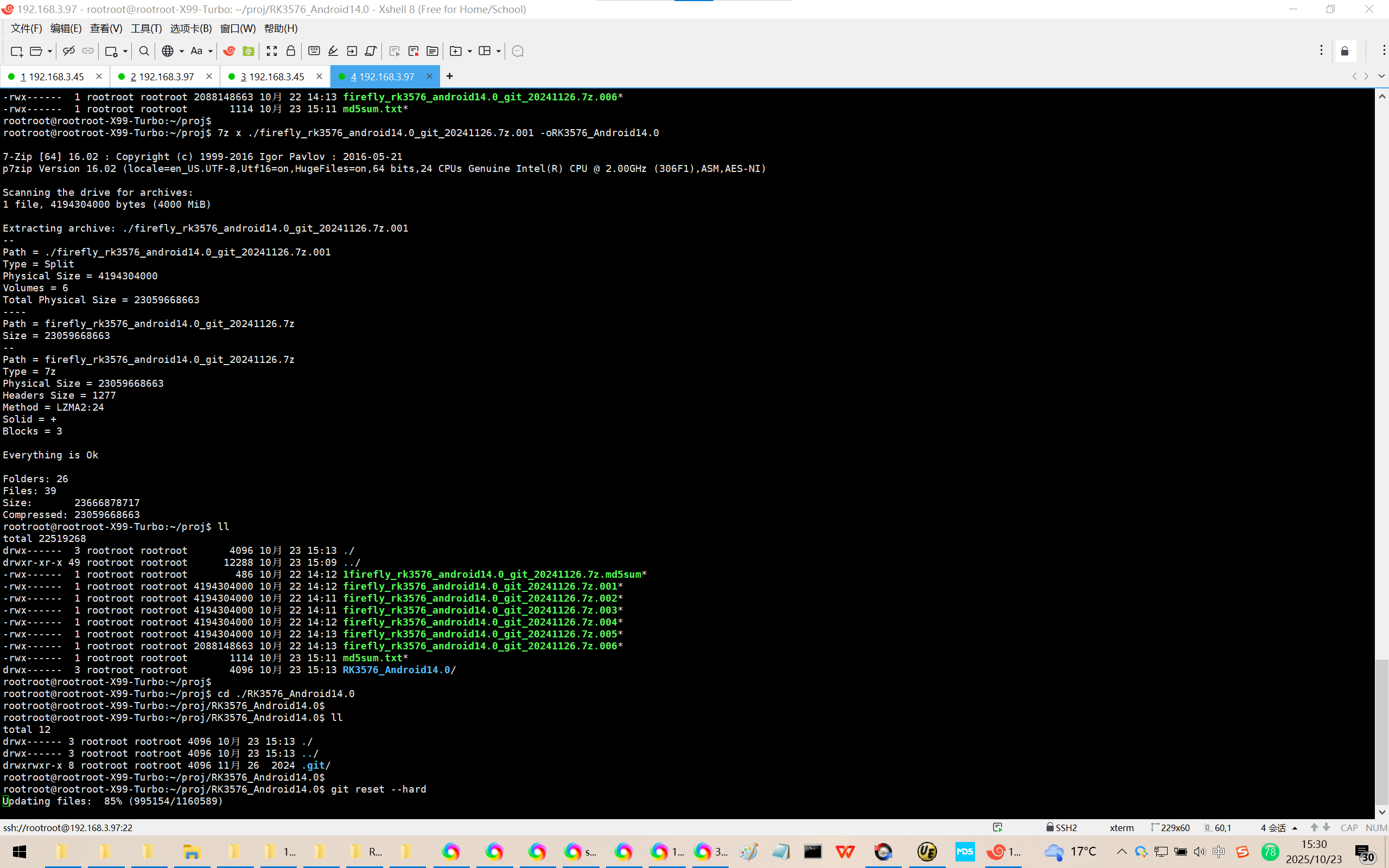

git reset --hard
注意：不要在共享文件夹、挂载文件夹以及非英文目录解压SDK，避免产生不必要的错误

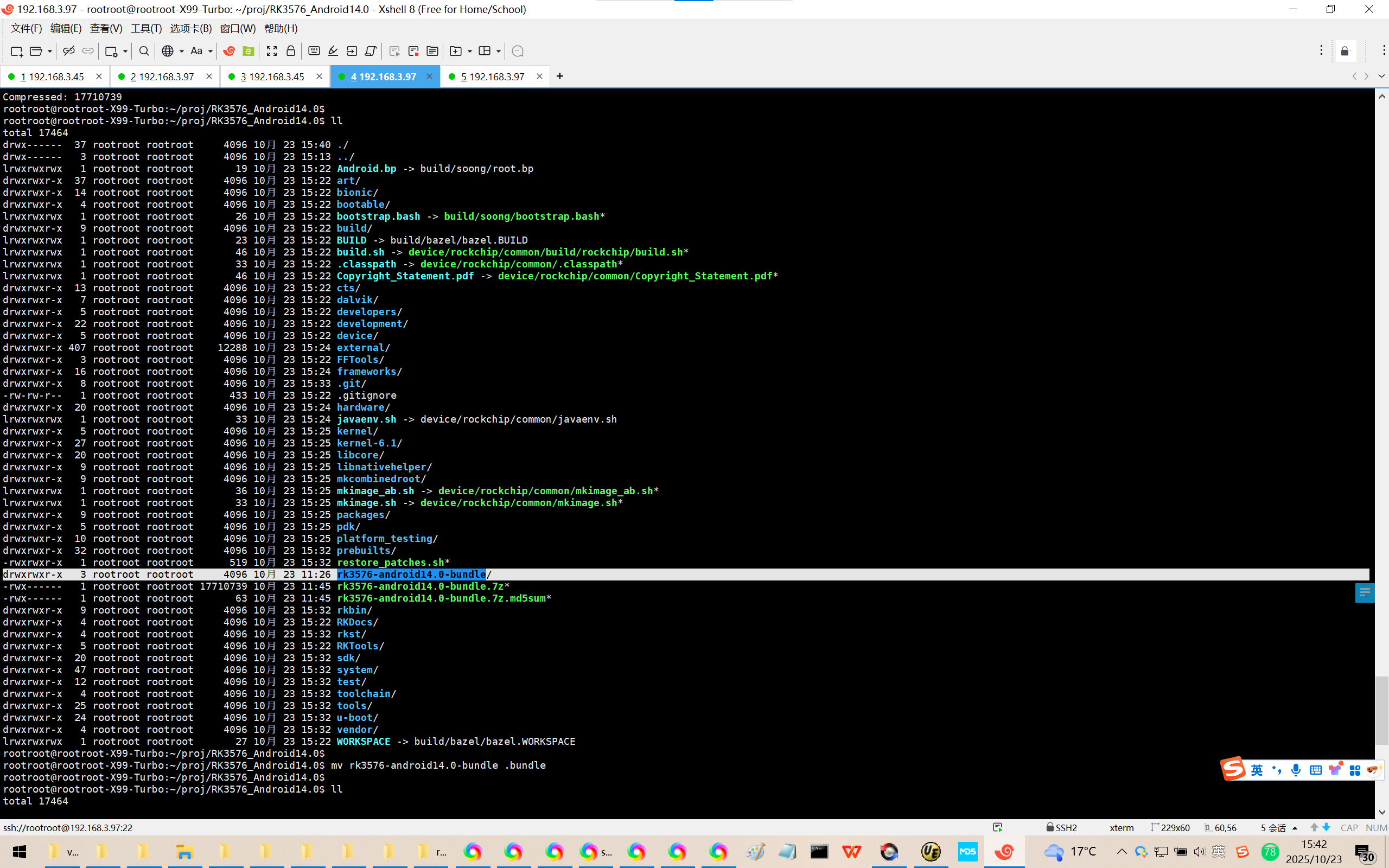

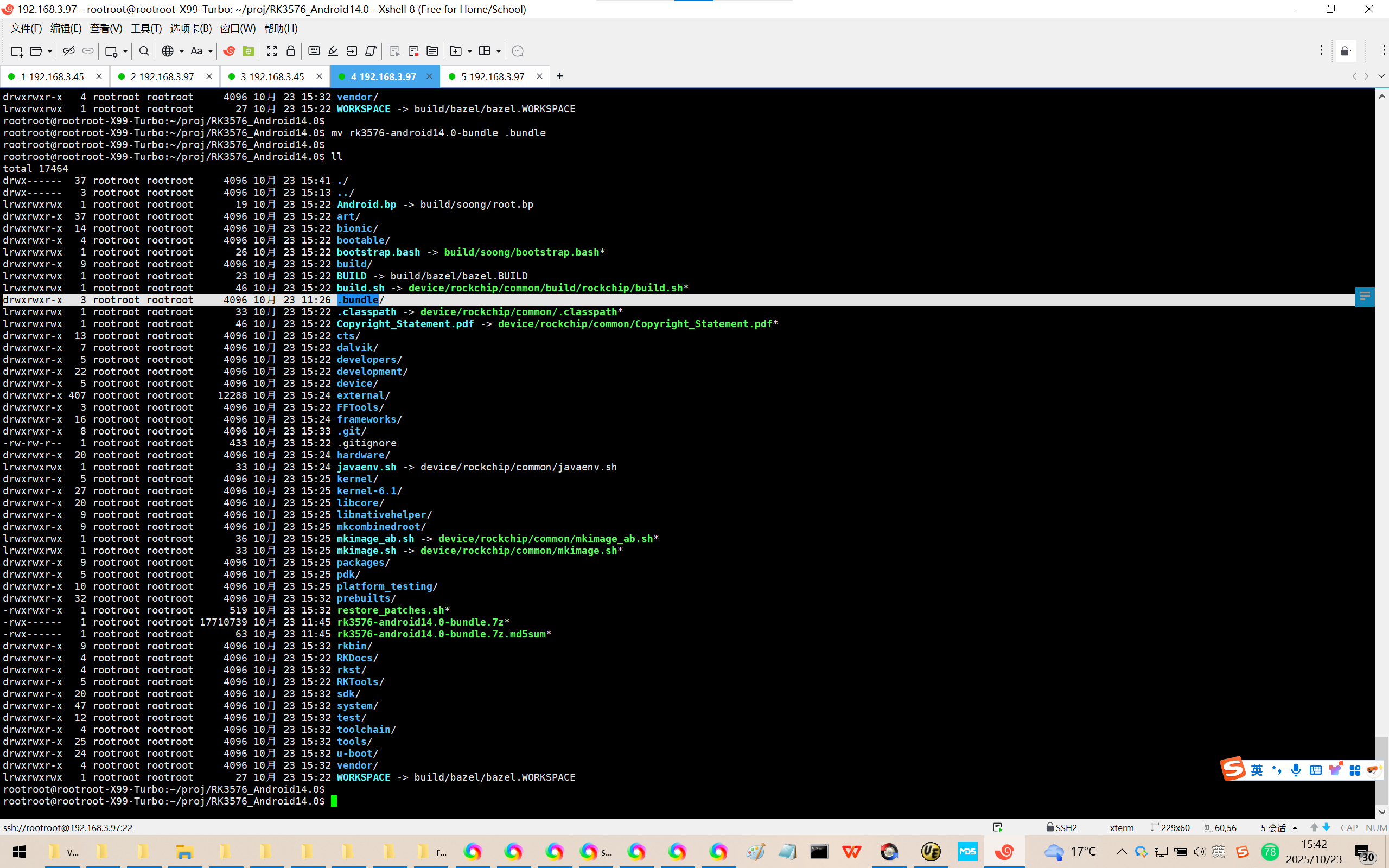

3.1.2. 更新 SDK
下载 SDK 后，更新代码的方法：

#1. 进入 SDK 根目录
cd ~/proj/RK3576_Android14.0

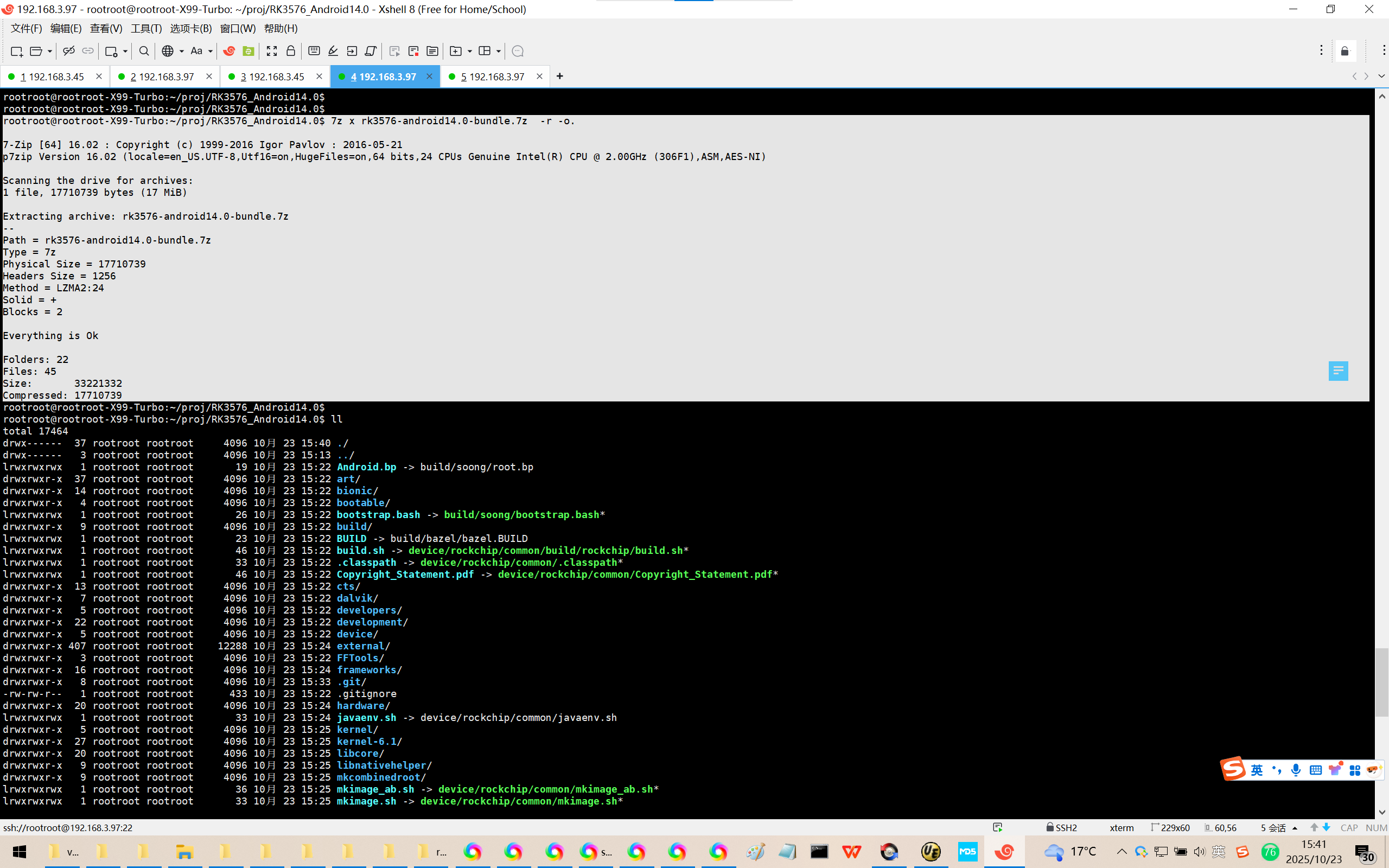

#2. 在资源下载界面下载bundle文件并解压到SDK根目录，解压指令如下:

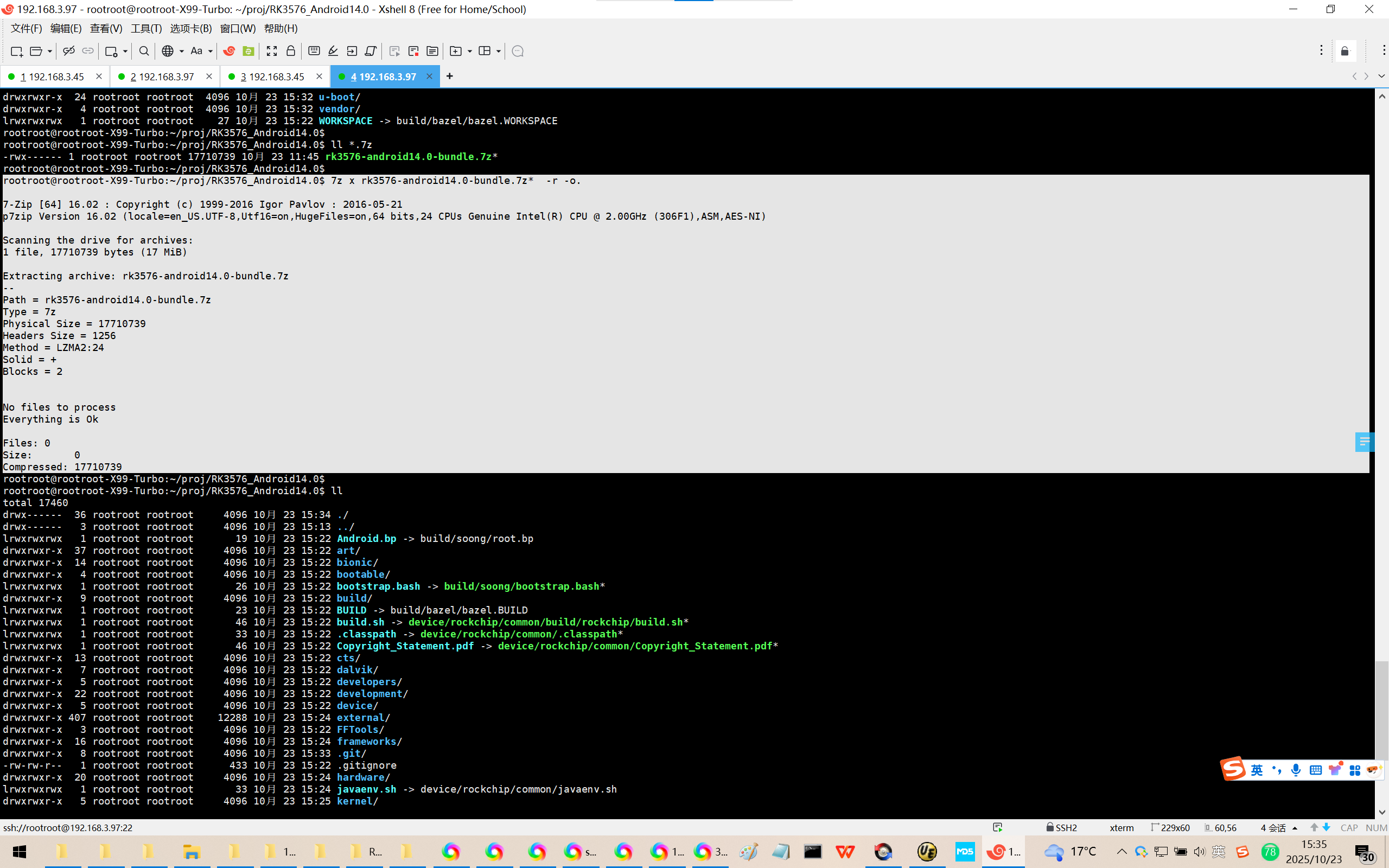

7z x rk3576-android14.0-bundle.7z* -r -o. && mv rk3576-android14.0-bundle .bundle

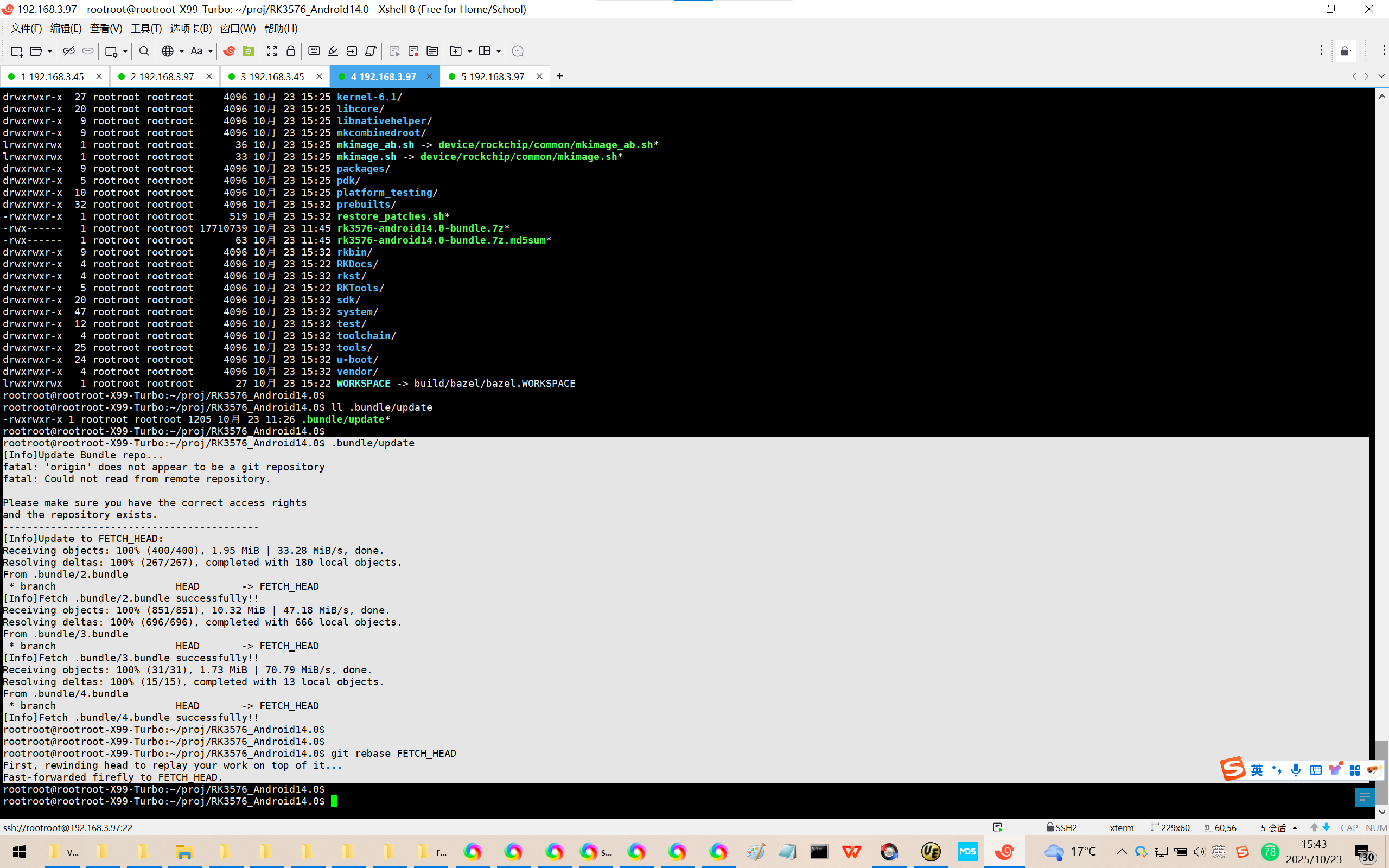

#3. 更新 SDK
.bundle/update

#4. 按照提示已经更新内容到 FETCH_HEAD,同步 FETCH_HEAD 到 firefly 分支
git rebase FETCH_HEAD
下载页面选择云盘下载 Android14.0 Bundle。

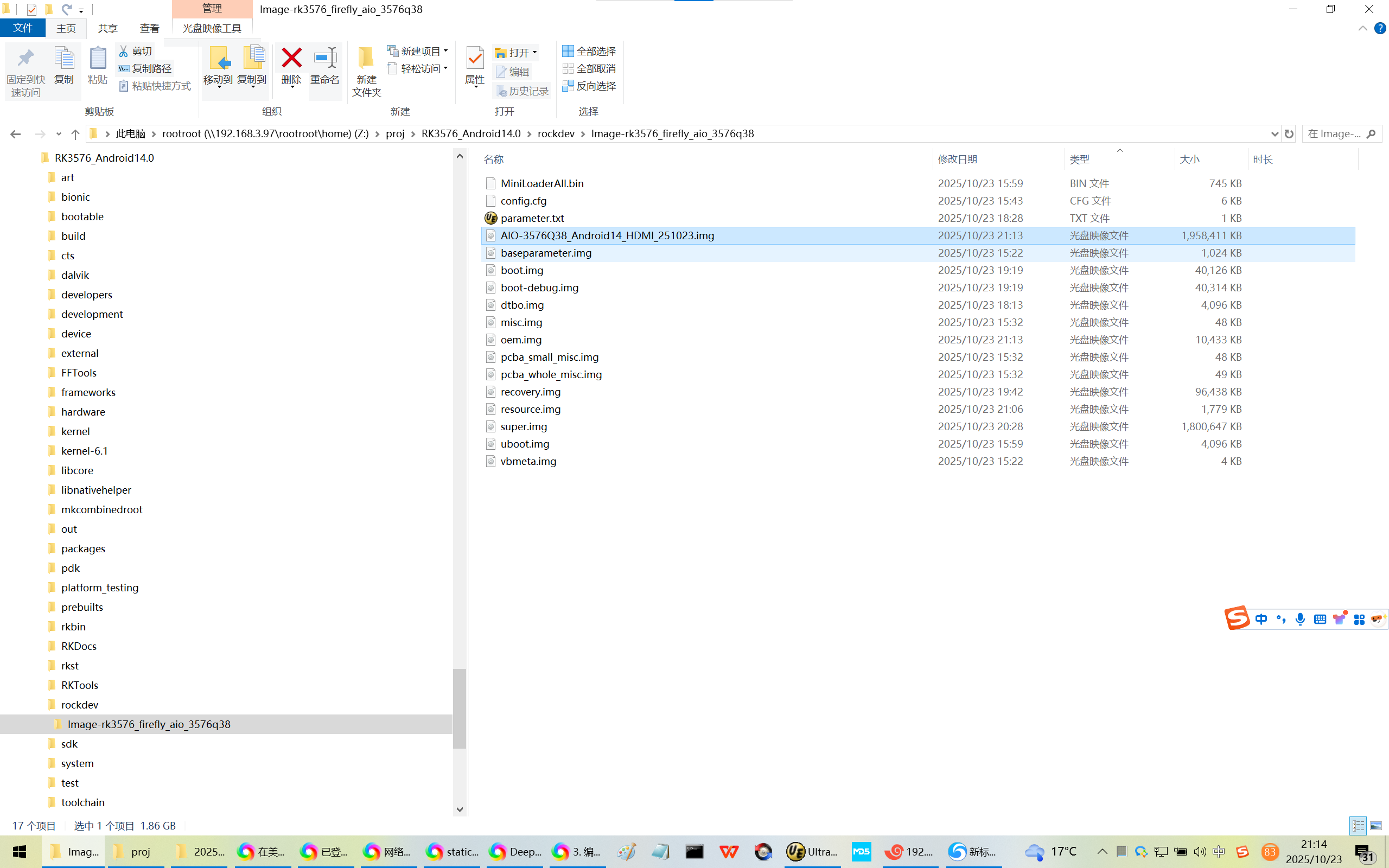

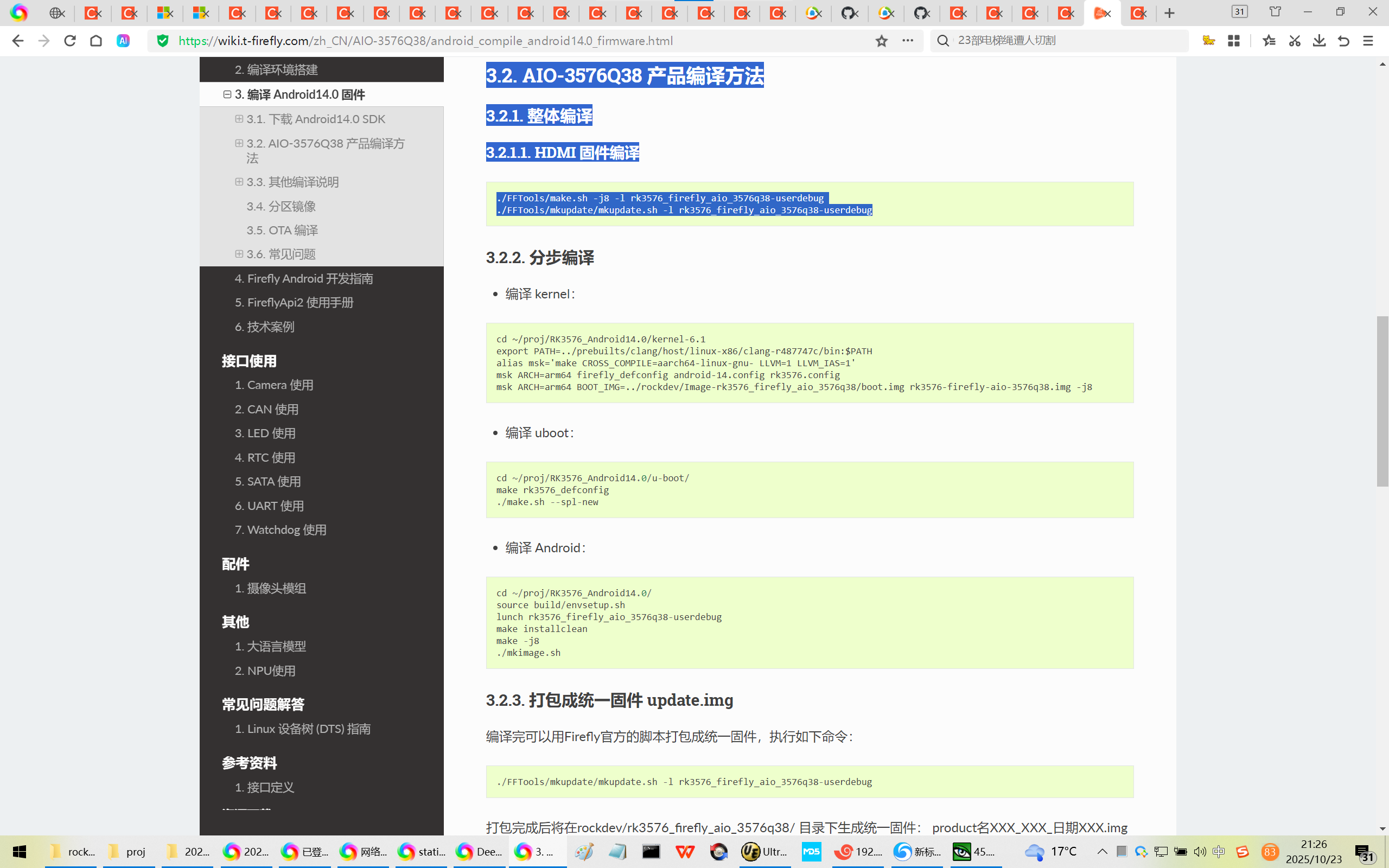

3.2. AIO-3576Q38 产品编译方法

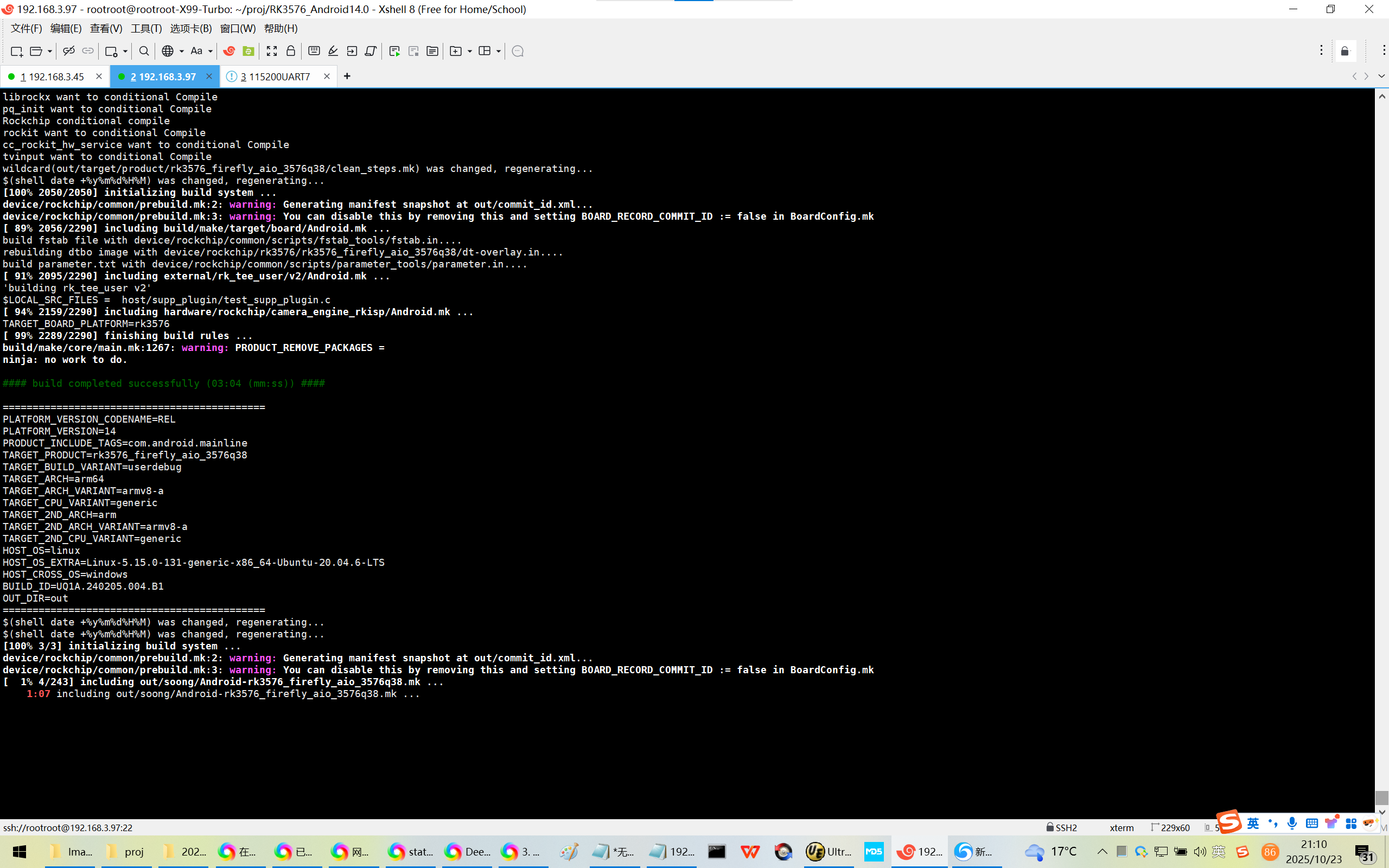

3.2.1. 整体编译

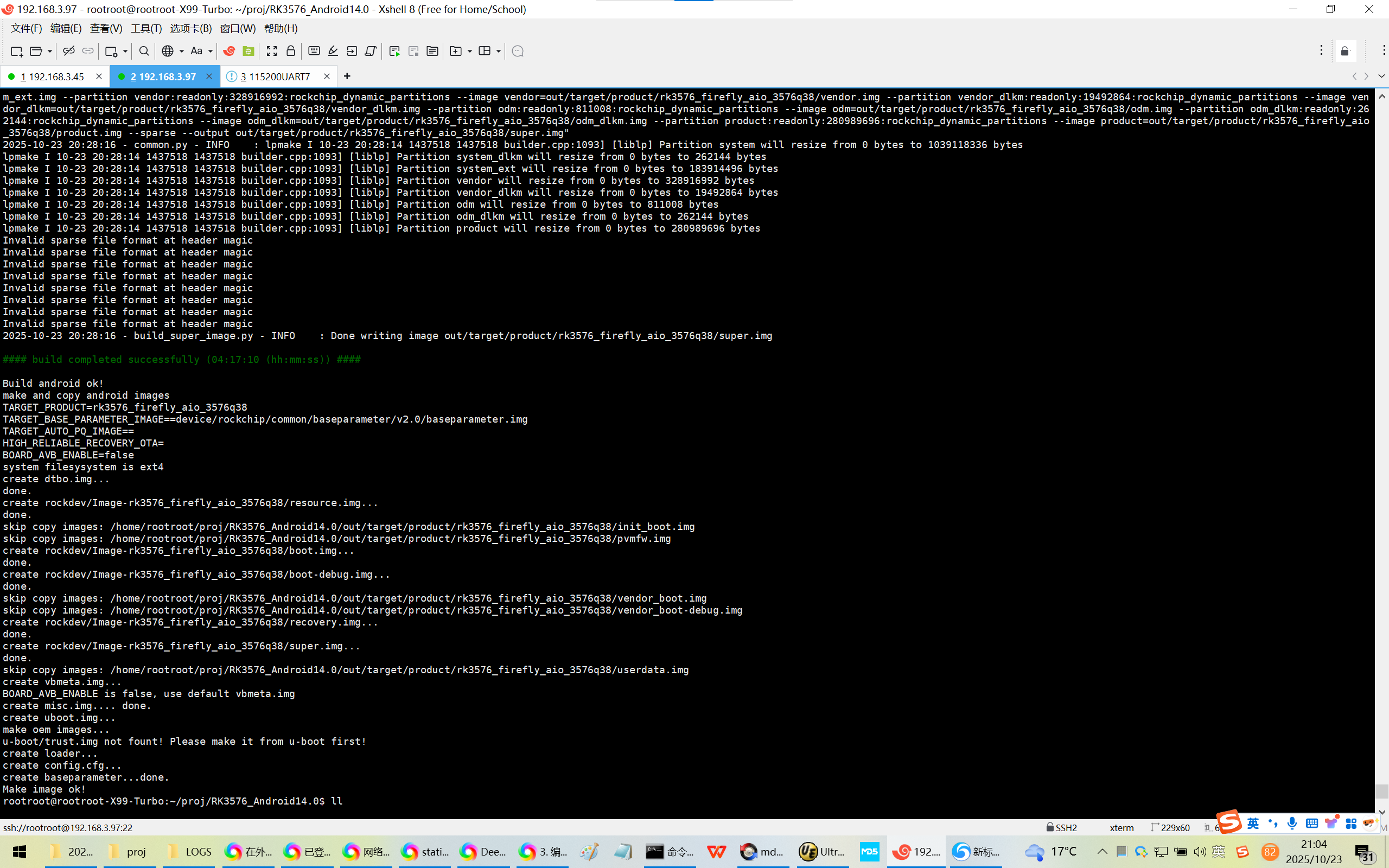

3.2.1.1. HDMI 固件编译

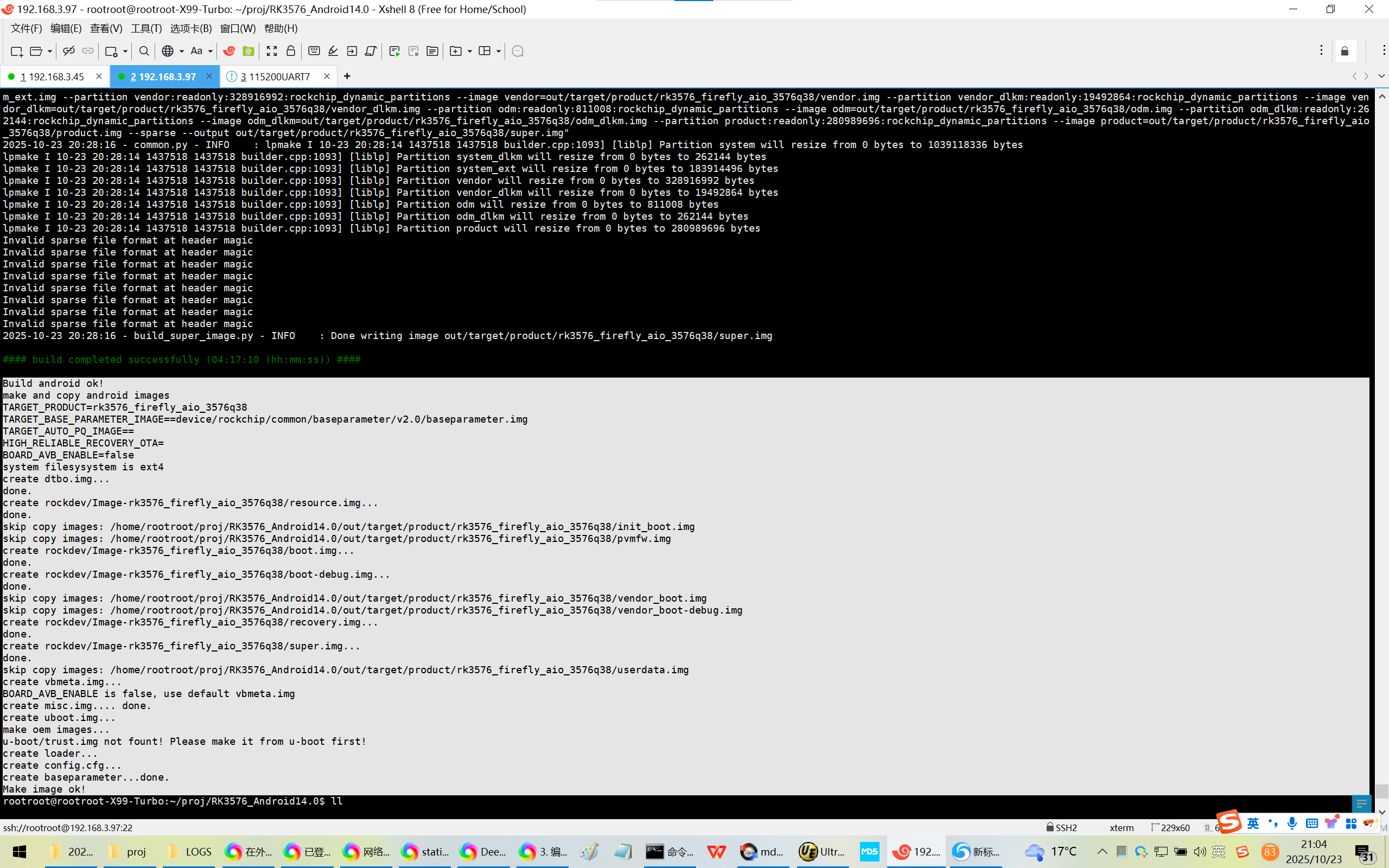

./FFTools/make.sh -j8 -l rk3576_firefly_aio_3576q38-userdebug

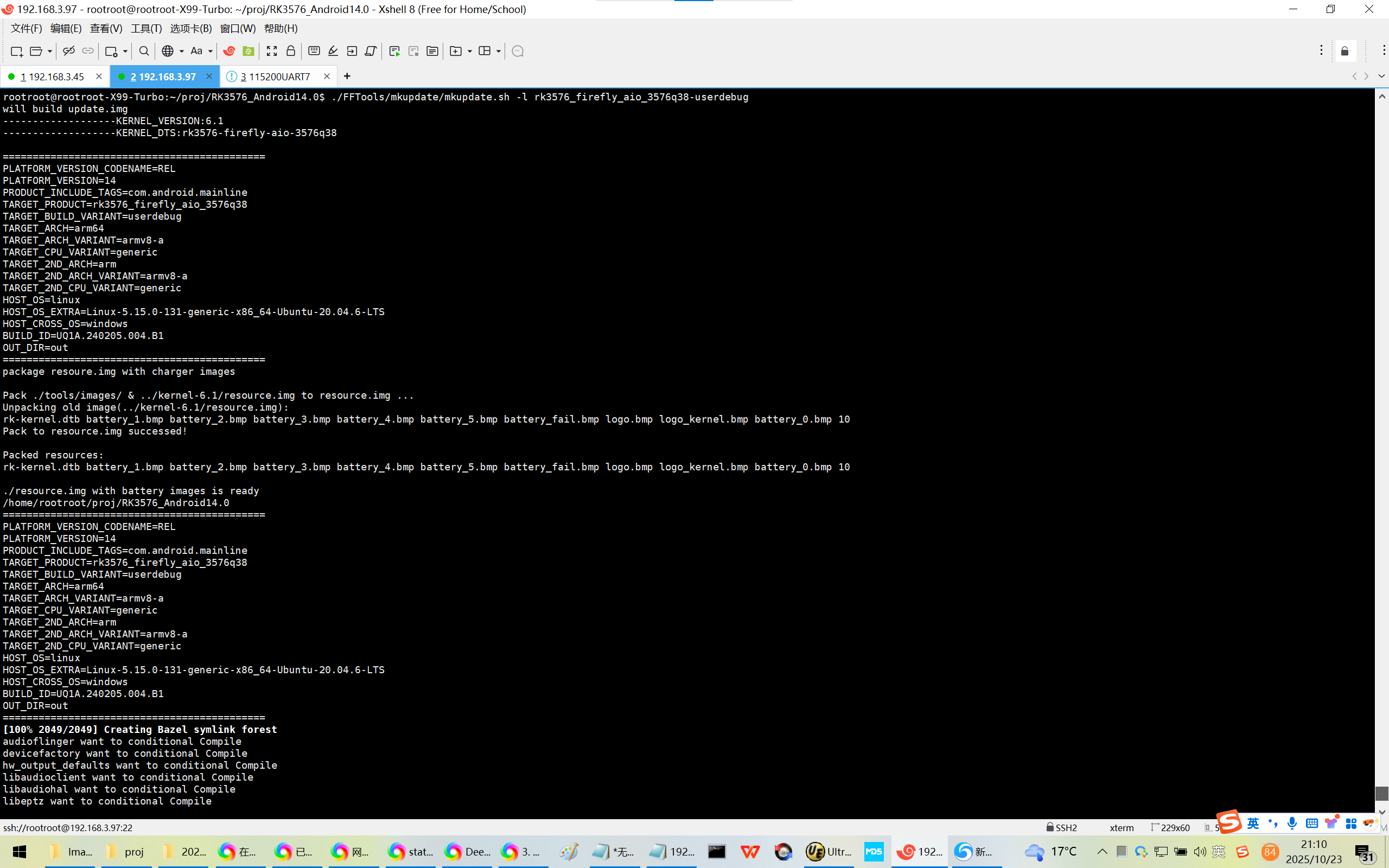

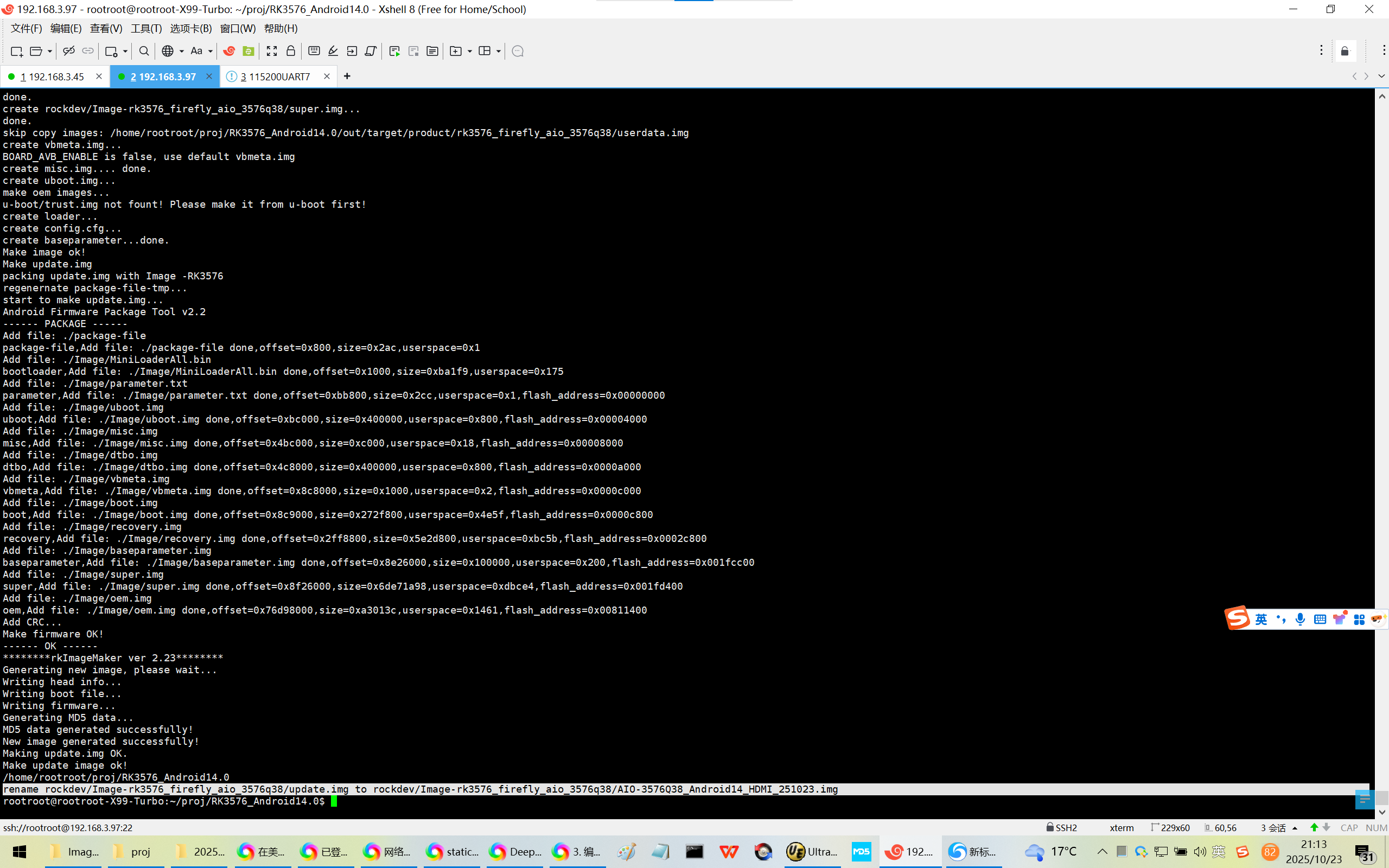

./FFTools/mkupdate/mkupdate.sh -l rk3576_firefly_aio_3576q38-userdebug

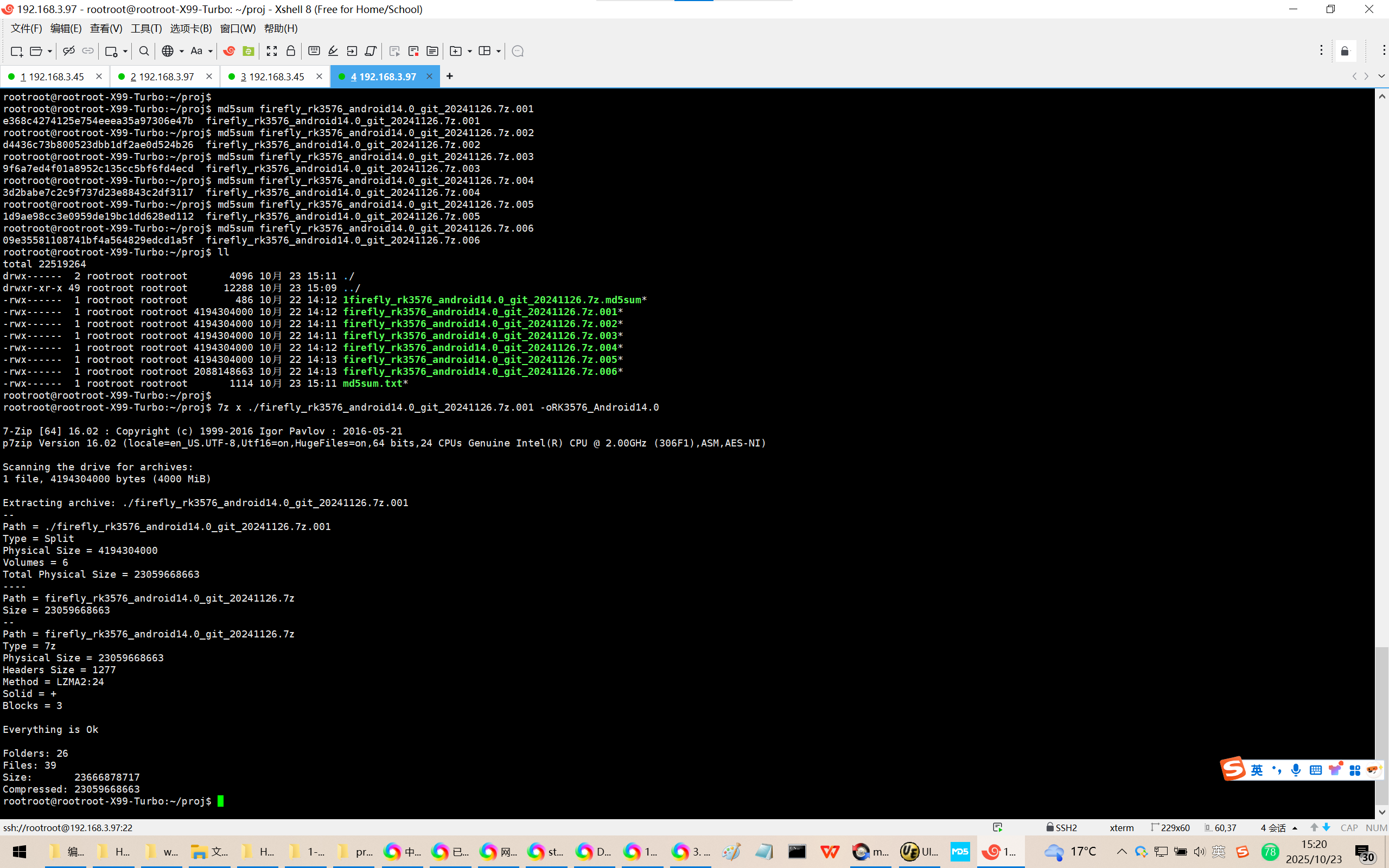

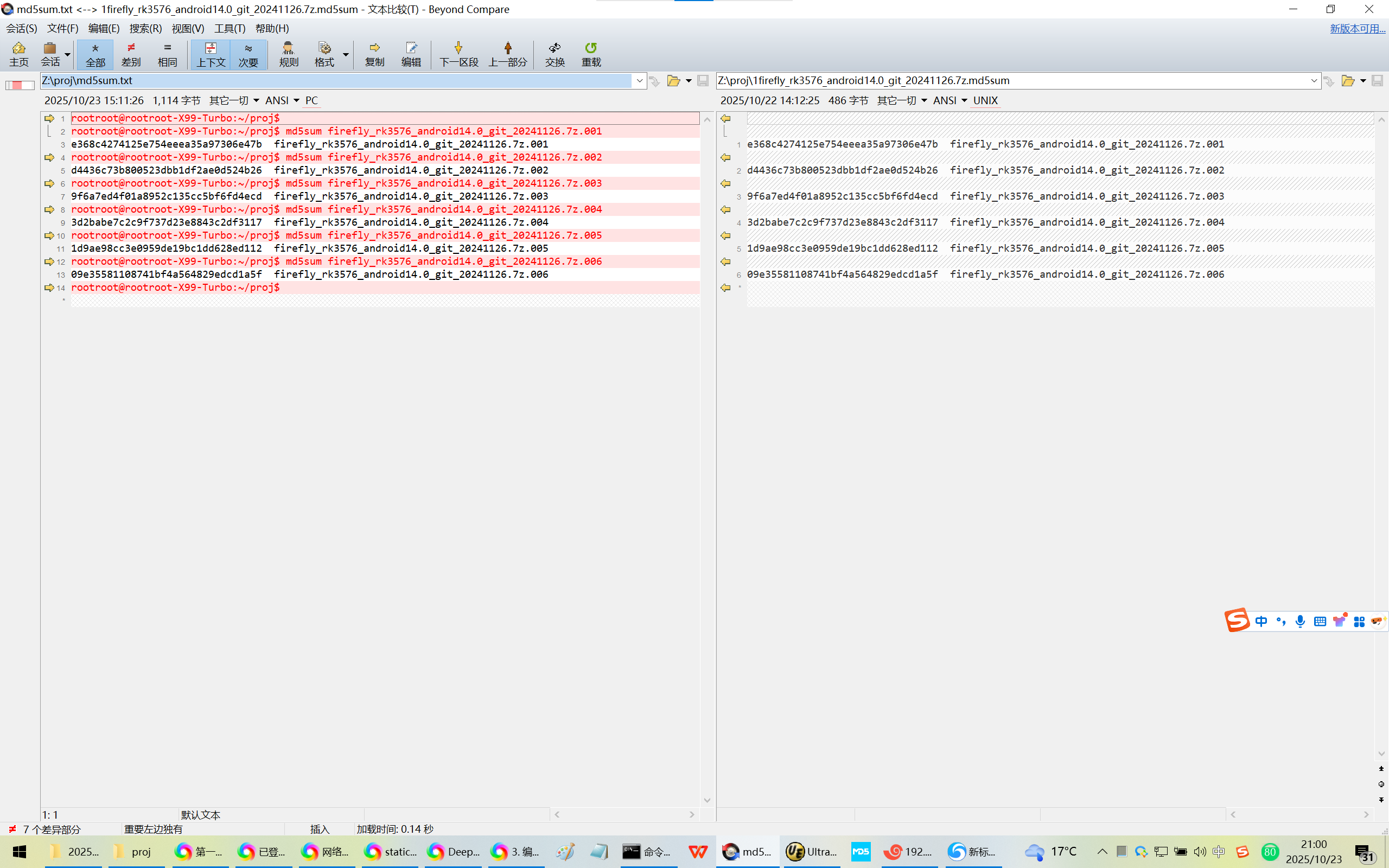

1、【可选】确认md5sum：
rootroot@rootroot-X99-Turbo:~$ mv firefly_rk3576_android14.0_git_20241126/ proj

rootroot@rootroot-X99-Turbo:~$
rootroot@rootroot-X99-Turbo:~$
rootroot@rootroot-X99-Turbo:~$ cd proj/
rootroot@rootroot-X99-Turbo:~/proj$ ll
total 22519260
drwx------ 2 rootroot rootroot 4096 10月 23 15:08 ./
drwxr-xr-x 49 rootroot rootroot 12288 10月 23 15:09 ../
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:12 firefly_rk3576_android14.0_git_20241126.7z.001*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:11 firefly_rk3576_android14.0_git_20241126.7z.002*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:11 firefly_rk3576_android14.0_git_20241126.7z.003*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:12 firefly_rk3576_android14.0_git_20241126.7z.004*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:13 firefly_rk3576_android14.0_git_20241126.7z.005*
-rwx------ 1 rootroot rootroot 2088148663 10月 22 14:13 firefly_rk3576_android14.0_git_20241126.7z.006*
-rwx------ 1 rootroot rootroot 486 10月 22 14:12 firefly_rk3576_android14.0_git_20241126.7z.md5sum*
rootroot@rootroot-X99-Turbo:~/proj$

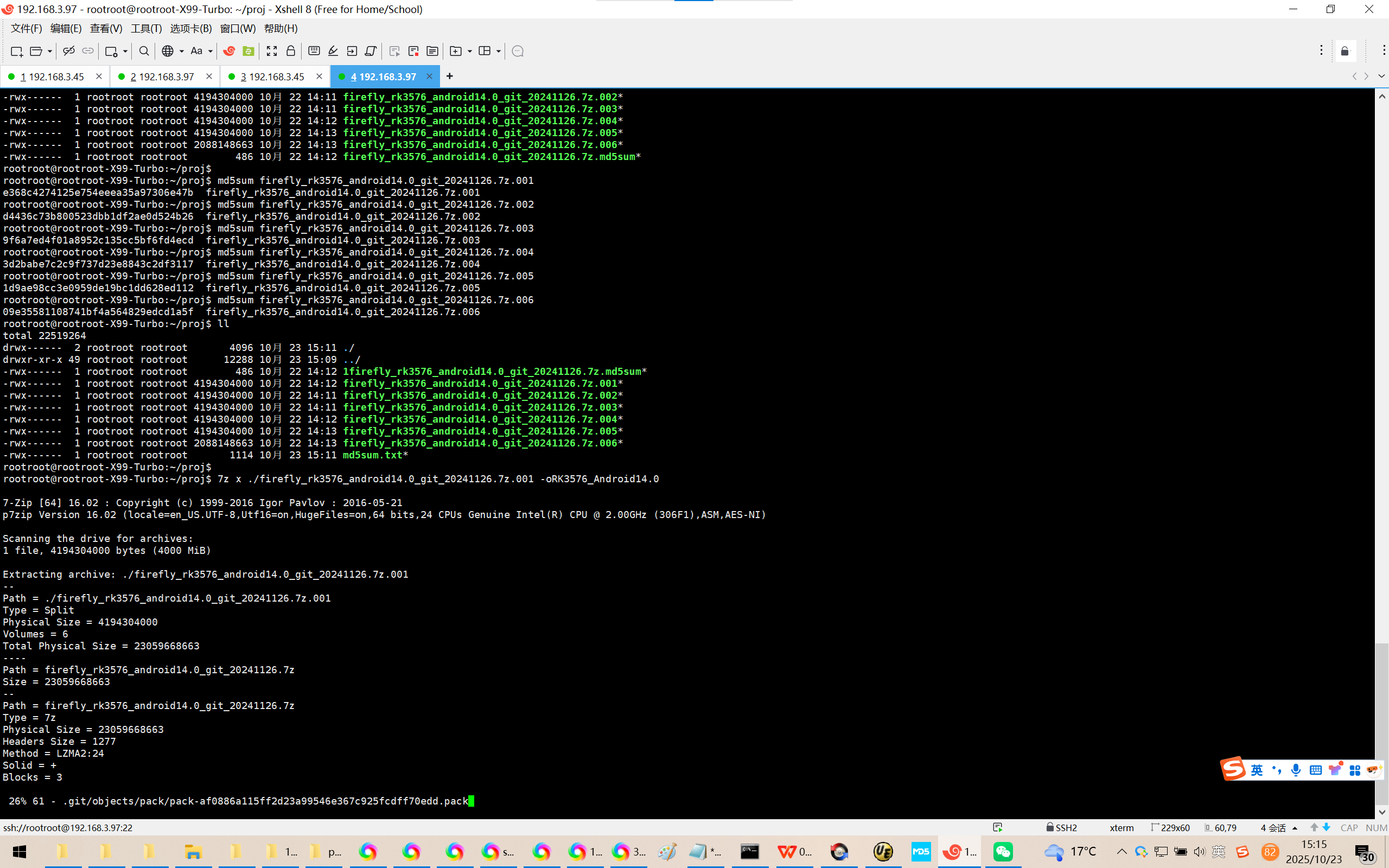

rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.001
e368c4274125e754eeea35a97306e47b firefly_rk3576_android14.0_git_20241126.7z.001
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.002
d4436c73b800523dbb1df2ae0d524b26 firefly_rk3576_android14.0_git_20241126.7z.002
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.003
9f6a7ed4f01a8952c135cc5bf6fd4ecd firefly_rk3576_android14.0_git_20241126.7z.003
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.004
3d2babe7c2c9f737d23e8843c2df3117 firefly_rk3576_android14.0_git_20241126.7z.004
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.005
1d9ae98cc3e0959de19bc1dd628ed112 firefly_rk3576_android14.0_git_20241126.7z.005
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.006
09e35581108741bf4a564829edcd1a5f firefly_rk3576_android14.0_git_20241126.7z.006
rootroot@rootroot-X99-Turbo:~/proj$

整理SDK的LOG：

[BEGIN] 2025/10/23 15:08:48
rootroot@rootroot-X99-Turbo:~$
rootroot@rootroot-X99-Turbo:~$
rootroot@rootroot-X99-Turbo:~$ ll
total 125197556
drwxr-xr-x 49 rootroot rootroot 12288 10月 23 15:08 ./
drwxr-xr-x 5 root root 4096 2月 25 2025 ../
drwxrwxrwx 17 rootroot rootroot 4096 8月 13 13:44 14TB/
-rwx------ 1 rootroot rootroot 1257 10月 23 09:13 '20251023让NanoPi NEO core开发板在Ubuntu core16.04系统下配置GPIOG8【GPIO200】为普通GPIO.txt'*
drwx------ 2 rootroot rootroot 4096 10月 17 15:38 3568－11/
drwxr-xr-x 17 rootroot rootroot 4096 10月 16 09:18 3568L6/
-rwx------ 1 rootroot rootroot 38688602088 10月 15 11:51 3568L6_V1.2_20250722.tar.gz*
drwxrwxrwx 38 rootroot rootroot 4096 10月 7 09:40 81临时地面站1代带适配海罗的屏Android13.0/
drwxrwxr-x 3 rootroot rootroot 4096 10月 15 13:59 82临时了RD-RK3588_Android13/
-rw-rw-r-- 1 rootroot rootroot 27490868372 10月 18 18:56 85临时了OK3562-linux-source_20251018_1844完整编译finish.tgz
-rw-r--r-- 1 rootroot rootroot 3771 4月 25 10:29 bak1.bashrc
-rw------- 1 rootroot rootroot 27239 10月 23 15:08 .bash_history
-rw-r--r-- 1 rootroot rootroot 220 2月 24 2025 .bash_logout
-rw-r--r-- 1 rootroot rootroot 3852 4月 25 10:30 .bashrc
drwxr-xr-x 19 rootroot rootroot 4096 10月 21 10:57 .buildroot-ccache/
drwxr-xr-x 11 rootroot rootroot 4096 10月 16 19:04 .cache/
drwx------ 23 rootroot rootroot 4096 9月 30 10:16 .config/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Desktop/
drwxrwxr-x 3 rootroot rootroot 4096 10月 14 16:30 diff1/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Documents/
drwxr-xr-x 2 rootroot rootroot 4096 9月 10 15:30 Downloads/
drwx------ 2 rootroot rootroot 4096 10月 23 15:08 firefly_rk3576_android14.0_git_20241126/
drwx------ 3 rootroot rootroot 4096 8月 26 09:52 .gnupg/
drwxrwxr-x 3 rootroot rootroot 4096 10月 18 19:02 H3_MEGPHONE/
drwx------ 2 rootroot rootroot 4096 9月 26 14:53 kernel_test/
drwxrwxr-x 2 rootroot rootroot 4096 9月 26 17:02 ko1/
drwx------ 2 rootroot rootroot 4096 9月 26 15:43 ko2/
drwxr-xr-x 5 rootroot rootroot 4096 3月 7 2025 .local/
drwx------ 4 rootroot rootroot 4096 2月 27 2025 .mozilla/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Music/
drwx------ 3 rootroot rootroot 4096 3月 7 2025 .nv/
drwxrwxr-x 21 rootroot rootroot 4096 10月 21 19:27 OK3562-linux-source/
-rwx------ 1 rootroot rootroot 9138744032 10月 18 11:47 OK3562-linux-source_20251018_1147重新打包.tgz*
-rw-rw-r-- 1 rootroot rootroot 27489984843 10月 21 15:40 OK3562-linux-source_20251021_1528.tgz
drwxr-xr-x 2 rootroot rootroot 20480 10月 22 09:19 Pictures/
drwx------ 3 rootroot rootroot 4096 3月 12 2025 .pki/
-rw-r--r-- 1 rootroot rootroot 807 2月 24 2025 .profile
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Public/
-rw------- 1 rootroot rootroot 7 3月 5 2025 .python_history
drwxrwxr-x 7 rootroot rootroot 4096 7月 1 2024 .repo/
drwxrwxr-x 20 rootroot rootroot 4096 10月 16 21:21 REPO3568L6/
-rw-rw-r-- 1 rootroot rootroot 6906815472 10月 16 09:22 REPO3568L6_20251016_0920重新析取-没有dl.tgz
-rw-rw-r-- 1 rootroot rootroot 18471287928 10月 16 12:11 REPO3568L6_20251016_1203完整编译.tgz
-rw-r--r-- 1 rootroot rootroot 2 10月 22 14:39 .repo_.gitconfig.json
drwxr-xr-x 35 rootroot rootroot 4096 4月 10 2025 RK3566_RK3568_Linux5.10_V1.2.0/
drwxrwxr-x 15 rootroot rootroot 4096 7月 18 12:02 rk3588_linux6.1_release_v1.2.0_20241220/
drwx------ 37 rootroot rootroot 4096 10月 15 10:09 rk-android13-20250818RD-RK3588-MID/
drwxrwxr-x 13 rootroot rootroot 4096 10月 22 10:43 sd-fuse_h3/
drwx------ 3 rootroot rootroot 4096 4月 24 17:09 snap/
drwxrwxrwx 30 rootroot rootroot 4096 8月 19 13:45 source/
drwx------ 2 rootroot rootroot 4096 10月 22 09:16 .ssh/
-rw-r--r-- 1 rootroot rootroot 0 2月 25 2025 .sudo_as_admin_successful
drwxrwxr-x 2 rootroot rootroot 4096 3月 12 2025 'Sunlogin Files'/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Templates/
drwx------ 8 rootroot rootroot 12288 10月 15 16:43 tgz/
drwx------ 6 rootroot rootroot 4096 4月 7 2025 .thunderbird/
drwxrwxr-x 3 rootroot rootroot 4096 10月 20 17:50 tool/
drwxrwxr-x 8 rootroot rootroot 4096 10月 23 14:49 version/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Videos/
drwxr-xr-x 2 rootroot rootroot 4096 4月 30 19:06 .vmware/
-rw-r--r-- 1 rootroot rootroot 221 10月 22 15:35 .wget-hsts
-rw------- 1 rootroot rootroot 320 10月 23 15:08 .Xauthority
drwxr-xr-x 49 rootroot rootroot 4096 8月 23 14:38 临时了-开发板Rockchip_RK3588_Linux5.10_SDK_Release_V1.2.0_20230620/
-rwx------ 1 rootroot rootroot 70784 3月 17 2025 '接口图2 企业微信截图_17422004399963.png'*
drwx------ 2 rootroot rootroot 4096 3月 22 2025 摄像头/
-rwx------ 1 rootroot rootroot 8198 8月 12 08:44 新建文本文档.txt*
drwx------ 6 rootroot rootroot 4096 9月 3 15:44 源码rk-android13-20250818RD-RK3588-MID/
-rw-rw-r-- 1 rootroot rootroot 4452746 9月 3 13:57 源码rk-android13-20250818RD-RK3588-MID1.tar.gz
-rw-rw-r-- 1 rootroot rootroot 4731557 9月 8 17:19 源码rk-android13-20250818RD-RK3588-MID3.tar.gz
-rwx------ 1 rootroot rootroot 3143575 9月 3 13:56 源码rk-android13-20250818RD-RK3588-MID地面站1.7z*
-rwx------ 1 rootroot rootroot 3162457 9月 5 16:13 源码rk-android13-20250818RD-RK3588-MID地面站2.7z*
drwx------ 9 rootroot rootroot 4096 9月 9 11:11 源码备份MID_MX_RK3588_android13-20250818/
-rwx------ 1 rootroot rootroot 12166 6月 11 15:47 说明.txt*
rootroot@rootroot-X99-Turbo:~$
rootroot@rootroot-X99-Turbo:~$ mv firefly_rk3576_android14.0_git_20241126/ proj
rootroot@rootroot-X99-Turbo:~$ ll
total 125197556
drwxr-xr-x 49 rootroot rootroot 12288 10月 23 15:09 ./
drwxr-xr-x 5 root root 4096 2月 25 2025 ../
drwxrwxrwx 17 rootroot rootroot 4096 8月 13 13:44 14TB/
-rwx------ 1 rootroot rootroot 1257 10月 23 09:13 '20251023让NanoPi NEO core开发板在Ubuntu core16.04系统下配置GPIOG8【GPIO200】为普通GPIO.txt'*
drwx------ 2 rootroot rootroot 4096 10月 17 15:38 3568－11/
drwxr-xr-x 17 rootroot rootroot 4096 10月 16 09:18 3568L6/
-rwx------ 1 rootroot rootroot 38688602088 10月 15 11:51 3568L6_V1.2_20250722.tar.gz*
drwxrwxrwx 38 rootroot rootroot 4096 10月 7 09:40 81临时地面站1代带适配海罗的屏Android13.0/
drwxrwxr-x 3 rootroot rootroot 4096 10月 15 13:59 82临时了RD-RK3588_Android13/
-rw-rw-r-- 1 rootroot rootroot 27490868372 10月 18 18:56 85临时了OK3562-linux-source_20251018_1844完整编译finish.tgz
-rw-r--r-- 1 rootroot rootroot 3771 4月 25 10:29 bak1.bashrc
-rw------- 1 rootroot rootroot 27239 10月 23 15:08 .bash_history
-rw-r--r-- 1 rootroot rootroot 220 2月 24 2025 .bash_logout
-rw-r--r-- 1 rootroot rootroot 3852 4月 25 10:30 .bashrc
drwxr-xr-x 19 rootroot rootroot 4096 10月 21 10:57 .buildroot-ccache/
drwxr-xr-x 11 rootroot rootroot 4096 10月 16 19:04 .cache/
drwx------ 23 rootroot rootroot 4096 9月 30 10:16 .config/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Desktop/
drwxrwxr-x 3 rootroot rootroot 4096 10月 14 16:30 diff1/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Documents/
drwxr-xr-x 2 rootroot rootroot 4096 9月 10 15:30 Downloads/
drwx------ 3 rootroot rootroot 4096 8月 26 09:52 .gnupg/
drwxrwxr-x 3 rootroot rootroot 4096 10月 18 19:02 H3_MEGPHONE/
drwx------ 2 rootroot rootroot 4096 9月 26 14:53 kernel_test/
drwxrwxr-x 2 rootroot rootroot 4096 9月 26 17:02 ko1/
drwx------ 2 rootroot rootroot 4096 9月 26 15:43 ko2/
drwxr-xr-x 5 rootroot rootroot 4096 3月 7 2025 .local/
drwx------ 4 rootroot rootroot 4096 2月 27 2025 .mozilla/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Music/
drwx------ 3 rootroot rootroot 4096 3月 7 2025 .nv/
drwxrwxr-x 21 rootroot rootroot 4096 10月 21 19:27 OK3562-linux-source/
-rwx------ 1 rootroot rootroot 9138744032 10月 18 11:47 OK3562-linux-source_20251018_1147重新打包.tgz*
-rw-rw-r-- 1 rootroot rootroot 27489984843 10月 21 15:40 OK3562-linux-source_20251021_1528.tgz
drwxr-xr-x 2 rootroot rootroot 20480 10月 22 09:19 Pictures/
drwx------ 3 rootroot rootroot 4096 3月 12 2025 .pki/
-rw-r--r-- 1 rootroot rootroot 807 2月 24 2025 .profile
drwx------ 2 rootroot rootroot 4096 10月 23 15:08 proj/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Public/
-rw------- 1 rootroot rootroot 7 3月 5 2025 .python_history
drwxrwxr-x 7 rootroot rootroot 4096 7月 1 2024 .repo/
drwxrwxr-x 20 rootroot rootroot 4096 10月 16 21:21 REPO3568L6/
-rw-rw-r-- 1 rootroot rootroot 6906815472 10月 16 09:22 REPO3568L6_20251016_0920重新析取-没有dl.tgz
-rw-rw-r-- 1 rootroot rootroot 18471287928 10月 16 12:11 REPO3568L6_20251016_1203完整编译.tgz
-rw-r--r-- 1 rootroot rootroot 2 10月 22 14:39 .repo_.gitconfig.json
drwxr-xr-x 35 rootroot rootroot 4096 4月 10 2025 RK3566_RK3568_Linux5.10_V1.2.0/
drwxrwxr-x 15 rootroot rootroot 4096 7月 18 12:02 rk3588_linux6.1_release_v1.2.0_20241220/
drwx------ 37 rootroot rootroot 4096 10月 15 10:09 rk-android13-20250818RD-RK3588-MID/
drwxrwxr-x 13 rootroot rootroot 4096 10月 22 10:43 sd-fuse_h3/
drwx------ 3 rootroot rootroot 4096 4月 24 17:09 snap/
drwxrwxrwx 30 rootroot rootroot 4096 8月 19 13:45 source/
drwx------ 2 rootroot rootroot 4096 10月 22 09:16 .ssh/
-rw-r--r-- 1 rootroot rootroot 0 2月 25 2025 .sudo_as_admin_successful
drwxrwxr-x 2 rootroot rootroot 4096 3月 12 2025 'Sunlogin Files'/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Templates/
drwx------ 8 rootroot rootroot 12288 10月 15 16:43 tgz/
drwx------ 6 rootroot rootroot 4096 4月 7 2025 .thunderbird/
drwxrwxr-x 3 rootroot rootroot 4096 10月 20 17:50 tool/
drwxrwxr-x 8 rootroot rootroot 4096 10月 23 14:49 version/
drwxr-xr-x 2 rootroot rootroot 4096 2月 24 2025 Videos/
drwxr-xr-x 2 rootroot rootroot 4096 4月 30 19:06 .vmware/
-rw-r--r-- 1 rootroot rootroot 221 10月 22 15:35 .wget-hsts
-rw------- 1 rootroot rootroot 320 10月 23 15:08 .Xauthority
drwxr-xr-x 49 rootroot rootroot 4096 8月 23 14:38 临时了-开发板Rockchip_RK3588_Linux5.10_SDK_Release_V1.2.0_20230620/
-rwx------ 1 rootroot rootroot 70784 3月 17 2025 '接口图2 企业微信截图_17422004399963.png'*
drwx------ 2 rootroot rootroot 4096 3月 22 2025 摄像头/
-rwx------ 1 rootroot rootroot 8198 8月 12 08:44 新建文本文档.txt*
drwx------ 6 rootroot rootroot 4096 9月 3 15:44 源码rk-android13-20250818RD-RK3588-MID/
-rw-rw-r-- 1 rootroot rootroot 4452746 9月 3 13:57 源码rk-android13-20250818RD-RK3588-MID1.tar.gz
-rw-rw-r-- 1 rootroot rootroot 4731557 9月 8 17:19 源码rk-android13-20250818RD-RK3588-MID3.tar.gz
-rwx------ 1 rootroot rootroot 3143575 9月 3 13:56 源码rk-android13-20250818RD-RK3588-MID地面站1.7z*
-rwx------ 1 rootroot rootroot 3162457 9月 5 16:13 源码rk-android13-20250818RD-RK3588-MID地面站2.7z*
drwx------ 9 rootroot rootroot 4096 9月 9 11:11 源码备份MID_MX_RK3588_android13-20250818/
-rwx------ 1 rootroot rootroot 12166 6月 11 15:47 说明.txt*
rootroot@rootroot-X99-Turbo:~$
rootroot@rootroot-X99-Turbo:~$
rootroot@rootroot-X99-Turbo:~$ cd proj/
rootroot@rootroot-X99-Turbo:~/proj$ ll
total 22519260
drwx------ 2 rootroot rootroot 4096 10月 23 15:08 ./
drwxr-xr-x 49 rootroot rootroot 12288 10月 23 15:09 ../
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:12 firefly_rk3576_android14.0_git_20241126.7z.001*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:11 firefly_rk3576_android14.0_git_20241126.7z.002*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:11 firefly_rk3576_android14.0_git_20241126.7z.003*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:12 firefly_rk3576_android14.0_git_20241126.7z.004*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:13 firefly_rk3576_android14.0_git_20241126.7z.005*
-rwx------ 1 rootroot rootroot 2088148663 10月 22 14:13 firefly_rk3576_android14.0_git_20241126.7z.006*
-rwx------ 1 rootroot rootroot 486 10月 22 14:12 firefly_rk3576_android14.0_git_20241126.7z.md5sum*
rootroot@rootroot-X99-Turbo:~/proj$
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.001
e368c4274125e754eeea35a97306e47b firefly_rk3576_android14.0_git_20241126.7z.001
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.002
d4436c73b800523dbb1df2ae0d524b26 firefly_rk3576_android14.0_git_20241126.7z.002
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.003
9f6a7ed4f01a8952c135cc5bf6fd4ecd firefly_rk3576_android14.0_git_20241126.7z.003
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.004
3d2babe7c2c9f737d23e8843c2df3117 firefly_rk3576_android14.0_git_20241126.7z.004
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.005
1d9ae98cc3e0959de19bc1dd628ed112 firefly_rk3576_android14.0_git_20241126.7z.005
rootroot@rootroot-X99-Turbo:~/proj$ md5sum firefly_rk3576_android14.0_git_20241126.7z.006
09e35581108741bf4a564829edcd1a5f firefly_rk3576_android14.0_git_20241126.7z.006
rootroot@rootroot-X99-Turbo:~/proj$ ll
total 22519264
drwx------ 2 rootroot rootroot 4096 10月 23 15:11 ./
drwxr-xr-x 49 rootroot rootroot 12288 10月 23 15:09 ../
-rwx------ 1 rootroot rootroot 486 10月 22 14:12 1firefly_rk3576_android14.0_git_20241126.7z.md5sum*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:12 firefly_rk3576_android14.0_git_20241126.7z.001*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:11 firefly_rk3576_android14.0_git_20241126.7z.002*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:11 firefly_rk3576_android14.0_git_20241126.7z.003*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:12 firefly_rk3576_android14.0_git_20241126.7z.004*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:13 firefly_rk3576_android14.0_git_20241126.7z.005*
-rwx------ 1 rootroot rootroot 2088148663 10月 22 14:13 firefly_rk3576_android14.0_git_20241126.7z.006*
-rwx------ 1 rootroot rootroot 1114 10月 23 15:11 md5sum.txt*
rootroot@rootroot-X99-Turbo:~/proj$
rootroot@rootroot-X99-Turbo:~/proj$ 7z x ./firefly_rk3576_android14.0_git_20241126.7z.001 -oRK3576_Android14.0

Scanning the drive for archives:
1 file, 4194304000 bytes (4000 MiB)

Extracting archive: ./firefly_rk3576_android14.0_git_20241126.7z.001
--
Path = ./firefly_rk3576_android14.0_git_20241126.7z.001
Type = Split
Physical Size = 4194304000
Volumes = 6
Total Physical Size = 23059668663
----
Path = firefly_rk3576_android14.0_git_20241126.7z
Size = 23059668663
--
Path = firefly_rk3576_android14.0_git_20241126.7z
Type = 7z
Physical Size = 23059668663
Headers Size = 1277
Method = LZMA2:24
Solid = +
Blocks = 3

Everything is Ok

Folders: 26
Files: 39
Size: 23666878717
Compressed: 23059668663
rootroot@rootroot-X99-Turbo:~/proj$ ll
total 22519268
drwx------ 3 rootroot rootroot 4096 10月 23 15:13 ./
drwxr-xr-x 49 rootroot rootroot 12288 10月 23 15:09 ../
-rwx------ 1 rootroot rootroot 486 10月 22 14:12 1firefly_rk3576_android14.0_git_20241126.7z.md5sum*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:12 firefly_rk3576_android14.0_git_20241126.7z.001*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:11 firefly_rk3576_android14.0_git_20241126.7z.002*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:11 firefly_rk3576_android14.0_git_20241126.7z.003*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:12 firefly_rk3576_android14.0_git_20241126.7z.004*
-rwx------ 1 rootroot rootroot 4194304000 10月 22 14:13 firefly_rk3576_android14.0_git_20241126.7z.005*
-rwx------ 1 rootroot rootroot 2088148663 10月 22 14:13 firefly_rk3576_android14.0_git_20241126.7z.006*
-rwx------ 1 rootroot rootroot 1114 10月 23 15:11 md5sum.txt*
drwx------ 3 rootroot rootroot 4096 10月 23 15:13 RK3576_Android14.0/
rootroot@rootroot-X99-Turbo:~/proj$
rootroot@rootroot-X99-Turbo:~/proj$ cd ./RK3576_Android14.0
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 12
drwx------ 3 rootroot rootroot 4096 10月 23 15:13 ./
drwx------ 3 rootroot rootroot 4096 10月 23 15:13 ../
drwxrwxr-x 8 rootroot rootroot 4096 11月 26 2024 .git/
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ git reset --hard
Updating files: 100% (1160589/1160589), done.
HEAD is now at 5e8c6e285f2 1.update rk-release android-14.0-mid-rkr5;2.add aio-3576-jd4 product
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 160
drwx------ 36 rootroot rootroot 4096 10月 23 15:32 ./
drwx------ 3 rootroot rootroot 4096 10月 23 15:13 ../
lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp
drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/
lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/
drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/
drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/
drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:22 FFTools/
drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/
drwxrwxr-x 8 rootroot rootroot 4096 10月 23 15:33 .git/
-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 15:25 kernel-6.1/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/
drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:32 rkbin/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/
drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/
drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/
drwxrwxr-x 24 rootroot rootroot 4096 10月 23 15:32 u-boot/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll *.7z
-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ 7z x rk3576-android14.0-bundle.7z* -r -o.

Scanning the drive for archives:
1 file, 17710739 bytes (17 MiB)

Extracting archive: rk3576-android14.0-bundle.7z
--
Path = rk3576-android14.0-bundle.7z
Type = 7z
Physical Size = 17710739
Headers Size = 1256
Method = LZMA2:24
Solid = +
Blocks = 2

No files to process
Everything is Ok

Files: 0
Size: 0
Compressed: 17710739
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 17460
drwx------ 36 rootroot rootroot 4096 10月 23 15:34 ./
drwx------ 3 rootroot rootroot 4096 10月 23 15:13 ../
lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp
drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/
lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/
drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/
drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/
drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:22 FFTools/
drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/
drwxrwxr-x 8 rootroot rootroot 4096 10月 23 15:33 .git/
-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 15:25 kernel-6.1/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/
drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*
-rwx------ 1 rootroot rootroot 63 10月 23 11:45 rk3576-android14.0-bundle.7z.md5sum*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:32 rkbin/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/
drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/
drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/
drwxrwxr-x 24 rootroot rootroot 4096 10月 23 15:32 u-boot/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ cd rk
rkbin/ rkst/
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ cd rk
rkbin/ rkst/
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 17460
drwx------ 36 rootroot rootroot 4096 10月 23 15:34 ./
drwx------ 3 rootroot rootroot 4096 10月 23 15:13 ../
lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp
drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/
lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/
drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/
drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/
drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:22 FFTools/
drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/
drwxrwxr-x 8 rootroot rootroot 4096 10月 23 15:33 .git/
-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 15:25 kernel-6.1/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/
drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*
-rwx------ 1 rootroot rootroot 63 10月 23 11:45 rk3576-android14.0-bundle.7z.md5sum*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:32 rkbin/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/
drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/
drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/
drwxrwxr-x 24 rootroot rootroot 4096 10月 23 15:32 u-boot/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ 7z x rk3576-android14.0-bundle.7z -r -o.

Scanning the drive for archives:
1 file, 17710739 bytes (17 MiB)

Extracting archive: rk3576-android14.0-bundle.7z
--
Path = rk3576-android14.0-bundle.7z
Type = 7z
Physical Size = 17710739
Headers Size = 1256
Method = LZMA2:24
Solid = +
Blocks = 2

Everything is Ok

Folders: 22
Files: 45
Size: 33221332
Compressed: 17710739
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 17464
drwx------ 37 rootroot rootroot 4096 10月 23 15:40 ./
drwx------ 3 rootroot rootroot 4096 10月 23 15:13 ../
lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp
drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/
lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/
drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/
drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/
drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:22 FFTools/
drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/
drwxrwxr-x 8 rootroot rootroot 4096 10月 23 15:33 .git/
-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 15:25 kernel-6.1/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/
drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 11:26 rk3576-android14.0-bundle/
-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*
-rwx------ 1 rootroot rootroot 63 10月 23 11:45 rk3576-android14.0-bundle.7z.md5sum*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:32 rkbin/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/
drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/
drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/
drwxrwxr-x 24 rootroot rootroot 4096 10月 23 15:32 u-boot/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ mv rk3576-android14.0-bundle .bundle
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 17464
drwx------ 37 rootroot rootroot 4096 10月 23 15:41 ./
drwx------ 3 rootroot rootroot 4096 10月 23 15:13 ../
lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp
drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/
lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 11:26 .bundle/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/
drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/
drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/
drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:22 FFTools/
drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/
drwxrwxr-x 8 rootroot rootroot 4096 10月 23 15:33 .git/
-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 15:25 kernel-6.1/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/
drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*
-rwx------ 1 rootroot rootroot 63 10月 23 11:45 rk3576-android14.0-bundle.7z.md5sum*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:32 rkbin/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/
drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/
drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/
drwxrwxr-x 24 rootroot rootroot 4096 10月 23 15:32 u-boot/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll .bundle/update
-rwxrwxr-x 1 rootroot rootroot 1205 10月 23 11:26 .bundle/update*
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ .bundle/update
[Info]Update Bundle repo...
fatal: 'origin' does not appear to be a git repository
fatal: Could not read from remote repository.

Please make sure you have the correct access rights
and the repository exists.
-------------------------------------------
[Info]Update to FETCH_HEAD:
Receiving objects: 100% (400/400), 1.95 MiB | 33.28 MiB/s, done.
Resolving deltas: 100% (267/267), completed with 180 local objects.
From .bundle/2.bundle
* branch HEAD -> FETCH_HEAD
[Info]Fetch .bundle/2.bundle successfully!!
Receiving objects: 100% (851/851), 10.32 MiB | 47.18 MiB/s, done.
Resolving deltas: 100% (696/696), completed with 666 local objects.
From .bundle/3.bundle
* branch HEAD -> FETCH_HEAD
[Info]Fetch .bundle/3.bundle successfully!!
Receiving objects: 100% (31/31), 1.73 MiB | 70.79 MiB/s, done.
Resolving deltas: 100% (15/15), completed with 13 local objects.
From .bundle/4.bundle
* branch HEAD -> FETCH_HEAD
[Info]Fetch .bundle/4.bundle successfully!!
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ git rebase FETCH_HEAD
First, rewinding head to replay your work on top of it...
Fast-forwarded firefly to FETCH_HEAD.
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 17464
drwx------ 37 rootroot rootroot 4096 10月 23 15:41 ./
drwx------ 3 rootroot rootroot 4096 10月 23 15:13 ../
lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp
drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/
lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 11:26 .bundle/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/
drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/
drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/
drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:43 FFTools/
drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/
drwxrwxr-x 8 rootroot rootroot 4096 10月 23 15:43 .git/
-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 15:25 kernel-6.1/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/
drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*
-rwx------ 1 rootroot rootroot 63 10月 23 11:45 rk3576-android14.0-bundle.7z.md5sum*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:32 rkbin/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/
drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/
drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/
drwxrwxr-x 24 rootroot rootroot 4096 10月 23 15:32 u-boot/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ du -sh
110G   .
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ du -sh .git
23G   .git
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ mv .git ..
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 17460
drwx------ 36 rootroot rootroot 4096 10月 23 15:44 ./
drwx------ 4 rootroot rootroot 4096 10月 23 15:44 ../
lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp
drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/
lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 11:26 .bundle/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/
drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/
drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/
drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:43 FFTools/
drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/
-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 15:25 kernel-6.1/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/
drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*
-rwx------ 1 rootroot rootroot 63 10月 23 11:45 rk3576-android14.0-bundle.7z.md5sum*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:32 rkbin/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/
drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/
drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/
drwxrwxr-x 24 rootroot rootroot 4096 10月 23 15:32 u-boot/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ mv .bundle/ ..
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 17456
drwx------ 35 rootroot rootroot 4096 10月 23 15:44 ./
drwx------ 5 rootroot rootroot 4096 10月 23 15:44 ../
lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp
drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/
lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/
drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/
drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/
drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:43 FFTools/
drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/
-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 15:25 kernel-6.1/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/
drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*
-rwx------ 1 rootroot rootroot 63 10月 23 11:45 rk3576-android14.0-bundle.7z.md5sum*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:32 rkbin/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/
drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/
drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/
drwxrwxr-x 24 rootroot rootroot 4096 10月 23 15:32 u-boot/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ du -sh
88G   .
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 17456
drwx------ 35 rootroot rootroot 4096 10月 23 15:44 ./
drwx------ 5 rootroot rootroot 4096 10月 23 15:45 ../
lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp
drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/
lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/
drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/
drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/
drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:43 FFTools/
drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/
-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 15:25 kernel-6.1/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/
drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*
-rwx------ 1 rootroot rootroot 63 10月 23 11:45 rk3576-android14.0-bundle.7z.md5sum*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:32 rkbin/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/
drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/
drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/
drwxrwxr-x 24 rootroot rootroot 4096 10月 23 15:32 u-boot/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$

[END] 2025/10/23 15:57:51

GIT

bundle升级

编译的LOG：
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll *.sh
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ./FFTools/make.sh -j8 -l rk3576_firefly_aio_3576q38-userdebug

#### build completed successfully (1 seconds) ####

#### build completed successfully (2 seconds) ####

HOSTCC scripts/basic/fixdep
HOSTCC scripts/kconfig/conf.o
SHIPPED scripts/kconfig/zconf.tab.c
SHIPPED scripts/kconfig/zconf.lex.c
SHIPPED scripts/kconfig/zconf.hash.c
HOSTCC scripts/kconfig/zconf.tab.o
In file included from scripts/kconfig/zconf.tab.c:2468:
scripts/kconfig/confdata.c: In function ‘conf_write’:
scripts/kconfig/confdata.c:771:19: warning: ‘%s’ directive writing likely 7 or more bytes into a region of size between 1 and 4097 [-Wformat-overflow=]
771 | sprintf(newname, "%s%s", dirname, basename);
| ^~~~~~
scripts/kconfig/confdata.c:771:19: note: assuming directive output of 7 bytes
In file included from /usr/include/stdio.h:894,
from scripts/kconfig/zconf.tab.c:82:
/usr/include/x86_64-linux-gnu/bits/stdio2.h:38:10: note: ‘__builtin___sprintf_chk’ output 1 or more bytes (assuming 4104) into a destination of size 4097
38 | return __builtin___sprintf_chk (__s, __USE_FORTIFY_LEVEL - 1,
| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
39 | __glibc_objsize (__s), __fmt,
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
40 | __va_arg_pack ());
| ~~~~~~~~~~~~~~~~~
In file included from scripts/kconfig/zconf.tab.c:2468:
scripts/kconfig/confdata.c:774:20: warning: ‘.tmpconfig.’ directive writing 11 bytes into a region of size between 1 and 4097 [-Wformat-overflow=]
774 | sprintf(tmpname, "%s.tmpconfig.%d", dirname, (int)getpid());
| ^~~~~~~~~~~~~~~~~
In file included from /usr/include/stdio.h:894,
from scripts/kconfig/zconf.tab.c:82:
/usr/include/x86_64-linux-gnu/bits/stdio2.h:38:10: note: ‘__builtin___sprintf_chk’ output between 13 and 4119 bytes into a destination of size 4097
38 | return __builtin___sprintf_chk (__s, __USE_FORTIFY_LEVEL - 1,
| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
39 | __glibc_objsize (__s), __fmt,
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
40 | __va_arg_pack ());
| ~~~~~~~~~~~~~~~~~
HOSTLD scripts/kconfig/conf
#
# configuration written to .config
#

#### build completed successfully (3 seconds) ####

scripts/kconfig/conf --silentoldconfig Kconfig
CHK include/config.h
UPD include/config.h
CFG u-boot.cfg
GEN include/autoconf.mk.dep
CFG spl/u-boot.cfg
CFG tpl/u-boot.cfg
GEN include/autoconf.mk
GEN tpl/include/autoconf.mk
GEN spl/include/autoconf.mk
CHK include/config/uboot.release
CHK include/generated/timestamp_autogenerated.h
UPD include/generated/timestamp_autogenerated.h
UPD include/config/uboot.release
HOSTCC scripts/dtc/dtc.o
CHK include/generated/version_autogenerated.h
HOSTCC scripts/dtc/flattree.o
HOSTCC scripts/dtc/fstree.o
HOSTCC scripts/dtc/data.o
HOSTCC scripts/dtc/livetree.o
HOSTCC scripts/dtc/treesource.o
HOSTCC scripts/dtc/srcpos.o
HOSTCC scripts/dtc/checks.o
HOSTCC scripts/dtc/util.o
SHIPPED scripts/dtc/dtc-lexer.lex.c
SHIPPED scripts/dtc/dtc-parser.tab.h
SHIPPED scripts/dtc/dtc-parser.tab.c
UPD include/generated/version_autogenerated.h
HOSTCC scripts/dtc/dtc-lexer.lex.o
HOSTCC scripts/dtc/dtc-parser.tab.o
CC lib/asm-offsets.s
CC arch/arm/lib/asm-offsets.s
CHK include/generated/asm-offsets.h
CHK include/generated/generic-asm-offsets.h
UPD include/generated/asm-offsets.h
UPD include/generated/generic-asm-offsets.h
LDS u-boot.lds
CHK include/config.h
CFG u-boot.cfg
HOSTLD scripts/dtc/dtc
HOSTCC tools/gen_eth_addr
HOSTCC tools/gen_ethaddr_crc.o
WRAP tools/lib/crc8.c
HOSTCC tools/mkenvimage.o
HOSTCC tools/os_support.o
WRAP tools/lib/crc32.c

frameworks/base/tools/aapt2/format/proto/ProtoDeserialize.cpp:952:40: warning: 'fraction_value_deprecated' is deprecated [-Wdeprecated-declarations]
float fraction_val = pb_prim.fraction_value_deprecated();
^
bazel-out/rk3576_firefly_aio_3576q38-userdebug_linux_x86_64-opt-exec-9035C38A-ST-dfe92334bcc5/bin/frameworks/base/tools/aapt2/libaapt2_cc_proto_proto_gen/frameworks/base/tools/aapt2/Resources.pb.h:6704:3: note: 'fraction_value_deprecated' has been explicitly marked deprecated here
PROTOBUF_DEPRECATED float fraction_value_deprecated() const;
^
external/protobuf/src/google/protobuf/port_def.inc:339:45: note: expanded from macro 'PROTOBUF_DEPRECATED'
# define PROTOBUF_DEPRECATED __attribute__((deprecated))
^
2 warnings generated.
[ 99% 162302/162320] Apexer: [bazel-out/rk3576_firefly_aio_3576q38-userdebug-opt-ST-68c433942cf0/bin/system/timezone/apex/com.android.tzdata.apex.unsigned bazel-out/rk3576_firefly_aio_3576q38-userdebug-opt-ST-68c433942cf0/bin/sy
ninja: outputs should be files, not directories: out/bazel/output/execroot/__main__/bazel-out/rk3576_firefly_aio_3576q38-userdebug-opt-ST-68c433942cf0/bin/system/timezone/apex/com.android.tzdata_staging_dir
[ 99% 162303/162320] Apexer: [bazel-out/rk3576_firefly_aio_3576q38-userdebug-opt-ST-68c433942cf0/bin/packages/modules/adb/apex/com.android.adbd.apex.unsigned bazel-out/rk3576_firefly_aio_3576q38-userdebug-opt-ST-68c433942cf0/bin
ninja: outputs should be files, not directories: out/bazel/output/execroot/__main__/bazel-out/rk3576_firefly_aio_3576q38-userdebug-opt-ST-68c433942cf0/bin/packages/modules/adb/apex/com.android.adbd_staging_dir
[100% 162320/162320] Target super fs image for debug: out/target/product/rk3576_firefly_aio_3576q38/super.img
2025-10-23 20:28:14 - build_super_image.py - INFO : Building super image from info dict...
2025-10-23 20:28:14 - common.py - INFO : Running: "/home/rootroot/proj/RK3576_Android14.0/out/host/linux-x86/bin/lpmake --metadata-size 65536 --super-name super --metadata-slots 2 --device super:3263168512 --group rockchip_dynamic_partitions:3258974208 --partition system:readonly:1039118336:rockchip_dynamic_partitions --image system=out/target/product/rk3576_firefly_aio_3576q38/system.img --partition system_dlkm:readonly:262144:rockchip_dynamic_partitions --image system_dlkm=out/target/product/rk3576_firefly_aio_3576q38/system_dlkm.img --partition system_ext:readonly:183914496:rockchip_dynamic_partitions --image system_ext=out/target/product/rk3576_firefly_aio_3576q38/system_ext.img --partition vendor:readonly:328916992:rockchip_dynamic_partitions --image vendor=out/target/product/rk3576_firefly_aio_3576q38/vendor.img --partition vendor_dlkm:readonly:19492864:rockchip_dynamic_partitions --image vendor_dlkm=out/target/product/rk3576_firefly_aio_3576q38/vendor_dlkm.img --partition odm:readonly:811008:rockchip_dynamic_partitions --image odm=out/target/product/rk3576_firefly_aio_3576q38/odm.img --partition odm_dlkm:readonly:262144:rockchip_dynamic_partitions --image odm_dlkm=out/target/product/rk3576_firefly_aio_3576q38/odm_dlkm.img --partition product:readonly:280989696:rockchip_dynamic_partitions --image product=out/target/product/rk3576_firefly_aio_3576q38/product.img --sparse --output out/target/product/rk3576_firefly_aio_3576q38/super.img"
2025-10-23 20:28:16 - common.py - INFO : lpmake I 10-23 20:28:14 1437518 1437518 builder.cpp:1093] [liblp] Partition system will resize from 0 bytes to 1039118336 bytes
lpmake I 10-23 20:28:14 1437518 1437518 builder.cpp:1093] [liblp] Partition system_dlkm will resize from 0 bytes to 262144 bytes
lpmake I 10-23 20:28:14 1437518 1437518 builder.cpp:1093] [liblp] Partition system_ext will resize from 0 bytes to 183914496 bytes
lpmake I 10-23 20:28:14 1437518 1437518 builder.cpp:1093] [liblp] Partition vendor will resize from 0 bytes to 328916992 bytes
lpmake I 10-23 20:28:14 1437518 1437518 builder.cpp:1093] [liblp] Partition vendor_dlkm will resize from 0 bytes to 19492864 bytes
lpmake I 10-23 20:28:14 1437518 1437518 builder.cpp:1093] [liblp] Partition odm will resize from 0 bytes to 811008 bytes
lpmake I 10-23 20:28:14 1437518 1437518 builder.cpp:1093] [liblp] Partition odm_dlkm will resize from 0 bytes to 262144 bytes
lpmake I 10-23 20:28:14 1437518 1437518 builder.cpp:1093] [liblp] Partition product will resize from 0 bytes to 280989696 bytes
Invalid sparse file format at header magic
Invalid sparse file format at header magic
Invalid sparse file format at header magic
Invalid sparse file format at header magic
Invalid sparse file format at header magic
Invalid sparse file format at header magic
Invalid sparse file format at header magic
Invalid sparse file format at header magic
2025-10-23 20:28:16 - build_super_image.py - INFO : Done writing image out/target/product/rk3576_firefly_aio_3576q38/super.img

#### build completed successfully (04:17:10 (hh:mm:ss)) ####

Build android ok!
make and copy android images
TARGET_PRODUCT=rk3576_firefly_aio_3576q38
TARGET_BASE_PARAMETER_IMAGE==device/rockchip/common/baseparameter/v2.0/baseparameter.img
TARGET_AUTO_PQ_IMAGE==
HIGH_RELIABLE_RECOVERY_OTA=
BOARD_AVB_ENABLE=false
system filesysystem is ext4
create dtbo.img...
done.
create rockdev/Image-rk3576_firefly_aio_3576q38/resource.img...
done.
skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/init_boot.img
skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/pvmfw.img
create rockdev/Image-rk3576_firefly_aio_3576q38/boot.img...
done.
create rockdev/Image-rk3576_firefly_aio_3576q38/boot-debug.img...
done.
skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/vendor_boot.img
skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/vendor_boot-debug.img
create rockdev/Image-rk3576_firefly_aio_3576q38/recovery.img...
done.
create rockdev/Image-rk3576_firefly_aio_3576q38/super.img...
done.
skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/userdata.img
create vbmeta.img...
BOARD_AVB_ENABLE is false, use default vbmeta.img
create misc.img.... done.
create uboot.img...
make oem images...
u-boot/trust.img not fount! Please make it from u-boot first!
create loader...
create config.cfg...
create baseparameter...done.
Make image ok!
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
total 17464
drwx------ 37 rootroot rootroot 4096 10月 23 20:28 ./
drwx------ 5 rootroot rootroot 4096 10月 23 15:45 ../
lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp
drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/
lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/
lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*
lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*
drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/
drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/
drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/
drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:43 FFTools/
drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/
-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 16:10 kernel-6.1/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/
lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*
lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*
drwxrwxr-x 14 rootroot rootroot 4096 10月 23 20:28 out/
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/
drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/
drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/
-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*
-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*
-rwx------ 1 rootroot rootroot 63 10月 23 11:45 rk3576-android14.0-bundle.7z.md5sum*
drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:59 rkbin/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/
drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/
drwxrwxr-x 3 rootroot rootroot 4096 10月 23 20:28 rockdev/
drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/
drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/
drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/
drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/
drwxrwxr-x 27 rootroot rootroot 4096 10月 23 16:11 u-boot/
drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/
lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ du -sh
208G .
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ df -h
Filesystem Size Used Avail Use% Mounted on
udev 16G 0 16G 0% /dev
tmpfs 3.2G 8.9M 3.2G 1% /run
/dev/nvme0n1p7 55G 21G 32G 40% /
tmpfs 16G 136K 16G 1% /dev/shm
tmpfs 5.0M 4.0K 5.0M 1% /run/lock
tmpfs 16G 0 16G 0% /sys/fs/cgroup
/dev/loop0 128K 128K 0 100% /snap/bare/5
/dev/loop1 64M 64M 0 100% /snap/core20/2669
/dev/loop3 51M 51M 0 100% /snap/snapd/25202
/dev/loop2 64M 64M 0 100% /snap/core20/2599
/dev/loop4 517M 517M 0 100% /snap/gnome-42-2204/226
/dev/loop5 347M 347M 0 100% /snap/gnome-3-38-2004/119
/dev/loop6 92M 92M 0 100% /snap/gtk-common-themes/1535
/dev/loop7 350M 350M 0 100% /snap/gnome-3-38-2004/143
/dev/loop13 13M 13M 0 100% /snap/snap-store/1216
/dev/loop12 517M 517M 0 100% /snap/gnome-42-2204/202
/dev/loop8 74M 74M 0 100% /snap/core22/2133
/dev/loop11 46M 46M 0 100% /snap/snap-store/638
/dev/nvme0n1p4 536M 182M 315M 37% /boot
/dev/nvme0n1p6 2.5T 2.3T 125G 95% /home
/dev/nvme0n1p1 96M 33M 64M 34% /boot/efi
/dev/sda1 13T 11T 1.5T 88% /home/rootroot/14TB
tmpfs 3.2G 36K 3.2G 1% /run/user/1000
/dev/loop14 51M 51M 0 100% /snap/snapd/25577
/dev/loop9 74M 74M 0 100% /snap/core22/2139
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ cat /etc/issue
Ubuntu 20.04.6 LTS \n \l

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ uname -a
Linux rootroot-X99-Turbo 5.15.0-131-generic #141~20.04.1-Ubuntu SMP Thu Jan 16 18:38:51 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ./FFTools/mkupdate/mkupdate.sh -l rk3576_firefly_aio_3576q38-userdebug
will build update.img
-------------------KERNEL_VERSION:6.1
-------------------KERNEL_DTS:rk3576-firefly-aio-3576q38

Pack ./tools/images/ & ../kernel-6.1/resource.img to resource.img ...
Unpacking old image(../kernel-6.1/resource.img):
rk-kernel.dtb battery_1.bmp battery_2.bmp battery_3.bmp battery_4.bmp battery_5.bmp battery_fail.bmp logo.bmp logo_kernel.bmp battery_0.bmp 10
Pack to resource.img successed!

Packed resources:
rk-kernel.dtb battery_1.bmp battery_2.bmp battery_3.bmp battery_4.bmp battery_5.bmp battery_fail.bmp logo.bmp logo_kernel.bmp battery_0.bmp 10

./resource.img with battery images is ready
/home/rootroot/proj/RK3576_Android14.0
============================================
PLATFORM_VERSION_CODENAME=REL
PLATFORM_VERSION=14
PRODUCT_INCLUDE_TAGS=com.android.mainline
TARGET_PRODUCT=rk3576_firefly_aio_3576q38
TARGET_BUILD_VARIANT=userdebug
TARGET_ARCH=arm64
TARGET_ARCH_VARIANT=armv8-a
TARGET_CPU_VARIANT=generic
TARGET_2ND_ARCH=arm
TARGET_2ND_ARCH_VARIANT=armv8-a
TARGET_2ND_CPU_VARIANT=generic
HOST_OS=linux
HOST_OS_EXTRA=Linux-5.15.0-131-generic-x86_64-Ubuntu-20.04.6-LTS
HOST_CROSS_OS=windows
BUILD_ID=UQ1A.240205.004.B1
OUT_DIR=out
============================================
[100% 2049/2049] Creating Bazel symlink forest
audioflinger want to conditional Compile
devicefactory want to conditional Compile
hw_output_defaults want to conditional Compile
libaudioclient want to conditional Compile
libaudiohal want to conditional Compile
libeptz want to conditional Compile
libgralloc_priv want to conditional Compile
libmpimmz conditional Compile
libpq want to conditional Compile
librga want to conditional Compile
librkvt_win want to conditional Compile
librockx want to conditional Compile
pq_init want to conditional Compile
Rockchip conditional compile
rockit want to conditional Compile
cc_rockit_hw_service want to conditional Compile
tvinput want to conditional Compile
wildcard(out/target/product/rk3576_firefly_aio_3576q38/clean_steps.mk) was changed, regenerating...
$(shell date +%y%m%d%H%M) was changed, regenerating...
[100% 2050/2050] initializing build system ...
device/rockchip/common/prebuild.mk:2: warning: Generating manifest snapshot at out/commit_id.xml...
device/rockchip/common/prebuild.mk:3: warning: You can disable this by removing this and setting BOARD_RECORD_COMMIT_ID := false in BoardConfig.mk
[ 89% 2056/2290] including build/make/target/board/Android.mk ...
build fstab file with device/rockchip/common/scripts/fstab_tools/fstab.in....
rebuilding dtbo image with device/rockchip/rk3576/rk3576_firefly_aio_3576q38/dt-overlay.in....
build parameter.txt with device/rockchip/common/scripts/parameter_tools/parameter.in....
[ 91% 2095/2290] including external/rk_tee_user/v2/Android.mk ...
'building rk_tee_user v2'
$LOCAL_SRC_FILES = host/supp_plugin/test_supp_plugin.c
[ 94% 2159/2290] including hardware/rockchip/camera_engine_rkisp/Android.mk ...
TARGET_BOARD_PLATFORM=rk3576
[ 99% 2289/2290] finishing build rules ...
build/make/core/main.mk:1267: warning: PRODUCT_REMOVE_PACKAGES =
ninja: no work to do.

#### build completed successfully (03:04 (mm:ss)) ####

============================================
PLATFORM_VERSION_CODENAME=REL
PLATFORM_VERSION=14
PRODUCT_INCLUDE_TAGS=com.android.mainline
TARGET_PRODUCT=rk3576_firefly_aio_3576q38
TARGET_BUILD_VARIANT=userdebug
TARGET_ARCH=arm64
TARGET_ARCH_VARIANT=armv8-a
TARGET_CPU_VARIANT=generic
TARGET_2ND_ARCH=arm
TARGET_2ND_ARCH_VARIANT=armv8-a
TARGET_2ND_CPU_VARIANT=generic
HOST_OS=linux
HOST_OS_EXTRA=Linux-5.15.0-131-generic-x86_64-Ubuntu-20.04.6-LTS
HOST_CROSS_OS=windows
BUILD_ID=UQ1A.240205.004.B1
OUT_DIR=out
============================================
$(shell date +%y%m%d%H%M) was changed, regenerating...
$(shell date +%y%m%d%H%M) was changed, regenerating...
[100% 3/3] initializing build system ...
device/rockchip/common/prebuild.mk:2: warning: Generating manifest snapshot at out/commit_id.xml...
device/rockchip/common/prebuild.mk:3: warning: You can disable this by removing this and setting BOARD_RECORD_COMMIT_ID := false in BoardConfig.mk
[ 3% 9/243] including build/make/target/board/Android.mk ...
build fstab file with device/rockchip/common/scripts/fstab_tools/fstab.in....
rebuilding dtbo image with device/rockchip/rk3576/rk3576_firefly_aio_3576q38/dt-overlay.in....
build parameter.txt with device/rockchip/common/scripts/parameter_tools/parameter.in....
[ 19% 48/243] including external/rk_tee_user/v2/Android.mk ...
'building rk_tee_user v2'
$LOCAL_SRC_FILES = host/supp_plugin/test_supp_plugin.c
[ 46% 112/243] including hardware/rockchip/camera_engine_rkisp/Android.mk ...
TARGET_BOARD_PLATFORM=rk3576
[ 99% 242/243] finishing build rules ...
build/make/core/main.mk:1267: warning: PRODUCT_REMOVE_PACKAGES =
ninja: no work to do.

#### build completed successfully (03:01 (mm:ss)) ####

make and copy android images
TARGET_PRODUCT=rk3576_firefly_aio_3576q38
TARGET_BASE_PARAMETER_IMAGE==device/rockchip/common/baseparameter/v2.0/baseparameter.img
TARGET_AUTO_PQ_IMAGE==
HIGH_RELIABLE_RECOVERY_OTA=
BOARD_AVB_ENABLE=false
system filesysystem is ext4
create dtbo.img...
done.
create rockdev/Image-rk3576_firefly_aio_3576q38/resource.img...
done.
skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/init_boot.img
skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/pvmfw.img
create rockdev/Image-rk3576_firefly_aio_3576q38/boot.img...
done.
create rockdev/Image-rk3576_firefly_aio_3576q38/boot-debug.img...
done.
skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/vendor_boot.img
skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/vendor_boot-debug.img
create rockdev/Image-rk3576_firefly_aio_3576q38/recovery.img...
done.
create rockdev/Image-rk3576_firefly_aio_3576q38/super.img...
done.
skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/userdata.img
create vbmeta.img...
BOARD_AVB_ENABLE is false, use default vbmeta.img
create misc.img.... done.
create uboot.img...
make oem images...
u-boot/trust.img not fount! Please make it from u-boot first!
create loader...
create config.cfg...
create baseparameter...done.
Make image ok!
Make update.img
packing update.img with Image -RK3576
regenernate package-file-tmp...
start to make update.img...
Android Firmware Package Tool v2.2
------ PACKAGE ------
Add file: ./package-file
package-file,Add file: ./package-file done,offset=0x800,size=0x2ac,userspace=0x1
Add file: ./Image/MiniLoaderAll.bin
bootloader,Add file: ./Image/MiniLoaderAll.bin done,offset=0x1000,size=0xba1f9,userspace=0x175
Add file: ./Image/parameter.txt
parameter,Add file: ./Image/parameter.txt done,offset=0xbb800,size=0x2cc,userspace=0x1,flash_address=0x00000000
Add file: ./Image/uboot.img
uboot,Add file: ./Image/uboot.img done,offset=0xbc000,size=0x400000,userspace=0x800,flash_address=0x00004000
Add file: ./Image/misc.img
misc,Add file: ./Image/misc.img done,offset=0x4bc000,size=0xc000,userspace=0x18,flash_address=0x00008000
Add file: ./Image/dtbo.img
dtbo,Add file: ./Image/dtbo.img done,offset=0x4c8000,size=0x400000,userspace=0x800,flash_address=0x0000a000
Add file: ./Image/vbmeta.img
vbmeta,Add file: ./Image/vbmeta.img done,offset=0x8c8000,size=0x1000,userspace=0x2,flash_address=0x0000c000
Add file: ./Image/boot.img
boot,Add file: ./Image/boot.img done,offset=0x8c9000,size=0x272f800,userspace=0x4e5f,flash_address=0x0000c800
Add file: ./Image/recovery.img
recovery,Add file: ./Image/recovery.img done,offset=0x2ff8800,size=0x5e2d800,userspace=0xbc5b,flash_address=0x0002c800
Add file: ./Image/baseparameter.img
baseparameter,Add file: ./Image/baseparameter.img done,offset=0x8e26000,size=0x100000,userspace=0x200,flash_address=0x001fcc00
Add file: ./Image/super.img
super,Add file: ./Image/super.img done,offset=0x8f26000,size=0x6de71a98,userspace=0xdbce4,flash_address=0x001fd400
Add file: ./Image/oem.img
oem,Add file: ./Image/oem.img done,offset=0x76d98000,size=0xa3013c,userspace=0x1461,flash_address=0x00811400
Add CRC...
Make firmware OK!
------ OK ------
********rkImageMaker ver 2.23********
Generating new image, please wait...
Writing head info...
Writing boot file...
Writing firmware...
Generating MD5 data...
MD5 data generated successfully!
New image generated successfully!
Making update.img OK.
Make update image ok!
/home/rootroot/proj/RK3576_Android14.0
rename rockdev/Image-rk3576_firefly_aio_3576q38/update.img to rockdev/Image-rk3576_firefly_aio_3576q38/AIO-3576Q38_Android14_HDMI_251023.img
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
